Analysis on degree of freedom of parallel mechanism based on basic branch chain

Abstract

Shortcomings are found based on the research on existing analysis methods of degree of freedom of mechanism. Based on the relativity and consistency characters of mechanism motion, It is concluded that the dynamic and static platform as well as each branch chain of mechanism must own consistent moving elements. In view of the structure features of common parallel mechanism, the idea is proposed that RPR branch chain need be regarded as the basic branch chain of parallel mechanism configuration, the rotational motion element R is defined as three types, and three kinds of basic forms of basic branch chain $\dot{\text{R}}\text{P}\dot{\text{R}}$ and $\ddot{\text{R}}\text{P}\ddot{\text{R}}$ and $\dddot{\text{R}}\text{P}\dddot{\text{R}}$ obtained, by using joint R motion elements added method, three kinds of Hooke hinge T/U obtained. According to the theory of relativity and consistency of the dynamic platform and the static platform, the input and output degree of freedom of parallel mechanism constructed by at least three branch chains of RPR/TPR/TPT/SPR/SPT/SPS based on the basic branch chain RPR is acquired, the scientificity and effectiveness of the method is verified by example.

Keywords

Parallel mechanism basic branch chain motion elements added trajectory output degree of freedom

1. Introduction

Mechanism innovation is an important part of mechanical innovation, the degree of freedom should be the most basic understanding if you are to know any new structures, degree of freedom is also known as mobility. According to IFToMM standard, degree of freedom is defined as the number of independent parameters that is needed to define determine the types of mechanism or the kinematic chain, that also means degree of freedom is the number of independent parameters that required to define the position of all members of the mechanism or kinematic chain under a certain position. G-K formula [1, 2] is the traditional formula of the degree of freedom with a history of hundreds of years, the G-K formula has been used to recognize the degrees of freedom of almost all planar mechanisms and some spatial mechanisms, and it is only based on the most basic arithmetic operations. However, there are counter examples in history, in 1978 the United States Professor Suh et al. [3], in 1980 Shigley et al. [4], in 1984 Sandor [5], in 1987, Mabie et al. [6], in 1998 Eckhardt [7], in 1999, University of Maryland Professor Tsai [8], in 2000 Professor of France Merlet [9], in 2004 international famous scholar Waldron [10] pointed out that the G-K formula cannot be applied to all examples and cases in their books, so that this formula cannot be regarded as a general formula. In 1983, Professor Hunt pointed out in his paper that the parallel mechanism of 5 degrees of freedom which can work normally does not exist [11]. In 2000, Merlet also mentioned in his monograph [12], it is impossible to construct a symmetrical parallel mechanism with the degree of freedom as 4 and 5. In 2011, Professor Huang of Yanshan University published a monograph named General formula for the degree of freedom of mechanism which have been explored for 150 years [13], general revised formula presented in the book. The aforementioned methods had been adopted based on part of following parameters which include the physical elements of mechanism and the characteristics of the motion elements and the relationship of the whole motion elements and the relationship of the local motion elements. Because these factors are explicit or implicit, either structural factors or motion elements, once if the structure is complex and special, the structural elements and other dominant parameters are easy to determine, but for the implicit parameters, such as local or whole characteristics of the motion elements, it is not easy to determine, it will bring inconvenience for the analysis process.

The known theory and method didn’t distinguish the degree of freedom of input motion and degree of freedom of output motion, the relativity and consistency principle of fixed terminal and execution terminal of the mechanism was not considered, according to the relative principle of motion, the fixed terminal and the execution terminal exchanged, according to the consistence principle of motion, the common trajectory of the execution terminal in two cases must be the same. In view of the structure features of general parallel mechanism, the idea of using branch chain RPR as the basic chain form of parallel mechanism is proposed, the rotational motion element R is defined into three types, as well as three types of Hooke joint T/U defined by the same way. According to the principle of relativity and consistency of the dynamic platform and the static platform of parallel mechanism, the input and output degree of freedom of parallel mechanism constructed by at least three branch chains of RPR/TPR/TPT/ SPR/SPT/SPS based on the basic branch chain RPR is acquired, the scientificity and effectiveness of the method is verified by example.

2. Relativity and consistency of mechanism motion

It can be learned from the relativity of motion that the space motion of the same object has relativity, that is fixed terminal and execution terminal of mechanism can be exchanged without affecting the motion performance of output execution terminal in space.

From the perspective of consistency of motion, the dynamic and static platform of parallel mechanism connected by branch chains to form a new object, the relative motion of two platforms is consistent, the consistency of motion is generated by all consistent motion elements of branch chains, inconsistent motion elements of each branch chain have no influence on the common trajectory of output terminal.

The output terminal trajectory of parallel mechanism can be viewed as the intersection of trajectory set of output terminal of each composed branch chain, it is common to make use of computer software to analyze the working space of mechanism by the adoption of envelope method. According to the different installation position and direction in the fixed coordinate system of mechanism, corresponding definitions and approach presented after in-depth analysis begin with the single joint.

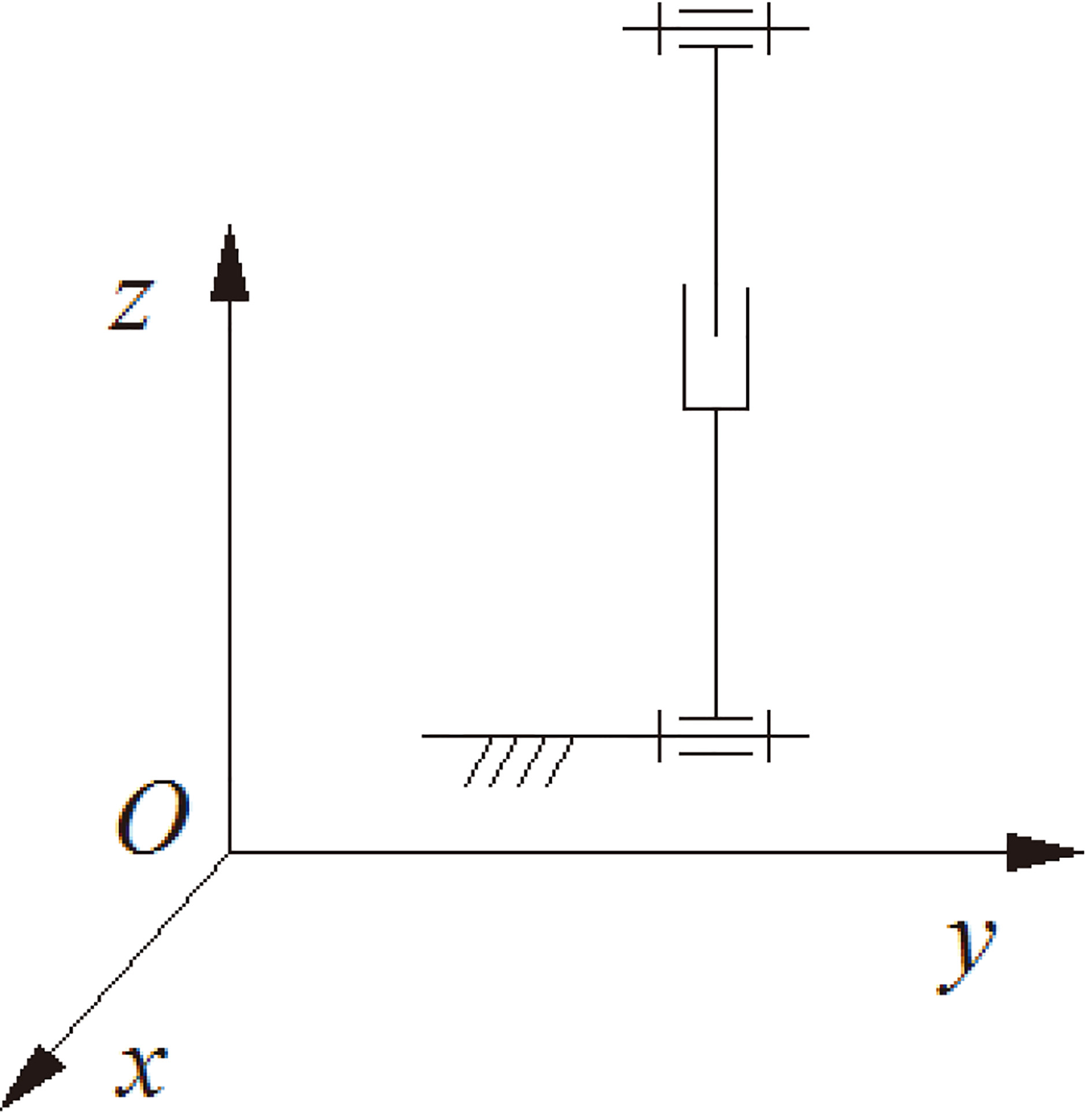

Figure 1.

First type of rotation joint $\dot{\text{R}}$ .

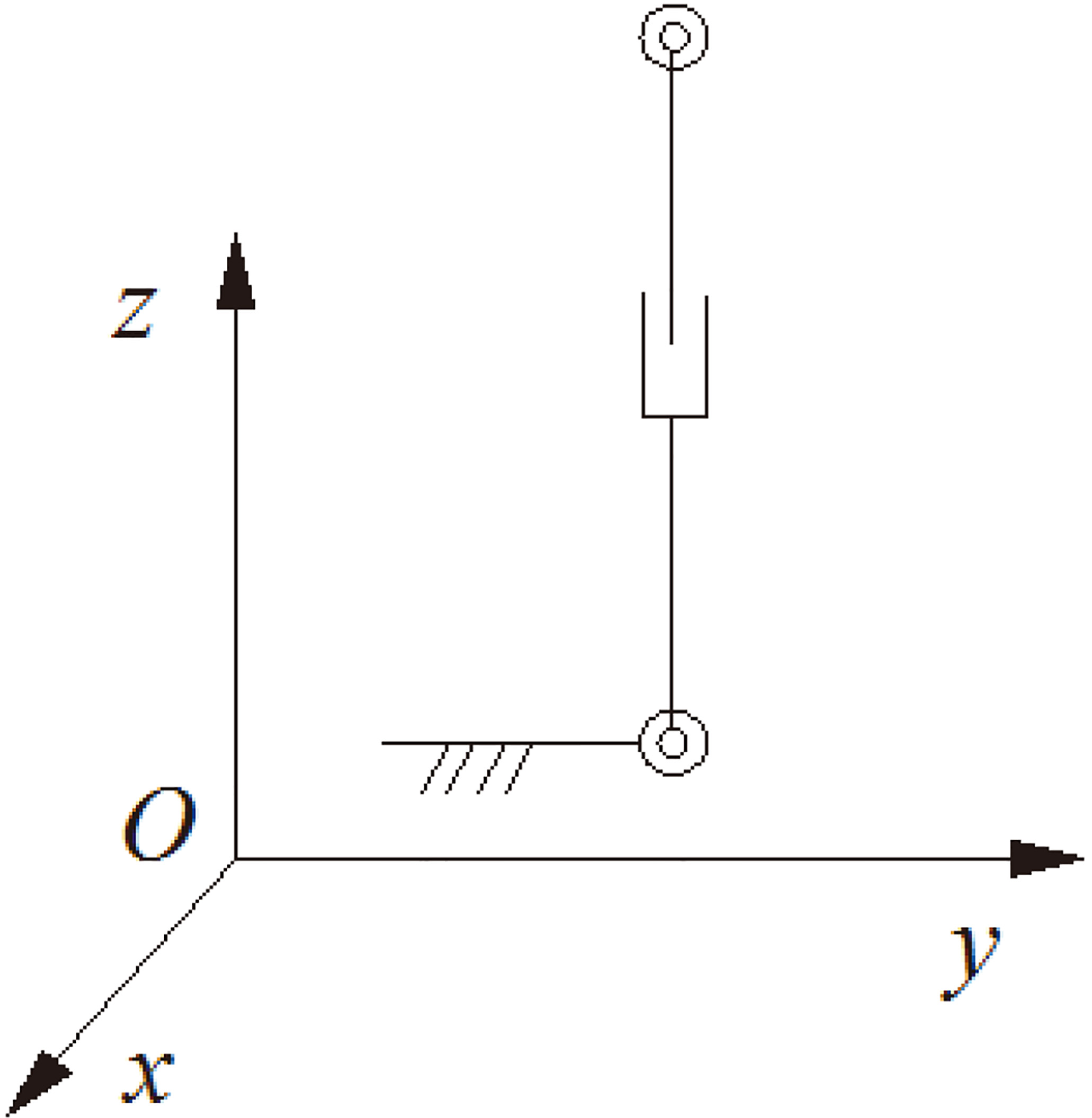

Figure 2.

Second type of rotation joint $\ddot{\text{R}}$ .

The rotation joint can move around the axis of fixed level to do upward or downward rotation, as shown in Fig. 1, this type of rotation is defined as the first type of rotation $\dot{\text{R}}$ . The rotation joint can move around the axis orthogonal to the fixed horizontal level to do left or right rotation, as shown in Fig. 2, this type of rotation is defined as the second type of rotation $\ddot{\text{R}}$ . The rotation joint can rotate around the axial direction of connecting rod, the spatial position and posture of joint connecting rod will not change, as shown in Fig. 3, this kind of rotation is defined as the third type of rotation $\dddot{\text{R}}$ .

Figure 3.

Third type of rotation joint $\dddot{\text{R}}$ .

3. Method of motion elements added to basic branch chain

Based on the characteristics of three types of rotational joints $\dot{\text{R}}$ , $\ddot{\text{R}}$ , $\dddot{\text{R}}$ , three types of Hooke hinge $\dot{\text{T}}/\dot{\text{U}},\ddot{\text{T}}/\ddot{\text{U}},\dddot{\text{T}}% /\dddot{\text{U}}$ founded correspondingly, which are defined as following, $\dot{\text{T}}=\dot{\text{R}}\dddot{\text{R}}$ , $\ddot{\text{T}}=\ddot{\text{R}}\dddot{\text{R}}$ , $\dddot{\text{T}}=\dot{\text{R}}\ddot{\text{R}}$ , in which the position of rotation joint meets the exchange law, that is, the effect is not influenced before and after the exchange. There is only one spherical hinge, that is $\mbox{S}=\dot{\text{R}}\ddot{\text{R}}\dddot{\text{R}}$ . In view of the configuration characteristics of the common parallel mechanism, the basic branch chain of the parallel mechanism configuration is presented in the form of RPR, following forms included.

The first type of basic branch chain $\dot{\text{R}}\text{P}\dot{\text{R}}$ , the second type of basic branch chain $\ddot{\text{R}}\text{P}\ddot{\text{R}}$ , the third type of basic branch chain $\dddot{\text{R}}\text{P}\dddot{\text{R}}$ , in which the direction of the mobile joint P is along the axis direction of branch chain.

As for other forms of branch chain, such as $\dot{\text{R}}\text{P}\ddot{\text{R}}$ and $\dot{\text{R}}\text{P}\dddot{\text{R}}$ and $\ddot{\text{R}}\text{P}\dddot{\text{R}}$ , two platform are connected by at least three types of branch chains as such, which will form a fixed structure with no motion characteristics, because they do not meet the consistency principle of motion elements, it will not be defined here.

Parallel mechanism is composed by M (M $\geqslant$ 3) first type of basic branch chains, the common trajectory of its execution terminal is a line, this line intersects with more than three (M) curved surfaces which are orthogonal to horizontal plane, as shown in Fig. 5. Parallel mechanism consists of more than M (M $\geqslant$ 3) second type of basic branch chains, the common trajectory of its execution terminal is a plane, which formed by M arcs and the arcs are formed by M circular surfaces paralleled to the horizontal plane, as shown in Fig. 7. Due to the facts that M (M $\geqslant$ 3) third basic branch chains consists of a fixed structure, there is no common trajectory existing in execution terminal, which is defined as null set.

The output terminal trajectory set may be line or circle(arc) or plane or curved surface or solid, species number of mathematical representation (line and circle) contained in trajectory collection is output degrees of freedom, output degree of freedom corresponding to line, circle(arc), plane, spherical, solid, is 1, 1, 3, 3, 6 respectively.

By adding rotation motion element to the rotation joint of the basic branch chain, the rotation joint R is changed into T joint, in the same way, the T joint is changed into S joint, this process is defined as method of motion elements added to basic branch chain. By means of this method, which combined with the output motion consistency of parallel mechanism constituted by motion chain, we can get the formula shown in Table 1. In all parallel mechanisms, we select the translation joint in each branch as its input motion element, $\dot{=}$ means equivalence, $\oplus$ represents generalized plus, which is reflected by the superposition of the terminal trajectory.

Table 1
Degree of freedom of parallel mechanism based on method of motion elements added to basic branch chain

Type of	Equivalent formula	Common trajectory set	IN-DOF	OUT-DOF
branch chain		of output terminal
RPR	$m-\dot{\text{R}}\text{P}\dot{\text{R}}\ \dot{=}\ m-\dot{\text{R}}\text{P}\dot{% \text{R}}$	Line segment	$m$	1
	$m-\ddot{\text{R}}\text{P}\ddot{\text{R}}\ \dot{=}\ m-\ddot{\text{R}}\text{P}% \ddot{\text{R}}$	Circular face	$m$	3
	$m-\dddot{\text{R}}\text{P}\dddot{\text{R}}\ \dot{=}\ m-\dddot{\text{R}}\text{P% }\dddot{\text{R}}$	Null set	0	0
TPR	$m-\dot{\text{T}}\text{P}\dot{\text{R}}\ \dot{=}\ m-\dot{\text{R}}\text{P}\dot{% \text{R}}$	Line segment	$m$	1
	$m-\dot{\text{T}}\text{P}\ddot{\text{R}}$	Null set	0	0
	$m-\dot{\text{T}}\text{P}\dddot{\text{R}}\ \dot{=}\ m-\dddot{\text{R}}\text{P}% \dddot{\text{R}}$	Null set	0	0
	$m-\ddot{\text{T}}\text{P}\dot{\text{R}}$	Null set	0	0
	$m-\ddot{\text{T}}\text{P}\ddot{\text{R}}\ \dot{=}\ m-\ddot{\text{R}}\text{P}% \ddot{\text{R}}$	Circular face	$m$	3
	$m-\ddot{\text{T}}\text{P}\dddot{\text{R}}\ \dot{=}\ m-\dddot{\text{R}}\text{P}% \dddot{\text{R}}$	Null set	0	0
	$m-\dddot{\text{T}}\text{P}\dot{\text{R}}\ \dot{=}\ m-\dot{\text{R}}\text{P}% \dot{\text{R}}$	Line segment	$m$	1
	$m-\dddot{\text{T}}\text{P}\ddot{\text{R}}\ \dot{=}\ m-\ddot{\text{R}}\text{P}% \ddot{\text{R}}$	Circular face	$m$	3
	$m-\dddot{\text{T}}\text{P}\dddot{\text{R}}$	Null set	0	0
TPT	$m-\dot{\text{T}}\text{P}\dot{\text{T}}\ \dot{=}\ m-\dot{\text{R}}\text{P}\dot{% \text{R}}$	Line segment	$m$	1
	$m-\ddot{\text{T}}\text{P}\ddot{\text{T}}\ \dot{=}\ m-\ddot{\text{R}}\text{P}% \ddot{\text{R}}$	Circular face	$m$	3
	$m-\dddot{\text{T}}\text{P}\dddot{\text{T}}\ \dot{=}\ m-(\dot{\text{R}}\text{P}% \dot{\text{R}}\oplus\ddot{\text{R}}\text{P}\ddot{\text{R}})$	Sphere	$m$	6
	$m-\dot{\text{T}}\text{P}\ddot{\text{T}}\ \dot{=}\ m-\dddot{\text{R}}\text{P}% \dddot{\text{R}}$	Null set	0	0
	$m-\ddot{\text{T}}\text{P}\dddot{\text{T}}\ \dot{=}\ m-\ddot{\text{R}}\text{P}% \ddot{\text{R}}$	Circular face	$m$	3
	$m-\dddot{\text{T}}\text{P}\dot{\text{T}}\ \dot{=}\ m-\dot{\text{R}}\text{P}% \dot{\text{R}}$	Line segment	$m$	1
SPR	$m-\text{SP}\dot{\text{R}}\ \dot{=}\ m-\dot{\text{R}}\text{P}\dot{\text{R}}$	Line segment	$m$	1
	$m-\text{SP}\ddot{\text{R}}\ \dot{=}\ m-\ddot{\text{R}}\text{P}\ddot{\text{R}}$	Circular face	$m$	3
	$m-\text{SP}\dddot{\text{R}}\ \dot{=}\ m-\dddot{\text{R}}\text{P}\dddot{\text{R}}$	Null set	0	0
SPT	$m-\text{SP}\dot{\text{T}}\ \dot{=}\ m-(\dot{\text{R}}\text{P}\dot{\text{R}}% \oplus\dddot{\text{R}}\text{P}\dddot{\text{R}})$	Line segment	$m$	1
	$m-\text{SP}\ddot{\text{T}}\ \dot{=}\ m-(\ddot{\text{R}}\text{P}\ddot{\text{R}}% \oplus\dddot{\text{R}}\text{P}\dddot{\text{R}})$	Circular face	$m$	3
	$m-\text{SP}\dddot{\text{T}}\ \dot{=}\ m-(\dot{\text{R}}\text{P}\dot{\text{R}}% \oplus\ddot{\text{R}}\text{P}\ddot{\text{R}})$	Sphere	$m$	6
SPS	$m-\text{SPS}\ \dot{=}\ m-(\dot{\text{R}}\text{P}\dot{\text{R}}\oplus\ddot{% \text{R}}\text{P}\ddot{\text{R}}\oplus\dddot{\text{R}}\text{P}\dddot{\text{R}})$	Sphere	$m$	6

We can know from the formula in Table 1.

(1)

If Parallel mechanism or structure is formed by M (M $\geqslant$ 3) RPR or TPR or SPR branch chains, its common trajectory set of output terminal point has three situations, that may be line segment or circular surface or null set, its corresponding representation number of motion dimensionality is 1, 3, 0, the corresponding output degree of freedom (OUT-DOF) is 1, 3, 0 respectively, the input degree of freedom is m or 0.

(2)

If Parallel mechanism is formed by M (M $\geqslant$ 3) TPT branch chains, its common trajectory set of output terminal point have four situations, that may be line segment or circular surface or sphere or null set, its corresponding representation number of motion dimensionality is 1, 3, 6, 0, the corresponding output degree of freedom (OUT-DOF) is 1, 3, 6, 0 respectively, the input degree of freedom is m or 0.

(3)

If Parallel mechanism is formed by M (M $\geqslant$ 3) SPT branch chains, its common trajectory set of output terminal point have three situations, that may be line segment or circular surface or sphere, its corresponding representation number of motion dimensionality is 1, 3, 6, the corresponding output degrees of freedom (OUT-DOF) is 1, 3, 6 respectively, the input degree of freedom is m.

(4)

If Parallel mechanism is formed by M (M $\geqslant$ 3) SPS branch chains, its common trajectory set of output terminal point only have one situation, that is sphere, its corresponding representation number of motion dimensionality is 6, the corresponding output degree of freedom (OUT-DOF) is 6, the input degree of freedom is m.

The following will take 3-RPR parallel mechanism as an example, by means of the basic branched chain motion element addition method, providing schematic diagram of parallel mechanism and its corresponding shape of common trajectory set of output terminal presented, the correctness of the formulas and conclusions given in Table 1 can be verified intuitively.

Figure 5 shows the common trajectory of output terminal of $3-\dot{\text{R}}\text{P}\dot{\text{R}}$ mechanism(as shown in Fig. 4), and three of them are orthogonal to the horizontal plane. The red line segment is orthogonal to the horizontal plane.

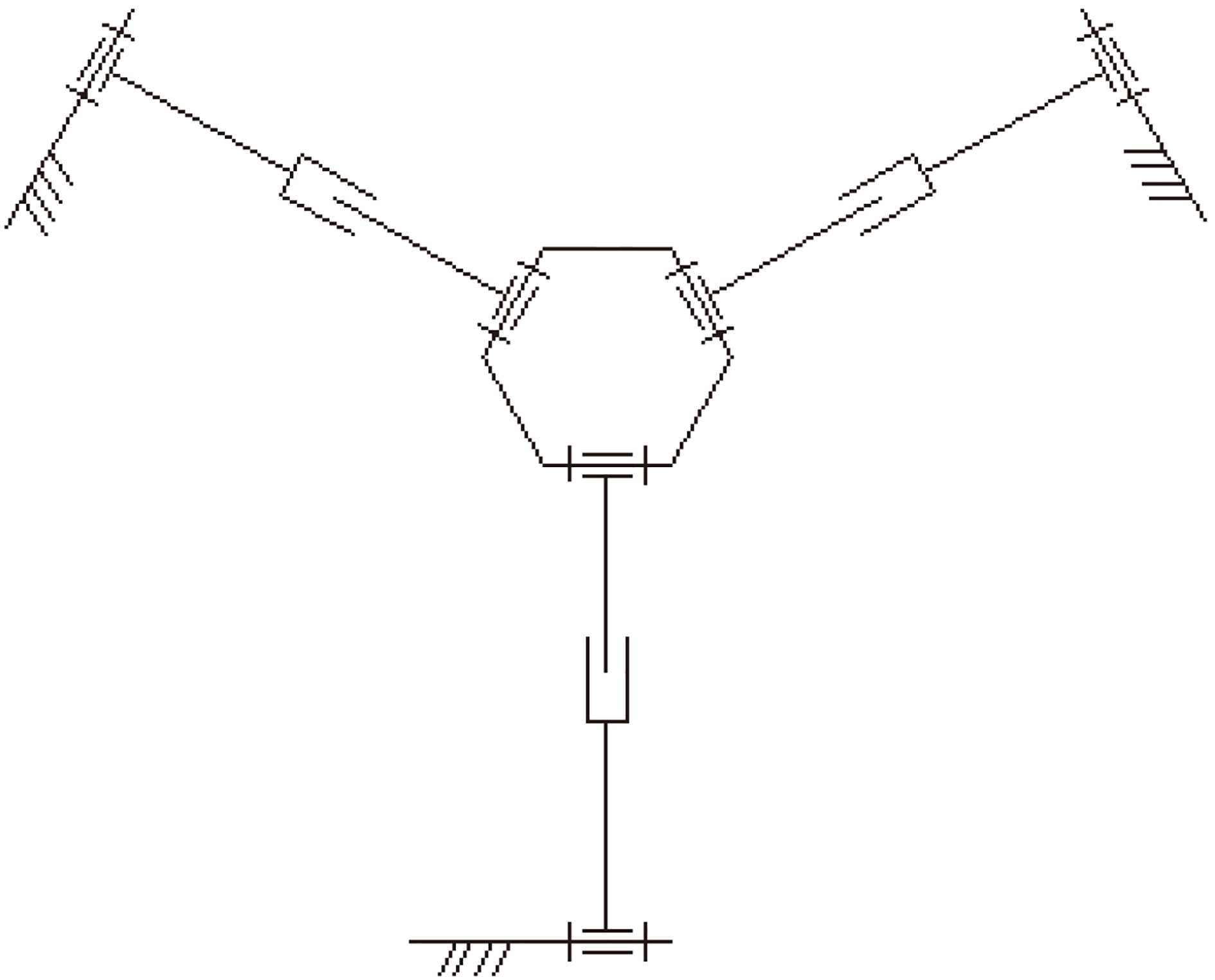

Figure 4.

Diagram of $3-\dot{\text{R}}\text{P}\dot{\text{R}}$ mechanism.

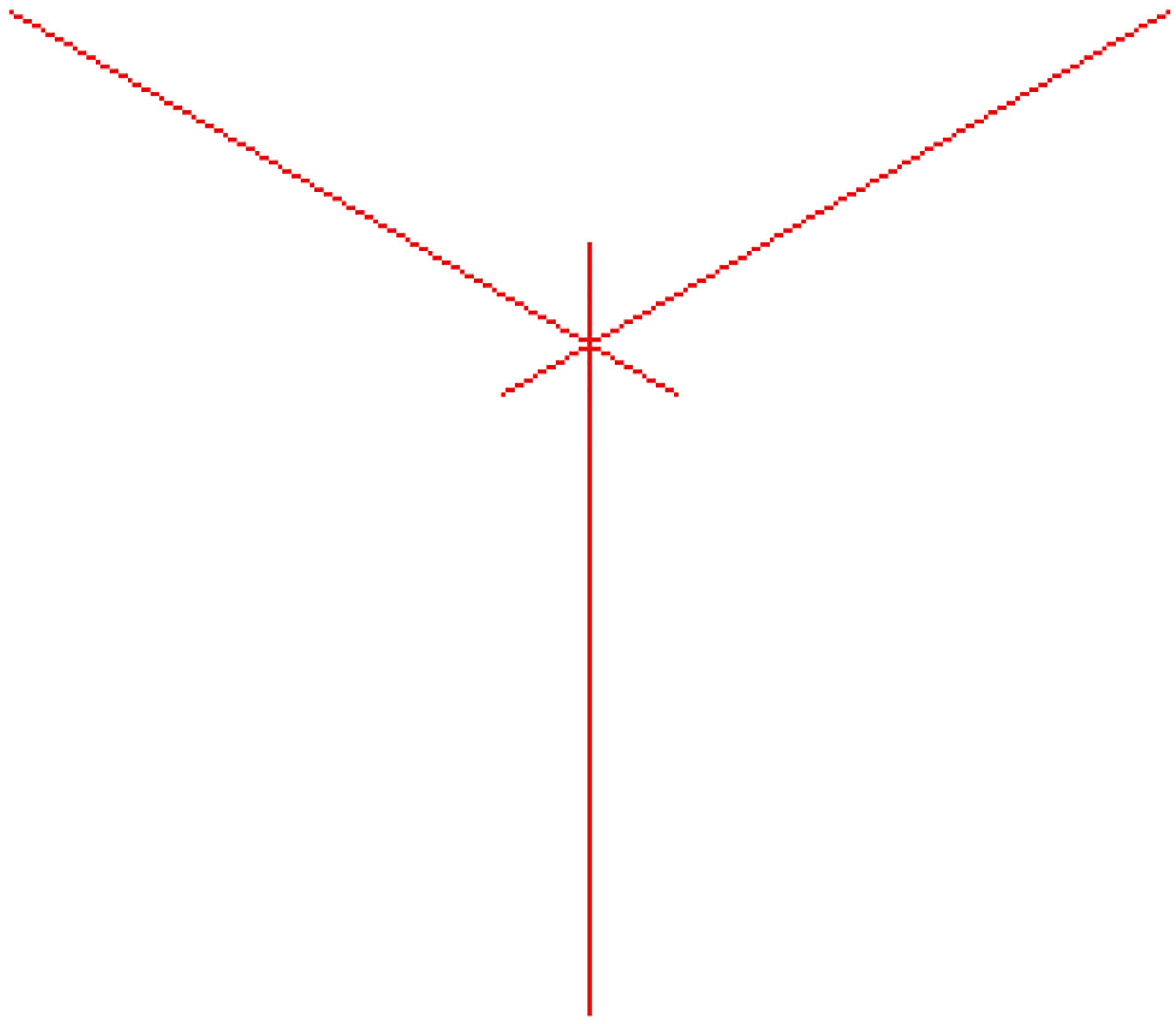

Figure 5.

Planform of output terminal trajectory synthesis of $3-\dot{\text{R}}\text{P}\dot{\text{R}}$ mechanism.

Figure 7 shows the common trajectory of output terminal of $3-\ddot{\text{R}}\text{P}\ddot{\text{R}}$ mechanism(as shown in Fig. 6), and three of them paralleled to the horizontal plane, which formed by 3 circular arcs intersected in the plane, the green shadow region is parallel to the horizontal plane.

In addition, according to the consistency of motion between the dynamic and the static platform, if there are no consistent motion elements between the branch chains connected them, $3-\dot{\text{R}}\text{P}\ddot{\text{R}}$ and $3-\ddot{\text{R}}\text{P}\dddot{\text{R}}$ and $3-\dot{\text{R}}\text{P}\dddot{\text{R}}$ are fixed structure, there will no motion characteristics on the terminal.

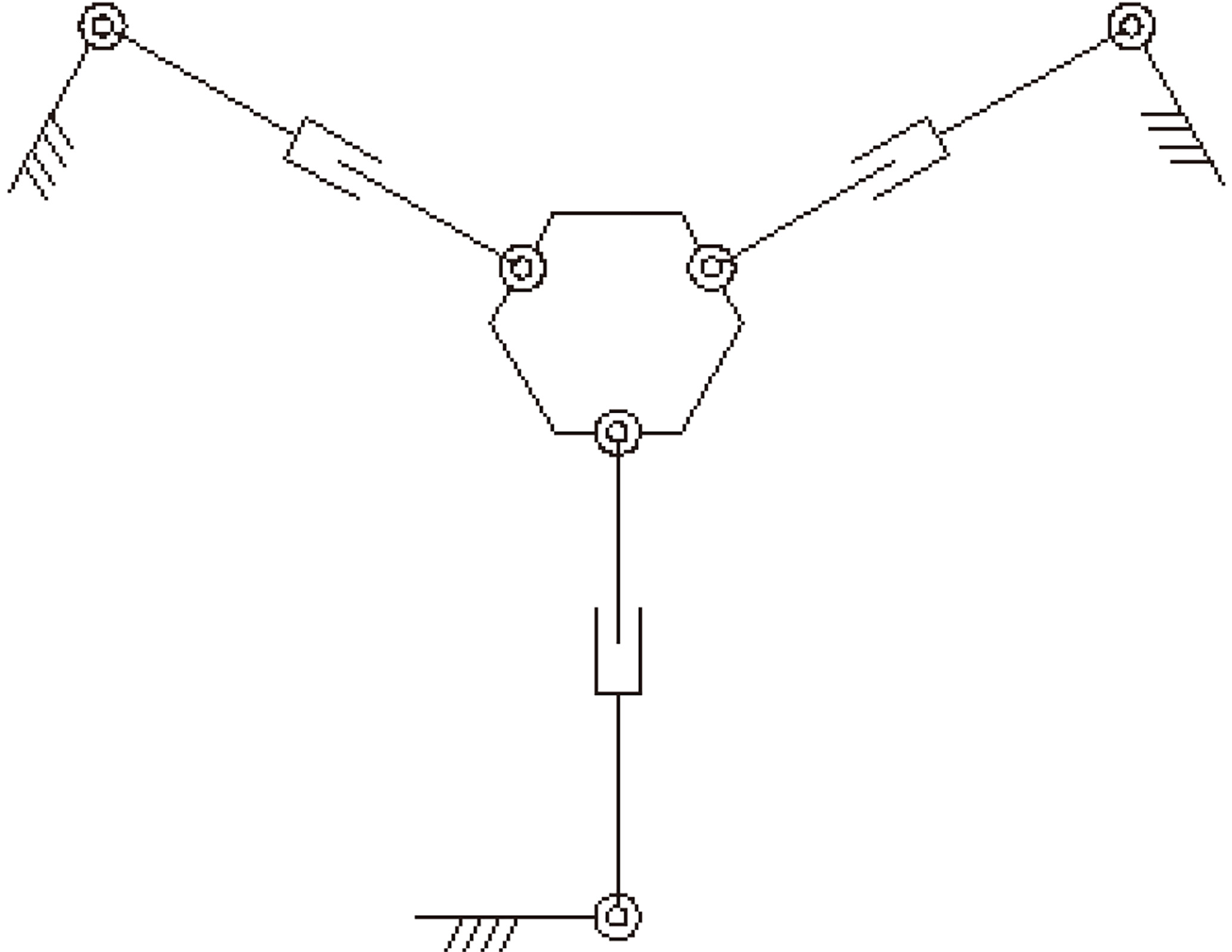

Figure 6.

Diagram of $3-\ddot{\text{R}}\text{P}\ddot{\text{R}}$ mechanism.

Figure 7.

Planform of output terminal trajectory synthesis of $3-\ddot{\text{R}}\text{P}\ddot{\text{R}}$ Mechanism.

Figure 8 shows the diagram of $3-\mbox{{R}P{R}}$ fixed structure, there is no output terminal common trajectory set, it is null set.

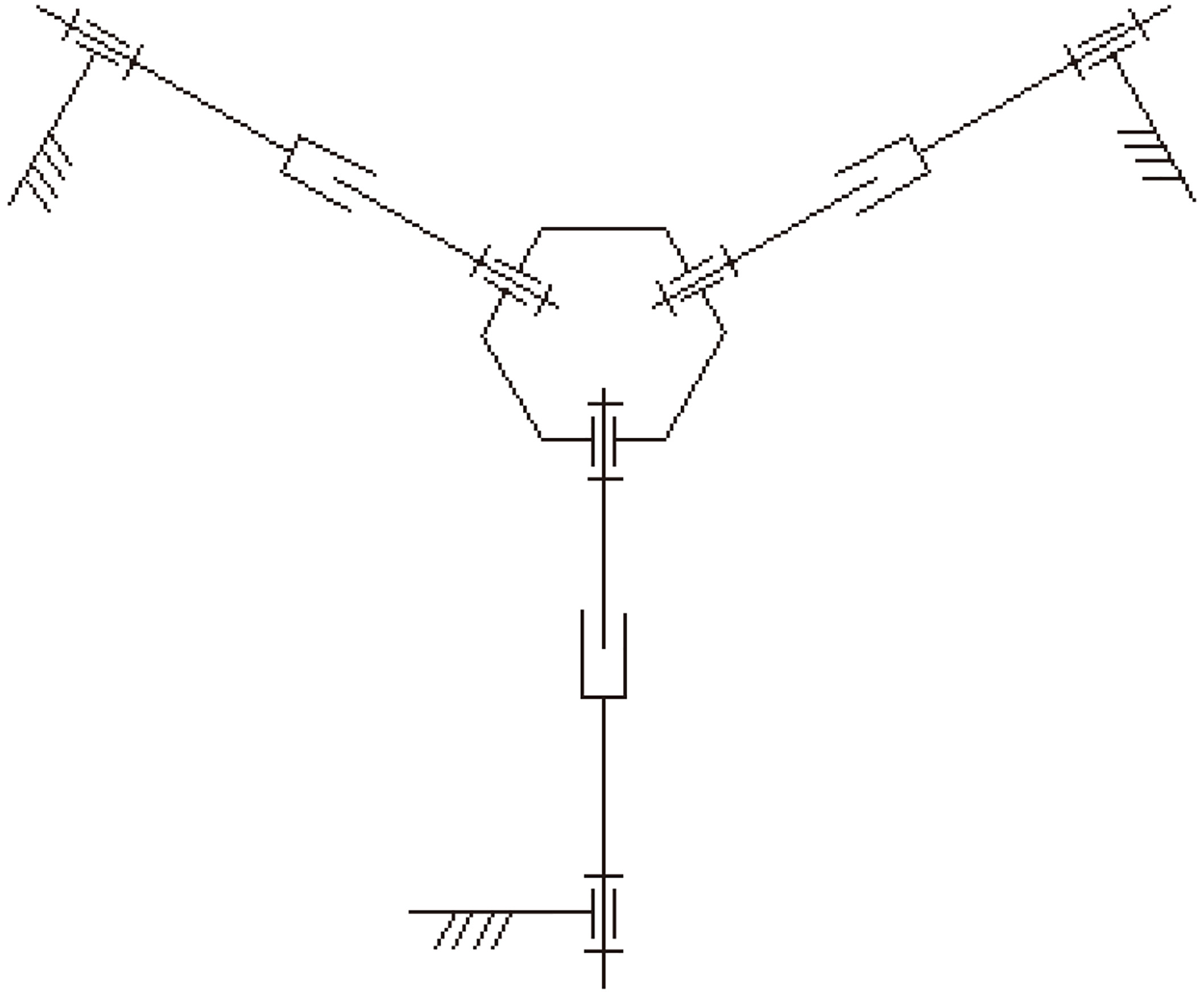

Figure 8.

Diagram of mechanism $3-\dddot{\text{R}}\text{P}\dddot{\text{R}}$ .

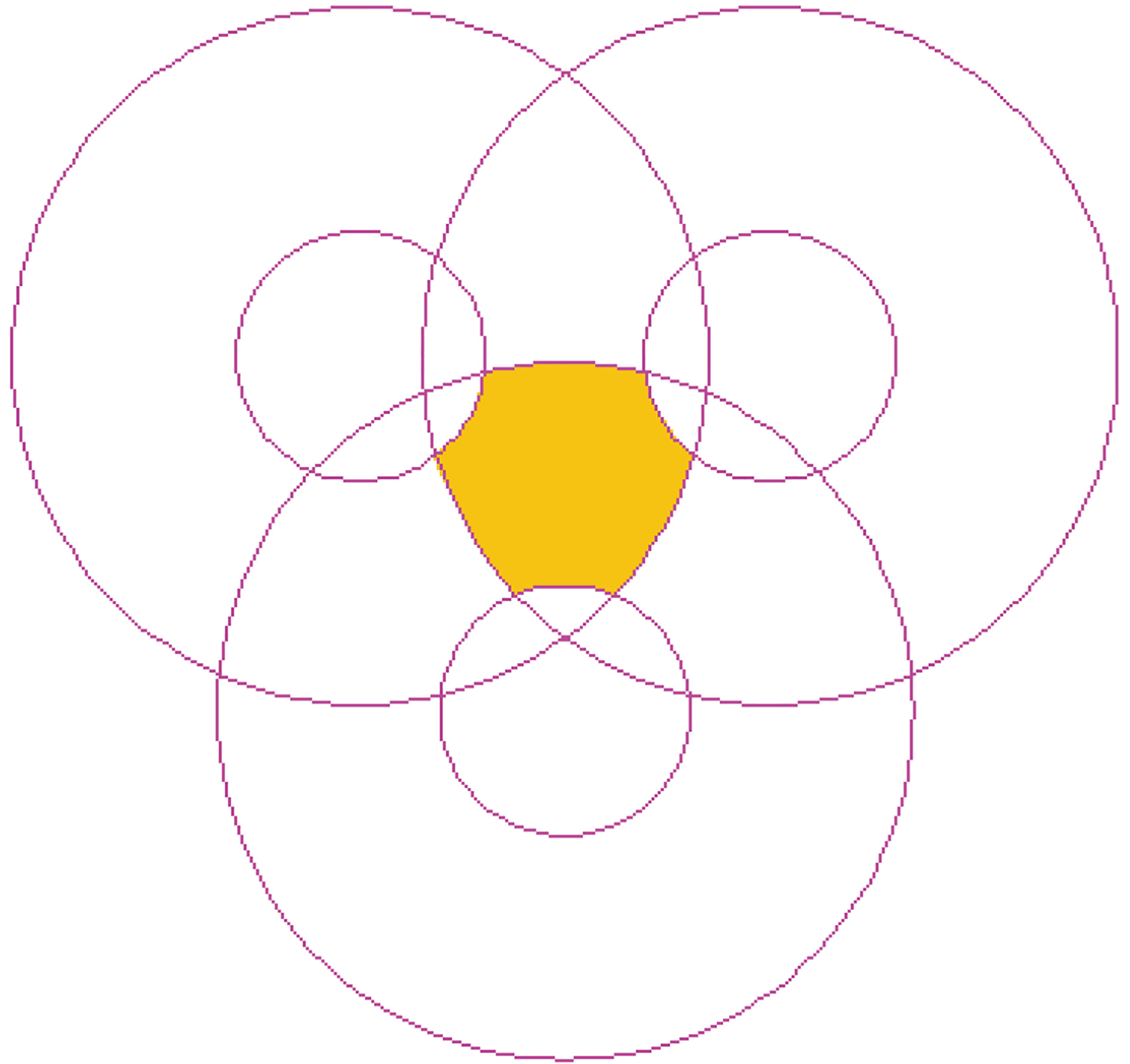

Figure 9.

Planform of output terminal trajectory synthesis of $3-\dddot{\text{T}}\text{P}\dddot{\text{T}}$ / $3-\text{SP}\dddot{\text{T}}$ / $3-\text{SPS}$ parallel mechanism.

3-RPR, 3-TPR, 3-TPT, 3-SPT, 3-SPS mechanism represented with traditional method as shown in Figs 9 to 13, which failed to reflect the specific characteristics of branch chains, according to the method and conclusion in Table 1, it can be known that Fig. 9 shows the $3-\dot{\text{R}}\text{P}\dot{\text{R}}$ parallel mechanism with 1 output degree of freedom. Figure 10 maybe show the $3-\dot{\text{T}}\text{P}\dot{\text{R}}$ parallel mechanism, its output degree of freedom is 1, Fig. 10 maybe show the $3-\ddot{\text{T}}\text{P}\dot{\text{R}}$ fixed structure, its output degree of freedom is 0. Fig. 11 maybe show the $3-\dot{\text{T}}\text{P}\dot{\text{T}}$ parallel mechanism or the $3-\dddot{\text{T}}\text{P}\dot{\text{T}}$ parallel mechanism, its output of degree of freedom is 1. It is possible that Fig. 11 shows the $3-\ddot{\text{T}}\text{P}\ddot{\text{T}}$ or $3-\ddot{\text{T}}\text{P}\dddot{\text{T}}$ parallel mechanism, the output of degree of freedom is 3. As well as the possibility exists for Fig. 11 show the $3-\dddot{\text{T}}\text{P}\dddot{\text{T}}$ parallel mechanism, its output of degree of freedom is 6. It may be $3-\dot{\text{T}}\text{P}\ddot{\text{T}}$ fixed structure, the output of degree of freedom is 0. The mechanism shown in Fig. 12 may be $3-\text{SP}\dot{\text{T}}$ parallel mechanism, its output degree of freedom is 1, it is also possible to be $3-\text{SP}\ddot{\text{T}}$ parallel mechanism, its output degree of freedom is 3, it may be $3-\text{SP}\dddot{\text{T}}$ parallel mechanism as well, its output degree of freedom is 6. In Fig. 13, there is only one expression form $3-\text{SPS}$ parallel mechanism, and the output degree of freedom is 6. As shown in Fig. 9, the common trajectory set of output terminal of $3-\dddot{\text{T}}\text{P}\dddot{\text{T}}$ or $3-\text{SP}\dddot{\text{T}}$ or $3-\text{SPS}$ parallel mechanism is the intersection of three spheres (the yellow shadow area as shown in Fig. 9). The corresponding solid has six kinds of mathematical representation of motion elements, and its degree of freedom is 6.

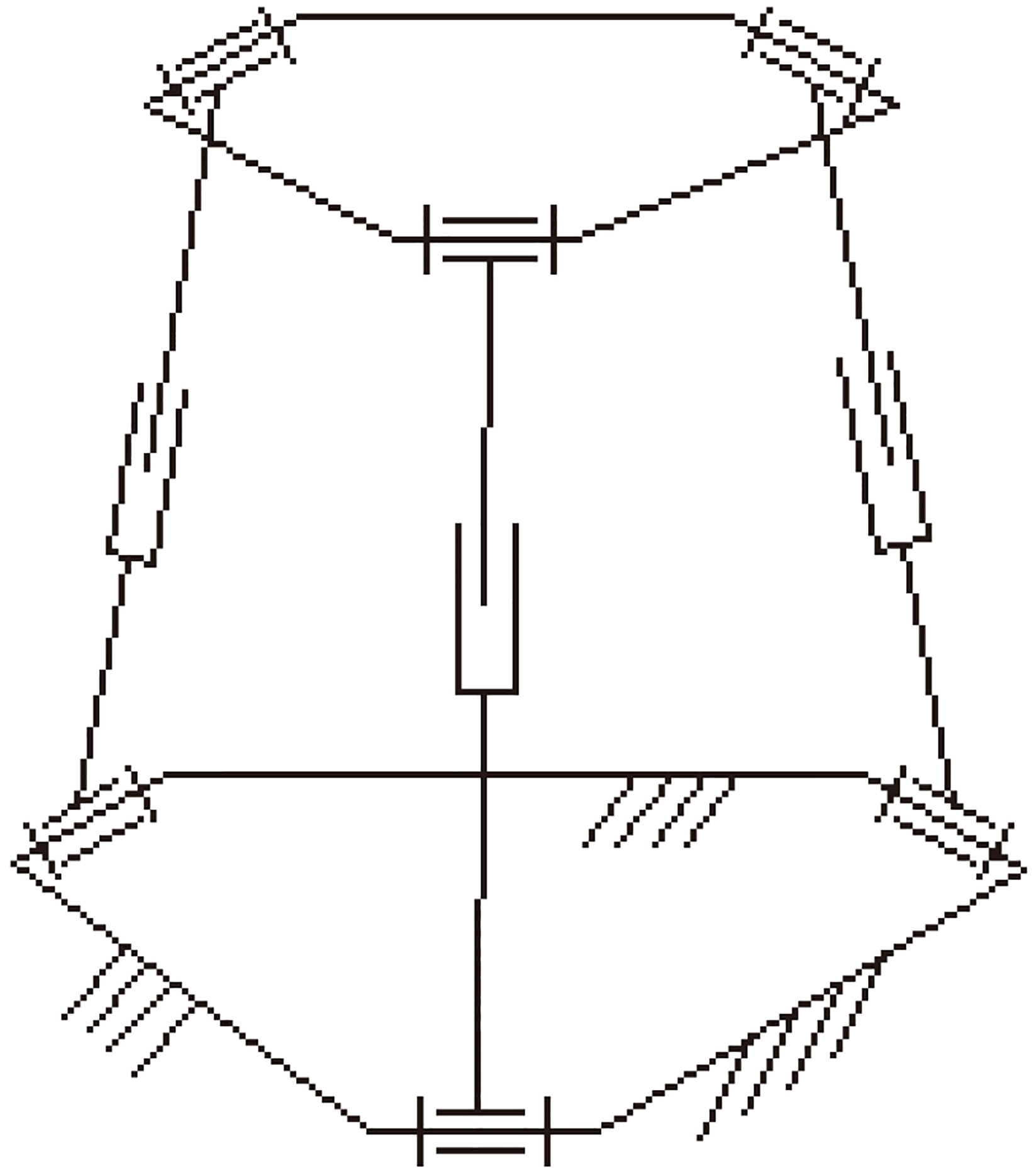

Figure 10.

Diagram of 3-RPR mechanism.

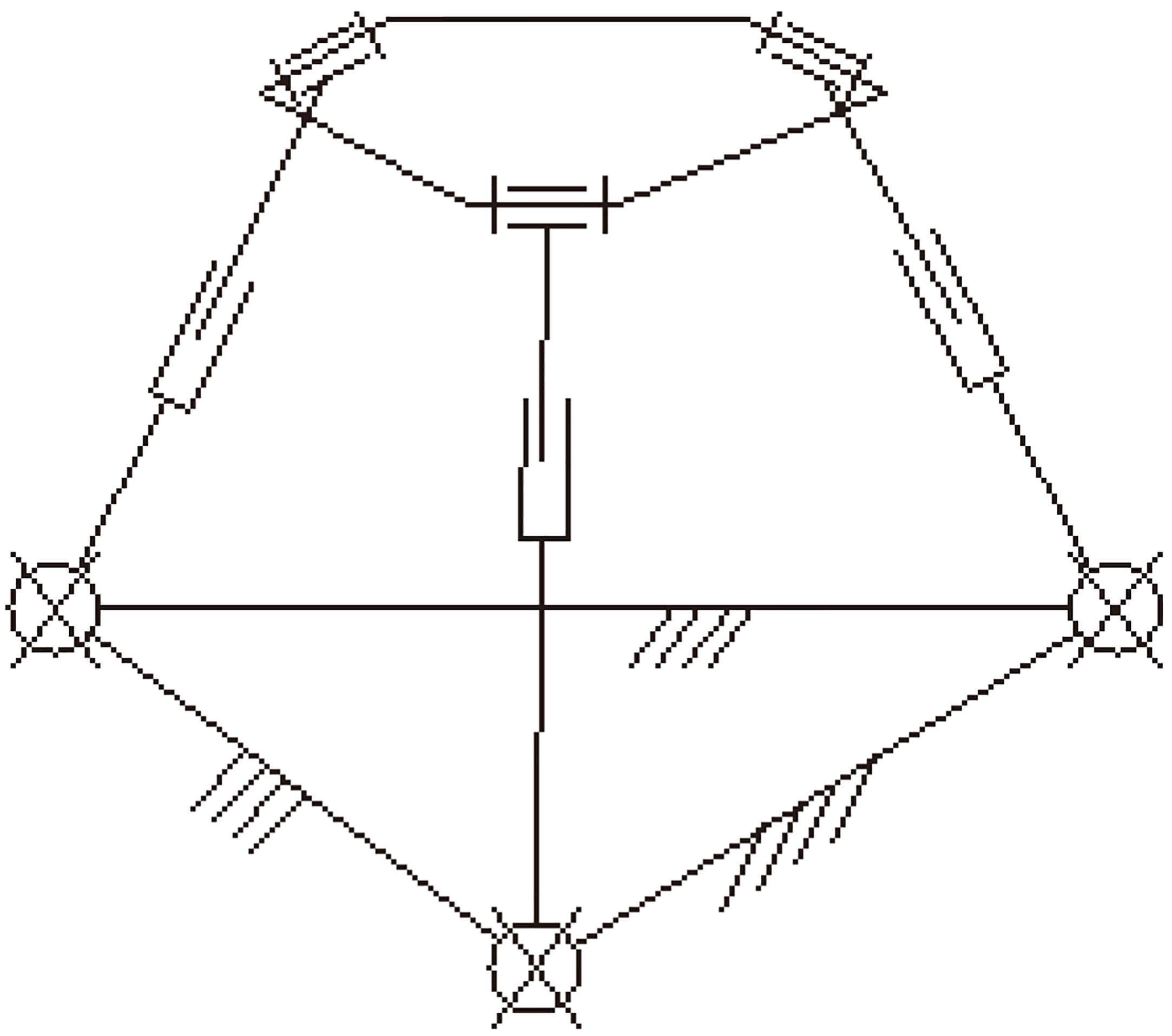

Figure 11.

Diagram of 3-TPR mechanism.

Figure 12.

Diagram of 3-UPU mechanism.

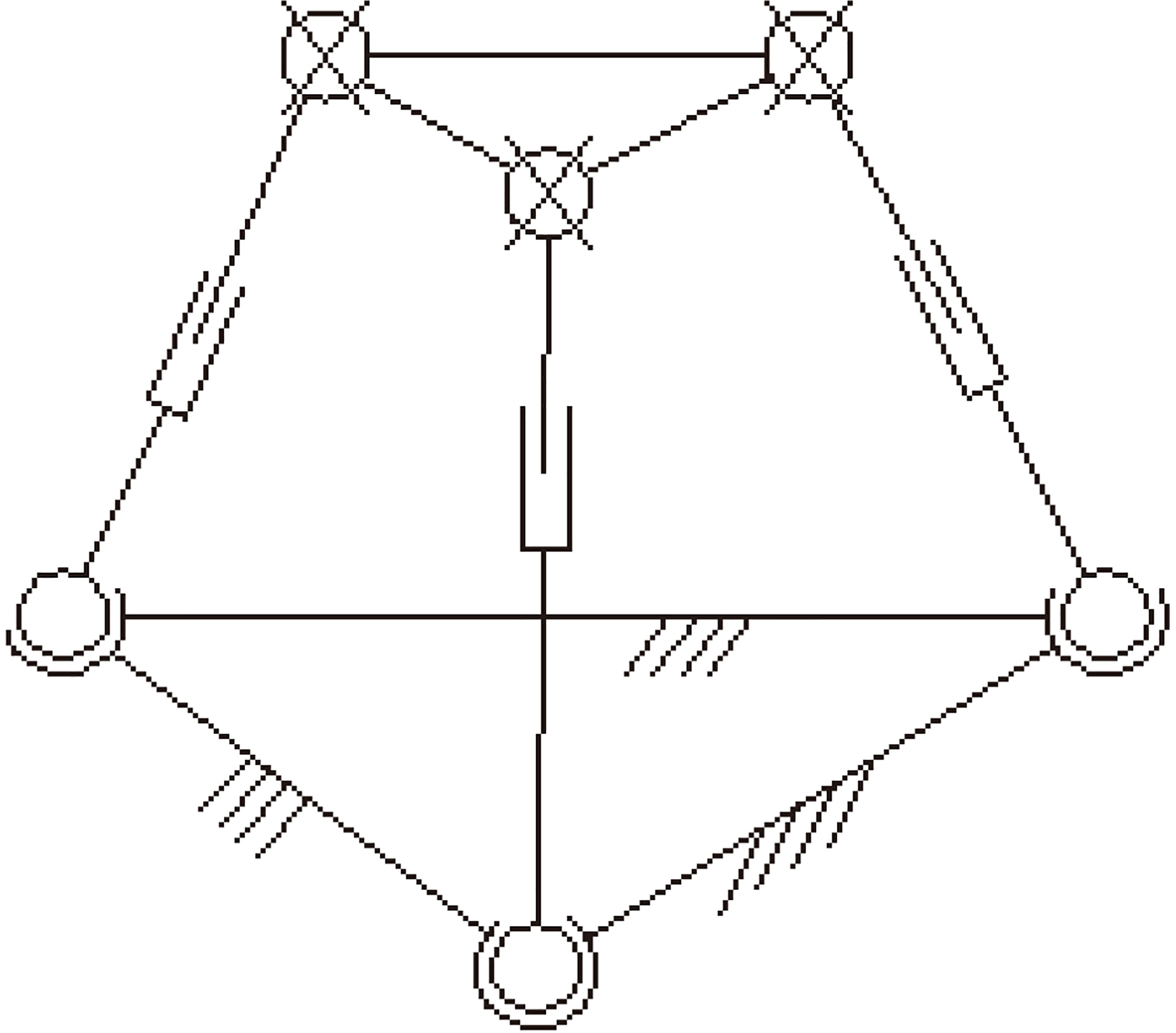

Figure 13.

Diagram of 3-SPU mechanism.

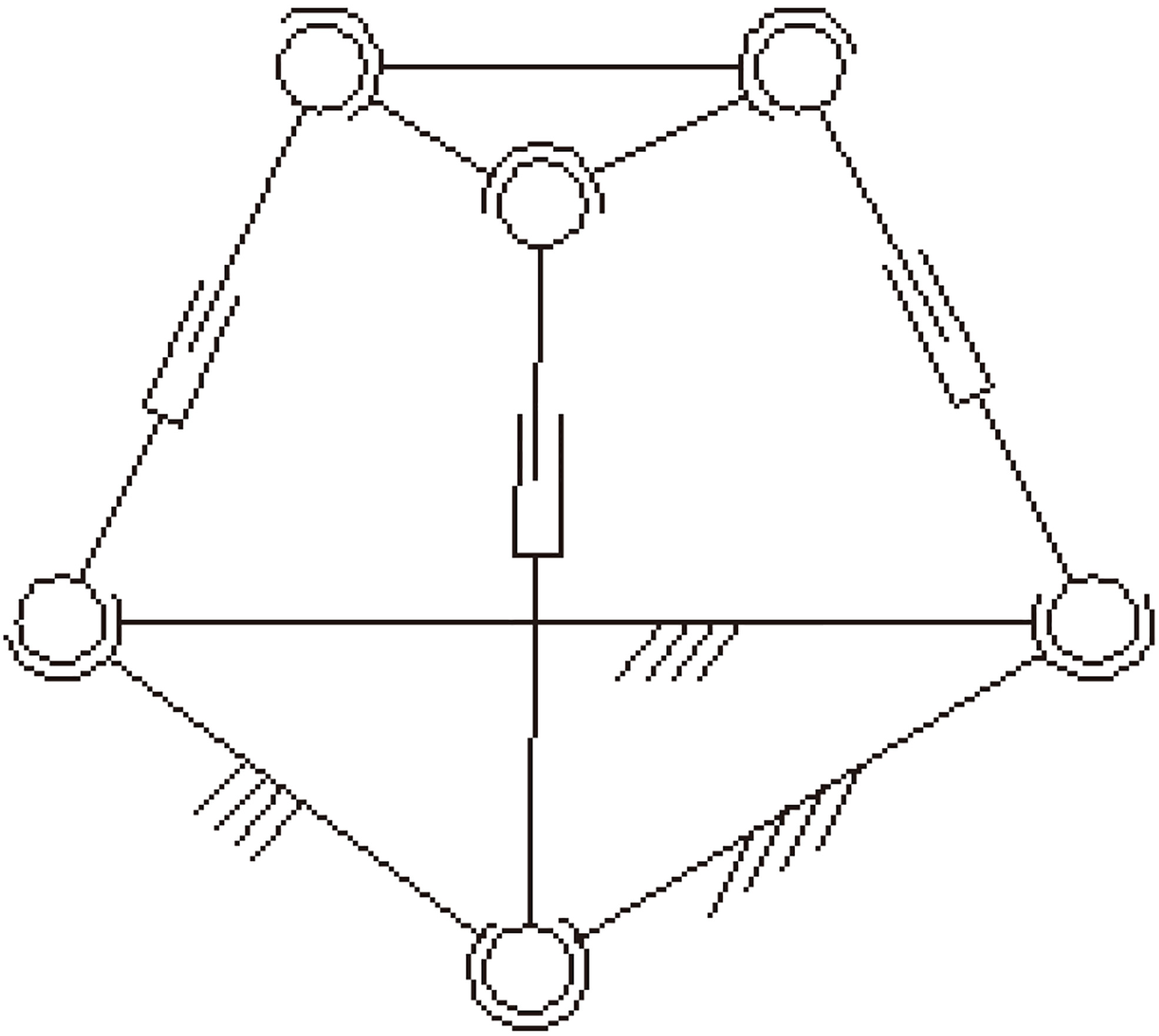

Figure 14.

Diagram of 3-SPS mechanism.

We can know from the above, accurate answer for degree of freedom can not always be found relying on the traditional diagram of mechanism and G-K formula or revised formula.

Except for Figs 10 and 14, other diagrams of mechanism shown in Figs 11–13 may express specific parallel mechanism with various forms of branch chain structure, the only exact answer can not be obtained then.

This method can be extended to 4-RPR parallel mechanism as shown in Fig. 15 and its stretched forms 4-TPR, 4-TPT, 4-SPR, 4-SPT, 4-SPS parallel mechanism, as well as 5-RPR parallel mechanism as shown in Fig. 16 and its stretched forms 5-TPR, 5-TPT, 5-SPR, 5-SPT, 5-SPS parallel mechanism, still 6-RPR parallel mechanism as shown in Fig. 17 and its stretched forms 6-TPR, 6-TPT, 6-SPR, 6-SPT, 6-SPS parallel mechanism.

Figure 15.

Diagram of 4-RPR mechanism.

Figure 16.

Diagram of 5-RPR mechanism.

Figure 17.

Diagram of 6-RPR mechanism.

4. Case analysis

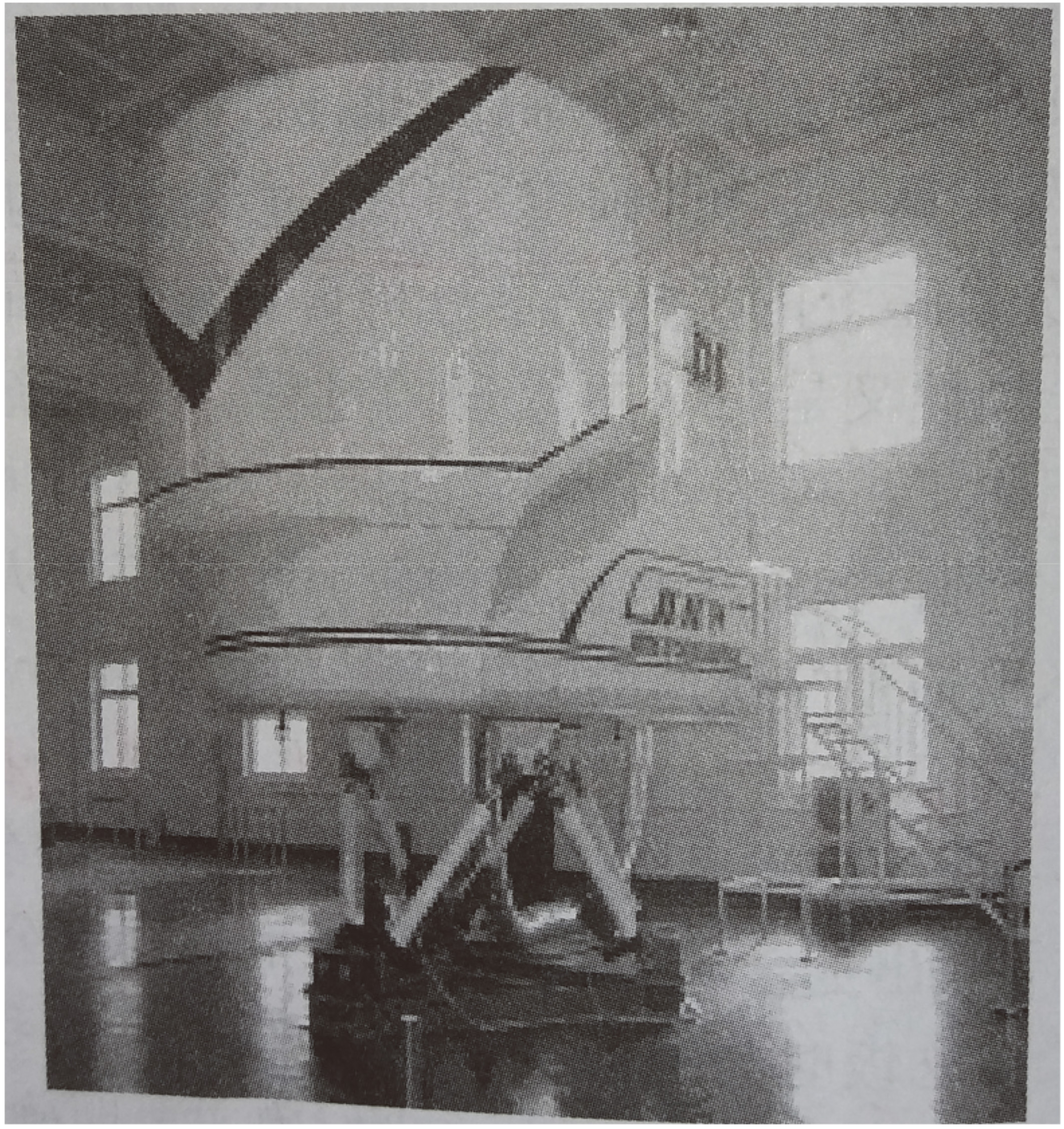

Professor Huang wrote in his book [13] that a company designed a 6-DOF motion simulator in 2007, it has been manufactured and installed in the workshop, as shown in Fig. 18, which has been running for a period of time in the laboratory. When my students observed it, they pointed out that the design of the freedom is not right immediately. It did not have six degree of freedom. The given conclusion is that the structure of the original 6-SPU is designed to 6-UPU structure. Here, the correctness of the conclusion is verified with the aforementioned method in this work.

Figure 18.

6-DOF motion simulator.

First of all, according to the formulas and conclusions shown in Table 1, combined with the above analysis of 3-RPR, 3-TPR, 3-TPT, 3-SPT, 3-SPS parallel mechanisms, we can get the planform of output terminal trajectory synthesis of 6-UPU (6-TPT), 6-SPU (6-SPT) parallel mechanism.

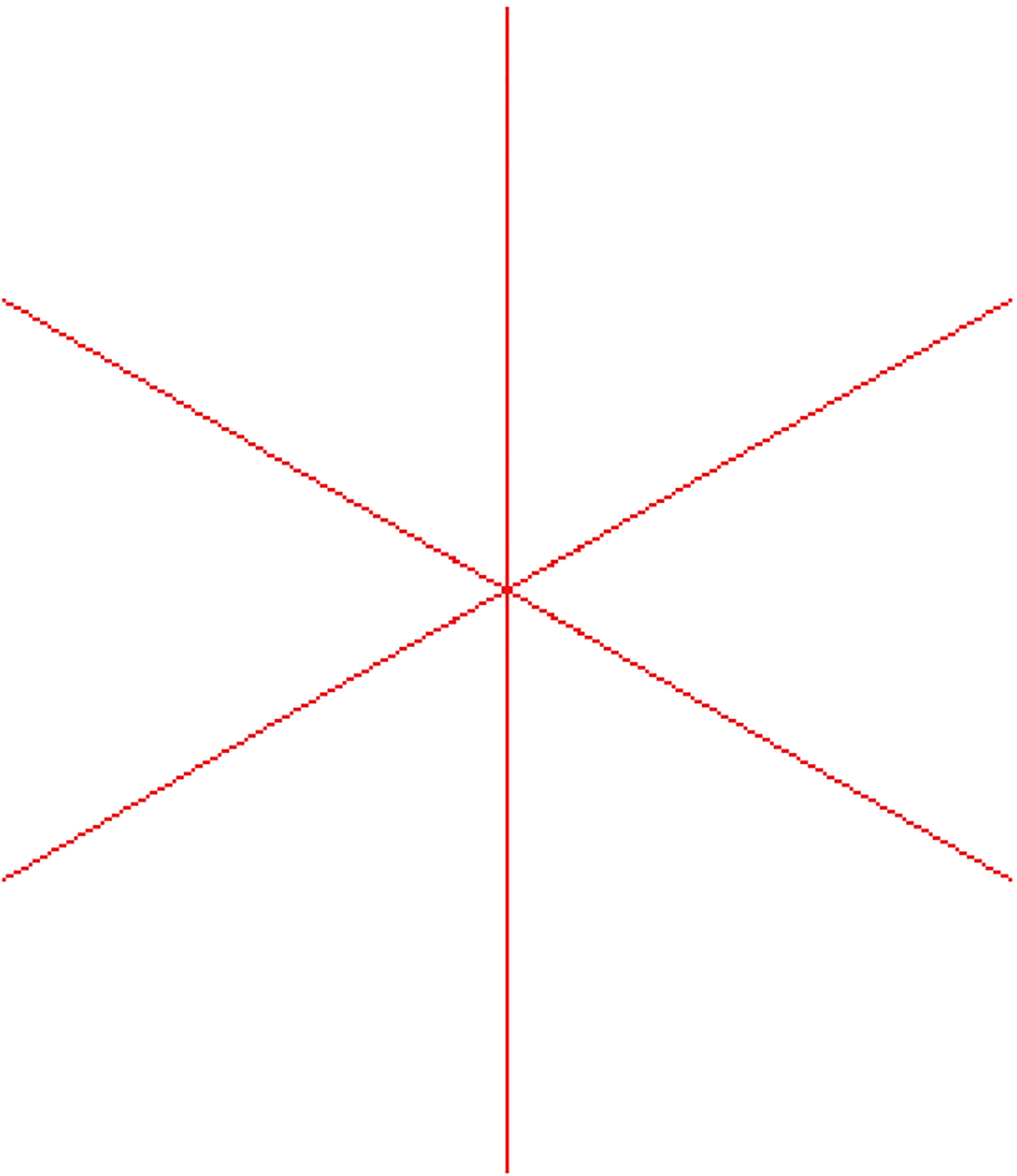

Figure 19.

Planform of output terminal trajectory synthesis of $6-\dot{\text{T}}\text{P}\dot{\text{T}}$ / $6-\dddot{\text{T}}\text{P}\dot{\text{T}}$ / $6-\text{SP}\dot{\text{T}}$ parallel mechanism.

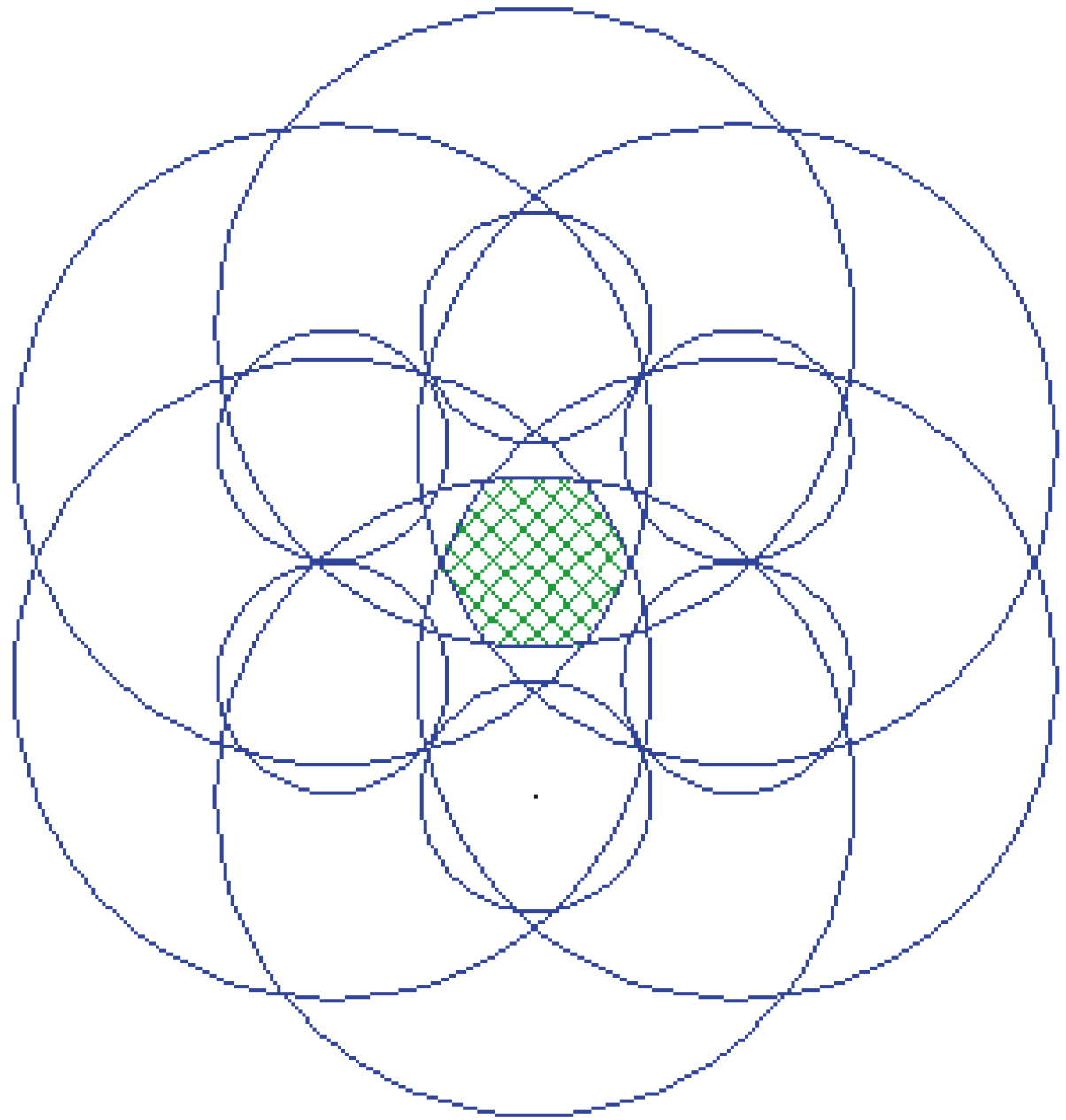

Figure 20.

Planform of output terminal trajectory synthesis of $6-\ddot{\text{T}}\text{P}\ddot{\text{T}}$ / $6-\ddot{\text{T}}\text{P}\dddot{\text{T}}$ / $6-\text{SP}\ddot{\text{T}}$ parallel mechanism.

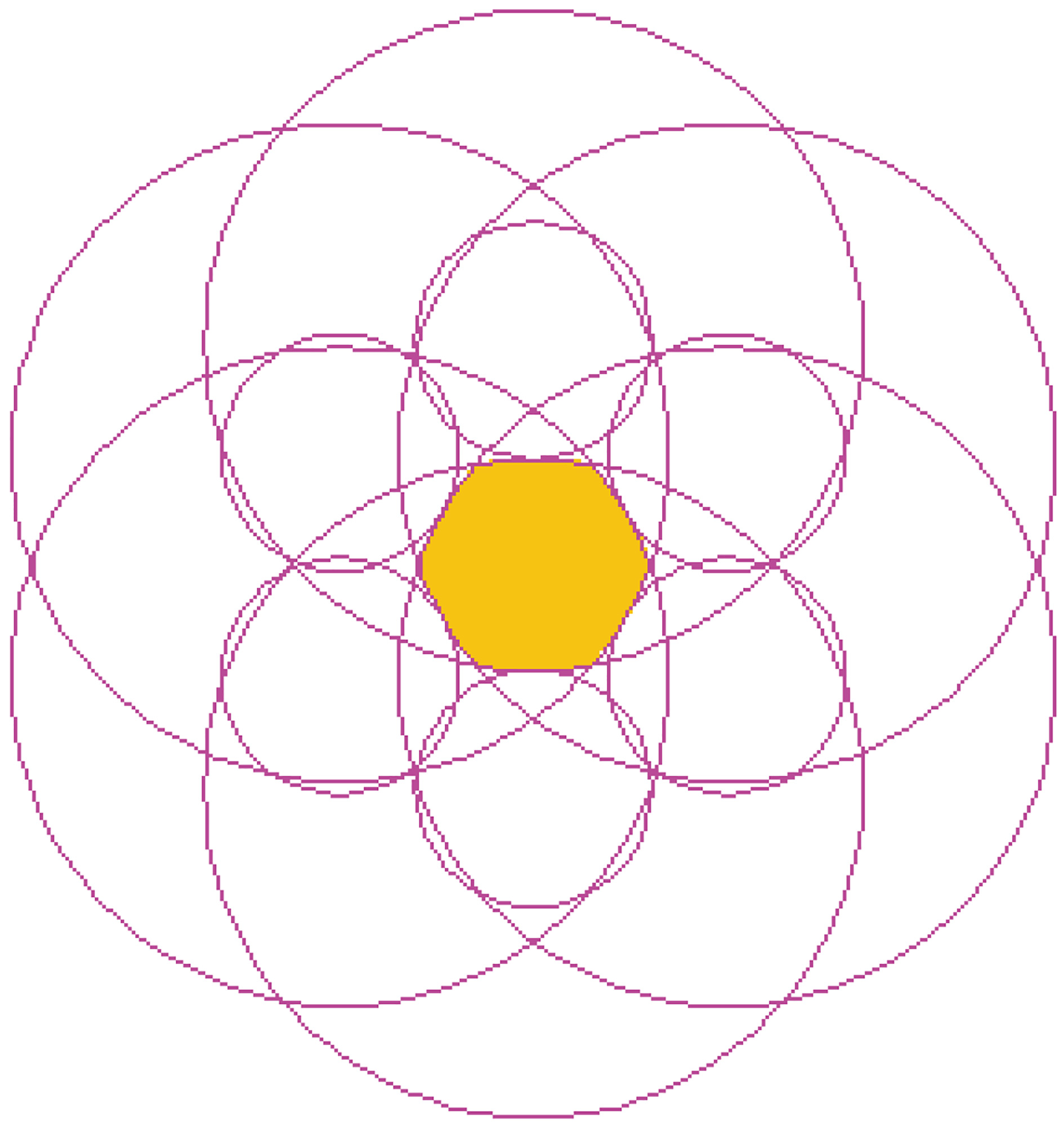

Figure 21.

Planform of output terminal trajectory synthesis of $6-\dddot{\text{T}}\text{P}\dddot{\text{T}}$ / $6-\text{SP}\dddot{\text{T}}$ parallel mechanism.

Secondly, planform of output terminal trajectory set of 6-TPT and 6-SPT parallel mechanism with different forms of branch chain structure obtained through in-deep analysis of Figs 19–21. Dimensionality of mathematical representation of output terminal motion elements in space found then,

Output degree of freedom of $6-\dot{\text{T}}\text{P}\dot{\text{T}}$ / $6-\dddot{\text{T}}\text{P}\dot{\text{T}}$ / $6-\text{SP}\dot{\text{T}}$ parallel mechanism is 1, as shown in Fig. 19. In Fig. 20, the output degree of freedom of $6-\ddot{\text{T}}\text{P}\ddot{\text{T}}$ / $6-\ddot{\text{T}}\text{P}\dddot{\text{T}}$ / $6-\text{SP}\ddot{\text{T}}$ parallel mechanism is 3. The output degree of freedom of $6-\dddot{\text{T}}\text{P}\dddot{\text{T}}$ / $6-\text{SP}\dddot{\text{T}}$ parallel mechanism is 6, as shown in Fig. 21.

From the above, the parallel mechanism with 6 output degree of freedom can be constructed into the form of $6-\dddot{\text{T}}\text{P}\dddot{\text{T}}$ , it can also be constructed into the form of $6-\text{SP}\dddot{\text{T}}$ , so the conclusion presented in the literature are not correct and too one-sided, there should be two situations that can realize the motion of 6 degree of freedom, but it needs the structure description method listed in this paper rather than generally list a common structure expression of 6-UPU and 6-SPU mechanism.

5. Conclusion

Shortcomings are found based on the research on existing analysis methods of degree of freedom of mechanism. According to the relativity and consistency of mechanism motion, new approach proposed by using RPR as the basic branch chain form of parallel mechanisms, and the R joint motion elements added method adopted, conclusions can be drawn as follows.

(1)

The existing calculation methods about the degree of freedom of parallel mechanism are based on parameters, which include the physical elements of mechanism and the characteristics of the motion elements and the relationship of the whole motion elements and the relationship of the local motion elements. Because these factors are explicit or implicit, either structural factors or motion elements, once if the structure is complex and special, the structural elements and other dominant parameters are easy to determine, but for the implicit parameters, such as local or whole characteristics of the motion elements, it is not easy to determine, it will bring inconvenience for the analysis process.

(2)

The mechanism has the characteristic of motion relativity and consistency, the consistency of motion is generated by all consistent motion elements of branch chains, inconsistent motion elements of each branch chain have no influence on the common trajectory of output terminal.

(3)

Based on definition of three types of rotation motion element R, three types of basic branch chain forms $\dot{\text{R}}\text{P}\dot{\text{R}}$ and $\ddot{\text{R}}\text{P}\ddot{\text{R}}$ and $\dddot{\text{R}}\text{P}\dddot{\text{R}}$ are found correspondingly, by using joint R motion elements added method, specific configuration of TPR, TPT, SPR, SPT, SPS obtained then.

(4)

Input degree of freedom and output degree of freedom of parallel mechanism with at least three branch chains of the forms RPR/TPR/TPT/SPR/SPT/SPS obtained by using the equivalent formula. The scientificity and effectiveness of the method is verified by example.
