On comprehensive analysis of learning algorithms on pedestrian detection using shape features

Abstract

Despite the surge of deep learning, deploying the deep learning-based pedestrian detection into the real system faces hurdles, mainly due to the huge resource usages. The classical feature-based detection system still becomes feasible option. There have been many efforts to improve the performance of pedestrian detection system. Among many feature set, Histogram of Oriented Gradient seems to be very effective for person detection. In this research, various machine learning algorithms are investigated for person detection. Different machine learning algorithms are evaluated to obtain the optimal accuracy and speed of the system.

Keywords

Pedestrian detection machine learning Histogram of Oriented Gradient shape features

1 Introduction

Person detection system has been continuously developed to get better performance. The system plays an important role in the latest technological developments, such as in Advanced Driving Assistant System. The success rate of this system is determined by its working accuracy and speed. Machine learning and feature extaction are the main factor behind the performance of the system. Many methods have been applied, both using conventional and modern methods to achieve the best performance of the system. The conventional detection method using supervised machine learning and sliding window is preferred to build a low cost system.

For many years, researchers have looked new ways to improve the performance of person detection system, both on the feature descriptor and on the machine learning. For instance, Dalal et al. [1] had introduced new feature set known as HOG (Histogram of Oriented Gradient) that outperforms existing feature sets, such as Haar wavelet, Shape Context and PCA-SIFT (Principal Component Analysis-Scale Invariant Feature Transform) for linear SVM (Support Vector Machine) based person detection. The HOG feature set then becomes very popular because of its superior performance and is widely used for many detection problems, including person detection.

Beside HOG, many feature sets, i.e. Haar wavelet and SIFT also have been used for person detection. For instance, [2, 3] use SVM classifier for person detection based on Haar wavelet. In [4], AdaBoost algorithm is used to learn a cascade of classifier based on spatial temporal Haar wavelet. In [5], the authors use recognition-by-component approach based on Haar wavelets and SVM training. The authors in [6] use two SVM classifiers and gradient magnitude features to detect person in front, rear, and side views. In [7], recognition-by-component approach is also used for detection based on SIFT features and AdaBoost classifier. The authors in [8] use a neural network and the gradient magnitude feature for person detection.

Some researchers also modified and combined the existing methods to improve the performance of person detection. The authors in [9] combine Haar wavelets and Edge Orientation Histogram features and classified them with AdaBoost classifier. In [10] the authors use random forest to classify DOT (Dominant Orientation Template) features, binary version of HOG descriptor. The authors in [11] use AdaBoost algorithm and cascading methods to segment pedestrian candidates and make recognizing with SVM classifier. In [12] the authors proposed a modified method for HOG, C-HOGC (Combination of HOG Channels) to perform faster person detection. In very recent research, such classical gradient features is still employed with variant of machine learning other than SVM, e.g. Adaboost [13, 14]. And lastly, Garcia et al. [15] takes the combination of different sensors into their approach.

New person detection methods continue to emerge until now. This encourages some researchers to perform performance analysis of various existing methods to know which method works best for person detection. For instance, the authors in [16] make comparison of SVR (Support Vector Regressor) adapted to binary classification, SVM, and k-NN (k-Nearest Neighbor) in person detection. In [17], SVM, k-NN, and decision tree algorithm are used for overlapping and non-overlapping person detection. There also exists very recent approach for pedestrian detection, i.e. using deep learning (e.g. [18]). The problem is, deep learning method tends to eat huge amount of resources, making them less deployable on the small system. In this case, we now focus on the classical approach which utilizes features and classifiers as its main core algorithm.

In many researches, the performance of machine learning is only observed by its accuracy without considering its processing speed to be deployed in the real system. Therefore, this research aims to provide better comparison of machine learning performance both in terms of accuracy and processing speed. Our contribution is crystal clear, making a comprehensive analysis toward learning algorithm used for pedestrian detection.

In this research, basic Linear SVM [19], random forest [20], ERT (Extremely Randomized Tree) [21], AdaBoost [22, 23], and K-NN are used to classify HOG features for person detection. Accuracy and processing speed of the machine learning classifier are measured and used to calculate the performance score. The performance score of the machine learning classifiers are then compared to find out which machine learning has the best performance in the person detection. The research also focuses on obtaining optimal value of machine learning parameters. Some tests and measurement using dataset and streaming frames are observed. The results of the studies show the effect of varying the value of machine learning parameters on the performance and provide performance comparison of several commonly used machine learning.

2 BASIC THEORY

2.1 Histogram of Oriented Gradient (HOG)

Histogram of Oriented Gradient [1] is descriptor that extracts image features from calculation of gradient vector of pixels and distributes them to gradient histograms. This descriptor introduced by Navneet Dalal and Bill Triggs has exceled performance especially for person detection compared by preceding descriptors based on edge and gradient of image. In general, this descriptor works by dividing images window into some small spatial regions, called as “cell”, for each cell accumulating a local 1-D histogram of gradient directions or edge orientations over the pixels of the cell. The combined histogram then entries form representation. For better invariance to illumination, shadowing, etc., contrast- normalized is done by normalize histogram features for every larger spatial regions, called as “block cell”.

In this research, the histogram contains 9 bins corresponding to angles 0, 20, 40, …, 160. Each block cell contains 4 cells that each has 9 values of histogram as features. Each block cell contain 36 features vector that will be normalized. In 48 × 96 pixels window, there are 3 × 6 block cell (no overlapping) that each contains 36 features, so the output of the HOG descriptor in this research is 648 features. The process of each cell in this descriptor is illustrated by Fig. 1.

Fig. 1

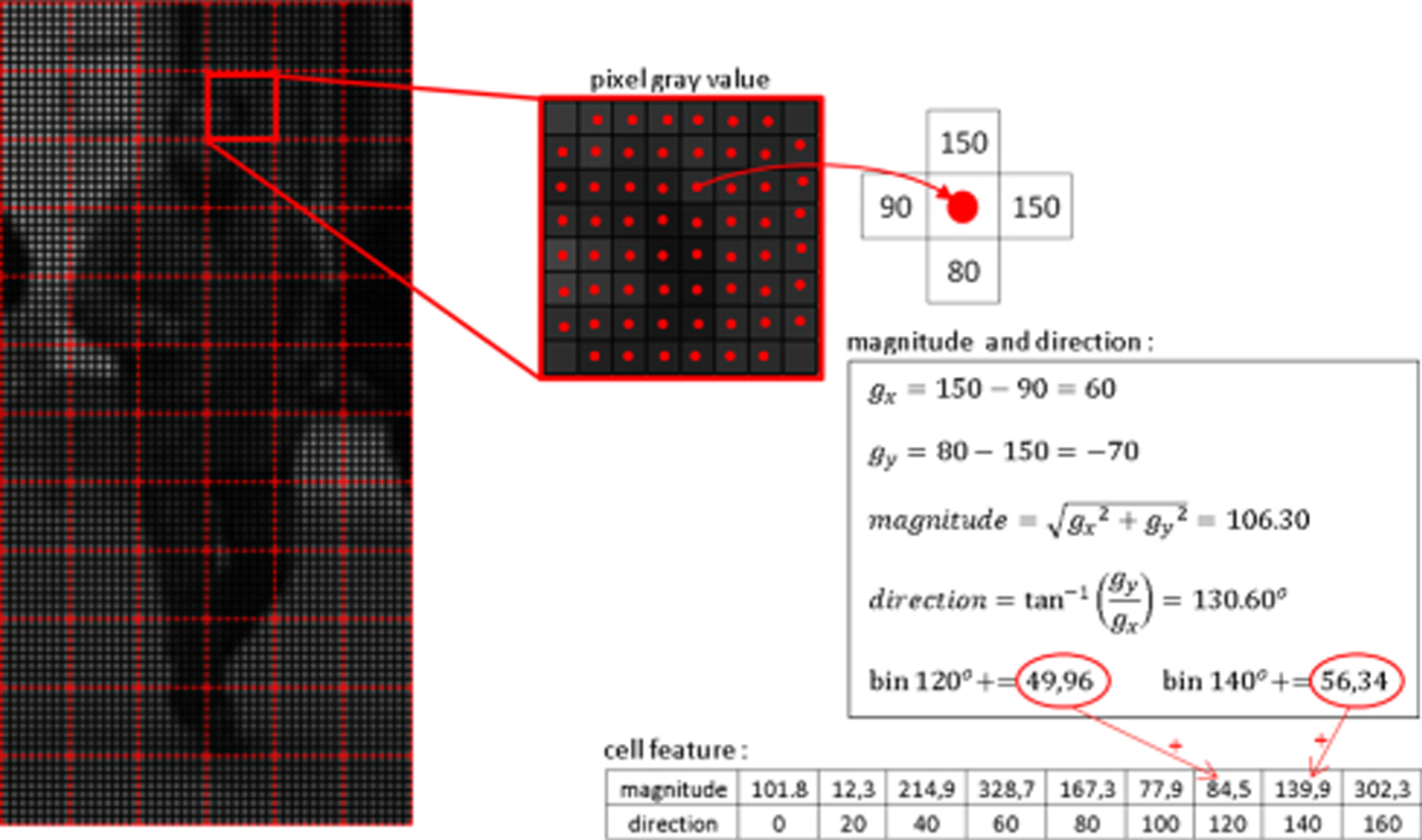

HOG Descriptor Cell Processing.

2.2 Machine Learning Algorithm for Pedestrian Detection

Machine learning is a subfield of computer science that gives computer ability to learn without being explicitly programmed [20]. Machine learning focus on the development of computer programs to learn data and then provide processing function to new data. Machine learning algorithms are often categorized as being supervised or unsupervised. Supervised machine learning learns by knowing first the desired input and output data and then creating some mathematical functions from the data. This research uses 5 commonly used supervised machine learning algorithms to classify HOG features for person detection.

2.2.1 Support Vector Machine (SVM)

The original Support Vector Machine algorithm [19] was invented by Vladimir N. Vapnik and Alexey Ya. Chervonenkis in 1963. The algorithm is based on finding hyperplane that gives the largest minimum distance to the training examples The notation used to define linear hyperplane is shown in eq. 1, where variable $\vec{w}$ , $\vec{x}$ , and b are weight vector, input vector, and weight bias respectively. $f (\vec{x}) = {\vec{w}}^{T} \vec{x} + b .$ (1)

By using the result of geometry, the orthogonal distance between vector $\vec{x}$ and hyperplane can be derived equal to $\frac{| f (\vec{x}) |}{| | \vec{w} | |}$ . If the training examples closest to hyperplane, called as support vectors, are set to have $f (\vec{x})$ equal to 1, the distance between two opposite support vectors orthogonal to the hyperplane, or called as hyperplane margin, can be calculated equal to $\frac{2}{| | \vec{w} | |}$ . The problem of maximizing margin is equivalent to the problem of minimizing a function $L (\vec{w})$ subject to some constraints. The constraints model for the hyperplane to classify all training examples correctly can be formulated by eq. 2, where variable y_i is label of i^th training examples. The problem of this optimization can be solved using Lagrange multipliers to obtain the weight vector $\vec{w}$ and bias b of the optimal hyperplane. $min_{\vec{w}, b} L (\vec{w}) = \frac{1}{2} | | \vec{w} | |^{2}, s . t . y_{i} f ({\vec{x}}_{i}) \geq 1, \forall i .$ (2)

If SVM algorithm allows some misclassifications in training, known as soft margin SVM, the constraints model of hyperplane can be formulated by eq. 3, where C is regularization parameter and ζ_i is distance error to the hyperplane and equal to $1 - y_{i} f ({\vec{x}}_{i})$ . The minimum value of the model is also can be found by Lagrangian multiplier with set value of C parameter. C parameter will determine the margin of SVM. SVM with higher C value tends to make narrower margin. In the process of finding the hyperplane, the value of C will be multiplied by training examples distance error ζ_i. SVM with lower C value is more indifferent to misclassificartion error and tends to make hyperplane with wider margin. $min_{\vec{w}, b} L (\vec{w}) = \frac{1}{2} | | \vec{w} | |^{2} + C \sum_{i = 0}^{N} ζ_{i}, s . t . y_{i} f ({\vec{x}}_{i}) \geq 1 - ζ_{i}, \forall i .$ (3)

2.2.2 Random forest

Random forest algorithm [20] has been introduced by Leo Breiman. Random Forest is a collection (ensemble) of tree predictor or decision tree. In general, the random forest algorithm works by taking the input feature vectors at set random values, classifying it with every tree. The output of the classifier is the class label that received the majority of votes from all trees. In training, random forest uses bootstrap procedure to avoid over-fitting so all the trees are trained on different training set. Each tree samples N training examples randomly from N training examples of the training set with replacement. From the N training examples with M input variables, each tree only uses m input variables selected randomly. The N training examples with m input variables are then used for growing the tree to the largest extent possible. Each node of the tree finds the best split based on gini index of all possible splits of all features. For example, if the node a is split into two child nodes, node b and node c, and let variable n_x, n_xpos, n_xneg be the number of training examples, number of positive training examples, and number of negative training examples in node x respectively, gini index of split I_g in the node a can be calculated by eq. 4. Higher gini index of split indicates better split. $\begin{matrix} I (x) & = 1 - \sqrt{\frac{n_{xpos}}{n_{x}}} - \sqrt{\frac{n_{xneg}}{n_{x}}} \\ I_{g} (a) & = I (a) - \frac{n_{b}}{n_{a}} I (b) - \frac{n_{c}}{n_{a}} I (c) \end{matrix}$ (4)

The accuracy of random forest is determined by the two things, i.e. the correlation between any two trees and the strength of each individual tree. Increasing the number of random selected features will increase the correlation between any two trees and the strength of each individual tree. Increasing the correlation will increase the random forest error rate, while increasing individual tree strength will decrease the random forest error rate. The optimal number of random selected features can be obtained by performance test

2.2.3 AdaBoost

AdaBoost or Adaptive Boosting [22] is introduced in 1995 by Yoav Freund and Robert Schaphire. It is a boosting technique that combines multiple weak classifiers into a single strong classifier. AdaBoost works by assigning weight to each training examples. After training a classifier, AdaBoost will increase the weight on the misclassified examples and reduce the weight on classified example, so the next classifier will classify them differently. After each classifier is trained, the classifier weight is calculated based on its accuracy; accurate classifier are given more weight, classifier with 50% accuracy is given a weight of zero, and classifier with less than 50% accuracy is given negative weight. The final output of AdaBoost, $H (\vec{x})$ is the signum function of linear combination of all the weak classifier, shown in eq. 5, where variable T, α_t, $h_{t} (\vec{x})$ , and $\vec{x}$ are number of weak classifier, weight applied to t^th classifier, output of t^th weak classifier, and vector of new example respectively. $H (\vec{x}) = sign (\sum_{t = 1}^{T} α_{t} h_{t} (\vec{x}))$ (5)

First classifier (t = 1) is trained with equal training example weight $(= \frac{1}{m})$ , for all m training examples. The weight of the classifier then can be computed by formula shown in eq. 6, where ϵ_t is the total weights of misclassification example over the total weights of the training set divided by the training set size. $α_{t} = \frac{1}{2} ln (\frac{1 - ϵ_{t}}{ϵ_{t}})$ (6)

After computing α_t, the training examples weight are updated using formula shown in eq. 3, where y_i denotes the desired output and Z_t is the normalization constant so the sum of the new weights of training example is equal to 1. $D_{t + 1} (i) = \frac{D_{t} (i) exp (- α_{t} y_{i} h_{t} ({\vec{x}}_{i}))}{Z_{t}}$ (7)

2.2.4 Extremely randomized trees

Extremely randomized trees [21] have been introduced by Pierre Geurts, Damien Ernst, and Louis Wehenkel in 2006. The algorithm is almost similar to random forest algorithm. Unlike random forest algorithm, this algorithm does not apply bootstrap procedure, so every tree is trained with the same training set. The other difference is the algorithm pick a node split randomly. In random forest, gini index of every possible split in every variable is evaluated. The split with the highest score is chosen for splitting the node. In ERT, split value is a random value between the smallest and the highest value in each variable. The score of random splits in every variable are then evaluated based on gini index also. The split with highest score is chosen for splitting the node.

2.2.5 k-Nearest Neighbor (k-NN)

k-NN is one of the simplest algorithms available for supervised learning. The idea is to search for closest match of the test data in feature space. The training examples features are stored for later use to calculate feature space distance to the new example. The research uses Euclidean distance formula to calculate the feature space distance of new example to each training examples. The output is the majority class label of the training examples with k shortest distance to the new example.

2.3 Sliding Windows for Detection

Sliding window is a conventional method for object detection that works by moving detection window horizontally and vertically along the processed frame. Image in detection window size is cropped from the processed frame at every window position and processed one by one. The detection window must have the same size with the training images. The HOG feature set is then extracted from each cropped region and classified by the machine learning classifier. If the classifier gives positive result, bounding box at window position will be displayed on the processed frame.

To perform multi scale detection, the processed frame must be resized multiple times, so the detection window can classify small and large objects. In multi scale detection, many bounding boxes will appear overlap each other. NMS (Non-Maxima Suppression) algorithm must be applied to solve the problem. The algorithm works by choosing one bounding box that has highest classifier confidence score from among the multiple overlapping boxes. The two bounding boxes will be considered as overlapping box if the overlapping area is more than half of the area of one of the overlapping boxes.

3 METHODOLOGY

Our work on the pedestrian detection is divided into two parts, training and testing. The block diagram of this process is shown in Fig. 2. In training part, person images (Fig. 3a) and non-person images (Fig. 3b) are first resized to 48 × 96 pixels size.

Fig. 2

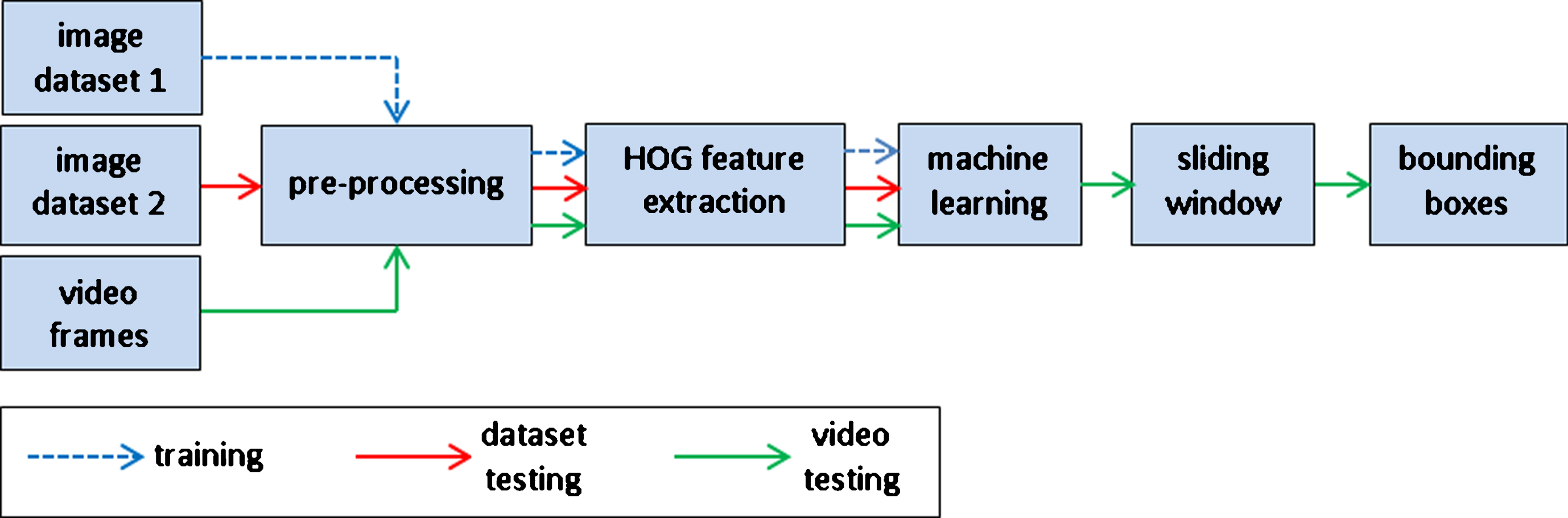

Proposed block diagram for pedestrian detection.

Fig. 3

Pedestrian dataset: (a) positive images, and (b) negative images.

After pre-processing, HOG feature set is extracted from each image. The feature sets and the ground truth values of the training images are then used to train the machine learning approach.

In dataset testing, new images are also resized to 48 × 96 pixels size. The HOG feature set of the images are then extracted. The feature set of the image is classified by the machine learning classifier and compared to the image ground truth. In video testing, the frames are resized multiple times. HOG feature extraction and detection are done while applying sliding window method. The 48 × 96 pixels image are cropped at every position of detection window and the HOG feature set are extracted. NMS algorithm is then applied after sliding window process is complete. The bounding boxes are then displayed on the processed frame and visually observed.

4 RESULTS AND DISCUSSIONS

In this research, system performance is observed in several detection tests. First, the classifier performance with various parameter values in dataset testing are observed to get the optimal value of parameter. The classifier performance with the optimal value of parameters is then compared in 5-cross validation. The precision and recall of machine leanings are also observed in video test. The results show the superiority of SVM performance in person detection using HOG features compared with the other algorithms.

4.1 Tools and Materials

Tools used in the research are as follows:

Computer with specification Windows 7 operating system, processor Intel(R) Core(TM) i3 CPU M370 @2.4 GHz memory 2,00 GB.

OpenCV Library 2.4.9.

Material in the form of person and non-person images is obtained from INRIAPerson, MIT, Pennsylvania dataset, and some videos of ours. The image numbers of each dataset will be explained in each test below.

It is also important to be noted that the provided computation time for the performance measurements in all experiments are restricted relatively to the above system setup. Any other system may yield different timing.

4.2 Effect of Varying the Value of Parameters on Machine Learning Classifier Performance

To show the effect of varying the value of machine learning parameters on the performance, the accuracy, processing time, and performance score of machine learning classifier are measured. Accuracy is measured by area under ROC curve, time by average processing time per image, and performance score by subtraction of min-max normalized accuracy and speed value. Accuracy are min-max normalized from [0.9, 1] to [0, 1] and speed value from [0, 0.05] to [0, 1]. In this test, there are two cases with different training and testing data composition; the case A uses training set containing 8K/16K positive/negative images and testing set containing 1500/3K positive/negative images. The case B uses training set containing 8K/32K positive/negative images and testing set containing 1500/6K positive/negative images.

4.2.1 Support Vector Machine

In this test, only the value of parameter regularization (C) is varied. The value of C is set to 0.01, 0.1, and 1. SVM does not use any kernel in this research because linear SVM has been able to do classification well for this case. The result of the test for case A and case B are displayed on Table 1. The result of the test shows that SVM gives very fast processing time and very high accuracy. The time here is the average of processing time per image in second. SVM has very simple computation resulting very fast processing time. Table 1. shows no major difference of SVM performance for case A and case B. The result also shows that SVM with C = 0.1 give the best performance in the accuracy and the performance score. The C value determines the width of SVM hyperplane margin. The higher the C value, the wider the margin. SVM that has too narrow hyperplane margin will give many misclassifications in high variance testing data, whereas too wide margin SVM will misclassify many training examples as error. The latter will also give many misclassifications in testing data if the set contains many examples similar to the misclassified training examples. The good C value must be obtained by varying and observing the C value in some range or one can calculate it adaptively. In our case, the chosen C value is 0.1, based on the observation to its range we have mentioned in the beginning. Such C value may be different for different classification case.

Table 1
Effect of Varying Parameter on Linear SVM Performance

Case A
C	AUC	time (s)	score
0.01	0.9949	9.89e-07	0.9488
0.1	0.9951	9.73e-07	0.9508
1	0.9928	9.71e-07	0.9278
Case B
C	AUC	time (s)	score
0.01	0.9953	9.84e-07	0.9528
0.1	0.9955	9.71e-07	0.9551
1	0.9915	9.76e-07	0.9148

4.2.2 Random Forest

In this test, the number of random selected features, number of trees, and split depth level of random forest classifier are varied. The results are shown in Fig. 4. In the graphs, the blue lines, the red lines, and the green lines represent random forest with 50, 100, and 200 random selected features respectively. The dotted lines are test results for case A and the continuous lines are test results for case B. Figure 4a shows that increasing the number of trees will increase accuracy to the convergence value. In this test, the split depth level of the tree is set to maximum number. The combination of more weak classifiers tends to make stronger classifier. In a certain number of trees, the correlation between the trees reach optimal value, so increasing the number of trees will no more increase accuracy. In case A and case B, The result shows that random forest with 100 random selected features give the highest accuracy (in the range 0.986 to 0.988). Random forest with too high number of random selected features will have too correlated trees. Many trees will work the same way in classification, so random forest becomes inefficient and will have bad performance. Random forest with too small number of random selected features will have very weak trees. More number of random selected features in random forest will give each tree higher probability to make better split in each node resulting a stronger tree.

Fig. 4

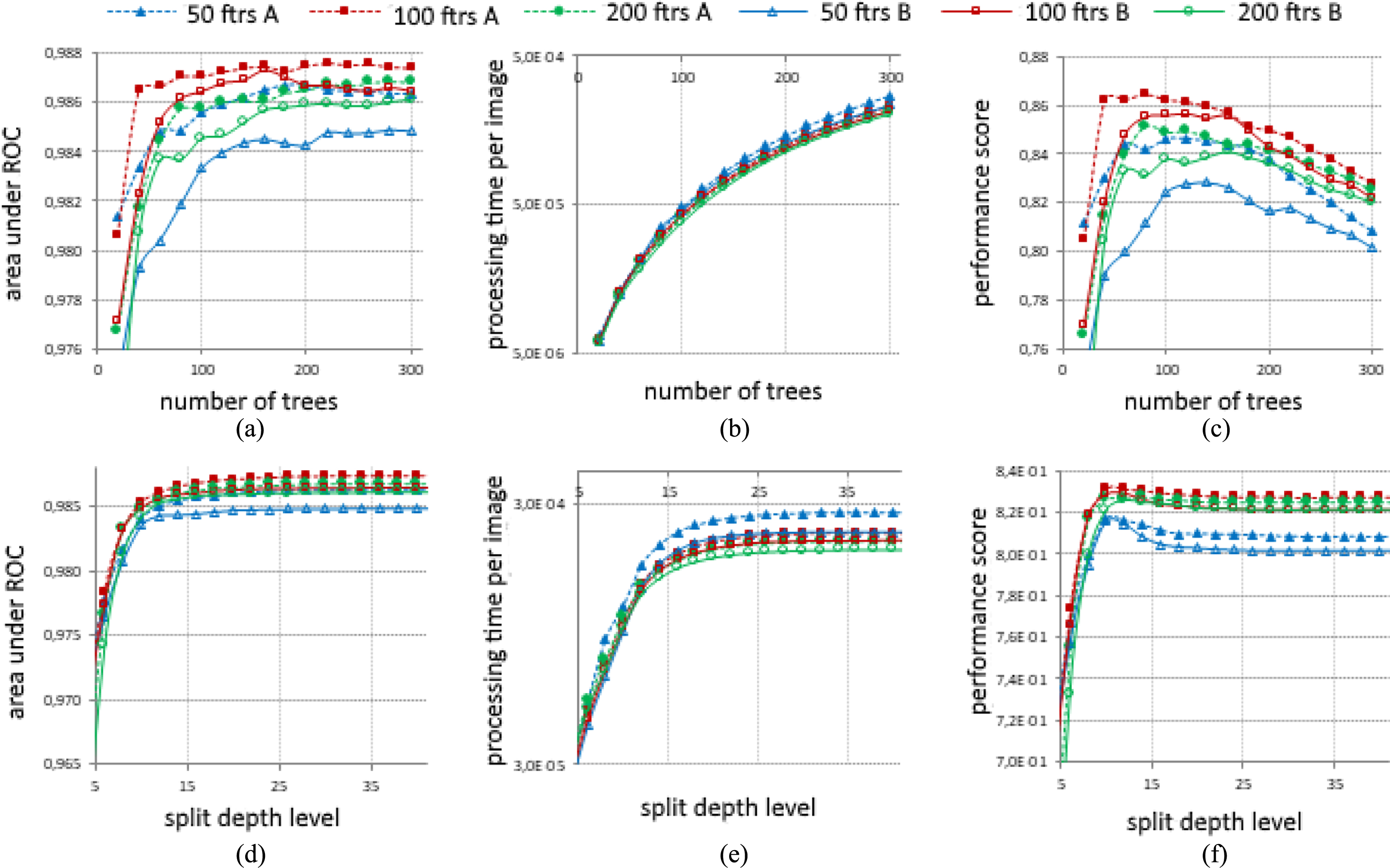

Effect of Varying The Value of Parameters on Random Forest Performance.

Figure 4b shows the effect of increasing number of trees to the average processing time per image. Time scale here is in 10 base logarithmic scales. The graph shows that increasing the number of the trees will increase the processing time. Each tree in random forest will take different time for classification, so increasing the number of trees will increase time needed to finish all tree classifications. The result also shows that random forest with more number of selected features has faster processing time. Random forest with more random selected features tends to give tree better split to separate the two classes completely. The number of nodes of the tree will be smaller and result faster classification.

Figure 4c shows the performance score of random forest classifier in the effect of varying the number of trees. The result shows the optimal number of tree is in the range 80 to 140. Increasing the number of tree at the certain number will increase accuracy very little or no more, but the time keeps increasing in fixed amounts, so the performance score will decrease. Figure 4d and 4e shows the effect of split depth level on the random forest accuracy and processing time. In this test number of trees is set to 300. Split depth level here is a limitation of split level of the trees. The result shows that increasing the split depth level tends to increase accuracy and processing time to the convergence value. Higher level node contains more classified training examples, so the split in that level become less important and less influential. Decision tree with high split depth level tends to overfit the training examples, but it is hard to see the effect on the random forest performance. Figure 4f shows the performance score of random forest in the effect of changing the split depth level. The result shows that the effective split level of random forest is in the range 10 to 12. This parameter is highly dependent on the tree structures of random forest so different random forest may result different optimal value.

4.2.3 Extremely Randomized Tree (ERT)

In this test, the number of random selected features, number of trees, and split depth level of ERT classifier are varied. The results are shown in Fig. 5. In the graphs, the blue lines, the red lines, and the green lines represent ERT with 50, 100, and 200 random selected features respectively. The dotted lines are the test results for case A and the continuous lines are the test results for case B. Figure 5a shows that increasing number of trees will increase ERT accuracy to the convergence value. In this test, the split depth level of the tree is set to maximum number. The graph shows almost the same result with Figure 4a. Increasing number of trees will also make ERT stronger classifier. The result shows that ERT with 200 random selected features give the highest accuracy up to 0.988. Correlation between the trees in ERT is lower than correlation between the trees in random forest. Two trees in ERT with similar random selected features may still have different classification pattern because the split value in ERT is chosen randomly. This makes ERT with high number of random selected features can still have good accuracy. Nevertheless, increasing the number of random selected features too much will also make ERT trees too correlated resulting bad performance.

Fig. 5

Effect of Varying the Value of Parameter on Extremely Randomized Tree Performance.

Figure 5b shows the effect of increasing number of trees on the average ERT processing time per image. Time scale here is in 10 base logarithmic scales. The graph shows almost the same results with Figure 4b. Increasing the number of the trees will increase the processing time. ERT with more number of selected features have faster processing time. This is the same case with random forest. ERT also chooses the best split among the random split of all features, so ERT with more number of random selected features tends to make better split in each node and results faster classification. In ERT, there is a considerable amount of time difference between case A and case B. ERT takes longer time than random forest to separate training examples classes completely. The split quality in ERT is much lower than random forest split. ERT just pick random value for every feature and does not evaluate all possible splits, so increasing the number of training examples will increase the processing time more significantly. Figure 5c shows that ERT with 200 features has the highest performance score. Figure 5d and 5e shows the effect of split depth level on the accuracy and processing time of ERT. In this test number of trees is set to 300. Split depth level here is a limitation of split level of all trees. The result shows that increasing the split depth level tends to increase accuracy and processing time to the convergence value. Figure 5f shows the performance score of ERT in the effect of changing the split depth level. The result shows different optimal split level in different case and different parameter value.

4.2.4 AdaBoost

In this test, number of trees and split depth of AdaBoost classifier are varied. The results are shown in Fig. 4. In the graphs, the blue lines, the red lines, and the green lines represent AdaBoost with 2, 5, and 10 split depth levels respectively. The dotted lines are the test results for case A and the continuous lines are the test results for case B.

Figure 6a shows that increasing the number of trees in AdaBoost will also increase accuracy to the convergence value. This is the same case with RF and ERT that the more combination of weak classifier will result stronger classifier. The result shows that AdaBoost with 5 split depth level has the best accuracy (in the range 0.986 to 0.988). All trees in AdaBoost except the first, will classify the training examples that are weighted adaptively based on previous tree misclassification. The tree classifiers then are also weighted based on their each performance. The more accurate tree will be assigned a higher weight. AdaBoost with too low split level may result too many misclassification error, so the training examples weights will be changed too fast. In high variance training examples, AdaBoost with very low split depth level may have most of the trees having very low accuracy and assigned very low weights. This combination of poor trees will result the bad performance of AdaBoost. In contrary, AdaBoost with too high split level will result too few misclassification error, so the training examples weights will be changed too slow. This will also result highly correlated trees and bad performance in AdaBoost.

Fig. 6

Effect of Varying the Value of Parameters on AdaBoost Performance.

Figure 6b shows the effect of increasing the number of trees on the average AdaBoost processing time per image. Time scale here is in 10 base logarithmic scales. The graph shows almost the same result with random forest and ERT. Increasing the number of trees will increase computation time. The result also shows that AdaBoost with more split depth level take more processing time. This is also the same case with the random forest and ERT that increasing the split depth level will increase the processing time. The processing time of AdaBoost for case A and case B are the same because the trees still have the same tree depth split level although they have different number of training examples. Figure 6c shows that AdaBoost with 5 split depth level has the highest performance score.

4.2.5 k-Nearest Neighbor

In the test, number of features used to calculate the distance and number of training examples in k-NN are varied. The results are shown in Fig. 7. In the graphs, the dark blue lines, the magenta lines, the green lines, the purple lines, the light blue lines, and the brown lines represent the k-NN using only 50, 100, 150, 200, 250, and 300 features respectively. In this test k-NN does not use all HOG features for computing the distance, but only take some features that have highest gini index of split. The k value is set to square root of the number of training examples. Figures 7a and 7d show the effect of varying the number of training example on k-NN accuracy for case A and case B respectively. In the test, k-NN training examples are scale down by the factor of 2 from 1, 1/2, 1/4, …, 1/128 of the number of training examples. The results show that reducing the number of training examples and will reduce the k-NN accuracy. Reducing the number of training examples will reduce the variance of training examples and result less accurate classification. The results also show that k-NN classifiers that use 50 and 100 features give the highest accuracy.

Fig. 7

Effect of Varying the Value of Parameters on k-NN Performance.

Figure 7b and 7e show the effect of varying the number of training example on the k-NN processing speed. The results show that reducing the training examples will reduce considerable amount of processing time value. k-NN works by measuring distance between the new example and all training examples. k-NN with more number of training examples will take longer time in classification. The results also show that k-NN that uses fewer features have faster processing speed. Figure 7c and 7f show that k-NN that uses 50 features has the best performance for both case A and case B. Reducing the number of less important feature in k-NN reduces the processing time significantly resulting better performance score. The optimal number of training examples here is 1/64 of the original number of training examples. Reducing this parameter will reduce the accuracy slightly, but reduce the processing time significantly.

4.3 Performance Comparison of Machine Learning in Dataset Test

Performance of machine learning in this section is measured in 5-cross validation test using 8K/80K positive/negative training examples. In this test, parameter of machine learning classifiers is set to the optimal value obtained in previous test. The C parameter of SVM is set to 0.1. Random forest is set to have 100 random selected features. ERT is set to have 200 random selected features. AdaBoost is set to have 5 level of split depth. k-NN is set to only use 50 features for measuring the distance. Other parameters are varied and selected the best. The result of the test is shown in Table 2.

Table 2
Cross Validation Tes

Fold	Measured	Machine Learning Classifier
		SVM	RF	ERT	ADA	k-NN
k=1	AUC	0.9880	0.9783	0.9789	0,9897	0,9851
	time (s)	1.20e-06	9.10e-05	9.00e-05	1.60e-05	1.50e-04
	score	0.8796	0.7646	0.7705	0.8805	0.8218
k=2	AUC	0.9927	0.9849	0.9858	0.9945	0.9818
	time (s)	1.00e-06	6.70e-05	7.70e-05	1.30e-05	3.80e-04
	score	0.9262	0.8361	0.8425	0.9322	0.7431
k=3	AUC	0.9965	0.9876	0.9893	0.9969	0.9771
	time (s)	1.00e-06	4.90e-05	7.10e-05	9.20e-06	3.80e-04
	score	0.9643	0.8658	0.8784	0.9602	0.6964
k=4	AUC	0.9964	0.9893	0.9915	0.9969	0.9799
	time (s)	9.80e-07	6.10e-05	9.20e-05	1.00e-05	3.80e-04
	score	0.963	0.8812	0.8961	0.9591	0.7232
k=5	AUC	0.9955	0.9864	0.9889	0.9964	0.9776
	time (s)	1.00e-06	6.00e-05	9.30e-05	1.30e-05	3.80e-04
	score	0.9542	0.8518	0.8707	0.9506	0.7005
Mean	AUC	0.9938	0.9853	0.9869	0.9949	0.9803
	time (s)	1.00e-06	6.60e-05	8.50e-05	1.20e-05	3.30e-04
	score	0.9375	0.8399	0.8516	0.9365	0.737

The result shows that linear SVM has the best performance among the other classifiers. SVM has advantages in high-dimensional data classification. HOG is very effective feature set for person detection. It gives almost linear separable features that SVM can classify the two classes very well (up to 98% accuracy in training examples). SVM also has very fast processing time The second classifier that has the best performance is AdaBoost. AdaBoost has accuracy as high as SVM accuracy, but with higher processing time. AdaBoost consists of many adaptive learning trees combined into very strong classifier.

The third and the forth are ERT and random forest. ERT has higher accuracy but also higher processing time than random forest. ERT trees have lower correlation than random forest trees, so the combination of trees is better and gives higher accuracy. Random forest has better node split than ERT resulting faster classification time. Random forest and ERT may have superior performance if they are used for classification of very large low-dimensional data. Random forest and ERT also can be used for more than two classes classification that single SVM and AdaBoost cannot. k-NN has the worst performance among the classifiers in this case. k-NN is very slow for processing the large data. Reducing the training data in k-NN will reduce the processing time but also reduce the accuracy. k-NN may be suitable for multi-class classification that does not necessarily require fast processing.

4.4 Performance Comparison of Machine Learning in Video Test

In this test, machine learning classifiers are used to perform person detection on video containing high variance and very unbalanced-class data. The video consists of 260 frames in size of 640x480 pixels. The frames are resized into 7 scales to make multi-scale detection. The machine learnings in this test are trained by 9500/75K positive/negative training examples. In the test, C parameter of SVM is set to to 0.1. Random forest is set to have 100 random selected features, 150 trees, and maximum split depth level. ERT is set to have 200 random selected features, 150 trees and maximum split depth level. AdaBoost is set to have 5 level of split depth and 300 trees. k-NN is set to use 50 features and 1/128 of the number of training example. The performance of machine learning classifier is plot in the precision-recall graph shown in Fig. 8. The graph shows that SVM and AdaBoost have the highest accuracy in this test. SVM separates the features of the two classes with quite big margin resulting robust performance in various data condition. The processing speed of SVM in this test varies from 10.49 FPS to 11.11 FPS.

Fig. 8

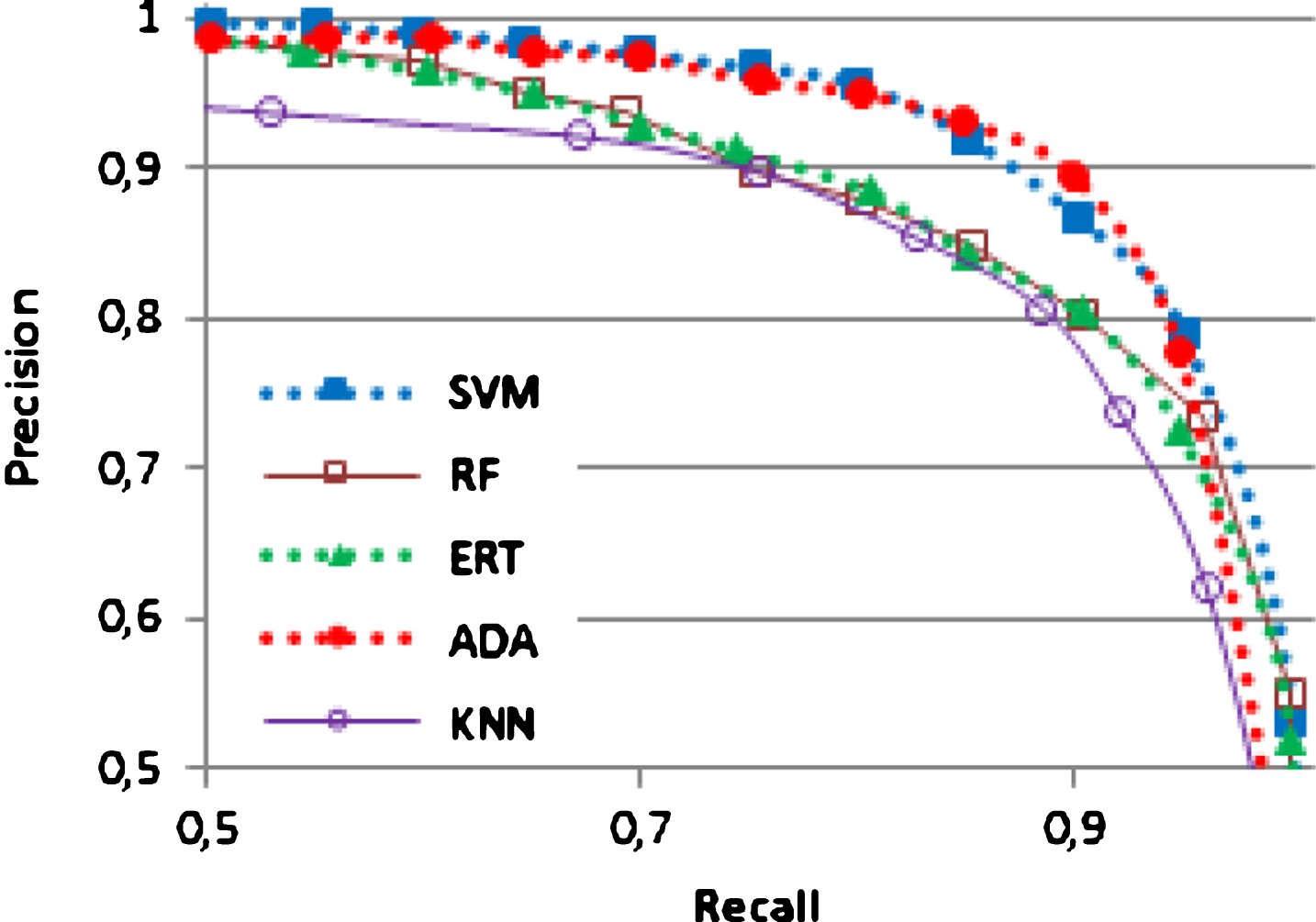

Performance of machine learning classifications on video test.

The performance of tree-based classifier usually decreases when dealing with very unbalanced-class data. Tree classifier tends to overfit the training data. Training data with more unbalanced class will make tree classifier better in classifying the major class but worse in classifying the minor class. Although AdaBoost is combination of many tree classifiers, the performance is not significantly affected by the class unbalance. AdaBoost trees are grown with adaptively weighted data and limited split level, so they rarely overfit the data. AdaBoost classifier with 300 trees in this test runs at 8.44 FPS to 8.90 FPS. ERT and random forest performance also does not change significantly in this test. The classifiers in this test are trained with training data that have very unbalanced class as well so their performance does not significantly change dealing with the condition. ERT runs at 3.56 to 4.15 FPS and random forest runs faster at 5.28 to 5.82 FPS. k-NN has the lowest accuracy in this test. k-NN in this test use only 50 features and 1/128 of the number of training examples to support its speed. This make the training data become less variance resulting low accuracy performance. Even with these limitations, k-NN still runs slow at 3.23 to 3.70 FPS. Classification result of some machine learning in the frame test is shown in Fig. 9.

Fig. 9

Pedestrian detection performance on frame test.

5 Conclusions

Among the compared machine learning algorithms, SVM has the best performance on person detection using HOG features. HOG feature set gives almost linear separable features that linear SVM can work best. The optimal value of machine learning parameters can be obtained by varying the value of parameters and observing the performance in dataset test. In detection with high-spec computer, extracting HOG features with larger window size, i.e. 64 × 128 pixels and overlapping block cells may increase the overall performance of the classifiers. Larger and more variance training data may be required for better detection. Tracking algorithm may also be required to make the detection more stable.
