An intuitionistic intervals based hesitant FQA-TOPSIS for vitiligo grading

Abstract

Vitiligo is a problem due to the destruction of melanocytes which is present in 1% of people all over the world. The origin of this disease is unknown and difficult to cure. Absence of melanin in the body causes lesions which will ooze out all over the body. Phototherapy and surgical therapy are the two types of treatment available in the existing world. The Cytotoxic CD8 + T lymphocytes act as a major factor for the abovesaid disease. The main objective of this work is to treat patients with different methods according to the severity of vitiligo, which can be identified with the help of out ranking based on hesitant fuzzy relation. Multi-criteria and multi-objective hesitant fuzzy are applied in this work to find out the ranking through which the severity of the disease is detected. This method helps in identifying the vitiligo lesions, which can be treated effectively in a short period of time. During the application of vitiligo treatment, FQA-TOPSIS (Fuzzy Quantified Attribute-TOPSIS) hesitant fuzzy relation methodology is deployed with three decision maker’s support using linguistic and intuitionistic values. The decision maker’s fuzzy values will be normalized and aggregated in this work with improved methodologies. The two objectives are deployed with their own fuzzy values and are implemented in the decision maker’s values. In the article fuzzy weightage has been calculated in two ways. One is every linguistic like low, medium, high and very high has got its significant intuitionistic values that all will be available with the scale of 1 to 10. The same has given as triplets. In our research work the above said has applied with the objective based weightage. So the accuracy has been increased through the work. The outcome of this methodology is to find out the coefficient closeness of the alternatives and to out rank the decision alternatives. The difference between the Final +ve Ideal Solution (FPIS) and Final -ve Ideal Solution (FNIS) is determined and FQA-TOPSIS Hesitant Fuzzy is ranked in the result.

Keywords

FQA-TOPSIS hesitant fuzzy cytotoxic vitiligo melanocytes final positive ideal solution and final -ve ideal solution

1 Introduction

Vitiligo is the deficiency of skin pigmentation that is a long-term disease marked by white patches on the skin. The paper’s desire is to highlight the notion of m-polar fuzzy soft set, together with two algorithms to resolve doubts during decision-making problems [1]. The skin gets affected due to lack of pigmentation and becomes white in color due to which the hair color changes to white as well. It may also affect various body parts such as mouth, nose, lips and so on. So far there is no evidence for the exact cause of vitiligo. A hesitant Fuzzy logic-based routing algorithm was developed to improve the monitoring time and reduce the risks due to automation [2]. It can be diagnosed by the tissue biopsy in well-equipped laboratories for accurate results. Three novel decision-making methods were introduced to achieve the best substitute out of counterintuitive phenomena so that the parameter selection issues can be refrained. Agent architecture-based Decision Support System was adapted to solve some uncertainty problems in dynamic production system scheduling [3, 4]. In this era, so many people are affected by these white patches due to the genetic issues, various environmental factors and auto immune system disorders.

Vitiligo is mainly categorized into two different types,

1. Segmental 2. Non segmental

In current trends, most of the cases are non-segmental, which affects all parts of the body and may even spread to other parts of the body in subsequent days. Spatial group decision support system (SGDSS) was designed in this work which helps decision-makers to solve the territorial decision problems with high accuracy [5]. On the other hand, only few people suffers from segmental which affects a particular part of the human body and does not expander spread anywhere else in the body like non segmental. The goal of this work is to project an expert system based on meditative fuzzy logic in order to identify the conceivable heartsickness in patients. PRISMA is a technique which is hired for the featured diagnosis system and analysis to demonstrate the effectiveness of fuzzy methods is implemented [6, 7]. Severe vitiligo cannot be resolved completely with the help of any medicines i.e., there is no exact treatment found so far in the medical research industry. In this research work, a new framework was designed with the help of fuzzy decision making to identify the best way for the component selection and out-raking of each component [8]. According toa survey of theWHO1% of people in world suffer from severe vitiligo. A framework using fuzzy logic was designed to utilize two parameters namely BST and SST for selecting products [9]. Both genders are affected equally in and around the world. We can identify the prior stages of this disease by pale patches appearing on the skin. But in some different cases, people feel itches in their body continuously before the patches appear. MCDM is used to produce structured graphical information to improve the consistency of decision-making rules so that the formal approach measures the graphical data to minimize errors. Tactics of Rule-Based Reasoning (RBR) and Fuzzy Logic Classifier (FLC) were used to evaluate the decision support system (DSS) and patient triage level according to the physician’s view. This diminishes the misdiagnosis of disease in patients and gives more precise results [10, 11].

Many reasons have been suggested for the cause of this disorder. Grid Fuzzy Model (GFM) was designed to produce the degree of similarity with a Fuzzy decision-making procedure [12]. Many researchers strongly defend that the body’s immune resistance is more responsible for this condition. An Ultraviolet (UV) rays can be used to find the stages and severity of the white patches in the early stages. The projection model with the hesitant fuzzy linguistic set is introduced to solve decision-making problems which also reduces the subjective and improves the objective of the DM results [13]. When we focus the black light to the affected parts of the body, the skin reacts to it. At the same time, regions of skin which are not affected never reacts to UV rays. In this article, The NEAT F-PROMETHEE-based MCDM approach is implemented to achieve an accurate computational result in the most complex problems. The main objective of this research is to provide treatment recommendations based on the relationship between newly developed DSS and back pain medical diagnosis. This analysis tests the selection of suitable PCM for the thermal management system by comparing of three methods namely TOPSIS, VIKOR, and PROMETHEE [14 –16].

2 Literature review

Two aggregation operators like SVNHFWA and SVNHFWG were employed in multiple-attribute decision making to solve the inconsistent and indeterminate information in medical diagnosis [17]. Throughout the pilot research work, systematic multi-criteria decision-making techniques have been expanded by ITFSs to pick the correct ship loader throughout transport [18]. This work aims to design CDSSs using fuzzy logic to diagnose MSDs(Musculoskeletal disorders (MSDs) and experienced their precision using actual data from patients which gives the higher accuracy to diagnosis MSDs [19]. A smart watching system was designed using block chain and fuzzy logic method to provide effective and more securable application to manage water processing for plants [20]. The main objective of this work is to help doctors make better decisions by using the fuzzy controller approach using the Mamdani system generated by R programming. [21]. Interval valued intuitionistic hesitant fuzzy entropy VIKOR method is used to rank the alternatives in industrial robot selection [22]. In the research work, Nap-HFS were introduced for group decision making to achieve several instances of the application and its suitable decision procedures [23]. Two and ness optimization model were developed to regulate the parameter values related to the Ham-PIT2HPWA and Ham-PIT2HPWG operators [24]. Finally, MCDM approach with hesitant fuzzy based on the original best worst method was designed to show the best performance and to reduce the time complexity [25]. A strategy for solving MAGDM issues based on LIVIFNs is planned using the weighted aggregation operator [33]. A methodology is planned for dealing with basic DM issues and a model is framed to show the reasonableness of the structured strategy by implementing a point by point exchange of the parameter [34]. The Pareto compelling arrangement is implemented by tackling the model. The creation plan set has been arranged artificially thorough assessment model and the ideal generation plan is obtained [35]. The proposed strategy has to fulfill all-inclusive statement and flexibility at accumulating q-rung orthopedic fuzzy data. By catching the interrelationships of criteria and the attitude of DMs which is powerful for solving the MCGDM issues based on qROFNS [36]. In the view of product defective rate and carbon emanation, a multi- objective number nonlinear programming (INLP) is introduced to address the multiproduct, multiperiod, and multi-OEM order assignment issue [37]. The model presented in this paper takes the complexity of subjective assessment into account in order to increase the findings ’ credibility. The variant may also be implemented in different industries at the same time [38]. Experts ’ linguistic values are represented with fuzzy numbers relative to possibilities and Neo-fuzzy TOPSIS is proposed to find the excellent solution to the problem of supplier preference. Numerical results show that the version proposed for incorporating sustainability into the question of supplier selection is inexperienced [39]. Supplier evaluation using traditional fuzzy TOPSIS is based on FPIS and FNIS and selects appropriate fuzzy system for reasonable assessment. [40]. Yeah. It is anticipated that the normalized Hamming distance would measure the distance among the interval-assessed intuitionistic fuzzy numbers at Atanassov. Finally, a mathematical instance of the option of the supplier is given to elucidate the main consequence. [41]. I-IIFH and I-IIFHG operators have been used to create a unique DM group to pick the most suitable alternative in a multiple attribute and multi-interest group set. The values of the attributes and the values of DM’s interest take the form of interval-assessed intuitionist fuzzy numbers [42]. A non-linear optimization model based on FAD-fuzzy axiomatic architecture where the weights of the criteria can be calculated. The ultimate alternative should have the least weighted amount of knowledge deriving from summing weighted content of statistics for each criterion. [43].

3 Methods

Let us consider $\bar{X}$ as a nonempty set, by performing the fuzzy intuitionistic on the domain $\bar{X}$ which is expressed as $\bar{A}$ : $\bar{A} = {〈 \tilde{χ}, {\dot{μ}}_{A} (\tilde{χ}), {\hat{ν}}_{A} (\tilde{χ}) 〉 | \tilde{χ} \in \bar{X}}$ (1)

Every element of $\bar{X}$ has got a membership $\dot{μ} \bar{A}$ [0,1] then every element of $\bar{X}$ denoted as x has got the same interval [0,1].

$\begin{matrix} {\dot{μ}}_{A} : \bar{X} \to [0, 1], \tilde{χ} \in \bar{X} \to {\dot{μ}}_{A} (\tilde{χ}) \in [0, 1], {\hat{ν}}_{A} : \\ \bar{X} \to [0, 1], \tilde{χ} \in \bar{X} \to {\hat{ν}}_{A} (\tilde{χ}) \in [0, 1] . \end{matrix}$ (2)

They meet the condition $0 \leq {\dot{μ}}_{A (χ)} + {\hat{ν}}_{A} (\tilde{χ}) \leq 1$ (3)

Here π indicates the intuitionistic fuzzy set of $\bar{A}$ , then intuitionistic $\bar{A}$ is represented by the difference between membership $\bar{A} (\tilde{x})$ and $\bar{A} (\tilde{x})$ . Hence the difference is subtracted with -1 is the real intuitionistic value of the set $\bar{A}$ . $π \bar{A} = 1 - \dot{μ} \bar{A} (\tilde{χ}) - \bar{A} (\tilde{χ})$ (4)

The uncertainty value of $\tilde{x}$ which belongs to the set $\bar{A}$ has got a similar degree of hesitation. for all $\tilde{χ} \in \bar{X}$ , represented by the interval $0 < π \bar{A} (\tilde{χ}) < 1$ .

According to the ideology of above said membership set of $\bar{A}$ , which is identical to the real intuitionistic value of each element which belongs to set $\bar{A}$ . $π \bar{A} (\tilde{χ}) = 1 - \dot{μ} \bar{A} (\tilde{χ}) - \bar{A} (\tilde{χ})$ (5)

Two Fuzzy sets in $\bar{X}$ field: Viz., $\bar{A}$ and $\bar{B}$ ; the product of those fuzzy sets are expressed below,

$\begin{matrix} \bar{A} \otimes \bar{B} = {\dot{μ} \bar{A} (\tilde{χ}) . \dot{μ} \bar{B} (\tilde{χ}), {\hat{ν}}_{A} (\tilde{χ}) + {\hat{ν}}_{B} (\tilde{χ}) \\ - {\hat{ν}}_{A} (\tilde{χ}) . {\hat{ν}}_{B} (\tilde{χ}) | \tilde{χ} \in \bar{X}} . \end{matrix}$ (6)

3.1 The proposed algorithm

FQA-TOPSIS Decision making in hesitant fuzzy is the new ideology for the selection process in a group. The selection procedure is made with the multi-criterion decision making support system. In this model, two elements are taken into account where one is linguistics and the other is intuitionistic. The distance among the final positive ideal solution with the final negative ideal solution is calculated. The entropy of the decision-makers is eliminated by means of aggregating the decision maker’s intuitionistic values and the closeness coefficient of TOPSIS brings up the highest precision cost for selection purposes.

Step 1: (Decide on decision-makers’ weight) We expect the class of decision makers to have i. The information of decision maker represents the intuitionistic fuzzy numbers. $Dk = [\dot{μ} k, π], π k$ is the rating fuzzy number straightforwardly of DMs. The weight of DMs is as per the following:

$λ_{k} = \frac{({\dot{μ}}_{k} + {\dot{μ}}_{k} ({\dot{μ}}_{k} / ({\dot{μ}}_{k} + {\hat{ν}}_{k})))}{\sum_{k = 1}^{l} ({\dot{μ}}_{k} + π_{k} ({\dot{μ}}_{k} / ({\dot{μ}}_{k} + {\hat{ν}}_{k})))}$ (7)

Under the stated condition, Σlk = 1λk = 1.

Step 2: (Building a intuitionistic fuzzy matrix). An intuitive, fuzzy matrix of relational decision-making is ${\bar{R}}^{(k)} = {({\bar{R}}_{ij}^{k})}_{m \times n}$ . The weight of each criteria is λ = {λ1, λ2, …, λ1}, under the form $\sum_{k = 1}^{l} λ_{k} = 1, λ_{k} \in [0, 1]$ . Fuzzy direct weighted average is given in the group decision-making process, because all individual opinion decisions need to be merged into the intuitionist fuzzy values of the set opinion system. $\begin{matrix} {\bar{R}}^{(k)} = {({\bar{R}}_{ij}^{k})}_{m \times n} \\ {\bar{R}}_{ij} = IFWA (r_{ij}^{' (1)}, r_{ij}^{' (2)}, . . ., r_{ij}^{' (l)}) \\ = λ_{1} r_{ij}^{' (1)} \oplus λ_{2} r_{ij}^{' (2)} \oplus λ {lr}_{ij}^{' (l)} = \\ [1 - \prod_{k = 1}^{l} {(1 - {\dot{μ}}_{ij}^{(k)})}^{λ k}, \prod_{k = 1}^{l} {({\hat{v}}_{ij}^{(k)})}^{λ k}, \\ \prod_{k = 1}^{l} {(1 - {\dot{μ}}_{ij}^{(k)})}^{λ k} - \prod_{k = 1}^{l} {({\hat{v}}_{ij}^{(k)})}^{λ k}] \end{matrix}$ (8)

Under the condition, $\overset{´}{r} ij = (\dot{μ} (\tilde{χ} j),] \bar{Ai} (\tilde{χ} j)$ , $π \bar{Ai} (\tilde{χ} j)) (i = 1, 2, . . ., m; j = 1, 2, . . ., n)$ .

Aggregated Structure of the fuzzy matrix is adhered.,

$\begin{matrix} \bar{R} = (\begin{matrix} {\dot{μ}}_{A 1} ({\bar{x}}_{1,} {\hat{ν}}_{A 1} ({\bar{x}}_{1}), π_{A 1} ({\bar{x}}_{1})) & \dots & {\dot{μ}}_{A 1} ({\bar{x}}_{n,} {\hat{ν}}_{A 1} ({\bar{x}}_{n}), π_{A 1} ({\bar{x}}_{n})) \\ \dots & ⋱ & \dots \\ {\dot{μ}}_{Am} ({\bar{x}}_{1}, {\hat{ν}}_{Am} ({\bar{x}}_{1}), π_{Am} ({\bar{x}}_{1})) & \dots & {\dot{μ}}_{Am} ({\bar{x}}_{n,} {\hat{ν}}_{Am} ({\bar{x}}_{n}), π_{Am} ({\bar{x}}_{n})) \end{matrix}) \\ \bar{R} = (\begin{matrix} r_{11}^{'^{'}} & \dots & r_{1 m}^{'^{'}} \\ ⋮ & ⋱ & ⋮ \\ r_{n 1}^{'^{'}} & \dots & r_{nm}^{'^{'}} \end{matrix}) . \end{matrix}$ (9)

Step 3: (The evaluation criteria determines through weight). Evaluation criteria are not likely to be similarly important. $\bar{W}$ reflects a number of degrees of vital importance. We get $\bar{W}$ by incorporating the sense of the criticisms and expectations of decision-makers.

The intuitionistic fuzzy relational matrix $\bar{Xj}$ of DMs is ${\bar{W}}_{j}^{(k)} = [{\dot{μ}}_{j}^{(k)}, {\hat{ν}}_{j}^{(k)}, π_{j}^{(k)}]$

Standard weight is calculated through IFWA. $\begin{matrix} {\bar{W}}_{j} = IFWA ({\bar{W}}_{j}^{(1)}, {\bar{W}}_{j}^{(2)}, . . ., {\bar{W}}_{j}^{(l)}) \\ = λ_{1} r {' (1)}_{j}^{\oplus} λ_{2} r_{j}^{' (2)} \oplus . . . \oplus λ {lr}_{j}^{' (l)} \\ = [1 - \prod_{k = 1}^{l} {(1 - {\dot{μ}}_{ij}^{(k)})}^{λ k}, \prod_{k = 1}^{l} {({\hat{v}}_{ij}^{(k)})}^{λ k}, \\ \prod_{k = 1}^{l} {(1 - {\dot{μ}}_{ij}^{(k)})}^{λ k} - \prod_{k = 1}^{l} {({\hat{v}}_{ij}^{(k)})}^{λ k}] \\ w^{'} = [w_{1}^{'}, w_{2}^{'}, w_{3}^{'}, . . ., w_{j}^{'}] \end{matrix}$ (10)

Among them, $w^{'} = ({\dot{μ}}_{j}, {\hat{ν}}_{j}, π_{j}) (j = 1, 2, 3, . . ., n)$ .

Step 4: (Build weighted aggregation via IFDM). We construct weighted aggregation of intuitionist fuzzy decision matrix after weight determination of criteria $(\bar{W})$ : $\begin{matrix} \bar{R} \otimes \bar{W} = {〈 \tilde{χ}, {\dot{μ}}_{Ai} (\tilde{χ}) . {\dot{μ}}_{ω} (\tilde{χ}), {\hat{ν}}_{Ai} (\tilde{χ}) + {\hat{ν}}_{ω} (\tilde{χ}) \\ - {\hat{ν}}_{Ai} (\tilde{χ}) + {\hat{ν}}_{ω} (\tilde{χ}) . {\hat{ν}}_{ω} (\tilde{χ}) 〉 | \tilde{χ} \in \bar{X}} \end{matrix}$ $\begin{matrix} π_{Ai} (\tilde{χ}) . \bar{W} (\tilde{χ}) = 1 - {\hat{ν}}_{Ai} (\tilde{χ}) - {\hat{ν}}_{ω} (\tilde{χ}) - {\dot{μ}}_{Ai} (\tilde{χ}) . {\hat{ν}}_{ω} (\tilde{χ}) \\ + {\hat{ν}}_{Ai} (\tilde{χ}) . {\hat{ν}}_{ω} (\tilde{{χ}}) \end{matrix}$ (11)

Aggregation of the weighted fuzzy intuitionistic matrix as follows: $\begin{matrix} {\bar{R}}^{'} = \\ (\begin{matrix} {\dot{μ}}_{A 1} ω^{'} ({\tilde{x}}_{1,} {\hat{ν}}_{A 1} ω^{'} ({\tilde{x}}_{1}), π_{A 1} ω^{'} ({\tilde{x}}_{1})) & \dots & {\dot{μ}}_{A 1} ω^{'} ({\tilde{x}}_{n,} {\hat{ν}}_{A 1} ω^{'} ({\tilde{x}}_{n}), π_{A 1} ω^{'} ({\tilde{x}}_{n})) \\ ⋱ \\ {\dot{μ}}_{Am} ω^{'} ({\tilde{x}}_{1,} {\hat{ν}}_{m} ω^{'} ({\tilde{x}}_{1}), π_{Am} ω^{'} ({\tilde{x}}_{1})) & \dots & {\dot{μ}}_{Am} ω^{'} ({\tilde{x}}_{n,} {\hat{ν}}_{m} ω^{'} ({\tilde{x}}_{n}), π_{Am} ω^{'} ({\tilde{x}}_{n})) \end{matrix}) \\ {\bar{R}}^{'} = (\begin{matrix} r_{11}^{'^{'}} & \dots & r_{1 j}^{'^{'}} \\ ⋮ & ⋱ & ⋮ \\ r_{i 1}^{'^{'}} & \dots & r_{ij}^{'^{'}} \end{matrix}) . \end{matrix}$ (12)

$r_{ij}^{'^{'}} = ({\dot{μ}}_{ij}^{'}, {\hat{ν}}_{ij}^{'}, π_{ij}^{'}) = ({\dot{μ}}_{Ai} . ω^{'} ({\tilde{χ}}_{j}), {\hat{ν}}_{Ai} . \hat{ν} ({\tilde{χ}}_{j}), π_{Ai} . π ({\tilde{χ}}_{j}))$ is the intuitional fuzzy aggregation matrix.

Step 5: Compute the IFPIS and IFNIS.

To decide the intuitionistic for the following Mathematical illustrations in Engineering fuzzy +ve ideal solution $\overset{}{\overset{︷}{A}} *$ and fuzzy –ve ideal solution $\overset{}{\overset{︷}{A}} -$ ; they are discussed below. $\begin{matrix} \overset{*}{\overset{︷}{A}} = ({\dot{μ}}_{\bar{A} * \bar{W}} ({\tilde{χ}}_{j}), {\hat{ν}}_{\bar{A} * \bar{W}} ({\tilde{χ}}_{j})) \\ \overset{}{\overset{︷}{A}} - = ({\dot{μ}}_{\bar{A} - \bar{W}} ({\tilde{χ}}_{j}), {\hat{ν}}_{\bar{A} - \bar{W}} ({\tilde{χ}}_{j})) \end{matrix}$ (13)

J1 is a collection of more significant standards set and J2 is a collection of cost standard set. Below the condition, $\begin{matrix} {\dot{μ}}_{\bar{A} * \bar{W}} ({\tilde{X}}_{j}) = ((max_{i} {\dot{μ}}_{\bar{Ai} . \bar{W}} (\tilde{X}) | j \in J_{1}), ((min_{i} {\dot{μ}}_{\bar{Ai} . \bar{W}} ({\tilde{X}}_{j}) | j \in J_{2})) \\ {\hat{v}}_{{\bar{A}}^{*} \bar{W}} ({\tilde{X}}_{j}) = ((min_{i} v_{\bar{Ai} . \bar{W}} ({\tilde{X}}_{j}) | j \in J_{1}), ((max_{i} {\hat{v}}_{\bar{Ai} . \bar{W}} ({\tilde{X}}_{j}) | j \in J_{2})) \\ {\hat{v}}_{\bar{A} - \bar{W}} ({\tilde{X}}_{j}) = ((min_{i} {\hat{v}}_{\bar{Ai} . \bar{W}} ({\tilde{X}}_{j}) | j \in J_{1}), ((max_{i} {\hat{v}}_{\bar{Ai} . \bar{W}} ({\tilde{X}}_{j}) | j \in J_{2})) \\ {\hat{v}}_{\bar{A} - \bar{W}} ({\tilde{X}}_{j}) = ((max_{i} {\dot{μ}}_{\bar{Ai} . \bar{W}} ({\tilde{X}}_{j}) | j \in J_{1}), ((min_{i} {\hat{v}}_{\bar{Ai} . \bar{W}} ({\tilde{X}}_{j}) | j \in J_{2})) \end{matrix}$ (14)

Step 6 (To find the distance between +ve and -ve ideal solution were predicted). $\overset{︷}{Si} *$ is defined as distance between indicators and +ve ideal solution. $\overset{︷}{Si}$ –is defined as distance between indicators and -ve ideal solution. To calculate $\overset{︷}{Si} *$ and $\overset{︷}{Si}$ –by using Euclidean distance, it is accomplished that

$\begin{array}{l} \overset{}{\overset{︷}{S}} i * = \sqrt{\frac{1}{2 n} \sum_{j = 1}^{n} [{(μ A_{j * ω} (X_{j}) - μ_{A * ω} (X_{j}))}^{2} + {(ν A_{j * ω} (X_{j}) - ν_{A * ω} (X_{j}))}^{2} + {(π A_{j * ω} (X_{j}) - π_{A * ω} (X_{j}))}^{2}]} \\ \overset{}{\overset{︷}{S}} i - = \sqrt{\frac{1}{2 n} \sum_{j = 1}^{n} [{(\dot{μ} {\bar{A}}_{j * ω^{'}} ({\bar{X}}_{j}) - {\dot{μ}}_{\bar{A} - ω^{'}} ({\bar{X}}_{j}))}^{2} + {(\hat{ν} {\bar{A}}_{j * ω^{'}} ({\bar{X}}_{j}) - {\hat{ν}}_{\bar{A} - \bar{ω}} ({\bar{X}}_{j}))}^{2} + {(π {\bar{A}}_{j * ω^{'}} ({\bar{X}}_{j}) - π_{\bar{A} - ω^{'}} ({\bar{X}}_{j}))}^{2}]} \end{array}$ (15)

Step 7: (To find the closeness of coefficient).

Under the condition, .

Step 8: The best calculation of were made through high to low based on closeness of coefficient.

calculate the closeness coefficient

In Table 2: The importance of criteria is literally based on a scale we fixed between 1 to 9. The sale values are normalized between 0.1 to 0.9. The linguistics, applied for Low has got (0.1,0.2,0.3), medium denoted as (0.3,0.4,0.5), High expressed as (0.5,0.6,0.7) and Very High represented as (0.7,0.8,0.9). These values are fuzzy values introduced as scale 9. The threshold values can be fixed by the researcher through their own scale for the linguistics. Every linguistics have got a significant intuitionistic value.

Table 1

Aggregation index level

Evaluation criteria	Logistics	Decision makers
		DM1	DM2	DM3
C1	V1	M	H	L
	V2	L	L	H
	V3	H	M	H
	V4	VH	VH	L
C2	V1	L	L	M
	V2	VH	VH	M
	V3	H	M	H
	V4	M	H	VH
C3	V1	H	M	VH
	V2	M	H	H
	V3	M	H	L
	V4	L	L	L
C4	V1	VH	M	L
	V2	M	VH	H
	V3	L	H	L
	V4	H	M	L

Table 2

The importance of criterions

Degree	Score value
Very High (VH)	(0.90, 0.10)
High(H)	(0.75, 0.20)
Medium(M)	(0.50, 0.45)
Low(L)	(0.35, 0.60)

4 Results and discussion

The Decision Maker1, Decision Maker2 and Decision Maker3 gave the set of linguistic values right from Low to Very High based on their criterions. The same linguistic values have got their intuitionistic values has a triplet like (1,2,3), (3,4,5), (5,6,7), and (7,8,9) respectively. All the intuitionistic values of the decision makers are aggregated by means of taking lowest, average and highest among the respective elements in the matrix table. After that two objectives were imposed like Beneficial, Non-Beneficial and Normalize the fuzzy weightage for all the criterions. Final Positive Ideal Solution $\overset{︷}{A}$ i* and Final Negative Ideal Solution $\overset{︷}{A}$ i- among the alternatives were calculated to measure the ranking differences. Finally, di* and di- were calculated using $\overset{︷}{A}$ i* and $\overset{︷}{A}$ i-. By means of computing di* and di- to find the Closeness of Coefficient CCi. Based on CCi values ranking has been made.

The model suggested in this paper underlines the ambiguity of subjective evaluation in order to improve the results’ credibility. The variant can also be used in various industries, at the same time. The linguistic principles of professionals who are indifferent to possibilities are embodied in fuzzy numbers and Neo fuzzy TOPSIS is proposed to find the incredible supplier preference solution. Provider evaluation using comfortable fuzzy TOPSIS is based on FPIS and FNIS and selects appropriate fuzzy system for reasonable assessment. The uniform distance from Hamming is anticipated to measure the distance between the interval-evaluated intuitionist fuzzy numbers at Atanassov. Ultimately, a mathematical description of a dealer’s desire is given to explain the key consequences. I-IIFH and I-IIFHG operators were used to construct a novel DM organization to choose the highest desirable alternative in a multiple choice of characteristic and multi-interest institution. The values of the attributes and the hobby values of DM take the form of intuitionist fuzzy numbers valued for intervals. A non-linear optimization model based entirely on axiomatic FAD architecture where the requirement weight calculated. The ultimate alternative should have the least weighted statistics content which is extracted for each criterion with the aid of summing weighted record information.

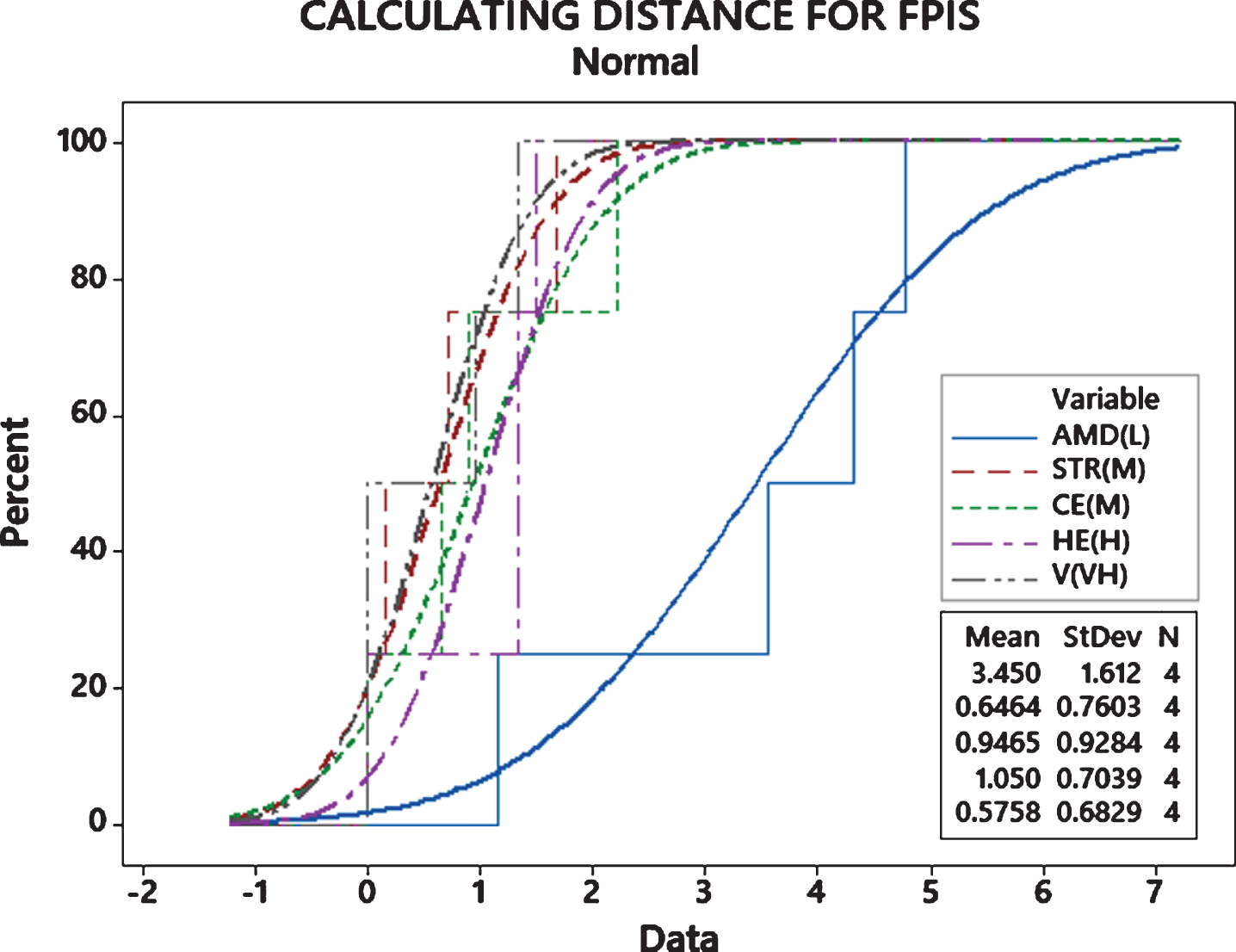

Fig. 1

Calculating Distance for FIPS.

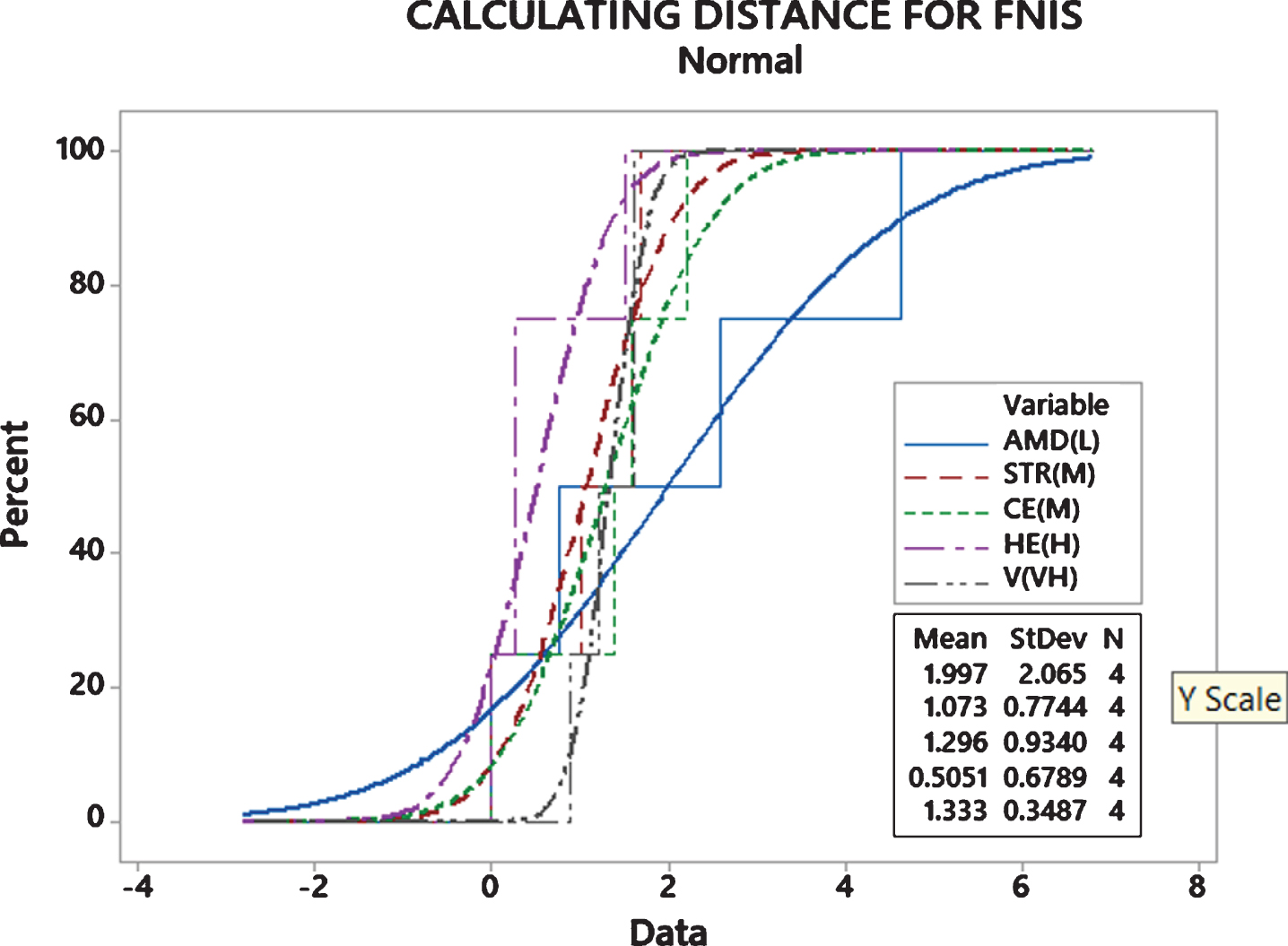

Fig. 2

Calculating Distance for FNIS.

Fig. 3

Outranking Based on Closeness Coefficient values.

4.1 Illustration Example

Decision Maker 1 $(\begin{matrix} str & ce & he & vi \\ v 1 & 3, 4, 5 & 1, 2, 3 & 5, 6, 7 & 5, 6, 7 & 3, 4, 5 \\ v 2 & 1, 2, 3 & 7, 8, 9 & 3, 4, 5 & 3, 4, 5 & 5, 6, 7 \\ v 3 & 5, 6, 7 & 5, 6, 7 & 3, 4, 5 & 1, 2, 3 & 3, 4, 5 \\ v 4 & 7, 8, 9 & 3, 4, 5 & 1, 2, 3 & 5, 6, 7 & 7, 8, 9 \end{matrix})$

Using 1

Decision Maker 2 $(\begin{matrix} Amd & str & ce & he & vi \\ v 1 & 5, 6, 7 & 1, 2, 3 & 3, 4, 5 & 3, 4, 5 & 7, 8, 9 \\ v 2 & 1, 2, 3 & 7, 8, 9 & 5, 6, 7 & 7, 8, 9 & 3, 4, 5 \\ v 3 & 3, 4, 5 & 3, 4, 5 & 5, 6, 7 & 5, 6, 7 & 5, 6, 7 \\ v 4 & 7, 8, 9 & 5, 6, 7 & 1, 2, 3 & 3, 4, 5 & 5, 6, 7 \end{matrix})$

Using 1

Decision Maker 3 $(\begin{matrix} Amd & str & ce & he & vi \\ v 1 & 1, 2, 3 & 3, 4, 5 & 7, 8, 9 & 1, 2, 3 & 5, 6, 7 \\ v 2 & 5, 6, 7 & 3, 4, 5 & 5, 6, 7 & 5, 6, 7 & 7, 8, 9 \\ v 3 & 5, 6, 7 & 5, 6, 7 & 1, 2, 3 & 1, 2, 3 & 3, 4, 5 \\ v 4 & 1, 2, 3 & 7, 8, 9 & 1, 2, 3 & 1, 2, 3 & 1, 2, 3 \end{matrix})$

Using 1

Aggregation $(\begin{matrix} Amd & str & ce & he & vi \\ v 1 & 1, 4, 7 & 1, 2.666, 5 & 3, 6, 9 & 1, 4, 7 & 3, 6, 9 \\ v 2 & 1, 3.333, 7 & 3.6.666, 9 & 3, 5.333, 7 & 3, 6, 9 & 3, 6, 9 \\ v 3 & 3, 5.333, 7 & 3, 5.333, 7 & 1, 4, 7 & 1, 3.333, 7 & 3, 4.666, 7 \\ v 4 & 1, 6, 9 & 3, 6, 9 & 1, 2, 3 & 1, 4, 7 & 1, 5.333, 9 \end{matrix}) Using 9$ Objective 1: Beneficial and Non - Beneficial $(\begin{matrix} Amd & str & ce & he & vi \\ v 1 & 1, 4, 7 & 0.111, 0.296, 0.555 & 0.333, 0.666, 1 & 0.111, 0.444, 0.777 & 0.333, 0.666, 1 \\ v 2 & 1, 3.333, 7 & 0.333, 0.740, 1 & 0.333, 0.592, 0.777 & 0.333, 0.666, 1 & 0.333, 0.666, 1 \\ v 3 & 3, 5.333, 7 & 0.333, 0.592, 0.777 & 0.111, 0.444, 0.777 & 0.111, 0.370, 0.777 & 0.333, 0.518, 0.777 \\ v 4 & 1, 6, 9 & 0.333, 0.666, 1 & 0.111, 0.222, 0.333 & 0.111, 0.444, 0.777 & 0.111, 0.592, 1 \end{matrix})$ Objective 2: Normalized fuzzy weightage $(\begin{matrix} Amd (L) & str (M) & ce (M) & he (H) & vi (VH) \\ v 1 & (1, 8, 21) & (0.333, 1.181, 2.777) & (1, 2.666, 5) & (0.555, 2.666, 5.444) & (2.333, 5.333, 9) \\ v 2 & (1, 6.666, 21) & (1, 2.962, 5) & (1, 2.370, 3.888) & (1.666, 4, 7) & (2.333, 5.33, 9) \\ v 3 & (3, 10.66, 21) & (1, 2.370, 3.888) & (0.333, 1.777, 3.888) & (0.555, 2.222, 5.444) & (2.333, 4.148, 7) \\ v 4 & (1, 12, 27) & (1, 2.666, 5) & (0.333, 0.888, 1.666) & (0.555, 2.666, 5.444) & (0.777, 4.740, 9) \end{matrix}) Using 11$ $(\begin{matrix} Amd (L) & str (M) & ce (M) & he (H) & vi (VH) \\ v 1 & 1, 8, 21 & 0.333, 1.181, 2.777 & 1, 2.666, 5 & 0.555, 2.666, 5.444 & 2.333, 5.333, 9 \\ v 2 & 1, 6.666, 21 & 1, 2.962, 5 & 1, 2.370, 3.888 & 1.666, 4, 7 & 2.333, 5.33, 9 \\ v 3 & 3, 10.66, 21 & 1, 2.370, 3.888 & 0.333, 1.777, 3.888 & 0.555, 2.222, 5.444 & 2.333, 4.148, 7 \\ v 4 & 1, 12, 27 & 1, 2.666, 5 & 0.333, 0.888, 1.666 & 0.555, 2.666, 5.444 & 0.777, 4.740, 9 \end{matrix})$ Calculating distance for FPIS (Computed A*) $(\begin{matrix} Amd (L) & str (M) & ce (M) & he (H) & vi (VH) \\ v 1 & 4.32049 & 1.68752 & 0 & 1.34562 & 0 \\ v 2 & 4.77648 & 0 & 0.66391 & 0 & 0 \\ v 3 & 3.54860 & 0.72703 & 0.90721 & 1.50718 & 1.34222 \\ v 4 & 1.15470 & 0.17106 & 2.21480 & 1.34562 & 0.96106 \end{matrix}) Using 13$ Calculating distance for FNIS (Computed A-) $(\begin{matrix} Amd (L) & str (M) & ce (M) & he (H) & vi (VH) \\ v 1 & 0.76980 & 0 & 2.21480 & 0.25660 & 1.61497 \\ v 2 & 0 & 1.68752 & 1.58928 & 1.50718 & 1.61497 \\ v 3 & 2.58198 & 1.01385 & 1.38183 & 0 & 0.89810 \\ v 4 & 4.63481 & 1.58928 & 0 & 0.25666 & 1.20432 \end{matrix}) Using 13$ Coefficient of closeness for alternatives $(\begin{matrix} di * & di - & cci \\ c 1 & 7.35364 & 4.85618 & 0.39773 \\ c 2 & 5.4404 & 6.39897 & 0.54048 \\ c 3 & 8.03226 & 5.87577 & 0.42247 \\ c 4 & 5.84725 & 7.68502 & 0.5679 \end{matrix}) Using 16$ Final out ranking $\begin{matrix} (\begin{matrix} di * & di - & cci \\ c 1 & 7.35364 & 4.85618 & 0.39773 \\ c 2 & 5.4404 & 6.39897 & 0.54048 \\ c 3 & 8.03226 & 5.87577 & 0.42247 \\ c 4 & 5.84725 & 7.68502 & 0.5679 \end{matrix}) \end{matrix} \to (\begin{matrix} Ranking \\ 4 \\ 3 \\ 2 \\ 1 \end{matrix}) Using 16$ In the optimization problems, we would like to spend only the minimum amount of money to get maximum services. In the article, we found both final positive ideal solutions through that it is possible for us get maximum services at the minimum cost. On the other hand, we have to identify where the maximum amount is spent for that finding the final negative solution. Here final negative ideal solution cost should be cut to the maximum to achieve the optimization. So both FPIS and FNIS are required in our problem. At last we found the closeness of coefficient that was calculated through FPIS and FNIS for out ranking the best insurance company through the FQA-TOPSIS method in hesitant fuzzy.

5 Limitation of FQA-TOPSIS

In the hesitant FQA-TOPSIS method one of the main limitations of the out-ranking is based on two factors. One is about the attribute selection which is otherwise called as criterions. The attribute preference changes the due addition and deletion that will affect the ranking. Second one in the article that contains two objectives like beneficial and non-beneficial attributes according to the application scenarios and another one objective applied is weightage which depends on the previous objective beneficial and non-beneficial attributes. The above said phenomena will reversal or change the OUT-RANKING.

6 Conclusion and future work

In the research work, we take application vitiligo caused because of the absence of Melanin in the body. Of course, it is a rare application where we applied the selection process of the patient severity of the disease using the methodology hesitant fuzzy FQA-TOPSIS with a unique in the hesitant fuzzy linguistics and intuitionistic values and the relative distance, measures were calculated to find a good alternative and good selection. The effective two extreme of ideal solutions have been taken under consideration for maximizing the gain criteria and minimizing the value and vice versa for the later. Simplicity, rationality, comprehensibility, top computational performance and potential to measure the relative performance for each alternative in a easy mathematical form. FQA-TOPSIS technique has been typically used to solve choice-making problems. This technique is based totally on the evaluation between all the options included in the problem.

This proposed approach may be highly useful in big scale choice-making issues. MCDM or MCDA is a sub-discipline of operations studies which specifically evaluates a few conflicting selection criteria. The FQA-TOPSIS technique is useful for decision-makers to structure the troubles to be solved, behavior analyses, comparisons and rating of the options.

The classical TOPSIS approach solves problems in which all selection facts are acknowledged and represented through crisp numbers.

The future methodologies and many features are available for the upcoming researchers in this arena. The researchers can handle the same application using PROMETHEE, DEMATEL, AHF DEMATEL, Fuzzy AHF DEMATEL, Graph theory and Matrix approach etc.. Will provide the marginal difference in the OUT-RANKING the patients.
