A novel integrated diagnosis method for breast cancer detection

Abstract

The effective detection of breast cancer is particularly essential for recovery and treatment in the initial phases. The existing methods are not successfully diagnosis breast cancer in the initial phases. Thus the initial recognition of breast cancer is expressively a great challenge for health professionals and scientists. To resolve the problem of initial stages recognition of breast cancer, we recommended a machine learning based diagnosis method which will excellently classify the malignant and benign persons. In the designing of our method machine learning model support vector machine has been applied to classify the malignant and benign persons. To increase the classification performances of the method, we used Minimal Redundancy Maximal Relevance and Chi-square algorithms to choose more appropriate features from the breast cancer dataset. The training/testing splitting technique is used for training and testing of the model. Additionally, the performance of the model has been evaluated by performance assessment metrics. The experimental results demonstrated that the classifier support vector machine obtained best classification performance on the selected subset of features as selected by Minimal Redundancy Maximal Relevance feature selection algorithm. The performances of support vector machine on selected features by Chi square feature selection algorithm are low as compared to Minimal Redundancy Maximal Relevance algorithm. From experimental results analysis, we determined that the integrated system based on Minimal Redundancy Maximal Relevance and support vector machine performances are high due to the selection of more suitable features and obtained 99.71% accuracy. According to McNemar’s statistical test the proposed method is more significant then existing methods. Thus, we recommend that the proposed diagnosis method for effective detection of breast cancer.

Keywords

Breast cancer feature selection machine learning predictive model diagnosis system classification

1 Introduction

Breast cancer (BC) is a common sickness which affected females in the globe according to American Institute for Breast Cancer Research [1], and 2 million new people were suffered in 2018. BC is 5^th major reasons of ladies dying as compared to other types of cancers. The BC, really a malignant tumor that generate in breast cell. A collection of splitting cells that form a lump or mass of extra tissue which is called Tumors and these tumors can be either malignant or benign. In various countries with developed technology of science for health, the 5-year survival rate of early stage BC is 80-90% and dropping to 24% for BC detection at the early phase [2]. To diagnosis, the BC numerous invoice based methods are used. In biopsy method [3] breast tissues use for testing and the results are relatively correct. Though, to take a biopsy from the breast is hurting for the patient. Additional BC identification method is mammogram [4] which is applied for detection of BC. In this method 2 dimensional (2D) projection image of the breast is considered. But, the mammogram method not detect the benign cancer successfully. Another, invoice based method for analysis of the breast is magnetic reasoning imaging (MRI) [5] which is actual complicated test and provides outstanding results for 3 dimensional (3D) images and shows the dynamic functionality. These invoice based diagnosis methods are actual complicated to conducts and the results are not successfully diagnosis the BC. Furthermore, these methods need long time to produce the results [6]. To resolve these problems in invasive-based approaches for diagnosis of BC, a noninvasive based method such as machine learning(ML) methods are more effective and consistent. To classify breast tissues that either be malignant or benign ML methods have been used in the literature. The concerned literature of ML methods for the detection of BC has been stated in this paper concisely as bellow. Azar et al. in [4] suggested a method for detection of BC. They used three classifications methods such as Radial Basis Function (RBF), Probabilistic Neural Network (PNN) and Multi-layer Perceptron (MLP). These algorithms were trained and tested with BC dataset. The performance assessment metrics were used the model performance assessment. The MLP achieved 97.80% and 97.66% accuracy for training and testing individually. In additional study, Emina et al. [7]suggested a BC diagnosis method use two Wisconsin BC (WBC) datasets beside with genetic algorithm (GA) for feature selection procedure and rotation forest (RF) classifier for classification purposes. The RF achieved 99% classification accuracy on selected features as selected by GA. In [8] proposed a identification method GA-MOO-NN for BC identification. The GA algorithm was used for selecting important features. They split the dataset into three parts 50% for training, 25% for testing and 25% for validation. The proposed approach gained the accuracy of 98.85% and 98.10% individually in the best and average case. Hasan et al. [9] suggested a method for the identification of BC using symbolic regression of Multigene genetic programming.The 10-fold cross-validation was used and obtained 99% accuracy. In [10]designed a method to analysis BC and reached 98.8% accuracy. While in [11] suggested a classification system used fuzzy-GA method and obtained 97.36% accuracy. Akay in [12] designed a BC detection system utilized the F-score technique for features selection and support vector machine and gained high results. Zheng et al. [13] applied a k-means algorithm for variable selection and extraction and joint with SVM for detection of BC.The suggested system accomplished high accuracy and short processing time. Naga et al. [14] applied hybridized principal components analysis joint with diverse classifiers and used to dissimilar BC datasets and attained high results. In [15] developed a method based on Memetic Pareto artificial neural network for discovery of BC. The investigation results confirmed that the suggested method attained high accuracy and low execution time. Cede’s et al. [16] suggested a technique for BC identification applying artificial meta plasticity multi-layer perceptron and achieved accuracy 99%. In [17] developed a BC prediction method based on decision tree and used the under-sampling technique to balance the training data. The experimental results display that the suggested technique attained good accuracy. Zheng et al. [13] suggested a BC identification method based on k-means algorithm and SVM. The k-mean was used for feature mining and SVM was used for classification. Onan [18] considered an intelligent method for identification of BC.He applied fuzzy rough for selection of an instance, and feature selection by reliability. For BC diagnosis he used the fuzzy-rough nearest neighbor classifier. In [19] proposed a method based on particle swarm optimization integrated with non-parametric kernel density estimation for BC detection. Similarly in [20] developed a BC diagnosis method using mixture ensemble of convolutional neural networks and obtained 96.39% accuracy. Zaher et al. [21] proposed a breast cancer classification method using deep belief networks and achieved 99.68% classification accuracy.

Additionally to provide good services to BC patient home health care logistic services are very necessary which are started from a pharmacy are scheduled and routed to do different care services at patient ’s home [22]. Similarly in another study [23] proposed an efficient heuristic for a home health care issue.The home health care operations including a set of nurses and patients have been developed recently by both academia and health practitioners to consider elderlies preferences willing to receive their cares at their homes instead of hospitals or retirement homes. In [24] home health care services to provide nursing and general hygiene cares at patient home have been presented to assist the patients at home.

In the above literature the proposed breast cancer diagnosis techniques limitation and advantages have been summarized in Table 1 for better understanding the important of our proposed method. All these previous proposed methods used various techniques to diagnosis the breast cancer at early stages. However, all these methods have lack of prediction accuracy and high computation time for prediction of breast cancer. According to Table 1 the prediction accuracy of breast cancer diagnosis method need further improvement for efficient and accurate detection at early stages for better treatment and recovery. Thus, the major issues in these existing methods are low accuracy and high computation time and these might be due the use of irrelevant features in dataset. In order to tackle these problem new methods are needed to detect breast cancer correctly. The improvement in prediction accuracy is a big challenge and research gap.

Table 1
Summary of the previous methods

Ref Method Limitations Advantages Acc (%)

[4] BC detection using RBF, PNN, MLP techniques The performances of RBF and PNN techniques are satisfactory and have high computation time and low prediction accuracy. The MLP obtained high performance in term of computation and accuracy. 97.80

[7] GA-RF The proposed method computation time is more due the search of GA algorithm for feature searching in the dataset. The accuracy of proposed method is good. 99

[8] GA-MOO-NN The method computational complex. Only train/test/validation method has been used for training, testing and validation. However lack of others validation methods such as k-folds and LOSO for validation of the method. High accuracy due to more appropriate features selection. 98.85

[9] Symbolic regression of multigenetic preprogramming They used 10 folds validation and not performed experiments with others validation. High accuracy. 99

[11] Fuzzy-GA Computationally high complex. Low accuracy as compared others methods. 97.36

[12] F-Score-SVM Low accuracy. Low computation time. -

[15] Memetic pareto ANN Low accuracy. Computationally low complex. -

[16] Artificialcmeta plasticity MLP Computationally high complex. High accuracy. 99

[17] DT Computationally high complex. High accuracy. -

[13] k-mean-SVM The k-mean algorithm has been used for feature selection however, k-mean algorithm which take more time in feature selection in big dataset. High accuracy. -

[18] Fuzzy- Rough set-FRN The feature selection technique is complex for large data set. High accuracy. -

[20] Mixture ensemble-CNN Low accuracy. Computationally low complex. 96.39

[25] Deep belief network Computationally high complex. High accuracy. 96.68

[26] SAE-SVM Low accuracy. Computationally low complex. 98.25

[14] PCA-SVM Low accuracy. Computationally low complex. 96.84

[27] ACO-SVM Low accuracy. Computationally low complex. 98.83

[28] PSOWNN Low accuracy. Computationally low complex. 93.67

[28] PSOWNN Low accuracy. Computationally low complex. 93.67

Ref	Method	Limitations	Advantages	Acc (%)
[4]	BC detection using RBF, PNN, MLP techniques	The performances of RBF and PNN techniques are satisfactory and have high computation time and low prediction accuracy.	The MLP obtained high performance in term of computation and accuracy.	97.80
[7]	GA-RF	The proposed method computation time is more due the search of GA algorithm for feature searching in the dataset.	The accuracy of proposed method is good.	99
[8]	GA-MOO-NN	The method computational complex. Only train/test/validation method has been used for training, testing and validation. However lack of others validation methods such as k-folds and LOSO for validation of the method.	High accuracy due to more appropriate features selection.	98.85
[9]	Symbolic regression of multigenetic preprogramming	They used 10 folds validation and not performed experiments with others validation.	High accuracy.	99
[11]	Fuzzy-GA	Computationally high complex.	Low accuracy as compared others methods.	97.36
[12]	F-Score-SVM	Low accuracy.	Low computation time.	-
[15]	Memetic pareto ANN	Low accuracy.	Computationally low complex.	-
[16]	Artificialcmeta plasticity MLP	Computationally high complex.	High accuracy.	99
[17]	DT	Computationally high complex.	High accuracy.	-
[13]	k-mean-SVM	The k-mean algorithm has been used for feature selection however, k-mean algorithm which take more time in feature selection in big dataset.	High accuracy.	-
[18]	Fuzzy- Rough set-FRN	The feature selection technique is complex for large data set.	High accuracy.	-
[20]	Mixture ensemble-CNN	Low accuracy.	Computationally low complex.	96.39
[25]	Deep belief network	Computationally high complex.	High accuracy.	96.68
[26]	SAE-SVM	Low accuracy.	Computationally low complex.	98.25
[14]	PCA-SVM	Low accuracy.	Computationally low complex.	96.84
[27]	ACO-SVM	Low accuracy.	Computationally low complex.	98.83
[28]	PSOWNN	Low accuracy.	Computationally low complex.	93.67
[28]	PSOWNN	Low accuracy.	Computationally low complex.	93.67

Thus, the major objectives of this paper is to developed a predictive approach based on ML to effectively detect BC. Machine learning model SVM is used for classification of BC malignant and benign people, since the classification performance of SVM is high and numerous scholar in the literature used SVM. The Minimum Redundancy and Maximum Relevance (mRMR) and Chi-square algorithms are used for the selection of features that increases the performances. We adopted the mRMR and Chi square algorithms for suitable feature selection in this study since performance of mRMR and Chi-square FS algorithms based approaches are high as compare to other approaches of classification for BC and healthy people. These works used other feature selection and optimization algorithms such as LASSO, LLBFS [29], Relief with BFO [30], Relief [31]. Similarly adopted the brain storm optimization algorithm to tackle the stochastic multi objective energy conscious distribution permutation flow shop scheduling problem with the total tardiness constraint [32], fuzzy multi-objective model [33], and MSEO [34]. Furthermore Training/Testing splits validation technique is used to select the best hyper Parameters for best model assessment. Performance assessment metrics are used to check the performances of the proposed method. The proposed method has been evaluated on BC datasets. Additionally, the proposed approach fills in a gap on feature selection and classification using Wisconsin Diagnostic Breast Cancer data by properly matching the experimental design.

The important contributions of this research study are the following:

Firstly, the mRMR and Chi-square algorithms are used to select more related features from BC dataset.

Secondly, SVM performances have been checked on selected features subsets as selected by mRMR and Chi-square algorithms. Similarly, the performance of SVM also checked on full features set and compared with performances on best-selected features subset at which the model gained optimal accuracy. Furthermore, the classification performances of classifier are higher with features selected by mRMR FS algorithm.

Lastly, we summarized that the integrated method based on mRMR and SVM effectively diagnosis BC. Furthermore, according to McNemar’s statistical method the proposed method is more significant then existing methods.

This article remaining sections are organized into 3 sections. In Section 2 describe the BC datasets, preprocessing methods, features selection algorithms mRMR, Chi-square, and classification algorithm SVM in detail. Additionally, the validation methods, performance assessment metrics and statistical tests are also explained. In Section 3 experimental results are reported. The conclusion and future work are given in Section 4.

2 Research materials and method

2.1 BC datasets

The Wisconsin Breast Cancer Database (January 8, 1991) (WBC) [35] and WDBC dataset [36] are used in this work for testing the proposed technique.

2.2 Feature selection Algorithms

In this study mRMR and Chi-square feature selection algorithms have been used for related features selection for classification of BC and healthy subjects. Before providing the further detail, some common symbols, notation used in the paper are presented in Table 2.

Table 2
Mathematical symbols and notations used in the paper

Symbol Description

S Data set

m Number of instances in dataset

X Input features in dataset

Y Output classes label

b Bias or offset value from the origin

w d-dimensional coefficient vector

n number of Support vectors

i i^th instance in the data set

x _i i^th instance of dataset sample X

y _i Target labels to x

R Training set

T Test set

C Regularization parameter which controls the employment off between the achieving a low training error and a low testing error that is the ability to generalize your classifier to unseen data

γ The gamma parameter defines how far the influence of a single training example reaches, with low values meaning ’far’ and high values meaning ’close’.

O _i The number of observation in class

E _i It is the number of expected observation in class i if there is no relation between the feature and target variable.

p-value Test probability value

α Degree of freedom

X ² Chi-squared statistic

f Feature in dataset

MI mutual information

f _i i^th feature in the dataset

Symbol	Description
S	Data set
m	Number of instances in dataset
X	Input features in dataset
Y	Output classes label
b	Bias or offset value from the origin
w	d-dimensional coefficient vector
n	number of Support vectors
i	i^th instance in the data set
x _i	i^th instance of dataset sample X
y _i	Target labels to x
R	Training set
T	Test set
C	Regularization parameter which controls the employment off between the achieving a low training error and a low testing error that is the ability to generalize your classifier to unseen data
γ	The gamma parameter defines how far the influence of a single training example reaches, with low values meaning ’far’ and high values meaning ’close’.
O _i	The number of observation in class
E _i	It is the number of expected observation in class i if there is no relation between the feature and target variable.
p-value	Test probability value
α	Degree of freedom
X ²	Chi-squared statistic
f	Feature in dataset
MI	mutual information
f _i	i^th feature in the dataset

2.2.1 Minimal redundancy maximal relevance(mRMR) feature selection algorithm

The mRMR feature selection algorithm selects those features that are related to the target output label. These selected features might be redundant variables which must be handled. Heuristic search method used in mRMR and select optimum features that have maximum relevance and minimum redundancy. It checks one feature at a cycle and computes pairwise redundancy. The mRMR does not take care of the joint association of features [37]. The pseudo-code mRMR algorithm is described in algorithm 1. In algorithm, main computation of mutual information (MI) between two features is computed. This function is calculated between each pair of features instead of many pairs of features being irrelevant for the last result, mRMR not suitable for large domain feature selection problems. The following is the pseudo-code of mRMR algorithm.

Algorithm 1 mRMR

Input: initial features, reduced features ⊳ The

initial feature is the number of features in original features set and reduced feature is the required number of features

1: for all feature fi in initial features do

2: Relevance = mutual info (f_i, class);

3: Redundancy = 0;

4: for all feature f_j in initial features do

5: Redundancy +=mutual info;

6: end for

7: mrmrValue[ ]= relevance-redundancy;

8: end for

9: Selected features=sort (mrmrValues).take (reduced feature);

2.2.2 Chi-squared (X² statistic) feature selection algorithm

Chi-squared is feature selection algorithm and in different research works used it for feature selection [38], and [25]. This algorithm calculates X² between each feature and target variable and choose the required number of features with the best X² scores. The institution is that if a feature is independent to the target variable it is uninformative for classifying observations. The chi-square is expressed mathematically in Eq. 1 $X^{2} = \sum_{i = 1}^{n} \frac{{(O_{i} - E_{i})}^{2}}{E_{i}}$ (1) Where O_i is the number of observation in class and E_i is the number of expected observation in class i if there is no relation between the feature and target variable.

2.3 Support vector machine classification algorithm

In this paper, SVM is used for BC and healthy people classification. The support vector machine (SVM) is a machine learning algorithm which has been mostly used for classification problems [30 , 39–41] and [26]. SVM used a maximum margin strategy that transformed into solving a complex quadratic programming Problem. The high performance of SVM in classification, various applications widely applied [6], and [42]. In a binary classification problem, the instances are separated with a hyper plane w^Tx + b = 0, where w is a d-dimensional coefficient vector, which is normal to the hyperplane of the surface and b, is offset value from the origin, x is data set values. The SVM get results of w and b. The W can solve by introducing Lagrangian multipliers in the linear case. The data points on borders are called support vectors. The solution of w can be expressed in Eq. 2:

$w = \sum_{i = 1}^{n} α_{i} y_{i} x_{i}$ (2) Where n is the number, of Support vectors, i is i^th sample and y_i are target labels to x. The matrix transpose is T. The value of weight w and bias b are calculated the linear discriminant function can be written as in Eq. 3: $f (x) = sgn (\sum_{i = 1}^{n} α_{i} y_{i} x_{i}^{T} x + b)$ (3) The non-linear scenario, for kernel trick and decision function, can be written in Eq. 4:

$f (x) = sgn (\sum_{i = 1}^{n} a_{i} y_{i} K (x_{i}, x) + b)$ (4)

The +ve semi definite functions that obey the Mercer condition as kernel functions [43] Such as the polynomial kernel as expressed in Eq. 5: $K (x_{i}, x) = (x^{T}, x_{i} + 1)^{α}$ (5) The Gaussian kernel as expressed in Eq. 6: $K (x_{i}, x) = \exp (- γ | | x^{T} - x_{i} | |^{2})$ (6) The C and γ SVM parameters are computed in all experiments.

2.4 Data partition

In these experiments 70% and 30% of data used for training and testing model.

2.5 Performance assessment metrics

In this work, performance evaluation metrics are used. Table 3 shows the confusion matrix(CM) of the binary classification problem.

Table 3
CM [6 , 33] and [27]

Predicted Subject Predicted

BC Healthy Subject

Actual BC Subject TP FN

Actual Healthy Subject FP TN

	Predicted Subject	Predicted
Actual BC Subject	TP	FN
Actual Healthy Subject	FP	TN

According to Table 3 we compute the following metrics and mathematically expressed in Eq. 7-12.

TP (True Positive) if the subject is classified as BC

TN (True Negative) if a healthy subject is classified as healthy

FP (False positive) if a healthy subject is classified as BC

FN (False Negative) if a BC is classified as healthy.

Classification Accuracy(Ac): The accuracy shows the overall performance of the classification system. $Acc = \frac{TN + TP}{TP + TN + FP + FN} \times 100 %$ (7) Sensitivity/Recall: Sensitivity show that a diagnostic test is positive, and the subject has the disease.

Sensitivity (Sn) /Recall: $Sn = \frac{TP}{TP + FN} \times 100 %$ (8) Specificity: Specificity demonstrated that a predictive test is negative, and the person has no disease. $Sp = \frac{TN}{TN + FP} \times 100 %$ (9) $Precision = \frac{TP}{TP + FP} \times 100 %$ (10) F1- score: F-measure is the harmonic mean of precision and recall $F 1 - score = 2 \times \frac{Precision \times recall}{Precision + recall} \times 100 %$ (11)

MCC: MCC show model predictive capability and generate a value in range of -1, +1. $MCC = \frac{TP \times TN - FP \times FN}{\sqrt{A_{1} \times A_{2} \times A_{3} \times A_{4}}} \times 100 %$ (12) Where, A₁ = (TP + FP), A₂ = (TP + FN), A₃ = (TN + FP), and A₄ = (TN + FN).

2.6 Statistical test for methods comparison

In oder to compare the performance of machine learning supervised Models, statistical tests are necessary. In this study we used MCNemar’s test [47] to compare the predictive performance/accuracy of proposed method and others methods for breast cancer detection. The description of McNemar’s test is describe below. To use McNemar’s test, the instances of data set S split into a training set R and test set T. We train our method and others methods with training data and evaluating on test data set. For each instance x ∈ T of the test set we determine how classified by two models. The test is applied to a 2 × 2 contingency table, that report the results of two tests on a instance of n subjects as shown in Table 4.

Table 4
Contingency Table

Test model 2 positive Test model 2 negative

Test Model 1 positive Number of instances Miss classified by Mode 1 and Model 2 or n₀₀ Number of instances misclassified by Model 1 not by Model 2 or n₀₁

Test model 1 negative Number of instances misclassified by model 2 not by model 1 or n₁₀ Number of instances misclassified by neither model 1 nor model 2 or n₁₁

	Test model 2 positive	Test model 2 negative
Test Model 1 positive	Number of instances Miss classified by Mode 1 and Model 2 or n₀₀	Number of instances misclassified by Model 1 not by Model 2 or n₀₁
Test model 1 negative	Number of instances misclassified by model 2 not by model 1 or n₁₀	Number of instances misclassified by neither model 1 nor model 2 or n₁₁

Where the total number of instances in the test set are n and mathematically written as n = n₀₀ + n₀₁ + n₁₀ + n₁₁. Two tails hypothesis, under the null hypothesis, the two models should have same accuracy or error rate, which can be written mathematically H₀ : n₀₁ = n₁₀ The alternate hypothesis, the two model should have different accuracy or error rate which can be expressed mathematically as H₁ : n₀₁ ≠ n₁₀. The McNemar’s test statistic is computed in equation 13: $P - value = \frac{(n_{01} - n_{10})^{2}}{n_{01} + n_{10})}$ (13)

The selection of significance level, the test statistic or p-value interpreted as below: As we know that the test statistic is chi-square distribution with 1 degree of freedom. Additionally the confidence level and α are complement of each other. The alpha is the level of significant and if the value of alpha is low then confidence level will be high and the model will be more significant. Similarly, if the alpha value is high then confidence level will be low and the model is less significant. If P > α : then H₀ is fail to reject, the models have no difference, If p < = α: then H₀ is rejected and alternate H₁ is accepted the models have difference performance when trained on the particular training set R.

2.7 Proposed system for BC identification

The following is the procedure of the proposed predictive system for BC detection in algorithm 1 and graphically shown in Figure 1.

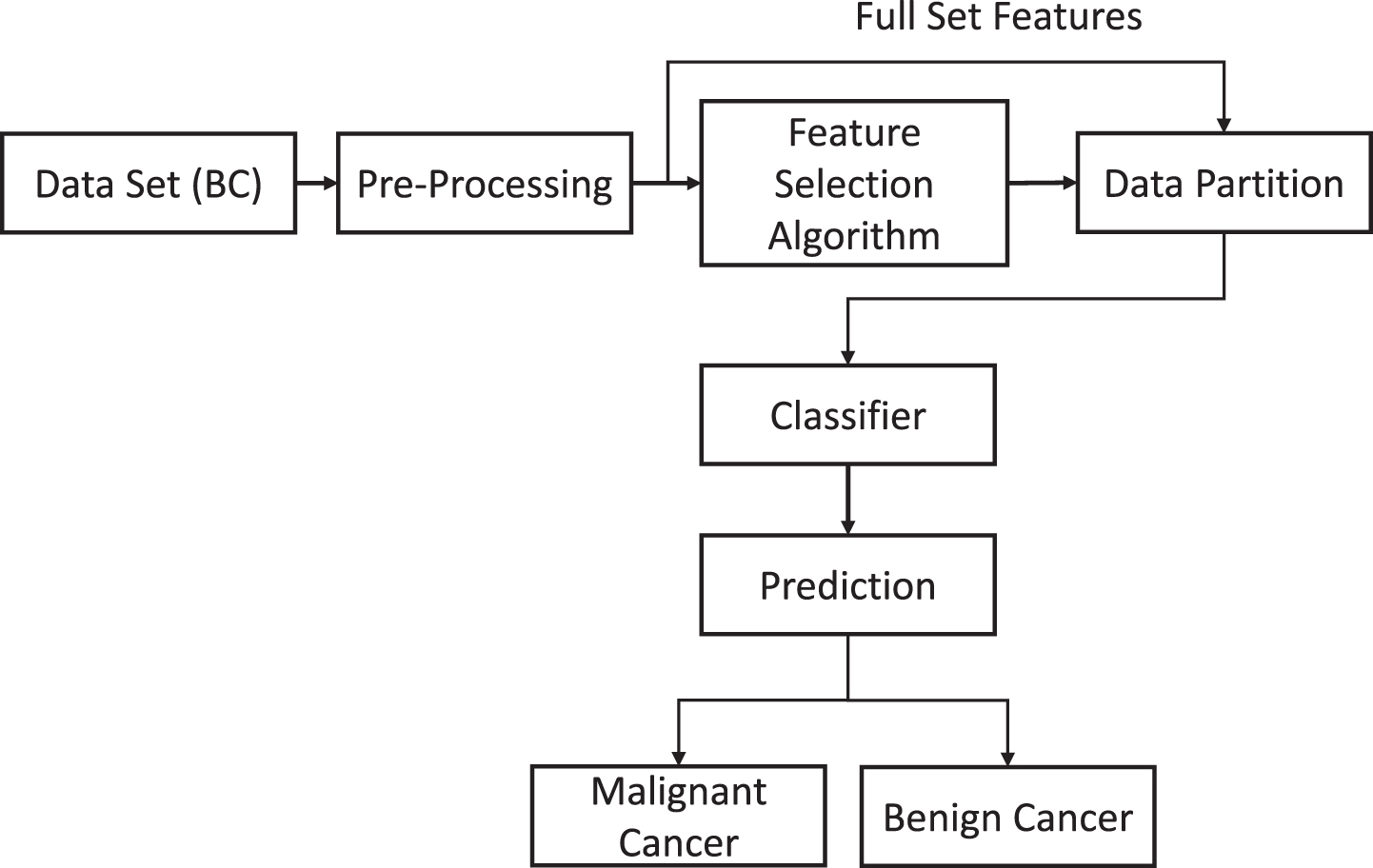

Fig. 1

The proposed predictive system for breast cancer.

Algorithm 2 Breast cancer predictive system

1: Begin

2: Pre-processing of dataset;

3: Best Feature selection set by mRMR and Chisquared algorithms;

4: Training and testing splits approach;

5: Train the SVM on the Training data;

6: test model SVM using testing data;

7: Computes the model performance evaluation metrics;

8: End

3 Experiments and discussion

We conduct different experiments for BC. The WBC dataset [35] and WDBC data set [36] are used in this work. The data set divided into 70% and 30% for training testing in these experiments. In order to check the model performances, various evaluation measures are used. Additionally McNemar’s statistical test has been used for comparison of proposed method with existing methods. Preprocessing techniques are deployed on a dataset for the normalization of the dataset. All experiments are conducted in python on an Intel(R) Core^TM i5-2400CPU @3.10 GH, RAM 4 GB and Windows 10 Pro.

3.1 preprocessing results

The database has instances size of 699 with 11 attributes and one is sample code number, 9 are real values features. The target label has two classes in order to denote the malignant (4) or benign (2) people. The class distribution is 458 benign and 241 malignant subjects. During the preprocessing 16 missing values, attributes of instances are removed thus leftover instances for two classes such as 444 benign cancers and 239 malignant cancers and 9 actual features. The other preprocessing methods [44], standard-scalar(SS) and Min-Max-Scalar are used to the dataset preprocessing. SS ensures that every feature has the mean 0 and variance 1, thus all features have the equal coefficient. Min-Max Scalar shifts the data in such a way that all features are ranged between 0 and 1. The information and description of 683 instances with 9 features of the dataset is given in Table 5 along with some statistical measures which computed automatically. All the features are visually demonstrated in Figure 2 for a better understanding. The heat map is a graphical representation of data. The individual values contained in a matrix are demonstrated as colors. It is a bit like looking a data table from above. It is good to display a general view of numerical data and not to extract specific data point. Figure 3 shows the heat map of the dataset used in this study.

Table 5
Features information and description with some statistical measures of WBC (January 8, 1991)

Label Feature Name Feature Code Min-Max Mean, ± Standard division

F1 Sample code number S. No 1- 683 -

F2 Clump Thickness CT 1.000000 - 10.000000 4.442167, ± 2.820761

F3 Uniformity of Cell Size UCS 1.000000 - 10.000000 3.150805, ± 3.065145

F4 Uniformity of Cell Shape UCSH 1.000000 - 10.000000 3.215227, ± 2.988581

F5 Marginal Adhesion MA 1.000000 - 10.000000 2.830161, ± 2.864562

F6 Single Epithelial Cell Size SECS 1.000000 - 10.000000 3.234261, ±2.223085.

F7 Bare Nuclei BN 1.000000 - 10.000000 3.544656, ± 3.643857.

F8 Bland Chromatin BC 1.000000 - 10.000000 3.445095, ±2.449697.

F9 Normal Nucleoli NN 1.000000 - 10.000000 2.869693, ±3.052666.

F10 Mitoses M 1.000000 - 10.000000 1.603221, ±1.732674.

Y Classes M = malignant=4, -

Samples 239

B = benign=2,

Sample 444

Label	Feature Name	Feature Code	Min-Max	Mean, ± Standard division
F1	Sample code number	S. No	1- 683	-
F2	Clump Thickness	CT	1.000000 - 10.000000	4.442167, ± 2.820761
F3	Uniformity of Cell Size	UCS	1.000000 - 10.000000	3.150805, ± 3.065145
F4	Uniformity of Cell Shape	UCSH	1.000000 - 10.000000	3.215227, ± 2.988581
F5	Marginal Adhesion	MA	1.000000 - 10.000000	2.830161, ± 2.864562
F6	Single Epithelial Cell Size	SECS	1.000000 - 10.000000	3.234261, ±2.223085.
F7	Bare Nuclei	BN	1.000000 - 10.000000	3.544656, ± 3.643857.
F8	Bland Chromatin	BC	1.000000 - 10.000000	3.445095, ±2.449697.
F9	Normal Nucleoli	NN	1.000000 - 10.000000	2.869693, ±3.052666.
F10	Mitoses	M	1.000000 - 10.000000	1.603221, ±1.732674.
Y	Classes		M = malignant=4,	-
			Samples 239
			B = benign=2,
			Sample 444

Fig. 2

Visual representation of the features.

Fig. 3

Heat map of features of the dataset.

3.2 Results of mRMR feature selection algorithm

The mRMR feature selection (FS) algorithm is more suitable for appropriate features. The weights of all features are shown in Table 6. The mRMR algorithm selects six important features and the classifier performances are excellent on these six features. These features are reported in Table 7 and graphically shown in Figure 4. According to Figure 4, the most appropriate features are clump thickness, bare nuclei, bland chromatin, single epithelial cell, Uniformity of cell shape and Uniformity of cell size. These features are critically important for the identification of breast cancer. The mRMR FS algorithm is more suitable for the small data set.

Table 6
Feature weight of the data set WBC

Label Feature code Feature weight

F2 CT 4.442167

F3 UCS 3.150805

F4 UCSH 3.215227

F5 MA 2.830161

F6 SECS 3.234261

F7 BN 3.544656

F8 BC 3.445095

F9 NN 2.869693

F10 M 1.603221

Label	Feature code	Feature weight
F2	CT	4.442167
F3	UCS	3.150805
F4	UCSH	3.215227
F5	MA	2.830161
F6	SECS	3.234261
F7	BN	3.544656
F8	BC	3.445095
F9	NN	2.869693
F10	M	1.603221

Table 7

The rank and weight of features selected by mRMR and Chi-square algorithm.

Method	Label	Code	Feature weight
mRMR	F2	CT	4.442
	F7	BN	3.544
	F8	BC	3.445
	F6	SECS	3.234
	F4	UCSH	3.215
Chi-Sq	F3	UCS	3.150
	F4	UCSH	3.215
	F5	MA	3.215
	F7	BN	3.544
	F8	BC	3.445
	F9	NN	2.869

Fig. 4

Features selected by mRMR Alogrithm.

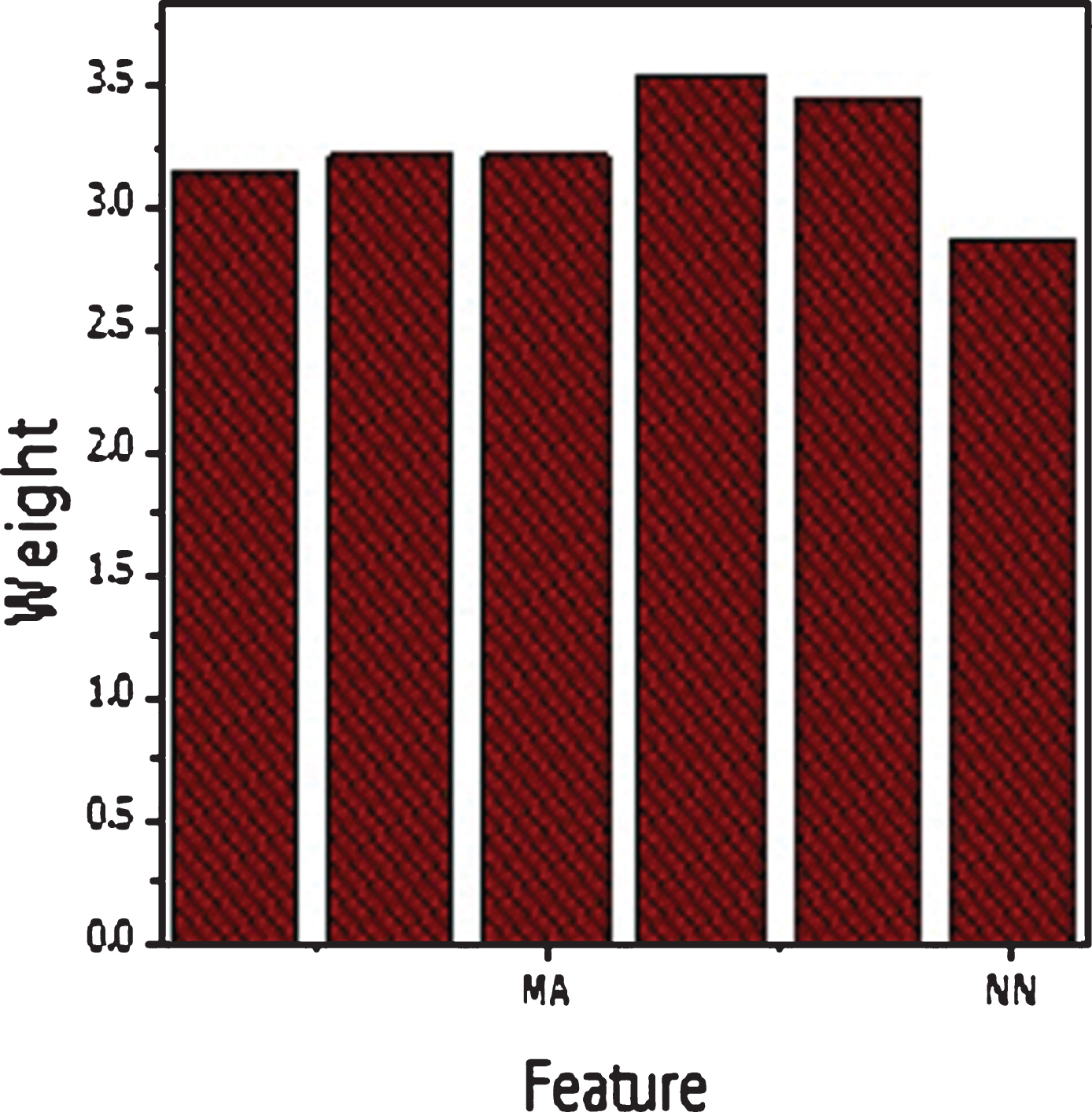

3.3 Results of Chi-squared FS algorithm

The chi-squared feature selection algorithm selected features are reported in Table 7. These features are more relevant to the target output class. These features are shown in Figure 5.

Fig. 5

Features selected by Chi- squared algorithm.

3.4 Classification results of SVM without and with features selection sets selected by mRMR

In order to diagnose breast cancer, we performed various experiments using SVM classifier with different SVM kernels includes linear, RBF and polynomial. The SVM parameters C=1 and γ = 0.0001 values are used in these experiments. The classifier performance has been checked on selected features set and on full features set. During these experiments, the performance of the SVM kernels is high on 6 reduce features set. Therefore, we only reported the experimental results of classifier on the six important selected features in Table 8. According to Table 8, the SVM(kernel=linear) on 6 selected feature set obtained 99.71% accuracy, 99% specificity, 98% sensitivity, 98% precision, 99% F1-score, 98% MCC, and model processing time is 0.002 seconds. While on full features set the SVM (linear) achieved 97% accuracy, 96% specificity, 95% sensitivity, and 96% precision, 98% F1-score, 94% MCC, and model computation time is 0.047 seconds. The SVM(kernel=RBF) on 6 selected feature set obtained 99.01% accuracy, 99% specificity, 98% sensitivity, 96% precision, 97% F1-score, 96% MCC, and model computation time is 0.030 seconds. While on full features set the SVM (RBF) achieved 97% accuracy, 98% specificity, 98% sensitivity, 97% precision, 98% F1-score, 97% MCC, and model processing time is 0.089 seconds. Similarly, SVM(kernel =polynomial) on 6 selected feature set obtained 97.11% accuracy, 97% specificity, 96% sensitivity, 97% precision, 97% F1-score, 96% MCC, and model computation time was 0.013 seconds. While on full features set the SVM (polynomial) achieved 97% accuracy, 97% specificity, 97% sensitivity, 96% precision, 97% F1-score, 96% MCC, and model computation time is 0.097 seconds.

Table 8
Classification results of SVM on different features Selected by mMRMR algorithm.

Predictive model Parameter Performance evaluation metrics

(C, γ) Feature set Acc Spec Sen Rec Pre F1-Sc MCC Exe

(%) (%) (%) (%) (%) (%) (%) Time(s)

SVM(Linear) 1, 0.0001 Selected feature set(6) 99.71 99 98 98 98 99 98 0.002

Full feature set(9) 97 96 95 95 96 98 94 0.047

SVM(RBF) 1, 0.0001 Selected feature set(6) 99.01 99 98 98 96 97 96 0.030

Full feature set(9) 97 98 98 98 98 98 97 0.089

SVM(polynomial) 1, 0.0001 Selected feature set(6) 97.11 97 96 96 97 97 96 0.013

Full feature set(9) 97 97 97 97 96 95 94 0.097

Predictive model	Parameter		Performance evaluation metrics
SVM(Linear)	1, 0.0001	Selected feature set(6)	99.71	99	98	98	98	99	98	0.002
		Full feature set(9)	97	96	95	95	96	98	94	0.047
SVM(RBF)	1, 0.0001	Selected feature set(6)	99.01	99	98	98	96	97	96	0.030
		Full feature set(9)	97	98	98	98	98	98	97	0.089
SVM(polynomial)	1, 0.0001	Selected feature set(6)	97.11	97	96	96	97	97	96	0.013
		Full feature set(9)	97	97	97	97	96	95	94	0.097

The classification performances of SVM linear kernel is high as compared to other SVM kernels on selected features set. The SVM linear obtained 99% accuracy on reduced feature set which shows the overall performance of the proposed method. The 99% specificity of SVM linear kernel is high for diagnosis of a healthy person. Similarly, 98% sensitivity is more effective for the detection of breast cancer people. The computation time of the classifier SVM linear on reduced feature set is low as compared on full features set. The accuracy, specificity, and sensitivity of the SVM on full feature set and on selected features set are graphically demonstrated in Figure 6 for better understanding. The F1-score performances of SVM on full and on selected feature set is shown in Figure 7. The MCC results on the full and on selected features shown in Figure 8 Similarly, the computation time of SVM on full features and on the selected features sets is shown in Figure 9. Thus, through these experimental results analyses, we reached on the conclusion that feature and data preprocessing are necessary for improving the performance of the classifier and reduced the computation time of the classifier.

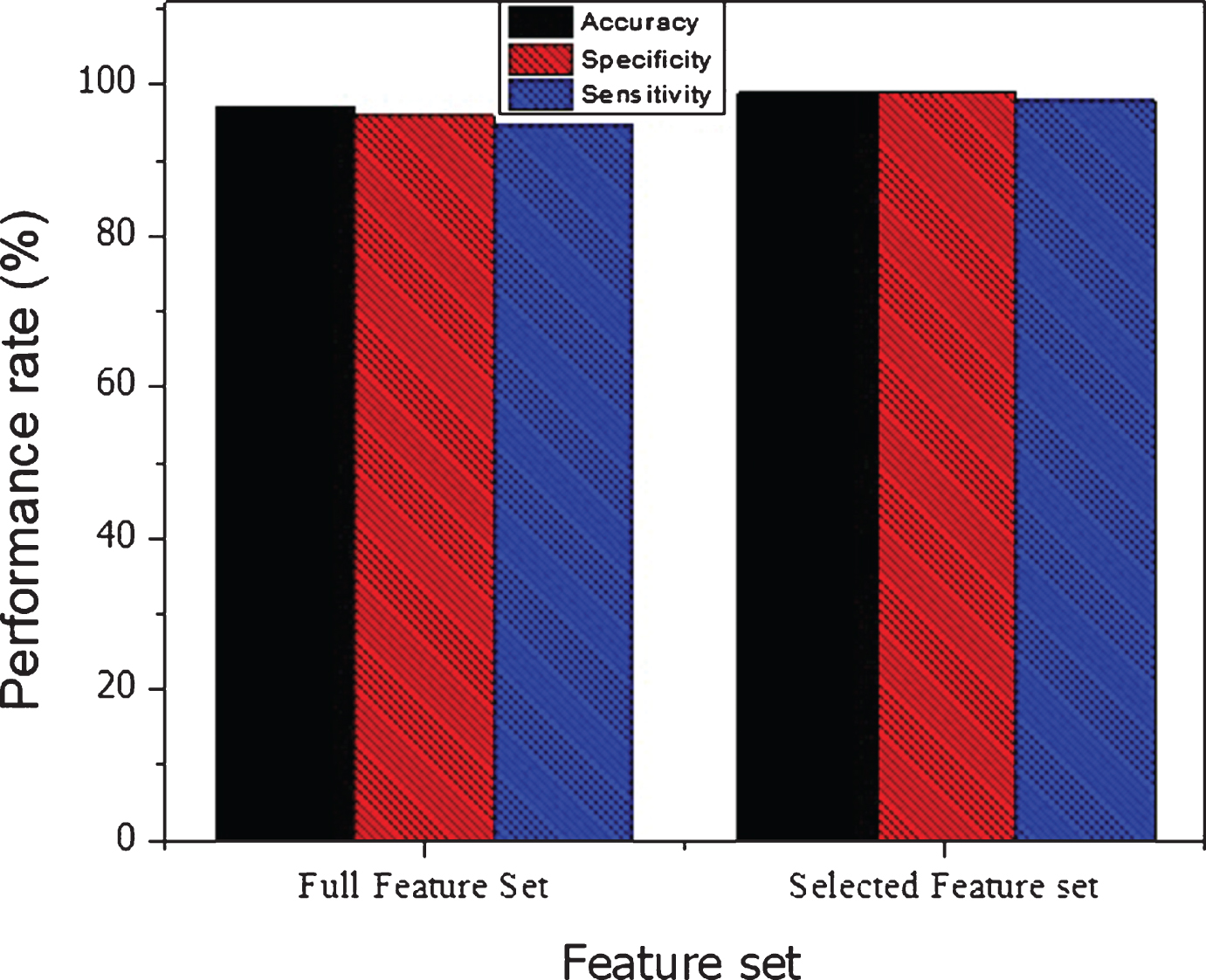

Fig. 6

SVM performance on full and on the selected feature set

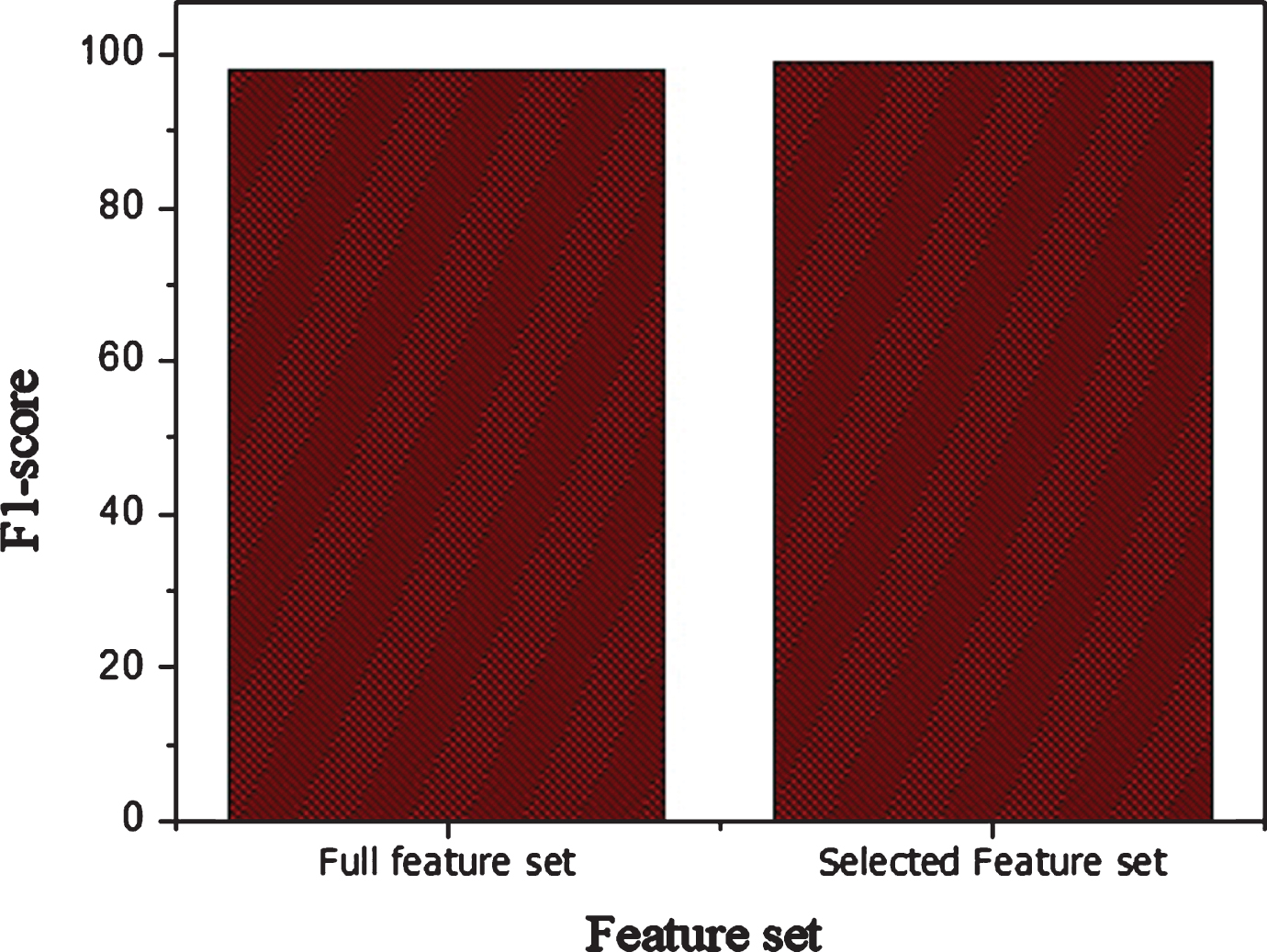

Fig. 7

F1- score performance of SVM on full and on selected features set

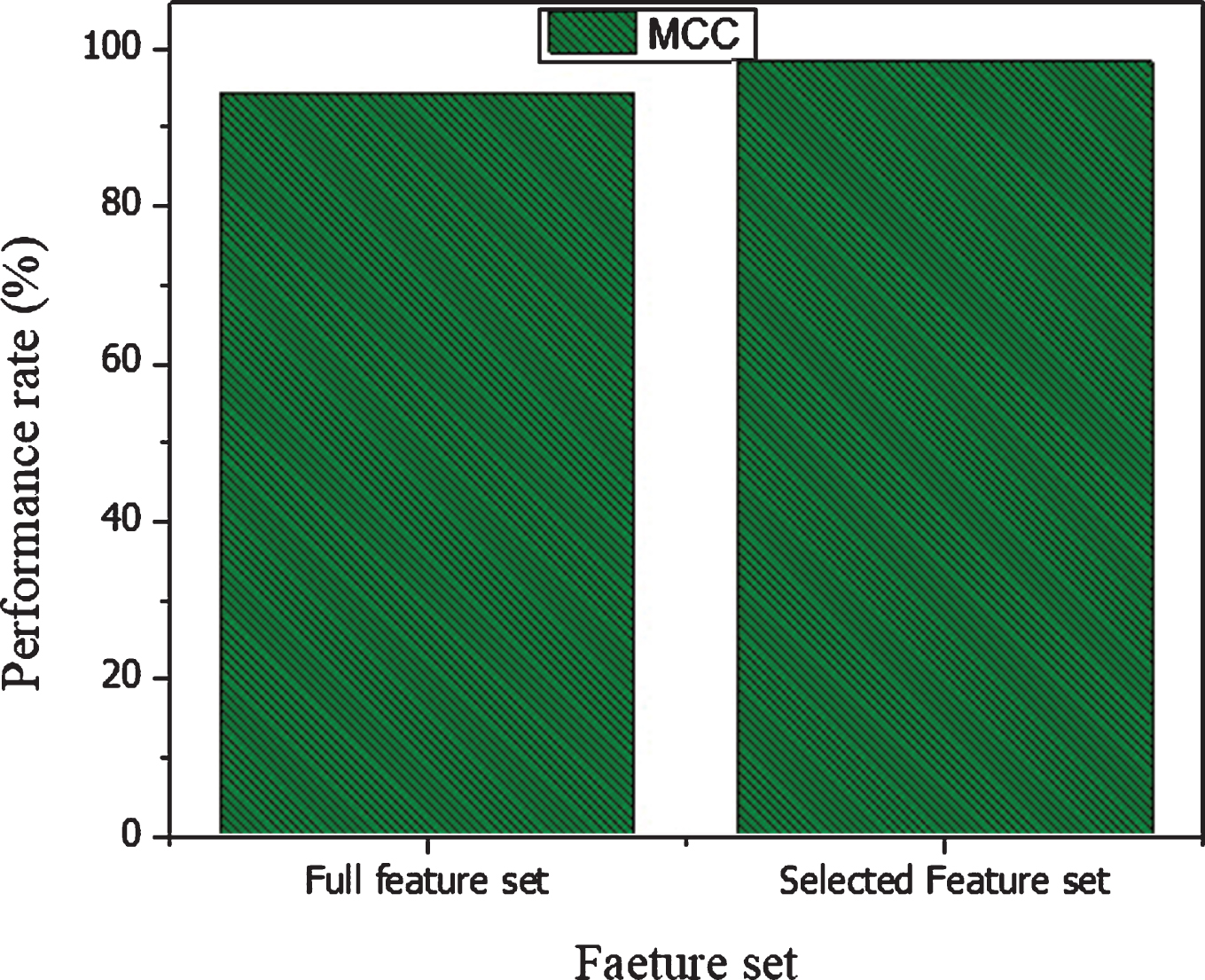

Fig. 8

MCC of SVM on full and on selected features sets

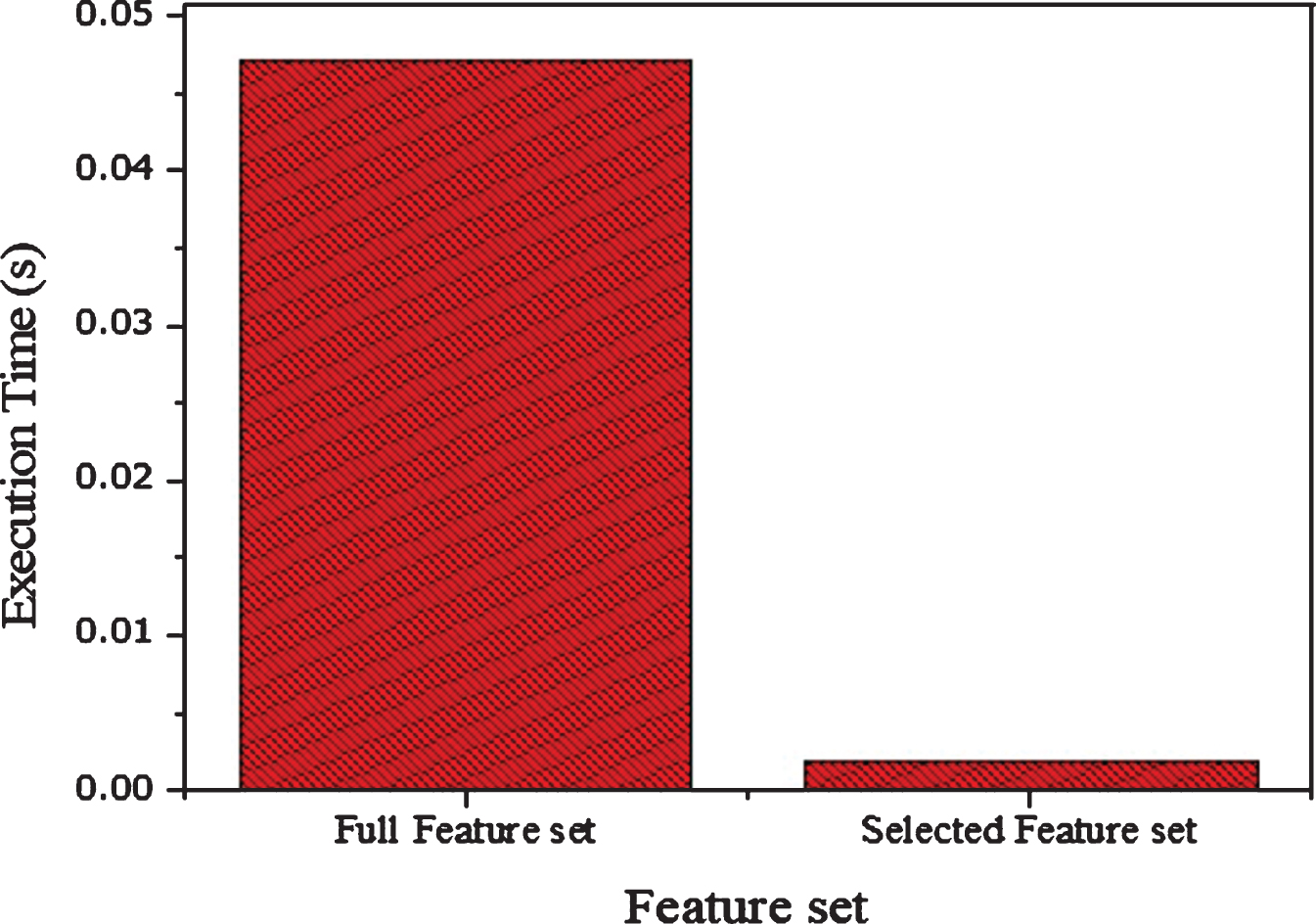

Fig. 9

Execution of SVM on full and selected features sets.

3.5 Classification performances of SVM on Full feature set and on the selected features set selected by Chi-squared feature selection algorithm

In order to diagnosis breast cancer, we performed various experiments using SVM classifier with SVM kernels includes linear, RBF and polynomial. The SVM parameters C=1 and γ = 0.0001 values are used. The classifier performance has been checked on selected features set and on full features set. During these experiments, the performance of the SVM kernels is high on 6 reduce features set. Therefore, we only reported the experimental results of the classifier on six important selected features in Table 9. In Table 9 the SVM linear achieved 98.07% classification accuracy on selected feature set while SVM kernel RBF and polynomial achieved 97.45% and 97.18% accuracy on the selected feature set respectively. The F1-score on the selected feature set SVM linear achieved 98%, RBF 98% and SVM polynomial achieved 97%. The accuracy and F1-score on the selected feature set of SVM different kernels are shown in Figure 10. Thus, according to Table 8 and 9 the classification performances of SVM is high on the selected feature set as selected by mRMR FS algorithm as compared to Chi-squared FS algorithm. The integration of mRMR with SVM is reliable for effective detection of breast cancer. The mRMR+SVM achieved 99.71% accuracy while Chi-squared+SVM achieved 98.07% accuracy.Thus we suggest that an integrated system based on the mRMR+SVM for breast cancer detection.

Table 9
Classification results of SVM on different features Selected by Chi-square algorithm.

Predictive model Parameter Performance evaluation metrics

(C, Feature set Acc Spe Sen Rec Pre F1-Sc MCC Exe

(%) (%) (%) (%) (%) (%) (%) Time(s)

SVM(Linear) 1, 0.0001 Selected feature set(6) 98.07 98 97 97 97 98 95 0.002

Full feature set(9) 97 96 94 94 98 97 93 0.047

SVM(RBF) 1, 0.0001 Selected feature set(6) 97.45 97 92 92 97 98 95 0.032

Full feature set(9) 97 95 91 91 95 97 96 0.078

SVM(polynomial) 1, 0.0001 Selected feature set(6) 97.18 96 98 98 98 97 94 0.015

Full feature set(9) 97 95 95 95 97 97 91 0.017

Predictive model	Parameter		Performance evaluation metrics
SVM(Linear)	1, 0.0001	Selected feature set(6)	98.07	98	97	97	97	98	95	0.002
		Full feature set(9)	97	96	94	94	98	97	93	0.047
SVM(RBF)	1, 0.0001	Selected feature set(6)	97.45	97	92	92	97	98	95	0.032
		Full feature set(9)	97	95	91	91	95	97	96	0.078
SVM(polynomial)	1, 0.0001	Selected feature set(6)	97.18	96	98	98	98	97	94	0.015
		Full feature set(9)	97	95	95	95	97	97	91	0.017

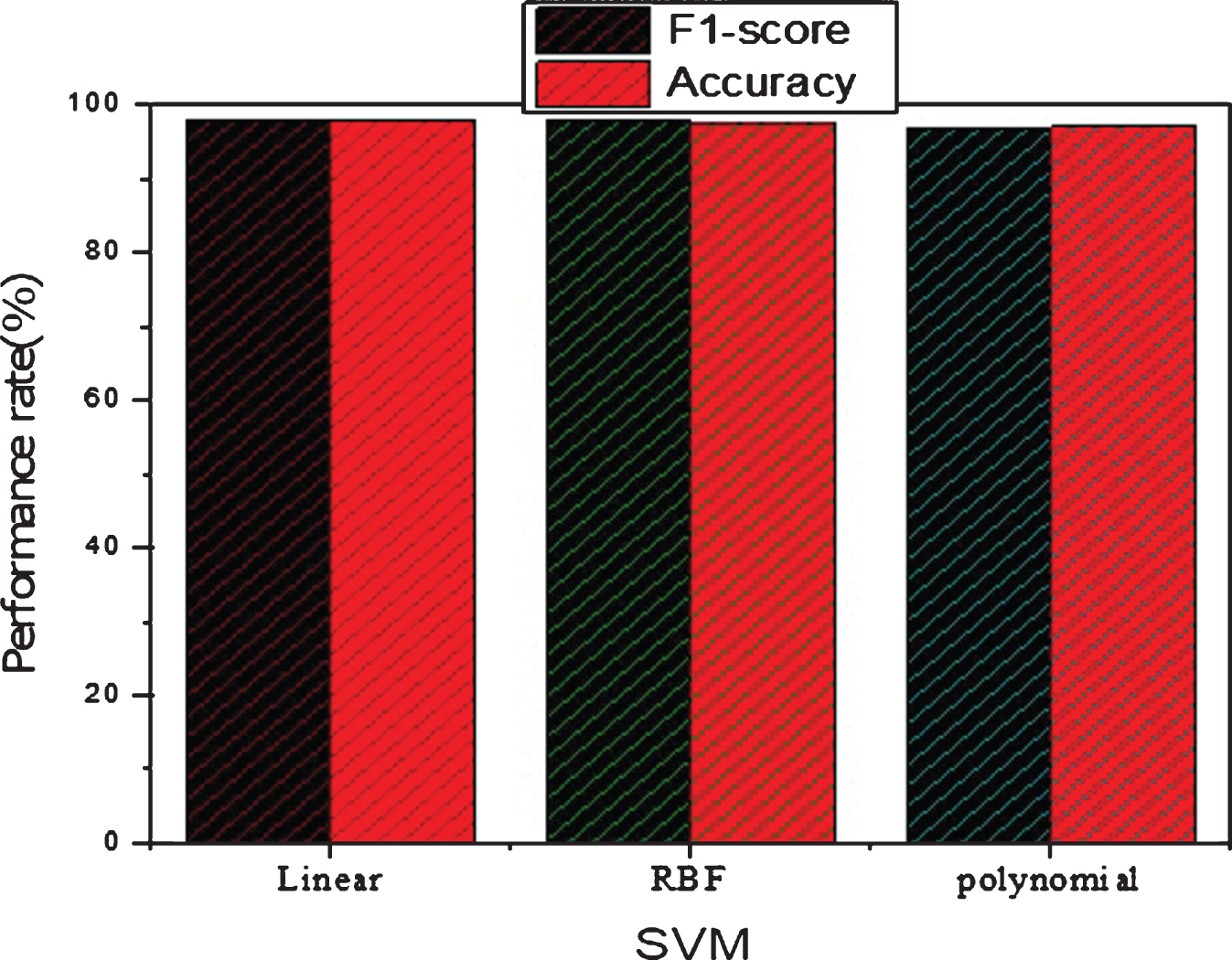

Fig. 10

Performances of SVM on the selected feature set selected by Chi-square algorithm

3.6 Performance of proposed method with other dataset

Another dataset WDBC [569 instances, 32 attributes] [36] has been used to checked the performance of proposed method. This data set have 32 features and 569 instances are given in Table10. The MRMR algorithm selected 18 features set F1, F2, F3, F5, F7, F8, F9, F12, F14, F17, F21, F22, F23, F25, F27, F28, F29, and F30 from the data set. The experimental results of SVM different kernels on full and on selected features sets have been reported in Table 11. According to Table 8 and 11 the proposed method mRMR-SVM performance are good on the dataset (Wisconsin Breast Cancer) Database (WBC)(January 8, 1991) [699 instances,11 attributes] [35] instead of data set WDBC [569 instances, 32 attributes] [36].

Table 10
Feature information and description of WDBC

label Name Description

F1 ID number Integer

F2 Radius mean mean of distances from the center to points on the perimeter cell

F3 Texture mean The standard deviation of gray-scale values

F4 perimeter mean Perimeter of cell

F5 Area mean Area of cell

F6 Smoothness mean local variation in radius lengths

F7 Compactness mean $\frac{{Perimeter}^{2}}{area - 1.0}$

F8 Concavity mean The severity of concave portions of the contour

F9 Concave points mean Number of concave portions of the contour

F10 Symmetry mean Symmetry

F11 Fractal dimension mean Coastline approximation, -1

F12 Radius severity -

F13 Texture severity -

F14 Perimeter severity -

F15 Area severity -

F16 Smoothness severity -

F17 Compactness severity -

F18 Concavity severity -

F19 Concave points severity -

F20 Symmetry severity -

F21 Fractal dimension severity -

F22 Radius worst -

F23 Texture worst -

F24 Perimeter worst -

F25 Area worst -

F26 Smoothness worst -

F27 Compactness worst -

F28 Concavity worst -

F29 Concave points worst -

F30 Symmetry worst -

F31 Fractal dimension worst -

label	Name	Description
F1	ID number	Integer
F2	Radius mean	mean of distances from the center to points on the perimeter cell
F3	Texture mean	The standard deviation of gray-scale values
F4	perimeter mean	Perimeter of cell
F5	Area mean	Area of cell
F6	Smoothness mean	local variation in radius lengths
F7	Compactness mean	$\frac{{Perimeter}^{2}}{area - 1.0}$
F8	Concavity mean	The severity of concave portions of the contour
F9	Concave points mean	Number of concave portions of the contour
F10	Symmetry mean	Symmetry
F11	Fractal dimension mean	Coastline approximation, -1
F12	Radius severity	-
F13	Texture severity	-
F14	Perimeter severity	-
F15	Area severity	-
F16	Smoothness severity	-
F17	Compactness severity	-
F18	Concavity severity	-
F19	Concave points severity	-
F20	Symmetry severity	-
F21	Fractal dimension severity	-
F22	Radius worst	-
F23	Texture worst	-
F24	Perimeter worst	-
F25	Area worst	-
F26	Smoothness worst	-
F27	Compactness worst	-
F28	Concavity worst	-
F29	Concave points worst	-
F30	Symmetry worst	-
F31	Fractal dimension worst	-

Table 11

Classification results of SVM on full and on Selected features selected by mRMR algorithm from WDBC data set

Predictive model	Parameter		Performance evaluation metrics
	(C, γ)	Feature set	Acc	Spec	Sen	Rec	Pre	F1-Sc	MCC	Exe
			(%)	(%)	(%)	(%)	(%)	(%)	(%)	Time(s)
SVM(Linear)	1, 0.0001	Selected feature set(18)	99	99	99	98	99	99	98	0.030
		Full feature set(30)	95	96	96	95	98	94	94	4.547
SVM(RBF)	1, 0.0001	Selected feature set(18)	98	99	99	96	98	97	97	0.004
		Full feature set(30)	96	97	86	98	99	95	95	5.747
SVM(polynomial)	1, 0.0001	Selected feature set(18)	97	98	98	95	98	97	97	0.003
		Full feature set(30)	95	96	98	95	99	95	94	6.547

3.7 Performance comparison of the proposed technique with previous methods

The performances of the proposed method have been compared with previous methods for breast cancer classification in term of accuracy and CPU execution time in Table 12, 13 and graphically shown in Figure 11 and 12. According to Table 12 and Figure 11, the performance of the proposed method for diagnosis of breast cancer in term of accuracy is good as compared to other previously proposed methods. The high performance of the proposed method might be due to the selection of important features selected by mRMR feature selection algorithm. in addition, the proposed method will be effectively diagnosis the breast cancer peoples, and we suggest that the method will be easily incorporated in health care for diagnosis of breast cancer. Similarly, according to Table 13 and Figure 12, the proposed method execution time is low as compared to previous methods. Thus, in term of CPU time, the proposed method is low as compared to other methods. As we compared the performance of proposed method with state of the art methods in term of accuracy and computation time using machine learning evaluation techniques. The proposed method is more accurately and efficiently diagnosis the breast cancer at early states.

Table 12
Methods comparison.

Ref Method Ac (%) p-value

[28] PSOWNN 93.67 0.45

[45] ACO-SVM 98.83 0.04

[8] GA-MOO-NN 98.83 0.37

[14] PCA-SVM 96.81 0.42

[46] SAE-SVM 98.25 0.08

[21] DBN-NN 99.68 0.05

Proposed method mRMR-SVM 99.71 0.03

Ref	Method	Ac (%)	p-value
[28]	PSOWNN	93.67	0.45
[45]	ACO-SVM	98.83	0.04
[8]	GA-MOO-NN	98.83	0.37
[14]	PCA-SVM	96.81	0.42
[46]	SAE-SVM	98.25	0.08
[21]	DBN-NN	99.68	0.05
Proposed method	mRMR-SVM	99.71	0.03

Table 13

CPU time for classification

Reference	Method	CPU time(seconds)
[13]	k-SVM	00.0039
	SVM	15.8900
Proposed method	mRMR-SVM	00.0020

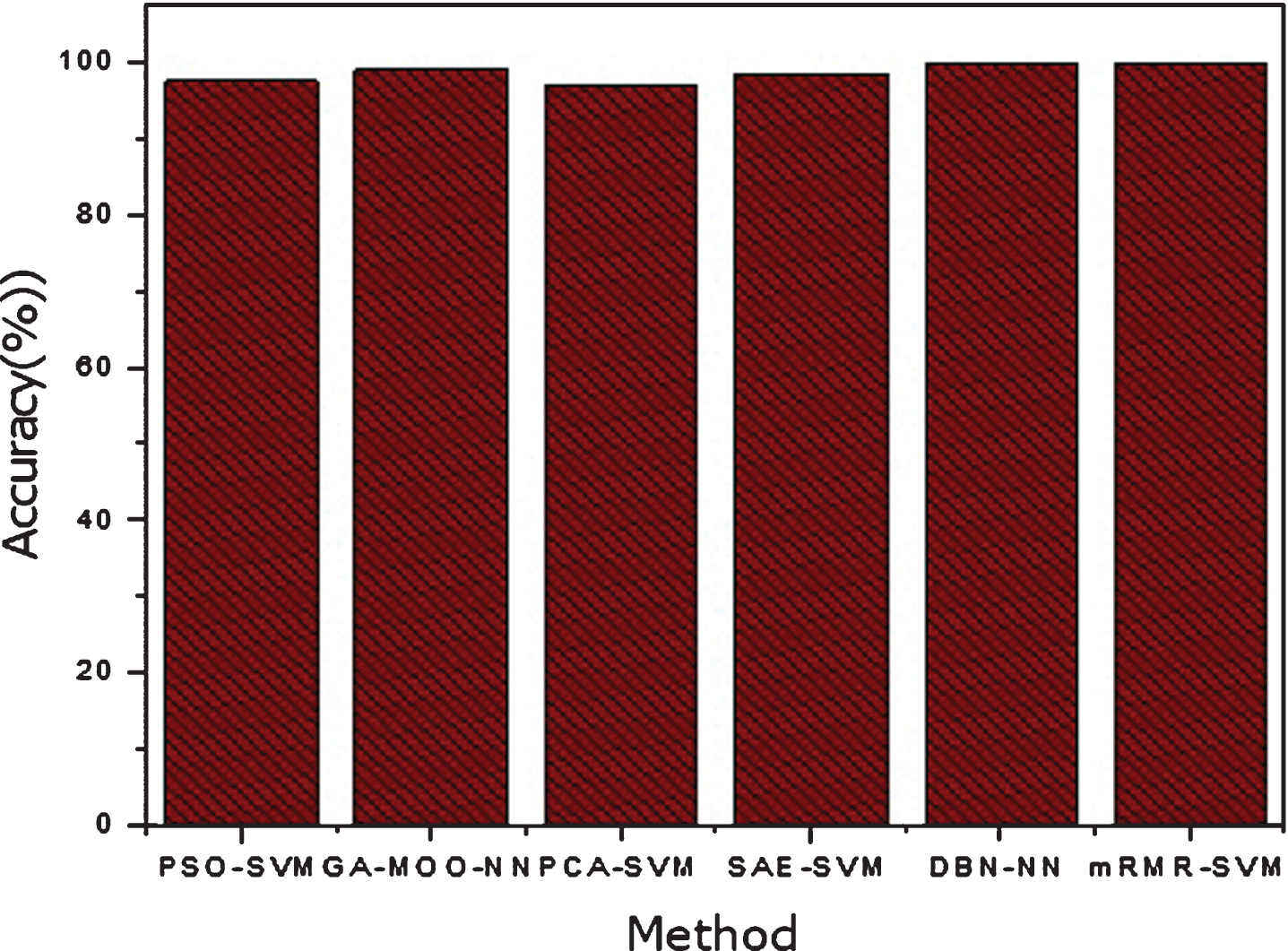

Fig. 11

Performance comparison with existing methods.

Fig. 12

CPU time for classification.

Statistically, we used McNemar’s test in order to compare the performance of our approach and state of the art approaches. In our experiments the hypothesis setting in such a way that H₀ : n₀₁ = n₁₀, if the performance of proposed model and with other existing method is the same accuracy or error rate. And H₁ : n₀₁ ≠ n₁₀, the alternate hypothesis, the two model have different accuracy or error. To validate the null and alternate hypothesis we compute the test statistic or p-value for proposed method and existing methods using McNemar’s test. The value of alpha for all experiments is 0.05, and confidence level 95%. Thus on the basis of p-value and alpha we accept or reject the null hypothesis on the following conditions If P > α : then H₀ is fail to reject, the models have no difference. If p < = α: then H₀ is rejected and alternate H₁ is accepted the models have difference performance when trained on the particular training set R. The experimental results of test-statistic or p-value are computed for each method and reported in Table 12 and level of significant is 0.05. The p-value of mRMR-SVM is 0.03 and DBN-NN p-value is 0.05 which is less 0.05 its mean that the null hypothesis is rejected and two method have significant different in term of accuracy.The SAE-SVM and mRMR-SVM p-values are 0.08 and 0.03 with is less then 0.05, thus two models are significantly different from each other and null hypothesis is rejected, Similarly the McNemar’s test statistic p value of model proposed models and ACO-SVM is 0.04 and less then 0.05 which is value of alpha. Therefore, p=0.04 <0.05 so null H₀ is rejected it means that methods are not significantly similarly and different exist in term of accuracy between the two methods.Lastly PSOWNN p-value is 0.45 which is near to 0.05 and we will reject the null hypothesis and will accept alternate hypothesis H₁, Its mean that the two models are significantly different in term of accuracy.

According to these statistical results we reached on the conclusion that proposed method significantly different from others state of the art methods in term of accuracy. Thus its might be due the selection more appropriate features selected by MRMR algorithm and classifier SVM effectively diagnosis breast cancer on the features.

4 Conclusion

In this article a BC detection method has been proposed for BC detection. In the system machine learning model, SVM is used for BC diagnosis. mRMR and Chi- squared FS algorithms are used for appropriate features. The dataset has been split into 70% and 30% for training and testing. Additionally, the methods of performance assessment metrics are used for model performance assessment. The our results analysis show that the proposed method effectively diagnosis BC. The reduced features by mRMR FS algorithm show that these are necessary features that detect BC accurately as comparatively to whole features space. The performances of mRMR FS algorithm with SVM are high as compared to Chi-squared FS algorithm with SVM. The classification performances of SVM with different kernels such as linear, RBF, and polynomial has been tested on reduce number features subset 6 is high as compared full features set. According to Table8 SVM kernel, linear performance is good as compares to other SVM kernels. SVM classifier gained accuracy 99.71%, 99% specificity, and 98% sensitivity on the selected feature set of mRMR FS algorithm. The 99% specificity value demonstrated that it is high for the diagnosis of healthy people. Similarly, 98% sensitivity show that classifier effectively detected BC people.The performance of proposed method on data set WBC[699, 11] are good as compared to dataset WDBC [599, 32] according to Table 8 and 11.

The novelty of the paper is proposed a method of diagnosis BC. The method used FS algorithm mRMR, Chi-squared, SVM, and Training/testing split technique, and performance measuring metrics for BC diagnosis. As we think that decision support system development using machine learning techniques it will be better for prediction of BC. Furthermore, we know that irrelevant features are also degrade the performance of the diagnosis system and computational time increase. Hence, another innovative part of the proposed study is to used features selection algorithm to select the relevant subset of features which improve the classification performance diagnosis system. The proposed method based on mRMR and SVM performance is high as compared to other methods that have been previously proposed as shown in Table 12 and Figure 11. Similarity the computation time of proposed method is low as compared other methods in Table 13 and shown in Figure 12. Furthermore, according to McNemar’s statistical test, the p-value of propose method is low as compared to existing methods which shows that the proposed method is more significant then existing methods.

In the near future, we will perform more experiments by using other machine learning, feature selection, optimization, and deep neural networks algorithms to improve the detection capability of diagnosis system of breast cancer. Furthermore, the proposed method will exercised on other diseases such Parkinson disease,heart diseases. We used McNemar’s statistical test in order to compared the proposed method with existing methods and we will use others statistical tests for further analysis of the proposed method in future.

Availability of data materials

The dataset used in this research work available on UC Irvine machine learning repository.

Competing interests

The authors declare that they have no competing interests.

Footnotes

Acknowledgment

This work was supported by the National Natural Science Foundation of China (Grant No. 61370073), the project of Science and Technology Department of Sichuan Province.

References

American institute for breast cancer research. https://www.wcrf.org/dietandcancer/cancer-trends/breast-cancer-statistics. Accessed: 2019-06-23.

Islam

M.M.

, Iqbal

, Haque

M.R.

and Hasan

M.K.

, Prediction of breast cancer using support vector machine and knearest neighbors, in 2017 IEEE Region 10 Humanitarian Technology Conference (R10-HTC), Dec 2017. pp. 226–229.

Ahmad

A.M.

, Khan

G.M.

, Mahmud

S.A.

and Miller

J.F.

, Breast cancer detection using cartesian genetic programming evolved artificial neural networks, in Proceedings of the 14th Annual Conference on Genetic and Evolutionary Computation, GECCO ’12, (New York, NY, USA), ACM, (2012), pp. 1031–1038.

Azar

A.T.

and El-Said

S.A.

, Probabilistic neural network for breast cancer classification, Neural Computing and Applications 23(6) (2013), 1737–1751.

Warner

, Messersmith

, Causer

, Eisen

, Shumak

and Plewes

, Systematic review: Using magnetic resonance imaging to screen women at high risk for breast cancer, Annals of Internal Medicine 148(9) (2008), 671–679.

Haq

A.U.

, Li

J.P.

, Memon

M.H.

, Nazir

and Sun

, A hybrid intelligent system framework for the prediction of heart disease using machine learning algorithms, Mobile Information Systems 2018, 2018.

Aličković

and Subasi

, Breast cancer diagnosis using ga feature selection and rotation forest, Neural Computing and Applications 28(4) (2017), 753–763.

Ahmad

, Isa

N.A.M.

, Hussain

and Sulaiman

S.N.

, A genetic algorithm-based multi-objective optimization of an artificial neural network classifier for breast cancer diagnosis, Neural Computing and Applications 23(5) (2013), 1427–1435.

Hasan

M.K.

, Islam

M.M.

and Hashem

, Mathematical model development to detect breast cancer using multigene genetic programming, in 2016 5th International Conference on Informatics, Electronics and Vision (ICIEV), IEEE, (2016), 574–579.

10.

Albrecht

A.A.

, Lappas

, Vinterbo

S.A.

, Wong

and Ohno-Machado

, Two applications of the lsa machine, in Proceedings of the 9th International Conference on Neural In formation Processing, 2002. ICONIP’02., 1 IEEE (2002), pp. 184–189.

11.

Pena-Reyes

C.A.

and Sipper

, A fuzzy-genetic approach to breast cancer diagnosis, Artificial Intelligence in Medicine 17(2) (1999), 131–155.

12.

Akay

M.F.

, Support vector machines combined with feature selection for breast cancer diagnosis, Expert Systems with Applications 36(2) (2009), 3240–3247.

13.

Zheng

, Yoon

S.W.

and Lam

S.S.

, Breast cancer diagnosis based on feature extraction using a hybrid of k-means and support vector machine algorithms, Expert Systems with Applications 41(4) (2014), 1476–1482.

14.

Ramadevi

G.N.

, Rani

K.U.

and Lavanya

, Importance of feature extraction for classification of breast cancer datasetsa study, International Journal of Scientific and Innovative Mathematical Research 3(2) (2015), 763–368.

15.

Abbass

H.A.

, An evolutionary artificial neural networks approach for breast cancer diagnosis, Artificial Intelligence in Medicine 25(3) (2002), 265–281.

16.

Marcano-Cedeño

, Quintanilla-Domínguez

and Andina

, Wbcd breast cancer database classification applying artificial metaplasticity neural network, Expert Systems with Applications 38(8) (2011), 9573–9579.

17.

Liu

Y.-Q.

, Wang

and Zhang

, Decision tree based predictive models for breast cancer survivability on imbalanced data, in 2009 3rd International Conference on Bioinformatics and Biomedical Engineering, IEEE, (2009), pp. 1–4.

18.

Onan

, A fuzzy-rough nearest neighbor classifier combined with consistency-based subset evaluation and instance selection for automated diagnosis of breast cancer, Expert Systems with Applications 42(20) (2015), 6844–6852.

19.

Sheikhpour

, Sarram

M.A.

and Sheikhpour

, Particle swarm optimization for bandwidth determination and feature selection of kernel density estimation based classifiers in diagnosis of breast cancer, Applied Soft Computing 40 (2016), 113–131.

20.

Rasti

, Teshnehlab

and Phung

S.L.

, Breast cancer diagnosis in dce-mri using mixture ensemble of convolutional neural networks, Pattern Recognition 72 (2017), 381–390.

21.

Abdel-Zaher

A.M.

and Eldeib

A.M.

, Breast cancer classification using deep belief networks, Expert Systems with Applications 46 (2016), 139–144.

22.

Fathollahi-Fard

A.M.

, Govindan

, Hajiaghaei-Keshteli

and Ahmadi

, A green home health care supply chain: New modified simulated annealing algorithms, Journal of Cleaner Production 240 (2019), 118200.

23.

Fathollahi-Fard

A.M.

, Hajiaghaei-Keshteli

and Mirjalili

, A set of efficient heuristics for a home healthcare problem, Neural Computing and Applications (2019), 1–21.

24.

, Tian

, Fathollahi-Fard

A.M.

, Ahmadi

and Zhang

, Stochastic multi-objective modelling and optimization of an energy-conscious distributed permutation flow shop scheduling problem with the total tardiness constraint, Journal of Cleaner Production 226 (2019), 515–525.

25.

Liu

and Setiono

, Chi2: Feature selection and discretization of numeric attributes, in Proceedings of 7th IEEE International Conference on Tools with Artificial Intelligence IEEE, (1995), pp. 388–391.

26.

Haq

A.U.

, Li

J.P.

, Memon

M.H.

, Malik

, Ahmad

, Ali

, Nazir

, Ahad

, Shahid

, et al., Feature selection based on l1-norm support vector machine and effective recognition sys l1-norm support vector machine and effective recognition system for parkinson’s disease using voice recordings, IEEE Access 7 (2019), 37718–37734.

27.

Zhang

, Zou

, Zhou

and He

, Integrating feature selection and feature extraction methods with deep learning to predict clinical outcome of breast cancer, IEEE Access 6 (2018), 28936–28944.

28.

Dheeba

, Singh

N.A.

and Selvi

S.T.

, Computer-aided detection of breast cancer on mammograms: A swarm intelligence optimized wavelet neural network approach, Journal of Biomedical Informatics 49 (2014), 45–52.

29.

Tsanas

, Little

M.A.

, McSharry

P.E.

and Ramig

L.O.

, Nonlinear speech analysis algorithms mapped to a standard metric achieve clinically useful quantification of average parkinson’s disease symptom severity, Journal of the Royal Society Interface 8(59) (2010), 842–855.

30.

Cai

, Gu

and Chen

H.-L.

, A new hybrid intelligent framework for predicting parkinsonâĂ Zs disease, IEEE Access 5 (2017), 17188–17200.

31.

Urbanowicz

R.J.

, Meeker

, La Cava

, Olson

R.S.

and Moore

J.H.

, Relief-based feature selection: Introduction and review, Journal of Biomedical Informatics 85 (2018), 189–203.

32.

Bahadori-Chinibelagh

, Fathollahi-Fard

A.M.

and Hajiaghaei-Keshteli

, Two constructive algorithms to address a multi-depot home healthcare routing problem, IETE Journal of Research (2019), 1–7.

33.

Safaeian

, Fathollahi-Fard

A.M.

, Tian

, Li

and Ke

, A multi-objective supplier selection and order allocation through incremental discount in a fuzzy environment, Journal of Intelligent & Fuzzy Systems, no. Preprint, pp. 1–21.

34.

Fathollahi-Fard

A.M.

, Hajiaghaei-Keshteli

and Tavakkoli-Moghaddam

, The social engineering optimizer (seo), Engineering Applications of Artificial Intelligence 72 (2018), 267–293.

35.

Wolberg

, Street

and Mangasarian

, Wisconsin diagnostic breast cancer (wdbc), U. o. California, Ed., ed. USA, 1995.

36.

Wolberg

W.H.

, Wisconsin diagnostic breast cancer (wdbc).

37.

Unler

, Murat

and Chinnam

R.B.

, mr2pso: A maximum relevance minimum redundancy feature selection method based on swarm intelligence for support vector machine classification, Information Sciences 181(20) (2011), 4625–4641.

38.

Meesad

, Boonrawd

and Nuipian

, A chi-square-test for word importance differentiation in text classification, inpp, Proceedings of International Conference on Information and Electronics Engineering (2011), pp. 110–114.

39.

Cristianini

, Shawe-Taylor

, et al, An introduction to support vector machines and other kernel-based learning methods. Cambridge university press, 2000.

40.

Chang

C.-C.

and Lin

C.-J.

, Libsvm: A library for support vector machines, ACM Transactions on Intelligent Systems and Technology (TIST) 2(3) (2011), 27.

41.

Mourao-Miranda

, Bokde

A.L.

, Born

, Hampel

and Stetter

, Classifying brain states and determining the dis criminating activation patterns: Support vector machine on functional mri data, NeuroImage 28(4) (2005), 980–995.

42.

Chen

H.-L.

, Yang

, Liu

and Liu

D.-Y.

, A support vector machine classifier with rough set-based feature selection for breast cancer diagnosis, Expert Systems with Applications 38(7) (2011), 9014–9022.

43.

Kotsiantis

, Kanellopoulos

and Pintelas

, Data preprocessing for supervised leaning, International Journal of Computer Science 1(2) (2006), 111–117.

44.

Prasad

, Biswas

K.K.

and Jain

C.K.

, Svm classifier based feature selection using ga, aco and pso for sirna design, in International Conference in Swarm Intelligence, (2010), pp. 307–314, Springer.

45.

Xiao

, Wu

, Lin

and Zhao

, Breast cancer diagnosis using an unsupervised feature extraction algorithm based on deep learning, in 2018 37th Chinese Control Conference (CCC), IEEE, (2018), pp. 9428–9433.

46.

Dietterich

T.G.

, Approximate Statistical Tests for Comparing Supervised Classification Learning Algorithms, Neural Computation 10(7) (1998), 1895–1923, DOI: 10.1162/089976698300017197.

	Predicted Subject	Predicted
	BC	Healthy Subject
Actual BC Subject	TP	FN
Actual Healthy Subject	FP	TN

A novel integrated diagnosis method for breast cancer detection

Abstract

Keywords

1 Introduction

2.1 BC datasets

2.2 Feature selection Algorithms

2.2.2 Chi-squared (X2 statistic) feature selection algorithm

2.5 Performance assessment metrics

Table 3 CM [6, 33] and [27] Predicted Subject Predicted BC Healthy Subject Actual BC Subject TP FN Actual Healthy Subject FP TN

3.1 preprocessing results

Table 6 Feature weight of the data set WBC Label Feature code Feature weight F2 CT 4.442167 F3 UCS 3.150805 F4 UCSH 3.215227 F5 MA 2.830161 F6 SECS 3.234261 F7 BN 3.544656 F8 BC 3.445095 F9 NN 2.869693 F10 M 1.603221

Table 12 Methods comparison. Ref Method Ac (%) p-value [28] PSOWNN 93.67 0.45 [45] ACO-SVM 98.83 0.04 [8] GA-MOO-NN 98.83 0.37 [14] PCA-SVM 96.81 0.42 [46] SAE-SVM 98.25 0.08 [21] DBN-NN 99.68 0.05 Proposed method mRMR-SVM 99.71 0.03

Availability of data materials

Competing interests

Footnotes

Acknowledgment

References

2.2.2 Chi-squared (X² statistic) feature selection algorithm

Table 3
CM [6 , 33] and [27]

Predicted Subject Predicted

BC Healthy Subject

Actual BC Subject TP FN

Actual Healthy Subject FP TN

Table 6
Feature weight of the data set WBC

Label Feature code Feature weight

F2 CT 4.442167

F3 UCS 3.150805

F4 UCSH 3.215227

F5 MA 2.830161

F6 SECS 3.234261

F7 BN 3.544656

F8 BC 3.445095

F9 NN 2.869693

F10 M 1.603221

Table 12
Methods comparison.

Ref Method Ac (%) p-value

[28] PSOWNN 93.67 0.45

[45] ACO-SVM 98.83 0.04

[8] GA-MOO-NN 98.83 0.37

[14] PCA-SVM 96.81 0.42

[46] SAE-SVM 98.25 0.08

[21] DBN-NN 99.68 0.05

Proposed method mRMR-SVM 99.71 0.03
