Noise robust hybrid algorithm for segmenting image with unequal cluster sizes based on chaotic crow search and improved fuzzy c-means

Abstract

Adding spatial penalty to fuzzy C-means (FCM) model is an important way to reduce the influence of noise in image segmentation. However, these improved algorithms easily cause segmentation failures when the image has the characteristics of unequal cluster sizes. Besides, they often fall into local optimal solutions if the initial cluster centers are improper. This paper presents a noise robust hybrid algorithm for segmenting image with unequal cluster sizes based on chaotic crow search algorithm and improved fuzzy c-means to overcome the above defects. Firstly, each size of clusters is integrated into the objective function of noise detecting fuzzy c-means algorithm (NDFCM), which can reduces the contribution of larger clusters to objective function and then the new membership degree and cluster centers are deduced. Secondly, a new expression called compactness, representing the pixel distribution of each cluster, is introduced into the iteration process of clustering. Thirdly, we use two- paths to seek the optimal solutions in each step of iteration: one path is produced by the chaotic crow search algorithm and the other is originated by gradient method. Furthermore, the better solutions of the two-paths go to next generation until the end of the iteration. Finally, the experiments on the synthetic and non–destructive testing (NDT) images show that the proposed algorithm behaves well in noise robustness and segmentation performance.

Keywords

Image segmentation fuzzy clustering chaotic crow search algorithm unequal cluster sizes

1 Introduction

Image segmentation is an unsupervised learning task that aims at partitioning a digital image into multiple segments with similar characteristics, such as gray level, texture or color intensity [1 –3]. Image segmentation is an important aspect of pattern recognition, computer vision and image understanding. Among many segmentation algorithms, clustering approaches, especially fuzzy c-means algorithm (FCM) has been widely used in different domains such as medical image, natural image, remote sensing image, and so on because of its simplicity and efficiency [4–7 , 9–19].

FCM was proposed by Bezdek and based on the fuzzy theory [8], but it had previously been observed that the conventional FCM was sensitive to noise because of its ignorance about spatial information of each pixel. Several researchers had considered to incorporate local spatial information into the FCM to enhance the ability of image segmentation. Ahmed et al [9] first modified the objective function of FCM by incorporating spatial neighborhood term (FCM_S). Later, two variants [10] listed as FCM_S1 and FCM_S2 were proposed to raise the calculation speed of FCM_S. Meanwhile, their corresponding kernel versions of KFCM_S1 and KFCM_S2 were presented. Moreover, two fast algorithms called enhanced FCM algorithm (EnFCM) [11] and fast generalized FCM algorithm (FGFCM) [12] were performed on the basis of gray level histogram of their respective novel filtering images. Later, Krinidis and Chatzis [13] proposed a fuzzy local information c-means algorithm (FLICM), which was fully free of the empirically adjusted parameters, and then some variants of FLICM were proposed [14 –17]. Recently, some literatures used non-local spatial information [18, 19] to segment images in when the images heavily contaminated by noise. Based on the local or non-local spatial information, these above algorithms achieved better performance than FCM. However, the major drawback of these algorithms is that they often fall into local optimal solutions when the initial cluster centers are not appropriate. Hence, some researchers tried to utilize metaheuristics to optimize the objective function of FCM and its variants for searching the global optimum. Some of the well-known metaheuristics, like genetic algorithm (GA) [20, 21], particle swarm optimization (PSO) algorithm [22], evolutionary algorithm (EA) [23] and their hybridization algorithm [24], were adopted to avoid trapping into local minima.

Admittedly, some of the above algorithms have achieved commendable segmentation results, but there is still further work to be done. Firstly, as we all know that all least-squares-based FCM algorithms tend to equalize the pixels in their segmentation process [25] because they tend to draw the centers of smaller clusters to their adjacent larger clusters for images containing clusters with unbalanced cluster sizes. However, very few attempts to solve this situation [26 –28]. Noordam et al [26] proposed cluster size insensitive FCM (CsiFCM) algorithm by introducing the ratios between the cluster sizes to the clustering process. Lin et al [27] presented size-insensitive integrity-based FCM (siibFCM) method and Liu et al [28] integrated the sum of membership degrees of each cluster into the iterative process for unbalanced dataset. Nevertheless, the improvements of these efforts are not reflected in the objective function. Secondly, we also find that the influence of the pixel distribution of each cluster on cluster results is rarely considered in the iteration process. Thirdly, According to literatures [20 –24], the metaheuristics can increase the probability of finding a good solution and escaping from local optima, but in addition to setting the population size and maximum number of iterations, there are other additional parameters that need to be set, which is annoying and time-consuming. In other words, the fewer parameters that the algorithm needs to adjust, the easier it is to execute. Luckily, Askarzadeh [29] proposed a novel method for solving engineering optimization problems named as Crow search algorithm (CSA), which is simple since it has only two adjustable parameters (flight length and awareness probability) based on the intelligent behavior of crows. Although the CSA is promising, it is essential to improve or extend the CSA due to its slow convergence speed.

Aiming at the three points above, this paper makes corresponding efforts. Firstly, inspired by [28], we embed the sum of the membership degree of each cluster into the objective function of the noise detecting fuzzy c-means algorithm (NDFCM) [30]. The goal is to equalize the contribution of the larger and smaller clusters to the new objective function. The reformative objective function is effectively characterize images with unequal cluster sizes while inheriting the NDFCM’s ability of denoising and maintaining detail information. Secondly, a new expression named compactness is designed to measure the distribution of each cluster and then introduced into the clustering process. Thirdly, a two –paths hybrid strategy combining chaotic CSA and gradient method is used for optimizing the segmentation problem. Gradient method means that after the initialization of the cluster centers, the membership degree and cluster centers are executed iteratively until the cluster centers are stable. As previously described, the advantage of CSA is that only two adjustable parameters are required. Meanwhile, the chaotic CSA can product a more uniform distribution of crows’ positions compared to CSA because of the ergodicity of chaotic map [31] It is point out that the idea of chaotic map comes from others various chaos-based optimization algorithms, such as chaotic bee colony algorithms [32], chaotic particle swarm optimization algorithms [33], and so on. The CSA tends to explore the search space on a global scale and the gradient method is used to accelerate the local convergence speed. Thus, in this paper, we present a novel hybrid algorithm, called CCGFCM, based on chaotic CSA and gradient method for image segmentation.

The rest of this paper is structured as follows: Section 2 presents the most related works to this study, concerning the NDFCM and the CSA. Section 3 describes the details of the proposed approach, namely CCGFCM. Then the experimental results for demonstrating the effectiveness of our CCGFCM in Section 4. Finally, some remarks and discussions are given in Section 5.

2 Related works

2.1 NDFCM algorithm

FCM is a popular iterative algorithm and it aims at partitioning the data set into c clusters [8]. Let { X =x₁, x₂, ... , x_n} be an image with n pixels, and x_j is the gray value of jth pixel. The FCM objective function is given as follows: $J_{FCM} = \sum_{i = 1}^{c} \sum_{j = 1}^{n} u_{ij}^{m} {∥ x_{j} - v_{i} ∥}^{2}$ (1)

It should satisfy the following conditions $\sum_{i = 1}^{c} u_{ij} = 1, u_{ij} \in [0, 1], 0 \leq \sum_{j = 1}^{n} u_{ij} \leq n$ (2) where v_i (1⩽i⩽c)is the ith cluster center, m is the controller of fuzziness, u_ij (1⩽i⩽c, 1⩽j⩽n) is the membership degree of x_j belonging to the ith cluster, the operator ∥ ∥ represents the Euclidean norm expressing the similarity measure.

The NDFCM algorithm [30] is a novel modified version of FCM, and its objective function is expressed as follows:

$\begin{matrix} J_{NDFCM} \\ = \sum_{i = 1}^{c} \sum_{j = 1}^{n} u_{ij}^{m} {∥ [(1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}] - v_{i} ∥}^{2} \end{matrix}$ (3) where α _j (1⩽j⩽n) expresses the probability of jth pixel being a noise point, depicting as Equation (4). ${\bar{x}}_{j}$ is the mean value of neighboring pixels around the pixel x_j and ξ _j (1⩽j⩽n) denotes the gray value of the jth pixel of the image Ξ. As the literature [30] showed, the image Ξ is a newly generated image that is calculated by Equation (5). $α_{j} = 1 - \sum_{i \in N_{j}} exp (\frac{- {∥ x_{i} - x_{j} ∥}^{2}}{λ_{α} max_{l \in N_{j}} {∥ x_{l} - x_{j} ∥}^{2}}) / N_{R}$ (4) where λ_α is a given parameter for controlling the scale, N_j denotes the number of neighboring pixels around the centered pixel x_j and N_R represents cardinality of N_j_. $ξ_{j} = \sum_{i \in N_{j}} S_{ij} x_{i} / \sum_{i \in N_{j}} S_{ij}$ (5) where S_ij is a novel local similarity measure between the ith and jth pixels and the ith pixel are the number of neighboring pixels around the centered jth pixel. The definition of S_ij is shown as below: $S_{ij} = {\begin{matrix} exp (- max (| p_{i} - p_{j} |, | q_{i} - q_{j} |) / λ_{s} - {∥ x_{i} - x_{j} ∥}^{2} / λ_{g} σ_{j}^{2}) i \neq j \\ 0 i = j \end{matrix}$ (6) where λ _s and λ _g are the scale factors, and (p_j, q_j) is a spatial coordinate of the jth pixel. The parameter σ _j is computed by $σ_{j} = \sqrt{\sum_{i \in N_{j}} {∥ x_{i} - x_{j} ∥}^{2} / N_{R}}$ .

By minimizing Equation (3) using the Lagrange multiplier method, the new cluster center v_i and membership degree u_ij are deduced as follows: $u_{ij} = \frac{{∥ [(1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}] - v_{i} ∥}^{- 2 / (m - 1)}}{\sum_{r = 1}^{c} {∥ [(1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}] - v_{r} ∥}^{- 2 / (m - 1)}}$ (7) $v_{i} = \sum_{j = 1}^{n} u_{ij}^{m} [(1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}] / \sum_{j = 1}^{n} u_{ij}$ (8)

As shown above, NDFCM uses two kinds of image information, namely ξ _j and x_j, to aim at maintaining detail information and denoising respectively. The parameter α _j is to balance these two parts in Equation (3). See reference [30] for the specific implementation process of this algorithm.

2.2 CSA

CSA [29] is a novel metaheuristic optimizer based on the intelligent behavior of crows, which is good at solving constrained engineering optimization problems. Usually, crows have the following behavior: they live in the form of flock, but each crow store excess food in a certain position and retrieve the food when it is needed. Crows watch and follow each other to steal the food, but the crows following by others have a certain probability of keeping their food from being stolen.

When solving the optimization problems, it is assumed that there is a d-dimensional environment including a total of N crows. The position of crow i at time (iteration) iter in the search space is expressed as X ⁱ ^,iter={ x₁ ⁱ ^,iter, x₂ ⁱ ^,iter, ... , x_dⁱ^,iter}(i = 1,2, ... P; iter = 1,2, ... ,iter_max), and the iter_max is the maximum number of iterations. The best position of hiding place of crow i is denoted by M ^i,iter (also called memory) at iteration iter. When crow i randomly chooses one of the crows to follow (for example the crow j) at iteration iter, two situations may happen: one is that the crow j does not know the crow i following it, that is, crow i will be close to the storing position (M ^j,iter) of crow j, the new position of crow i is updated in Equation (9); the other is that crow j knows the crow i following it, and the crow j will go to a random position in the search space, the new position of crow i is updated in Equation (9).

$\begin{matrix} X^{i, iter + 1} = {\begin{matrix} X^{i, iter} + r_{i} \times {fl}^{i, iter} \times (M^{j, iter} - X^{i, iter}) r_{j} > {AP}^{j, iter} \\ a random position otherwise \end{matrix} \end{matrix}$ (9) where r_i and r_j are all random numbers with uniform distribution between 0 and 1, fl ⁱ^,iter and AP ^j^,iter are the flight length (fl) of crow i and awareness probability (AP) of crow j at iteration iter respectively. Form the Equation (9) we can see that the search space on a global or local scale depends on the parameters setting of fl and AP. The proceeding for the implementation of CSA is given as follows:

3 Proposed algorithm

This section is described in three parts. In section 3.1, we introduced the sum of the membership degree of each cluster as the divisor into the objective function of NDFCM, which is to weaken the contribution of the pixels from the larger cluster while retaining the contribution of the pixels from the smaller cluster so that the larger cluster will not have enough influence to pull the center of the smaller cluster towards itself. Accordingly, the new membership degree and cluster center are deduced when the Lagrange multiplier rule is applied to solve the new fuzzy clustering model. In section 3.2, the density of each cluster is considered. Specifically, we design a compactness expression to characterize it. Subsequently, it can be integrated into the clustering process to enhance the segmentation effect. In section 3.3, the composition and working mode of the two- paths hybrid algorithm are described. In detail, this section expounds the path source (composition) of the two- paths hybrid algorithm: one is gradient method and the other is chaotic crow algorithm. The working mode (execution process) of two- paths hybrid optimization is precisely described.

3.1 Reformative objective function of NDFCM

The NDFCM improved the robustness of previous FCM-based image segmentation algorithms, but it did not take into account the difference in the size of each cluster. As a result, a part of pixels in larger clusters will be partitioned into the smaller clusters incorrectly. To deal with this problem, the objective function of NDFCM is reformulated, abbreviated as RNDFCM, which is written as follows:

$\begin{matrix} J_{RNDFCM} = \sum_{i = 1}^{c} \sum_{j = 1}^{n} \frac{u_{ij}^{m}}{\sum_{s = 1}^{n} u_{is}^{m}} \\ {∥ [(1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}] - v_{i} ∥}^{2} \end{matrix}$ (10)

It should be noted that the constraint conditions of u_ij still satisfy the Equation (2). Apparently, the expression $\sum_{s = 1}^{n} u_{is}^{m}$ , namely the sum of membership degree of the ith cluster, is introduced to the objective function of NDFCM, which will reduce the influence from pixels of larger clusters to smaller clusters.

For obtaining the cluster center v_i and membership degree u_ij, the constraints in Equation (2) are embedded into the objective function in Equation (10) using the Lagrange multipliers rule, as follows:

$\begin{matrix} L_{RNDFCM} = \sum_{i = 1}^{c} \sum_{j = 1}^{n} \frac{u_{ij}^{m}}{\sum_{s = 1}^{n} u_{is}^{m}} \\ {∥ [(1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}] - v_{i} ∥}^{2} \\ + \sum_{j = 1}^{n} λ_{j} (1 - \sum_{i = 1}^{c} u_{ij}) \end{matrix}$ (11)

Taking the partial derivative of L_RNDFCM with respect to u_ij, and then setting it to zero, we can get:

$\begin{matrix} \frac{{mu}_{ij}^{m - 1} (\sum_{s = 1}^{n} u_{is}^{m} - u_{ij}^{m})}{{(\sum_{s = 1}^{n} u_{is}^{m})}^{2}} \\ {∥ [(1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}] - v_{i} ∥}^{2} - λ_{j} = 0 \end{matrix}$ (12)

By the Equation (12), we can obtain $u_{ij} = {[\frac{λ_{j} {(\sum_{s = 1}^{n} u_{is}^{m})}^{2}}{m (\sum_{s = 1}^{n} u_{is}^{m} - u_{ij}^{m}) {∥ [(1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}] - v_{i} ∥}^{2}}]}^{\frac{1}{m - 1}}$ (13)

Based on the constraint $\sum_{i = 1}^{c} u_{ij} = 1,$ we have $\sum_{r = 1}^{c} {[\frac{λ_{j} {(\sum_{s = 1}^{n} u_{rs}^{m})}^{2}}{m (\sum_{s = 1}^{n} u_{rs}^{m} - u_{rj}^{m}) {∥ [(1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}] - v_{r} ∥}^{2}}]}^{\frac{1}{m - 1}} = 1$ (14)

And then we get ${(λ_{j})}^{\frac{1}{m - 1}} = \sum_{r = 1}^{c} {[\frac{{(\sum_{s = 1}^{n} u_{rs}^{m})}^{2}}{m (\sum_{s = 1}^{n} u_{rs}^{m} - u_{rj}^{m}) {∥ [(1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}] - v_{r} ∥}^{2}}]}^{\frac{1}{m - 1}}$ (15)

Substituting Equation (15) into Equation (13), we have

$u_{ij} = \frac{{[\frac{{(\sum_{s = 1}^{n} u_{is}^{m})}^{2}}{(\sum_{s = 1}^{n} u_{is}^{m} - u_{ij}^{m}) {∥ [(1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}] - v_{i} ∥}^{2}}]}^{\frac{1}{m - 1}}}{\sum_{r = 1}^{c} {[\frac{{(\sum_{s = 1}^{n} u_{rs}^{m})}^{2}}{(\sum_{s = 1}^{n} u_{rs}^{m} - u_{rj}^{m}) {∥ [(1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}] - v_{r} ∥}^{2}}]}^{\frac{1}{m - 1}}}$ (16)

From the Equation (16) we can see that u_ij is nested, so at each iteration, we first get u_ij according to Equation (7), and then update the u_ij based on Equation (16).

Similarly, taking the partial derivative of L_RNDFCM with respect to v_i, and then setting it to zero, we can get. $\sum_{j = 1}^{n} u_{ij}^{m} (((1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}) - v_{i}) = 0$ (17)

Based on Equation (17), we can obtain $v_{i} = \sum_{j = 1}^{n} u_{ij}^{m} [(1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j}] / \sum_{j = 1}^{n} u_{ij}$ (18)

3.2 The compactness measure

As described in section 3.1, we improve the objective function of NDFCM by taking into account the size of cluster. Here, density differences between different clusters are also considered. The compactness [34, 35] is an effective index to measure the density of cluster and we propose a new compactness which is expressed as follows:

$C_{i} = \sqrt{\frac{1}{| T_{i} |} \sum_{x_{j} \in T_{i}} {(∥ (1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j} - v_{i} ∥ - μ_{i})}^{2}}$ (19)

where C_i is compactness of the cluster i, and $T_{i} = {x_{j} | u_{ij} > u_{lj}; l = 1, 2, . . ., c; l \neq i}$ (20) where T_i represents the subset containing pixels that assigned to cluster i. | T_i | is the number of cluster i. And μ _i is $μ_{i} = \frac{1}{| T_{i} |} \sum_{x_{j} \in T_{i}} (∥ (1 - α_{j}) ξ_{j} + α_{j} {\bar{x}}_{j} - v_{i} ∥)$ (21)

Where μ _i is average value between the subset of cluster i and the cluster center v_i. Obviously, the smaller C_i, the higher density of the cluster.

Furthermore, the following equation is employed to normalize the compactness C_i: $S_{i} = C_{i} / \sum_{i = 1}^{c} C_{i}$ (22)

And then $f_{i} = \frac{1 - S_{i}}{1 - S_{min}}$ (23) where S_min is the minimum in the set S={S_i, i = 1,2, ... c}. After adjusting the compactness by the two Equations (22) and (23), we can see that the bigger f_i indicates higher density of the cluster. Thereupon, we try to integrate the coefficient f_i into the iteration process of clustering in the following way: $u_{ij}^{*} = f_{i} u_{ij}$ (24)

3.3 Two-paths hybrid algorithm

3.3.1 Path source of the two- paths

It is essential to point out that the so-called path refers to the way to obtain the cluster centers. That is, the meaning of two-paths is that cluster centers can be obtained by two paths: the first path is generated by gradient method, and the other is derived from the chaotic CSA algorithm.

3.3.1.1. Gradient method (RNDFCM). As we all know that, FCM is very efficient for local search because of the advantage of gradient method. Similarly, NDFCM also inherits this advantage, namely, Equations (7) and (8) are alternately implemented until the termination condition is met after setting properly initialization cluster centers. By the motivation of FCM and NDFCM, the gradient method is also applied in the RNDFCM, which is listed as follows:

Step 1: Fix the maximum iterative number T, number of the clusters c, the threshold ɛ, and select appropriate parameters λ_α, λ _s and λ _g ;

Step 2: Compute the mean-filtered image $\bar{X} = {x_{1}, x_{2}, . . ., x_{n}}$ , newly generated image Ξ={ξ₁, ξ₂, ... , ξ _n } and the parameters A={α₁, α₂, ... , α _n };

Step 3: Randomly initialize cluster centers V={v₁, v₂, ... ,v_c};

Step 4: Initial the membership degree U using the Equation (7);

Step 5: Compute the membership degree U using Equation (16);

Step 6: Refresh the membership degree U using Equation (24);

Step 7: Update the cluster centers V using the Equation (18);

Step 8: Repeat Step 5 to 7 until |V_new- V_old|⩽ɛ or the number of iteration reaches T.

From above implementation steps we can see that the gradient method of RNDFCM considers the cluster sizes and densities.

3.3.1.2. chaotic CSA. The implementation process of the CSA is shown in Section 2.2. We know that CSA uses the random method to initialize crow’s position, which may cause uneven distribution of crow’s position. Chaotic maps can traverse all states without repeating within a certain range according to their own laws and can search the search space more effectively, thus obtaining the global optimal solution or better satisfactory solution. In this paper, the Chebyshev map [36] is used to initialize the crow position and then enhance the diversity of the initial solution, which lays a good foundation for effective global search. The expression of Chebyshev map is as follows: $z_{k + 1} = cos (k {cos}^{- 1} (z_{k}))$ (25) where k denotes iterative index number, and because the range of z_k is (–1, 1), so we utilize the following formula to convert the range of z_k to (0, 255). $v_{k} = a + b * z_{k}$ (26) where a and b are equal to 255/2, which correspond to a magnification factor. And then the initialization of crow position by chaotic sequence is as follows:

Step 1: Randomly generate an n-dimensional vector V ₀={v₀,v₁, ... ,v_n_- 1} as the first crow;

Step 2: According to Equation (26), V₀ is iterated (N-1) times to generate other (N-1) crow individuals.

Thus, the initialization step is completed.

Obviously, the chaotic CSA here means that the crow position of CSA is initialized by Chebyshev map method, and then the optimization problem is solved by following CSA steps.

3.3.2 The significance and description of two- paths hybrid algorithm

3.3.2.1. The significance of two- paths hybrid algorithm. The first path is produced by gradient method. As shown in section 3.3.1.1, the new cluster centers are computed by alternately implementing Step 5 to 7, so we can think that the new cluster centers contain gradient information. The second path is derived from the chaotic CSA algorithm. Let us take the crow i as an example and its position can be seemed as cluster centers. The new cluster centers (new position) are gained when the crow i randomly chooses one of the crows, for example the crow j, to follow regardless of the crow j knows or not to be tracked. We think that the new cluster centers contain chaotic CSA information in this scenario.

Apparently, the new cluster centers come from two different paths, which indicates that the possibility of searching the optimal solution is heightened, hence a natural idea is to combine the two paths for hybrid optimization in order to give full play to their advantages. Furthermore, the path of gradient method can perform efficient local search while the path of chaotic CSA algorithm can be used for global search.

3.3.2.2. The description of two- paths hybrid algorithm. In this section, we present details steps of the proposed algorithm (CCGFCM) which is based on chaotic CSA and gradient method for image segmentation. It is stated here that Equation (10) is used as the objective function of the proposed algorithm to guide the search process.

Parameters: Image X, maximum iterative number T, number of the clusters c, threshold ɛ, appropriate parameters λ_α, λ _s , λ _g , the total number of crows P, the flight length fl, and the awareness probability AP;

Step 1: Initialization phase

Step 1.1: Compute the mean-filtered image $\bar{X} = {{\bar{x}}_{1}, {\bar{x}}_{2}, . . ., {\bar{x}}_{n}}$ , newly generated image Ξ={ξ₁, ξ₂, ... , ξ _n } and the parameters A=α₁, α₂, ... , α _n ;

Step 1.2: Follow the steps shown in Section 3.4.1 to initialize cluster centers for all the crows {V₂ ⁱ ^,0, i = 1,2, ... , P}, and assume that the crows’ memories {Mⁱ^,0, i = 1,2, ... , P} is in their initialize positions (cluster centers);

Step 1.3: Compute membership degree {U₂ ⁱ ^,0, i = 1,2, ... , P} using Equation (7), then update {U₂ ⁱ ^,0, i = 1,2, ... , P} using Equation (16), and then refresh {U₂ ⁱ ^,0, i = 1,2, ... , P} using Equation (24);

Step 1.4: Compute values of fitness function F⁰={ f₂(U₂ ⁱ ^,0, Mⁱ^,0)=f₂(U₂ ⁱ ^,0, V₂ ⁱ ^,0), i = 1,2, ... , P} by Equation (10);

Step 1.5: let f*^,0 = f(U₂ ^l ^,0, V₂ ^l ^,0)=min{f(U₂ ⁱ ^,0, V₂ ⁱ ^,0), i = 1,2, ... , P}, M⁰ _best =V*^,0 = V₂ ^l ^,0, where V*^,0 and f*^,0 indicate the optimal solutions and minimum value respectively;

Step 2: The hybridization phase of two-paths

FOR k = 1, 2, ... , T, DO

Step 2.1: Path 1 (Gradient method). Compute the new membership degree U₁ ^l ^,k following the process of Step 1.3 based on V*^,k - 1, compute the new cluster centers V₁*^,k by Equation (18) and compute f₁(U₁ ^l ^,k, V₁*^,k) by Equation (10);

Step 2.2: Path 2 (chaotic CSA). Compute the new cluster centers {V₂ ⁱ ^,k, i = 1,2, ... , P} by Equation (9) based on {V₂ ⁱ ^,k - 1, i = 1,2, ... , P}, compute the new membership degree {U₂ ⁱ ^,k, i = 1,2, ... , P} following the process of Step 1.3, and then compute fitness values {f₂(U₂ ⁱ ^,k, V₂ ⁱ ^,k), i = 1,2, ... , P}.

For i = 1,2, ... ,P, do

if f₂(U₂ ⁱ ^,k, V₂ ⁱ ^,k)<f₂(U₂^i,k - 1, M^i,k - 1), then M^i,k=V₂^i,k, else M^i,k=M^i,k - 1; end;

End

Update F^k={min[f₂(U₂^i,k, V₂^i,k), f₂(U₂^i,k - 1, M^i,k - 1)], i = 1,2, ... , P };

Step 2.3: hybridization if f₁(U₁^l,k, V₁*^,k)<min{ F^k }, M^k_best = V₁*^,k, V*^,k=V₁*^,k, f*^,k=f₁(U₁^l,k, V₁*^,k); else V*^,k=M^k_best, f*^,k=min{ F^k }; end

Let k = k + 1, if k > T, go to Step 3, else go to Step 2; end;

END

Step 3: Output results

Step 3.1: Compute the new membership degree U*^,T following the process of Step 1.3 based on V*^,T, and then obtain the segmentation results after defuzzification step with respect to U*^,T;

Step 3.2: Output segmentation results.

4 Experimental study

4.1 Parameter settings and experimental images

To verify the efficiency of the proposed CCGFCM, FCM_S1 [10], FCM_S2 [10], EnFCM [11], FGFCM [12], IFCMS [22], CsiFCM [26], siibFCM [27], NDFCM [30] and RNDFCM are adopted as comparative algorithms in this paper. All the algorithms are implemented in MATLAB (2014a) and their respective parameters are presented in Table 2. It should be noted that the parameters used in comparative algorithms are all recommended parameters in corresponding literatures. Moreover, the AP value (AP = 0.2) in CCGFCM is larger than the recommended AP value (AP = 0.1) in CSA [29], the reason is that CCGFCM is composed of two- paths method, namely gradient method and chaotic CSA method. Gradient method has the function of fast convergence and local search, which makes the other path (chaotic CSA method) provide a larger value of AP, to enhance the global search ability. In order to compare objectively the different algorithms, we choose F_value [37] as the evaluation index, which is suitable for unbalanced data. Furthermore, the bigger the index, the better the segmentation result.

Table 1
Crow search algorithm

Crow search algorithm (CSA)

01 Input: parameters of P, d, fl, AP, iter_max

02 P crows are randomly positioned (X ⁱ, i = 1,2, ... P) in the d-dimension search space, and fill memory(M ⁱ, i = 1,2, ... P) by the initial position

03 Calculate the objective function(f (X ⁱ, i = 1,2, ... P)) of the initial position of N crows

04 Whileiter < iter_max

05 Fori = 1: P

06 Choose one of the crows to follow (for example the crow j)

07 Ifr_j > AP ^j^,iter

08 X^i,iter+1 = X^i,iter + r_i × fl^i,iter × (M^j,iter - X^i,iter)

09 else

10 X ⁱ ^,iter=a random position in search space

11 Endif

12 Endfor

13 Check and evaluate new position of the crows, and then update memory(M ⁱ, i = 1,2, ... P)

14 Endwhile

15 Output: the best memory(M_best) and its objective function f(M_best)

Crow search algorithm (CSA)
01	Input: parameters of P, d, fl, AP, iter_max
02	P crows are randomly positioned (X ⁱ, i = 1,2, ... P) in the d-dimension search space, and fill memory(M ⁱ, i = 1,2, ... P) by the initial position
03	Calculate the objective function(f (X ⁱ, i = 1,2, ... P)) of the initial position of N crows
04	Whileiter < iter_max
05	Fori = 1: P
06	Choose one of the crows to follow (for example the crow j)
07	Ifr_j > AP ^j^,iter
08	X^i,iter+1 = X^i,iter + r_i × fl^i,iter × (M^j,iter - X^i,iter)
09	else
10	X ⁱ ^,iter=a random position in search space
11	Endif
12	Endfor
13	Check and evaluate new position of the crows, and then update memory(M ⁱ, i = 1,2, ... P)
14	Endwhile
15	Output: the best memory(M_best) and its objective function f(M_best)

Table 2

The parameters setting in these algorithms

Algorithm	Input parameters	Appearance in
FCM_S1	m=2, T = 300, ɛ=10^–4, α=4, N_R = 9	Chen and Zhang [10]
FCM_S2	m=2, T = 300, ɛ=10^–4, α=4, N_R = 9
EnFCM	m=2, T = 300, ɛ=10^–4, α=4, N_R = 9	Szilagyi et al. [11]
FGFCM	m=2, T = 300, ɛ=10^–4, λ _s =3, λ _g =3, N_R = 9	Cai et al. [12]
IFCMS	m=2, T = 200, ɛ=10^–4, α=4, c₁ = 1.7, c₂ = 1.7, P = 12, w = [0.4, 0.9], N_R = 9	Benaichouche et al. [22]
CsiFCM	m=2, T = 300, ɛ=10^–4	Noordam et al. [26]
SiibFCM	m=2, T = 300, ɛ=10^–4	Lin et al. [27]
NDFCM	m=2, T = 300, ɛ=10^–4,λ_α=1, λ _s =3, λ _g =3, N_R = 9	Guo et al. [30]
RNDFCM	m=2, T = 300, ɛ=10^–4,λ_α=1, λ _s =3, λ _g =3, N_R = 9	In this paper
CCGFCM	m=2, T = 200, ɛ=10^–4,λ_α=1, λ _s =3, λ _g =3, P = 20, fl = 2, AP = 0.2, N_R = 9

In this experiment, a synthetic image named #syn and five industrial non-destructive testing (NDT) images named #NDT1- #NDT5 are used to testify the performance of CCGFCM algorithm. These images, their ground truth images and gray-level histograms are presented in Fig. 1. The gray-level histograms can indicate that these images have the characteristics of unequal cluster sizes and thus our test requirement for evaluating algorithms are fulfilled.

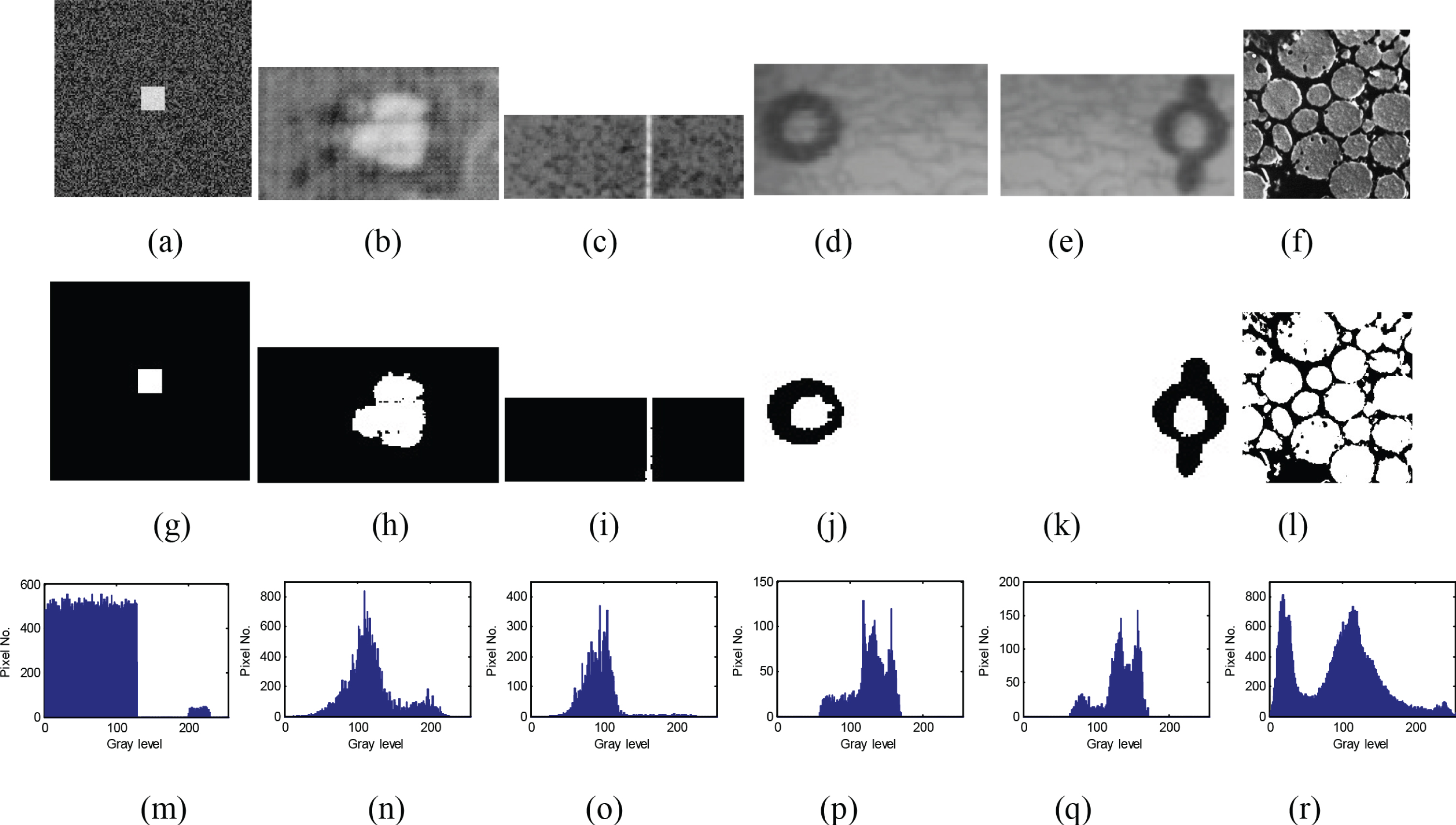

Fig. 1

the synthetic image and the NDT images: (a) #syn; (b)-(f) #NDT1-5; (g) ground truth images of #syn; (h)-(l) ground truth images of #NDT1-5; (m) gray-level histograms of #syn; (n)-(r) gray-level histograms of #NDT1-5;

4.2 Segmentation experiments

4.2.1 Experiments on synthetic image

The image #syn with the characteristics of unequal cluster sizes includes two clusters: one is the background area with intensity ranging from 0 to 128 and the other is the small square foreground area with intensity from 200 to 228. To compare the robustness of the different algorithms cited above, we apply them firstly to segment the synthetic image #syn corrupted by White Gaussian noise (Normalized variance (NV) varying from 0.005 to 0.02 with increment 0.005) and Salt & Pepper noise (Noise percentage (NP) varying from 7% to 15% with the increment 4%). The F_value results on image #syn corrupted by different noise levels are shown in Table 3. Moreover, in order to visually compare the performance, the segmentation results of all the algorithms on image #syn corrupted by White Gaussian noise with NV = 0.02 and Salt & Pepper noise with NP = 15% are presented in Figs. 2-3.

Table 3
The F_value results of these algorithms on images #syn corrupted by Gaussian noise or Salt & Pepper noise

Image NV or NP FCM_S1 FCM_S2 EnFCM FGFCM IFCMS CsiFCM siibFCM NDFCM RNDFCM CCGFCM

#syn NV(0.005) 0.0717 0.0688 0.0740 0.0736 0.0717 0.0647 0.1047 0.0789 0.9328 0.9328

NV(0.01) 0.0716 0.0685 0.0756 0.0735 0.0716 0.1297 0.1525 0.0771 0.0405 0.9266

NV(0.015) 0.0716 0.0675 0.0754 0.0749 0.0716 0.0687 0.1464 0.0767 0.0409 0.9013

NV(0.02) 0.0724 0.0686 0.0772 0.0745 0.0724 0.0720 0.1136 0.0778 0.0406 0.8888

NP(7%) 0.0800 0.0703 0.0931 0.0744 0.0800 0.4666 0.4666 0.0783 0.9266 0.9266

NP(11%) 0.0837 0.0717 0.1068 0.0761 0.0837 0.3552 0.3552 0.0817 0.9141 0.9141

NP(15%) 0.0845 0.0721 0.1046 0.0814 0.0845 0.2815 0.2815 0.0840 0.9066 0.9066

Image	NV or NP	FCM_S1	FCM_S2	EnFCM	FGFCM	IFCMS	CsiFCM	siibFCM	NDFCM	RNDFCM	CCGFCM
#syn	NV(0.005)	0.0717	0.0688	0.0740	0.0736	0.0717	0.0647	0.1047	0.0789	0.9328	0.9328
	NV(0.01)	0.0716	0.0685	0.0756	0.0735	0.0716	0.1297	0.1525	0.0771	0.0405	0.9266
	NV(0.015)	0.0716	0.0675	0.0754	0.0749	0.0716	0.0687	0.1464	0.0767	0.0409	0.9013
	NV(0.02)	0.0724	0.0686	0.0772	0.0745	0.0724	0.0720	0.1136	0.0778	0.0406	0.8888
	NP(7%)	0.0800	0.0703	0.0931	0.0744	0.0800	0.4666	0.4666	0.0783	0.9266	0.9266
	NP(11%)	0.0837	0.0717	0.1068	0.0761	0.0837	0.3552	0.3552	0.0817	0.9141	0.9141
	NP(15%)	0.0845	0.0721	0.1046	0.0814	0.0845	0.2815	0.2815	0.0840	0.9066	0.9066

Fig. 2

Segmentation results on #syn with Gaussian noise (NV = 0.02): (a) FCM_S1; (b)FCM_S2; (c)EnFCM; (d)FGFCM; (e)IFCMS; (f)CsiFCM; (g)siibFCM; (h)NDFCM; (i) RNDFCM; (j)CCGFCM.

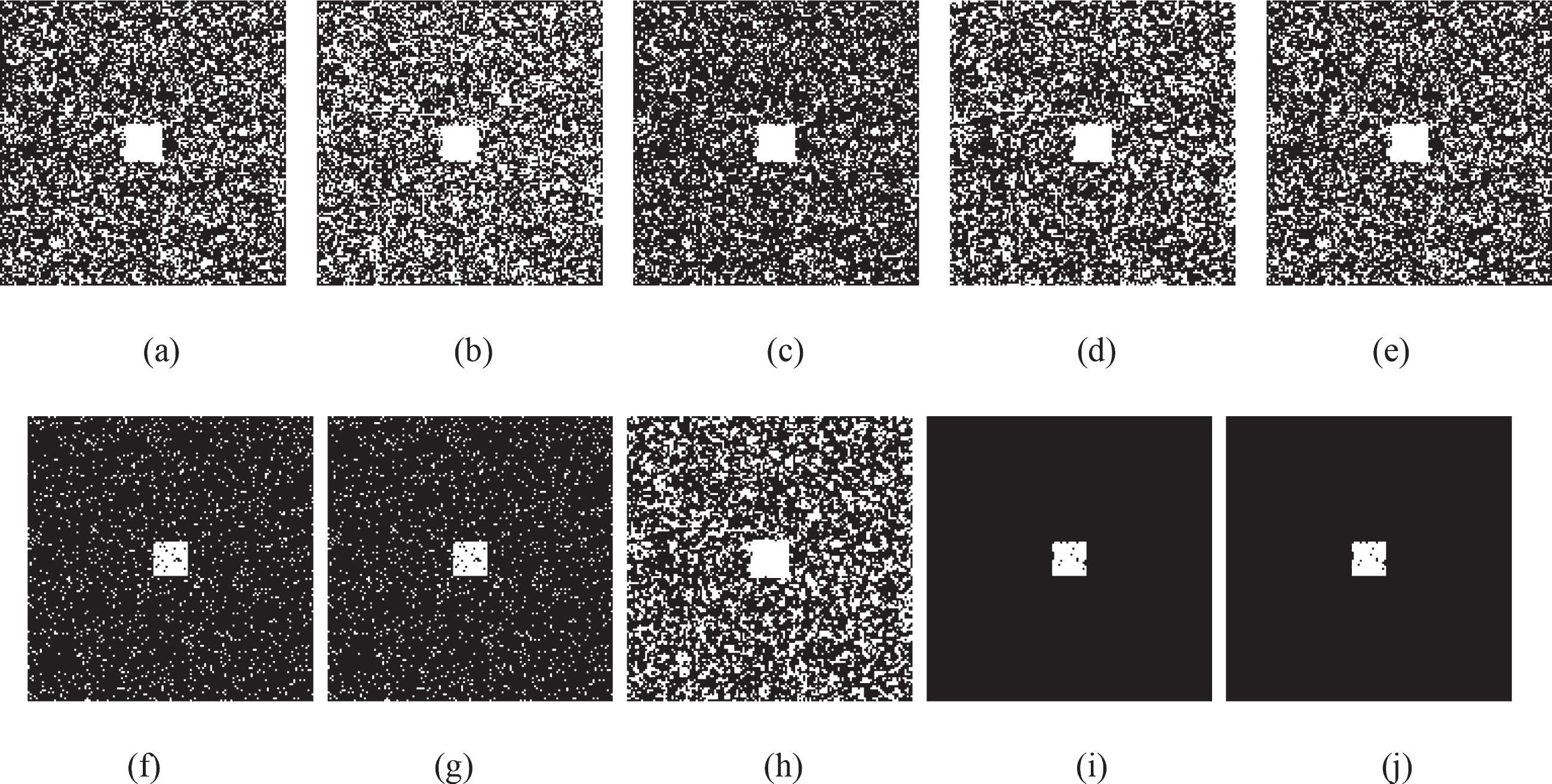

Fig. 3

Segmentation results on #syn with Salt & Pepper noise (NP = 15%): (a) FCM_S1; (b)FCM_S2; (c)EnFCM; (d)FGFCM; (e)IFCMS; (f)CsiFCM; (g)siibFCM; (h)NDFCM; (i) RNDFCM; (j)CCGFCM.

The Table 3 shows that the CCGFCM performs better than the other methods in different noise types and levels. It is worth noting that the RNDFCM also do well in segmenting the #syn corrupted by Salt & Pepper noise or low level Gaussian noise(NV = 0.005), but it falls into local optimum in high Gaussian noise levels. The remaining algorithms are all trapped in local optimum, which shows that the improvement of the objective function is effective. Visually, in Figs. 2-3 we can see that the CCGFCM can effectively segment the #syn corrupted by White Gaussian noise with NV = 0.02 and Salt & Pepper noise with NP = 15%.

4.2.2 Experiments on NDT image

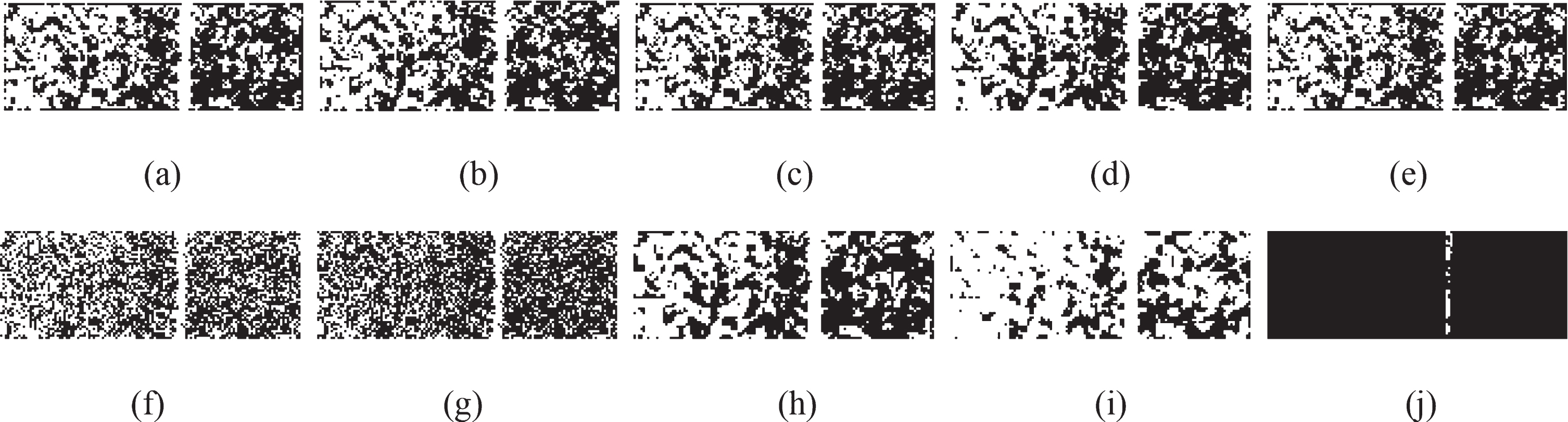

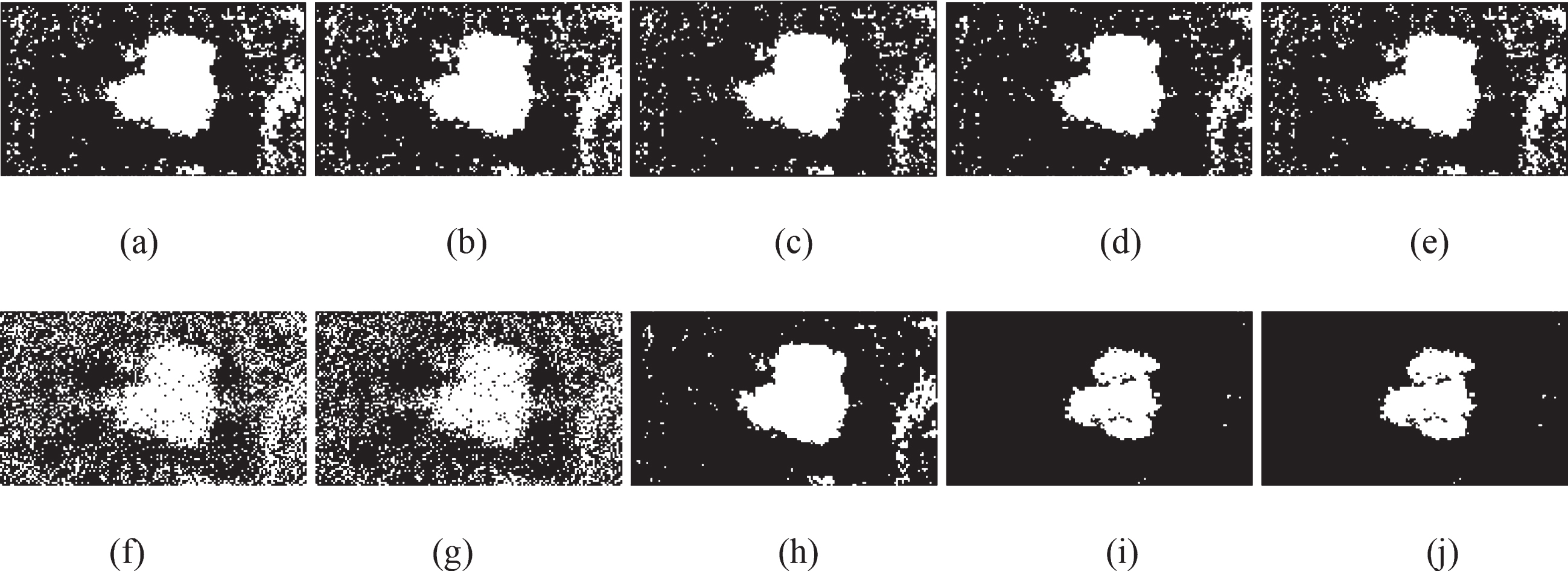

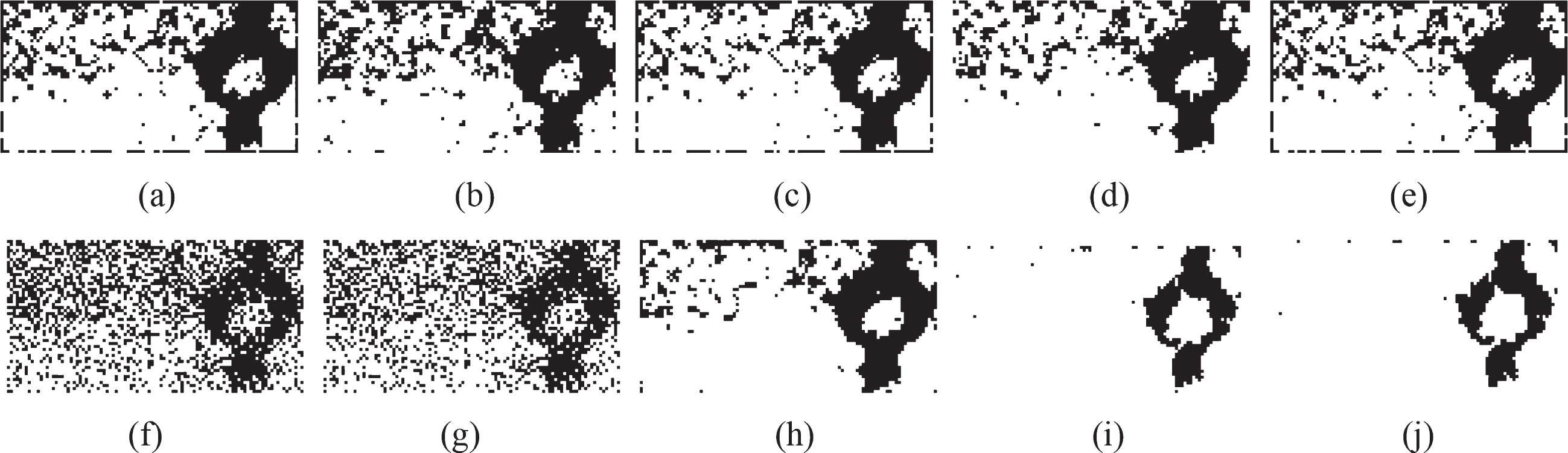

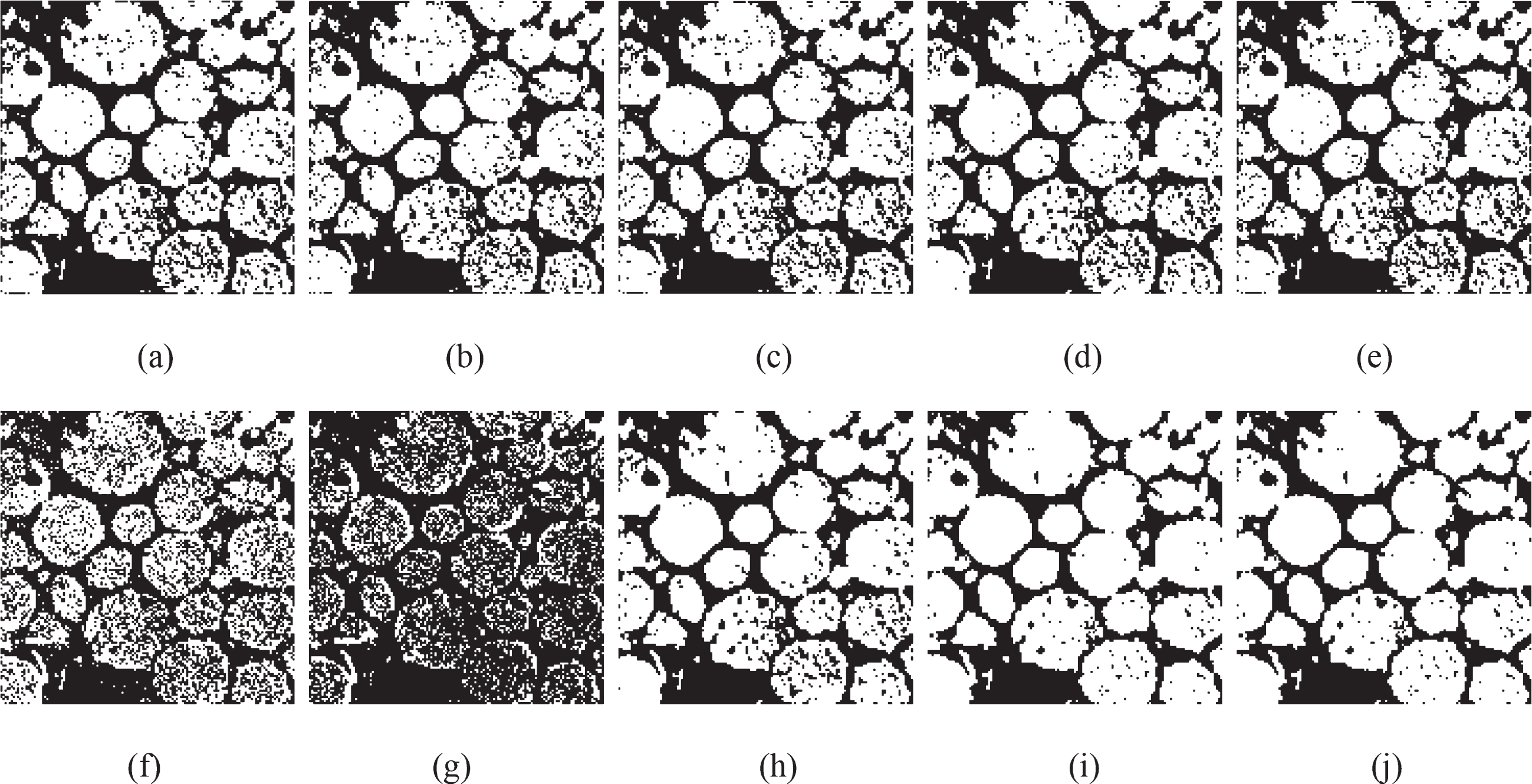

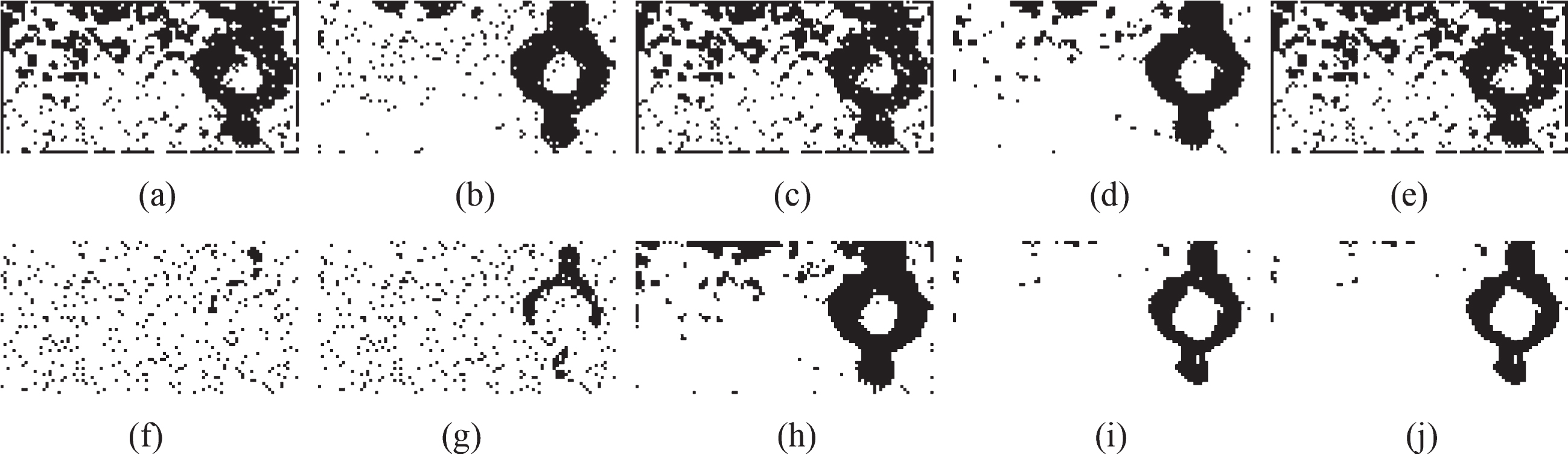

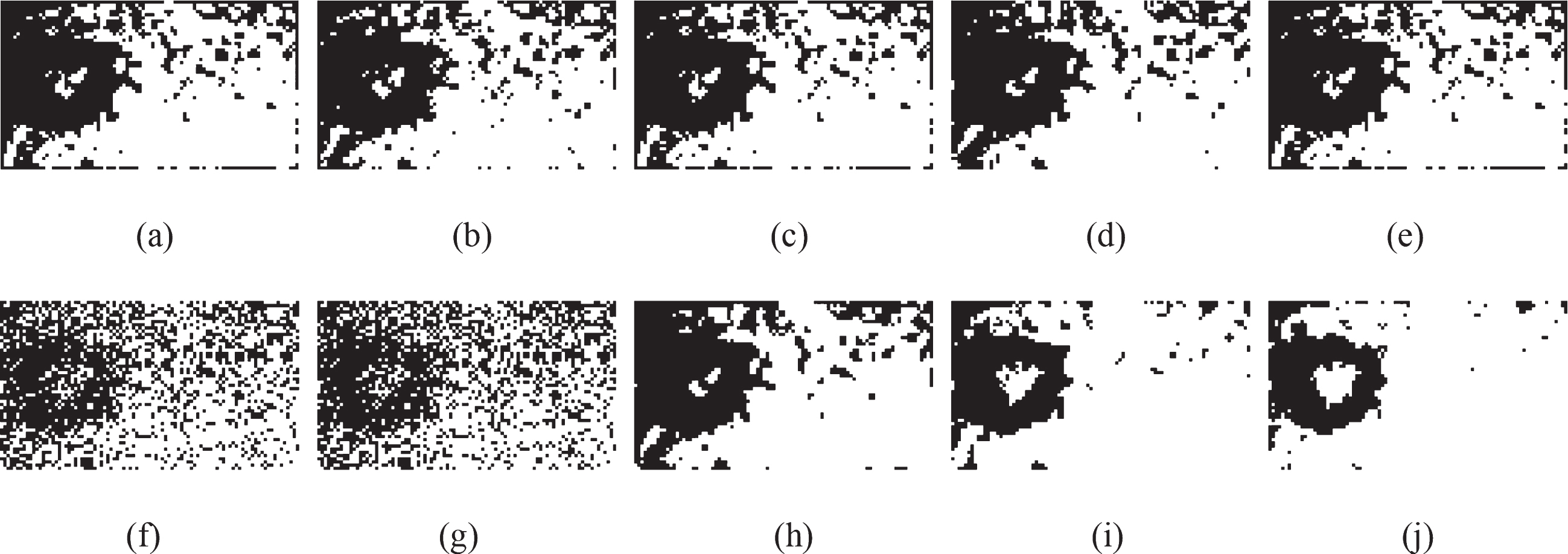

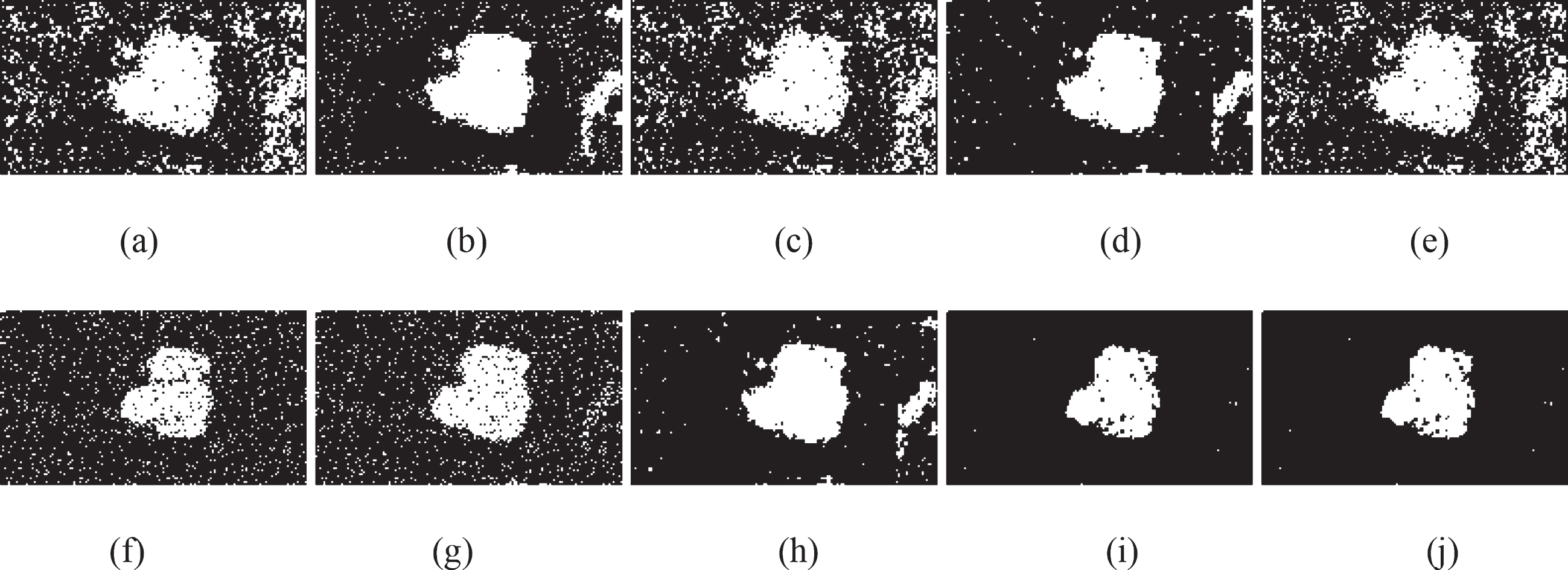

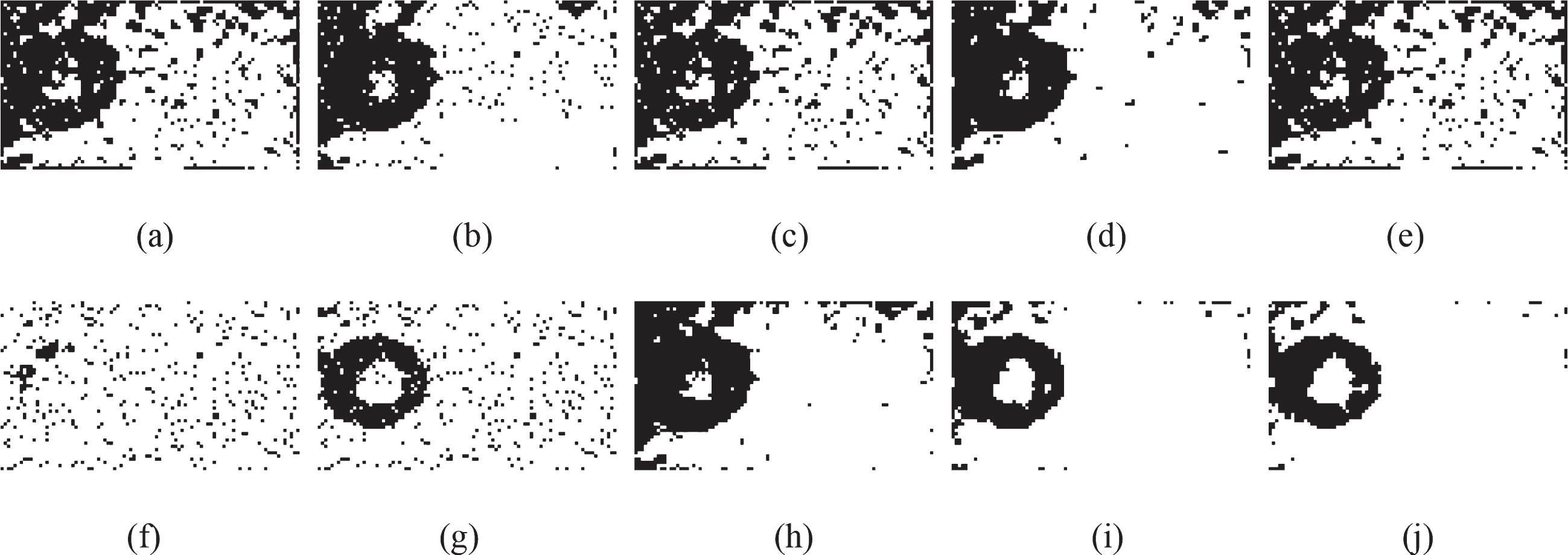

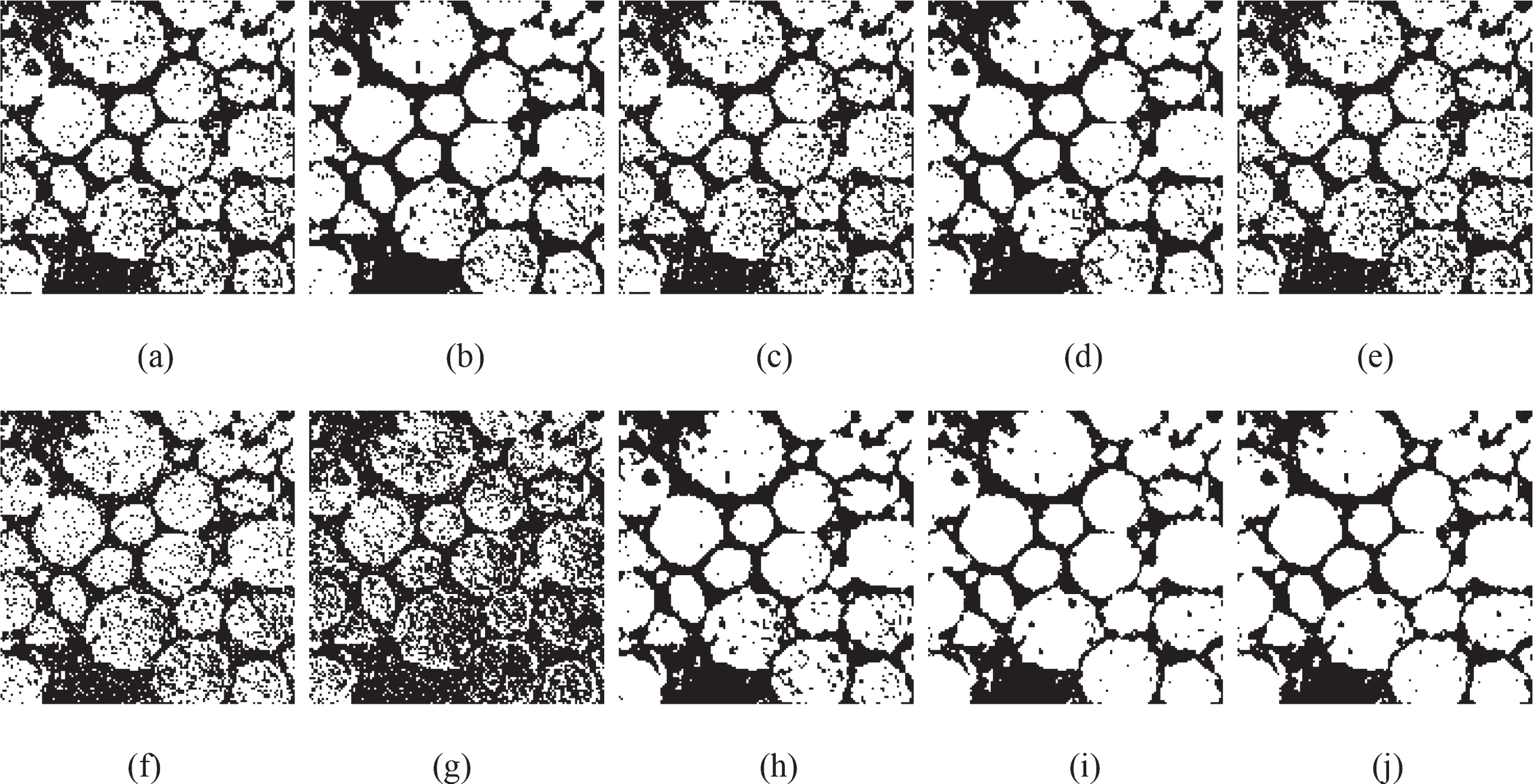

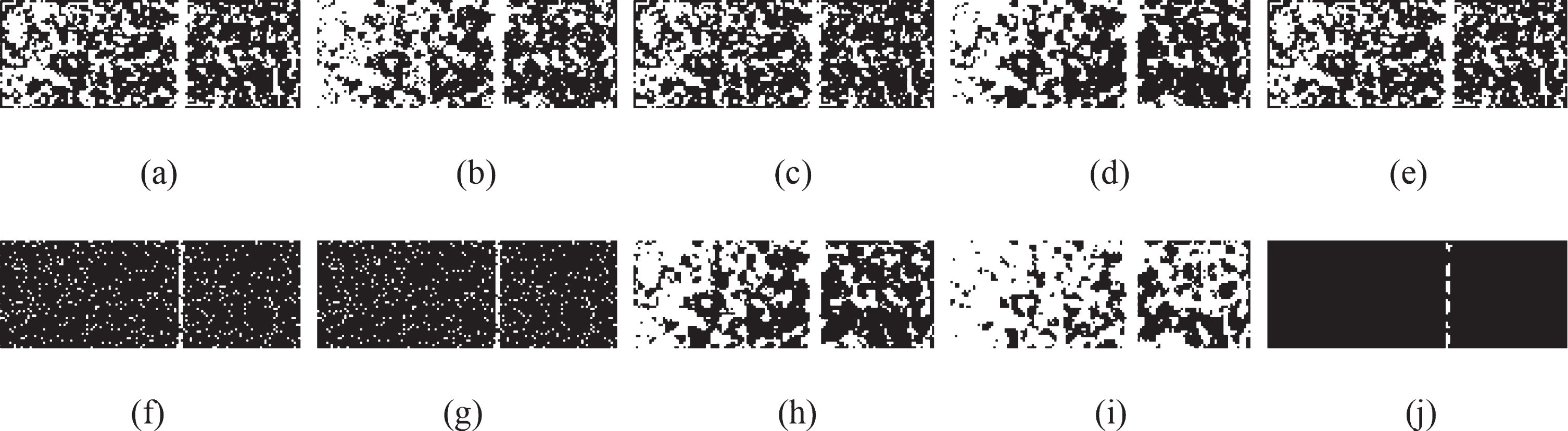

In this section the NDT images (named #NDT1-5) showed in Fig. (b)- (f) are used to testify the performance of CCGFCM. Here, we also artificially add White Gaussian noise (NV varying from 0.005 to 0.02 with increment 0.005) and Salt &Pepper noise (NP varying from 7% to 15% with the increment 4%) to these NDT images. The F_value results obtained by these ten algorithms on these NDT images are shown in Table 4. Figs. 4–13 demonstrate the visual segmentation performance of CCGFCM and the comparative algorithms when the NDT images are corrupted by White Gaussian noise with NV = 0.02 and Salt & Pepper noise with NP = 15% respectively.

Table 4
The F_value results of these algorithms on #NDT1-5 images corrupted by Gaussian noise or Salt & Pepper noise

Image NV or NP FCM_S1 FCM_S2 EnFCM FGFCM IFCMS CsiFCM siibFCM NDFCM RNDFCM CCGFCM

#NDT1 NV(0.005) 0.7744 0.7665 0.7765 0.7835 0.7744 0.7424 0.6443 0.8000 0.9470 0.9474

NV(0.01) 0.7240 0.7044 0.7465 0.7573 0.7240 0.5668 0.5290 0.7874 0.9292 0.9260

NV(0.015) 0.6374 0.5949 0.6655 0.6978 0.6374 0.4463 0.4807 0.7458 0.9211 0.9211

NV(0.02) 0.5945 0.5624 0.6322 0.6668 0.5944 0.4177 0.4122 0.7278 0.9215 0.9217

NP(7%) 0.6608 0.7507 0.6626 0.7913 0.6608 0.8069 0.7979 0.7997 0.9457 0.9457

NP(11%) 0.5750 0.7168 0.5737 0.7721 0.5750 0.7546 0.7520 0.7825 0.9428 0.9425

NP(15%) 0.5152 0.6870 0.5199 0.7433 0.5152 0.7000 0.6823 0.7686 0.9291 0.9291

#NDT2 NV(0.005) 0.0912 0.0901 0.0923 0.0911 0.0913 0.0946 0.7912 0.0916 0.0620 0.5000

NV(0.01) 0.0969 0.0963 0.0954 0.1000 0.0969 0.0974 0.1783 0.1012 0.0682 0.6741

NV(0.015) 0.0908 0.0917 0.0904 0.0905 0.0908 0.0982 0.1473 0.0907 0.0635 0.6887

NV(0.02) 0.0916 0.0912 0.0923 0.0914 0.0916 0.0897 0.1181 0.0910 0.0645 0.5766

NP(7%) 0.0994 0.0868 0.1008 0.0916 0.0994 0.2982 0.2865 0.0914 0.0623 0.6307

NP(11%) 0.1011 0.0896 0.1064 0.0943 0.1011 0.2886 0.2750 0.0954 0.0638 0.4710

NP(15%) 0.1081 0.0903 0.1150 0.0977 0.1081 0.2498 0.2419 0.0974 0.0666 0.4610

#NDT3 NV(0.005) 0.4974 0.4968 0.4974 0.5307 0.4974 0.4685 0.4472 0.5087 0.7645 0.8173

NV(0.01) 0.4367 0.4186 0.4475 0.4346 0.4367 0.3628 0.3497 0.4559 0.7194 0.7188

NV(0.015) 0.4017 0.3942 0.4111 0.4046 0.4017 0.3391 0.3545 0.4259 0.6396 0.6921

NV(0.02) 0.3845 0.3833 0.3872 0.3879 0.3845 0.3180 0.3074 0.3957 0.5580 0.6440

NP(7%) 0.4603 0.5310 0.4662 0.5564 0.4603 0.0772 0.6218 0.5323 0.7615 0.8127

NP(11%) 0.3716 0.4790 0.3714 0.4874 0.3716 0.0723 0.6261 0.4664 0.6892 0.7605

NP(15%) 0.3842 0.4964 0.3906 0.4997 0.3842 0.1731 0.6509 0.4848 0.6868 0.7549

#NDT4 NV(0.005) 0.6771 0.6495 0.6858 0.7110 0.6771 0.6262 0.6042 0.7262 0.9312 0.9312

NV(0.01) 0.5876 0.5599 0.6064 0.5938 0.5876 0.4764 0.5419 0.6233 0.9124 0.9124

NV(0.015) 0.5872 0.5945 0.6077 0.6311 0.5872 0.4691 0.4824 0.6692 0.8859 0.8859

NV(0.02) 0.5684 0.5464 0.5944 0.6337 0.5684 0.4176 0.4384 0.6749 0.8635 0.8608

NP(7%) 0.5940 0.8207 0.5996 0.8455 0.5940 0.1084 0.8477 0.7722 0.9360 0.9368

NP(11%) 0.5276 0.7635 0.5261 0.7799 0.5276 0.0562 0.7577 0.7274 0.9092 0.9065

NP(15%) 0.4912 0.7321 0.4901 0.7383 0.4912 0.1626 0.4072 0.6996 0.8855 0.8855

#NDT5 NV(0.005) 0.8987 0.8914 0.8980 0.9062 0.8987 0.8339 0.5989 0.9131 0.9574 0.9609

NV(0.01) 0.8728 0.8694 0.8733 0.8842 0.8728 0.7701 0.6220 0.8949 0.9500 0.9500

NV(0.015) 0.8560 0.8540 0.8590 0.8705 0.8560 0.7299 0.6134 0.8870 0.9439 0.9439

NV(0.02) 0.8373 0.8389 0.8402 0.8581 0.8373 0.7040 0.5893 0.8740 0.9350 0.9350

NP(7%) 0.8614 0.8949 0.8653 0.9065 0.8615 0.8473 0.4752 0.9129 0.9536 0.9536

NP(11%) 0.8269 0.8850 0.8271 0.8959 0.8269 0.8083 0.4713 0.9056 0.9462 0.9455

NP(15%) 0.7924 0.8726 0.7928 0.8792 0.7924 0.7638 0.4649 0.8931 0.9356 0.9359

Image	NV or NP	FCM_S1	FCM_S2	EnFCM	FGFCM	IFCMS	CsiFCM	siibFCM	NDFCM	RNDFCM	CCGFCM
#NDT1	NV(0.005)	0.7744	0.7665	0.7765	0.7835	0.7744	0.7424	0.6443	0.8000	0.9470	0.9474
	NV(0.01)	0.7240	0.7044	0.7465	0.7573	0.7240	0.5668	0.5290	0.7874	0.9292	0.9260
	NV(0.015)	0.6374	0.5949	0.6655	0.6978	0.6374	0.4463	0.4807	0.7458	0.9211	0.9211
	NV(0.02)	0.5945	0.5624	0.6322	0.6668	0.5944	0.4177	0.4122	0.7278	0.9215	0.9217
	NP(7%)	0.6608	0.7507	0.6626	0.7913	0.6608	0.8069	0.7979	0.7997	0.9457	0.9457
	NP(11%)	0.5750	0.7168	0.5737	0.7721	0.5750	0.7546	0.7520	0.7825	0.9428	0.9425
	NP(15%)	0.5152	0.6870	0.5199	0.7433	0.5152	0.7000	0.6823	0.7686	0.9291	0.9291
#NDT2	NV(0.005)	0.0912	0.0901	0.0923	0.0911	0.0913	0.0946	0.7912	0.0916	0.0620	0.5000
	NV(0.01)	0.0969	0.0963	0.0954	0.1000	0.0969	0.0974	0.1783	0.1012	0.0682	0.6741
	NV(0.015)	0.0908	0.0917	0.0904	0.0905	0.0908	0.0982	0.1473	0.0907	0.0635	0.6887
	NV(0.02)	0.0916	0.0912	0.0923	0.0914	0.0916	0.0897	0.1181	0.0910	0.0645	0.5766
	NP(7%)	0.0994	0.0868	0.1008	0.0916	0.0994	0.2982	0.2865	0.0914	0.0623	0.6307
	NP(11%)	0.1011	0.0896	0.1064	0.0943	0.1011	0.2886	0.2750	0.0954	0.0638	0.4710
	NP(15%)	0.1081	0.0903	0.1150	0.0977	0.1081	0.2498	0.2419	0.0974	0.0666	0.4610
#NDT3	NV(0.005)	0.4974	0.4968	0.4974	0.5307	0.4974	0.4685	0.4472	0.5087	0.7645	0.8173
	NV(0.01)	0.4367	0.4186	0.4475	0.4346	0.4367	0.3628	0.3497	0.4559	0.7194	0.7188
	NV(0.015)	0.4017	0.3942	0.4111	0.4046	0.4017	0.3391	0.3545	0.4259	0.6396	0.6921
	NV(0.02)	0.3845	0.3833	0.3872	0.3879	0.3845	0.3180	0.3074	0.3957	0.5580	0.6440
	NP(7%)	0.4603	0.5310	0.4662	0.5564	0.4603	0.0772	0.6218	0.5323	0.7615	0.8127
	NP(11%)	0.3716	0.4790	0.3714	0.4874	0.3716	0.0723	0.6261	0.4664	0.6892	0.7605
	NP(15%)	0.3842	0.4964	0.3906	0.4997	0.3842	0.1731	0.6509	0.4848	0.6868	0.7549
#NDT4	NV(0.005)	0.6771	0.6495	0.6858	0.7110	0.6771	0.6262	0.6042	0.7262	0.9312	0.9312
	NV(0.01)	0.5876	0.5599	0.6064	0.5938	0.5876	0.4764	0.5419	0.6233	0.9124	0.9124
	NV(0.015)	0.5872	0.5945	0.6077	0.6311	0.5872	0.4691	0.4824	0.6692	0.8859	0.8859
	NV(0.02)	0.5684	0.5464	0.5944	0.6337	0.5684	0.4176	0.4384	0.6749	0.8635	0.8608
	NP(7%)	0.5940	0.8207	0.5996	0.8455	0.5940	0.1084	0.8477	0.7722	0.9360	0.9368
	NP(11%)	0.5276	0.7635	0.5261	0.7799	0.5276	0.0562	0.7577	0.7274	0.9092	0.9065
	NP(15%)	0.4912	0.7321	0.4901	0.7383	0.4912	0.1626	0.4072	0.6996	0.8855	0.8855
#NDT5	NV(0.005)	0.8987	0.8914	0.8980	0.9062	0.8987	0.8339	0.5989	0.9131	0.9574	0.9609
	NV(0.01)	0.8728	0.8694	0.8733	0.8842	0.8728	0.7701	0.6220	0.8949	0.9500	0.9500
	NV(0.015)	0.8560	0.8540	0.8590	0.8705	0.8560	0.7299	0.6134	0.8870	0.9439	0.9439
	NV(0.02)	0.8373	0.8389	0.8402	0.8581	0.8373	0.7040	0.5893	0.8740	0.9350	0.9350
	NP(7%)	0.8614	0.8949	0.8653	0.9065	0.8615	0.8473	0.4752	0.9129	0.9536	0.9536
	NP(11%)	0.8269	0.8850	0.8271	0.8959	0.8269	0.8083	0.4713	0.9056	0.9462	0.9455
	NP(15%)	0.7924	0.8726	0.7928	0.8792	0.7924	0.7638	0.4649	0.8931	0.9356	0.9359

Table 4 shows that the F_value results from the NDT images (#NDT1-#NDT 5) corrupted by different noise types and levels for these ten algorithms. It may be noted that the F_value of the CCGFCM are close to 1 and thus demonstrate its effectiveness in most cases. Figs. 4–13 show the visual segmentation performance of these then algorithms for the five NDT images are corrupted by White Gaussian noise with NV = 0.02 and Salt & Pepper noise with NP = 15%. It reveals that CCGFCM outperforms the other algorithms for the #NDT2 image, that is to say, other algorithms cannot find the global optimal solution. The RNDFCM and the CCGFCM achieve the most similar visual results to the ground truth images of the other NDT images and better than the other algorithms.

From the segmentation experiments on synthetic image and NDT image, we can give some conclusions as followed:

Except for RNDFCM and CCGFCM, other algorithms cannot segment noisy image with unequal cluster sizes effectively.

The RNDFCM can able to segment some noisy images with unequal cluster sizes, while it often trapped into local optimum as result to cause segmentation failure.

The two- paths hybrid algorithm of CCGFCM can search the global optimal solution and effectively segment noisy images with unequal cluster sizes.

Fig. 4

Segmentation results on #NDT1 with Gaussian noise (NV = 0.02): (a) FCM_S1; (b)FCM_S2; (c)EnFCM; (d)FGFCM; (e)IFCMS; (f)CsiFCM; (g)siibFCM; (h)NDFCM; (i) RNDFCM; (j)CCGFCM.

Fig. 5

Segmentation results on #NDT1 with Salt & Pepper noise (NP = 15%): (a) FCM_S1; (b)FCM_S2; (c)EnFCM; (d)FGFCM; (e)IFCMS; (f)CsiFCM; (g)siibFCM; (h)NDFCM; (i) RNDFCM; (j)CCGFCM.

Fig. 6

Segmentation results on #NDT2 with Gaussian noise (NV = 0.02): (a) FCM_S1; (b)FCM_S2; (c)EnFCM; (d)FGFCM; (e)IFCMS; (f)CsiFCM; (g)siibFCM; (h)NDFCM; (i) RNDFCM; (j)CCGFCM.

Fig. 7

Segmentation results on #NDT2 with Salt & Pepper noise (NP = 15%): (a) FCM_S1; (b)FCM_S2; (c)EnFCM; (d)FGFCM; (e)IFCMS; (f)CsiFCM; (g)siibFCM; (h)NDFCM; (i) RNDFCM; (j)CCGFCM.

Fig. 8

Segmentation results on #NDT3 with Gaussian noise (NV = 0.02): (a) FCM_S1; (b)FCM_S2; (c)EnFCM; (d)FGFCM; (e)IFCMS; (f)CsiFCM; (g)siibFCM; (h)NDFCM; (i) RNDFCM; (j)CCGFCM.

Fig. 9

Segmentation results on #NDT3 with Salt & Pepper noise (NP = 15%): (a) FCM_S1; (b)FCM_S2; (c)EnFCM; (d)FGFCM; (e)IFCMS; (f)CsiFCM; (g)siibFCM; (h)NDFCM; (i) RNDFCM; (j)CCGFCM.

Fig. 10

Segmentation results on #NDT4 with Gaussian noise (NV = 0.02): (a) FCM_S1; (b)FCM_S2; (c)EnFCM; (d)FGFCM; (e)IFCMS; (f)CsiFCM; (g)siibFCM; (h)NDFCM; (i) RNDFCM; (j)CCGFCM.

Fig. 11

Segmentation results on #NDT4 with Salt & Pepper noise (NP = 15%): (a) FCM_S1; (b)FCM_S2; (c)EnFCM; (d)FGFCM; (e)IFCMS; (f)CsiFCM; (g)siibFCM; (h)NDFCM; (i) RNDFCM; (j)CCGFCM.

Fig. 12

Segmentation results on #NDT5 with Gaussian noise (NV = 0.02): (a) FCM_S1; (b)FCM_S2; (c)EnFCM; (d)FGFCM; (e)IFCMS; (f)CsiFCM; (g)siibFCM; (h)NDFCM; (i) RNDFCM; (j)CCGFCM.

Fig. 13

Segmentation results on #NDT5 with Salt & Pepper noise (NP = 15%): (a) FCM_S1; (b)FCM_S2; (c)EnFCM; (d)FGFCM; (e)IFCMS; (f)CsiFCM; (g)siibFCM; (h)NDFCM; (i)RNDFCM; (j)CCGFCM.

4.3 Robustness analysis

In this section, a robustness evaluation index [39] is introduced to evaluate the robustness of CCGFCM and the other algorithms. In detail, for the algorithm i, its relative performance on an image is represented by the ratio R_i of its evaluating indicator (F_value) to the highest indicator value among all the compared algorithms. R_i is calculated as follows: $R_{i} = \frac{F_v {alue}_{i}}{{max}_{j = 1}^{num} F_v {alue}_{j}}$ (27) where F _ value_i is the evaluating indicator obtained by the algorithm i and num is the number of comparative algorithms. It is easy to get that the value of R_i is less than or equal to 1. The larger the value of R_i, the better the performance of the algorithm i on that image. Thus the sum of R_i over all images provide a good measurement of the robustness of the algorithm i. A larger value of the sum indicates good robustness. Fig. 14 shows the distribution of R_i of each algorithm on all the images in Tables 3-4. For the algorithm i, 42 values of are stacked, and the sum value is presented on the top of the stack. Fig. 14 reveals that CCGFCM is the most robust among all the methods.

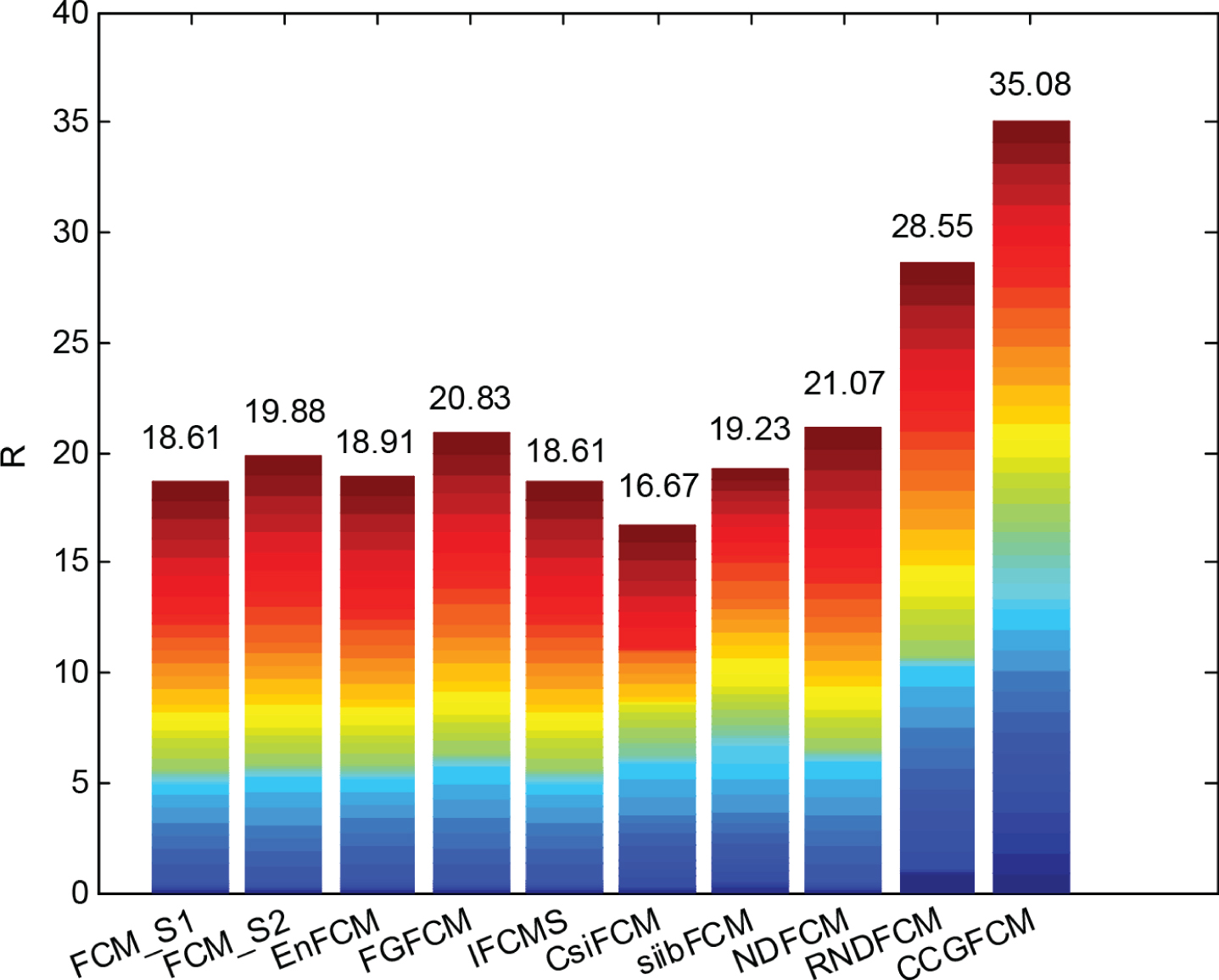

Fig. 14

Robustness of the compared algorithms.

5 Conclusion

In FCM or some improved FCM models used for image segmentation, a crucial issue is how to construct objective function to segment the images with the characteristics of unequal cluster sizes. Moreover, models often fall into local optimal solutions when the initial cluster centers are improper. To properly deal with these two drawbacks, a novel FCM algorithm called CCGFCM algorithm is put forward and investigated.

The research of the proposed CCGFCM approach is summarized as follows. To begin with, the sum of membership degree of each cluster as the divisor is embedded into the objective function of NDFCM, so that the influence of cluster size imbalance on clustering results can be weakened. Furthermore, a novel compactness measure via the density of each cluster index is presented to measure the density differences between clusters. Following that, the RNDFCM, also known as gradient method, is established based on the new objective function and density of each cluster index. And then the CCGFCM is constructed and described by the fusion of gradient method and a global optimization method named chaotic CSA with fewer adjustable parameters. Finally, from the testing for the synthetic image and NDT images, the proposed CCGFCM algorithm is better than related comparative algorithms from the angles of both performance indexes and visual effects.

In the future, we can combine CCGFCM algorithm with the advanced denoising method, and the new algorithm will have better segmentation effect with significant levels of noise. In addition, designing the expression which is inversely related to the cluster size and integrating it into the objective function of improved FCM models can partly solve the segmentation problem that the algorithm is sensitive to cluster size. Furthermore, it is also worth doing to adjust CCGFCM in this paper to segment synthetic aperture radar images and color images.

Footnotes

Acknowledgments

The authors would like to thank the anonymous reviewers for their helpful comments and suggestions. This work is supported by the Educational Commission of Hebei Province of China (Nos. QN2020263, ZD2018212) and the Doctoral Research Initiation Fund of Hebei GEO University (No. BQ201606).

References

Pal

N.R.

and Pal

S.K.

, A review on image segmentation techniques, Pattern Recognition 26(9) (1993), 1277–1294.

Qamar

, A dissimilarity measure based fuzzy c-means (FCM) clustering algorithm, Journal of Intelligent & Fuzzy Systems 26 (2014), 229–238.

Seal

, Karlekar

, Krejcar

and Gonzalo-Martin

, Fuzzy c-means clustering using Jeffreys-divergence based similarity measure, Applied Soft Computing 88 (2020), 106016.

Zhao

, Fan

and Liu

, Optimal-selection-based suppressed fuzzy c-means clustering algorithm with self-tuning non local spatial information for image segmentation, Expert Systems Applications 41 (2014), 4083–4093.

Verma

, Agrawal

R.K.

and Sharan

, An improved intuitionistic fuzzy c-means clustering algorithm incorporating local information for brain image segmentation, Applied Soft Computing 46 (2016), 543–557.

Wan

, Zhang

, Xiang

and You

, A robust fuzzy C-means algorithm based on Bayesian nonlocal spatial information for SAR image segmentation, IEEE Journal Selected Topics Applied Earth Observations and Remote Sensing 11(3) (2018), 896–906.

and Wang

K.L.

, A robust nonlocal fuzzy clustering algorithm with between-cluster separation measure for SAR image segmentation, IEEE Journal Selected Topics Applied Earth Observations and Remote Sensing 7(12) (2014), 4929–4936.

Bezdek

J.C.

, A convergence theorem for the fuzzy ISODATA clustering algorithms, IEEE Transactions on Pattern Analysis and Machine Intelligence 2(1) (1980), 1–8.

Ahmed

M.N.

, Yamany

S.M.

, Mohamed

, Farag

A.A.

and Moriarty

, A modified fuzzy c-means algorithm for bias field estimation and segmentation of MRI data, IEEE Transactions on Medical Imaging 21 (2002), 193–199.

10.

Chen

and Zhang

, Robust image segmentation using FCM with spatial constraints based on new kernel-induced distance measure, IEEE Transactions on Systems Man and Cybernetics Part B: Cybernetics 34 (2004), 1907–1916.

11.

Szilagyi

, Benyo

, Szilagyi

S.M.

and Adam

H.S.

, MR brain image segmentation using an enhanced fuzzy c-means algorithm. In, Proceedings of the 25th annual international conference of the IEEE engineering in medicine and biology society 1 (2003), 17–21.

12.

Cai

, Chen

and Zhang

, Fast and robust fuzzy c-means clustering algorithms incorporating local information for image segmentation, Pattern Recognition 40(3) (2007), 825–838.

13.

Krinidis

and Chatzis

, A robust fuzzy local information C-means clustering algorithm, IEEE Transactions on Image Processing 19(5) (2010), 1328–1337.

14.

Gong

, Zhou

and Ma

, Change detection in synthetic aperture radar images based on image fusion and fuzzy clustering, IEEE Transactions on Image Processing 21(4) (2012), 2141–2151.

15.

and Qin

, Robust fuzzy local information and}}-norm distance-based image segmentation method, Iet Image Processing 11(4) (2017), 217–226.

16.

and Yang

, Robust credibilistic fuzzy local information clustering with spatial information constraints, Digital Signal Processing 97 (2020), 102615.

17.

Zhang

, Wang

, Shi

and Hao

, A novel adaptive fuzzy local information C-means clustering algorithm for remotely sensed imagery classification, IEEE Transactions on Geoscience & Remote Sensing 55(9) (2017), 5057–5068.

18.

Feng

, Jiao

L.C.

, Zhang

, Gong

and Sun

, Robust non-local fuzzy c-means algorithm with edge preservation for SAR image segmentation, Signal Processing 91(4) (2011), 988–999.

19.

Zhao

, Jiao

, Liu

and Gao

, A novel fuzzy clustering algorithm with non-local adaptive spatial constraint for image segmentation, Signal Processing 93(2) (2013), 487–499.

20.

Mukhopadhyay

and Maulik

, A multiobjective approach to MR brain image segmentation, Applied Soft Computing 11(1) (2011), 872–880.

21.

Ding

and Fu

, Kernel-based fuzzy c-means clustering algorithm based on genetic algorithm, Neurocomputing 188 (2016), 233–238.

22.

Benaichouche

A.N.

, Oulhadj

and Siarry

, Improved spatial fuzzy c-means clustering for image segmentation using PSO initialization, Mahalanobis distance and post-segmentation correction, Digital Signal Processing 23(5) (2013), 1390–1400.

23.

Zhang

, Jiao

, Ma

and Gong

, Multi-objective evolutionary fuzzy clustering for image segmentation with MOEA/D, Applied Soft Computing 48 (2016), 621–637.

24.

Niknim

and Amiri

, An efficient hybrid approach based on PSO, ACO and k-means for cluster analysis, Applied Soft Computing 10(1) (2009), 183–197.

25.

Bensaid

A.M.

, Hall

L.O.

, Bezdek

J.C.

and Clarke

L.P.

, Partially supervised clustering for image segmentation, Pattern Recognition 29(5) (1996), 859–871.

26.

Noordam

J.C.

, van den Broek

W.H.A.M.

and Buydens

L.M.C.

, Multivariate image segmentation with cluster size insensitive Fuzzy C-means, Chemometrics and Intelligent Laboratory Systems 64 (2002), 65–78.

27.

Lin

P.L.

, Huang

P.W.

, Kuo

C.H.

and Lai

Y.H.

, A size-insensitive integrity-based fuzzy c-means method for data clustering, Pattern Recognition 47(5) (2014), 2042–2056.

28.

Liu

, Hou

and Liu

, Improving fuzzy c -means method for unbalanced dataset, Electronics Letters 51(23) (2015), 1880–1882.

29.

Askarzadeh

, A novel metaheuristic method for solving constrained engineering optimization problems: Crow search algorithm, Computers and Structures 169 (2016), 1–12.

30.

Guo

F.F.

, Wang

X.X.

and Shen

, Adaptive fuzzy c-means algorithm based on local noise detecting for image segmentation, IET Image Processing 10(4) (2016), 272–279.

31.

Liu

, He

, Lu

, Wu

and Cai

, Chaotic crow search algorithm based on differential evolution strategy for solving discount 0-1 knapsack problem, Journal of Computer Applications 38(1) (2018), 137–145. (in Chinese).

32.

Alatas

, Chaotic bee colony algorithms for global numerical optimization, Expert Systems and Applications 37(8) (2010), 5682–5687.

33.

, Zhou

, Kou

and Xiao

, A novel chaotic particle swarm optimization based fuzzy clustering algorithm, Neurocomputing 83 (2012), 98–109.

34.

Zalik

K.R.

, Cluster validity index for estimation of fuzzy clusters of different sizes and densities, Pattern Recognition 43(10) (2010), 3374–3390.

35.

Zalik

K.R.

and Zalik

, Validity index for clusters of different sizes and densities, Pattern Recognition Letters 32(2) (2010), 221–234.

36.

Tavazoei

M.S.

and Haeri

, Comparison of different one-dimensional maps as chaotic search pattern in chaos optimization algorithms, Applied Mathematics and Computation 187 (2007), 1076–1085.

37.

Han

, Wang

W.Y.

and Mao

B.H.

, Borderline-SMOTE: A New Over-Sampling Method in Imbalanced Data Sets Learning, Advances in Intelligent Computing (2005), 878–887.

38.

Deng

, Zhan

D.C.

and Zhou

Z.H.

, Supervised nonlinear dimensionality reduction for visualization and classification, IEEE Transactions on Systems Man and Cybernetics Part B: Cybernetics 35(6) (2005), 1098–1107.
