A survey on new trends of digital twin technology for power systems

Abstract

Recently, the Digital Twin (DT) technology, which joints the physical environment and virtual space, has drawn more attention in industry and research academic plans. In general, the virtual model representations of the physical objects are created in the DT manner to simulates the characteristics and behaviors of the real-word system. Applying a supervisory system not only can reduce the failures of components, but also preserve the overall costs associated with the system at a minimum. This paper reviews the DT applications in the power system, while its advantages in wind turbines, solar panels, power electronic converter, and shipboard electrical system will be briefly discussed. The potential benefits of contemporary technologies to ameliorate the DT in the industry are studied. Besides, it provides a great technique to assess and analyze system performance. As a basis for DT, various new emerging developments as an example of artificial intelligence (AI), big data, the internet of things (IoT), and 5 G are reviewed.

Keywords

Index Terms: Digital Twin (DT)Artificial Intelligence (AI)ship power system big data Internet of Things (IoT)

1 Introduction

Nowadays, the digital twin has achieved a strong impact as a modern technology that can revolutionize manufacturing outlook [1, 2]. This technology conducts as a replica of reality offers a method for simulating, forecasting, and optimizing physical systems and operations [3]. Furthermore, merging with an intelligent algorithm, systems obtain progress in supervisory and optimization activity [4], advance novel products and all types of services [5], also expanding business structure and production [6].

Digital technology that allows the unification of components into the shop floor is called Industry 4.0. It has been identified generally as one of the most effective response of companies to financial hardship [7]. Also, it has been established in the Internet of Things (IoT) [8] that recommended embedding electronics and connection of network into devices (i.e., “things”) to allow exchange and accumulation of information toward the internet [9]. Therefore, devices can be direct appropriately from long distances and create a new path among virtual and physical systems. Besides, a cyber-physical system (CPS) is used as an embedded system that operates at a virtual and physical system communicating with physical devices and sensors and react to the real world [10 –12].

These days, the use of big data is becoming commonplace for enterprises to outperform their peers. Established rivals and new entrants can use the tactics emerging from the evaluated data to perform, evolve and capture demand throughout most industries respectively. Big Data lets businesses generate potential avenues for innovation and whole new types of firms that can integrate and interpret data from the market. These businesses provide sufficient knowledge that can be collected and evaluated about goods and services, customers and vendors, customer desires. Every business uses data in its own way; the more successfully a business uses its knowledge, the more potential it has to expand. The organization should take information from any source and examine it to find answers that would allow: Cost savings: As vast volumes of data need to be processed, such Big Data technologies such as Hadoop and Cloud-Based Analytics may offer cost benefits to business and these tools can help to find more successful ways of doing business. The high speed of tools such as Hadoop and in-memory analytics will quickly detect new data sources that enable organizations to instantly analyze data and make fast decisions based on the lessons learned [13].

The three main reasons allowing for digital twin development are:

IoT systems are able to capture a huge amount of information simply as well as send it in almost real-time to a digital twin.

Digital knowledge allows us to gain more in-depth insight into the physical asset data.

Machine learning algorithms can evaluate data collecting and make forecasts, optimize digital twin based on information gathered, and calibrate the general model and its specifics.

This article aims to investigate issues related to developing a digital twin application specifically for the power system and presents methods for implementations in the wind turbine, power converter, solar panels, and shipboard electrical systems. This paper studies the literature review after the introduction part, which reviews the digital twin’s structure and base form. Then, using the digital twin in the power system will be investigated deeply. The contribution of the survey is stated as follows:

in this work, an attempt is accomplished to emphasize the applicability of the digital twin concept in various practical case studies such as wind turbine plant, shipboard systems, power electronic converters from systematical point of view.

for cost-effective and quick deployment of DT, the key enabling IoT technologies like reliable measurement components, low-cost information storage, and Big Data analytics have been introduced.

the development of advanced control methodologies (e.g., machine learning, heuristic algorithms) in the DT framework for various case studies have been elaborated.

The remainder of this survey has been arranged as follows; Section II reviews the digital twin’s basic concept. The application of DT in the power system has been elaborated in Section III. Moreover, DT’s potential in the industry of wind turbines has been discussed in Section IV. Section V gives a survey on the deployment of DT along with the control strategies in the context of maritime systems. The integration of DT and Big data for the photovoltaic systems have been analyzed in Section VI. A practical application of the DT on power electronic systems presented in Section VII. The drawbacks and challenges related to the utilization of DT technology have been emphasized in Section VIII. Lastly, the conclusion of this paper has been demonstrated in Section IX.

2 Fundamental concept of digital twin

Industry 4.0 brings a new path to real-time supervising and synchronizing real-world activities to the virtual environment because of virtual-physical connectivity as well as CPS elements’ networking. The digital twin is a digital or simulative replica of physical assets or products. It was first introduced by Grieves in 2002 [14]. NASA was one of the first to use this technology mission. By gathering real-time data from the installed sensors, DT is able to connect the virtual and real world. In fact, the collected data is either locally decentralized or centrally stored in a cloud. Then, the data is simulated and assessed in a virtual copy of the assets. The parameters are applied to real assets, after receiving the information from the simulation. This integration of data in real and virtual representations helps in optimizing the performance of real assets [15, 16]. DTs are employed in different industries such as utilities, healthcare, automotive, manufacturing, and construction. They are the next big thing in the fourth industrial revolution of new product’s evolvement and processes. Also, it can help to predict future events by analyzing the data. Figure 1 shows the reflection on the outlook of smart manufacturing, in which DT can have an impact on future manufacturing for assets and people [17].

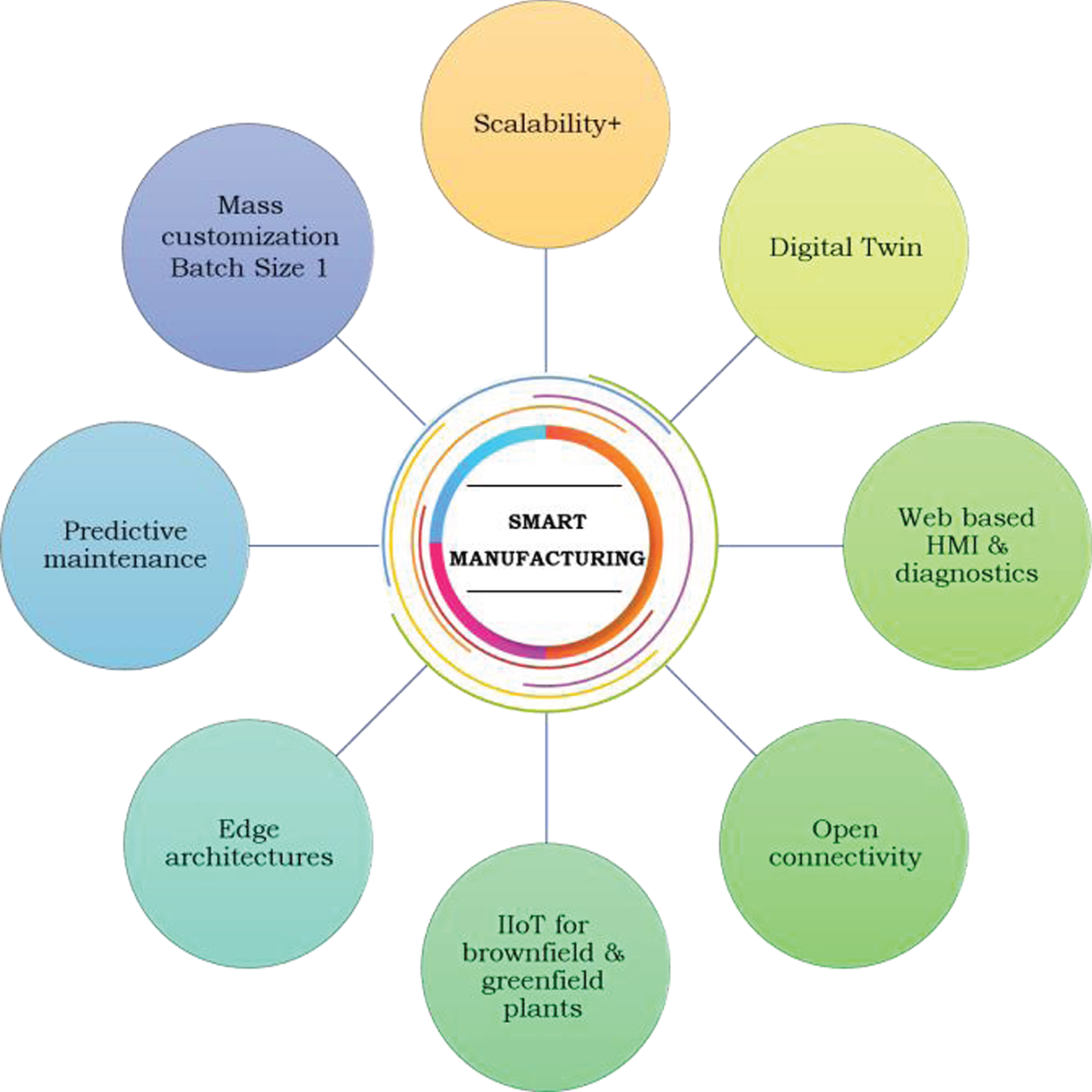

Fig. 1

Overall view of smart manufacturing.

The asset is connected to cyberspace by using the digital twins. Producers acquire a vision of real-world performance to analyze received data and make a decision to improve the operation. It also links workers on the shop floor. Personal information like emotional status, height, weight is formed to predict the working conditions of people in a factory. Besides, it supports machine-human cooperation in order to boost the workforce’s health and harvest the maximum production rate [18, 19].

The truth is that digital twins, if the method is easy, will generate value without machine learning and AI. For example, if there are limited variables and a readily discoverable linear relationship between inputs and outputs, then there would be no need for data science. The vast majority of applications, though, have multiple variables and multiple data sources and need data processing expertise to make sense of what’s happening. By applying machine learning to every manufacturing process, the process can become smarter by gaining more detailed data and forecasts, as well as understanding visual and unstructured data. people not only open up opportunities to find previously unknown trends in your data by incorporating machine learning into your workflow, but also create a single learning framework that can handle complicated data.

Using three parts are necessary to improve the digital twin: i) data models are needed in order to obtain the physical system’s specifications ii) a connection procedure that conveys bi-directional information among DT and its physical elements iii) data operation module which is able to draw out data of various multi-source to build an exact model of the physical system. Figure 2 represents a reference model of the digital twin. For the proper cooperation of these three elements, they need to work continuously.

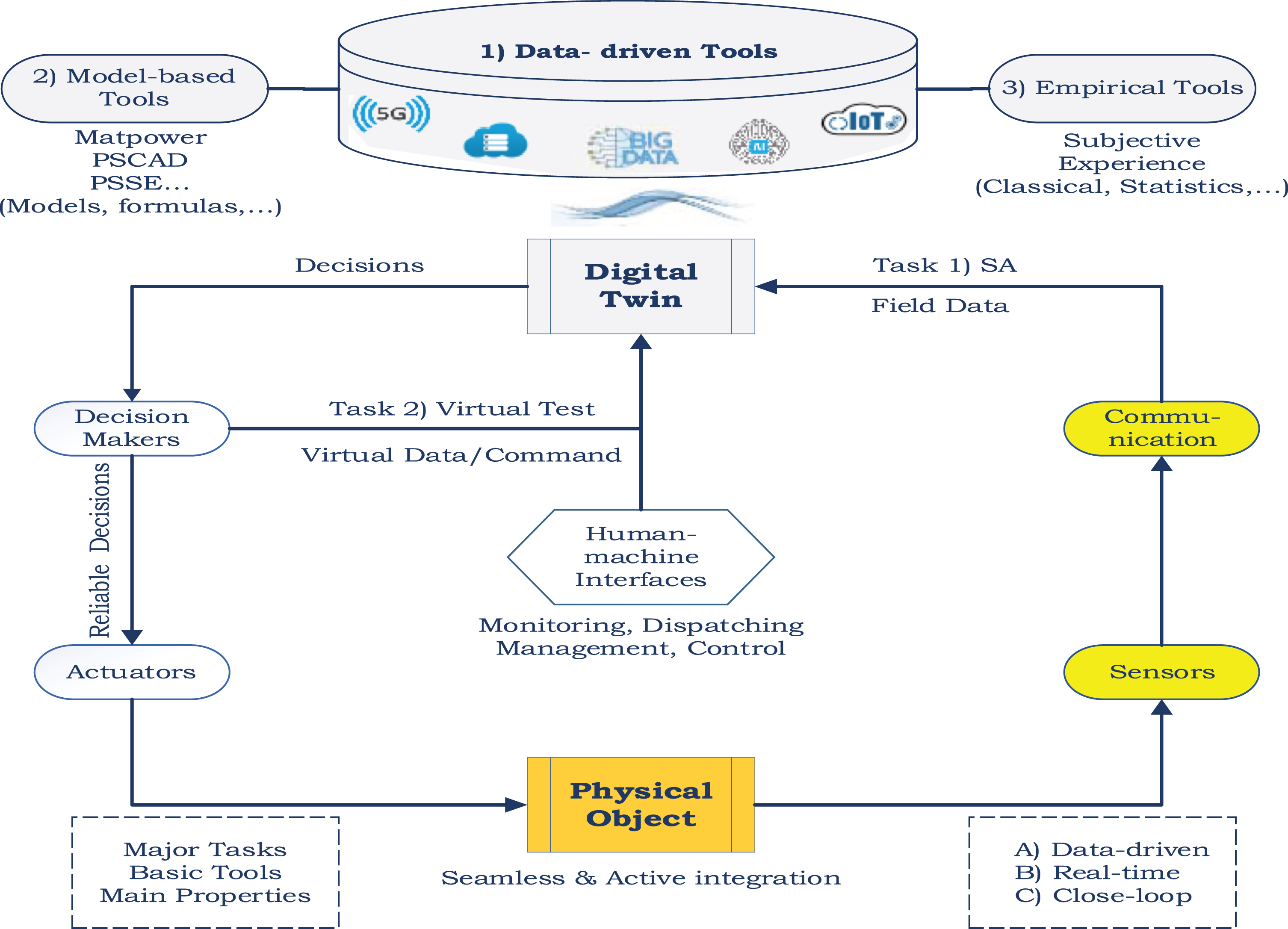

Fig. 2

Structure of digital twin for power system [24].

Actual sensor data could be used by the digital twin to practically replicate locations and physical operating environments on computers. Therefore, the operation should be assessed previously to mitigate the source of error. Also, it leads to less maintenance and wear of the system. These digital twins are becoming increasingly important in more dynamic industries and can chart the lifespan of goods, processes, or services.

A digital twin is a full and operational virtual representation of an asset, subsystem, or device that blends digital aspects of how equipment is designed with real-time aspects of how it is managed and maintained (PLM data, concept models, manufacturing data). Simulation, diagnostics, prediction, and other specialized use cases are made possible by the ability to link to data stored in various locations from one shared digital twin directory. It consists of several main parts which will be elaborated on in the following paragraphs.

Design: During the design process, modeling and analysis will be used to check and inspect the final 3-D design and make sure that all components match together. As well as interrelationships between these elements, simulations involve mechanical, thermal, and electrical.

System integration: 3-D system-level visualizations could validate restrictions including spatial footprint and physical relations.

Interactions, including data transmission and control capabilities, as well as mechanical and electrical activity and what-if scenarios, can be replicated by interacting with the digital twins of other components. Integration effort on site and the customer’s related downtime was minimized.

Diagnostics: For example, in 3-D visualization, an inspection of the digital twin will help troubleshooting. Virtual-reality glasses may have an overlay on the physical equipment allowing field technicians to simulate parameters. Non-observable data, such as temperatures of non-accessible sections or material tension, may be applied through simulations.

Prediction: In conjunction with predictive algorithms, historical and current operating and sensor data offers insights into the state of infrastructure and the probability of various types of failure. It helps schedule fair repairs and eliminates unplanned downtime.

Advanced services: provided that the advanced service parameters (IoT connectivity, analytics algorithms, etc) are preconfigured in the digital twin, they can be enabled when the equipment is installed and the customer subscribes to these services. In the optimal case, no further engineering is required.

During design and setup, the digital twin embraces and reduces ambiguity when promoting applications and maintaining availability and stability through condition tracking and specialized facilities. The freedom to refer to data stored in different locations from one standard digital twin directory is the secret to the varied facets of a digital twin. Through accessing data from elsewhere in the product lifecycle, a digital twin is able to provide the data needed for multiple usage cases.

A reliable data model that includes the calculated variables and the mapping that contributes to a digital representation is necessary for the digital twin. This purpose demands that measurements conveniently meet the digital twin representation, which, in turn, requires a connectivity infrastructure to be engineered.

3 Power system application

Renewable energies encourage countries to achieve their worthwhile development goals by ensuring access to renewable, safe, efficient, and inexpensive electricity [20 –23]. One of the most significant accomplishments of modern-day infrastructure is the power grid. Power supply enriches our daily lives. It is enabled by wires, poles, substations, and so on. However, there is a vast amount of digital data, allowing utilities to schedule, operate, and support the grids with a real-world model computer. With developments such as decentralization and recycling, monitoring and sharing of these data are getting more dynamic. Only minor data mistakes may have significant consequences. Utilities choose technologies that weave together their digital data should be prepared for a prosperous digital future. The digital twin can be used in numerous applications in power systems. Wind turbine, power converter, solar panel, and shipboard electrical system are among important power system which focuses on them and tries to analyze the operation. Figure 2 demonstrates the structure of the DT for the power system. The connection between the physical grids, the power system, and the controllers are identical to the relationship between the remaining vehicles on earth, the space module during flights. It allows the operators to figure out the physical system under challenging circumstances and makes a credible decision [24].

Digital innovations are changing the power generation market, bringing new insights into the planning, management and maintenance of power plants, and uncovering new opportunities to enhance system efficiency and maximize the availability and reliability of equipment. Most of the data produced within the power industry was historically confined to remote monitoring and diagnostic facilities, where turbineactivities were monitored for monitoring. Many of the offerings of power generation in the digital environment have been around the following main areas:

Increasing Accessibility. This strategy directs managers of power plants to optimize system checks, control routine maintenance practices, and optimize condition-based maintenance by balancing reliability and inventory management of operations and maintenance activities.

Improvement of Results. In terms of versatility, this approach handles plant processes and enhances efficiency to increase sustainability in the ever-changing environment.

Field Support Remote. This automated approach and virtualization allows for early warning of irregularities and potential disruption to the tracking and diagnostics of power plant facilities.

Danger and Conformity. The convergence of OT and IT networks has placed greater emphasis on the protection of power plant cyberattacks. The global landscape protection umbrella tracks networks for increasing cyber threats and decreases risk while maintaining compliance with industry standards.

Control of Fleets. This monitoring and diagnostics framework offers total accountability across machine, facility, and fleet levels, including asset diagnostics, efficiency monitoring, and optimization of operations to build new ways for utilities to control and sell their assets.

As a physical power electronic converter system contains elements of random (stochastic) uncertainty during operation, a deterministic (non-random) real-time model to use as the digital twin of the system (and its subsystems) cannot consider these elements that affect the behavior of the system. Examples of these stochastic and uncertain elements that can influence power converter behavior include electromagnetic interference (EMI), thermal effects, component tolerances and manufacturing defects, fluctuating loads and sources, and more. By not considering these uncertainties, a deterministic digital twin may not accurately model the behavior of a physical system during real operation. While periodically refreshing and training the digital twin model definitions from measurements of the converter in normal operation can assist with keeping the twin matching the converter in terms of expected values, a deterministic model still cannot predict behavior influenced by random elements with probable outcomes. Implementing the probabilistic models for the controller embeddable digital twins is a possible solution to address the failures.

Probabilistic models are used in the controller-embedded DTs of the proposed diagnostics approach to take into account the uncertainty that naturally occur in the modeling phase due to the limited knowledge of the plant parameters (manufacturing defects, component value under tolerances), and to take in account stochastic environmental aspects that are difficult to predict or measure but affect the power converter operation (electromagnetic interference, thermal effects, sensor noise). Two common probabilistic modeling methods include Monte Carlo (MC; sampling method) and generalized Polynomial Chaos Expansion (PCE; analytical method [25 –30].

4 Wind turbine system

At the beginning of creating wind turbines, there was more emphasis on how the turbines generated energy rather than on the lifetime [31]. Nevertheless, because of the number, scale, and position of the wind turbines, the handle of these systems is physically challenging. Utilizing a virtual physical turbine model enable remote turbine operation, as data is transmitted to the controller. Moreover, it helps maintenance processes to be simplified, load management and power delivery, and disturbances and faults detected and anticipated.

Generally, renewable energy, and especially wind energy, is growing in size and capacity and is expected to continue to expand [32, 33]. In theory, wind turbines convert wind into mechanical power to kinetic energy, then, again into electrical power. This occurs to the main shaft with a pushing force on the tips, raising and rotating. The drivetrain is mounted in the wind turbine’s nacelle, where the electricity is transmitted. Then the electricity from the blades flows to a generator, which has an electrical grid connection [34]. The idea of using wind energy to generate electrical power emerged from the beginning of the 20th century. Also, the horizontal axis of the wind turbine was the most commonly deployed turbine [35]. There has been substantial demand growth since the 2015 Global Wind Survey [36].

General types of wind turbines have been classified according to two parts: wind turbines with variable-speed (VS-WT), and also, fixed-speed wind turbines (FS-WT) [37]. Several advantages like better power management and increased recovery of energy, as well as a decrease in transient load, could be accomplished by comparison of VS-WT and FS-WT [38]. An excellent control strategy has a vital impact on the behavior and characteristics of the WT [39, 40].

Two major functional areas could be categorized for VS-WT, high and low wind speed of the turbine, depending on the measured wind speed. The main objective of the controller at low wind velocity is to maximize the wind energy’s capturing by reducing the turbine parts’ uncertainties. Also, the most important goal at the above-noted wind speed is to sustain WT’s strength [41].

The stable function of a wind turbine system is highly dependent on WT’s control system in various areas of operation. In order to limit the absorbed power at the above-rated wind speed region by the wind turbine system, numerous type of traditional and modern control structures have been presented for designing effective pitch angle controllers such as proportional-integral (PI) with new variations [42, 43], fuzzy logic structure [44, 45], linear parameter-varying (LPV) [46], the nonlinear control structure [47], optimum control strategy [48], robust control [49], sliding mode control (SMC) [50] and model predictive control (MPC) [51]. Traditional PID controller and also its derivative is rarely capable of achieving great function in disturbance areas, as new high-order of WTs, multivariable, and high nonlinearity of couple. However, for a nonlinear high-order system, fuzzy logic control that typically employs Logical analysis to regulate gains of the PID, provided in [52].

The structure of the Wind turbine consists of a two-mass model is shown in Fig. 3, widely deployed in many works, in order to explain the dynamics of the WT. As for the following equation, the direct relation with wind speed the total wind power exists [51].

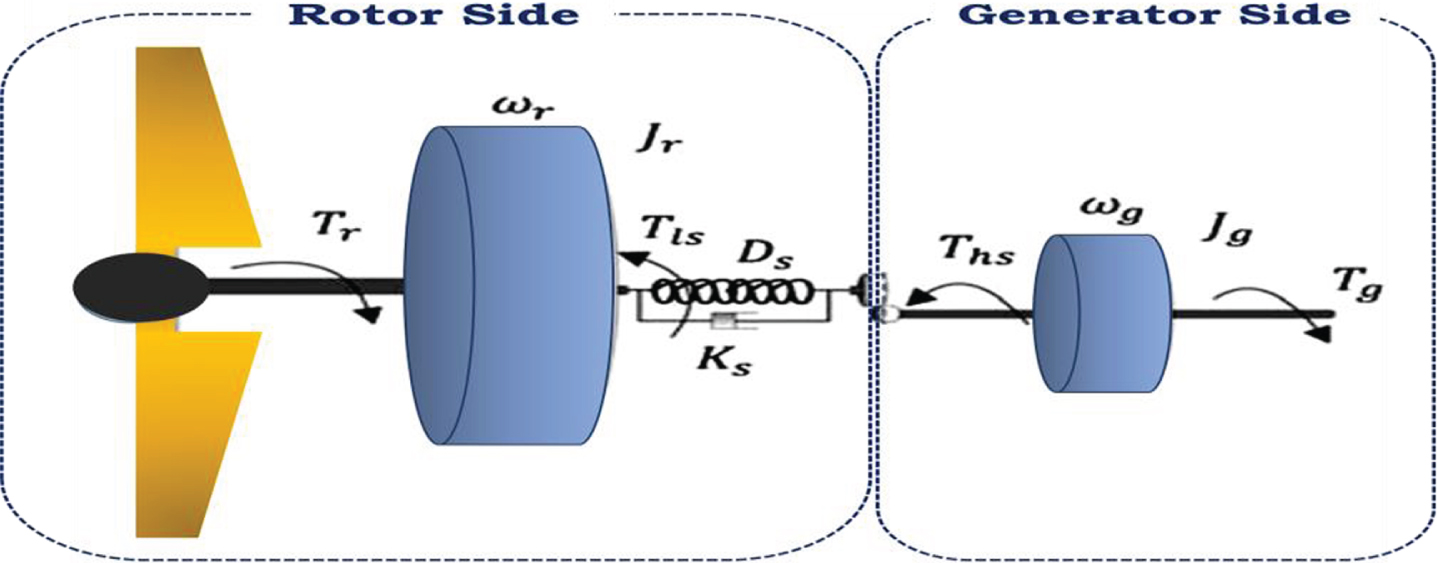

Fig. 3

Two-mass variable speed wind turbine model [41].

$P_{w} = \frac{1}{2} ρ {AV}^{3}$ (1)

In which A is equal to the swept area of the turbine (m²) and ρ is equal to air density (kg/m³) and V is equal to wind speed (m/s).

The turbine would absorb the total wind energy If the wind speed after passing the turbine was zero. Although, because of the loss of wind, coveying all energy is practically impossible. So, the coefficient (C_p) of output power is obtained to represent the wind turbine’s aerodynamic efficiency. Employing C_p, turbine aerodynamic power (P_a) can be expressed in the following terms: $P_{a} = \frac{1}{2} ρ C_{p} {AV}^{3}$ (2)

The (C_p) parameter is defined as a nonlinear function which is based on pivotal elements: blade pitch angle (β) and tip speed ratio (λ) which is expressed in the following equation:

$C_{p} (λ, β) = 0.5176 (\frac{116}{λ_{i}} - 0.4 β - 5) e^{- 21 / λ_{i}} + 0.0068$ (3)

The variables λ_i could be expressed below: $\frac{1}{λ_{i}} = \frac{1}{λ + 0.08 β} - \frac{0.035}{β^{3} + 1}$ (4)

Also, λ is estimated using the speed of wind for the upstream of the rotor and the blade tip and as follows: $λ = \frac{R ω_{r}}{V}$ (5) where w_r is equal to the velocity of rotor angular. the wind turbine’s power coefficient curves are shown in Fig. 4 as a function of β and λ.

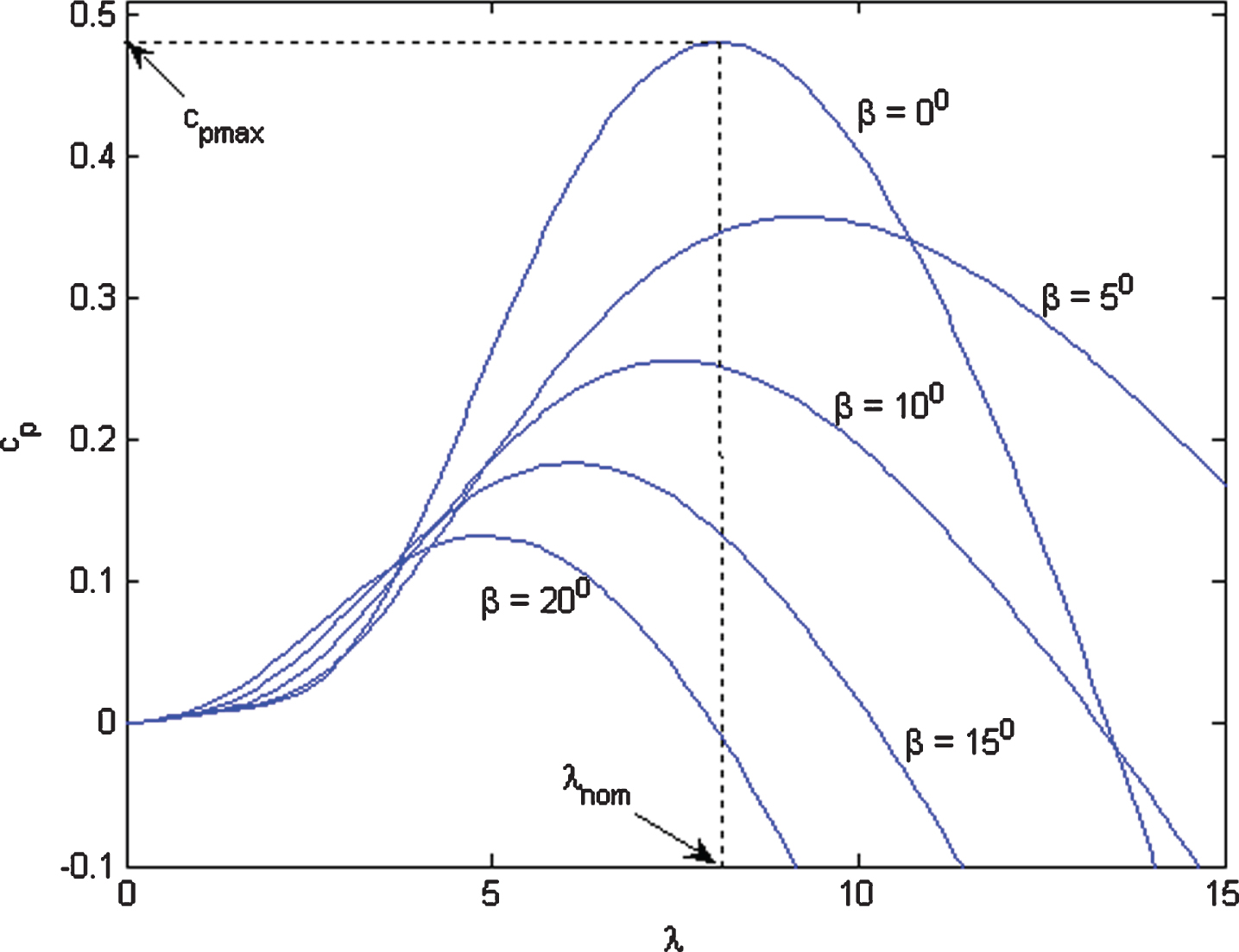

Fig. 4

power coefficient C_p (λ, β) curves for the wind turbine.

Nowadays, the deployment of WT power has been raised dramatically, and a further rise has been predicted, and expansion of the offshore wind turbine industry was projected. Most of this is expected to be mounted in Great Britain, Germany, and China [53, 54]. Though there are advantages to offshore wind turbines, it also faces some difficulties. The added hydrodynamic forces and connection to the grid are not only a concern but also wear, as the turbines and their systems are in direct contact with water. Moreover, there are problems with installation and maintenance because of bad weather and timetable [55]. Operation and maintenance are defined as a vital aspect of a WT budget, which consists of about 25 percent of the total cost of producing electricity, or about 75 percent to 90 percent of the investment cost of a 750 kW turbine [56, 57]. Offshore operating and repair charges are evaluated up to four times higher compared to onshore costs because of being laborious to access areas and entry facilities as well as the extreme expense of the required expert personnel. Therefore, using an optimized repair and service system could be a substantial opportunity for cost savings [58].

Figure 5 shows the critical parts of offshore and onshore WTs in terms of downtime. Sometimes, drivetrain components contribute to the most downtime of WTs. The various components of the WT as well as its associated breakdown and downtime levels are considered in [59, 60]. Between 1993 and 2006, Landwirtschaftskammer Schleswig-Holstein (LWK) obtained failure data from over 650 wind turbines [61]. Between 1997 and 2005, a Swedish study was carried out on wind turbine failures. The gearbox appears in the wind turbine as a highly rated breakdown and downtime feature [62]. Also, bearings are considered to be an essential part of failure [63]. Bearing failures are triggered by cases related to lubrication or power [64]. The breakdown for blades, gearbox, and engine is considerably greater than the electrical sub-assemblies [65]. Vibration monitoring is the most common security technique for spinning equipment. This technique is used not only on bearings and towers but also on gearbox, rotor, and blades [66].

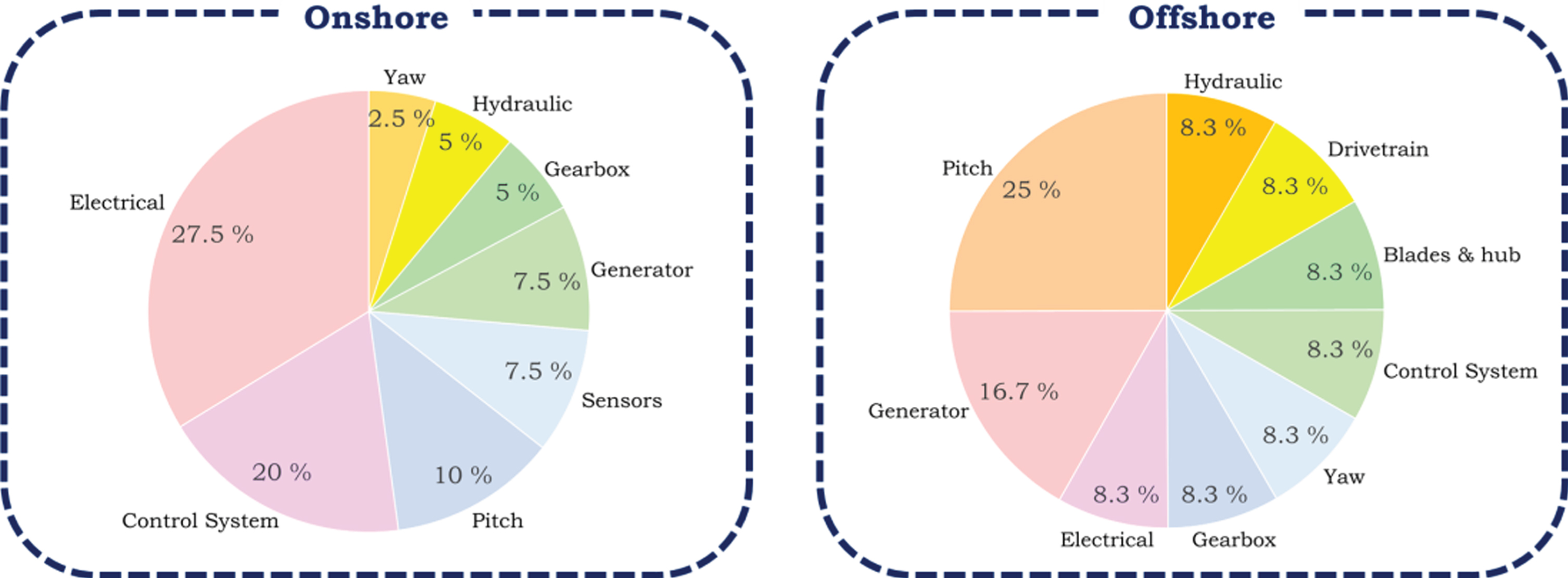

Fig. 5

Critical segments of offshore and onshore WTs in terms of downtime [58].

Energy is absorbed by the bearings and tower which support radial and axial forces and gain the specific vibrating of the gearbox. Also, failure of the gearbox occurs at the bearing since being exposed to fatigue at high risk [67]. Monitoring is achieved for wind turbines by measuring the vibration at the gearbox and rotor wheels and bearings. The primary bearing, in particular, is known as it greatly affects the quality of the other bearings [68].

A digital twin could be used for the gas and oil companies of offshore WTs [69]. Less exposure to more advanced structures raises management problems and is one of the latest issues faced by digital twins. Not only are digital twins used for production and operation, but they may also be employed to link back-end process systems such as accounting and human resources to accomplish specific process results in supply chain operations [70]. Further development of the technology requires to be accomplished for achieving a centralized, automated controlled maintenance system, solving existing problems of automated maintenance [71]. It could be operated autonomously for the WT or additional remote and complicated structures, allowed to imagine for the DT technology, which executes maintenaning duties. Because of the small weather windows open for the entry that should consider highly useful for offshore WTs and the robots will be permanently mounted. Maintenance robots with remote control are commonly employed in the nuclear industry [72].

Step-up transformers are widely set up as dry-type transformers, particularly in offshore wind farms. Their performance at offshore wind turbines is excellent because of their low flammability and resistance to moisture. However, considering the different wind and weather conditions in marine habitats, their thermal-electrical loss must be noticed. Also, dry-type transformers in offshore WTs are taking into account highly thermal strained position, i.e., the winding hotspot. Moreover, lifetime of transformer l’s calculations can be extended for diagnostic and prognostic testing purposes within the context of digital twins. The study of transformers degradation is established upon a standard load profile of offshore WT’s which involves the effects of many characteristics for the operating conditions and transformer [73].

The power switches are among the important parts experiencing different levels of the short and medium-term thermal cycles, particularly in offshore WTs. The DT technology could be employed for predicting an offshore wind turbine power converter’s lifespan. It can be performed by diagnostic health supervisory for offshore wind turbines [74].

The use of a novel simulated prototyping technique to design wind turbine blades was investigated in [75]. Numerical simulation and experimental data on turbine blade design and dynamic behavior are mixed to create an inexpensive automated digital twin model that aims to minimize uncertainty over the entire wind turbine lifespan. This model could be employed to trace and forecast changes in blade structure and evaluate its residual life.

It is difficult to foresee precisely steady structural and aerodynamic impacts, as an example of dynamic stalling and continuously increasing blade loading and thrust. It results in the unreliable design of turbines, and worst premature failures. The processes could be known by scaled testing of the wind tunnel. the interpretation of these test results is greatly enhanced by using a well-calibrated digital twin [76].

Prognostics and health management for complex and high-value equipment have been investigated in [77] using digital twin and sufficient data must be available in the wind turbine. Figure 6 represents digital twin technology in the wind turbine.

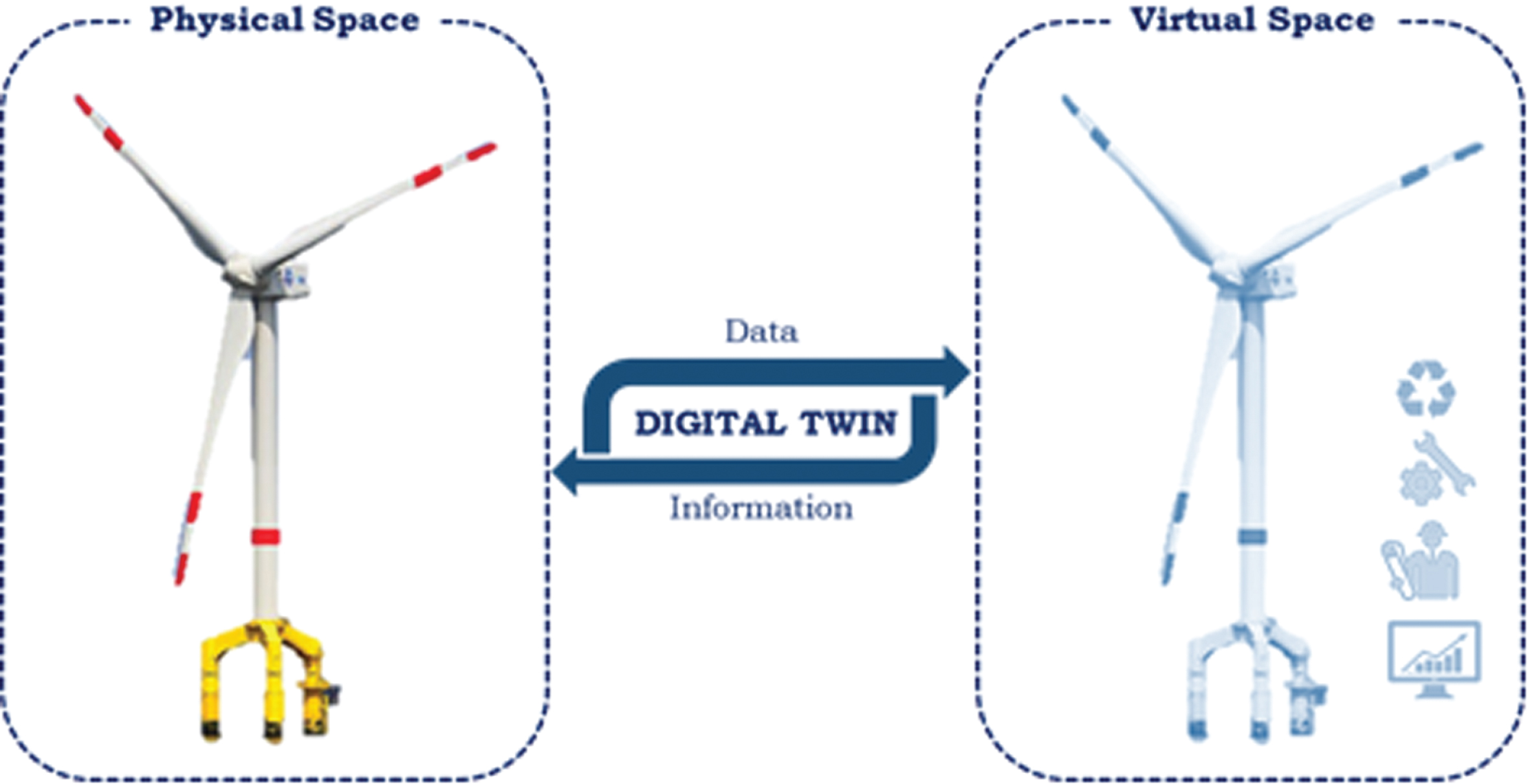

Fig. 6

Digital twin technology in the wind turbine.

In [78], a new hardware-in-loop (HIL) and software-in-loop (SIL) control, on the basis of DT technology is used. The DT concept of mentioned article intends to decrease the differentiation of the physical controller and SIL controller counterpart.

5 Ship power system

Transportation by ship is accountable for approximately 90 percent of trading all over the world, contributing to vital environmental effects. Consequently, the production of technology capable of rising ship productivity by reducing fuel consumption and excessive repair operations is a critical concern for the maritime industry [79 –82].

The ship power system has less capacity for inertia and production rather than big power systems, which normally behaves such as a microgrid. Moreover, dynamic and pulse harvest the maximum capacity in ship systems, causing serious oscillations for voltage and frequency of power system [83]. Marine surface electrification vessels reduce emissions of CO2, sulfur oxides, and nitrogen oxide. Smaller operating costs and fuel consumption could be obtained while comparing to traditional diesel-based propulsion systems. The battery control system eliminates the intermittency and provides the marine and offshore industries with dispatchable and renewable electricity. Ferryboat has the highest amount of battery-powered vessels in operation and also under construction, as it is normally used for short-distance traveling in which spends lengthier periods while charging of batteries could occur [83 –85]. In comparison, lengthier distances need bigger battery packs and demand higher prices, and at the moment, they are not desirable. During the peak period, the batteries can be utilized for handling the highest demand to control the engine load from dropping. The batteries could be employed while traveling or at the port to fuel the following systems:

sensors systems for automation operation.

power management system

marine computer system

electronic converters in the propulsion system

cooling system

fire alarm system

electric instant water-heating system

LED lighting system

solar and renewable wind system

pump system

HVAC system

the waste heat recovery system

Figure 7 represents the shipboard structure consisting of renewable energies and an energy storage system. Nowadays, the design of the shipboard power system process faces important alterations, because of adjustments in battery technology and power electronics and also using renewable energies. An emission and energy management system (EEMS) must be adopted elaborately which is a high-level control system to generate the rules for the functioning of power plants for reducing pollution and using of energy, meanwhile retaining specifications for protection and stability and executing the vessel’s mission purposes. Therefore, EEMS improves the efficiency of the propulsion system and control system by spreading the load power needed by various energy resources where optimally minimizes overall emissions and utilizes all sources. The EEMS controls fuel consumption, and emissions, system efficiency, wearing on system components, by managing the hybrid power system’s dynamic behavior. Hence it is vital to choose and develop an appropriate EEMS on the basis of the requirements of a hybrid propulsion system and objective function.

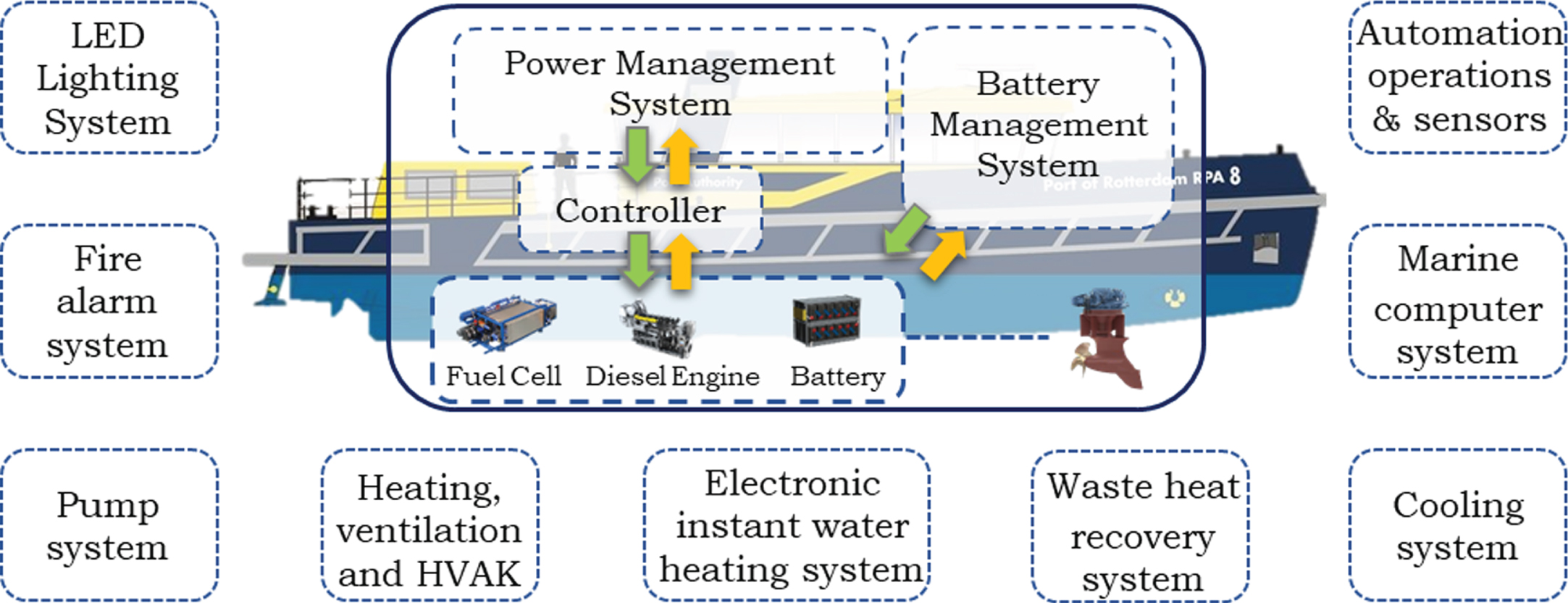

Fig. 7

Shipboard structure consisting of renewable energies and energy storage system.

The EEMS could be separated into a few groups which are shown in Fig. 8): 1) learning-based, 2) rule-based, and 3) optimization-based. The first approach is divided into dual types: stochastic and deterministic. This approach performs on several predetermined instructions. Firstly, power plants are created as specified by physical rules, also it is believed that unknown parameters are owned by such bordered sets. Then, algorithms using in deterministic control is planned to assure the plant’s steady closed-loop manner and strength to changes of parameters. However, stochastic rule-based procedures surmise, parameters and states are random parameters and matching probability density functions. Optimization-based techniques, like or dynamic programming and genetic algorithms, are usually applied in the optimization form of iterative computational. Strategies based on optimization are primarily divided into duo types: online and offline optimization. In addition, offline optimization is on the basis of predicted sailing profile data. The actual profile of sailing because of a few stochastic variables in waterways, like unforeseeable conditions of weather, marine biology elements, and random ocean currents, is very difficult to predict. An instant cost function is used to optimize the power plant online throughout the expedition. It is then possible to implement various numerical optimization methods for EEMS involving nonlinear, quadratic, linear programming with the strategy for reduction of equivalent cost. Rule-based and optimization-based plans utilize all types of predefined rules or predicted conditions for sailing. The aforementioned approaches do not automatically conform to arbitrary machine situations. So results can be yielded in short expectations. Experts have also been enthusiastic about learning-based approaches, that could be divided into a few types: unsupervised learning, reinforcement learning, and supervised learning Supervised learning algorithm is acquired by the training collection of designated instances that a qualified professional instructor offers. Unsupervised learning is learning through the exploration of the secret meaning of unlabeled data sets. These are very effective forms of learning but they are not sufficient alone to learn of the world towards real-time experiences. Also, the reinforcement learning algorithm is an aim-directed procedure in which a factor learns through interaction with the uncertain environment in real-time.

Fig. 8

The diagram showing the categorization of mainl strategies, model predictive control (MPC), equivalent cost minimization strategy(ECMS), Potryagin’s minimum principle (PMP), linear programming/quadratic programming (LP/QP).

The digital twin idea is attracting attention in the shipping industry, but it raises new concerns about data control and governance with it. It is not clear, given the wide variety of different data that can be contained in the digital twin, that all such data could be contained in the same database or in the same model of governance [86].

Industry 4.0 is now known as the fourth technological revolution in the land-based manufacturing sector following mechanized technology, mass processing, and computerization. As the maritime industry has historically adjusted and used the effects of the various technological developments, what we might call “Maritime 4.0” is now joining, which is shown in Fig. 9 [87].

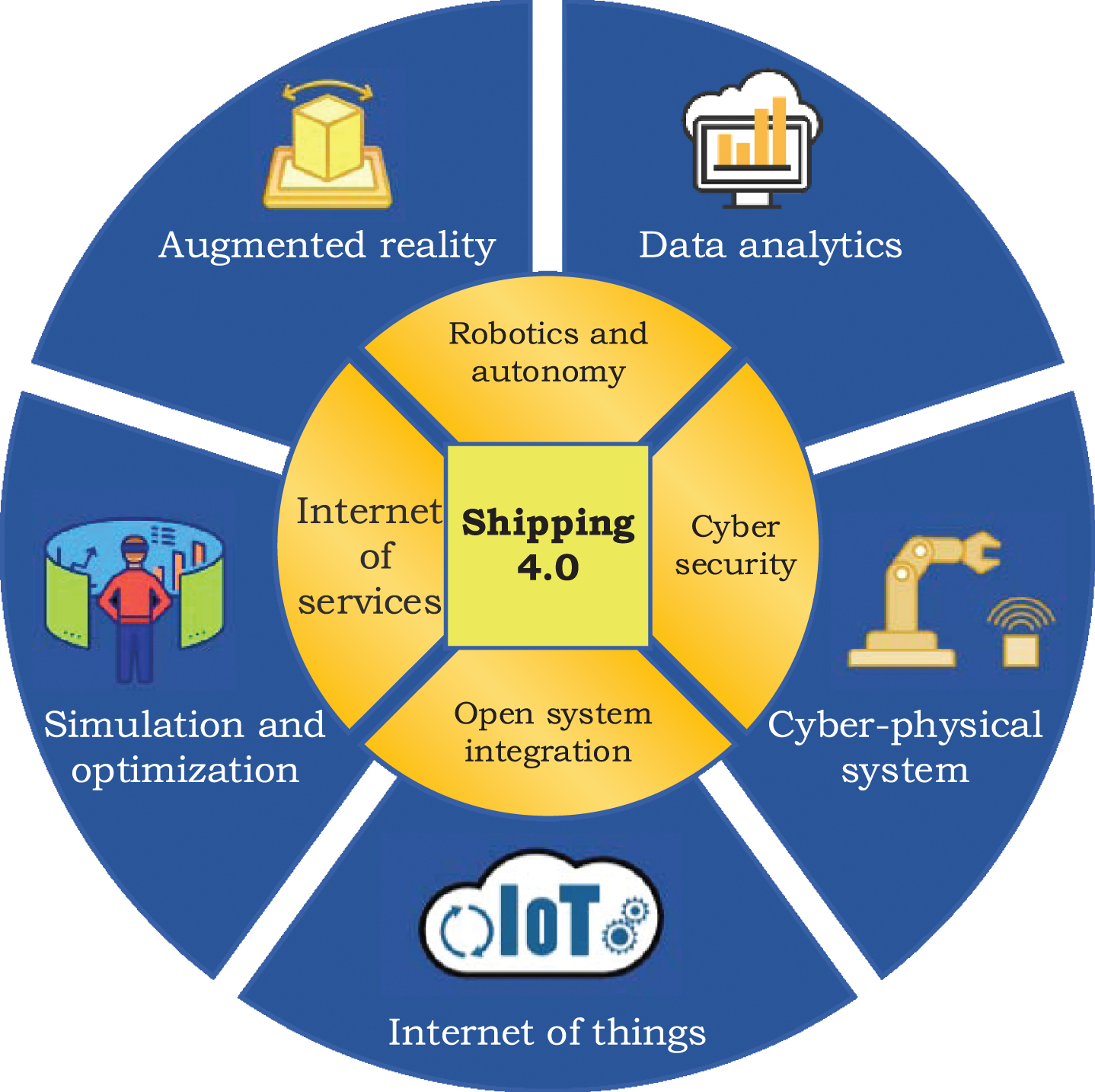

Fig. 9

Shipping 4.0 [87].

A digital twin is being applied massively to different types of content as the commercial and organizational advantages of the digital twin become clear. A few instances that can be used in the knowledge are:

Designing control system and construction drawings

2-Analyzing hydrodynamic and strength data and measuring tank test

3-results of data performance in the sea trial

4-measuring data like fuel consumption, speed, actual weather from equipment

Nevertheless, it is not clear that all these various kinds of data will be contained in the same physical archive or needed to keep it. Industrial data space was developed to provide a solution to these issues. It is built on open standards and a shared governance model to implement data ownership in a distributed environment while making it easy for any trusted party to get information [88].

Through reality, ships are sailing villages with all the public facilities that we will usually find in a community, such as energy delivery, heat, and ventilation, water, and sanitation, local and external connectivity, etc. It also has systems for regulating and tracking energy generation, propulsion and steering, navigation, fire alarms, and other safety devices, and so on. Usually, these devices are not manufactured by the same vendor and this causes difficulties with the synchronization of data sources as well as control of the collected data [89 –95].

Ships have an estimated lifetime of about 30 years, and computer equipment will be upgraded several times during this life cycle. This causes extra device interfacing and interconnectivity issues. Some approaches arise from international organizations of standards, such as navigation [96] and computer data [97]. Figure 10 is an example of a ship power system using digital twin technology [98].

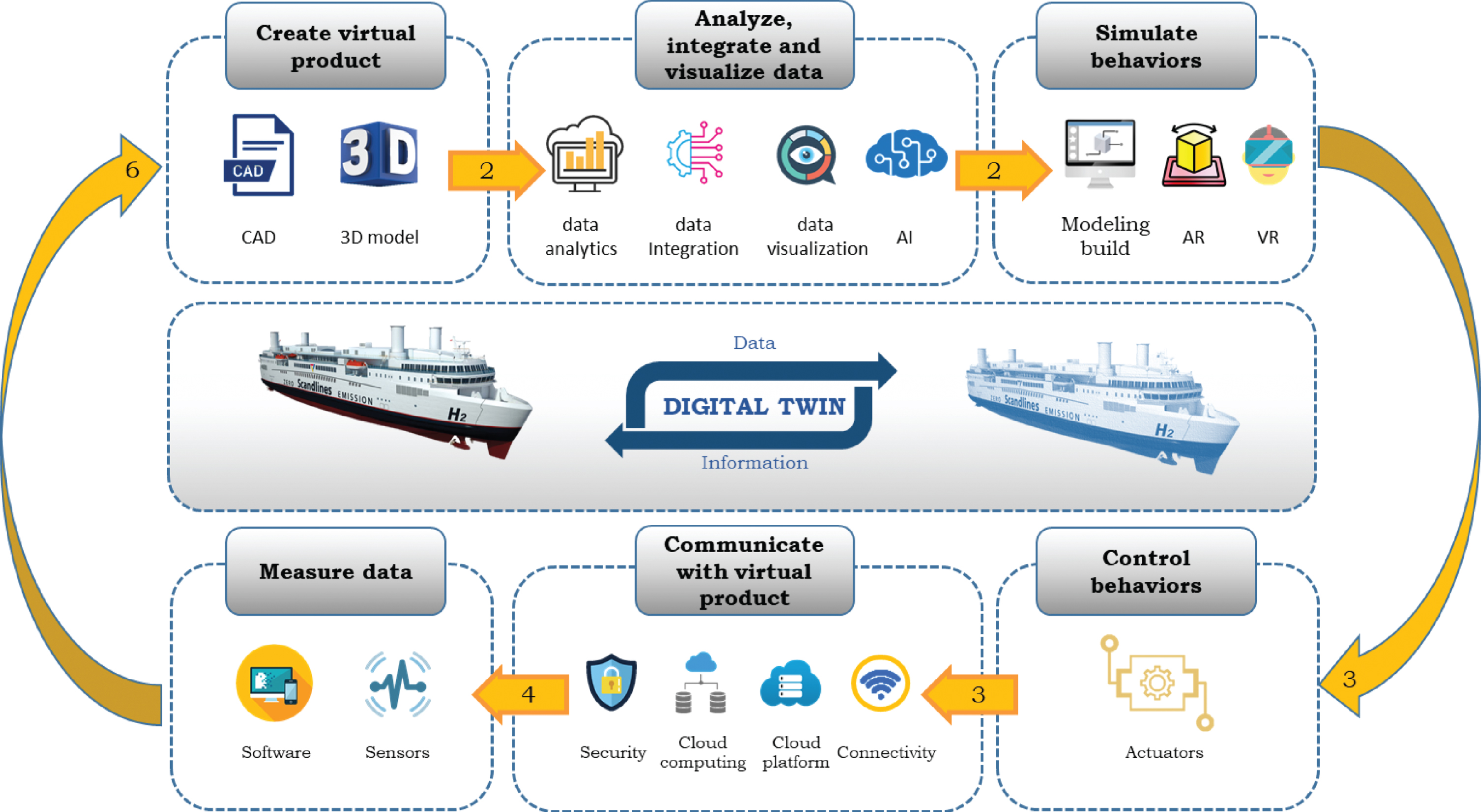

Fig. 10

Ship power system using digital twin technology [98].

The digital twin helps the company imagine a product’s state and condition that could be thousands of miles away. Industries exploit a digital twin in the maritime business. Big and complex boats sail across the globe and are highly efficient in operations. Industry 4.0 for manufacturing and digital twin for monitoring could be used for energy saving and better ship design [99]. The digital twin is becoming a greater priority in shipping, allowed by IoT and machine learning [100].

In [101], for a class of strict-feedback nonlinear systems with external disturbances, an event triggered robust fuzzy adaptive prescribed output finite-time control technique is introduced. To reduce the coordination burden, the relative-threshold-based event-triggered signal is implemented, and the dynamic surface control strategy is extended to solve the issue of computational complexity. For a class of strict-feedback nonlinear systems with non-affine nonlinear faults, [102] deals with investigating the problem of fuzzy adaptive control. By following the dynamic surface control technique, computational complexity is minimized. A novel fault-tolerant control technique is built within the paradigm of finite-time stability such that the closed-loop system is essentially semi-globally end-time stable, and the monitoring error converges in a finite-time to a small residual range.

6 Solar panel system

The Photovoltaic (PV) system has become a growingly common and economically viable source of electricity. In 2017 more than 100 GW of solar power plants worldwide were placed into service. Around the same time, keeping energy supply, detection, and prevention highly effective was an increasingly important issue [103 –106].

Around two percent of the solar panels are expected to fail after 12 years. At the same time, the losses incurred by deposition of dust (soiling), due to cell depletion can be an order of magnitude greater than damage [107, 108]. Due to their complex outdoor installations, an increased number of power electronic converters at the PV panel level, tough mission profiles, manufacturing defects, and aging are susceptible to a variety of faults that occurred in the PV system. In the PV system, Table 1 represents common fault modes for each component.

Table 1
Standard fault modes of a PV system

Components Common fault modes

Sensors [109] Open circuit

Wear-out (adjusting parameter drift)

Electrical converters [110 –112] Switch open circuit

Switch short circuit

Capacitor or inductor deterioration

PV panel [113 –116] Making dirty

partial shading conditions

Cells breakage

EVA browning

Bypass diode faults

Potential induced degradation (PID)

Interconnect failures

Internal faults corresponding to PV shunt and series resistances

Components	Common fault modes
Sensors [109]	Open circuit
	Wear-out (adjusting parameter drift)
Electrical converters [110 –112]	Switch open circuit
	Switch short circuit
	Capacitor or inductor deterioration
PV panel [113 –116]	Making dirty
	partial shading conditions
	Cells breakage
	EVA browning
	Bypass diode faults
	Potential induced degradation (PID)
	Interconnect failures
	Internal faults corresponding to PV shunt and series resistances

Thus, it must not be underestimated the value of deciding the appropriate cleaning action. Rising vegetation may also be causing shading losses. These and several other issues can be prevented or can considerably by early identification and effective maintenance actions. Installing a data acquisition system that tracks different parameters of Photovoltaic (PV) equipment is a popular method for keeping track of solar plant safety. Such research is usually performed top-down rather than bottom-up, which will be more useful because it is the components that are more vulnerable to error.

The fundamental monitoring system helps each solar panel to gather data and track [117, 118], as well as make this data accessible [119] for analysis and prediction.

Big data analytics engine is another significant part of the program, which is shown in Fig. 12. It performs classification tasks using model variables values and offers useful machine safety metrics. Adaptive neuro-fuzzy inference system (ANFIS) and genetic algorithm (GA) can be used to estimate optimal photovoltaic system parameters in grid-connected mode, and the inverter adjusts the output power of the system [120, 121].

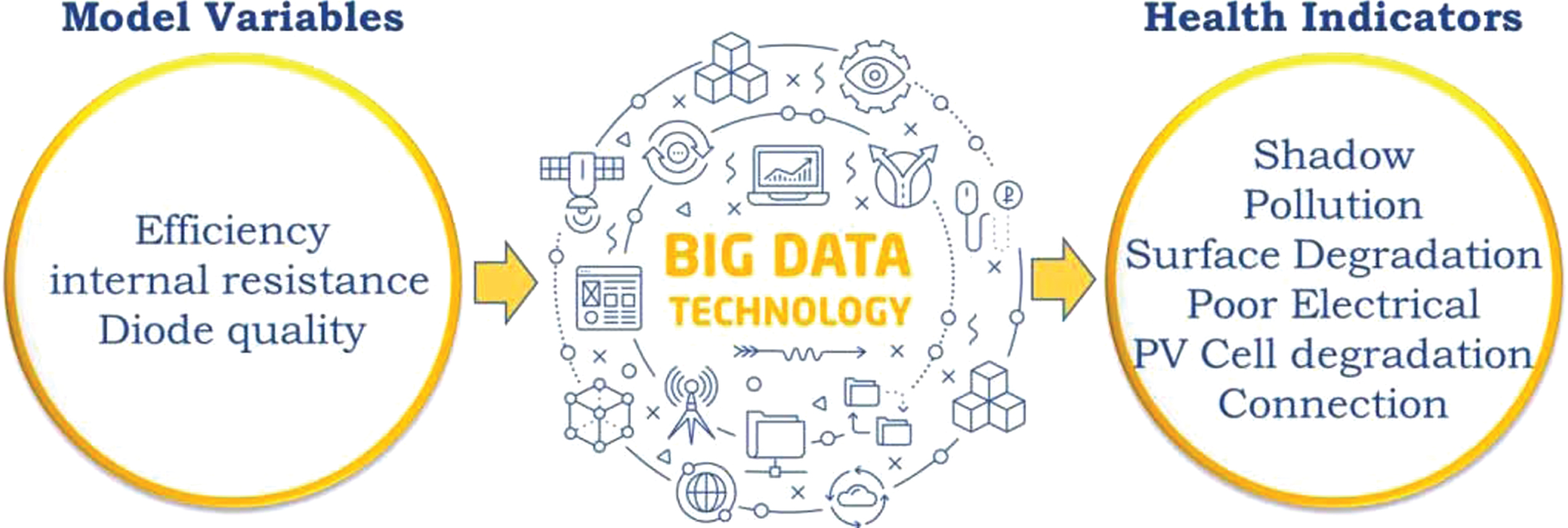

Fig. 11

Big data analytics engine.

Fig. 12

Equivalent Circuit of Solar Cell system.

In fact, the solar cell is a wide area p-n diode with the junction located close to the top surface. So a current source model of ideal solar cell parallel with a diode that mathematically represents the characteristic of I-V by: $I = I_{{PV}_{cell}} - I_{d} = I_{{PV}_{cell}} - I_{0_{cell}}$ (6)

In which I_PVcell is the current produced by the incident light and I_d is equal to Shockley diode equation and I_0cell is the reverse saturation or leakage current of the diode and q is equal to the electron charge (1.60217646×10^–19C), k is the Boltzmann constant (1.3806503×10^–23J/K), T(K) is the temperature of the p-n junction a is equal to the diode ideality constant. Also, the model is supplemented with a shunt and a series resistance component, as no solar cell is ideal in operation. Figure 12 presents the equivalent Circuit of the Solar Cell system.

All components at PV Digital twin network work together to turn endless data tracking flow into series of model variables that are then converted into network health metrics and finally into human-readable information to make successful business decisions. The system’s block scheme as a whole is given in Fig. 13.

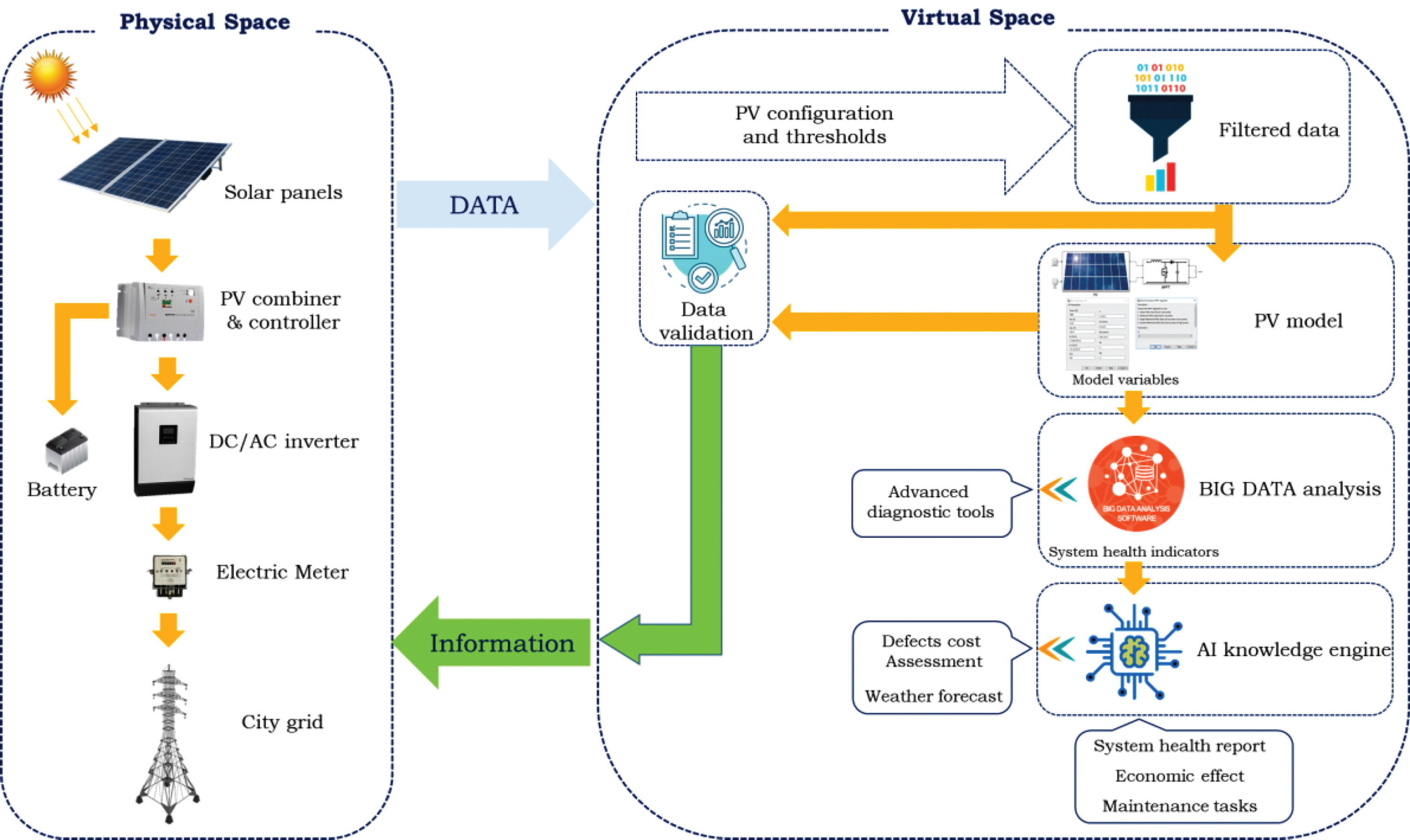

Fig. 13

Digital twin data flow in solar panel system [122].

In [122], a digital twin is developed that measures the observable characteristic performance of a PV energy conversion unit in real-time, which is shown in Fig. 14. The diagnosis of fault is achieved by creating and measuring a residual error matrix, which is the difference between the expected and calculated outputs. Finally, researchers in [123 –125] explore different methods for the fault analysis of electronic power converters in PV systems. Likewise, researchers in [126 –128] present specific methodologies for the evaluation of PV panel faults.

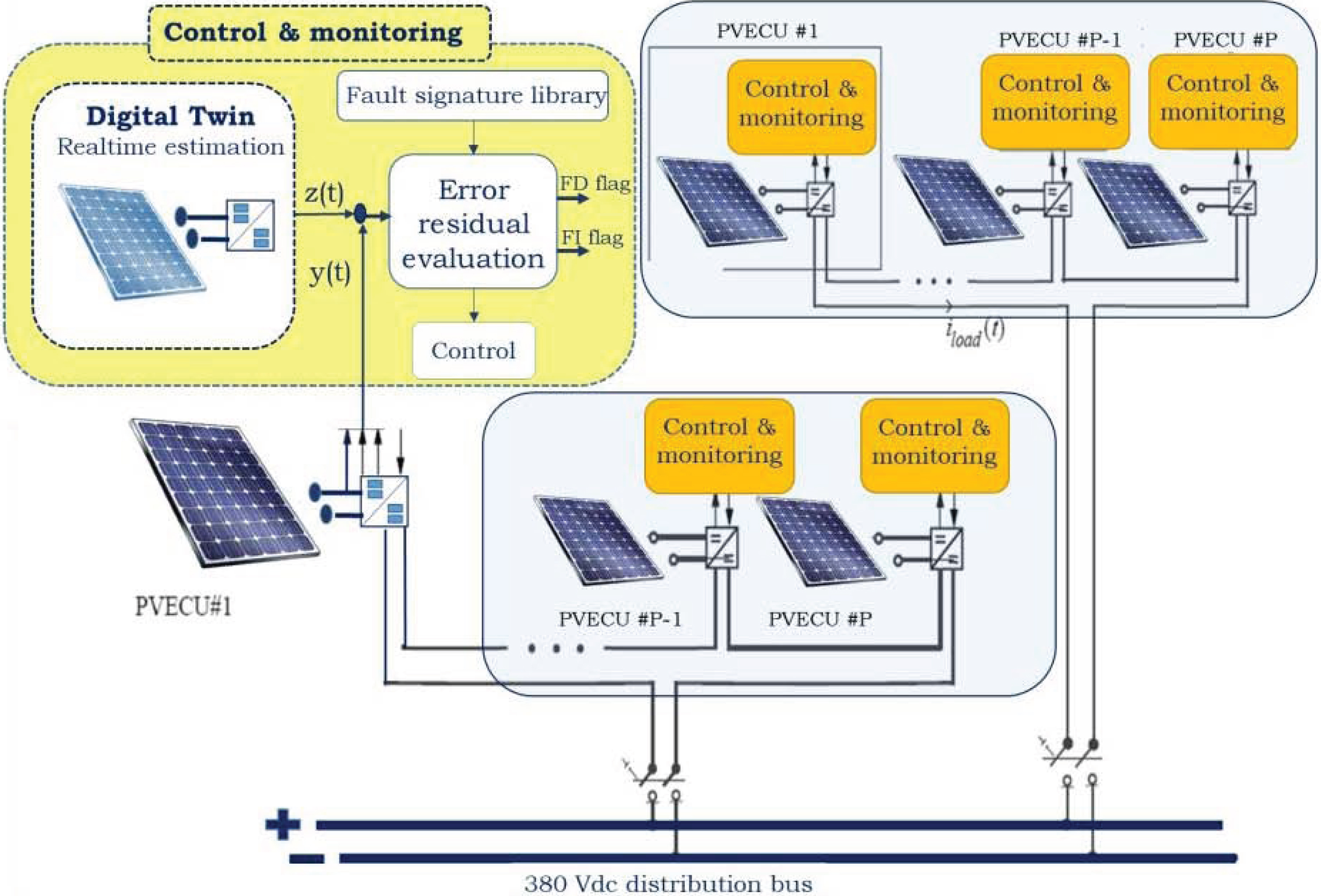

Fig. 14

A description of a digital twin approach to the full PV method for fault diagnosis [122].

7 DC-DC power converter system

The power semiconductor and capacitor account for over half of failure, according to an industry-based survey [129 –133]. So, tracking the health status of these two elements is important for preventing unintended faults and contributing to high maintenance costs. Measurement circuit-based condition control approaches for assessing the safety of power semiconductor switches and capacitors, respectively, have been suggested [134 –136]. For power semiconductor, like on-state resistance/voltage, threshold voltage, and miller plateau in turn-on gate voltage and the equivalent series resistance (ESR) and capacitance for capacitor has been used [137 –141]. These approaches are useful for tracking power semiconductors and capacitors’ degradation. However, additional hardware circuits are required for each part, respectively. In addition, the added circuit failure can cause a device to fail to be controlled. Model-based parameter recognition is a promising tool for condition tracking to resolve the above challenges. Then, some algorithms measure the coefficients of the transfer function, such as recursive least square (RLS) in [142], and Kalman Filter (KF) in [143, 144]. This approach is successful in optimizing system efficiency, but it is not ideal for tracking the condition. In [145], a simple boost converter model is developed and the inductance and capacitance are determined using a generalized gradient descent algorithm. A buck converter model is investigated in [146], using the Biogeography-based Optimization (BBO) approach to define the internal parameters. The biggest problem with the above approaches is that they need to reach the controller to get the service cycle ratio (modulation signal) in real-time. Since only the converter model is installed in the above methods while the configuration and controller unit of the sampling circuit is not used. Furthermore, the above approaches will insert additional signals into the controller which is intrusive to the device.

The digital twin can be used for the supervisory of a DC-DC power converter to resolve the aforementioned problems. A buck converter is one example of analyzing the digital twin performance. The controller and sampling circuit and power stage are the parts of the system that the digital twin is executed. The capacitor and MOSFET damage the circuit, and they need to monitor the health circumstance. Moreover, Particle swarm optimization is implemented to upgrade the value of internal parameters of digital twin by measuring from physical DC-DC converter which is shown in Fig. 15. It has the ability to recognize the degradation of components by data cluster-based method without using additional circuits [147].

Fig. 15

The structure of the digital twin that is implemented in the buck converter [147].

The digital twin can be used for diagnostic of power electronic converter and it can act as a real-time probabilistic. The structure of the digital twin in [148] separates into subsystem control layers and using generalized polynomial chaos expansion in order to have a better performance.

8 Disadvantages of digital twin

Besides the entire advantages of the digital twin, it is vital to express the disadvantages in order to have a better assessment. Four challenges would be examined, which are technical, workforce, business, and social.

Two subjects are relevant to technical challenges. Model composability is the first issue that must be dealing with. Because the magnitude and complexity of combining models have increased and it is essential to have an interoperability standard. The second issue is that digitalizing legacy products are resource-intensive and difficult to implement due to a lack of information.

The next problem is related to workforce challenges. Digitalizing legacy products puts extra demand on the experts involved in creating them, and lack of knowledge and skills in the current workforce for digital engineering makes it more difficult. It is considered that digital experts might be least experienced in the business domain and products. Therefore, the high demand for talent makes hiring difficult. Another problem is that organizational structures typically are not suitable for creating the digital thread.

Business challenges are related to two issues. First, changing the traditional business model which is used for a long time, is hard work, and besides, inversion of the value of product and model might have happened. The final problem is related to social challenges. Sometimes, it is excruciating to get people to give up their models and data, and the willingness to accept models as the primary source of truth takes so much time.

9 Conclusion

Due to the growth of the industries in recent years, system evaluation is necessary to diagnose and detect problems in the power system. Digital twin (DT) not only can be used to simulate the performance of the system but also gives insights for better decision making at every level of system operation. Obviously, implementing advanced analytic methodologies offer higher accuracy than the conventional power system without imposing the cost of adding or replacing existing sensors. The DT platform represents the essence of the modern power system by integrating domain knowledge with big data analytics and a large-scale network system that delivers value from multiple aspects for experts. Particularly, in this paper, the applications of digital twin are discussed entirely in renewable energies, shipboard, and power electronic systems. Moreover, the potential benefits and drawbacks of these technologies also have been entirely expressed from various aspects. Finally, it can be understood that using digital twins in various types of systems leads to better efficiency and detection of parameter faults and diagnosis.
