Uncertainty measurement for probabilistic set-valued data: Gaussian kernel method

Abstract

The uncertainty of information plays an important role in practical applications. Uncertainty measurement (UM) can help us in disclosing the substantive characteristics of information. Probabilistic set-valued data is an important class of data in machine learning. UM for probabilistic set-valued data is worth studying. This paper measures the uncertainty of a probability set-valued information system (PSVIS) by means of its information structures based on Gaussian kernel method. According to Bhattacharyya distance, the distance between objects in each subsystem of a PSVIS is first built. Then, the fuzzy T_cos-equivalence relations in a PSVIS by using Gaussian kernel method are obtained. Next, information structures in a PSVIS are defined. Moreover, dependence between information structures is investigated by using the inclusion degree. As an application for the information structures, UM in a PSVIS is investigated. Finally, to evaluate the performance of the investigated measures, effectiveness analysis is performed from dispersion analysis, correlation analysis, and analysis of variance and post-hoc test.

Keywords

GrC PSVIS Gaussian kernel method Bhattacharyya distance Information structure Uncertainty Measurement

1 Introduction

Zadeh [1, 2] proposed the idea of granular computing (GrC). GrC takes an information granule as the basic unit of calculation. The purpose of GrC is to explore an approximation scheme and to build an effective computing model for dealing with large-scale complex data, which allows us to view a phenomenon with different levels of granularity. Then, Lin [3] and Yao [4] explained the importance of GrC. Since then, GrC has played an increasingly important role in soft computing, knowledge discovery, data mining.

Rough set theory (RST) is a basic research method on GrC. Its main idea is to utilize the explicit knowledge base to describe the imprecise or uncertain knowledge. RST can deal with imprecision, fuzziness and uncertainty, and does not need any prior information beyond the data set that the problem needs to be processed. Now, RST has been successfully applied to machine learning, knowledge discovery, intelligent systems, expert systems, inductive reasoning, decision analysis, pattern recognition, mereology, signal analysis [5].

Information system (IS) based on RST was presented by Pawlak [6]. Most applications of RST, such as uncertainty modeling [7], reasoning with uncertainty [8], rule extraction [9], classification and feature selection [10] are related to an IS.

Granular structure is a mathematical structure consist of a family of information granules from a data set. It is one of the main research contents of GrC. Actually, information structures in an IS are granular structures in the sense of GrC. Thus, the study on information structures is a research topic about ISs. Zhang et al. [11] introduced information structures in a fully fuzzy IS. Li et al. [12] looked into information structures in a covering IS.

Uncertainty, such as vagueness, incompleteness, inconsistency, fuzziness and randomness, almost exists everywhere in the real world, and plays an important role in practical applications. Thus, how to measure uncertainty becomes more and more popular. Uncertainty measurement (UM) can supply novel viewpoints for analyzing data and help us disclose the substantive characteristics of data sets. UM has been the research goal in various fields, such as pattern recognition [13], image processing [14], medical diagnosis [15, 16] and data mining [17]. Pawlak et al. [6] proposed two numerical measures, accuracy and roughness, such that the uncertainty of a rough set can be evaluated. This is the initial attempt to measure the uncertainty of a rough set.

Information entropy, proposed by Shannon [18], is an effective tool to measure the uncertainty of information. The extension of entropy and its variants can be applied to an IS or RST. Many scholars have done a lot of research work on this aspect. For example, Yao [8] studied several types of information-theoretical measures for attribute importance in RST; Bianucci et al. [19] explored entropy and co-entropy for UM of coverings; Beaubouef et al. [20] measured the uncertainty of rough sets; Liang et al. [21] researched the information entropy in an IS; Li et al. [22] discussed UM in a fuzzy relation IS; Xie et al. [23] proposed the uncertainty of an interval-valued IS; Tan et al. [24] considered information entropy of intuitionistic fuzzy information; Zhang et al. [25] presented new UM for categorical data based on fuzzy information structures; Dai et al. [26] gave UM for an incomplete decision IS; Huang et al. [27] presented discernibility measures for a fuzzy β-covering; Li et al. [28] investigated UM for fuzzy probabilistic approximation spaces and discussed the relationships between fuzzy probabilistic approximation spaces.

Information granularity based on GrC is also an effective tool to measure the uncertainty of information. Some scholars have achieved good results in this field. For example, Yao et al. [29] presented granularity measure from the angle of granulation; Qian et al. [30] gave the fuzzy information granularity in fuzzy relations; Liang et al. [21] put forward information granulation in complete and incomplete ISs; Tan et al. [23] studied information granularity of intuitionistic fuzzy information; Xu et al. [31] considered knowledge granulation in an ordered IS; Li et al. [32] proposed fuzzy information granularity in fully fuzzy relation ISs based on Gaussian kernel.

In practical situations, set-valued attributes may be more appropriate to describe the uncertain and missing information of some objects in an IS [33]. Orlowska et al. [34] researched a set-valued information system (SVIS) considering non-deterministic information. Yao [4] used the notion of a set-based IS. Dai et al. [35] studied entropy and granularity measures for an SVIS. Qian et al. [36] considered a set-valued ordered IS.

A SVIS is a significant IS. However, in some practical situations, a set is depicted by the probability distribution. This forms probability set-valued data. Due to the rich semantic explanations, randomness and flexibility, probability set-valued data has attracted attention of some scholars. Huang et al. [37] introduced an IS based on probability set-valued data, i.e., a probability set-valued information system (PSVIS).

However, Huang et al. [37] only gave dynamic variable precision rough set approach by means of Bhattacharyya distance. They did not consider information structures and UM in a PSVIS. This paper is devoted to research UM in a PSVIS by means of its information structures. In other words, this paper first investigates information structures in a PSVIS as well as an application in UM. This is one of our research motivations. On the other hand, considering that Gaussian kernel, as a significant technique in machine learning, can simplify classification tasks and make data linear, Li et al. [38] used the fuzzy T_cos-equivalence relation based on Gaussian kernel to construct rough sets, but their purpose was to put forward a multi-granulation decision-theoretic rough set method for a fuzzy condition decision IS. This paper attempts to extract the fuzzy T_cos-equivalence relation on the object set of a PSVIS by using Gaussian kernel, and to research UM in a PSVIS based on the information granules generated by this T_cos-equivalence relation. This is another motivation of our research. The main advantage of the proposed information structures is that it is based on the fuzzy T_cos-similarity. Meanwhile, compared with UM on general information structure, the proposed UM also takes fuzziness into account, so they can better reflect the essence of uncertainty and may be more suitable for a PSVIS.

There are three main contributions in this paper: (1) The fuzzy T_cos-equivalence relation is extracted based on Gaussian kernel for a PSVIS. In view of this relation, fuzzy information granules are constructed, and fuzzy information structures based on these granules are established. (2) According to the established information structures, UM in a PSVIS is investigated. Besides, some important properties are given, and relationships among these measures are discussed. (3) Numerical experiments and statistical analysis of the proposed measures are conducted to verify their effectiveness.

The remaining part of this paper is organized as follows. In Section 2, we recall elementary notions related to fuzzy relations and PSVISs. In Section 3, we establish the fuzzy T_cos-equivalence relations in a PSVIS by using Gaussian kernel method. In Section 4, we study information structures in a PSVIS. In Section 5, we investigate four tools for measuring the uncertainty of a PSVIS and analyze their effectiveness. In Section 6, we present several methodological comparisons. In Section 7, we summarize this paper.

2 Preliminaries

We first retrospect some fundamental notions related to fuzzy relations and PSVISs.

Throughout this paper, U represents a finite set and I signifies [0, 1]. Put $U = {u_{1}, u_{2}, \dots, u_{n}} .$ (2.1)

2.1 Fuzzy relations

Fuzzy sets are extensions of ordinary sets. In this paper, F (U) indicates the set of all fuzzy sets in U. The cardinality of P ∈ F (U) can be calculated with $| P | = \sum_{i = 1}^{n} P (u_{i}) .$ (2.2)

If L is a fuzzy set in U × U, then L will be a fuzzy relation on U. In this paper, F (U × U) typifies the set of all fuzzy relations on U.

Let L ∈ F (U × U). Then L may be showed by M (L) = (r_ij) _n×n, where r_ij = L (u_i, u_j) ∈ I means the degree of similarity between two objects u_i and u_j.

If M (L) is an identity matrix, then L is a fuzzy identity relation, denoted by L =▵; if r_ij = 1 for all 1 ≤ i, j ≤ n, then L is a fuzzy universal relation, denoted by L = ω.

Let L ∈ F (U × U). For each u ∈ U, we define a fuzzy set: $S_{L} (u) (v) = L (u, v) .$ (2.3) Then S_L (u) can be treated as the fuzzy neighborhood of the point u [39].

Definition 2.1. ([40]) π : I × I → I is said to be a t-norm, if it satisfies the following conditions:

(1) Commutativity: π (m, n) = π (n, m) ;

(2) Associativity: π (π (m, n) , l) = π (m, π (n, l)) ;

(3) Monotonicity: m≤ l, n ≤ t ⇒ π (m, n) ≤ π (l, t) ;

(4) Boundary condition: π (m, 1) = m .

Example 2.2. Define $T_{\cos} (u, v) = \max {uv - \sqrt{1 - u^{2}} \sqrt{1 - v^{2}}, 0} .$ (2.4) Then T_cos is a t-norm.

Definition 2.3. ([40]) Let π be the t-norm. Then L ∈ F (U × U) is a π-fuzzy equivalence relation on U if it satisfies the following conditions:

(1) Reflexivity: L (u, u) =1 ;

(2) Symmetry: L (u, v) = L (v, u) ;

(3) π-transitivity: π (L (u, v) , L (v, w)) ≤ L (u, w) .

Proposition 2.4. ([41]) Suppose that g : U × U → J is reflexive. Then ∀ u, v, w ∈ U, $T_{\cos} (g (u, v), g (v, w)) \leq g (u, w) .$

Corollary 2.5. Given L ∈ F (U × U). If L is reflexive, then L is T_cos-transitive.

2.2 PSVISs

Suppose that U and AT are finite object and attribute sets, respectively. If ∀ a ∈ AT determines an information function a : U → V_a, where V_a = {a (u) : u ∈ U}, then (U, AT) is referred to as an IS.

Definition 2.6. ([42]) Suppose that (U, AT) is an IS. Then (U, AT) is called an SVIS, if ∀ a ∈ AT and u ∈ U, a (u) is a set.

Definition 2.7. [[43]] Let X = {x₁, x₂, ⋯ , x_n}. Suppose that P is a finite set which is only related to X. Assume that the probability of x_i belongs to P is P (x_i) (i = 1, 2, ⋯ , n) . If 0 ≤ P (x_i) ≤1 (i = 1, 2, ⋯ , n) and $\sum_{i = 1}^{n} P (x_{i}) = 1,$ then P is said to be a probability distribution set over X. P is denoted as $P = {\frac{x_{1}, x_{2}, \dots, x_{n}}{P (x_{1}), P (x_{2}), \dots, P (x_{n})}} .$ (2.5)

Put P (x_i) = p_i (i = 1, 2, ⋯ , n) . Then $P = {\frac{x_{1}, x_{2}, \dots, x_{n}}{p_{1}, p_{2}, \dots, p_{n}}} .$ (2.6)

Example 2.8. $\begin{matrix} P = {\frac{- 1, 0, 1}{0.38, 0.52, 0.10}} \end{matrix}$ is a probability distribution set over X = {-1, 0, 1}.

Definition 2.9. Let X = {x₁, x₂, ⋯ , x_n}, Y = {y₁, y₂, ⋯ , x_m}. Suppose that P and Q are probability distribution sets over X and Y, respectively. Denote $\begin{matrix} P = {\frac{x_{1}, x_{2}, \dots, x_{n}}{p_{1}, p_{2}, \dots, p_{n}}}, \\ Q = {\frac{y_{1}, y_{2}, \dots, y_{m}}{q_{1}, q_{2}, \dots, q_{m}}}, \end{matrix}$ where $\begin{matrix} p_{i} = P (x_{i}) (i = 1, 2, \dots, n), \end{matrix}$ $\begin{matrix} q_{j} = Q (y_{j}) (j = 1, 2, \dots, m) . \end{matrix}$

(1) If n = m and ∀ i, x_i = y_i, p_i = q_i, then P and Q are said to be equal. Denote P = Q.

(2) If n = m and ∀ i, x_i = y_i, then P and Q are said to be approximately equal. Denote P ≃ Q.

Obviously, P = Q ⇒ P ≃ Q.

In statistics, Bhattacharyya distance is used to measure the similarity between two probability distributions. The definition of Bhattacharyya distance is given as follows.

Definition 2.10. ([44]) Let P and Q be two probability distributions over X. Then Bhattacharyya distance between P and Q is defined by $\begin{matrix} D_{B} (P, Q) = - ln (BC (P, Q)), \end{matrix}$ where $\begin{matrix} BC (P, Q) = \sum_{x \in X} \sqrt{P (x) Q (x)} . \end{matrix}$

More specifically, the above definition can be essentially described by the following definition.

Definition 2.11. ([44]) Let P ≃ Q. Denote $P = {\frac{x_{1}, x_{2}, \dots, x_{n}}{p_{1}, p_{2}, \dots, p_{n}}}, Q = {\frac{x_{1}, x_{2}, \dots, x_{n}}{q_{1}, q_{2}, \dots, q_{n}}},$ where $p_{i} = P (x_{i}), q_{i} = Q (x_{i}) (i = 1, 2, \dots, n) .$ Define $\begin{matrix} BD (P, Q) = {\begin{matrix} 0, & P = Q \\ - ln (\sum_{i = 1}^{n} \sqrt{p_{i} q_{i}}), & P \neq Q . \end{matrix} \end{matrix}$ Then BD (P, Q) is referred to as Bhattacharyya distance between P and Q.

Actually, Definition 2.11 is more widely acceptable than Definition 2.10.

Definition 2.12. Suppose that (U, AT) is an SVIS. Then (U, AT) is called a PSVIS, if ∀ a ∈ AT, $a (u_{1}) ≃ a (u_{2}) ≃ \dots ≃ a (u_{n}) .$ (2.7)

Example 2.13. Table 1 shows a PSVIS.

Table 1

A PSVIS

U	a ₁	a ₂	a ₃	a ₄	a ₅
u ₁	${\frac{- 1, 0, 1}{0.23, 0.45, 0.32}}$	${\frac{1, 3}{0.45, 0.55}}$	${\frac{1, 2, 3}{0.10, 0.40, 0.50}}$	{6}	${\frac{4, 5}{0.17, 0.83}}$
u ₂	${\frac{- 1, 0, 1}{0.20, 0.43, 0.37}}$	${\frac{1, 3}{0.40, 0.60}}$	${\frac{1, 2, 3}{0.12, 0.38, 0.50}}$	{6}	${\frac{4, 5}{0.58, 0.42}}$
u ₃	${\frac{- 1, 0, 1}{0.25, 0.42, 0.33}}$	${\frac{1, 3}{0.33, 0.67}}$	${\frac{1, 2, 3}{0.13, 0.39, 0.48}}$	{6}	${\frac{4, 5}{0.25, 0.75}}$
u ₄	${\frac{- 1, 0, 1}{0.24, 0.44, 0.32}}$	${\frac{1, 3}{0.25, 0.75}}$	${\frac{1, 2, 3}{0.12, 0.41, 0.47}}$	{6}	${\frac{4, 5}{0.85, 0.15}}$
u ₅	${\frac{- 1, 0, 1}{0.23, 0.45, 0.32}}$	${\frac{1, 3}{0.18, 0.82}}$	${\frac{1, 2, 3}{0.11, 0.42, 0.47}}$	{6}	${\frac{4, 5}{0.91, 0.09}}$
u ₆	${\frac{- 1, 0, 1}{0.22, 0.41, 0.37}}$	${\frac{1, 3}{0.39, 0.61)}$	${\frac{1, 2, 3}{0.10, 0.44, 0.46}}$	{6}	${\frac{4, 5}{0.08, 0.92}}$
u ₇	${\frac{- 1, 0, 1}{0.24, 0.42, 0.34}}$	${\frac{1, 3}{0.74, 0.26}}$	${\frac{1, 2, 3}{0.02, 0.76, 0.22}}$	{6}	${\frac{4, 5}{0.81, 0.19}}$
u ₈	${\frac{- 1, 0, 1}{0.82, 0.12, 0.06}}$	${\frac{1, 3}{0.87, 0.13}}$	${\frac{1, 2, 3}{0.03, 0.77, 0.20)}}$	{6}	${\frac{4, 5}{0.45, 0.55}}$
u ₉	${\frac{- 1, 0, 1}{0.81, 0.14, 0.05}}$	${\frac{1, 3}{0.58, 0.42}}$	${\frac{1, 2, 3}{0.02, 0.78, 0.20}}$	{6}	${\frac{4, 5}{0.67, 0.33}}$
u ₁₀	${\frac{- 1, 0, 1}{0.82, 0.12, 0.06}}$	${\frac{1, 3}{0.62, 0.38}}$	${\frac{1, 2, 3}{0.24, 0.29, 0.47}}$	{6}	${\frac{4, 5}{0.49, 0.51}}$

where {6} means ${\frac{6}{1}}$ .

3 The fuzzy T_cos-equivalence relations in a PSVIS

In this section, we establish the fuzzy T_cos-equivalence relations in a PSVIS by using Gaussian kernel method.

3.1 The distance between two objects in a PSVIS

Definition 3.1.}] Suppose that (U, AT) is a PSVIS. ∀ u, v ∈ U, ∀ a ∈ AT, the distance between a (u) and a (v) is defined by $d (a (u), a (v)) = BD (a (u), a (v)) .$ (3.1)

Remark 3.2. Definition 3.1 has made adjustments to Definition 2.4 in [37]. Table 1 in [37] is the background of Definition 2.4 in [37].

By Table 1 in [37], $\begin{matrix} a_{3} (u_{1}) = {\frac{0, 1}{0.40, 0.60}}, \\ a_{3} (u_{4}) = {\frac{- 1, 0, 1}{0.38, 0.52, 0.10}} . \end{matrix}$

Definition 3.3. Suppose that (U, AT) is a PSVIS. Given a ∈ AT. Then $M_{a} = (d (a (u_{i}), a (u_{j}))_{n \times n}$ (3.2) is said to be the distance matrix of a.

Example 3.4. (Continued from Example 2.13) By Definition 3.3, M_{a
_i} (i = 1, 2, 3, 4, 5) is obtained as follows. $M_{a_{1}} = (\begin{matrix} 0.0000 0.5138 0.5219 0.5170 0.5139 0.5199 0.5206 0.6701 0.6634 0.6701 \\ 0.5138 0.0000 0.5211 0.5170 0.5138 0.5147 0.5187 0.7182 0.7121 0.7182 \\ 0.5219 0.5211 0.0000 0.5243 0.5219 0.5259 0.5269 0.6451 0.6404 0.6451 \\ 0.5170 0.5170 0.5243 0.0000 0.5170 0.5226 0.5232 0.6569 0.6510 0.6569 \\ 0.5139 0.5138 0.5219 0.5170 0.0000 0.5199 0.5206 0.6701 0.6634 0.6701 \\ 0.5199 0.5147 0.5259 0.5226 0.5199 0.0000 0.5238 0.6896 0.6850 0.6896 \\ 0.5206 0.5187 0.5269 0.5232 0.5206 0.5238 0.0000 0.6591 0.6543 0.6591 \\ 0.6701 0.7182 0.6451 0.6569 0.6701 0.6896 0.6591 0.0000 0.1899 0.1852 \\ 0.6634 0.7121 0.6404 0.6510 0.6634 0.6850 0.6543 0.1899 0.0000 0.1899 \\ 0.6701 0.7182 0.6451 0.6569 0.6701 0.6896 0.6591 0.1852 0.1899 0.0000 \end{matrix}),$ $M_{a_{2}} = (\begin{matrix} 0.0000 0.3367 0.3299 0.3222 0.3156 0.3357 0.3712 0.3850 0.3546 0.3587 \\ 0.3367 0.0000 0.3137 0.2989 0.2864 0.3250 0.3970 0.4267 0.3628 0.3712 \\ 0.3299 0.3137 0.0000 0.2681 0.2481 0.3105 0.4357 0.4915 0.3745 0.3891 \\ 0.3222 0.2989 0.2681 0.0000 0.2078 0.2944 0.4838 0.5776 0.3883 0.4105 \\ 0.3156 0.2864 0.2481 0.2078 0.0000 0.2807 0.5301 0.6674 0.4006 0.4300 \\ 0.3357 0.3250 0.3105 0.2944 0.2807 0.0000 0.4024 0.4354 0.3645 0.3737 \\ 0.3712 0.3970 0.4357 0.4838 0.5301 0.4024 0.0000 0.1946 0.3096 0.2921 \\ 0.3850 0.4267 0.4915 0.5776 0.6674 0.4354 0.1946 0.0000 0.2906 0.2648 \\ 0.3546 0.3628 0.3745 0.3883 0.4006 0.3645 0.3096 0.2906 0.0000 0.3277 \\ 0.3587 0.3712 0.3891 0.4105 0.4300 0.3737 0.2921 0.2648 0.3277 0.0000 \end{matrix}),$ $M_{a_{3}} = (\begin{matrix} 0.0000 0.4409 0.4470 0.4446 0.4409 0.4385 0.4385 0.4446 0.4409 0.4904 \\ 0.4409 0.0000 0.4534 0.4517 0.4485 0.4468 0.4566 0.4629 0.4596 0.4917 \\ 0.4470 0.4534 0.0000 0.4568 0.4535 0.4514 0.4524 0.4579 0.4547 0.4973 \\ 0.4446 0.4517 0.4568 0.0000 0.4503 0.4475 0.4369 0.4418 0.4383 0.4990 \\ 0.4409 0.4485 0.4535 0.4503 0.0000 0.4434 0.4281 0.4329 0.4292 0.4983 \\ 0.4385 0.4468 0.4514 0.4475 0.4434 0.0000 0.4132 0.4176 0.4137 0.5001 \\ 0.4385 0.4566 0.4524 0.4369 0.4281 0.4132 0.0000 0.2312 0.2253 0.5565 \\ 0.4446 0.4629 0.4579 0.4418 0.4329 0.4176 0.2312 0.0000 0.2222 0.5627 \\ 0.4409 0.4596 0.4547 0.4383 0.4292 0.4137 0.2253 0.2222 0.0000 0.5620 \\ 0.4904 0.4917 0.4973 0.4990 0.4983 0.5001 0.5565 0.5627 0.5620 0.0000 \end{matrix}),$ $M_{a_{4}} = (\begin{matrix} 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 \\ 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 \\ 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 \\ 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 \\ 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 \\ 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 \\ 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 \\ 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 \\ 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 \\ 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 \end{matrix}),$ $M_{a_{5}} = (\begin{matrix} 0.0000 0.4024 0.2040 0.6565 0.7361 0.1260 0.6097 0.3146 0.4736 0.3400 \\ 0.4024 0.0000 0.3883 0.2935 0.2849 0.4187 0.2993 0.3546 0.3201 0.3482 \\ 0.2040 0.3883 0.0000 0.5620 0.6104 0.1712 0.5321 0.3222 0.4397 0.3416 \\ 0.6565 0.2935 0.5620 0.0000 0.1198 0.7899 0.1663 0.3829 0.2398 0.3536 \\ 0.7361 0.2849 0.6104 0.1198 0.0000 0.9302 0.1410 0.3894 0.2236 0.3548 \\ 0.1260 0.4187 0.1712 0.7899 0.9302 0.0000 0.7144 0.3062 0.5147 0.3382 \\ 0.6097 0.2993 0.5321 0.1663 0.1410 0.7144 0.0000 0.3786 0.2509 0.3528 \\ 0.3146 0.3546 0.3222 0.3829 0.3894 0.3062 0.3786 0.0000 0.3639 0.3456 \\ 0.4736 0.3201 0.4397 0.2398 0.2236 0.5147 0.2509 0.3639 0.0000 0.3500 \\ 0.3400 0.3482 0.3416 0.3536 0.3548 0.3382 0.3528 0.3456 0.3500 0.0000 \end{matrix}),$

Definition 3.5. Suppose that (U, AT) is a PSVIS. Given A ⊆ AT. Define $d_{A} (u, v) = \sqrt{\sum_{a \in A} (d (a (u), a (v)))^{2}}$ (3.3) Then d_A = (d_A (u_i, u_j)) _n×n is referred to as the object distance matrix of the subsystem (U, A).

In this paper, denote $A_{i} = {a_{1}, \dots, a_{i}} (i = 1, 2, 3, 4, 5) .$ Clearly, A₅ = AT.

Example 3.6. (Continued from Example 2.13) Calculate d_{A
₅} (u₂, u₄).

By Definition 3.5, we have

d (a₁ (u₂) , a₁ (u₄))

$= - ln (\sqrt{0.20 \times 0.24 + 0.43 \times 0.44 + 0.37 \times 0.32}$

≈0.5170 ;

d (a₂ (u₂) , a₂ (u₄))

$= - ln (\sqrt{0.40 \times 0.25 + 0.60 \times 0.75})$

≈0.2989 ;

d (a₃ (u₂) , a₃ (u₄))

$= - ln (\sqrt{0.12 \times 0.12 + 0.38 \times 0.41 + 0.50 \times 0.47})$

≈0.4517 ;

$d (a_{4} (u_{2}), a_{4} (u_{4})) = - ln (\sqrt{1 \times 1}) = 0;$

d (a₅ (u₂) , a₅ (u₄))

$= - ln (\sqrt{0.58 \times 0.85 + 0.42 \times 0.15})$

≈0.2935 .

Then

d_{A
₅} (u₂, u₄)

$= \sqrt{\sum_{a \in A_{5}} d^{2} (a (u_{2}), a (u_{4}))}$

$= \sqrt{0 . 5170^{2} + 0 . 2989^{2} + 0 . 4517^{2} + 0^{2} + 0 . 2935^{2}}$

≈0.8042 .

Example 3.7. (Continued from Example 2.13) By Definition 3.5, d_{A
_i} (i = 1, 2, 3, 4, 5) is obtained as follows. $d_{A_{1}} = (\begin{matrix} 0.0000 0.5138 0.5219 0.5170 0.5139 0.5199 0.5206 0.6701 0.6634 0.6701 \\ 0.5138 0.0000 0.5211 0.5170 0.5138 0.5147 0.5187 0.7182 0.7121 0.7182 \\ 0.5219 0.5211 0.0000 0.5243 0.5219 0.5259 0.5269 0.6451 0.6404 0.6451 \\ 0.5170 0.5170 0.5243 0.0000 0.5170 0.5226 0.5232 0.6569 0.6510 0.6569 \\ 0.5139 0.5138 0.5219 0.5170 0.0000 0.5199 0.5206 0.6701 0.6634 0.6701 \\ 0.5199 0.5147 0.5259 0.5226 0.5199 0.0000 0.5238 0.6896 0.6850 0.6896 \\ 0.5206 0.5187 0.5269 0.5232 0.5206 0.5238 0.0000 0.6591 0.6543 0.6591 \\ 0.6701 0.7182 0.6451 0.6569 0.6701 0.6896 0.6591 0.0000 0.1899 0.1852 \\ 0.6634 0.7121 0.6404 0.6510 0.6634 0.6850 0.6543 0.1899 0.0000 0.1899 \\ 0.6701 0.7182 0.6451 0.6569 0.6701 0.6896 0.6591 0.1852 0.1899 0.0000 \end{matrix}),$ $d_{A_{2}} = (\begin{matrix} 0.0000 0.6142 0.6174 0.6091 0.6030 0.6189 0.6394 0.7728 0.7523 0.7601 \\ 0.6142 0.0000 0.6082 0.5972 0.5882 0.6088 0.6532 0.8353 0.7992 0.8084 \\ 0.6174 0.6082 0.0000 0.5889 0.5779 0.6107 0.6837 0.8110 0.7419 0.7534 \\ 0.6091 0.5972 0.5889 0.0000 0.5572 0.5998 0.7126 0.8747 0.7580 0.7746 \\ 0.6030 0.5882 0.5779 0.5572 0.0000 0.5909 0.7430 0.9458 0.7750 0.7962 \\ 0.6189 0.6088 0.6107 0.5998 0.5909 0.0000 0.6605 0.8155 0.7759 0.7843 \\ 0.6394 0.6532 0.6837 0.7126 0.7430 0.6605 0.0000 0.6873 0.7238 0.7209 \\ 0.7728 0.8353 0.8110 0.8747 0.9458 0.8155 0.6873 0.0000 0.3472 0.3232 \\ 0.7523 0.7992 0.7419 0.7580 0.7750 0.7759 0.7238 0.3472 0.0000 0.3788 \\ 0.7601 0.8084 0.7534 0.7746 0.7962 0.7843 0.7209 0.3232 0.3788 0.0000 \end{matrix}),$ $d_{A_{3}} = (\begin{matrix} 0.0000 0.7561 0.7623 0.7541 0.7471 0.7585 0.7753 0.8916 0.8720 0.9045 \\ 0.7561 0.0000 0.7586 0.7488 0.7396 0.7551 0.7970 0.9550 0.9220 0.9462 \\ 0.7623 0.7586 0.0000 0.7453 0.7346 0.7595 0.8198 0.9314 0.8701 0.9027 \\ 0.7541 0.7488 0.7453 0.0000 0.7164 0.7484 0.8358 0.9799 0.8756 0.9214 \\ 0.7471 0.7396 0.7346 0.7164 0.0000 0.7387 0.8575 1.0401 0.8859 0.9393 \\ 0.7585 0.7551 0.7595 0.7484 0.7387 0.0000 0.7791 0.9162 0.8793 0.9302 \\ 0.7753 0.7970 0.8198 0.8358 0.8575 0.7791 0.0000 0.7251 0.7581 0.9107 \\ 0.8916 0.9550 0.9314 0.9799 1.0401 0.9162 0.7251 0.0000 0.4122 0.6489 \\ 0.8720 0.9220 0.8701 0.8756 0.8859 0.8793 0.7581 0.4122 0.0000 0.6777 \\ 0.9045 0.9462 0.9027 0.9214 0.9393 0.9302 0.9107 0.6489 0.6777 0.0000 \end{matrix}),$ $d_{A_{3}} = (\begin{matrix} 0.0000 0.7561 0.7623 0.7541 0.7471 0.7585 0.7753 0.8916 0.8720 0.9045 \\ 0.7561 0.0000 0.7586 0.7488 0.7396 0.7551 0.7970 0.9550 0.9220 0.9462 \\ 0.7623 0.7586 0.0000 0.7453 0.7346 0.7595 0.8198 0.9314 0.8701 0.9027 \\ 0.7541 0.7488 0.7453 0.0000 0.7164 0.7484 0.8358 0.9799 0.8756 0.9214 \\ 0.7471 0.7396 0.7346 0.7164 0.0000 0.7387 0.8575 1.0401 0.8859 0.9393 \\ 0.7585 0.7551 0.7595 0.7484 0.7387 0.0000 0.7791 0.9162 0.8793 0.9302 \\ 0.7753 0.7970 0.8198 0.8358 0.8575 0.7791 0.0000 0.7251 0.7581 0.9107 \\ 0.8916 0.9550 0.9314 0.9799 1.0401 0.9162 0.7251 0.0000 0.4122 0.6489 \\ 0.8720 0.9220 0.8701 0.8756 0.8859 0.8793 0.7581 0.4122 0.0000 0.6777 \\ 0.9045 0.9462 0.9027 0.9214 0.9393 0.9302 0.9107 0.6489 0.6777 0.0000 \end{matrix}),$ $d_{A_{4}} = (\begin{matrix} 0.0000 0.7561 0.7623 0.7541 0.7471 0.7585 0.7753 0.8916 0.8720 0.9045 \\ 0.7561 0.0000 0.7586 0.7488 0.7396 0.7551 0.7970 0.9550 0.9220 0.9462 \\ 0.7623 0.7586 0.0000 0.7453 0.7346 0.7595 0.8198 0.9314 0.8701 0.9027 \\ 0.7541 0.7488 0.7453 0.0000 0.7164 0.7484 0.8358 0.9799 0.8756 0.9214 \\ 0.7471 0.7396 0.7346 0.7164 0.0000 0.7387 0.8575 1.0401 0.8859 0.9393 \\ 0.7585 0.7551 0.7595 0.7484 0.7387 0.0000 0.7791 0.9162 0.8793 0.9302 \\ 0.7753 0.7970 0.8198 0.8358 0.8575 0.7791 0.0000 0.7251 0.7581 0.9107 \\ 0.8916 0.9550 0.9314 0.9799 1.0401 0.9162 0.7251 0.0000 0.4122 0.6489 \\ 0.8720 0.9220 0.8701 0.8756 0.8859 0.8793 0.7581 0.4122 0.0000 0.6777 \\ 0.9045 0.9462 0.9027 0.9214 0.9393 0.9302 0.9107 0.6489 0.6777 0.0000 \end{matrix}),$ $d_{A_{5}} = (\begin{matrix} 0.0000 0.8565 0.7891 0.9999 1.0488 0.7689 0.9864 0.9455 0.9923 0.9663 \\ 0.8565 0.0000 0.8522 0.8042 0.7926 0.8635 0.8513 1.0188 0.9759 1.0083 \\ 0.7891 0.8522 0.0000 0.9334 0.9551 0.7785 0.9774 0.9855 0.9749 0.9652 \\ 0.9999 0.8042 0.9334 0.0000 0.7263 1.0882 0.8522 1.0521 0.9078 0.9870 \\ 1.0488 0.7926 0.9551 0.7263 0.0000 1.1879 0.8690 1.1106 0.9137 1.0041 \\ 0.7689 0.8635 0.7785 1.0882 1.1879 0.0000 1.0570 0.9660 1.0189 0.9898 \\ 0.9864 0.8513 0.9774 0.8522 0.8690 1.0570 0.0000 0.8180 0.7986 0.9767 \\ 0.9455 1.0188 0.9855 1.0521 1.1106 0.9660 0.8180 0.0000 0.5498 0.7352 \\ 0.9923 0.9759 0.9749 0.9078 0.9137 1.0189 0.7986 0.5498 0.0000 0.7627 \\ 0.9663 1.0083 0.9652 0.9870 1.0041 0.9898 0.9767 0.7352 0.7627 0.0000 \end{matrix}),$

3.2 The fuzzy T_cos-equivalence relation induced by each subsystem

Gaussian kernel method is an important method in machine learning. In this subsection, we use Gaussian kernel to extract a fuzzy T_cos-equivalence relation on the object set of a PSVIS.

Gaussian kernel $G (u, v) = exp (- \frac{∥ u - v ∥^{2}}{2 λ^{2}})$ (3.4) is using to compute the similarity between two objects u and v, where ∥u - v∥ is the Euclidean distance between two objects u and v, λ is a threshold. In this paper, pick λ ∈ (0, 1].

Definition 3.8. Suppose that (U, AT) is a PSVIS. Given A ⊆ AT and λ ∈ (0, 1]. Define $L_{A}^{G} (λ) (u_{i}, u_{j}) = exp (- \frac{d_{A}^{2} (u_{i}, u_{j})}{2 λ^{2}}),$ (3.5) $M (L_{A}^{G} (λ)) = (L_{A}^{G} (λ) (u_{i}, u_{j}))_{n \times n} .$ (3.6) Then $L_{A}^{G} (λ)$ is called the fuzzy relation induced by the subsystem (U, A) with respect to λ based on Gaussian kernel, and $M (L_{A}^{G} (λ))$ is said to be the Gaussian kernel matrix of the subsystem (U, A) with respect to λ.

Theorem 3.9. Suppose that (U, AT) is a PSVIS. Given A ⊆ AT and λ ∈ (0, 1]. Then $L_{A}^{G} (λ)$ is a fuzzy T_cos-equivalence relation on U.

Proof. It can be proved by Corollary 2.5. □

Example 3.10. (Continued from Examples 2.12 and 3.7) Pick $λ = \sqrt{0.8}$ . Then $L_{A_{i}}^{G} (λ)$ (i = 1, 2, 3, 4, 5) is obtained as follows. $M (L_{A_{1}}^{G} (λ)) = (\begin{matrix} 1.0000 0.8479 0.8435 0.8462 0.8478 0.8445 0.8442 0.7553 0.7595 0.7553 \\ 0.8479 1.0000 0.8439 0.8462 0.8479 0.8474 0.8452 0.7244 0.7284 0.7244 \\ 0.8435 0.8439 1.0000 0.8421 0.8435 0.8413 0.8407 0.7710 0.7739 0.7710 \\ 0.8462 0.8462 0.8421 1.0000 0.8462 0.8431 0.8427 0.7636 0.7673 0.7636 \\ 0.8478 0.8479 0.8435 0.8462 1.0000 0.8445 0.8442 0.7553 0.7595 0.7553 \\ 0.8445 0.8474 0.8413 0.8431 0.8445 1.0000 0.8424 0.7429 0.7458 0.7429 \\ 0.8442 0.8452 0.8407 0.8427 0.8442 0.8424 1.0000 0.7622 0.7652 0.7622 \\ 0.7553 0.7244 0.7710 0.7636 0.7553 0.7429 0.7622 1.0000 0.9777 0.9788 \\ 0.7595 0.7284 0.7739 0.7673 0.7595 0.7458 0.7652 0.9777 1.0000 0.9777 \\ 0.7553 0.7244 0.7710 0.7636 0.7553 0.7429 0.7622 0.9788 0.9777 1.0000 \end{matrix}),$ $M (L_{A_{2}}^{G} (λ)) = (\begin{matrix} 1.0000 0.7899 0.7880 0.7930 0.7967 0.7871 0.7745 0.6885 0.7021 0.6969 \\ 0.7899 1.0000 0.7936 0.8002 0.8056 0.7932 0.7659 0.6465 0.6708 0.6647 \\ 0.7880 0.7936 1.0000 0.8051 0.8116 0.7921 0.7467 0.6629 0.7089 0.7013 \\ 0.7930 0.8002 0.8051 1.0000 0.8236 0.7986 0.7281 0.6199 0.6983 0.6873 \\ 0.7967 0.8056 0.8116 0.8236 1.0000 0.8040 0.7082 0.5718 0.6870 0.6729 \\ 0.7871 0.7932 0.7921 0.7986 0.8040 1.0000 0.7614 0.6599 0.6864 0.6808 \\ 0.7745 0.7659 0.7467 0.7281 0.7082 0.7614 1.0000 0.7444 0.7207 0.7226 \\ 0.6885 0.6465 0.6629 0.6199 0.5718 0.6599 0.7444 1.0000 0.9274 0.9368 \\ 0.7021 0.6708 0.7089 0.6983 0.6870 0.6864 0.7207 0.9274 1.0000 0.9142 \\ 0.6969 0.6647 0.7013 0.6873 0.6729 0.6808 0.7226 0.9368 0.9142 1.0000 \end{matrix}),$ $\begin{matrix} M (L_{A_{3}}^{G} (λ)) = M (L_{A_{4}}^{G} (λ)) \\ = (\begin{matrix} 1.0000 0.6995 0.6955 0.7009 0.7055 0.6980 0.6868 0.6085 0.6217 0.5997 \\ 0.6995 1.0000 0.6979 0.7044 0.7104 0.7002 0.6723 0.5655 0.5879 0.5714 \\ 0.6955 0.6979 1.0000 0.7067 0.7137 0.6973 0.6570 0.5815 0.6230 0.6009 \\ 0.7009 0.7044 0.7067 1.0000 0.7256 0.7047 0.6462 0.5487 0.6193 0.5882 \\ 0.7055 0.7104 0.7137 0.7256 1.0000 0.7110 0.6316 0.5086 0.6123 0.5761 \\ 0.6980 0.7002 0.6973 0.7047 0.7110 1.0000 0.6843 0.5918 0.6168 0.5823 \\ 0.6868 0.6723 0.6570 0.6462 0.6316 0.6843 1.0000 0.7199 0.6982 0.5955 \\ 0.6085 0.5655 0.5815 0.5487 0.5086 0.5918 0.7199 1.0000 0.8993 0.7686 \\ 0.6217 0.5879 0.6230 0.6193 0.6123 0.6168 0.6982 0.8993 1.0000 0.7505 \\ 0.5997 0.5714 0.6009 0.5882 0.5761 0.5823 0.5955 0.7686 0.7505 1.0000 \end{matrix}), \end{matrix}$ $M (L_{A_{5}}^{G} (λ)) = (\begin{matrix} 1.0000 0.6322 0.6776 0.5354 0.5028 0.6911 0.5444 0.5720 0.5404 0.5579 \\ 0.6322 1.0000 0.6351 0.6675 0.6753 0.6275 0.6357 0.5227 0.5514 0.5297 \\ 0.6776 0.6351 1.0000 0.5801 0.5654 0.6847 0.5504 0.5450 0.5521 0.5586 \\ 0.5354 0.6675 0.5801 1.0000 0.7191 0.4771 0.6351 0.5007 0.5974 0.5440 \\ 0.5028 0.6753 0.5654 0.71911 . 0000 0.4140 0.6238 0.4626 0.5934 0.5325 \\ 0.6911 0.6275 0.6847 0.4771 0.4140 1 . 00000.4974 0.5581 0.5226 0.5421 \\ 0.5444 0.6357 0.5504 0.6351 0.6238 0.4974 1.0000 0.6582 0.6713 0.5509 \\ 0.5720 0.5227 0.5450 0.5007 0.4626 0.5581 0.6582 1.0000 0.8278 0.7133 \\ 0.5404 0.5514 0.5521 0.5974 0.5934 0.5226 0.6713 0.8278 1.0000 0.6952 \\ 0.5579 0.5297 0.5586 0.5440 0.5325 0.5421 0.5509 0.7133 0.6952 1.0000 \end{matrix}),$

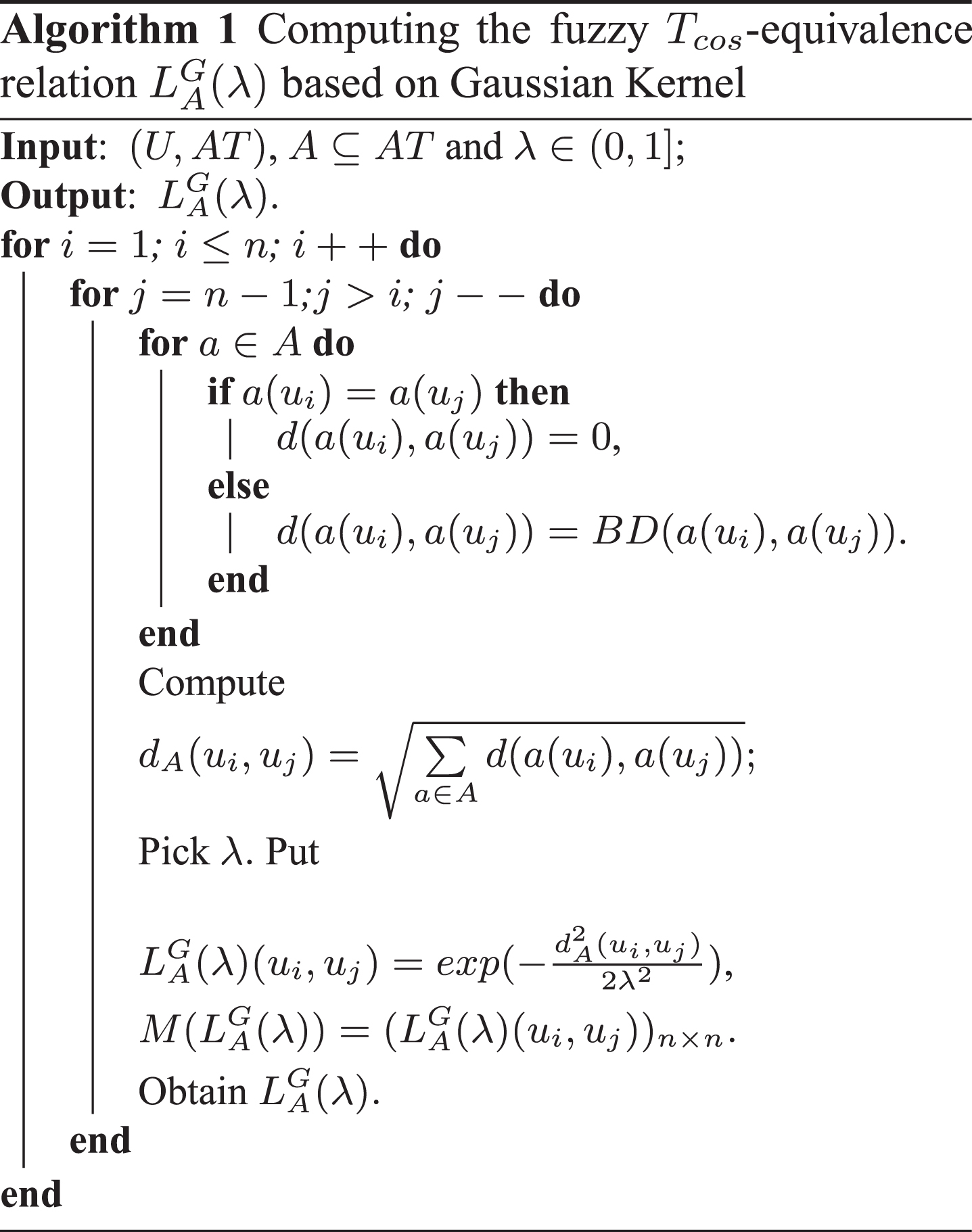

Given A ⊆ AT, an algorithm for generating the fuzzy T_cos-equivalence relation $L_{A}^{G} (λ)$ is given as follows (see Algorithm 1).

4 Information structures in a PSVIS

In this section, we investigate information structures in a PSVIS.

4.1 Some concepts of information structures in a PSVIS.

Definition 4.1. Let (U, AT) be a PSVIS. Given A ⊆ AT and λ ∈ (0, 1]. Denote $S^{λ} (A) = (S_{L_{A}^{G} (λ)} (u_{1}), \dots, S_{L_{A}^{G} (λ)} (u_{n})) .$ (4.1) Then S^λ (A) is referred to as the information structure of (U, A) with respect to λ or λ-information structure of (U, A).

Example 4.2. (Continued from Example 3.10)

$S_{\sqrt{0.8}} (A_{5}) = (S_{L_{A_{5}}^{G} (\sqrt{0.8})} (u_{1}), \dots, S_{L_{A_{5}}^{G} (\sqrt{0.8})} (u_{10}))$ is $\sqrt{0.8}$ -information structure of (U, A₅).

Definition 4.3. Let (U, AT) be a PSVIS. Given λ₁, λ₂ ∈ (0, 1] and A, B ⊆ AT. If for each i, $S_{L_{A}^{G} (λ_{1})} (u_{i}) = S_{L_{B}^{G} (λ_{2})} (u_{i})$ , then S^{λ
₁} (A) and S^{λ
₂} (B) are said to be equal, denoted by S^{λ
₁} (A) = S^{λ
₂} (B).

Definition 4.4. Let (U, AT) be a PSVIS. Given λ ∈ (0, 1]. Put $S^{λ} (U, AT) = {S^{λ} (A) : A \subseteq AT} .$ (4.2) Then S^λ (U, AT) is said to be a λ-information structure base of (U, AT).

Definition 4.5. Let (U, AT) be a PSVIS. Given λ₁, λ₂ ∈ (0, 1] and A, B ⊆ AT.

(1) S^{λ
₂} (B) is said to be dependent on S^{λ
₁} (A), if for each i, $S_{L_{A}^{G} (λ_{1})} (u_{i}) \subseteq S_{L_{B}^{G} (λ_{2})} (u_{i})$ , we write S^{λ
₂} (B) ⪯ S^{λ
₁} (A); S^{λ
₂} (B) is said to be to dependent strictly on S^{λ
₁} (A), if S^{λ
₁} (A) ⪯ S^{λ
₂} (B) and S^{λ
₁} (A) ≠ S^{λ
₂} (B), we write S^{λ
₁} (A) ≺ S^{λ
₂} (B).

(2) S^{λ
₂} (B) is said to be dependent partially on S^{λ
₁} (A), if there exists i, $S_{L_{A}^{G} (λ_{1})} (u_{i}) ⊑ S_{L_{B}^{G} (λ_{2})} (u_{i})$ , we write S^{λ
₁} (A) ⊑ S^{λ
₂} (B); S^{λ
₂} (B) is said to be to dependent partially strictly on S^{λ
₁} (A), if $S_{L_{A}^{G} (λ_{1})} (u_{i}) ⊑ S_{L_{B}^{G} (λ_{2})} (u_{i})$ and S^{λ
₁} (A) ≠ S^{λ
₂} (B), we write S^{λ
₁} (A) ⊏ S^{λ
₂} (B).

(3) S^{λ
₂} (B) is said to be independent on S^{λ
₁} (A), if for each i, $S_{L_{A}^{G} (λ_{1})} (u_{i}) ⊈ S_{L_{B}^{G} (λ_{2})} (u_{i})$ , we write S^{λ
₁} (A) ⋈ S^{λ
₂} (B).

Obviously,

S^{λ
₁} (A) = S^{λ
₂} (B) ⇔ S^{λ
₁} (A) ⪯ S^{λ
₂} (B) and S^{λ
₂} (B) ⪯ S^{λ
₁} (A) ,

S^{λ
₁} (A) ⪯ S^{λ
₂} (B) ⇒ S^{λ
₁} (A) ⊑ S^{λ
₂} (B) ,

S^{λ
₁} (A) ≺ S^{λ
₂} (B) ⇒ S^{λ
₁} (A) ⊏ S^{λ
₂} (B) .

4.2 Properties of information structures in a PSVIS

In this part, we explore several properties of information structures in a PSVIS.

Theorem 4.6. Suppose that (U, AT) is a PSVIS. Given λ₁, λ₂ ∈ (0, 1] and A, B ⊆ AT. Then $\begin{matrix} S^{λ_{1}} (A) = S^{λ_{2}} (B) \Leftrightarrow L_{A}^{G} (λ_{1}) = L_{B}^{G} (λ_{2}) . \end{matrix}$

Proof. Clearly. □

Theorem 4.7. Suppose that (U, AT) is a PSVIS. Given λ₁, λ₂ ∈ (0, 1] and A, B ⊆ AT. Then $\begin{matrix} S^{λ_{1}} (A) ⪯ S^{λ_{2}} (B) \Leftrightarrow L_{A}^{G} (λ_{1}) \subseteq L_{B}^{G} (λ_{2}) . \end{matrix}$

Proof. Clearly.□

Corollary 4.8. Suppose that (U, AT) is a PSVIS. Given λ₁, λ₂ ∈ (0, 1] and A, B ⊆ AT. Then $\begin{matrix} S^{λ_{1}} (A) ≺ S^{λ_{2}} (B) \Leftrightarrow L_{A}^{G} (λ_{1}) \subset L_{B}^{G} (λ_{2}) . \end{matrix}$

Proof. This follows from Theorems 4.6 and 4.7. □

Theorem 4.9. Suppose that (U, AT) is a PSVIS.

(1) If 0 < λ₁ ≤ λ₂ ≤ 1, then ∀ A ⊆ AT, S^{λ
₁} (A) ⪯ S^{λ
₂} (A);

(2) If A ⊆ B ⊆ AT, then ∀ λ ∈ (0, 1], S^λ (B) ⪯ S^λ (A).

Proof. (1) Obviously, $\begin{matrix} exp (- \frac{d_{A}^{2} (u_{i}, u_{j})}{2 λ_{1}^{2}}) \leq exp (- \frac{d_{A}^{2} (u_{i}, u_{j})}{2 λ_{2}^{2}}) . \end{matrix}$

Then $\begin{matrix} L_{A}^{G} (λ_{1}) (u_{i}, u_{j}) \leq L_{A}^{G} (λ_{2}) (u_{i}, u_{j}) . \end{matrix}$

So $L_{A}^{G} (λ_{1}) \subseteq L_{A}^{G} (λ_{2}) .$ By Theorem 4.7, $\begin{matrix} S^{λ_{1}} (A) ⪯ S^{λ_{2}} (A) . \end{matrix}$

(2) By Definition 3.8, $\begin{matrix} L_{A}^{G} (λ) (u_{i}, u_{j}) = exp (- \frac{d_{A}^{2} (u_{i}, u_{j})}{2 λ^{2}}), \end{matrix}$ $\begin{matrix} L_{B}^{G} (λ) (u_{i}, u_{j}) = exp (- \frac{d_{B}^{2} (u_{i}, u_{j})}{2 λ^{2}}) . \end{matrix}$

Then $\begin{matrix} L_{B}^{G} (λ) (u_{i}, u_{j}) \leq L_{A}^{G} (λ) (u_{i}, u_{j}) (1 \leq i, j \leq n) . \end{matrix}$ So $L_{B}^{G} (λ) \subseteq L_{A}^{G} (λ) .$ By Theorem 4.7, $\begin{matrix} S^{λ} (B) ⪯ S^{λ} (A) . \end{matrix}$ □

Definition 4.10. ([45]) Suppose that (U, AT) is a PSVIS. Given that S^λ (U, AT) is the information structure base of (U, AT). Then a mapping D : S^λ (U, AT) × S^λ (U, AT) → [0, 1] is said to be the inclusion degree on S^λ (U, AT), if ∀ A, B, L ⊆ AT

(1) 0 ≤ D (S^λ (B)/S^λ (A)) ≤1;

(2) S^λ (A) ⪯ S^λ (B) implies D (S^λ (B)/S^λ (A)) =1;

(3) S^λ (A) ⊑ S^λ (B) ⊑ S^λ (L) implies $\begin{matrix} D (S^{λ} (A) / S^{λ} (L)) \leq D (S^{λ} (A) / S^{λ} (B)) . \end{matrix}$

Definition 4.11. Let (U, AT) be a PSVIS. Given A, B ⊆ AT and λ ∈ (0, 1]. Define

D (S^λ (B)/S^λ (A)) $= \sum_{l = 1}^{n} \frac{| S_{L_{B}^{G} (λ)} (u_{l}) |}{\sum_{i = 1}^{n} | S_{L_{B}^{G} (λ)} (u_{i}) |} χ_{S_{L_{B}^{G} (λ)} (u_{l})} (S_{L_{A}^{G} (λ)} (u_{l})),$ where $\begin{matrix} χ_{S_{L_{B}^{G} (λ)} (u_{l})} (S_{L_{A}^{G} (λ)} (u_{l})) \end{matrix}$ $\begin{matrix} = {\begin{matrix} 1, & if S_{L_{A}^{G} (λ)} (u_{l}) \subseteq S_{L_{B}^{G} (λ)} (u_{l}), \\ 0, & if S_{L_{A}^{G} (λ)} (u_{l}) ⊈ S_{L_{B}^{G} (λ)} (u_{l}) . \end{matrix} \end{matrix}$

Proposition 4.12. D (·) in Definition 4.11 is the inclusion degree under Definition 4.10.

Proof. Clearly. □

Example 4.13. (Continued from Example 3.10).

D (S^λ (A₂)/S^λ (A₅)) $= \sum_{l = 1}^{10} \frac{| S_{L_{A_{2}}^{G} (λ)} (u_{l}) |}{\sum_{i = 1}^{10} | S_{L_{A_{2}}^{G} (λ)} (u_{i}) |} χ_{S_{L_{A_{2}}^{G} (λ)} (u_{l})} (S_{L_{A_{5}}^{G} (λ)} (u_{l}))$

= 0. D (S^λ (A₅)/S^λ (A₂))

$= \sum_{l = 1}^{10} \frac{| S_{L_{A_{5}}^{G} (λ)} (u_{l}) |}{\sum_{i = 1}^{10} | S_{L_{A_{5}}^{G} (λ)} (u_{i}) |} χ_{S_{L_{A_{5}}^{G} (λ)} (u_{l})} (S_{L_{A_{2}}^{G} (λ)} (u_{l}))$ = 1.

This example illustrates that $\begin{matrix} D (S^{λ} (A) / S^{λ} (B)) \neq D (S^{λ} (B) / S^{λ} (A) . \end{matrix}$

Theorem 4.14. Let (U, AT) be a PSVIS. Given A, B ⊆ AT and λ ∈ (0, 1]. Then

(1) S^λ (A) ⪯ S^λ (B) ⇔ D (S^λ (B)/S^λ (A)) =1 .

(2) S^λ (A) ⋈ S^λ (B) ⇔ D (S^λ (B)/S^λ (A)) =0 .

(3) S^λ (A) ⊑ S^λ (B) ⇔0 < D (S^λ (B)/S^λ (A)) ≤1 .

Proof. (1) “⇒” is obvious. We prove “⇐”. Put $\begin{matrix} | S_{L_{B}^{G} (λ)} (u_{l}) | = q_{l}, \sum_{l = 1}^{n} | S_{L_{B}^{G} (λ)} (u_{l}) | = q . \end{matrix}$ Then $q = \sum_{l = 1}^{n} q_{l}$ . Since D (S^λ (B)/S^λ (A)) =1, we have $\begin{matrix} \sum_{l = 1}^{n} q_{l} χ_{S_{L_{B}^{G} (λ)} (u_{l})} (S_{L_{A}^{G} (λ)} (u_{l})) = q = \sum_{l = 1}^{n} q_{l} . \end{matrix}$ Then $\begin{matrix} \sum_{l = 1}^{n} q_{l} (1 - χ_{S_{L_{B}^{G} (λ)} (u_{l})} (S_{L_{A}^{G} (λ)} (u_{l}))) = 0 . \end{matrix}$ Thus ∀ l, $\begin{matrix} 1 - χ_{S_{L_{B}^{G} (λ)} (u_{l})} (S_{L_{A}^{G} (λ)} (u_{l})) = 0 . \end{matrix}$ It follows that ∀ l, $S_{L_{A}^{G} (λ)} (u_{l}) \subseteq S_{L_{B}^{G} (λ)} (u_{l})$ .

Hence S^λ (A) ⪯ S^λ (B).

(2) “⇒”. Since S^λ (A) ⋈ S^λ (B), ∀ l, we have $\begin{matrix} S_{L_{A}^{G} (λ)} (u_{l}) ⊈ S_{L_{B}^{G} (λ)} (u_{l}) . \end{matrix}$

Then ∀ l, $\begin{matrix} χ_{S_{L_{B}^{G} (λ)} (u_{l})} (S_{L_{A}^{G} (λ)} (u_{l})) = 0 . \end{matrix}$

Thus D (S^λ (B)/S^λ (A)) =0.

“⇐”. Since D (S^λ (B)/S^λ (A)) =0, ∀ l, we obtain $\begin{matrix} S_{L_{B}^{G} (λ)} (u_{l}) (S_{L_{A}^{G} (λ)} (u_{l})) = 0 . \end{matrix}$

Then ∀ l, $S_{L_{A}^{G} (λ)} (u_{l}) ⊈ S_{L_{B}^{G} (λ)} (u_{l})$ .

Thus S^λ (A) ⋈ S^λ (B).

(3) This follows from (1) and (2). □

5 Measuring uncertainty of a PSVIS

As an application for information structures, some tools for measuring the uncertainty of a PSVIS are proposed in this part.

5.1 Granulation measurement for a PSVIS

Similar to Definition 5 in [39], λ-information granulation of a SVIS is given in the following definition.

Definition 5.1. Suppose that (U, AT) is a PSVIS. Given λ ∈ (0, 1] and A ⊆ AT. Then λ-information granulation of the subsystem (U, A) is defined by $G^{λ} (A) = \frac{1}{n^{2}} \sum_{i = 1}^{n} | S_{L_{A}^{G} (λ)} (u_{i}) | .$ (5.1)

Proposition 5.2. Suppose that (U, AT) is a PSVIS. Then ∀ A ⊆ AT and λ ∈ (0, 1], $\frac{1}{n} \leq G^{λ} (A) \leq 1 .$ (5.2) Moreover, if $L_{A}^{G} (λ)$ is a universal relation on U, then G^λ achieves the minimum value $\frac{1}{n}$ ; if $L_{A}^{G} (λ)$ is an identity relation on U, then G^λ achieves the maximum value 1.

Proof. Since ∀ i, $1 \leq | L_{A}^{G} (λ) (u_{i}) | \leq n$ , we have $\begin{matrix} n \leq \sum_{i = 1}^{n} | L_{A}^{G} (λ) (u_{i}) | \leq n^{2} . \end{matrix}$ Thus $\begin{matrix} \frac{1}{n} \leq G^{λ} (A) \leq 1 . \end{matrix}$

If $L_{A}^{G} (λ)$ is an identity relation on U, ∀ i, $| L_{A}^{G} (λ) (u_{i}) | = 1$ . So $G^{λ} (A) = \frac{1}{n}$ .

If $L_{A}^{G} (λ)$ is a universal relation on U, ∀ i, $| L_{A}^{G} (λ) (u_{i}) | = n$ . So G^λ (A) =1.

□

Proposition 5.3. Suppose that (U, AT) is a PSVIS. Given λ₁, λ₂ ∈ (0, 1] and A, B ⊆ AT.

(1) If S^{λ
₁} (A) ⪯ S^{λ
₂} (B), then G^{λ
₁} (A) ≤ G^{λ
₂} (B);

(2) If S^{λ
₁} (A) ≺ S^{λ
₂} (B), then G^{λ
₁} (A) < G^{λ
₂} (B).

Proof. (1) Since S^{λ
₁} (A) ⪯ S^{λ
₂} (B), ∀ i, we have $S_{L_{A}^{G} (λ)} (u_{i}) \subseteq S_{L_{B}^{G} (λ)} (u_{i})$ . Then $| S_{L_{A}^{G} (λ)} (u_{i}) | \leq | S_{L_{B}^{G} (λ)} (u_{i}) |$ . By Definition 5.1, $G^{λ} (A) = \frac{1}{n} \sum_{i = 1}^{n} \frac{1}{n} | S_{L_{A}^{G} (λ)} (u_{i}) |,$ $G^{λ} (B) = \frac{1}{n} \sum_{i = 1}^{n} \frac{1}{n} | S_{L_{B}^{G} (λ)} (u_{i}) | .$ Thus G^{λ
₁} (A) ≤ G^{λ
₂} (B) .

(2) Since S^{λ
₁} (A) ≺ S^{λ
₂} (B), we have S^{λ
₁} (A) ⪯ S^{λ
₂} (B) and S^{λ
₁} (A) ≠ S^{λ
₂} (B).

Then, ∀ i, $S_{L_{A}^{G} (λ_{1})} (u_{i}) \subseteq S_{L_{B}^{G} (λ_{2})} (u_{i})$ and ∃ j, $S_{L_{A}^{G} (λ_{1})} (u_{j}) ⊊ S_{L_{B}^{G} (λ_{2})} (u_{j})$ .

So, ∀ i, $| S_{L_{A}^{G} (λ_{1})} (u_{i}) | \leq | S_{L_{B}^{G} (λ_{2})} (u_{i}) |$ and ∃ j, $| S_{L_{A}^{G} (λ_{1})} (u_{j}) | < | S_{L_{B}^{G} (λ_{2})} (u_{j}) |$ .

Hence G^{λ
₁} (A) < G^{λ
₂} (B).

□

This proposition illustrates that λ-information granulation increases when the available information becomes coarser, and it decreases when the available information becomes finer. Thus, λ-information granulation can be applied to measure uncertainty of a PSVIS.

Proposition 5.4. Suppose that (U, AT) is a PSVIS.

(1) If 0 < λ₁ ≤ λ₂ ≤ 1, then ∀ A ⊆ AT, G^{λ
₁} (A) ≤ G^{λ
₂} (A).

(2) If A ⊆ B ⊆ AT, then ∀ λ ∈ (0, 1], G^λ (B) ≤ G^λ (A).

Proof. It can be obtained by Theorem 4.9 and Proposition 5.3(1). □

5.2 Entropy measurement for a PSVIS

Definition 5.5. Suppose that (U, AT) is a PSVIS. Let A ⊆ AT. The λ-information entropy of the subsystem (U, A) is defined by $H^{λ} (A) = - \sum_{i = 1}^{n} \frac{1}{n} {log}_{2} \frac{| S_{L_{A}^{G} (λ)} (u_{i}) |}{n} .$ (5.3)

Theorem 5.6. Suppose that (U, AT) is a PSVIS. Given λ₁, λ₂ ∈ (0, 1] and A, B ⊆ AT.

(1) If S^{λ
₁} (A) ⪯ S^{λ
₂} (B), then H^{λ
₂} (B) ≤ H^{λ
₁} (A);

(2) If S^{λ
₁} (A) ≺ S^{λ
₂} (B), then H^{λ
₂} (B) < H^{λ
₁} (A).

Proof. (1) Obviously.

(2) Since S^{λ
₁} (A) ≺ S^{λ
₂} (B), similar to the proof of Proposition 5.3, we obtain that ∀ i, $1 \leq | S_{L_{A}^{G} (λ_{1})} (u_{i}) | \leq | S_{L_{B}^{G} (λ_{2})} (u_{i}) |$ and ∃ j, $1 \leq | S_{L_{A}^{G} (λ_{1})} (u_{j}) | < | S_{L_{B}^{G} (λ_{2})} (u_{j}) | .$

Then ∀ i, $\begin{matrix} - {log}_{2} \frac{| S_{L_{A}^{G} (λ_{1})} (u_{i}) |}{n} & = {log}_{2} \frac{n}{| S_{L_{A}^{G} (λ_{1})} (u_{i}) |} \\ \geq {log}_{2} \frac{n}{| S_{L_{B}^{G} (λ_{2})} (u_{i}) |} \\ = - {log}_{2} \frac{| S_{L_{B}^{G} (λ_{2})} (u_{i}) |}{n}, \end{matrix}$ and ∃ j, $\begin{matrix} - {log}_{2} \frac{| S_{L_{A}^{G} (λ_{1})} (u_{j}) |}{n} & = {log}_{2} \frac{n}{| S_{L_{A}^{G} (λ_{1})} (u_{j}) |} \\ > {log}_{2} \frac{n}{| S_{L_{B}^{G} (λ_{2})} (u_{j}) |} \\ = - {log}_{2} \frac{| S_{L_{B}^{G} (λ_{2})} (u_{j}) |}{n} . \end{matrix}$

Hence H^{λ
₂} (B) < H^{λ
₁} (A). □

This theorem shows that λ-information entropy increases when λ-information structure becomes finer, and it decreases when λ-information structure becomes coarser.

Proposition 5.7. Suppose that (U, AT) is a PSVIS.

(1) If 0 < λ₁ ≤ λ₂ ≤ 1, then ∀ A ⊆ AT, H^{λ
₂} (A) ≤ H^{λ
₁} (A);

(2) If A ⊆ B ⊆ AT, then ∀ λ ∈ (0, 1], H^λ (A) ≤ H^λ (B).

Proof. It can be proved by Theorems 4.9 and 5.6(1). □

Rough entropy, introduced by Yao [8], is applied to measure granularity of a given partition. Similarly, λ-rough entropy of a given PSVIS is proposed in the following definition.

Definition 5.8. Suppose that (U, AT) is a PSVIS. Given λ ∈ (0, 1] and A ⊆ AT. Then λ-rough entropy of the subsystem (U, A) is defined by $E_{r}^{λ} (A) = - \sum_{i = 1}^{n} \frac{1}{n} {log}_{2} \frac{1}{| S_{L_{A}^{G} (λ)} (u_{i}) |} .$ (5.4)

Proposition 5.9. Suppose that (U, AT) is a PSVIS. Given λ ∈ (0, 1] and A ⊆ AT. Then $0 \leq E_{r}^{λ} (A) \leq {log}_{2} n .$ (5.5) Moreover, if $L_{A}^{G} (λ)$ is an identity relation on U, then $E_{r}^{λ}$ achieves the minimum value 0; if $L_{A}^{G} (λ)$ is an universal relation on U, then $E_{r}^{λ}$ achieves the maximum value log ₂n.

Proof. Note that $L_{A}^{G} (λ)$ is a fuzzy equivalence relation on U. Then ∀ i, $L_{A}^{G} (λ) (u_{i}) (u_{i}) = 1 .$

So ∀ i, $1 \leq | S_{L_{A}^{G} (λ)} (u_{i}) | \leq n$ ,

$0 \leq - {log}_{2} \frac{1}{| S_{L_{A}^{G} (λ)} (u_{i}) |} = {log}_{2} | S_{L_{A}^{G} (λ)} (u_{i}) | \leq {log}_{2} n$ .

Then $0 \leq - \sum_{i = 1}^{n} {log}_{2} \frac{1}{| S_{L_{A}^{G} (λ)} (u_{i}) |} \leq n {log}_{2} n$ .

By Definition 5.8, $0 \leq E_{r}^{λ} (A) \leq {log}_{2} n .$

If $L_{A}^{G} (λ)$ is an identity relation on U, then ∀ i, $| S_{L_{A}^{G} (λ)} (u_{i}) | = 1$ . So $E_{r}^{λ} (A) = 0$ .

If $L_{A}^{G} (λ)$ is an universal relation on U, then ∀ i, $| S_{L_{A}^{G} (λ)} (u_{i}) | = n$ . So $E_{r}^{λ} (A) = {log}_{2} n$ . □

Proposition 5.10. Suppose that (U, AT) is a PSVIS. Given λ₁, λ₂ ∈ (0, 1] and A, B ⊆ AT.

(1) If S^{λ
₁} (A) ⪯ S^{λ
₂} (B), then (E_r) ^{λ
₁} (A) ≤ (E_r) ^{λ
₂} (B);

(2) If S^{λ
₁} (A) ≺ S^{λ
₂} (B), then (E_r) ^{λ
₁} (A) < (E_r) ^{λ
₂} (B).

Proof. (1) Clearly.

(2) Since S^{λ
₁} (A) ≺ S^{λ
₂} (B), similar to the proof of Theorem 5.3 (2), we obtain that ∀ i, $1 \leq | S_{L_{A}^{G} (λ_{1})} (u_{i}) | \leq | S_{L_{B}^{G} (λ_{2})} (u_{i}) |$ and ∃ j, $1 \leq | S_{L_{A}^{G} (λ_{1})} (u_{j}) | < | S_{L_{B}^{G} (λ_{2})} (u_{j}) | .$

Then ∀ i, $\begin{matrix} - {log}_{2} \frac{1}{| S_{L_{A}^{G} (λ_{1})} (u_{i}) |} & = {log}_{2} | S_{L_{A}^{G} (λ_{1})} (u_{i}) | \\ \leq {log}_{2} | S_{L_{B}^{G} (λ_{2})} (u_{i}) | \\ = - {log}_{2} \frac{1}{| S_{L_{B}^{G} (λ_{2})} (u_{i}) |}, \end{matrix}$

and ∃ j, $\begin{matrix} - {log}_{2} \frac{1}{| S_{L_{A}^{G} (λ_{1})} (u_{j}) |} & = {log}_{2} | S_{L_{A}^{G} (λ_{1})} (u_{j}) | \\ < {log}_{2} | S_{L_{B}^{G} (λ_{2})} (u_{j}) | \\ = - {log}_{2} \frac{1}{| S_{L_{B}^{G} (λ_{2})} (u_{j}) |} . \end{matrix}$

Hence (E_r) ^{λ
₁} (A) < (E_r) ^{λ
₂} (B). □

Proposition 5.11. Suppose that (U, AT) is a PSVIS.

(1) If 0 < λ₁ ≤ λ₂ ≤ 1, then ∀ A ⊆ AT, (E_r) ^{λ
₁} (A) ≤ (E_r) ^{λ
₂} (A);

(2) If A ⊆ B ⊆ AT, then ∀ λ ∈ (0, 1], (E_r) ^λ (B) ≤ (E_r) ^λ (A).

Proof. It can be obtained by Theorems 4.9 and 5.10 (1). □

From Theorem 5.10 and Proposition 5.11, we come to the conclusion that λ-rough entropy can be applied to measure the uncertainty of a PSVIS.

Theorem 5.12. Suppose that (U, AT) is a PSVIS. Given λ ∈ (0, 1] and A ⊆ AT. Then $E_{r}^{λ} (A) + H^{λ} (A) = {log}_{2} n .$ (5.6)

Proof. $E_{r}^{λ} (A) + H^{λ} (A)$

$= - \frac{1}{n} \sum_{i = 1}^{n} ({log}_{2} \frac{1}{| S_{L_{A}^{G} (λ)} (u_{i}) |} + {log}_{2} \frac{| S_{L_{A}^{G} (λ)} (u_{i}) |}{n})$

$= - \frac{1}{n} \sum_{i = 1}^{n} {log}_{2} \frac{1}{n}$

= log ₂n .

□

Corollary 5.13. Suppose that (U, AT) is a PSVIS. Given λ ∈ (0, 1] and A ⊆ AT. Then $0 \leq H^{λ} (A) \leq {log}_{2} n .$ (5.7)

Proof. By Proposition 5.9, $0 \leq E_{r}^{λ} (A) \leq {log}_{2} n$ .

By Theorem 5.12, $H^{λ} (A) = \log_{2} n - E_{r}^{λ} (A)$ .

Thus 0 ≤ H^λ (A) ≤ log ₂ n. □

5.3 Information amount in a PSVIS

Definition 5.14. Suppose that (U, AT) is a PSVIS. Given λ ∈ (0, 1] and A ⊆ AT. Then λ-information amount of the subsystem (U, A) is defined by $E^{λ} (A) = \sum_{i = 1}^{n} \frac{1}{n} (1 - \frac{| S_{L_{A}^{G} (λ)} (u_{i}) |}{n}) .$ (5.8)

Theorem 5.15. Suppose that (U, AT) is a PSVIS. Given λ₁, λ₂ ∈ (0, 1] and A, B ⊆ AT.

(1) If S^{λ
₁} (A) ⪯ S^{λ
₂} (B), then E^{λ
₂} (B) ≤ E^{λ
₁} (A);

(2) If S^{λ
₁} (A) ≺ S^{λ
₂} (B), then E^{λ
₂} (B) < E^{λ
₁} (A).

Proof. (1) Obviously.

(2) Since S^{λ
₁} (A) ≺ S^{λ
₂} (B), similar to the proof of Proposition 5.3 (2), we obtain that ∀ i, $1 \leq | S_{L_{A}^{G} (λ_{1})} (u_{i}) | \leq | S_{L_{B}^{G} (λ_{2})} (u_{i}) |$ and ∃ j, $1 \leq | S_{L_{A}^{G} (λ_{1})} (u_{j}) | < | S_{L_{B}^{G} (λ_{2})} (u_{j}) | .$

Hence E^{λ
₂} (B) < E^{λ
₁} (A). □

Proposition 5.16. Suppose that (U, AT) is a PSVIS.

(1) If 0 < λ₁ ≤ λ₂ ≤ 1, then ∀ A ⊆ AT, E^{λ
₂} (A) ≤ E^{λ
₁} (A);

(2) If A ⊆ B ⊆ AT, then ∀ λ ∈ (0, 1], E^λ (A) ≤ E^λ (B).

From Theorem 5.15 and Proposition 5.16, we come to the conclusion that λ-information amount can be applied to measure uncertainty of a PSVIS.

Theorem 5.17. Suppose that (U, AT) is a PSVIS. Given λ ∈ (0, 1] and A ⊆ AT. Then $G^{λ} (A) + E^{λ} (A) = 1 .$ (5.9)

Proof. G^λ (A) + E^λ (A))

$= \frac{1}{n^{2}} \sum_{i = 1}^{n} [| S_{L_{A}^{G} (λ)} (u_{i}) | + (n - | S_{L_{A}^{G} (λ)} (u_{i}) |)]$

$= \frac{1}{n^{2}} \sum_{i = 1}^{n} n$

= 1 . □

Corollary 5.18. Suppose that (U, AT) is a PSVIS. Given λ ∈ (0, 1] and A ⊆ AT. Then $0 \leq E^{λ} (A) \leq 1 - \frac{1}{n} .$ (5.10)

Proof. By Proposition 5.2, $\frac{1}{n} \leq G^{λ} (A) \leq 1$ .

By Theorem 5.17, E^λ (A) =1 - G^λ (A).

Thus $0 \leq E^{λ} (A) \leq 1 - \frac{1}{n}$ . □

The discrete variable A and the continuous variable λ are involved in each of G^λ (A), H^λ (A), Er^λ (A) and E^λ (A). Note that A = A_i, i = 1, 2, ⋯ , 5, and λ can be discretized as λ² = 0.1, 0.2, ⋯ , 0.9.

Example 5.19. (Continued from Example 3.7) UM for the subsystem of a given PSVIS are given (see Tables 2-6).

Table 2

UM for the subsystem (U, A₁)

λ ²	G^λ (A₁)	H^λ (A₁)	Er^λ (A₁)	E^λ (A₁)
0.1	0.3036	1.7245	1.5974	0.6964
0.2	0.5051	0.9853	2.3366	0.4949
0.3	0.6227	0.6835	2.6384	0.3773
0.4	0.6963	0.5223	2.7996	0.3037
0.5	0.7462	0.4224	2.8995	0.2538
0.6	0.7822	0.3545	2.9674	0.2179
0.7	0.8092	0.3054	3.0165	0.1908
0.8	0.8304	0.2682	3.0537	0.1697
0.9	0.8473	0.2391	3.0829	0.1527

Table 3

UM for the subsystem (U, A₂)

λ ²	G^λ (A₂)	H^λ (A₂)	Er^λ (A₂)	E^λ (A₂)
0.1	0.2153	2.2215	1.1004	0.7847
0.2	0.3958	1.3378	1.9842	0.6042
0.3	0.5206	0.9419	2.3800	0.4794
0.4	0.6052	0.7248	2.5972	0.3948
0.5	0.6652	0.5884	2.7335	0.3348
0.6	0.7096	0.4951	2.8269	0.2904
0.7	0.7438	0.4272	2.8947	0.2562
0.8	0.7708	0.3757	2.9463	0.2292
0.9	0.7927	0.3352	2.9867	0.2073

Table 4

UM for the subsystem (U, A₃)

λ ²	G^λ (A₃)	H^λ (A₃)	Er^λ (A₃)	E^λ (A₃)
0.1	0.1443	2.7979	0.5240	0.8557
0.2	0.28036	1.8363	1.4857	0.7196
0.3	0.4018	1.3164	2.0055	0.5982
0.4	0.4935	1.0194	2.30250	0.5065
0.5	0.5626	0.8302	2.4917	0.4374
0.6	0.6158	0.6997	2.6222	0.3842
0.7	0.6578	0.6045	2.7174	0.3422
0.8	0.6917	0.5320	2.7900	0.3083
0.9	0.7196	0.4749	2.8470	0.2804

Table 5

UM for the subsystem (U, A₄)

λ ²	G^λ (A₄)	H^λ (A₄)	Er^λ (A₄)	E^λ (A₄)
0.1	0.1443	2.7979	0.5240	0.8557
0.2	0.2804	1.8363	1.4857	0.7196
0.3	0.4018	1.3164	2.0055	0.5982
0.4	0.4935	1.0194	2.3025	0.5065
0.5	0.5626	0.8302	2.4917	0.4374
0.6	0.6158	0.6997	2.6222	0.3842
0.7	0.6578	0.6045	2.7174	0.3422
0.8	0.6917	0.5320	2.7900	0.3083
0.9	0.7196	0.4749	2.8470	0.2804

Table 6

UM for the subsystem (U, A₅)

λ ²	G^λ (A₅)	H^λ (A₅)	Er^λ (A₅)	E^λ (A₅)
0.1	0.1217	3.0416	0.2804	0.8783
0.2	0.2203	2.1854	1.1365	0.7797
0.3	0.3277	1.6116	1.7104	0.6723
0.4	0.4172	1.2627	2.0593	0.5828
0.5	0.4885	1.0347	2.2873	0.5115
0.6	0.5454	0.8753	2.4466	0.4546
0.7	0.5915	0.7581	2.5639	0.4085
0.8	0.6294	0.6683	2.6536	0.3706
0.9	0.6611	0.5974	2.7245	0.3389

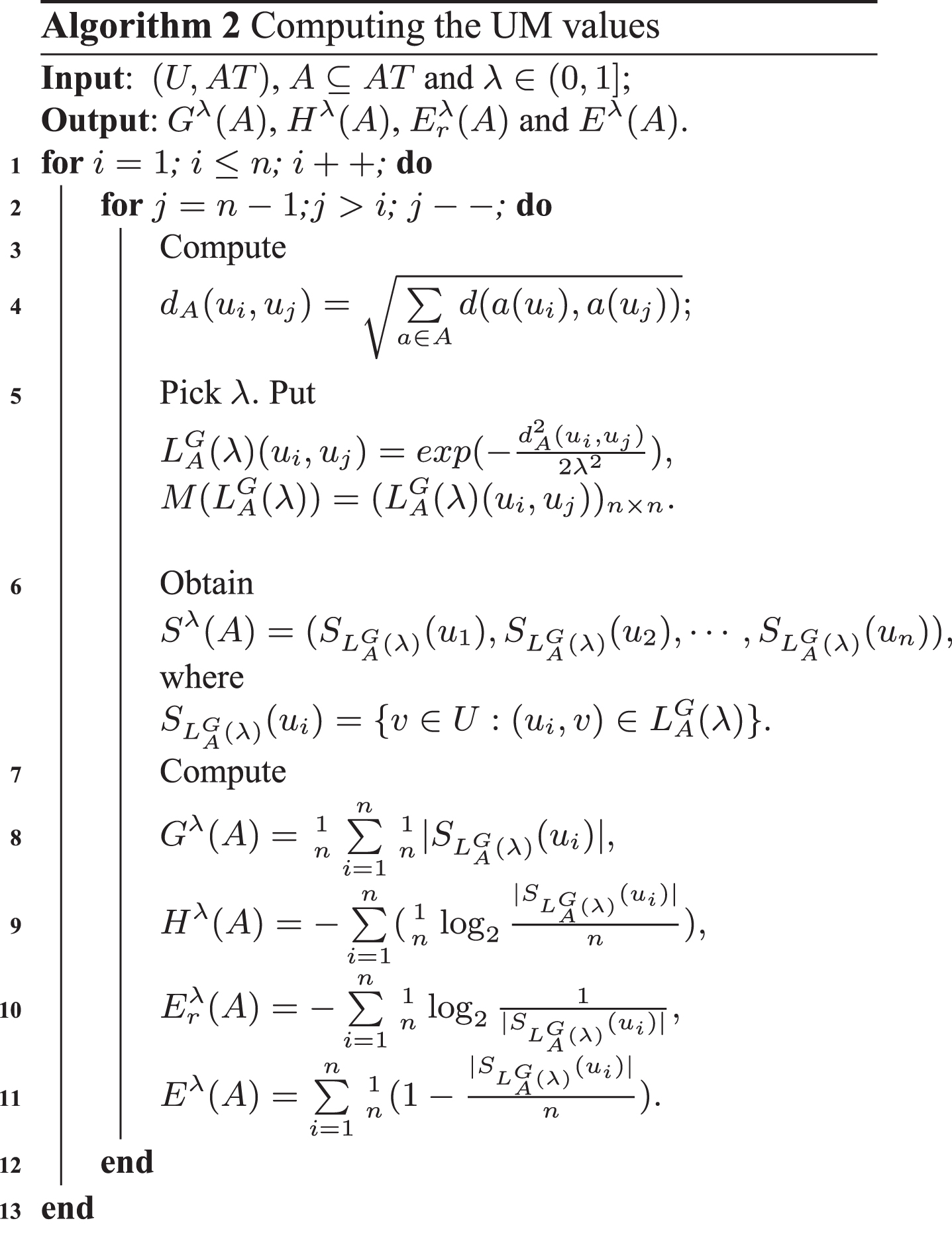

Given A ⊆ AT, an algorithm for generating UM for the subsystem is given as follows (see Algorithm 2).

Example 5.20. (Continued from Examples 2.12 and 4.3) Pick λ² = 0.1, ⋯ , 0.9 . We obtain the following results:

(1) If we only consider the monotonicity, then λ-information granulation and λ-rough entropy are both monotonically increasing with the growth of the value λ, which means the uncertainty of four subsystems increases as the value λ increases. Meanwhile, λ-information amount and λ-information entropy are both monotonically decreasing with the growth of the value λ, which means the uncertainty of four subsystem decreases as the value λ increases (see Figures 1,2,3,4 and 5).

(2) Consider λ-information granulation and λ-rough entropy. If we pick λ² = 0.8, then G^λ (A₅) < G^λ (A₄) = G^λ (A₃) < G^λ (A₂) < G^λ (A₁) , (Er) ^λ (A₅) < (Er) ^λ (A₄) = (Er) ^λ (A₃) < (Er) ^λ (A₂) < (Er) ^λ (A₁) .That shows the larger the subsystem, the smaller the measured value. We have E^λ (A₁) < E^λ (A₂) < E^λ (A₃) = E^λ (A₄) < E^λ (A₅) , H^λ (A₁) < H^λ (A₂) < H^λ (A₃) = H^λ (A₄) < H^λ (A₅) . That displays the measured value of the subsystem is larger than the smaller one (see Fig. 6).

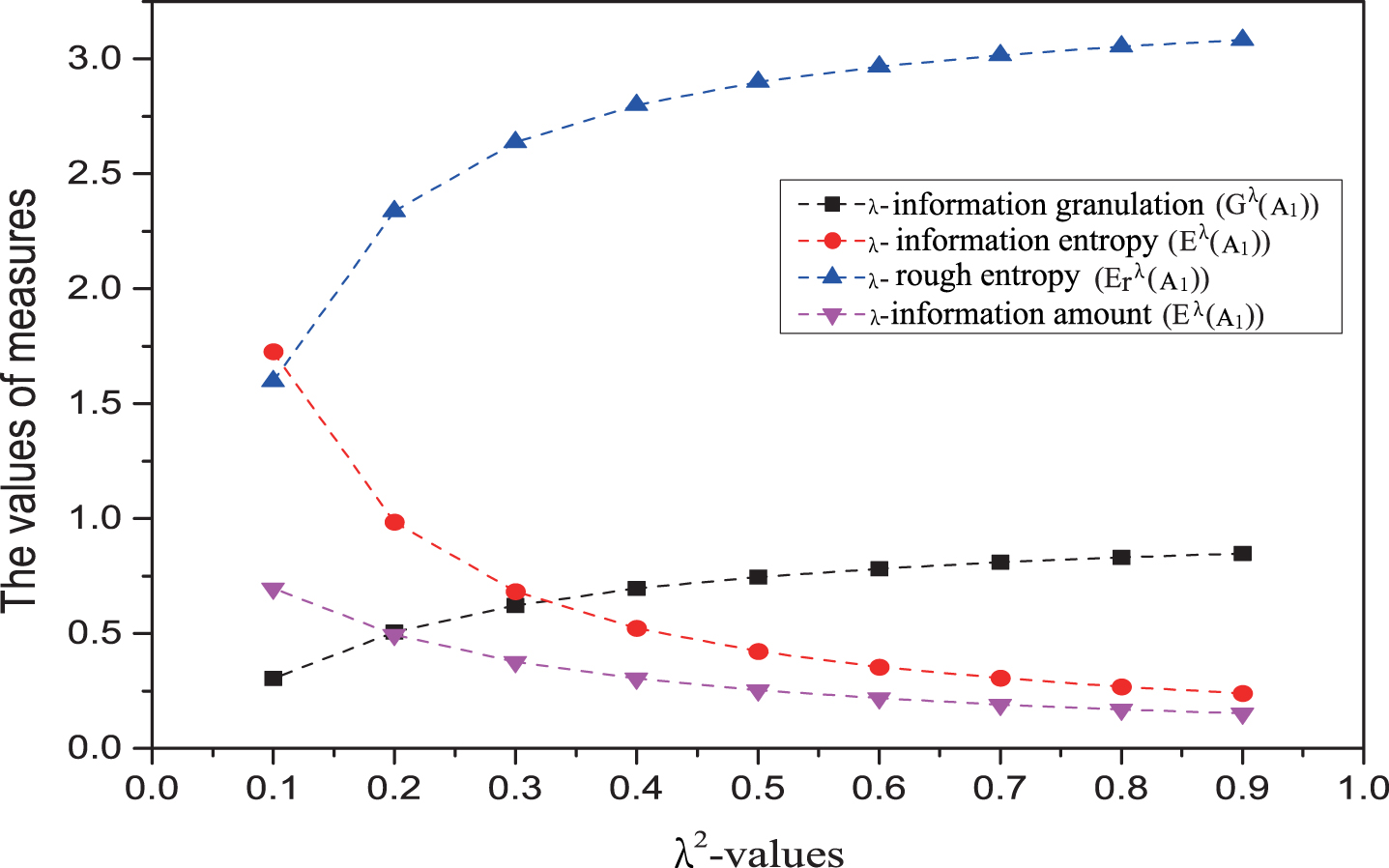

Fig. 1

Uncertainty measures of (U, A₁) with different λ.

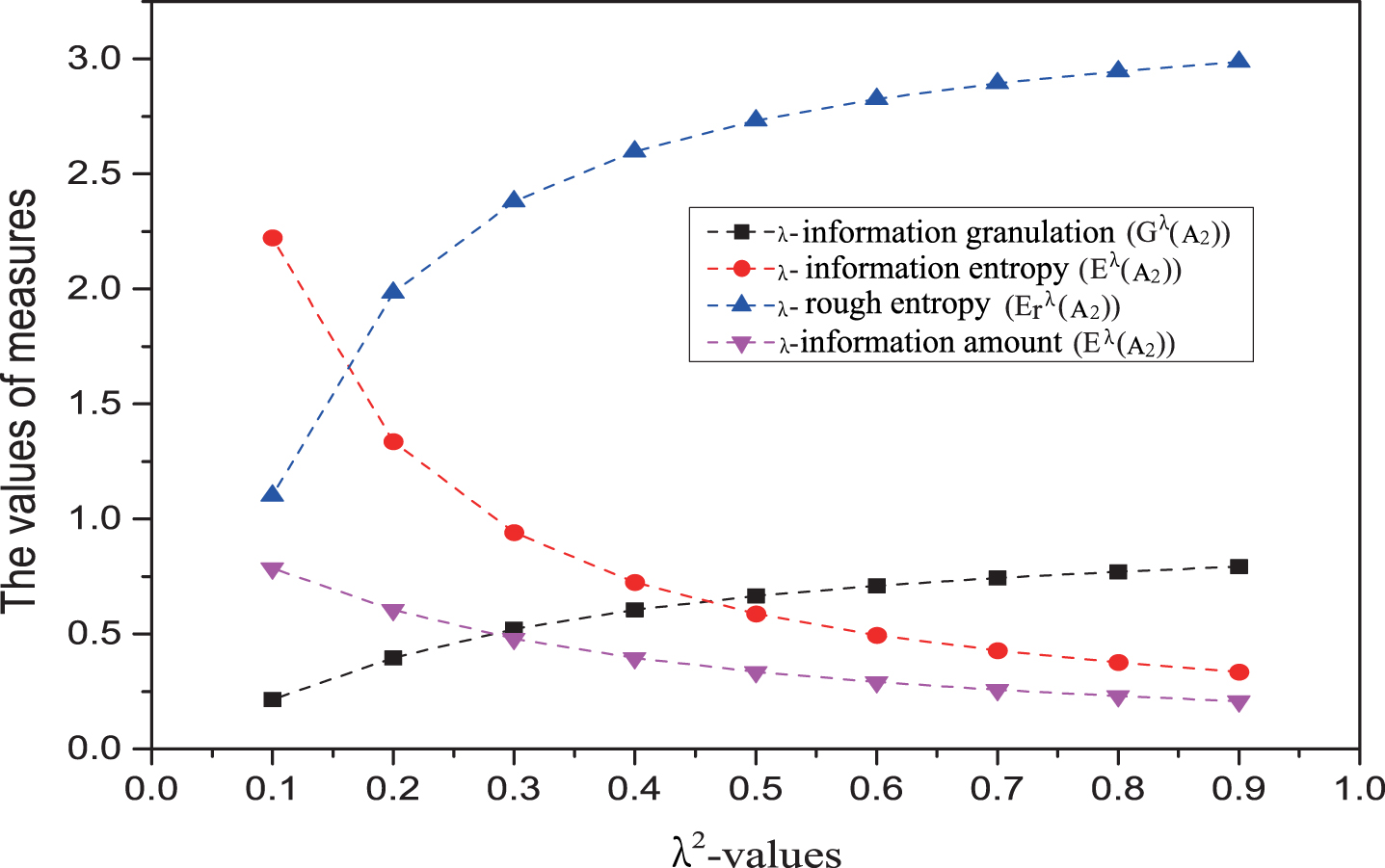

Fig. 2

Uncertainty measures of (U, A₂) with different λ.

Fig. 3

Uncertainty measures of (U, A₃) with different λ.

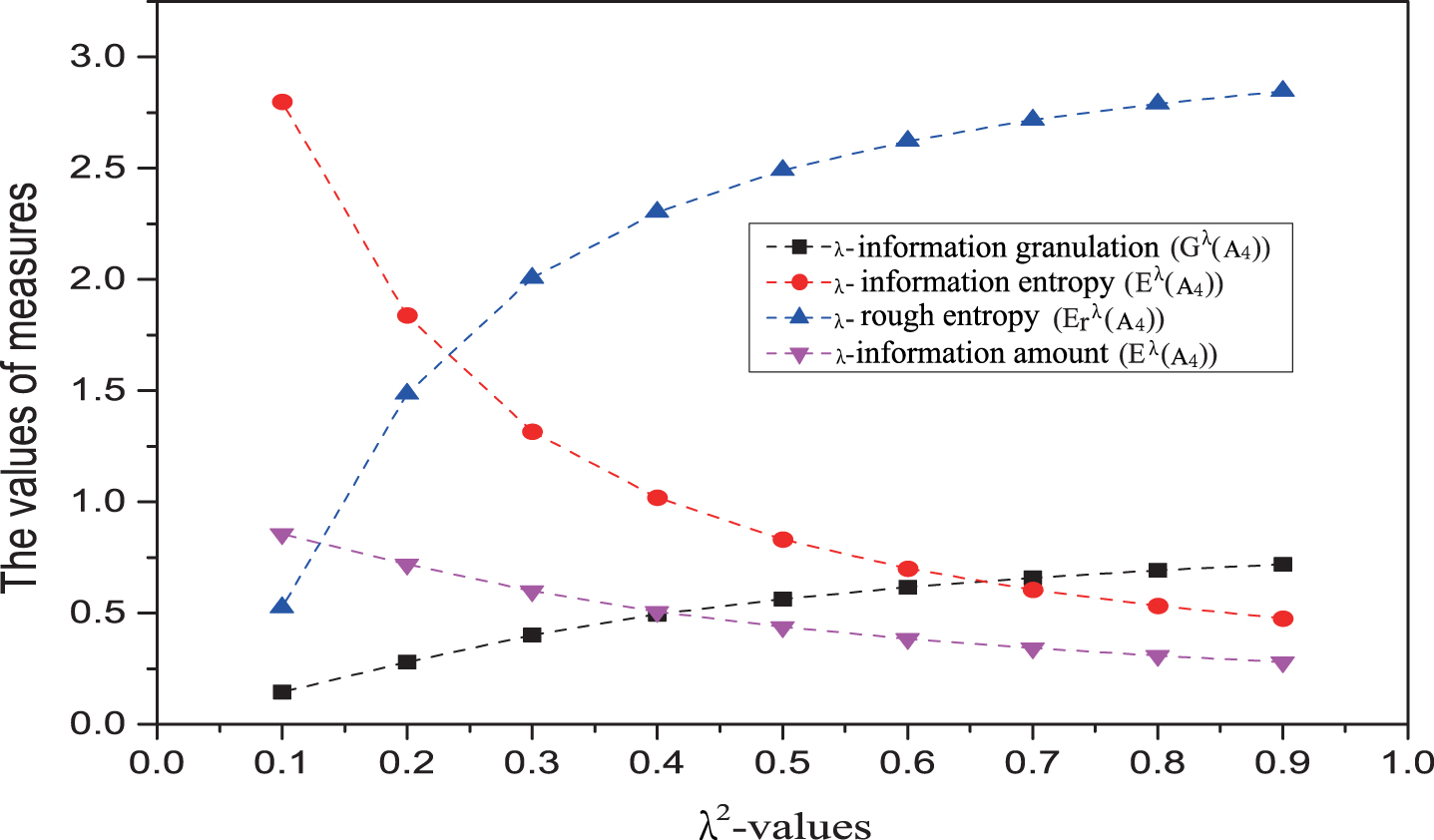

Fig. 4

Uncertainty measures of (U, A₄) with different λ.

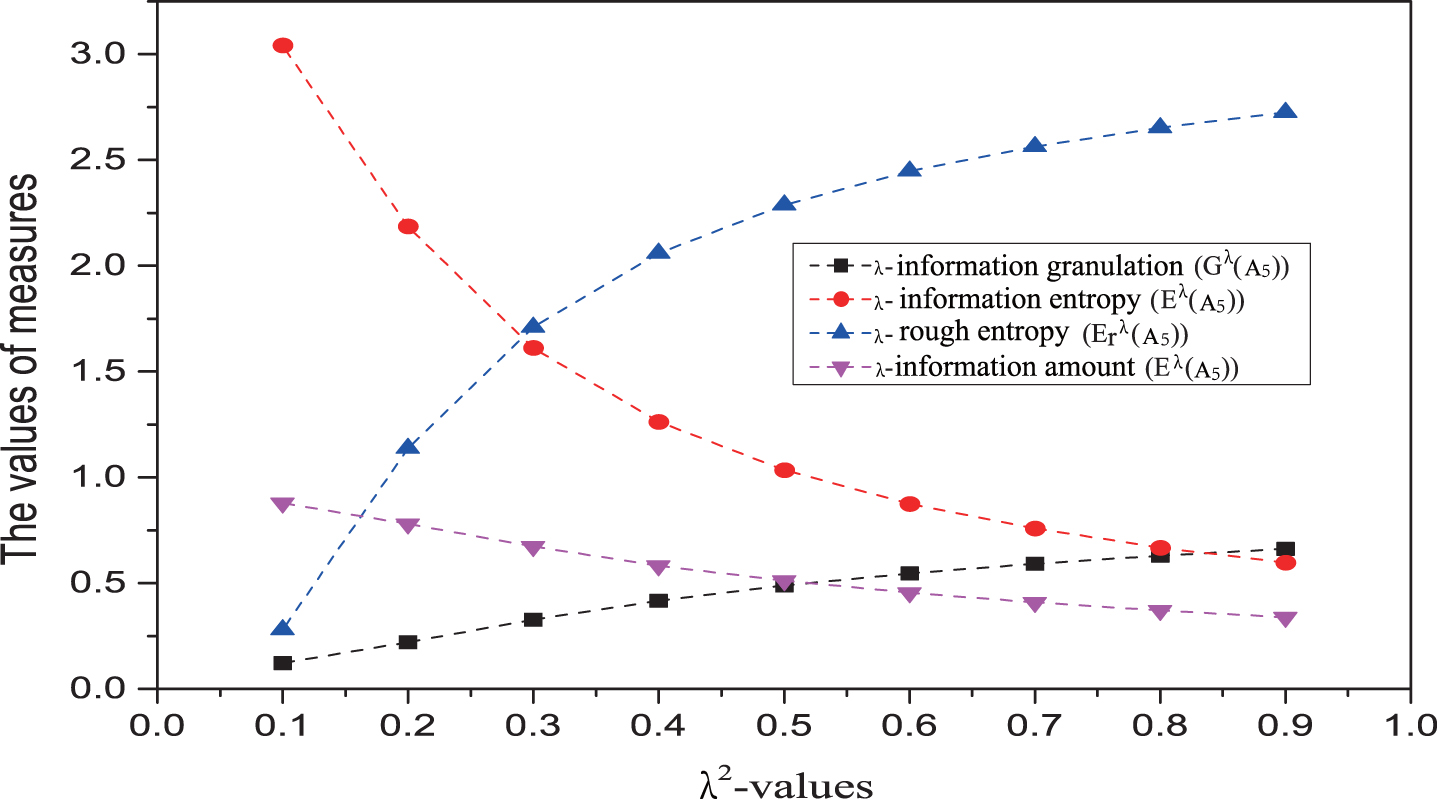

Fig. 5

Uncertainty measures of (U, A₅) with different λ.

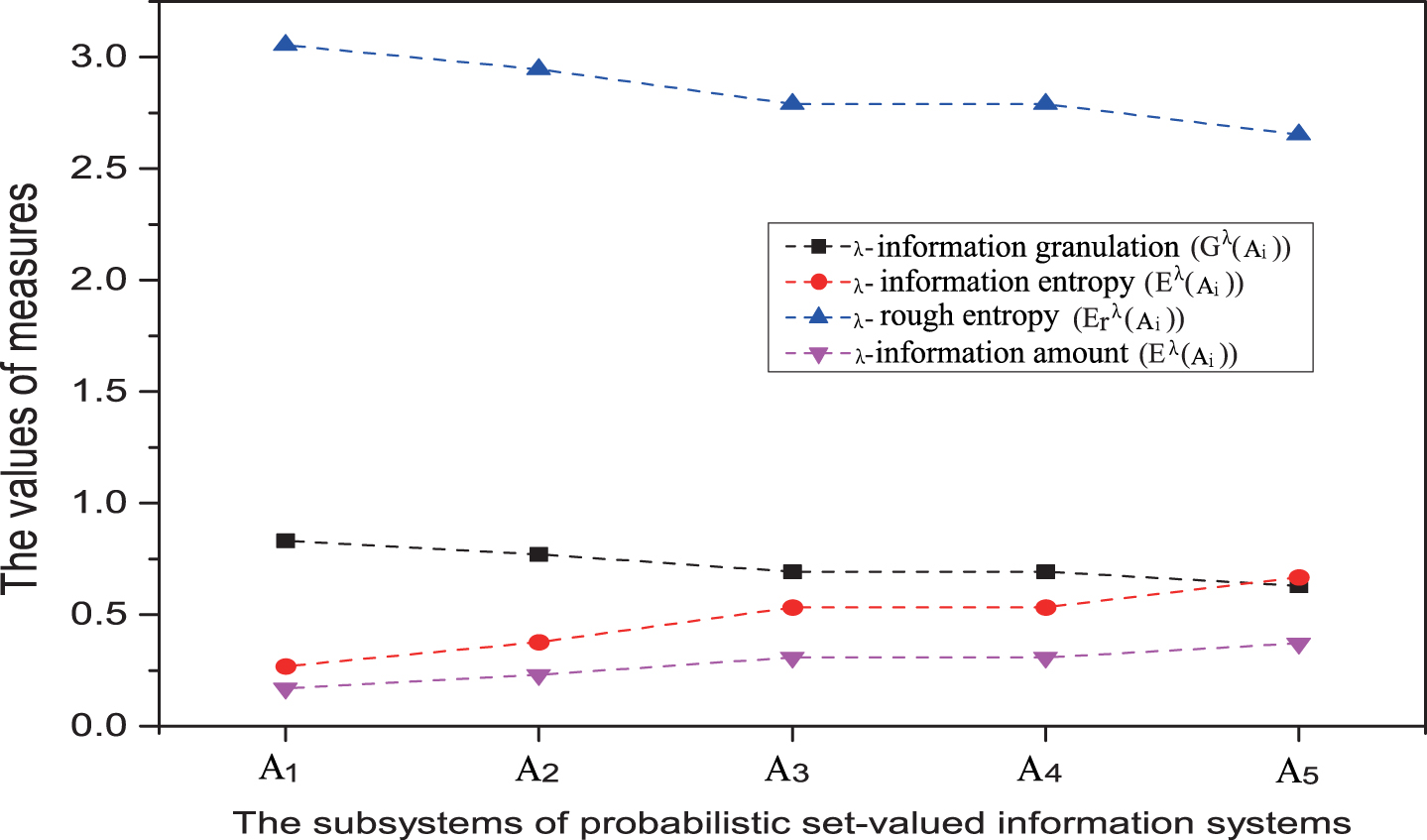

Fig. 6

Uncertainty measures of subsystems with the changeless $λ = \sqrt{0.8}$ .

5.4 Effectiveness analysis

In this subsection, we give effectiveness analysis from two aspects of dispersion and correlation in statistics.

5.4.1 Dispersion analysis

In this paper, we apply the standard deviation coefficient to do effectiveness analysis of the proposed measures.

Given a data set X = {x₁, ⋯ , x_n}. Then its arithmetic average value $\bar{x} = \frac{1}{n} \sum_{i = 1}^{n} x_{i}$ , its standard deviation $σ (X) = \sqrt{\frac{1}{n} \sum_{i = 1}^{n} (x_{i} - \bar{x})^{2}}$ , and its standard deviation coefficient $CV (X) = \frac{σ (X)}{\bar{x}} .$

Example 5.21. (Continued from Example 3.10) Pick $λ_{1} = \sqrt{0.1}, λ_{2} = \sqrt{0.2}, \dots, λ_{9} = \sqrt{0.9} .$

For i = 1, 2, 3, 4, 5, denote $\begin{matrix} X_{G}^{A_{i}} = {G^{λ_{1}} (A_{i}), G^{λ_{2}} (A_{i}), \dots, G^{λ_{9}} (A_{i})}, \end{matrix}$ $\begin{matrix} X_{E_{r}}^{A_{i}} = {{E_{r}}^{λ_{1}} (A_{i}), {E_{r}}^{λ_{2}} (A_{i}), \dots, {E_{r}}^{λ_{9}} (A_{i})}, \end{matrix}$ $\begin{matrix} X_{H}^{A_{i}} = {H^{λ_{1}} (A_{i}), H^{λ_{2}} (A_{i}), \dots, H^{λ_{9}} (A_{i})}, \end{matrix}$ $\begin{matrix} X_{E}^{A_{i}} = {E^{λ_{1}} (A_{i}), E^{λ_{2}} (A_{i}), \dots, E^{λ_{9}} (A_{i})} . \end{matrix}$ These CV-values are shown in Table 7. Then

$\begin{matrix} CV (X_{E_{r}}^{A_{1}}) < CV (X_{G}^{A_{1}}) < CV (X_{E}^{A_{1}}) < CV (X_{H}^{A_{1}}) . \end{matrix}$ $\begin{matrix} CV (X_{E_{r}}^{A_{2}}) < CV (X_{G}^{A_{2}}) < CV (X_{E}^{A_{2}}) < CV (X_{H}^{A_{2}}) . \end{matrix}$ $\begin{matrix} CV (X_{E_{r}}^{A_{3}}) < CV (X_{G}^{A_{3}}) < CV (X_{E}^{A_{3}}) < CV (X_{H}^{A_{3}}) . \end{matrix}$ $\begin{matrix} CV (X_{E_{r}}^{A_{4}}) < CV (X_{G}^{A_{4}}) < CV (X_{E}^{A_{4}}) < CV (X_{H}^{A_{4}}) . \end{matrix}$ $\begin{matrix} CV (X_{E_{r}}^{A_{5}}) < CV (X_{E}^{A_{5}}) < CV (X_{G}^{A_{5}}) < CV (X_{H}^{A_{5}}) . \end{matrix}$ This means the dispersion degree of E_r^λ is minimum.

Table 7
CV-vaules

i $CV (X_{G}^{A_{i}})$ $CV (X_{H}^{A_{i}})$ $CV (X_{E_{r}}^{A_{i}})$ $CV (X_{E}^{A_{i}})$

1 0.2480 0.7399 0.1670 0.5332

2 0.3028 0.6979 0.2315 0.4583

3 0.3664 0.6408 0.3275 0.3775

4 0.3664 0.6408 0.3275 0.3775

5 0.3992 0.5760 0.3881 0.3198

i	$CV (X_{G}^{A_{i}})$	$CV (X_{H}^{A_{i}})$	$CV (X_{E_{r}}^{A_{i}})$	$CV (X_{E}^{A_{i}})$
1	0.2480	0.7399	0.1670	0.5332
2	0.3028	0.6979	0.2315	0.4583
3	0.3664	0.6408	0.3275	0.3775
4	0.3664	0.6408	0.3275	0.3775
5	0.3992	0.5760	0.3881	0.3198

From Figures 1,2,3,4,5,6 and Table 13, we obtain the following results:

(1) If we only need monotonicity, then G^λ, E_r^λ, H^λ and E^λ have better performance for measuring uncertainty of a PSVIS;

(2) If we only consider dispersion degree, then E_r^λ has better performance for measuring uncertainty of a PSVIS;

(3) If we both need monotonicity and dispersion degree, then E_r^λ has better performance for measuring uncertainty of a PSVIS.

5.4.2 Correlation analysis

In statistics, Pearson correlation coefficient is a measure of the strength of a linear correlation between two variables or two data sets.

Given two data sets X = {x₁, ⋯ , x_n} and Y = {y₁, ⋯ , y_n}. Pearson correlation coefficient between X and Y, denoted by r_XY, is defined by follows:

$r_{XY} = \frac{\sum_{i = 1}^{n} (x_{i} - \bar{x}) (y_{i} - \bar{y})}{\sqrt{\sum_{i = 1}^{n} (x_{i} - \bar{x})^{2}} \sqrt{\sum_{i = 1}^{n} (y_{i} - \bar{y})^{2}}},$ (5.11) where $\bar{x} = \frac{1}{n} \sum_{i = 1}^{n} x_{i}$ , $\bar{y} = \frac{1}{n} \sum_{i = 1}^{n} y_{i}$ .

Example 5.22. (Continued from Example 3.10) Pick $λ_{1} = \sqrt{0.1}, λ_{2} = \sqrt{0.2}, \dots, λ_{9} = \sqrt{0.9} .$

Then the following results are obtained (see Tables 7-11).

Table 8

The corresponding correlation between X and Y

r (X, Y)	Correlation between X and Y	Abbreviation
r (X, Y) =1	Completely positive correlation	CPC
0.7 ≤ r (X, Y) <1	Height positive correlation	HPC
0.4 ≤ r (X, Y) <0.7	Moderate positive correlation	MPC
0 < r (X, Y) <0.4	Low positive correlation	LPC
r (X, Y) =0	No correlation	NC
-0.4 < r (X, Y) <0	Low negative correlation	LNC
-0.7 ≤ r (X, Y) < -0.4	Moderate negative correlation	MNC
-1 ≤ r (X, Y) < -0.7	Height negative correlation	HNC
r (X, Y) = -1	Completely negative correlation	CNC

Table 9

Correlation analysis in the subsystem (U, A₅)

r	$X_{G}^{A_{5}}$	$X_{H}^{A_{5}}$	$X_{E_{r}}^{A_{5}}$	$X_{E}^{A_{5}}$
$X_{G}^{A_{5}}$	1
$X_{H}^{A_{5}}$	-0.9744	1
$X_{E_{r}}^{A_{5}}$	0.9744	-1	1
$X_{E}^{A_{5}}$	-1	0.9744	-0.9744	1

Table 10

Correlation analysis in the subsystem (U, A₁)

r	$X_{G}^{A_{1}}$	$X_{H}^{A_{1}}$	$X_{E_{r}}^{A_{1}}$	$X_{E}^{A_{1}}$
$X_{G}^{A_{1}}$	1
$X_{H}^{A_{1}}$	-0.9893	1
$X_{E_{r}}^{A_{1}}$	0.9893	-1	1
$X_{E}^{A_{1}}$	-1	0.9893	-0.9893	1

Table 11

Correlation analysis in the subsystem (U, A₂)

r	$X_{G}^{A_{2}}$	$X_{H}^{A_{2}}$	$X_{E_{r}}^{A_{2}}$	$X_{E}^{A_{2}}$
$X_{G}^{A_{2}}$	1
$X_{H}^{A_{2}}$	-0.9831	1
$X_{E_{r}}^{A_{2}}$	0.9831	-1	1
$X_{E}^{A_{2}}$	-1	0.9831	-0.9831	1

From Table 8, the following conclusion is given (see Table 13).

Table 12

Correlation analysis in the subsystem (U, A₃)

r	$X_{G}^{A_{3}}$	$X_{H}^{A_{3}}$	$X_{E_{r}}^{A_{3}}$	$X_{E}^{A_{3}}$
$X_{G}^{A_{3}}$	1
$X_{H}^{A_{3}}$	-0.9757	1
$X_{E_{r}}^{A_{3}}$	0.9757	-1	1
$X_{E}^{A_{3}}$	-1	0.9757	-0.9757	1

Table 13

Correlation analysis in the subsystem (U, A₄)

r	$X_{G}^{A_{4}}$	$X_{H}^{A_{4}}$	$X_{E_{r}}^{A_{4}}$	$X_{E}^{A_{4}}$
$X_{G}^{A_{4}}$	1
$X_{H}^{A_{4}}$	-0.9757	1
$X_{E_{r}}^{A_{4}}$	0.9757	-1	1
$X_{E}^{A_{4}}$	-1	0.9757	-0.9757	1

From Tables 9-12, we come to the same conclusion as Table 13.

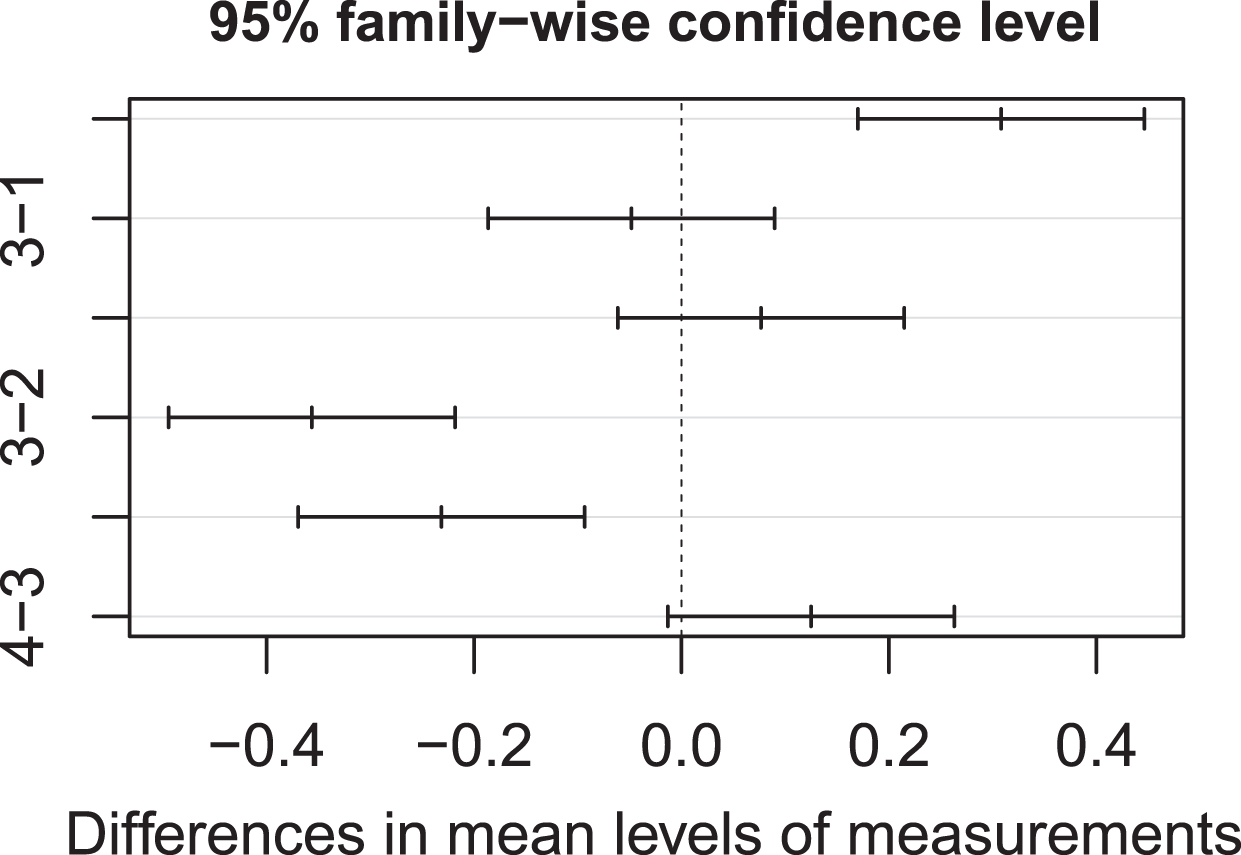

5.4.3 Analysis of variance and post-hoc test

To further explore whether the performances of the four UMs are significantly different, analysis of variance and post-hoc pairwise comparison are given in this part.

In order to determine whether there is a statistically significant difference among three or more independent samples, analysis of variance (ANOVA) was invented by Fisher. If we only study the change of one factor during the test, it is referred to as one-way analysis of variance. Here, we only consider one-way analysis of variance. Due to the influence of the factor, the data obtained from the test shows fluctuation. There are two reasons for the fluctuation: one is from the uncontrollable random factors, and the other is from the controllable factors exerted on the results in the test. Suppose that SST means the sum of squares for total, SSA expresses the sum of squares for factor A among groups, and SSE indicates the sum of squares for the uncontrollable random factors. Then $SST = SSA + SSE .$ (5.12) If SSA accounts for a large proportion of SST, it shows that the variation of observed variables is mainly caused by factor A. On the contrary, if SSA accounts for a small proportion of SST, it shows that the variation is not mainly caused by factor A, namely, factor A has no significant influence on the observed variables, and the variation is caused by SSE. The test steps of ANOVA are given as follows:

Step 1 Put forward the null hypothesis (H₀) and the alternative hypothesis (H₁). $H_{0} : μ_{1} = μ_{2} = \dots = μ_{k} a n d H_{1} : μ_{1}, μ_{2}, \dots, μ_{k}$ are not all equal, where μ_i is the mean of the i-th sample.

Step 2 Calculate the mean and the variance of each samples. ${\bar{x}}_{i} = \frac{\sum_{j = 1}^{n_{i}} x_{ij}}{n_{i}} (i = 1, 2, \dots, k),$ (5.13) where n_i is the size of the i-th sample, and x_ij is the value of the j-th observation for the i-th sample.

Step 3 Calculate the sum of squares for factor A. $SSA = \sum_{i = 1}^{k} n_{i} ({\bar{x}}_{i} - \bar{\bar{x}})^{2},$ (5.14) where $\bar{\bar{x}}$ is the mean of all observations.

Step 4 Calculate the sum of squares for error. $SSE = \sum_{i = 1}^{k} \sum_{j = 1}^{n_{i}} (x_{ij} - {\bar{x}}_{i})^{2} .$ (5.15)

Step 5 Calculate the F-statistic and make decisions. $F = \frac{SSA / (k - 1)}{SSE / (n - k)} \sim F (k - 1, n - k) .$ (5.16)

The statistic F follows the fisher distribution with k - 1 and n - k degrees of freedom. If the value of the statistic F is larger than the critical value of F_α (k - 1, n - k), it means the null hypothesis is rejected under the test. However, this does not tell which samples are different from each other, it simply tells that not all of the sample means are equal. Then post-hoc test can be conducted to further explore the difference among sample means. Post-hoc test includes Tukey’s test, Holm’s method, Dunnett’s correction, least significant difference, and so on.

Below, we view CV-values of the four UMs as four independent samples, and demonstrate the statistically significant difference by using ANOVA test and post-hoc test. We choose Tukey’s test to perform a post-hoc test. We pick 0.05 as the significance level, and the test results are obtained (see Tables 14 and 15, and Fig. 7).

Table 14

The correlation between two λ-measures

	G ^λ	H ^λ	$E_{r}^{λ}$	G ^λ
G ^λ	CPC
H ^λ	NC	CPC
$E_{r}^{λ}$	HPC	CNC	CPC
E ^λ	CNC	HPC	NC	CPC

Table 15

ANOVA

	df	sum sq	mean sq	F-value	p-value
Group	3	0.3741	0.12471	21.418	7.56 × 10^-6
Residual	16	0.0932	0.00582

where “df”, “sum sq” and “mean sq” express “degree of freedom”, “the sum of squares” and “the mean of squares”, respectively.

Fig. 7

Tukey’s test.

From Table 14 output, we see that the F-statistic is 21.42 and the corresponding p-value is 7.56 × 10^-6 which is extremely small. This means we have sufficient evidence to reject the null hypothesis that all of the group means are equal. Next, we can use a post hoc test (here we choose Tukey’s test) to find which group means are different from each other.

Tukey’s test gives two metrics to compare each pairwise difference, one is confidence interval for the mean difference (given by the values of lwr and upr), and the other is adjusted p-value for the mean difference. Both the confidence interval and the p-value lead to the same conclusion. From Table 15, the confidence interval for the mean difference between the measurement G and H is (-0.4462, -0.17005), and since this interval does not contain zero, we know that the difference between these two sample means is statistically significant. Likewise, the p-value for the mean difference between the measurement G and H is 4.87 × 10^-5, which is less than our significance level of 0.05, so this also indicates that the difference between these two sample means is statistically significant. In particular, the difference is negative, and this means that H has smaller CV-values.

In Fig. 7, if the interval contains zero, then we know that the difference in sample means is not statistically significant. Therefore the differences for sample pairwise 2-1, 3-2 and 4-2 are statistically significant, but the differences for the other three pairwise comparisons are not statistically significant.

Based on the above analysis, we can come to the following conclusions:

a) The differences between G and H are statistically significant, and the performance of G is better than that of H;

b) The differences between H and E_r are statistically significant, and the performance of E_r is better than that of H;

c) The differences between H and E are statistically significant, and the performance of E is better than that of H;

d) There are no significant differences between G and H;

e) There are no significant differences between G and E;

f) There are no significant differences between E_r and E.

6 Methodological comparisons

In order to see the novelty of this study more clearly, we do comparison and discussion in this part.

1) Lang et al. [46] proposed three relations for attribute selection of a SVDIS. Then, they designed an incremental algorithm to compress a dynamic SVDIS. Concretely, they mainly addressed the compression updating from three aspects: variations of attribute set, immigration and emigration of objects and alterations of attribute values.

2) Dai et al. [47] gave the relative bound difference similarity degree between two objects and presented a α-tolerance relation by using this similarity degree. Moreover, they brought up some information theory concepts, including entropy, conditional entropy, and joint entropy. Based on these concepts, they provided an information theory view for attribute selection in ISDISs.

3) Wang et al. [48] dealt with attribute selection of a SVDIS based on α-level tolerance relation. They introduced the concepts of distribution reduct based on a SVDIS and examined the judgement theorems and discernibility matrices associated with the α-level tolerance relation.

4) Liu et al. [49] defined a dominance relation in a SVDIS based on similarity degree of attribute value sets. They a discernibility matrix by this dominance relation and studied the problem of attribute selection and the judgment in a SVDIS.

5) Singh et al. [50] introduced a new similarity degree between two set-valued attribute values and then proposed a fuzzy similarity-based rough set approach based on this fuzzy tolerance relation. In addition, attribute selection of a SVDIS based on degree of dependency is postulated.

6) This article aims to explore UM in a probability set-valued information system (PSVIS) based on Gaussian kernel method by means of its information structures. Given an PSVIS, we build the distance between objects in each subsystem of a PSVIS according to Bhattacharyya distance and obtain the fuzzy T_cos-equivalence relations in a PSVIS by using Gaussian kernel method. Then, we define the information structures in a PSVIS. As an application for the information structures, we investigate UM for a PSVIS. In order to evaluate the performance of the investigated measures, we perform effectiveness analysis from the angle of statistics.

The comparison and discussion between this paper and several representative literatures are shown in Table 17.

Table 16
Tukey’s test

diff lwr upr p-value

G, H -0.3081 -0.4462 -0.17005 4.87 × 10^-5

G, E_r 0.0482 -0.0898 0.1863 0.7518

G, E -0.0767 -0.2148 0.0613 0.4119

H, E_r 0.3564 0.2183 0.4944 8.4 × 10^-6

H, E 0.2314 0.0933 0.3695 0.0010

E_r, E -1.250 -0.2630 0.0131 0.0833

	diff	lwr	upr	p-value
G, H	-0.3081	-0.4462	-0.17005	4.87 × 10^-5
G, E_r	0.0482	-0.0898	0.1863	0.7518
G, E	-0.0767	-0.2148	0.0613	0.4119
H, E_r	0.3564	0.2183	0.4944	8.4 × 10^-6
H, E	0.2314	0.0933	0.3695	0.0010
E_r, E	-1.250	-0.2630	0.0131	0.0833

where “diff”, “lwr” and “upr” indicate “difference value”, “the lower bound of the confidence interval” and “the upper bound of the confidence interval”, respectively.

Table 17

The comparison of this paper with other literatures

	Literature	Similarity degree	Binary relation	Attribute selection method	Research tools
Difference	Dai et al. [47], 2013	$S_{uv} = \frac{\| a (u) \cap a (v) \|}{\| a (u) \cup a (v) \|}$	Fuzzy tolerance relation	Discernibility matrix	Fuzzy rough set
	Liu et al. [49], 2016	$c_{ij}^{a} = \frac{\| a (u_{i}) \|}{\| a (u_{j}) \|}$	Dominance relation	Discernibility matrix	RST
	Singh et al. [50], 2019	$s (u, v) = \frac{2 \| a (u) \cap a (v) \|}{\| a (u) \| + \| a (v) \|}$	Fuzzy tolerance relation	Degree of dependency	RST
	This paper	d (a (u) , a (v)) = BD (a (u) , a (v)) s (a (u) , a (v)) =1 - BD (a (u) , a (v))	Tolerance relation	Conditional entropy	RST
Similaritiy	(1) All these papers have defined the similarity degree or distance.
	(2) All these papers have took advantage of RST or information entropy.

7 Conclusions

In this paper, information structures in a PSVIS have been studied. By using information structures, granularity measure and entropy measures for a PSVIS have been investigated. Moreover, information amount in a PSVIS has been also considered. To evaluate the performance of the proposed measures, effectiveness analysis has been performed from the angle of statistics. It is worth mentioning that the comparison criteria for evaluating the performance of the proposed measures includes standard deviation coefficient, Pearson correlation coefficient, etc. A PSVIS in this paper is required that the information values of two objects about the same attribute obey the same probability distribution. This is the limitation of the proposed method. In future work, we will study the application of the obtained results in attribute reduction in a PSVIS.

The appendix of symbols

For convenience, we give the appendix of these symbols as follows (see Table 18).

Table 18

The appendix of symbols

Symbol	Meaning
U	The object set
AT	The attribute set
I	[0,1]
F (U)	The set of all fuzzy sets in U
F (U × U)	The set of all fuzzy relations in U
\|P\|	The cardinality of P
GrC	Granular computing
RST	Rough set theory
IS	Information system
SVIS	Set-valued information system
SVDIS	Set-valued decision information system
PSVIS	Probability set-valued information system
D _B	Bhattacharyya distance
G ()	Gaussian kernel
S^λ (A)	λ-information structure of (U, A)
S^λ (U, AT)	λ-information structure base of (U, AT)
$L_{A}^{G} (λ)$	The fuzzy relation induced by (U, A) with respect to λ based on Gaussian kernel
G^λ (A)	λ-information granulation of (U, A)
H^λ (A)	λ-information entropy of (U, A)
$E_{r}^{λ} (A)$	λ-rough entropy of (U, A)
E^λ (A)	λ-information amount of (U, A)

Footnotes

Acknowledgements

The authors would like to thank the editors and the anonymous reviewers for their valuable comments and suggestions, which have helped immensely in improving the quality of the paper.

References

Zadeh

L.A.

, Fuzzy logic equals computing with words, IEEE Transactions on Fuzzy Systems 4(2) (1996), 103–111.

Zadeh

L.A.

, Toward a theory of fuzzy information granulation and its centrality in human reasoning and fuzzy logic, Fuzzy Sets and Systems 90 (1997), 111–127.

Lin

T.Y.

, Granular computing on binary relations I: data mining and neighborhood systems, In: Rough Sets In Knowledge Discovery, Skowron

and Polkowski

(eds), Physica-Verlag (1998), 107–121.

Yao

Y.Y.

, Information granulation and rough set approximation, International Journal of Intelligent Systems 16 (2001), 87–104.

Pawlak

, Rough Sets: Theoretical aspects of reasoning about data, Kluwer Academic Publishers, Dordrecht, 1991.

Pawlak

, Rough sets, International Journal of Computer Information Science 11 (1982), 341–356.

Cornelis

, Jensen

, Martin

G.H.

and Slezak

, Attribute selection with fuzzy decision reducts, Information Sciences 180 (2010), 209–224.

Yao

Y.Y.

, Relational interpretations of neighborhood operators and rough set approximation operators, Information Sciences 111 (1998), 239–259.

Blaszczynski

, Slowinski

and Szelag

, Sequential covering rule induction algorithm for variable consistency rough set approaches, Information Sciences 181(5) (2011), 987–1002.

10.

Dai

J.H.

, Hu

, Wu

W.Z.

, Qian

Y.H.

and Huang

D.B.

, Maximal discernibility-pair-based approach to attribute reduction in fuzzy rough sets, IEEE Transactions on Fuzzy Systems 26(4) (2018), 2175–2187.

11.

Zhang

G.Q.

, Li

Z.W.

, Wu

W.Z.

, Liu

X.F.

and Xie

N.X.

, Information structures and uncertainty measures in a fully fuzzy information system, International Journal of Approximate Reasoning 101 (2018), 119–149.

12.

Z.W.

, Huang

, Liu

X.F.

, Xie

N.X.

and Zhang

G.Q.

, Information structures in a covering information system, Information Sciences 507 (2020), 449–471.

13.

Cament

L.A.

, Castillo

L.E.

, Perez

J.P.

, Galdames

F.J.

and Perez

C.A.

, Fusion of local normalization and Gabor entropy weighted features for face identification, Pattern Recognition 47(2) (2014), 568–577.

14.

Navarrete

, Viejo

and Cazorla

, Color smoothing for RGBD data using entropy information, Applied Soft Computing 46 (2016), 361–380.

15.

Hempelmann

C.F.

, Sakoglu

, Gurupur

V.P.

and Jampana

, An entropy-based evaluation method for knowledge bases of medical information systems, Expert Systems with Applications 46 (2016), 262–273.

16.

Wang

, Zhang

P.F.

and Li

Z.W.

, A three-way decision method based on Gaussian kernel in a hybrid information system with images: An application inmedical diagnosis, Applied Soft Computing 77 (2019), 734–749.

17.

Dai

J.H.

, Xu

, Wang

W.T.

and Tian

H.W.

, Conditional entropy for incomplete decision systems and its application in data mining, International Journal of General Systems 41(7) (2012), 713–728.

18.

Shannon

C.E.

, A mathematical theory of communication, The Bell System Technical Journal 27 (1948), 379–423.

19.

Bianucci

, Cattaneo

and Ciucci

, Entropies and coentropies of coverings with application to incomplete information systems, Fundamenta Informaticae 75 (2007), 77–105.

20.

Beaubouef

, Petry

F.E.

and Arora

, Information-theoretic measures of uncertainty for rough sets and rough relational databases, Information Sciences 109 (1998), 185–195.

21.

Liang

J.Y.

, Shi

Z.Z.

, Li

D.Y.

and Wierman

M.J.

, The information entropy, rough entropy and knowledge granulation in incomplete information systems, International Journal of General Systems 35 (2006), 641–654.

22.

Z.W.

, Zhang

P.F.

, Ge

, Xie

N.X.

, Zhang

G.Q.

and Wen

C.F.

, Uncertainty measurement for a fuzzy relation information system, IEEE Transactions on Fuzzy Systems 27(12) (2019), 2338–2352.

23.

Xie

N.X.

, Liu

, Li

Z.W.

and Zhang

G.Q.

, New measures of uncertainty for an interval-valued information system, Information Sciences 470 (2019), 156–174.

24.

Tan

A.H.

, Shi

S.W.

, Wu

W.Z.

, Li

J.J.

and Pedrycz

, Granularity and entropy of intuitionistic fuzzy information and their applications, IEEE Transactions on Cybernetics, DOI: 10.1109/TCYB.2020.2973379.s.

25.

Zhang

Q.L.

, Chen

Y.Y.

, Zhang

G.Q.

, Li

Z.W.

, Chen

L.J.

and Wen

C.F.

, New uncertainty measurement for categorical data based on fuzzy information structures: An application in attribute reduction, Information Sciences 580 (2021), 541–577.

26.

Dai

J.H.

, Wang

W.T.

and Xu

, An uncertainty measure for incomplete decision tables and its applications, IEEE Transactions on Cybernetics 43(4) (2013), 1277–1289.

27.

Huang

Z.H.

and Li

J.J.

, Discernibility measures for fuzzy β-covering and their application, IEEE Transactions on Cybernetics, DOI: 10.1109/TCYB.2021.3054742.

28.

Z.W.

, Luo

D.M.

, Zhang

G.Q.

, Qu

L.D.

and Xie

N.X.

, Relationships between fuzzy probabilistic approximation spaces and their entropy measurement, International Journal of General Systems 50(6) (2021), 638–671.

29.

Yao

Y.Y.

, Probabilistic approaches to rough sets, Expert Systems 20 (2003), 287–297.

30.

Qian

Y.H.

, Liang

J.Y.

, Wu

W.Z.

and Dang

C.Y.

, Information granularity in fuzzy binary GrC model, IEEE Transactions on Fuzzy Systems 19 (2011), 253–264.

31.

W.H.

, Zhang

X.Y.

and Zhang

W.X.

, Knowledge granulation, knowledge entropy and knowledge uncertainty measure in ordered information systems, Applied Soft Computing 9 (2009), 1244–1251.

32.

Z.W.

, Liu

X.F.

, Dai

J.H.

, Chen

J.L.

and Fujita

, Measures of uncertainty based on Gaussian kernel for a fully fuzzy information system, Knowledge-Based Systems 196 (2020), 105791.

33.

Couso

and Dubois

, Rough sets, coverings and incomplete information, Fundamenta Informaticae 108 (2011), 223–247.

34.

Orlowska

and Pawlak

, Representation of non-deterministic information, Theoretical Computer Science 29 (1984), 27–39.

35.

Dai

J.H.

and Tian

H.W.

, Entropy measures and granularity measures for set-valued information systems, Information Sciences 240 (2013), 72–82.

36.

Qian

Y.H.

, Dang

, Liang

J.Y.

and Tang

, Set-valued ordered information systems, Information Sciences 179 (2009), 2809–2832.

37.

Huang

Y.Y.

, Li

T.R.

, Luo

, Fujita

and Horng

S.J.

, Dynamic variable precision rough set approach for probabilistic set-valued information systems, Knowledge-Based Systems 122 (2017), 131–147.

38.

Z.W.

, Liu

X.F.

, Zhang

G.Q.

, Xie

N.X.

and Wang

S.C.

, A multigranulation decision-theoretic rough set method for distributed fc-decision information systems: An application in medical diagnosis, Applied Soft Computing 56 (2017), 233–244.

Uncertainty measurement for probabilistic set-valued data: Gaussian kernel method

Abstract

Keywords

1 Introduction

2 Preliminaries

3.1 The distance between two objects in a PSVIS

4.1 Some concepts of information structures in a PSVIS.

5 Measuring uncertainty of a PSVIS

5.1 Granulation measurement for a PSVIS

5.4.1 Dispersion analysis

Table 7 CV-vaules i CV ( X G A i ) CV ( X H A i ) CV ( X E r A i ) CV ( X E A i ) 1 0.2480 0.7399 0.1670 0.5332 2 0.3028 0.6979 0.2315 0.4583 3 0.3664 0.6408 0.3275 0.3775 4 0.3664 0.6408 0.3275 0.3775 5 0.3992 0.5760 0.3881 0.3198

Table 16 Tukey’s test diff lwr upr p-value G, H -0.3081 -0.4462 -0.17005 4.87 × 10-5 G, E r 0.0482 -0.0898 0.1863 0.7518 G, E -0.0767 -0.2148 0.0613 0.4119 H, E r 0.3564 0.2183 0.4944 8.4 × 10-6 H, E 0.2314 0.0933 0.3695 0.0010 E r , E -1.250 -0.2630 0.0131 0.0833

Footnotes

Acknowledgements

References

Table 7
CV-vaules

i $CV (X_{G}^{A_{i}})$ $CV (X_{H}^{A_{i}})$ $CV (X_{E_{r}}^{A_{i}})$ $CV (X_{E}^{A_{i}})$

1 0.2480 0.7399 0.1670 0.5332

2 0.3028 0.6979 0.2315 0.4583

3 0.3664 0.6408 0.3275 0.3775

4 0.3664 0.6408 0.3275 0.3775

5 0.3992 0.5760 0.3881 0.3198

Table 16
Tukey’s test

diff lwr upr p-value

G, H -0.3081 -0.4462 -0.17005 4.87 × 10^-5

G, E_r 0.0482 -0.0898 0.1863 0.7518

G, E -0.0767 -0.2148 0.0613 0.4119

H, E_r 0.3564 0.2183 0.4944 8.4 × 10^-6

H, E 0.2314 0.0933 0.3695 0.0010

E_r, E -1.250 -0.2630 0.0131 0.0833
