DPTCN: A novel deep CNN model for short text classification

Abstract

As an important branch of Nature Language Processing (NLP), how to extract useful text information and effective long-range associations has always been a bottleneck for text classification. With the great effort of deep learning researchers, deep Convolutional Neural Networks (CNNs) have made remarkable achievements in Computer Vision but still controversial in NLP tasks. In this paper, we propose a novel deep CNN named Deep Pyramid Temporal Convolutional Network (DPTCN) for short text classification, which is mainly consisting of concatenated embedding layer, causal convolution, 1/2 max pooling down-sampling and residual blocks. It is worth mentioning that our work was highly inspired by two well-designed models: one is temporal convolutional network for sequential modeling; another is deep pyramid CNN for text categorization; as their applicability and pertinence remind us how to build a model in a special domain. In the experiments, we evaluate the proposed model on 7 datasets with 6 models and analyze the impact of three different embedding methods. The results prove that our work is a good attempt to apply word-level deep convolutional network in short text classification.

Keywords

Deep convolution network causal convolution shortcut connection short text classification

1 Introduction

With the rapid development of deep learning, there are varied models emerging in an endless stream. As one of the classic deep learning models, Convolution Neural Networks (CNNs) display the practicality and importance because of their good feature extraction performance and low computation cost. In 1998, the proposal of LeNet-5 [37] marked a new phase for CNNs. LeCun first brought forward convolutional networks, which covered the key components of CNNs: local receptive fields, weight replication and sub-sampling. Since then, lots of researchers and scholars carried out experiments and improvement on CNNs and their variants, which can be classified into 7 categories [3]: spatial exploitation, depth, multi-path, width, feature-map exploitation, channel boosting and attention.

Up to now, CNNs have made considerable achievements in the area of Computer Vision (CV), Speech Recognition and Natural Language Processing (NLP), especially perform impressively in image tasks. For example, AlexNet [4] first applied deep CNNs in image classification, which used fewer connections and parameters compared to similarly-sized feedforward neural networks; Simonyan and Zisserman [19] proposed VGG, a deeper convolution network with small convolution filters (3×3) in all layers, and proved its effective improvement in that structure. However, the blind deepening of network will bring new problems, such as overfitting and computation costs increasing. In view of this, Szegedy et al. [9] put forward GooLeNet and a new neural network architecture named Inception, which transforming the network to a sparse structure. Another common problem for deep neural networks is the difficulty of training. For the improvement, ResNet [16] added shortcuts between networks to construct skip connections; DenseNet [12] made direct connections from any layer to all subsequent layers, which strengthened feature propagation, enhanced the characteristics in convolution and further broke the limits of image classification.

As shown above, the deepening of network architectures achieved milestone breakthroughs in CV tasks. However, there is no single model or improvement method fitting for all requirements. Different from the image, semantic information in text is more complex. Thus, it is doubtful whether deep CNNs could break the limits of text classification or not. VDCNN [1], as the first well-designed character-level deep CNNs for NLP tasks, successfully showed the benefit of depths. However, the experiments in [26] presented that a shallow word-level CNN outperforms VPCNN with a faster computation speed, while [13] pointed out that a word-level deep CNN based on DenseNet only increased the complexity with no improvement on the text classification performance compared to a shallow one. Is there any effective improvement for deep CNNs in text classification? The answer is definitely yes. Johnson and Zhang [27] proposed a low-complexity word-level Deep Pyramid CNN (DPCNN), which shaped like pyramid to take sample of data; Wang et al. [33] added a multi-scale feature attention mechanism to DenseNet, which also applied deep CNNs well in text classification. With a great pertinence and applicability, these dedicated improvements on text classification enlighten our proposal.

As one of the characteristics for CNNs, different sizes of convolutional kernels will enable the extraction of multi-scale features in local information, but the lack of sequential information and global features has always been a big drawback. To compensate the limitation, Bai et al. [30] proposed Temporal Convolutional Network (TCN) for sequence modeling tasks, consisting of causal convolution, residual connections and dilated convolutions. Since then, a lot of researchers applied TCN in other deep learning tasks, such as action segmentation [8], interest recommendation [21], demand prediction [18] and speech separation [39]. In the area of text classification, Han et al. [14] expanded TCN to two directions, which considering both the natural and reverse orders of sentences; Zuo et al. [38] added attention mechanism to Bi-TCN to enrich extracted contextual multi-scale semantic information; Cao et al. [10] built an LSTM-TCN hybrid model and combined with attention mechanism.

Attracted by the characteristic of remaining context relationship in causal convolution and the special designing of deep network for text classification in DPCNN, in this paper, we aim to put forward a novel deep architecture for short text classification with both above superiorities. The main contributions of this paper can be described in two points: one is the proposal of Deep Pyramid Temporal Convolutional Network (DPTCN), consisting of the embedding layer, causal convolutions, 1/2 max pooling, residual blocks and classifier. To the best of our knowledge, it is the first proposal of deep CNN model with high pertinence and applicability for short text classification. The experiment results are strong evidence to break the stereotype of deep CNN in NLP tasks. Another breakthrough is the optimization of embedding method. When we re-examine each module to make sure the best performance of our proposal, the embedding layer is improved to a concatenated one consisting of word2vec [34] and region embedding [28]. The experiment results prove the improvement in embedding layer.

2 Related works

2.1 Dilated causal convolution

Dilated Causal Convolution was firstly proposed in Wavenet [5], then TCN [30] applied it for a wider application scope - sequence modeling. The special characteristic of causal convolutions is its remaining of original data order when modeling, which ensuring that the prediction p (x_t+1|x₁, …, x_t) at time step t does not depend on any data from the future time steps x_t+1, x_t+2, …, x_T, as the two bottom layers shown in Fig. 1 left side. Because the model with causal convolutions has no recurrent connections, the training process is more time-saving than recurrent neural networks [5].

Fig. 1

The illustrations of dilated causal convolutions (left) and deep pyramid CNN (right).

However, the modeling range of causal convolution depends on the kernel size. If pursuing the extraction of longer dependence relationship, deeper network is required. Thus, Wavenet added dilated convolution, which was successfully applied in signal processing [22, 24], image segmentation [11, 20] and many other tasks. Dilated operation performs convolution with skipping steps according to dilation factor, and therefore realizing coarse-grained convolution effectively, as the three above layers shown in Fig. 1 left side. Stacked dilated convolutions make it possible that the network has a wide receptive field only with a few layers.

2.2 Deep pyramid network

For a global information extraction in text classification, DPCNN [27] proposed a down-sampling method named “1/2 pooling”, which performs max-pooling with size 3 and stride 2 after convolution layer. With the increasing depth of model, “1/2 pooling” makes sure that the number of feature maps remain unchanged and therefore avoids the increasing of complexity. As shown in Fig. 1 right side, after L times down-sampling, the semantic connection among words within 2^L distance can be represented, which strengthens the relationship for long-distance words and therefore the model could extract more global information.

2.3 1/2 pooling causal convolution (Our proposal)

No matter the dilated convolution in TCN or “1/2 pooling” in DPCNN, both aims are to expand receptive field and extract more exact global semantic information through sampling, which highly stir up our inspiration and advance our innovation. Causal convolution remains the sequential order of original data and further prompts the extraction of context relationship, while DPCNN effectively improves text classification performance in the condition that time complexity is impervious to the model depth. Considering of both superiority and characteristic, in this paper, we propose “1/2 pooling causal convolution”, as shown in Fig. 2.

Fig. 2

The overall architecture of DPTCN.

3 Model

The proposed model mainly consists of five parts as shown in Fig. 2. The whole architecture is described in details as following.

3.1 Input and embedding layer

Assuming a sentence consists of n words, S = {w₁, w₂, …, w_n}. After word2vec [34] pre-trained embedding, each word is represented as a d-dimension vector. The whole sentence can be represented as: $X = {x_{1}, x_{2}, \dots, x_{n}} \in ℝ^{d \times n}$ . The final word vector matrix is: $X_{1 : n} = x_{1} \oplus x_{2} \oplus \dots \oplus x_{n}$ (1)

where ⊕ is the concatenation operator.

It is worth mentioning that DPCNN used region embedding to convert word vector, a word embedding method they proposed earlier in another paper [28]. There is a little trick that the authors did not mention the scope of application while all the experiments were conducted on long text datasets. In the preparatory experiments, we found that DPCNN with region embedding did not perform well in short text classification. Therefore, we change back to the traditional word embedding method word2vec and attempt to concatenate them serially. As the embedding layer shown in Fig. 2, after word2vec embedding, d-dimension vectors are transmitted to region embedding layer, which converting small regions of data to feature vectors for use in the upper layers. The serial connection of embedding layers generates a higher-dimension feature.

3.2 Convolution layer

The embedding layer is followed by stacking of convolution blocks, where TCN enlightened our improvement deeply. Considering the influence of words order on sentence meaning, all convolutional layers in our model are causal convolutions, as the bottom two layers shown in Fig. 1 left side. The output after causal convolution at time t is convolved only with elements from time t and the earlier in the previous layer. This convolutional method effectively remains the text sequential information compared to the traditional convolution ways.

Suppose the word vector matrix to be in convolution operation at time i is X_i, the filter at jth layer is K_j, the bias vector is b_i and the non-linear activation function is f (·), then the output at time i can be calculated as follows: $C_{i} = f (K_{j} \cdot X_{i} + b_{i})$ (2)

To avoid the problem of vanishing gradient, causal convolution is followed by normalization and ReLU non-linear activation function, which will be shown in detail in Section 3.4.

3.3 1/2 max pooling

As CNNs perform unfavorably on the representation of long-range associations and the extraction of global information, down-sampling methods are commonly applied with CNNs to remedy the defect in sequential modeling. In this paper, we perform max-pooling with size 3 and stride 2 after causal convolutions, as shown in Fig. 2 right side. The max pooling proposed in [13] is operated as: C^* = max{ C_i }. After m times max-pooling operation, the extracted features can be represented as $Z = [C_{1}^{*}, C_{2}^{*}, \dots, C_{m}^{*}]$ .

There is an interesting thing that the author of TCN applied dilated convolutions with causal convolutions in order to expand the convolutional range and to achieve a wide receptive filed, which functions similarly to down-sampling. However, the classification accuracy of TCN on short text datasets is not good (in Section 4) and that is the reason why we adopt another sampling method in the proposal.

3.4 Shortcut connections

Apart from down-sampling methods, the range of extracted features after sampling also depends on the depth of model. To enable the training of deep model, we add shortcut connections with identity mapping adopted from [8]: $o = Activation (x + F (x))$ (3) which is also applied in TCN and DPCNN, as shown in the left and right sides of Fig. 3 respectively. The difference of their utilization is the sequence of activation, where the activation operation before or after weighting can be expressed in formula as following: $f = W σ (x) + b$ (4) $f = σ (W x + b)$ (5)

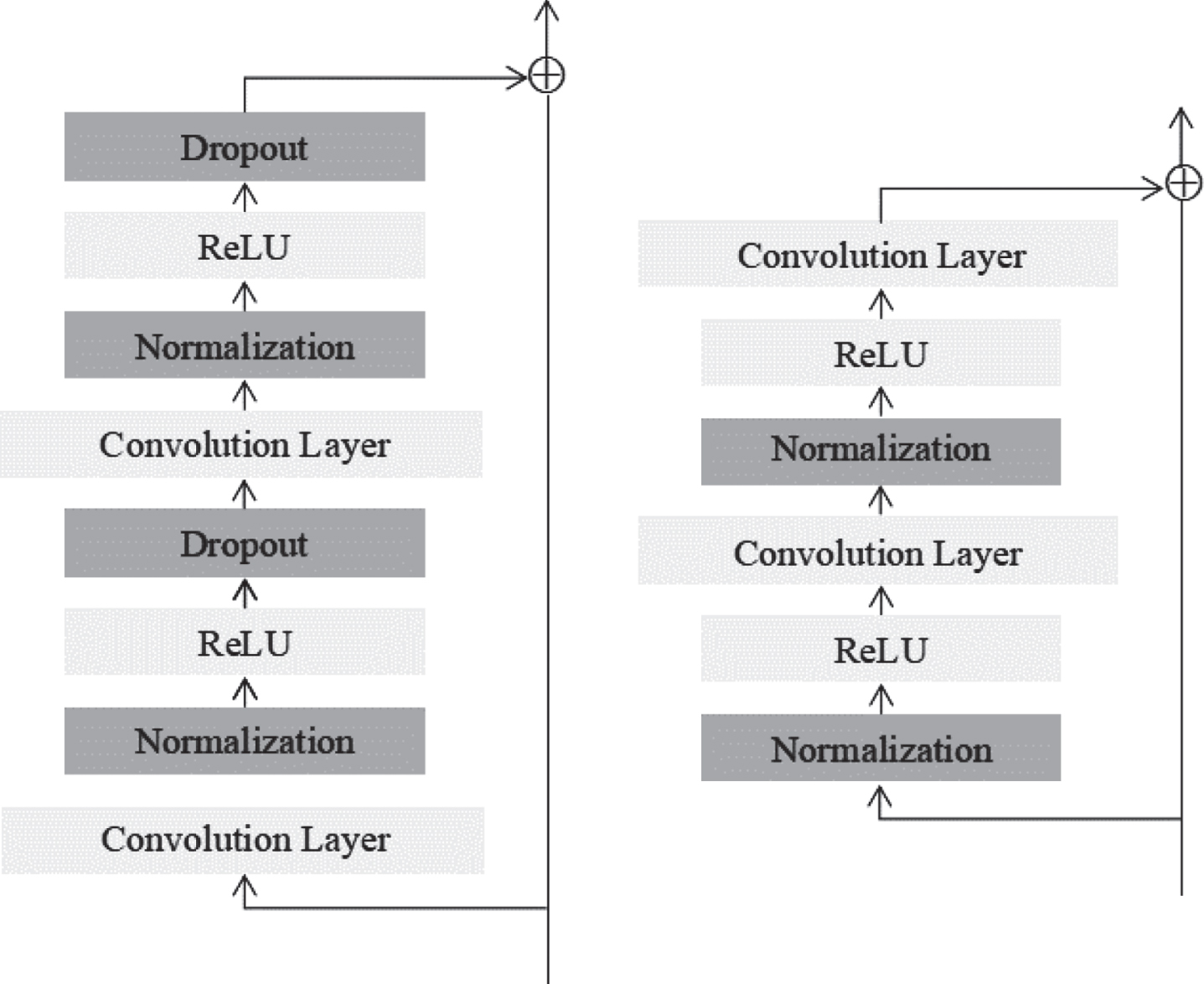

Fig. 3

The illustrations of residual block.

Compared with the nonlinear activation in Equation (5), the “linearity” in Equation (4) outperforms for its ease of optimization and decrease of overfitting, which has been proved in the ablation experiments of [17]. In our model, the output after transformation $F (\cdot)$ is added to the input of the block and then generates the connection results o, where the residual block includes two causal convolution layers, as the shortcut connections block shown in Fig. 2. The standardizing method adopts batch normalization in “pre-activation”.

3.5 Classifier

After all above operations, the concatenation of extracted features is denoted as O and then passed to a softmax classifier to predict the label y from a discrete set of classes Y. The calculations are as follows: $p (y | s) = softmax (W \cdot O + b)$ (6) $y^{*} = arg max_{y} p (y | s)$ (7)

We adopt cross-entropy function as the loss function in the model, which calculated as follows: $J (θ) = - \frac{1}{m} \sum_{i = 1}^{m} y_{i} log (y^{*}) + λ θ^{2}$ (8)

where m is the number of label categories, $y_{i} \in ℝ^{m}$ is the real label, $y^{*} \in ℝ^{m}$ is the estimated label calculated by classifier and λ is the hyper-parameter of L2 regularization.

4 Datasets and experimental setup

To verify the practicality and generality of proposed model, the experiments are conducted on 7 different types of datasets as shown in Table 1 as following.

Table 1
Summary statistics of datasets

Data C L M Train Test V

MR 2 20 56 9595 1050 19346

SST-1 5 18 53 9645 2210 17863

SST-2 2 19 53 7792 1821 16185

Subj 2 23 120 9000 1000 21233

TREC 6 10 37 5452 500 9592

CR 2 19 105 3396 350 5219

MPQA 2 3 36 9544 1061 6539

Data	C	L	M	Train	Test	V
MR	2	20	56	9595	1050	19346
SST-1	5	18	53	9645	2210	17863
SST-2	2	19	53	7792	1821	16185
Subj	2	23	120	9000	1000	21233
TREC	6	10	37	5452	500	9592
CR	2	19	105	3396	350	5219
MPQA	2	3	36	9544	1061	6539

(C: number of label classes. L: average sentence length. M: maximum sentence length. Train/Test: train/test dataset size. V: vocabulary size).

MR: Movie reviews [7], a two-category dataset with one sentence per review, containing positive and negative reviews.

SST-1: Stanford Sentiment Treebank, an extension of MR from [29], including five types - very negative, negative, neutral, positive and very positive.

SST-2: Same as SST-1 but with neutral reviews removed and binary labels.

Subj: Subjectivity dataset [6] classifying a sentence as being subjective or objective.

TREC: Question classification dataset [35]. The task involves classifying a question into six question types (abbreviation, description, entity, human, location, numeric value).

CR: Customer reviews of various products which include cameras, MP3 and so on [23]. It is also a two-categorical dataset which contains negative and positive reviews.

MPQA: Opinion polarity detection subtask of the MPQA dataset [15].

We randomly select 10% of datasets as the testing set and apply10-fold cross validation in the experiment. The evaluation metric of the five datasets is accuracy, which calculated as Equation (9). y_i is the real label, y^* is the estimated label and N is the dataset size. $Accuracy = \frac{\sum_{i = 1}^{N} | y_{i} = y^{*} |}{N}$ (9)

All the datasets are pre-trained by word2vec vectors [34], which were trained on 100 billion words from Google News. The words not present in the pre-trained words are initialized randomly. The dimension of each word is 300 and the text vectors were trained through the continuous bag-of-word architecture. The hidden units of LSTM [31], Bi-LSTM [2] and RCNN [32] is 128. In TCN, DPCNN, DPTCN, TextCNN [36], we use 128 convolutional filters and the kernel size is 3. The batch size is 50, the learning rate of Adam is 0.01, L2 penalty with coefficient is 10^-3 and the dropout rate is 0.5.

5 Results and analysis

For an overall analysis of the proposed model, we conducted the experiment on 7 datasets and compared it to other 6 models as shown in Table 2, especially TCN and DPCNN. In addition, for a better idea of the impact of embedding, we utilized three different embedding methods on DPCNN and our proposed model.

Table 2
The experiment results of classification accuracy (%)

Model MR SST1 SST2 SUBJ TREC CR MPQA

TCN 74.92 35.40 83.28 89.15 84.60 72.53 86.87

DPCNN 81.71 44.94 85.02 93.97 90.09 83.82 90.38

DPTCN (ours) 82.08 45.78 85.74 94.51 91.01 84.10 90.76

TextCNN 77.33 40.41 86.82 90.50 92.20 82.28 84.86

LSTM 79.14 45.36 87.00 90.70 90.80 81.14 85.52

Bi-LSTM 79.05 45.77 87.90 91.90 91.00 81.42 87.81

RCNN 79.52 43.63 86.05 93.40 92.60 81.14 87.62

Model	MR	SST1	SST2	SUBJ	TREC	CR	MPQA
TCN	74.92	35.40	83.28	89.15	84.60	72.53	86.87
DPCNN	81.71	44.94	85.02	93.97	90.09	83.82	90.38
DPTCN (ours)	82.08	45.78	85.74	94.51	91.01	84.10	90.76
TextCNN	77.33	40.41	86.82	90.50	92.20	82.28	84.86
LSTM	79.14	45.36	87.00	90.70	90.80	81.14	85.52
Bi-LSTM	79.05	45.77	87.90	91.90	91.00	81.42	87.81
RCNN	79.52	43.63	86.05	93.40	92.60	81.14	87.62

Comparing the accuracy of TCN, LSTM and Bi-LSTM, the result does not show the superiority of causal convolution in TCN compared to canonical recurrent networks as [1] presents. The experiment of this group corroborates the pertinence and limitation of a model to some extent because TCN was not proposed pointing to text classification, but causal convolution is still of great potential for its ability of remaining sequential information if applied properly, as our proposal verified.

Comparing the accuracy of TextCNN with RCNN and DPCNN respectively, the shallow convolution network performs poorly for its single extraction of local textual information, where RCNN takes into consideration the context relationship with the addition of recurrent network and DPCNN extracts global information for the expanding of receptive field increasing with network depth, which both validate the importance of long-range textual associations for a model applying in text classification.

Actually, the results of DPCNN shown in Table 2 and Fig. 4 are not obtained from the original model proposed in [27]. As mentioned in Section 3.1, when we conduct experiments on DPCNN with region embedding it adopted, the classification accuracy on short text datasets performs not well as shown in Table 3. Therefore, we replaced the embedding layer with word2vec and combined two embedding methods serially as the embedding layer shown in Fig. 2. The complete experiment results on accuracy comparison of three different embedding method in DPCNN and DPTCN are presented in Table 3 and 4 respectively.

Fig. 4

The experiment results of time consumption (seconds). (DPCNN: time cost of DPCNN; DPTCN-DPCNN: time increment from DPCNN to DPTCN; TCN-DPTCN: time increment from DPTCN to TCN).

Table 3

The accuracy of different embedding methods in DPCNN (%)

Embedding Method	MR	SST1	SST2	SUBJ	TREC	CR	MPQA
re only	71.29	34.26	74.19	89.16	80.55	78.25	82.67
w2v only	79.92	42.78	84.08	93.32	87.34	81.43	89.62
re+w2v (ours)	81.71	44.94	85.02	93.97	90.09	83.82	90.38

(re: region embedding [28]; w2v: word2vec [34]; re+w2v: region embedding and word2vec concatenation (our proposal)).

Table 4

The accuracy of different embedding methods in DPTCN (%)

Embedding Method	MR	SST1	SST2	SUBJ	TREC	CR	MPQA
re only	71.95	37.27	75.05	89.23	80.92	79.05	83.33
w2v only	80.86	43.29	84.81	94.90	89.91	82.76	90.09
re+w2v (ours)	82.08	45.78	85.74	94.51	91.01	84.10	90.76

(re: region embedding [28]; w2v: word2vec [34]; re+w2v: region embedding and word2vec concatenation (our proposal)).

From Table 3 and 4, it is clear to observe that there is an obvious increment for classification accuracy with word2vec embedding rather than region embedding. While comparing word2vec and the concatenation embedding method, the addition of an embedding in small regions of data also improves the results on the basis of word2vec, which effectively proves the effective representation of high-dimension features. When we compare the time consumption, word2vec embedding saves 6.42% and 6.87% for 7 datasets on average in DPCNN and DPTCN respectively rather than region embedding, which is understandable that the embedding of small regions of data in convolution increases the computing cost. But from another perspective, word2vec pre-trained embedding relies on extra corpus, while region embedding does not.

From above analysis, the proposed word-level deep CNNs model is of great effectiveness for short text classification in the accuracy improvement, no matter the application of causal convolutions or the concatenated embedding method.

6 Conclusion

During the modeling process, there are various options of each module, which are not confined to the embedding method, the sequence of shortcut connection or the down-sample method. The hidden reasons behind decisions are all the considerate and comprehensive pondering of authors. In this paper, how to successfully apply a deep CNN model to the short text classification and improve the accuracy is the primary target, but when facing the application in real life, what need take into consideration might include maneuverability, device costs, time consumption and many other factors. Therefore, it is necessary to realize the pertinence and limitation of a single model. DPTCN is a small successful attempt to break the stereotype of deep CNN to short text classification with causal convolutions and residual blocks. While the proposal of TCN brings a wider space and more possibilities for the development of CNNs, which is still of great potential for the innovations of deep learning models and the application in many fields, besides short text classification and NLP tasks.

Footnotes

Acknowledgments

This research was supported by National Natural Science Foundation of China (No. 61871234).

References

Conneau

, Schwenk

, Barrault

and Lecun

, Very deep convolutional networks for natural language processing, arXiv 2 (2016), 1.

Graves

, Fernández

and Schmidhuber

, Bidirectional LSTM networks for improved phoneme classification and recognition, International conference on artificial neural networks, Springer, Berlin, Heidelberg, (2005), 799–804.

Khan

, Sohail

, Zahoora

and Qureshi

A.S.

, A survey of the recent architectures of deep convolutional neural networks, Artificial Intelligence Review 53(8) (2020), 5455–5516.

Krizhevsky

, Sutskever

and Hinton

G.E.

, Imagenet classification with deep convolutional neural networks, Advances in Neural Information Processing Systems 25 (2020), 1097–1105.

Oord

A.V.D.

, Dieleman

, Zen

, Simonyan

, Graves

and Kavukcuoglu

, Wavenet: A generative model for raw audio, arXiv, 2016.

Pang

and Lee

, A sentimental education: Sentiment analysis using subjectivity summarization based on minimum cuts, arXiv, 2004.

Pang

and Lee

, Seeing stars: Exploiting class relationships for sentiment categorization with respect to rating scales, arXiv, 2005.

Lea

, Flynn

M.D.

, Vidal

and Hager

G.D.

, Temporal convolutional networks for action segmentation and detection, Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, (2017), 156–165.

Szegedy

, Liu

, Jia

, Sermanet

, Reed

, Anguelov

and Rabinovich

, Going deeper with convolutions, Proceedings of the IEEE conference on computer vision and pattern recognition, (2015), 1–9.

10.

Cao

, Huang

, Li

, Zhao

and Fu

, Text Sentiment Classification Based on LSTM-TCN Hybrid Model and Attention Mechanism, Proceedings of the 4th International Conference on Computer Science and Application Engineering, (2020), 1–5.

11.

and Koltun

, Multi-scale context aggregation by dilated convolutions, arXiv, 2015.

12.

Huang

, Liu

, Van Der Maaten

and Weinberger

K.Q.

, Densely connected convolutional networks, Proceedings of the IEEE conference on computer vision and pattern recognition, (2017), 4700–4708.

13.

H.T.

, Cerisara

and Denis

, Do convolutional networks need to be deep for text classification? Workshops at the Thirty-Second AAAI Conference on Artificial Intelligence, 2018.

14.

Han

, Chen

, Liu

and Peng

, Chinese text sentiment classification based on bidirectional time-depth convolutional network, Computer Applications and Software, 2019.

15.

Wiebe

, Wilson

and Cardie

, Annotating expressions of opinions and emotions in language, Language Resources and Evaluation 39(2) (2005), 165–210.

16.

, Zhang

, Ren

and Sun

, Deep Residual Learning for Image Recognition, Proceedings of the IEEE conference on computer vision and pattern recognition, (2016), 770–778.

17.

, Zhang

, Ren

and Sun

, Identity mappings in deep residual networks, European conference on computer vision, Springer, Cham, (2016), 630–645.

18.

Jin

, Wang

, Li

, Liu

and Sun

, Dockless Shared-Bike Demand Prediction with Temporal Convolutional Networks, CICTP, (2020), 2851–2863.

19.

Simonyan

and Zisserman

, Very deep convolutional networks for large-scale image recognition, arXiv, 2014.

20.

Chen

L.C.

, Papandreou

, Kokkinos

, Murphy

and Yuille

A.L.

, Semantic image segmentation with deep convolutional nets and fully connected crfs, arXiv, 2014.

21.

and Niu

, TCN-Based Short Term Interest Personalized Sequence Recommendation, 2019.

22.

Holschneider

, Kronland-Martinet

, Morlet

and Tchamitchian

, Areal-time algorithmfor signal analysis with the help of the wavelet transform, Wavelets, Springer, Berlin, Heidelberg, (1990), 286–297.

23.

and Liu

, Mining and summarizing customer reviews, Proceedings of the tenth ACM SIGKDD international conference on Knowledge discovery and datamining, (2004), 168–177.

24.

Dutilleux

, An implementation of the “algorithme à trous” to compute the wavelet transform, Wavelets, Springer, Berlin, Heidelberg, 1990, 298–304.

25.

Collobert

, Weston

, Bottou

, Karlen

, Kavukcuoglu

and Kuksa

, Natural language processing (almost) from scratch, (ARTICLE), Journal of machine learning research 12 (2011), 2493–2537.

26.

Johnson

and Zhang

, Convolutional neural networks for text categorization: Shallow word-level vs. deep character-level, arXiv, 2016.

27.

Johnson

and Zhang

, Deep pyramid convolutional neural networks for text categorization, Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), (2017), 562–570.

28.

Johnson

and Zhang

, Semi-supervised convolutional neural networks for text categorization via region embedding, Advances in Neural Information Processing Systems 28 (2015), 919.

29.

Socher

, Perelygin

, Wu

, Chuang

, Manning

C.D.

, Ng

A.Y.

and Potts

, Recursive deep models for semantic compositionality over a sentiment treebank, Proceedings of the 2013 conference on empirical methods in natural language processing, (2013), 1631–1642.

30.

Bai

, Kolter

J.Z.

and Koltun

, An empirical evaluation of generic convolutional and recurrent networks for sequence modeling, arXiv, 2018.

31.

Hochreiter

and Schmidhube

, Long short-term memory, Neural computation 9(8) (1997), 1735–1780.

32.

Lai

, Xu

, Liu

and Zhao

, Recurrent convolutional neural networks for text classification, Proceedings of the AAAI Conference on Artificial Intelligence, 2015.

33.

Wang

, Huang

and Deng

, Densely Connected CNN with Multi-scale Feature Attention for Text Classification, IJCAI, (2018), 4468–4474.

34.

Mikolov

, Sutskever

, Chen

, Corrado

G.S.

and Dean

, Distributed representations of words and phrases and their compositionality, Advances in Neural Information Processing Systems, (2013), 3111–3119.

35.

and Roth

, Learning question classifiers, COLING 2002: The 19th International Conference on Computational Linguistics. 2002.

36.

Kim

, Convolutional neural networks for sentence classification, arXiv, 2014.

37.

Lecun

, Bottou

, Bengio

and Haffner

, Gradient-based learning applied to document recognition, Proceedings of the IEEE 86(11) (1998), 2278–2324.

38.

Zuo

, Jiang

, Sun

, Ma

, Liang

, Nie

and Zhou

, Short text classification based on bidirectional TCN and attention mechanism, Journal of Physics: Conference Series, IOP Publishing 1693(1) (2020), 012067.

39.

Shi

, Lin

, Liu

, Han

and Shi

, Deep Attention Gated Dilated Temporal Convolutional Networks with Intra-Parallel Convolutional Modules for End-to-End Monaural Speech Separation, Interspeech (2019), 3183–3187.
