Dynamic programming approach for fuzzy linear programming problems FLPs and its application to optimal resource allocation problems in education system

Abstract

This research is about the development of a dynamic programming model for solving fuzzy linear programming problems. Initially, fuzzy dynamic linear programming model FDLP is developed. This research revises the established dynamic programming model for solving linear programming problems in a crisp environment. The mentioned approach is upgraded to address the problem in an uncertain environment. Dynamic programming model can either be passing forward or backward. In the proposed approach backward dynamic programming approach is adopted to address the problem. It is then followed by implementing the proposed method on the education system of Pakistan. The education system of Pakistan comprises of the Primary, Middle, Secondary, and Tertiary education stages. The problem is to maximize the efficiency of the education system while achieving the targets with minimum usage of the constrained resources. Likewise the model tries to maximize the enrollment in the Primary, Middle, Secondary and Tertiary educational categories, subject to the total available resources in a fuzzy uncertain environment. The solution proposes that the enrollment can be increased by an amount 9997130, by increasing the enrollment in the Middle and Tertiary educational categories. Thus the proposed method contributes to increase the objective function value by 30%. Moreover, the proposed solutions violate none of the constraints. In other words, the problem of resources allocation in education system is efficiently managed to increase efficiency while remaining in the available constrained resources. The motivation behind using the dynamic programming methodology is that it always possesses a numerical solution, unlike the other approaches having no solution at certain times. The proposed fuzzy model takes into account uncertainty in the linear programming modeling process and is more robust, flexible and practicable.

Keywords

Fuzzy Linear Programming (FLP)fuzzy mathematical programming dynamic programming education fuzzy sets and fuzzy modeling resource allocation

1 Introduction

The idea of fuzzy sets was proposed by L. A. Zadeh. Bellman and Zadeh proposed the process of decision making as an intersection of the fuzzy objective function and fuzzy resource constraints. This idea was adapted to introduce fuzzy linear programming problems.

After that, different approaches were proposed to address fuzzy linear programming problems. Some authors addressed problems when the models were partially fuzzy. Moreover, the problems were fully fuzzy in some studies. The methodology was either to convert the problem to its crisp equivalent or solve the problem directly using the simplex method.

To elaborate more, there are two approaches to solve the fuzzy linear programming problems.

1. To solve the problem using the fuzzy arithmetic operations (For example interval operations, fuzzy triangular arithmetic operations, fuzzy trapezoidal arithmetic operations etc). In such cases first of all the operations are well defined in the research and then the fuzzy linear programming is solved with the help of them.

2. To convert the problem to its equivalent crisp model and then use the world wide accepted crisp arithmetic operations. In this case there is no need to introduce new arithmetic operations for the fuzzy linear programming model.

The authors of [1 –3] used ranking function to solve linear programming problems directly without converting it to their crisp equivalent. Li and Wang [4] used a fuzzy relational approach to address linear programming problems. In some studies fully fuzzy linear programming problems were solved by converting the problems to its crisp equivalent. Computational algorithms were developed in to solve fully fuzzy linear programming problems. Lexicographic methods were developed in [5, 6] for solving fully fuzzy linear programming problems. Ezzati et al. [7] proposed a new method by comparing triangular fuzzy numbers. Ebrahimnejad and Verdegay [8] proposed a method for bounded variable linear programming problem.

Ezzati et al., [9] proposed some new operations and solved intuitionistic fuzzy linear programming problems with lexicographic method. The operations defined in [9] were adopted in Daneshra and Jafari, [10] to solve fully fuzzy linear programming problems. A full literature review on the development and evolution of fuzzy linear programming can be found in Verdegy [11]. The authors of [12] adopted simplex approaches with ranking function for solving fuzzy linear programming problems. Generalized fuzzy LR numbers were used in Gong el al., [13] to solve fully fuzzy linear programming problems. The author of [14] applied the idea of weak and strong dominance to solve the problem. problems with fuzzy constraints and objective functions were considered in Zack [15]. Ghanbari et al., [16] utilized a revised kerre’s method for solving fuzzy linear programming problem. In [17 –19] different techniques for solving fuzzy linear programming problems were proposed. In [20] fully fuzzy linear programming problem was addressed using LR fuzzy numbers, whereas, an epsilon constraint method was used in [21]. In studies [22 –24] lexicographic methods were used to address fuzzy linear programming problems. Recently efficient techniques were developed to address the fuzzy linear programming problems. The authors of [25] used ant colony computational algorithm for identifying the shortest path in a network having fuzzy weighted values on its arcs. To solve linear and fractional linear programming problem a multi-objective optimization schema was presented in [26]. Interval fuzzy linear programming problem were solved with the help of distance ranking approach in [27]. In study [28], a computational algorithm was utilized to solve the problem with multi-objective linear programming method.

The idea of dynamic programming was proposed by Bellman in 1957. Approximate dynamic programming problems were solved by using linear programming approach in [29, 30]. A constraint sampling approach to solve approximate dynamic programming problem was presented in de Farias and Roy [31]. Buyuktahtakin [32] solved dynamic programming problem with linear programming approach.

A thorough review of the literature reveals that although linear programming problems have been previously addressed by dynamic programming approach, however, fuzzy linear programming problems (FLPs) have not been addressed by the dynamic programming approach to date. Thus there is a possible and promising gap to address FLPs through the method of dynamic programming. The authors of [33] pointed that although many methods have been previously devised to solve fuzzy linear systems, however none of them is considered the best. Thus the need for applying dynamic programming approach to solve fuzzy linear programming problems increases. The present study proposes dynamic fuzzy linear programming DFLP model. The proposed model is then implemented on the education system of Pakistan. Furthermore, the importance of the technique for dynamic fuzzy linear programming increases to implement it on data envelopment analysis, transportation and shortest path problems [34 –37].

The statement of the proposed research problem is “How fuzzy linear programming problems can be solved by a dynamic programming Approach?”. The research addresses the following questions.

How fuzzy linear programming problems can be addressed by using a dynamic programming Approach?

What will be the revised version of the dynamic linear programming model in a fuzzy environment?

How fuzzy linear programming problems with fuzzy constraints (total resource availability / right hand side) can be addressed by using a dynamic programming Approach?

How to implement the proposed model on the education system in Pakistan, make analysis, identify the possible areas of improvement, make suggestions for future planning.

This study is organized as follows. After the introduction, the approach of dynamic programming for solving linear programming is presented. This is followed by section (3), in which, the main novel technique for solving fuzzy linear programming problems with the dynamic programming approach is proposed. Section (3) has three subsections, namely 3.1.1, 3.1.2 and 3.1.3. In section (4), we implement the proposed method on the education system of Pakistan. Study is concluded in section (5).

2 Dynamic programming approach for solving linear programming problems

The classical maximization problem is given below: $\begin{matrix} Maxz = c_{1} x_{1} + c_{2} x_{2} + . . . + c_{n} x_{n} \\ s . t . \\ a_{11} x_{1} + a_{12} x_{2} + . . . + a_{1 n} x_{n} ⩽ b_{1} \\ a_{21} x_{1} + a_{22} x_{2} + . . . + a_{2 n} x_{n} ⩽ b_{2} \\ . \\ . \\ . \\ a_{m 1} x_{1} + a_{m 2} x_{2} + . . . + a_{mn} x_{n} ⩽ b_{m} \\ x_{1,} x_{2}, . . . x_{n} ⩾ 0 . \end{matrix}$ (1)

The problem is solved as an “n” stage dynamic computational problem. At each stage, the technique of backward computational procedure is used for the determination of the variable x_j, j = 1, 2, 3, . . . , n. Furthermore, b₁, b₂, . . . , b_m denote the available resources of “m” sources. At each stage, the states variables u_ij, i = 1, 2, 3, . . . , m, j = 1, 2, 3, . . . , n, are the available resources to be allocated. The “n” stage dynamic computational algorithm is presented as below.

Stage n: $f_{n} (u_{in}) = \underset{0 ⩽ a_{in} x_{n} ⩽ u_{in} i = 1, 2, 3, . . ., m .}{Max} [c_{n} x_{n}]$ (2)

Equation (2) suggests that the maximum value of [c_nx_n], occurs at x_n = Min [u_in] , i = 1, 2, 3, … , m . Thus (2), becomes (3). $f_{n} (u_{i n}^{*}) = c_{n} \underset{i = 1, 2, 3, ..., m .}{M i n} [u_{i n}] = c_{n} u_{i n}^{*} = c_{n} {\frac{b_{i}^{(n)}}{a_{i n}^{(n)}}}$ (3)

It is worth noting that constraints of “⩽” are used that is why we take x_n = Min [u_in] , i = 1, 2, 3, … , m, at a particular stage Ahmad et al., [38]. For constraints of “⩾” type, we may change it to x_n = Max [u_in] , i = 1, 2, 3, . . . , m, formulate the dual, or multiply the constraint by – 1 to convert to “⩽”. Furthermore, for “=” type constraints, we are confronted with the curse of dimensionality. The problem then should be n × n dimensional only. In other words the number of unknowns must be equal to the number of constrains. In that case we have no specific one value to be selected over a range of constraints [u_in] , i = 1, 2, 3, . . . , m, at any specific stage.

The states variables u_in, i = 1, 2, 3, . . . , m, can be determined. $u_{in} = \frac{b_{i}}{a_{in}}, i = 1, 2, 3, . . ., m .$ (4)

From (4), the optimal value is given. $x_{n} = u_{in}^{*} = \frac{b_{i}^{(n)}}{a_{in}^{(n)}}, i = 1, 2, 3, . . ., m$ (5) where, $b_{i}^{(n)}$ and $a_{in}^{(n)}$ are the constant coefficients giving the optimal value of u_in at stage “n”.

Stage n-1:

$f_{n - 1} (u_{in - 1}) = \underset{0 ⩽ a_{in - 1} x_{n - 1} ⩽ u_{in - 1} i = 1, 2, 3, . . ., m .}{Max} [c_{n - 1} x_{n - 1} + f_{n} (u_{in}^{*})]$ (6)

$f_{n - 1} (u_{in - 1}) = \underset{0 ⩽ a_{in - 1} x_{n - 1} ⩽ u_{in - 1} i = 1, 2, 3, . . ., m .}{Max} [c_{n - 1} u_{in - 1}^{*} + f_{n} (u_{in}^{*})]$ (7)

The states variables and the optimal state are given in (8) and (9). $u_{in - 1} = \frac{b_{i} - a_{in} x_{n}}{a_{in - 1}}, i = 1, 2, 3, . . ., m .$ (8)

$x_{n - 1} = u_{in - 1}^{*} = \frac{b_{i}^{(n - 1)} - a_{in}^{(n - 1)} x_{n}}{a_{in - 1}^{(n - 1)}}, i = 1, 2, 3, . . ., m .$ (9)

Here, $b_{i}^{(n - 1)}, a_{in}^{(n - 1)}, a_{in - 2}^{(n - 1)}$ and $a_{in - 1}^{(n - 1)}$ are the constants giving optimal value $u_{in - 1}^{*}$ at stage “n-1”. Put (3) and (9) in (6). The optimal value of stage “n-1” is (10).

$\begin{matrix} f_{n - 1} (u_{in - 1}^{*}) = \underset{0 ⩽ a_{in - 1} x_{n - 1} ⩽ u_{in - 1} i = 1, 2, 3, . . ., m .}{Max} \\ [{- \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + c_{n - 1} {\frac{b_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + c_{n} {\frac{b_{i}^{(n)}}{a_{in}^{(n)}}}] \end{matrix}$ (10)

Stage n-2:

The optimal functional value, states variables and optimal state are given in (11), (12) and (13), respectively.

$\begin{matrix} f_{n - 2} (u_{in - 2}^{*}) = \underset{0 ⩽ a_{in - 2} x_{n - 2} ⩽ u_{in - 2} i = 1, 2, 3, . . ., m .}{Max} \\ [\begin{matrix} {- \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + {\frac{- c_{n - 2} a_{in - 1}^{(n - 2)}}{a_{in - 2}^{(n - 2)}}} x_{n - 1} + \\ c_{n - 2} {\frac{b_{i}^{(n - 2)}}{a_{in - 2}^{(n - 2)}}} + c_{n - 1} {\frac{b_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + c_{n} {\frac{b_{i}^{(n)}}{a_{in}^{(n)}}} \end{matrix}] \end{matrix}$ (11)

$u_{in - 2} = \frac{b_{i} - a_{in} x_{n} - a_{in - 1} x_{n - 1}}{a_{in - 2}}, i = 1, 2, 3, . . ., m .$ (12)

$\begin{matrix} x_{n - 2} = u_{in - 2}^{*} = \frac{b_{i}^{(n - 2)} - a_{in}^{(n - 2)} x_{n} - a_{in - 1}^{(n - 2)} x_{n - 1}}{a_{in - 2}^{(n - 2)}}, \\ i = 1, 2, 3, . . ., m . \end{matrix}$ (13)

Here, $b_{i}^{(n - 2)}, a_{in - 1}^{(n - 2)}, a_{in}^{(n - 2)}$ and $a_{in - 2}^{(n - 2)}$ are the constant coefficients giving optimal value $u_{in - 2}^{*}$ at stage “n-2”.

Stage 3:

Continuing in the same manner as given in stages n, n-1, and n-2, we can formulate the optimal function for stage 3 as: $f_{3} (u_{i 3}^{*}) = \underset{0 ⩽ a_{i 3} x_{3} ⩽ u_{i 3} i = 1, 2, 3, . . ., m .}{Max} [\begin{matrix} {- \frac{c_{3} a_{in}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{in}^{(4)}}{a_{i 4}^{(4)}} - . . . - \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + . . . + \\ {- \frac{c_{3} a_{i 5}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{i 5}^{(4)}}{a_{i 4}^{(4)}}} x_{5} + {- \frac{c_{3} a_{i 4}^{(3)}}{a_{i 3}^{(3)}}} x_{4} + c_{n} {\frac{b_{i}^{(n)}}{a_{in}^{(n)}}} + \\ c_{n - 1} {\frac{b_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + . . . + c_{3} {\frac{b_{i}^{(3)}}{a_{i 4}^{(3)}}} \end{matrix}]$ (14)

Stage 2: $f_{2} (u_{i 2}) = \underset{0 ⩽ a_{i 2} x_{2} ⩽ u_{i 2} i = 1, 2, 3, . . ., m .}{Max} [c_{2} x_{2} + f_{3} (u_{i 3}^{*})]$ (15)

Put value of (14) in (15). $f_{2} (u_{i 2}) = \underset{0 ⩽ a_{i 2} x_{2} ⩽ u_{i 2} i = 1, 2, 3, . . ., m .}{Max} [\begin{matrix} c_{2} x_{2} + {- \frac{c_{3} a_{in}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{in}^{(4)}}{a_{i 4}^{(4)}} - . . . - \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + . . . + \\ {- \frac{c_{3} a_{i 5}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{i 5}^{(4)}}{a_{i 4}^{(4)}}} x_{5} + {- \frac{c_{3} a_{i 4}^{(3)}}{a_{i 3}^{(3)}}} x_{4} + c_{n} {\frac{b_{i}^{(n)}}{a_{in}^{(n)}}} + \\ c_{n - 1} {\frac{b_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + . . . + c_{3} {\frac{b_{i}^{(3)}}{a_{i 4}^{(3)}}} \end{matrix}]$ (16)

The state variable u_i2, i = 1, 2, 3, . . . , m, can be determined.

$\begin{matrix} u_{i 2} = & \frac{b_{i} - a_{in} x_{n} - a_{in - 1} x_{n - 1} - . . . - a_{i 3} x_{3}}{a_{i 2}}, \\ i = 1, 2, 3, . . ., m . \end{matrix}$ (17)

From (17), the optimal value is determined as given below.

$\begin{matrix} x_{2} = & u_{i 2}^{*} = \frac{b_{i}^{(2)} - a_{in}^{(2)} x_{n} - a_{in - 1}^{(2)} x_{n - 1} - . . . - a_{i 3}^{(2)} x_{3}}{a_{i 2}^{(2)}}, \\ i = 1, 2, 3, . . ., m \end{matrix}$ (18)

Here, $b_{i}^{(2)}, a_{in}^{(2)}, a_{in - 1}^{(2)}, . ., a_{i 2}^{(2)}, a_{i 3}^{(2)}$ are the constants giving optimal value $u_{i 2}^{*}$ at stage “2”. Put (18) in (16).

$\begin{matrix} f_{2} (u_{i 2}^{*}) = \underset{0 ⩽ a_{i 2} x_{2} ⩽ u_{i 2} i = 1, 2, 3, . . ., m .}{Max} \\ [\begin{matrix} {- \frac{c_{2} a_{in}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{in}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{in}^{(4)}}{a_{i 4}^{(4)}} - . . . - \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + . . . + \\ {- \frac{c_{2} a_{i 5}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 5}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{i 5}^{(4)}}{a_{i 4}^{(4)}}} x_{5} + {- \frac{c_{2} a_{i 4}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 4}^{(3)}}{a_{i 3}^{(3)}}} x_{4} + \\ {\frac{- c_{2} a_{i 3}^{(2)}}{a_{i 2}^{(2)}}} x_{3} + c_{n} {\frac{b_{i}^{(n)}}{a_{in}^{(n)}}} + c_{n - 1} {\frac{b_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + . . . + c_{3} {\frac{b_{i}^{(3)}}{a_{i 4}^{(3)}}} + c_{2} {\frac{b_{i}^{(2)}}{a_{i 2}^{(2)}}} \end{matrix}] \end{matrix}$ (19)

Equation (19) gives optimal value at stage “2”.

Stage 1: $f_{1} (u_{i 1}) = \underset{0 ⩽ a_{i 1} x_{1} ⩽ u_{i 1} i = 1, 2, 3, . . ., m .}{Max} [c_{1} x_{1} + f_{2} (u_{i 2}^{*})]$ (20)

Put value of (19) in (20).

$\begin{matrix} f_{1} (u_{i 1}) = \underset{0 ⩽ a_{i 1} x_{1} ⩽ u_{i 1} i = 1, 2, 3, . . ., m .}{Max} \\ [c_{1} x_{1} + [\begin{matrix} {- \frac{c_{2} a_{in}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{in}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{in}^{(4)}}{a_{i 4}^{(4)}} - . . . - \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + . . . + \\ {- \frac{c_{2} a_{i 5}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 5}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{i 5}^{(4)}}{a_{i 4}^{(4)}}} x_{5} + {- \frac{c_{2} a_{i 4}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 4}^{(3)}}{a_{i 3}^{(3)}}} x_{4} + \\ {\frac{- c_{2} a_{i 3}^{(2)}}{a_{i 2}^{(2)}}} x_{3} + c_{n} {\frac{b_{i}^{(n)}}{a_{in}^{(n)}}} + c_{n - 1} {\frac{b_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + . . . + c_{3} {\frac{b_{i}^{(3)}}{a_{i 4}^{(3)}}} + c_{2} {\frac{b_{i}^{(2)}}{a_{i 2}^{(2)}}} \end{matrix}]] \end{matrix}$ (21)

The states variables u_i1, i = 1, 2, 3, . . . , m, can be given as:

$\begin{matrix} u_{i 1} = & \frac{b_{i} - a_{in} x_{n} - a_{in - 1} x_{n - 1} - . . . - a_{i 3} x_{3} - a_{i 2} x_{2}}{a_{i 1}}, \\ i = 1, 2, 3, . . ., m . \end{matrix}$ (22)

From (22), the optimal value is determined as given below.

$\begin{matrix} x_{1} = u_{i 1}^{*} = \\ \frac{b_{i}^{(1)} - a_{in}^{(1)} x_{n} - a_{in - 1}^{(1)} x_{n - 1} - . . . - a_{i 3}^{(1)} x_{3} - a_{i 2}^{(1)} x_{2}}{a_{i 1}^{(1)}} \\ i = 1, 2, 3, . . ., m \end{matrix}$ (23)

Here, $b_{i}^{(1)}, a_{in}^{(1)}, a_{in - 1}^{(1)}$ , ..., $a_{i 2}^{(1)}$ , $a_{i 3}^{(1)}$ are the constant coefficients giving optimal value $u_{i 1}^{*}$ at stage “1”. Put value of (23) in (21).

$\begin{matrix} f_{1} (u_{i 1}^{*}) = \underset{0 ⩽ a_{i 1} x_{1} ⩽ u_{i 1} i = 1, 2, 3, . . ., m .}{Max} \\ [\begin{matrix} {- \frac{c_{1} a_{in}^{(1)}}{a_{i 1}^{(1)}} - \frac{c_{2} a_{in}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{in}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{in}^{(4)}}{a_{i 4}^{(4)}} - . . . - \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + . . . + \\ {- \frac{c_{1} a_{i 5}^{(1)}}{a_{i 1}^{(1)}} - \frac{c_{2} a_{i 5}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 5}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{i 5}^{(4)}}{a_{i 4}^{(4)}}} x_{5} + {- \frac{c_{1} a_{i 4}^{(1)}}{a_{i 1}^{(1)}} - \frac{c_{2} a_{i 4}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 4}^{(3)}}{a_{i 3}^{(3)}}} x_{4} + \\ {\frac{- c_{1} a_{i 3}^{(1)}}{a_{i 1}^{(1)}} \frac{- c_{2} a_{i 3}^{(2)}}{a_{i 2}^{(2)}}} x_{3} + {\frac{- c_{1} a_{i 2}^{(1)}}{a_{i 1}^{(1)}}} x_{2} + c_{n} {\frac{b_{i}^{(n)}}{a_{in}^{(n)}}} + c_{n - 1} {\frac{b_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + . . . + \\ c_{3} {\frac{b_{i}^{(3)}}{a_{i 4}^{(3)}}} + c_{2} {\frac{b_{i}^{(2)}}{a_{i 2}^{(2)}}} + c_{1} {\frac{b_{i}^{(1)}}{a_{i 1}^{(1)}}} \end{matrix}] \end{matrix}$ (24)

3 Proposed dynamic fuzzy linear programming DFLP approach to solve fuzzy linear programming problems

In this section the proposed technique for solving fuzzy linear programming problems is presented. It is assumed that in the fuzzy linear programming the total available resources B₁, B₂, . . . , B_m are fuzzy, presented in section 3. This technique consists of three steps presented in sub-sub sections 3.1.1, 3.1.2, and 3.1.3.

3.1 Proposed dynamic fuzzy linear programming in which the total available resources B₁, B₂, . . . , B_m are Fuzzy

The problem is given as (25). $\begin{matrix} Maxz = c_{1} x_{1} + c_{2} x_{2} + . . . + c_{n} x_{n} \\ s . t . \\ a_{11} x_{1} + a_{12} x_{2} + . . . + a_{1 n} x_{n} ⩽ B_{1} \\ a_{21} x_{1} + a_{22} x_{2} + . . . + a_{2 n} x_{n} ⩽ B_{2} \\ . \\ . \\ . \\ a_{m 1} x_{1} + a_{m 2} x_{2} + . . . + a_{mn} x_{n} ⩽ B_{m} \\ x_{1,} x_{2}, . . . x_{n} ⩾ 0 . \end{matrix}$ (25)

Here, B₁, B₂, . . . , B_m, are fuzzy total available resource given by Equation (26).

$\begin{matrix} B_{i} (A_{i} x) = & {\begin{matrix} 1, If A_{i} x ⩽ b_{i} \\ \frac{b_{i} + p_{i} - A_{i} x}{p_{i}}, If b_{i} < A_{i} x < b_{i} + p_{i} \\ 0, If b_{i} + p_{i} ⩽ A_{i} x \end{matrix}}, \\ i = 1, 2, 3, . . ., m \end{matrix}$ (26)

Next, we determine the lower value of the objective function z_l from the linear programming model given below: $\begin{matrix} Maxz = cx \\ s . t . \\ \sum_{i = 1}^{m} \sum_{j = 1}^{n} a_{ij} x_{j} ⩽ b_{i} \\ x_{j} ⩾ 0, i = 1, 2, 3, . . ., m, j = 1, 2, 3, . . ., n . \end{matrix}$ (27)

Here, $c = [\begin{matrix} c_{1} & c_{2} & c_{3} & . & . & . & c_{n} \end{matrix}]$ , $x = {[\begin{matrix} x_{1} & x_{2} & x_{3} & . & . & . & x_{n} \end{matrix}]}^{T}$ , “T” denotes the transpose of the matrix, and “cx” their multiplication $\begin{matrix} c . x = [\begin{matrix} c_{1} & c_{2} & c_{3} & . & . & . & c_{n} \end{matrix}] . {[\begin{matrix} x_{1} & x_{2} & x_{3} & . & . & . & x_{n} \end{matrix}]}^{T} \\ = c_{1} x_{1} + c_{2} x_{2} + c_{3} x_{3} . . . + c_{n} x_{n} . \end{matrix}$ .

Furthermore, the upper value of the objective function z_u is determined from the model below: $\begin{matrix} Maxz = cx \\ s . t . \\ \sum_{i = 1}^{m} \sum_{j = 1}^{n} a_{ij} x_{j} ⩽ b_{i} + p_{i} \\ x_{j} ⩾ 0, i = 1, 2, 3, . . ., m, j = 1, 2, 3, . . ., n . \end{matrix}$ (28)

The value of the objective function is then obtained from the lower and upper solution as (29). $G (x) = {\begin{matrix} 1, If z_{u} ⩽ cx \\ \frac{cx - z_{l}}{z_{u} - z_{l}}, If z_{l} ⩽ cx ⩽ z_{u} \\ 0, If cx ⩽ z_{l} \end{matrix}}$ (29)

The optimal value of the objective function between z_l and z_u is then obtained from the linear programming problem. $\begin{matrix} Max λ \\ s . t . \\ λ (z_{u} - z_{l}) - cx ⩽ - z_{l} \\ λ p_{i} + \sum_{i = 1}^{m} a_{ij} x_{j} ⩽ b_{i} + p_{i} \\ λ, x_{1}, x_{2}, \dots, x_{n} ⩾ 0 . \end{matrix}$ (30)

Equations (27) and (28) are solved by using the dynamic programming approach, whereas, (30), is solved by using the classical linear programming approach.

3.1.1 Lower value of the objective function z_l

The linear program (27) is solved by using dynamic programming approach. Equation (27) can be rewritten (31). $\begin{matrix} Maxz = c_{1} x_{1} + c_{2} x_{2} + . . . + c_{n} x_{n} \\ s . t . \\ a_{11} x_{1} + a_{12} x_{2} + . . . + a_{1 n} x_{n} ⩽ b_{1} \\ a_{21} x_{1} + a_{22} x_{2} + . . . + a_{2 n} x_{n} ⩽ b_{2} \\ . \\ . \\ . \\ a_{m 1} x_{1} + a_{m 2} x_{2} + . . . + a_{mn} x_{n} ⩽ b_{m} \\ x_{1,} x_{2}, . . . x_{n} ⩾ 0 . \end{matrix}$ (31)

This problem is same as problem in Equation (1). The optimal values of the function at “stage n, stage n-1, ..., stage 3, stage 2, stage1”, are calculated same as in equation “(3), (10), (11), ..., (14), (19), (24)”, respectively.

3.1.2 Upper value of the objective function z_u

In this step the linear program (28) is solved by using dynamic programming approach. Equation (28) rewritten (32). $\begin{matrix} Maxz = c_{1} x_{1} + c_{2} x_{2} + . . . + c_{n} x_{n} \\ s . t . \\ a_{11} x_{1} + a_{12} x_{2} + . . . + a_{1 n} x_{n} ⩽ b_{1} + p_{1} \\ a_{21} x_{1} + a_{22} x_{2} + . . . + a_{2 n} x_{n} ⩽ b_{2} + p_{2} \\ . \\ . \\ . \\ a_{m 1} x_{1} + a_{m 2} x_{2} + . . . + a_{mn} x_{n} ⩽ b_{m} + p_{m} \\ x_{1,} x_{2}, . . . x_{n} ⩾ 0 . \end{matrix}$ (32)

The problem comprises of an “n” stage dynamic computational problem. At each stage, the backward computational technique determines the variable x_j, j = 1, 2, 3, . . . , n. Moreover, b₁ + p₁, b₂ + p₂, . . . , b_m + p_m denote the available resources of “m” sources. The state variables u_ij, i = 1, 2, 3, . . . , m, j = 1, 2, 3, . . . , n, are the available resources to be allocated. The “n” stage dynamic computational algorithm is presented below.

Stage n: $f_{n} (u_{in}) = \underset{0 ⩽ a_{in} x_{n} ⩽ u_{in} i = 1, 2, 3, . . ., m .}{Max} [c_{n} x_{n}]$ (33)

The maximum of (33) occurs at x_n = Min [u_in] , i = 1, 2, 3, … , m .

$f_{n} (u_{i n}^{*}) = c_{n} \underset{i = 1, 2, 3, ..., m .}{M i n} [u_{i n}] = c_{n} u_{i n}^{*} = c_{n} {\frac{b_{i}^{(n)} + p_{i}^{(n)}}{a_{i n}^{(n)}}}$ (34)

The states variables u_in, i = 1, 2, 3, . . . , m, can be given as: $u_{in} = \frac{b_{i} + p_{i}}{a_{in}}, i = 1, 2, 3, . . ., m .$ (35)

From (35), the optimal value is given as (36). $x_{n} = u_{i n}^{*} = \frac{b_{i}^{(n)} + p_{i}^{(n)}}{a_{i n}^{(n)}}, i = 1, 2, 3, ..., m .$ (36) where, $b_{i}^{(n)}$ and $a_{in}^{(n)}$ are the constant coefficients giving the optimal value of u_in at stage “n”.

Stage n-1:

$f_{n - 1} (u_{in - 1}) = \underset{0 ⩽ a_{in - 1} x_{n - 1} ⩽ u_{in - 1} i = 1, 2, 3, . . ., m .}{Max} [c_{n - 1} x_{n - 1} + f_{n} (u_{in}^{*})]$ (37)

The states variables and optimal state can be given. $u_{in - 1} = \frac{b_{i} + p_{i} - a_{in} x_{n}}{a_{in - 1}}, i = 1, 2, 3, . . ., m .$ (38)

$\begin{matrix} x_{n - 1} = & u_{in - 1}^{*} = \frac{b_{i}^{(n - 1)} + p_{i}^{(n - 1)} - a_{in}^{(n - 1)} x_{n}}{a_{in - 1}^{(n - 1)}}, \\ i = 1, 2, 3, . . ., m . \end{matrix}$ (39)

Here, $b_{i}^{(n - 1)} + p_{i}^{(n - 1)}, a_{in}^{(n - 1)}, a_{in - 2}^{(n - 1)}$ and $a_{in - 1}^{(n - 1)}$ are the constants giving optimal value $u_{in - 1}^{*}$ at stage “n-1”. Put (34) and (39) in (37).

$\begin{matrix} f_{n - 1} (u_{in - 1}^{*}) = \underset{0 ⩽ a_{in - 1} x_{n - 1} ⩽ u_{in - 1} i = 1, 2, 3, . . ., m .}{Max} \\ [{- \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + c_{n - 1} {\frac{b_{i}^{(n - 1)} + p_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} \\ + c_{n} {\frac{b_{i}^{(n)} + p_{i}^{(n)}}{a_{in}^{(n)}}}] \end{matrix}$ (40)

Equation (40) gives optimal value at stage “n-1”.

Stage n-2:

The optimal functional value, states variables and optimal state are given in (41), (42) and (43), respectively.

$f_{n - 2} (u_{in - 2}^{*}) = \underset{0 ⩽ a_{in - 2} x_{n - 2} ⩽ u_{in - 2} i = 1, 2, 3, . . ., m .}{Max} [\begin{matrix} {- \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + {\frac{- c_{n - 2} a_{in - 1}^{(n - 2)}}{a_{in - 2}^{(n - 2)}}} x_{n - 1} + \\ c_{n - 2} {\frac{b_{i}^{(n - 2)} + p_{i}^{(n - 2)}}{a_{in - 2}^{(n - 2)}}} + c_{n - 1} {\frac{b_{i}^{(n - 1)} + p_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + c_{n} {\frac{b_{i}^{(n)} + p_{i}^{(n)}}{a_{in}^{(n)}}} \end{matrix}]$ (41)

$\begin{matrix} u_{in - 2} = & \frac{b_{i} + p_{i} - a_{in} x_{n} - a_{in - 1} x_{n - 1}}{a_{in - 2}}, \\ i = 1, 2, 3, . . ., m . \end{matrix}$ (42)

$\begin{matrix} x_{n - 2} = u_{in - 2}^{*} \\ = \frac{b_{i}^{(n - 2)} + p_{i}^{(n - 2)} - a_{in}^{(n - 2)} x_{n} - a_{in - 1}^{(n - 2)} x_{n - 1}}{a_{in - 2}^{(n - 2)}} \\ i = 1, 2, 3, . . ., m . \end{matrix}$ (43)

Here, $b_{i}^{(n - 2)} + p_{i}^{(n - 2)}, a_{in - 1}^{(n - 2)}, a_{in}^{(n - 2)}$ and $a_{in - 2}^{(n - 2)}$ are the constants giving optimal value $u_{in - 2}^{*}$ at stage “n-2”.

Stage 3:

Continuing in the manner as given in stages n, n-1, and n-2, we formulate the optimal function for stage 3 as given below.

$f_{3} (u_{i 3}^{*}) = \underset{0 ⩽ a_{i 3} x_{3} ⩽ u_{i 3} i = 1, 2, 3, . . ., m .}{Max} [\begin{matrix} {- \frac{c_{3} a_{in}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{in}^{(4)}}{a_{i 4}^{(4)}} - . . . - \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + . . . + \\ {- \frac{c_{3} a_{i 5}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{i 5}^{(4)}}{a_{i 4}^{(4)}}} x_{5} + {- \frac{c_{3} a_{i 4}^{(3)}}{a_{i 3}^{(3)}}} x_{4} + c_{n} {\frac{b_{i}^{(n)} + p_{i}^{(n)}}{a_{in}^{(n)}}} + \\ c_{n - 1} {\frac{b_{i}^{(n - 1)} + p_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + . . . + c_{3} {\frac{b_{i}^{(3)} + p_{i}^{(3)}}{a_{i 4}^{(3)}}} \end{matrix}]$ (44)

Stage 2:

$f_{2} (u_{i 2}) = \underset{0 ⩽ a_{i 2} x_{j} ⩽ u_{i 2} i = 1, 2, 3, . . ., m .}{Max} [c_{2} x_{2} + f_{3} (u_{i 3}^{*})]$ (45)

The states variables and optimal state can be determined.

$\begin{matrix} u_{i 2} = & \frac{b_{i} + p_{i} - a_{in} x_{n} - a_{in - 1} x_{n - 1} - . . . - a_{i 3} x_{3}}{a_{i 2}}, \\ i = 1, 2, 3, . . ., m . \end{matrix}$ (46)

$\begin{matrix} x_{2} = u_{i 2}^{*} \\ = \frac{b_{i}^{(2)} + p_{i}^{(2)} - a_{in}^{(2)} x_{n} - a_{in - 1}^{(2)} x_{n - 1} - . . . - a_{i 3}^{(2)} x_{3}}{a_{i 2}^{(2)}} \\ i = 1, 2, 3, . . ., m . \end{matrix}$ (47)

Here, $b_{i}^{(2)} + p_{i}^{(2)}, a_{in}^{(2)}, a_{in - 1}^{(2)}$ ,.., $a_{i 2}^{(2)}$ , $a_{i 3}^{(2)}$ are the constant coefficients giving optimal value $u_{i 2}^{*}$ at stage “2”. Put values from equations (44) and (47) in (45).

$\begin{matrix} f_{2} (u_{i 2}^{*}) = \underset{0 ⩽ a_{i 2} x_{2} ⩽ u_{i 2} i = 1, 2, 3, . . ., m .}{Max} \\ [\begin{matrix} {- \frac{c_{2} a_{in}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{in}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{in}^{(4)}}{a_{i 4}^{(4)}} - . . . - \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + . . . + \\ {- \frac{c_{2} a_{i 5}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 5}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{i 5}^{(4)}}{a_{i 4}^{(4)}}} x_{5} + {- \frac{c_{2} a_{i 4}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 4}^{(3)}}{a_{i 3}^{(3)}}} x_{4} + {\frac{- c_{2} a_{i 3}^{(2)}}{a_{i 2}^{(2)}}} x_{3} + \\ c_{n} {\frac{b_{i}^{(n)} + p_{i}^{(n)}}{a_{in}^{(n)}}} + c_{n - 1} {\frac{b_{i}^{(n - 1)} + p_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + . . . + c_{3} {\frac{b_{i}^{(3)} + p_{i}^{(3)}}{a_{i 4}^{(3)}}} + c_{2} {\frac{b_{i}^{(2)} + p_{i}^{(2)}}{a_{i 2}^{(2)}}} \end{matrix}] \end{matrix}$ (48)

Equation (48) gives optimal value at stage “2”.

Stage 1:

$f_{1} (u_{i 1}) = \underset{0 ⩽ a_{i 1} x_{1} ⩽ u_{i 1} i = 1, 2, 3, . . ., m .}{Max} [c_{1} x_{1} + f_{2} (u_{i 2}^{*})]$ (49)

Substitute $f_{2} (u_{i 2}^{*})$ from equation (48) in (49).

$\begin{matrix} f_{1} (u_{i 1}) = \underset{0 ⩽ a_{i 1} x_{1} ⩽ u_{i 1} i = 1, 2, 3, . . ., m .}{Max} \\ [c_{1} x_{1} + [\begin{matrix} {- \frac{c_{2} a_{in}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{in}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{in}^{(4)}}{a_{i 4}^{(4)}} - . . . - \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + . . . + \\ {- \frac{c_{2} a_{i 5}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 5}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{i 5}^{(4)}}{a_{i 4}^{(4)}}} x_{5} + {- \frac{c_{2} a_{i 4}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 4}^{(3)}}{a_{i 3}^{(3)}}} x_{4} + {\frac{- c_{2} a_{i 3}^{(2)}}{a_{i 2}^{(2)}}} x_{3} + \\ c_{n} {\frac{b_{i}^{(n)} + p_{i}^{(n)}}{a_{in}^{(n)}}} + c_{n - 1} {\frac{b_{i}^{(n - 1)} + p_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + . . . + c_{3} {\frac{b_{i}^{(3)} + p_{i}^{(3)}}{a_{i 4}^{(3)}}} + c_{2} {\frac{b_{i}^{(2)} + p_{i}^{(2)}}{a_{i 2}^{(2)}}} \end{matrix}]] \end{matrix}$ (50)

The optimal states variables can be determined as below (51).

$\begin{matrix} x_{1} = u_{i 1}^{*} \\ = \frac{b_{i}^{(1)} + p_{i}^{(1)} - a_{in}^{(1)} x_{n} - a_{in - 1}^{(1)} x_{n - 1} - . . . - a_{i 3}^{(1)} x_{3} - a_{i 2}^{(1)} x_{2}}{a_{i 1}^{(1)}}, \\ i = 1, 2, 3, . . ., m . \end{matrix}$ (51)

Here, $b_{i}^{(1)} + p_{i}^{(1)}, a_{in}^{(1)}, a_{in - 1}^{(1)}$ , ..., $a_{i 2}^{(1)}$ , $a_{i 3}^{(1)}$ are constants giving optimal value $u_{i 1}^{*}$ at stage “1”. Put value from (51) in (50).

$\begin{matrix} f_{1} (u_{i 1}^{*}) = \underset{0 ⩽ a_{i 1} x_{1} ⩽ u_{i 1} i = 1, 2, 3, . . ., m .}{Max} \\ [\begin{matrix} {- \frac{c_{1} a_{in}^{(1)}}{a_{i 1}^{(1)}} - \frac{c_{2} a_{in}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{in}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{in}^{(4)}}{a_{i 4}^{(4)}} - . . . - \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + . . . + \\ {- \frac{c_{1} a_{i 5}^{(1)}}{a_{i 1}^{(1)}} - \frac{c_{2} a_{i 5}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 5}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{i 5}^{(4)}}{a_{i 4}^{(4)}}} x_{5} + {- \frac{c_{1} a_{i 4}^{(1)}}{a_{i 1}^{(1)}} - \frac{c_{2} a_{i 4}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 4}^{(3)}}{a_{i 3}^{(3)}}} x_{4} + \\ {\frac{- c_{1} a_{i 3}^{(1)}}{a_{i 1}^{(1)}} \frac{- c_{2} a_{i 3}^{(2)}}{a_{i 2}^{(2)}}} x_{3} + {\frac{- c_{1} a_{i 2}^{(1)}}{a_{i 1}^{(1)}}} x_{2} + c_{n} {\frac{b_{i}^{(n)} + p_{i}^{(n)}}{a_{in}^{(n)}}} + \\ c_{n - 1} {\frac{b_{i}^{(n - 1)} + p_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + . . . + c_{3} {\frac{b_{i}^{(3)} + p_{i}^{(3)}}{a_{i 4}^{(3)}}} + c_{2} {\frac{b_{i}^{(2)} + p_{i}^{(2)}}{a_{i 2}^{(2)}}} + c_{1} {\frac{b_{i}^{(1)} + p_{i}^{(1)}}{a_{i 1}^{(1)}}} \end{matrix}] \end{matrix}$ (52)

Equation (52) gives optimal value at stage “1”.

The procedure from stage n to 1 is summarized in the Table 1.

Table 1

Procedure from Stage n to Stage 1 for the Upper Bound LP problem

Stage	State	Solution
		$f_{j} (u_{ij}^{*}), j = 1, 2, 3 . . . n .$	$x_{j} = u_{ij}^{*}$ , j = 1, 2, 3 . . . n.
n	$u_{in} = \frac{b_{i} + p_{i}}{a_{in}} i = 1, 2, 3, \dots, m .$	, $x_{n} = \underset{i = 1, 2, 3, . . ., m .}{Min} [u_{in}]$
n–1	$u_{in - 1} = \frac{b_{i} + p_{i} - a_{in} x_{n}}{a_{in - 1}}, i = 1, 2, 3, \dots, m .$	$f_{n - 1} (u_{in - 1}^{}) = \underset{0 ⩽ a_{in - 1} x_{n - 1} ⩽ u_{in - 1} i = 1, 2, 3, . . ., m .}{Max} [\begin{matrix} {- \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + \\ c_{n - 1} {\frac{b_{i}^{(n - 1)} + p_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + \\ c_{n} {\frac{b_{i}^{(n)} + p_{i}^{(n)}}{a_{in}^{(n)}}} \end{matrix}]$ , x_n-1 = Min* [u_in-1] $= u_{in - 1}^{*} = \frac{b_{i}^{(n - 1)} + p_{i}^{(n - 1)} - a_{in}^{(n - 1)} x_{n}}{a_{in - 1}^{(n - 1)}}$ .
n–2	$u_{in - 2} = \frac{b_{i} + p_{i} - a_{in} x_{n} - a_{in - 1} x_{n - 1}}{a_{in - 2}}, i = 1, 2, 3, \dots, m .$	$f_{n - 2} (u_{in - 2}^{}) = \underset{0 ⩽ a_{in - 2} x_{n - 2} ⩽ u_{in - 2} i = 1, 2, 3, . . ., m .}{Max} [\begin{matrix} {- \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + \\ {\frac{- c_{n - 2} a_{in - 1}^{(n - 2)}}{a_{in - 2}^{(n - 2)}}} x_{n - 1} + \\ c_{n - 2} {\frac{b_{i}^{(n - 2)} + p_{i}^{(n - 2)}}{a_{in - 2}^{(n - 2)}}} + \\ c_{n - 1} {\frac{b_{i}^{(n - 1)} + p_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + \\ c_{n} {\frac{b_{i}^{(n)} + p_{i}^{(n)}}{a_{in}^{(n)}}} \end{matrix}]$ , $x_{n - 2} = u_{in - 2}^{} = \frac{b_{i}^{(n - 2)} + p_{i}^{(n - 2)} - a_{in}^{(n - 2)} x_{n} - a_{in - 1}^{(n - 2)} x_{n - 1}}{a_{in - 2}^{(n - 2)}}$ .
...	...	...
...	...	...
...	...	...
2	$u_{i 2} = \frac{b_{i} + p_{i} - a_{in} x_{n} - a_{in - 1} x_{n - 1} - . . . - a_{i 3} x_{3}}{a_{i 2}}, i = 1, 2, 3, \dots, m .$	$f_{2} (u_{i 2}^{}) = \underset{0 ⩽ a_{i 2} x_{2} ⩽ u_{i 2} i = 1, 2, 3, . . ., m .}{Max} [\begin{matrix} {- \frac{c_{2} a_{in}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{in}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{in}^{(4)}}{a_{i 4}^{(4)}} - . . . - \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + . . . \\ + {- \frac{c_{2} a_{i 5}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 5}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{i 5}^{(4)}}{a_{i 4}^{(4)}}} x_{5} + {- \frac{c_{2} a_{i 4}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 4}^{(3)}}{a_{i 3}^{(3)}}} x_{4} + \\ {\frac{- c_{2} a_{i 3}^{(2)}}{a_{i 2}^{(2)}}} x_{3} + c_{n} {\frac{b_{i}^{(n)} + p_{i}^{(n)}}{a_{in}^{(n)}}} + c_{n - 1} {\frac{b_{i}^{(n - 1)} + p_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + . . . + \\ c_{3} {\frac{b_{i}^{(3)} + p_{i}^{(3)}}{a_{i 4}^{(3)}}} + c_{2} {\frac{b_{i}^{(2)} + p_{i}^{(2)}}{a_{i 2}^{(2)}}} \end{matrix}]$ , $x_{2} = u_{i 2}^{} = \frac{b_{i}^{(2)} + p_{i}^{(2)} - a_{in}^{(2)} x_{n} - a_{in - 1}^{(2)} x_{n - 1} - . . . - a_{i 3}^{(2)} x_{3}}{a_{i 2}^{(2)}}$ .
1	$u_{i 1} = \frac{b_{i} + p_{i} - a_{in} x_{n} - a_{in - 1} x_{n - 1} - . . . - a_{i 3} x_{3} - a_{i 2} x_{2}}{a_{i 1}}, i = 1, 2, 3, \dots, m .$	$f_{1} (u_{i 1}^{}) = \underset{0 ⩽ a_{i 1} x_{1} ⩽ u_{i 1} i = 1, 2, 3, . . ., m .}{Max} [\begin{matrix} {- \frac{c_{1} a_{in}^{(1)}}{a_{i 1}^{(1)}} - \frac{c_{2} a_{in}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{in}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{in}^{(4)}}{a_{i 4}^{(4)}} - . . . - \frac{c_{n - 2} a_{in}^{(n - 2)}}{a_{in - 2}^{(n - 2)}} - \frac{c_{n - 1} a_{in}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} x_{n} + . . . + \\ {- \frac{c_{1} a_{i 5}^{(1)}}{a_{i 1}^{(1)}} - \frac{c_{2} a_{i 5}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 5}^{(3)}}{a_{i 3}^{(3)}} - \frac{c_{4} a_{i 5}^{(4)}}{a_{i 4}^{(4)}}} x_{5} + {- \frac{c_{1} a_{i 4}^{(1)}}{a_{i 1}^{(1)}} - \frac{c_{2} a_{i 4}^{(2)}}{a_{i 2}^{(2)}} - \frac{c_{3} a_{i 4}^{(3)}}{a_{i 3}^{(3)}}} x_{4} + \\ {\frac{- c_{1} a_{i 3}^{(1)}}{a_{i 1}^{(1)}} \frac{- c_{2} a_{i 3}^{(2)}}{a_{i 2}^{(2)}}} x_{3} + {\frac{- c_{1} a_{i 2}^{(1)}}{a_{i 1}^{(1)}}} x_{2} + c_{n} {\frac{b_{i}^{(n)} + p_{i}^{(n)}}{a_{in}^{(n)}}} + \\ c_{n - 1} {\frac{b_{i}^{(n - 1)} + p_{i}^{(n - 1)}}{a_{in - 1}^{(n - 1)}}} + . . . + c_{3} {\frac{b_{i}^{(3)} + p_{i}^{(3)}}{a_{i 4}^{(3)}}} + c_{2} {\frac{b_{i}^{(2)} + p_{i}^{(2)}}{a_{i 2}^{(2)}}} + \\ c_{1} {\frac{b_{i}^{(1)} + p_{i}^{(1)}}{a_{i 1}^{(1)}}} \end{matrix}]$ , $x_{1} = u_{i 1}^{} = \frac{b_{i}^{(1)} + p_{i}^{(1)} - a_{in}^{(1)} x_{n} - a_{in - 1}^{(1)} x_{n - 1} - . . . - a_{i 3}^{(1)} x_{3} - a_{i 2}^{(1)} x_{2}}{a_{i 1}^{(1)}}$ .

3.1.3 Solution of the proposed fuzzy linear programming problems

The lower and upper values of the objective function z_l and z_u, obtained in step 1 and step 2, respectively, are used to determine the function (53).

$G (x) = {\begin{matrix} 1, If z_{u} ⩽ cx \\ \frac{cx - z_{l}}{z_{u} - z_{l}}, If z_{l} ⩽ cx ⩽ z_{u} \\ 0, If cx ⩽ z_{l} \end{matrix}}$ (53)

Now, the optimal value of the objective function is obtained from the linear program (54).

$\begin{matrix} Max λ \\ s . t . \\ λ (z_{u} - z_{l}) - cx ⩽ - z_{l} \\ λ p_{i} + \sum_{i = 1}^{m} a_{ij} x_{j} ⩽ b_{i} + p_{i} \\ λ, x_{1}, x_{2}, . . . x_{n} ⩾ 0 . \end{matrix}$ (54)

4 Implementation of the proposed method and the optimal resource planning of the education system in Pakistan

The approaches of linear programming and fuzzy linear programming have been extensively used for educational planning around the globe. The authors of [39], used linear programming for student allocation in education programs. Hassan [40] used mathematical programming approach for students allocation to educational programs. Amaya et al., [41] proposed an optimized model for resource allocation in Chilean public school system. El-Quliti and Mohamed [42] used a non linear integer goal programming approach for national planning and admission capacity in the higher education system of Saudi Arabia. Jayashree et al., [43] used goal programming for university management system. Thus a thorough review of literature shows that these studies used linear programming, goal programming and mathematical programming techniques for different purposes in the field of education planning and management in different countries. Thus the application of the proposed dynamic fuzzy linear programming approach to the resource allocation problem in education system of Pakistan is not far from its practicability and implementation. The primary superiority of the proposed method is the flexibility, robustness and uncertainty in modeling the educational system of Pakistan.

The education system of Pakistan consists of the educational categories of primary, middle, secondary and tertiary systems. The data in Table 2, obtained for the resources constraints are as follows [44 –47]. It is worth noting that the tertiary educational category is composed of the higher secondary schools, degree colleges, universities, technical and vocational institutions, and teacher training institutions.

Table 2
Educational Data of the Resource Constraints from the source [44 –47]

Primary Middle Secondary Tertiary Total

Institutions 147228 44818 31255 10751 234052

Govt. Expenditures (Millions) 178255 28827 138512 116649 462243

Enrollment 18368810 6419404 3366238 5152141 33306593

Repeaters 181300 92867 67837 23759 365763

Teachers 409496 380785 514158 266080 1570546

Out of School Students 6078895 6482159 11462569 24023623

	Primary	Middle	Secondary	Tertiary	Total
Institutions	147228	44818	31255	10751	234052
Govt. Expenditures (Millions)	178255	28827	138512	116649	462243
Enrollment	18368810	6419404	3366238	5152141	33306593
Repeaters	181300	92867	67837	23759	365763
Teachers	409496	380785	514158	266080	1570546
Out of School Students	6078895	6482159	11462569	24023623

The per enrollment utilization of these constraints can be summarized in the Table 3. Let x₁, x₂, x₃, and, x₄ denote the enrollment in the primary, middle, secondary and tertiary programs.

Table 3

Per Enrollment Utilization of the Constrained Resources

	Primary	Middle	Secondary	Tertiary
Institutions	0.008	0.009	0.009	0.002
Govt. Expenditures (Millions)	0.0097	0.0044	0.041	0.022
Enrollment	1	1	1	1
Repeaters	0.0098	0.014	0.020	0.004
Teachers	0.022	0.059	0.15	0.051
Out of School Students	0.33	1.009	3.4

Then we formulate the fuzzy model as (55).

$\begin{matrix} Maxz = x_{1} + x_{2} + x_{3} + x_{4} \\ s.t. \\ 0.008 x_{1} + 0.009 x_{2} + 0.009 x_{3} \\ + 0.002 x_{4} ⩽ B_{1} (Institutions, Constraint A_{1} x) \\ 0.0097 x_{1} + 0.0044 x_{2} + 0.041 x_{3} + 0.022 x_{4} ⩾ B_{2} \\ (Govt Expnditures, Constraint A_{2} x) \\ x_{1} + x_{2} + x_{3} + x_{4} ⩾ B_{3} (Enrolement, Constraint A_{3} x) \\ 0.0098 x_{1} + 0.014 x_{2} + 0.020 x_{3} + 0.004 x_{4} ⩽ B_{4} \\ (Repeaters, Constraint A_{4} x) \\ 0.022 x_{1} + 0.059 x_{2} + 0.15 x_{3} + 0.051 x_{4} ⩾ B_{5} \\ (Teachers, Constraint A_{5} x) \\ 0.33 x_{1} + 1.009 x_{2} + 3.4 x_{3} ⩽ B_{6} (Out of School, Constraint A_{6} x) \\ x_{1}, x_{2}, x_{3}, x_{4} ⩾ 0 . \end{matrix}$ (55)

The fuzzy constraints are then formulated as (56). $\begin{matrix} \begin{matrix} B_{1} (A_{1} x) = {\begin{matrix} 1, If A_{1} x ⩽ 234052 \\ \frac{234052 + p_{1} - A_{1} x}{p_{1}}, If 234052 < A_{1} x < 234052 + p_{1} \\ 0, If 234052 + p_{1} ⩽ A_{1} x \end{matrix}} (Institutions) \\ B_{2} (A_{2} x) = {\begin{matrix} 1, If A_{2} x ⩽ 462243 \\ \frac{462243 + p_{2} - A_{2} x}{p_{2}}, If 462243 < A_{2} x < 462243 + p_{2} \\ 0, If 462243 + p_{2} ⩽ A_{2} x \end{matrix}} (Govt Expnditures) \\ B_{3} (A_{3} x) = {\begin{matrix} 1, If A_{3} x ⩽ 25534360 \\ \frac{25534360 + p_{3} - A_{3} x}{p_{3}}, If 25534360 < A_{3} x < 25534360 + p_{3} \\ 0, If 25534360 + p_{3} ⩽ A_{3} x \end{matrix}} (Enrolement) \\ B_{4} (A_{4} x) = {\begin{matrix} 1, If A_{4} x ⩽ 365763 \\ \frac{365763 + p_{4} - A_{4} x}{p_{4}}, If 365763 < A_{4} x < 365763 + p_{4} \\ 0, If 365763 + p_{4} ⩽ A_{4} x \end{matrix}} (Repeaters) \end{matrix} \end{matrix}$

$\begin{matrix} \begin{matrix} B_{5} (A_{5} x) = {\begin{matrix} 1, If A_{5} x ⩽ 1570546 \\ \frac{1570546 + p_{5} - A_{5} x}{p_{5}}, If 1570546 < A_{5} x < 1570546 + p_{5} \\ 0, If 1570546 + p_{5} ⩽ A_{5} x \end{matrix}} (Teachers) \\ B_{6} (A_{6} x) = {\begin{matrix} 1, If A_{6} x ⩽ 24023623 \\ \frac{24023623 + p_{6} - A_{6} x}{p_{6}}, If 24023623 < A_{6} x < 24023623 + p_{6} \\ 0, If 24023623 + p_{6} ⩽ A_{6} x \end{matrix}} (Out of School) \end{matrix} \end{matrix}$ (56)

Here, p₁ = 500, p₂ = 10000, p₃ = 500000, p₄ = -10000, p₅ = 20000, p₆ = -400000. It is worth noting that the incorporation of p_i, i = 1, 2, 3, . . . , 6 make the problem fuzzy. Furthermore, the selection of p_i, i = 1, 2, 3, . . . , 6 is intuitive. Yet again the values must be so wisely chosen such that it may not be too small to record any change, nor too large to change the problem drastically.

The lower linear programming model (Crisp/Non Fuzzy) can be formulated as (57).

$\begin{matrix} Maxz = x_{1} + x_{2} + x_{3} + x_{4} \\ s.t. \\ 0.008 x_{1} + 0.009 x_{2} + 0.009 x_{3} + 0.002 x_{4} \\ ⩽ 234052 (Institutions) \\ 0.0097 x_{1} + 0.0044 x_{2} + 0.041 x_{3} + 0.022 x_{4} \\ ⩾ 462243 (Govt Expnditures) \\ x_{1} + x_{2} + x_{3} + x_{4} ⩾ 25534360 (Enrolement) \\ 0.0098 x_{1} + 0.014 x_{2} + 0.020 x_{3} + 0.004 x_{4} \\ ⩽ 365763 (Repeaters) \\ 0.022 x_{1} + 0.059 x_{2} + 0.15 x_{3} + 0.051 x_{4} \\ ⩾ 1570546 (Teachers) \\ 0.33 x_{1} + 1.009 x_{2} + 3.4 x_{3} \\ ⩽ 24023623 (Out of School) \\ x_{1}, x_{2}, x_{3}, x_{4} ⩾ 0 . \end{matrix}$ (57)

Furthermore, the upper linear programming model can be formulated as (58).

$\begin{matrix} Maxz = x_{1} + x_{2} + x_{3} + x_{4} \\ s.t. \\ 0.008 x_{1} + 0.009 x_{2} + 0.009 x_{3} + 0.002 x_{4} \\ ⩽ 234052 + p_{1} (Institutions) \\ 0.0097 x_{1} + 0.0044 x_{2} + 0.041 x_{3} + 0.022 x_{4} \\ ⩾ 462243 + p_{2} (Govt Expnditures) \\ x_{1} + x_{2} + x_{3} + x_{4} ⩾ 25534360 + p_{3} (Enrolement) \\ 0.0098 x_{1} + 0.014 x_{2} + 0.020 x_{3} + 0.004 x_{4} \\ ⩽ 365763 + p_{4} (Repeaters) \\ 0.022 x_{1} + 0.059 x_{2} + 0.15 x_{3} + 0.051 x_{4} \\ ⩾ 1570546 + p_{5} (Teachers) \\ 0.33 x_{1} + 1.009 x_{2} + 3.4 x_{3} ⩽ 24023623 \\ + p_{6} (Out of School) \\ x_{1}, x_{2}, x_{3}, x_{4} ⩾ 0 . \end{matrix}$ (58)

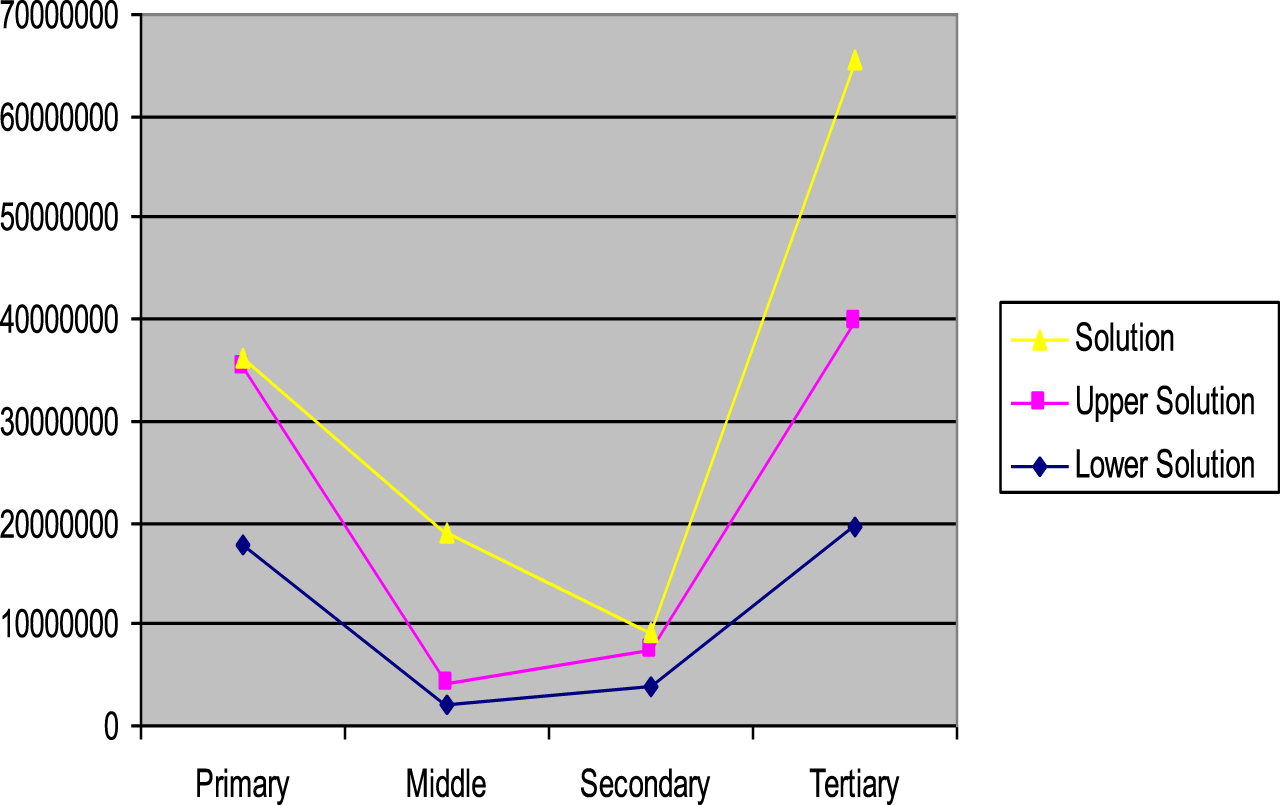

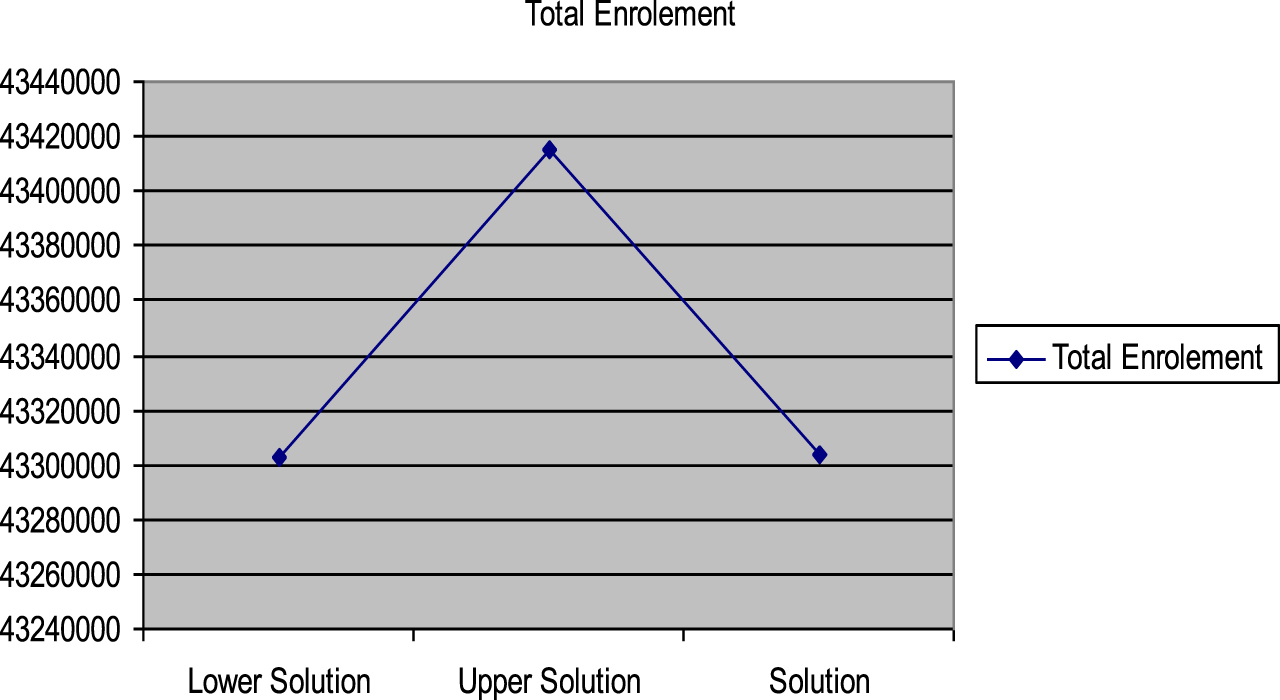

The solutions of the lower and upper programming models (57), (58) are z_l = 43302841, z_u = 43414932 .

The initial lower and upper solutions (although not final solutions) can be written in the interval form. Note that the interval solutions are obtained from lower model (57) and upper model (58) as z_l = 43302841 and z_u = 43414932, respectively. The solutions can be written in the interval form. The lower and upper solutions of (57) and (58) are further used in (59) and another linear programming problem (60) is formulated. This is because we follow Khan and Rafique [48] and Klir and Yaun [49], where they did not rely on the lower and upper solutions, but further used it to formulate a model of the form (59) and finally another independent linear programming problem of the form (60). It is further worth noting that no interval arithmetic operations of addition, subtraction, multiplication and division are used to calculate the interval solutions. Thus the initial level solutions construct our models (59) and (60) and do not reflect our final solutions. The final solutions will be that obtained from model (60).

The solutions of the lower and upper programming models (57), (58), as shown in Fig. (1) gives z_l = 43302841, z_u = 43414932, that can be used to formulate the fuzzy function as given (59).

$G (x) = {\begin{matrix} 1, If 43414932 ⩽ cx \\ \frac{cx - 43302841}{112091}, If 43302841 ⩽ cx ⩽ 43414932 \\ 0, If cx ⩽ 43302841 \end{matrix}}$ (59)

The information above can be used to model the fuzzy model (60). $\begin{matrix} \begin{matrix} Max λ \\ s . t \\ 112091 λ - x_{1} - x_{2} - x_{3} - x_{4} ⩾ - 43302841 \\ λ p_{1} + 0.008 x_{1} + 0.009 x_{2} + 0.009 x_{3} + 0.002 x_{4} \\ ⩽ 234052 + p_{1} (Institutions) \end{matrix} \end{matrix}$

$\begin{matrix} λ p_{2} + 0.0097 x_{1} + 0.0044 x_{2} + 0.041 x_{3} + 0.022 x_{4} \\ ⩾ 462243 + p_{2} (Govt Expnditures) \\ λ p_{3} + x_{1} + x_{2} + x_{3} + x_{4} ⩾ 25534360 \\ + p_{3} (Enrolement) \\ λ p_{4} + 0.0098 x_{1} + 0.014 x_{2} + 0.020 x_{3} + 0.004 x_{4} \\ ⩽ 365763 + p_{4} (Repeaters) \\ λ p_{5} + 0.022 x_{1} + 0.059 x_{2} + 0.15 x_{3} + 0.051 x_{4} \\ ⩾ 1570546 + p_{5} (Teachers) \\ λ p_{6} + 0.33 x_{1} + 1.009 x_{2} + 3.4 x_{3} ⩽ 24023623 \\ + p_{6} (Out of School) \\ λ, x_{1}, x_{2}, x_{3}, x_{4} ⩾ 0 . \end{matrix}$ (60)

The optimal solution of the model gives λ = 0.9, x₁ = 1039376, x₂ = 14929029, x₃ = 1750958, x₄ = 25584360 and z = 43303723 as shown in Table 4. This is an amount 9997130 greater than the present enrollment.

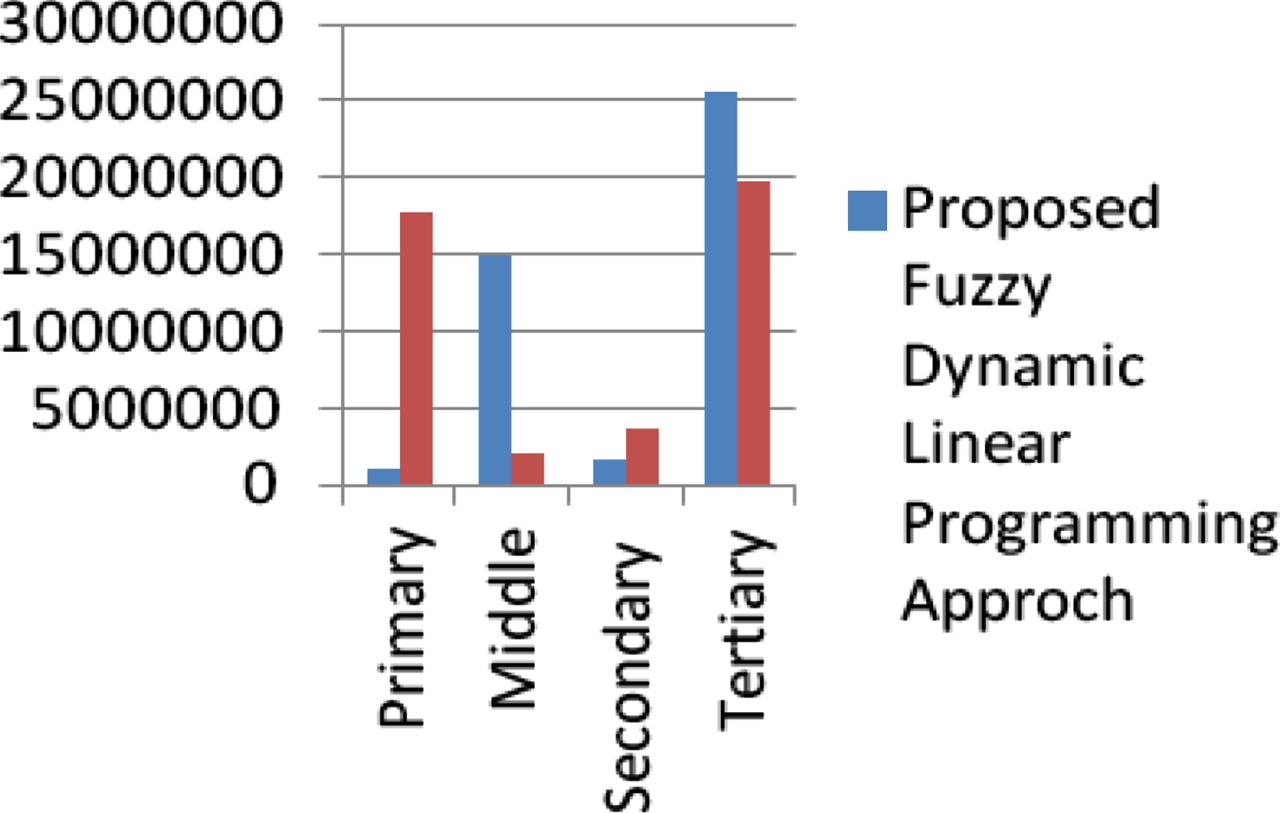

Table 4

Lower solution, upper solution and solution for the proposed fuzzy model

	Primary	Middle	Secondary	Tertiary	Total Enrollment
Lower Solution Model (57)	17768481	2061574	3772059	19700727	43302841
Upper Solution Model (58)	17380572	2128240	3750847	20155273	43414932
Solution Model (60)	1039376	14929029	1750958	25584360	43303723

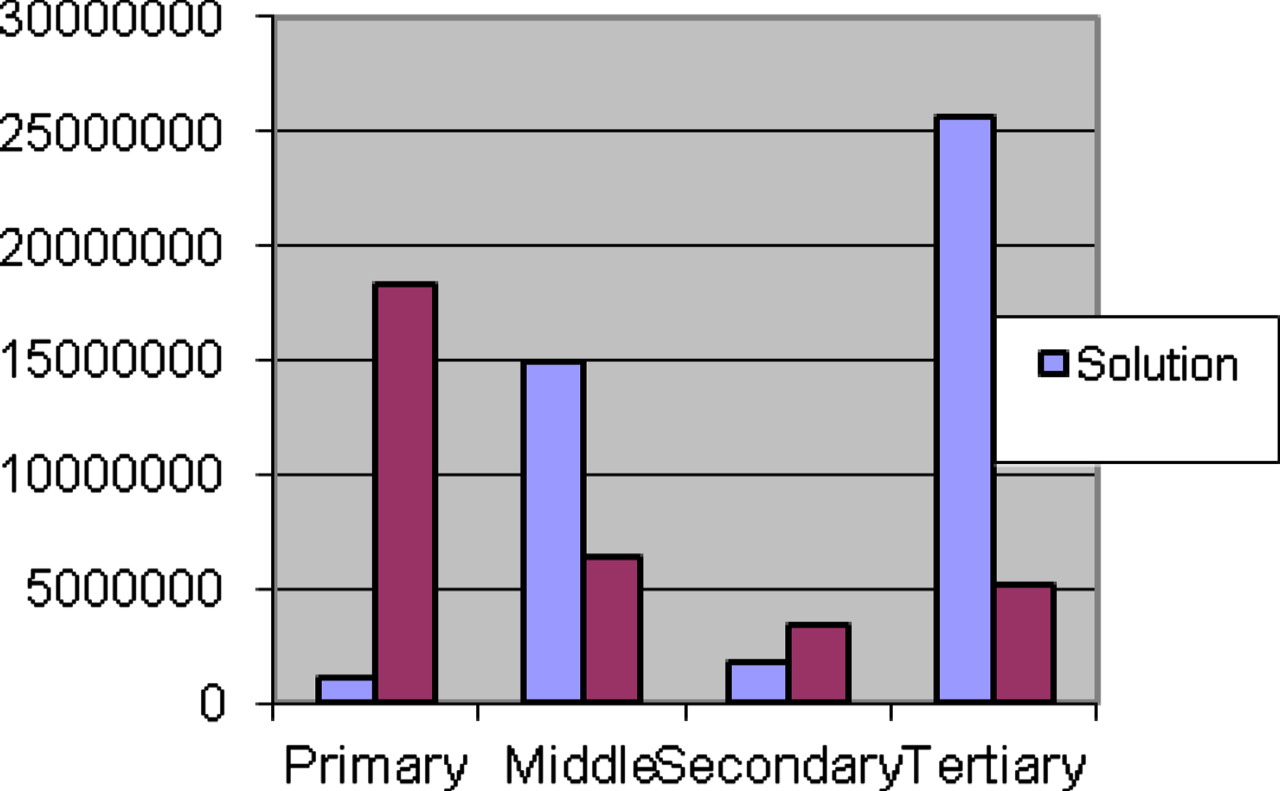

Present Enrollment	18368810	6419404	3366238	5152141	33306593

Solution- Present Enrollment 9997130.

Note that the values of the present enrollment are from Pakistan Education Statistics 2014-2015, Pages 9– 27, 76. It is worth noting that enrollment in the tertiary educational category is composed of the enrollments in higher secondary schools, degree colleges, universities, technical and vocational institutions, and teacher training institutions [45] page 76.

Figure 2 shows a comparison of the lower, upper and the solution of the model (57), (58) and (60), respectively.

Fig. 1

Lower Solution, Upper Solution and Solution of the Fuzzy Programming Model.

Fig. 2

Proposed Enrollments at each Educational Category.

Moreover, Fig. 3, visualizes the comparison between the solution of the fuzzy model and the present enrollment in the Primary, Middle, Secondary and Tertiary educational categories. On analyzing Fig. 3, and, Table 4, we come to know that the method proposes comparatively higher enrollment for the middle and tertiary educational categories in case of the present resources constraints.

Fig. 3

Comparison of the Present and Proposed Enrollments at Each Educational Category.

Now we compare the results of the proposed fuzzy dynamic programming approach with that of the crisp (non fuzzy) approach. The comparison of the fuzzy approach with the crisp approach is presented in Table 5. Comparing the solution of the proposed fuzzy approach presented in equations (57), (58) and (60) with the non fuzzy (crisp) approach presented in (57) shows that the fuzzy model emphasizes on the enrollment in the middle and tertiary educational categories. This situation is visualized in Fig. 4.

Table 5

Comparison of the crisp model with the proposed dynamic fuzzy model

	Primary	Middle	Secondary	Tertiary
Crisp Approach (57)	17768481	2061574	3772059	19700727
Fuzzy Approach (60)	1039376	14929029	1750958	25584360

Table 6

Validity of solution for the lower model (57)

Left Hand Side of the Model (57)	Type	Right Hand Side of the Model (57)	Validation
234051.999	⩽	234052	Satisfied
769495.6043	⩾	462243	Satisfied
43302841	⩾	25534360	Satisfied
357237.2378	⩽	365763	Satisfied
2083085.375	⩾	1570546	Satisfied
20768727.5	⩽	24023623	Satisfied

Table 7

Validity of solution for the UPPER model (58)

Left Hand Side of the Model (58)	Type	Right Hand Side of the Model (58)	Validation
232266.905	⩽	234552	Satisfied
775156.5374	⩾	472243	Satisfied
43414932	⩾	26034360	Satisfied
355762.9976	⩽	355763	Satisfied
2098484.717	⩾	1590546	Satisfied
20635862.72	⩽	23623623	Satisfied

Table 8

Validity of solution for the Final fuzzy model (60)

Left Hand Side of the Model (60)	Type	Right Hand Side of the Model (60)	Validation
– 43202841.1	⩾	– 43302841	Satisfied
210053.611	⩽	234552	Satisfied
719414.8728	⩾	443416	Satisfied
43753723	⩾	26034360	Satisfied
266548.8908	⩽	355763	Satisfied
2489125.043	⩾	1590546	Satisfied
20999641.54	⩽	23623623	Satisfied

Fig. 4

Comparison of the crisp model with the proposed dynamic fuzzy model.

To validate the solution efficiency, we check whether the obtained solution satisfy the constraints. First of all we validate the solution of the lower model (57), followed by the upper model (58) and then the model (60) presented in Tables (6), (7) and (8) respectively.

The validation for the model (58) given in Table (7).

Finally the validation for the model (60) is presented in Table (8)

From the Tables (6), (7) and (8), we conclude that the obtained solutions are satisfied and validated for the lower, upper and the final fuzzy models, respectively.

Finally, we compare the performance of the proposed fuzzy dynamic fuzzy linear programming approach with that of the Khan and Rafique [48]. The proposed dynamic fuzzy linear programming approach contribute to increase the objective function by 30%, whereas, the method of Khan and Rafique [48] contribute to increase the objective function by 12%. Thus the performance of the proposed dynamic fuzzy linear programming approach is better than [48]. In other words, whereas in [48], the objective function is increased by 12%, the proposed dynamic fuzzy linear programming method can increase the objective function by 30%. This situation is shown in Table (9) and Fig. (5). Thus the proposed method gives more promising results than [48].

Table 9

Comparison of the proposed dynamic fuzzy model with the fuzzy linear programming model of khan and Rafique [48]

	Original Value	Increased	Percent Contribution to Objective Function Value
Objective Function of the Proposed Method.	9997130	33306593	0.300155
Objective Function of the Khan and Rafique [48].	181442658	22345148	0.123153

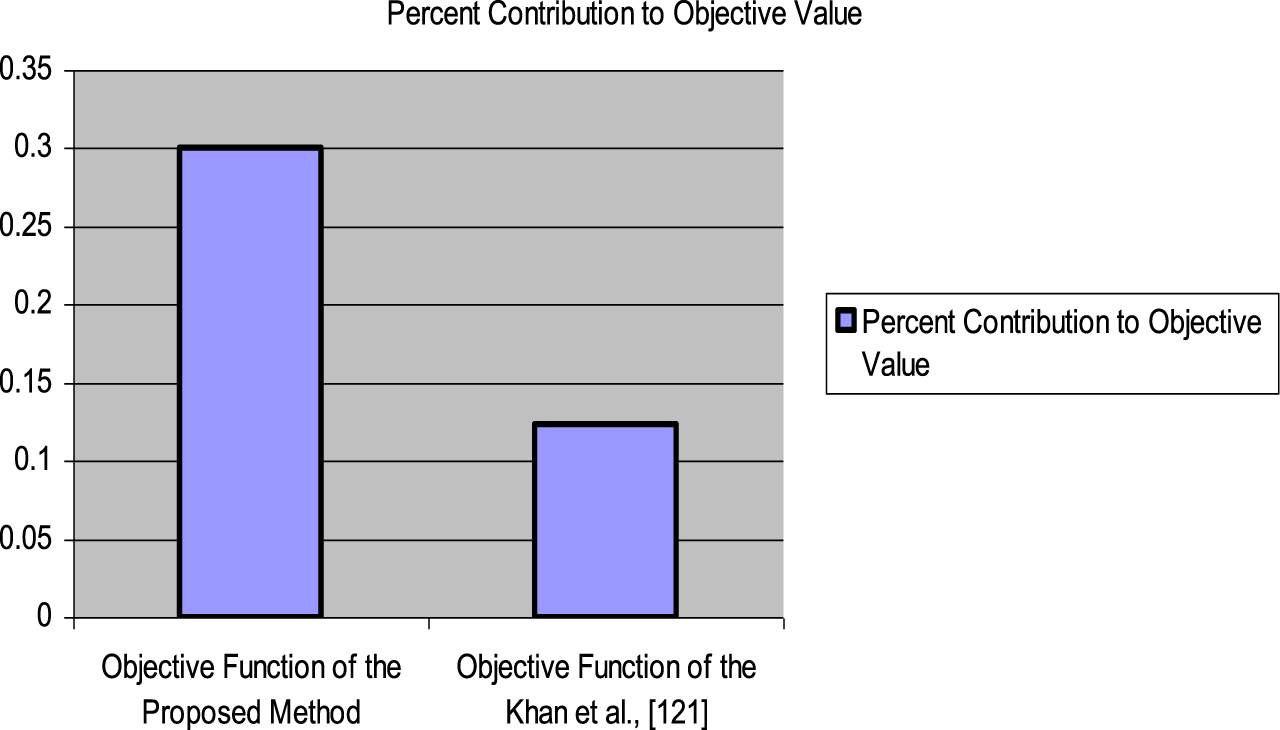

Fig. 5

Percent Contribution to the Objective Function of the Proposed Dynamic Fuzzy Linear Programming Approach and the Khan and Rafique [48].

Linear programming and eventually fuzzy linear programming have promising applicability to other systems such as data envelopment analysis, transportation problem and shortest path problem. The proposed method can be easily adopted on fuzzy data envelopment analysis [34], transportation problem [35], and shortest path problem [36, 37]. These are the potential research avenues for future studies.

Moreover, the proposed study has some limitations. Most prominent limitations are discussed as under:

1. Determining the optimal solution through proposed fuzzy dynamic programming approach requires many rigorous backward pass computational experiments.

2. The results of the fuzzy dynamic programming approach are based data from the education system of Pakistan. Broader data are required to develop general planning and development theories for global organizations.

5 Conclusions

In this research fuzzy linear programming problems were addressed using the dynamic programming approach. In this regard, a novel dynamic fuzzy linear programming method was proposed. This was followed by implementing the proposed method to the education planning in Pakistan. The goal was to maximize the enrollment in the primary, middle, secondary and tertiary educational categories, subject to the available resources constraints. The constraints were total available institutions, government budget, teachers, ensuring minimum repeaters and out of school children, and, maximum enrollment. The results showed that the enrollment can be increased by 9997130, by increasing the enrollment in the middle and tertiary educational categories. Possible future research may be the application of the proposed method to multi-objective optimization problems and its implementation to other real world scenarios. The use of a dynamic programming approach to solve fuzzy linear programming problems ensures the existence of a numerical solution of the problem. Moreover, the proposed approach can increase the objective function by 30%. The proposed fuzzy model is more flexible and robust as the uncertainty in the system modeling process is taken into consideration.

Footnotes

Acknowledgments

We thank the respectable reviewers for their valuable comments and suggestions for the script were greatly improved due to their credible reviews and suggestions. Thanks to the editor, associate editor and reviewers for their kind reviews, suggestions, and views.

Conflict of interest

The authors declare that they have no conflict of interest regarding the publication of this manuscript.

Funding

This study was supported by no funding agency.

References

Allahviranloo

, Lotfi

F.H.

, Kiasary

M.K.

, Kiani

N.A.

and Alizadeh

, Solving full fuzzy linear programming problem by the ranking function, Appl Math Sci 2 (2008), 19–32.

Khan

I.U.

, Ahmad

and Maan

, A simplified novel technique for solving fully fuzzy linear programming problems, J Optim Theory Appl 159 (2013), 536–546.

Ebrahimnejad

, A duality approach for solving bounded linear programming problems with fuzzy variables based on ranking functions and its application in bounded transportation problems, Int J Syst Sci 46(11) (2015), 2048–2060.

and Wang

, A matrix approach to latticized linear programming with fuzzy relation inequality constraints, IEEE Trans Fuzzy Syst 21(4) (2013), 781–788.

Hashemi

S.H.

, Modarres

, Nasrabadi

and Nasrabadi

M.M.

, Fully fuzzified linear programming solution and duality, J Intell fuzzy Syst 17 (2006), 253–261.

Lotfi

F.H.

, Allahviranloo

, Jondabeha

M.A.

and Alizadeh

, Solving fully fuzzy linear programming using lexicography method and fuzzy approximate solution, Appl Math Model 33 (2009), 3151–3156.

Ezzati

, Khorram

and Enayati

, A new algorithm to solve fully fuzzy linear programming problems using the MOLP problem, Appl Math Model (2013). DOI, https://dx-doi-org.web.bisu.edu.cn/10.1016/j.apm.2013.03.014

Ebrahimnejad

and Verdegay

J.J.

, On solving bounded fuzzy variable linear program and its applications, J Intell fuzzy Syst Appl Engg Technol 27(5) (2014), 2265–2280.

Ezzati

, Khorram

and Enayati

, A particular simplex algorithm to solve fuzzy lexicographic multiobjective linear programming problems and their sensitivity analysis on the priority of the fuzzy objective functions, J Intell fuzzy Syst 26(5) (2014), 2333–2358.

10.

Daneshrad

and Jafari

, FFLP problem with symmetric trapezoidal fuzzy numbers,(2– 15), Decis Sci Letters 4(2), 117–124.

11.

Verdegay

J.J.

, Progress on fuzzy mathematical programming, a personal perspective, Fuzzy Sets Syst 281 (2015), 219–226.

12.

Ebrahimnejad

and Verdegay

J.L.

, Linear programming with fuzzy parameters: simplex based approaches, in: Fuzzy Sets-Based Methods Modern Analytics, and Techniques for Studies in Fuzziness and Soft Computing (2018). DOI: 10.1007/978-3-319-73903-8_3, 2018

13.

Gong

, Zhao

and Liu

, A straightforward approach for solving fully fuzzy linear programming problem with LR-type fuzzy numbers, J Oper Res Soc Japan 61(2) (2018), 172–185.

14.

Jiménez

M.A.

, Nondominated solutions in a fully fuzzy linear programming problem, Math Method Appl Sci (2018). DOI: 10.1002/mma.4882

15.

Zack

Y.A.

, Problems of fuzzy-linear programming with two-sided constraints and parameters of objective functions and constraints in the form of fuzzy sets, Syst Res Info Tech (2018), 111–123. DOI 10.20535/SRIT.2308-8893.2018.2.11

16.

Ghanbari

, Ghorbani-Moghadam

, Mahdavi-Amiri

A variable neighborhood search algorithm for solving fuzzy number linear programming problems using modified kerre’s method, IEEE Trans Fuzzy Syst (2018). https://doi.org/10.1109/TFUZZ.2018.2876690

17.

Nasseri

S.H.

and Zavieh

H.A.

, A multi-objective method for solving fuzzy linear programming based on semi-infinite model, Fuzzy Inf Eng 10(1) (2018), 91–98.

18.

Nasseri

S.H.

, Ebrahimnejad

and Cao

B.Y.

, Fuzzy linear programming: solution techniques and applications, in: Studies in Fuzziness and Soft Computing 379 Cham: Springer International Publishing, (2019).

19.

Ghanbari

, Ghorbani-Moghadam

, Mahdavi-Amiri

, Baets

B.D.

Fuzzy linear programming problems: models and solutions, Soft Computing 24 (2020), 10043–10073. https://doi.org/10.1007/s00500-019-04519-w

20.

Pérez-Cañedo

and Concepción-Morales

E.R.

, A method to find the unique optimal fuzzy value of fully fuzzy linear programming problems with inequality constraints having unrestricted L-R fuzzy parameters and decision variables, Expert Syst Appl 123 (2018), 256–269.

21.

Pérez-Cañedo

, Verdegay

J.L.

and Miranda Pérez

, An epsilon-constraint method for fully fuzzy multiobjective linear programming, Int J Intell Syst 35 (2020), 600–624.

22.

Pérez-Cañedo

, Concepción-Morales

E.R.

and Edalatpanah

S.A.

, A Revised version of a lexicographical-based method for solving fully fuzzy linear programming problems with inequality constraints, Fuzzy Information and Engineering (2020). DOI: 10.1080/16168658.2020.1761511

23.

Pérez-Cañedo

and Concepción-Morales

E.R.

, A lexicographic approach to fuzzy linear assignment problems with different types of fuzzy numbers, Int J Uncertain Fuzziness Knowl Based Syst 28 (2020), 421–441.

24.

Pérez-Cañedo

, Verdegay

J.L.

, Concepción-Morales

E.R.

and Rosete

, Lexicographic methods for fuzzy linear programming, Mathematics 8(9) (2020), 1540. https://doi.org/10.3390/math8091540

25.

Caprio

D.D.

, Ebrahimnejad

, Alirezaamiri

and Santos-Arteaga

F.J.

, A novel ant colony algorithm for solving shortest path problems with fuzzy arc weights, Alexandria Engineering Journal (2021), https://doi.org/10.1016/j.aej.2021.08.058

26.

Veeramani

, Sharanya

and Ebrahimnejad

, Optimization for multi-objective sum of linear and linear fractional programming problems: fuzzy nonlinear programming approach, Mathematical Sciences 14 (2020), 219–233.

27.

Ebrahimnejad

, Verdegay

J.L.

and Garg

, Signed distance ranking based approach for solving interval-valued fuzzy numbers linear programming problems, International Journal of Intelligent Systems 34(2) (2019). https://doi.org/10.1002/int.22130

28.

Ebrahimnejad

, An effective computational attempt for solving fully fuzzy linear programming using MOLP problem, Journal of Industrial and Production Engineering 36(2) (2019), 59–69.

29.

de Farias

D.P.

and Roy

B.V.

, Approximate dynamic programming via linear programming, Advances in Neural Information Processing Systems 14, MIT Press, Cambridge, MA, (2002).

30.

de Farias

D.P.

and Roy

B.V.

, The linear programming approach to approximate dynamic programming, Oper Res 51(6) (2003), 850–865.

31.

de Farias

D.P.

and Roy

B.V.

, On constraint sampling in the linear programming approach to approximate dynamic programming, Math Oper Res 9(3) (2004), 462–478.

32.

Buyuktahtakin

, Dynamic programming via linear programming, in: Wiley Encyclopedia of Operations Research and Management Science (2011). DOI: 10.1002/9780470400531.eorms0277

33.

Lodwick

W.A.

and Dubois

, Interval linear systems as a necessary step in fuzzy linear systems, Fuzzy Sets Syst 281 (2015), 227–251.

34.

Bagheri

, Ebrahimnejad

, Razavyan

, Lotfi

and Malekmohammadi

, Solving the fully fuzzy multi-objective transportation problem based on the common set of weights in DEA, Journal of Intelligent and fuzzy Systems 39(3) (2020), 3099–3124.

35.

Ebrahimnejad

, New method for solving fuzzy transportation problems with LR flat fuzzy numbers, Information Sciences 357 (2016), 108–124.

36.

Enayattabar

, Ebrahimnejad

and Motameni

, Dijkkstra algorithm for shortest path problem under interval-valued Pythagorean fuzzy environment, Complex and Intelligent Systems 5 (2019), 93–100.

37.

Ebrahimnejad

, Enayattabar

, Motameni

and Garg

, Modified artificial bee colony algorithm for solving mixed interval-valued fuzzy shortest path problem, Complex and Intelligent Systems 7 (2021), 1527–1545.

38.

Ahmad

Q.S.

, Javed

and Ismail

M.V.

, Operations Research, 1st ed.,University Science Press, Daryaganj, New Delhi, (2014), pp. 292–306.

39.

Kassa

B.A.

, A linear programming approach for placement of applicants to academic programs, SpringerPlus 2(1) (2013), 1–7.

40.

Hassan

, Allocation of students into academic programs using mathematical programming, Int J Math Comput Simulation 10 (2016), 77–81.

41.

Amaya

, Peeters

, Uribe

and Valenzuela

J.P.

, Optimization modeling for resource allocation in the Chilean public education system, Int Regional Sci Review 39(2) (2015), 155–176.

42.

El-Quliti

S.A.

and Mohamed

A.W.

, A generalized national planning approach for admission capacity in higher education: A nonlinear integer goal programming model with a novel differential evolution algorithm, Comput Intell Neurosci 2016(5207362) (2015), 1–14.

43.

Jayashree

D.N.

, Gupta

and Harish

B.G.A.

, Optimum Allocation of Resources in University Management through Goal programming, Global Journal of Pure and Applied Mathematics 12(4) (2016), 2777–2784.

44.

Pakistan Education Statistics 2013-14, National Education Management Information System, Academy of Educational Planning and Management, AEPAM Publication No. 264, (2015).

45.

Pakistan Education Statistics 2014-15, National Education Management Information System, Academy of Educational Planning and Management, Ministry of Federal Education & Professional Training Islamabad, AEPAM Publication No. 272, (2016).

46.

Year Book 2013-14, Government of Pakistan, Ministry of Finance, Economic Affairs, Revenue, Statistics and Privatization, Islamabad Pakistan, (2015).

47.

UNESCO Institute for Statistics, Retrieved 12 April, 2016. http://data.uis.unesco.org/?ReportId=3340&IF_Language=eng, [accessed 16.04.16]

48.

Khan

I.U.

and Rafique

, Minimum-cost capacitated fuzzy network, fuzzy linear programming formulation, and perspective data analystics to minimize the operations cost of American airlines, Soft Computing 25 (2021), 1411–1429. https://doi.org/10.1007/s00500-020-05228-5

49.

Klir

G.J.

and Yuan

, Fuzzy Sets and Fuzzy Logic: Theory and Practice, Prentice Hall PTR, Upper Saddle River, New Jersey, USA, (1995), 409–414.

Dynamic programming approach for fuzzy linear programming problems FLPs and its application to optimal resource allocation problems in education system

Abstract

Keywords

1 Introduction

2 Dynamic programming approach for solving linear programming problems

3.1 Proposed dynamic fuzzy linear programming in which the total available resources B1, B2, . . . , B m are Fuzzy

Footnotes

Acknowledgments

Conflict of interest

Funding

References

3.1 Proposed dynamic fuzzy linear programming in which the total available resources B₁, B₂, . . . , B_m are Fuzzy
