Fuzzy incidence coloring on cartesian product of some fuzzy incidence graphs

Abstract

The Fuzzy Incidence Coloring (FIC) of a graph is a mapping of its Fuzzy Incidence set to a color set in which adjacent Fuzzy Incidences (FIs) are colored with different colors. Using various sorts of fuzzy graph products, new graphs can be created from two existing graphs. In this paper, we determined the Fuzzy Incidence Coloring Number (FICN) of some cartesian product with two Fuzzy Incidence Paths (FIPs) $\tilde{(P_{m}} \times \tilde{P_{n}})$ , two Fuzzy Incidence cycles $\tilde{(C_{m}} \times \tilde{C_{n}})$ , two Fuzzy Incidence complete graphs $\tilde{(K_{m}} \times \tilde{K_{n})}$ , FIP and Fuzzy Incidence cycle $(\tilde{P_{m}} \times \tilde{C_{n})}$ , FIP and Fuzzy Incidence complete graph $\tilde{(P_{m}} \times \tilde{K_{n})}$ , Fuzzy Incidence cycle and Fuzzy Incidence complete graph $\tilde{(C_{m}} \times \tilde{K_{n})}$ , respectively.

Keywords

Fuzzy Incidence Path Fuzzy Incidence cycle Fuzzy Incidence complete graph cartesian product

1 Introduction

A graph is a simple model relation that represents information between things skillfully. Objects and relationships are represented by vertices and edges. There is frequently uncertainty in the items or their relationships, or between both objects and their relationships, while describing a graph. Fuzzy graph models are well suited in this scenario. Mordeson et al. [10] introduced various fuzzy graph operations that can be used to generate new graphs from two existing graphs, such as union, join, cartesian product, and composition. Shovan Dogra [23] presented various fuzzy graph products to identify the degree of vertices, including modular, homomorphic, box dot, and star fuzzy graph products. Talal AL-Hawary [26] proposed three new operations: direct product, semi-strong product, and strong product for fuzzy graphs to be a complete fuzzy graph. Ghorai et al. [15] developed detour G-interior and detour G-boundary nodes with applications in a bipolar fuzzy network. In a bipolar fuzzy environment, they have also investigated a few graph indices [14]. The definition and theory of bipolar fuzzy graphs were revised by Ghorai et al. [16], and they also provided some numerical examples.

A FIG is a new approach to the degree to which an edge and a vertex incident were defined by Dinesh [5, 6]. FIGs, have long been acknowledged as an effective and well-organized tool for capturing and resolving a wide range of real-world scenarios involving ambiguous data and information. Because of the importance of unpredictability and nonspecific information in real-world problems that are usually uncertain, it is highly difficult for an expert to describe those difficulties using a fuzzy graph. As a result, establishing a FIG, on which fuzzy graphs may not produce appropriate results, can be utilized to address the uncertainty associated with any unpredictable and generic information of any real-world problem. Later, Sunil Mathew et al. [24] presented FIG connectivity principles, which are useful in interconnection networks with impacted flows. Because most interconnection networks do not follow the crisp rule, fuzzy graph theory can be applied to improve performance.

One of the most important challenges in combinatorial optimization is graph coloring, which is widely used to promote conflict resolution or the optimal division of mutually exclusive events. Many practical problems can be represented as coloring problems. Any graph can be usually related to two types of coloring namely, vertex coloring and edge coloring. Vertex coloring is a function that gives distinct colors to adjacent vertices. Edge coloring is a function that assigns distinct colors to the edges so that the incident edges are colored differently. Many researchers have experimented with some additional graph colorings like, centre coloring, fractional coloring, dynamic coloring, harmonic coloration, rainbow coloring, incidence coloring, and so on. Graph coloring is used in picture segmentation, image capture, data mining, scheduling, allocation, networking, and other real-time applications.

Any network that focuses on both data at the same time is subjected to incidence coloring. Constructing a wireless network in which a group of transceivers is connected in space communication is one of the major challenges in the frequency assignment problem. Each transceiver can send and receive data at the same time, and nearby transceivers with different frequencies avoid broadcast conflicts. As a result, the incidence coloring of graphs to be used to characterize the model such that neighborly incidences are assigned different colors. The incidence chromatic number is the least number of independent incidence sets, and incidence coloring separates the entire graph into disjoint separate incidence sets. Richard et al. [17] demonstrated incidence coloring on graphs such as trees, full graphs, and complete bipartite graphs, and they hypothesized that every graph G could be incidence colored with Δ + 2 colors. Cheng et al. [4] researched incidence coloring techniques for square meshes, hexagonal meshes, and honeycomb meshes with a minimum color requirement of Δ + 1. The chromatic number on some standard products of graphs with some applications of product colorings was introduced by Sandi Klavzar [22]. Incidence coloring on the cartesian product of some special classes of graphs was extensively investigated by Alexander et al. [1]. Petr Gregor et al. [13] introduced some sufficient properties of the two-factor graphs of a cartesian product graph which admits an incidence coloring with at most Δ + 2 colors.

Fuzzy coloring is used to deal with uncertainties such as vagueness and ambiguity in coloring situations. Because there may be a variation in coloring numbers between crisp and fuzzy graphs where crisp graph coloring may not yield appropriate results in the situation of uncertainty. Fuzzy coloring is created to color political maps as well as a variety of real-time scenarios like traffic light systems, immigration, work scheduling, image classification, and network communications. The process of coloring the fuzzy graphs was implemented by Munoz et al. [12]. Anjaly Kishore et al. [2] defined the chromatic number of fuzzy graphs and the chromatic number of threshold graphs to make the coloring of the fuzzy graph simple. The vertex coloring function uses the α-cut of a fuzzy graph to color all of the graph’s vertices and the method of getting the graph chromatic number was proposed by Arindam Dey et al. [3]. The edge coloring of fuzzy graphs was introduced by Rupkumar Mahapatra et al. [21] in which the chromatic index and the strong chromatic index with related attributes were examined. Furthermore, the edge coloring of fuzzy graphs has been more effectively used to solve the issues in the job-oriented websites and traffic light. Madhumangal Pal et al. [9] addressed fresh ideas for coloring fuzzy graphs, focusing mostly on vertex and edge coloring and illuminating their discussion with examples. Additionally, he introduced a fuzzy fractional chromatic number and proposed a new technique for fuzzy fractional coloring of a fuzzy graph. He studied several fuzzy graph types and provided useful examples. The representation of ecological problems, social networks, telecommunications systems, link prediction in fuzzy social networks, manufacturing industry competition, bus network patrolling, image contraction, cell phone tower installation, traffic signaling, job selection, etc. are just a few examples of real-world applications that are illustrated as fuzzy graphs.

Rosyida et al. [18] created a novel method by taking the FCN of the cartesian product of complete fuzzy graphs and path.The Fuzzy Chromatic Number (FCN) of the cartesian product of two fuzzy graphs was developed by Rosyida et al. [19, 20], and a relationship was found between the maximum FCN of two fuzzy graphs and the FCN of the cartesian product of those two fuzzy graphs. Additionally, in accordance with the characteristics revealed by the testing results, he created an algorithm to compute the cartesian product FCN. In everyday life, a variety of instances involving human loss may occur. In these cases, preserving human lives as well as preventing such events is equally important. Although these issues can be represented as graphs and solved via fuzzy coloring, it is valid for any one criteria. To address such issues, a new FIC with a quick turnaround time has been proposed. Some specific results on chromatic FIs were studied by Liu Xikui et al. [8]. We provided a new method based on FI such that vehicle waiting times were minimized to reduce the number of accidents and traffic jams as well as bounds for many FIGs using FIC [27].

1.1 Novelty and motivation

Several research articles in the field of fuzzy graphs have been distributed in various journals. In the same way, there are few articles about FIGs. The present research introduces a new type of coloring known as Fuzzy Incidence Coloring (FIC) with an edge having two incidences and each adjacent incidence are colored with different colors in which the amount of coloring of various types of FIGs is considered. To minimize the human loss during accidents and to reduce the waiting time of vehicles in lanes of traffic flow, Fuzzy Incidence Coloring Numbers (FICNs) must be employed. Violence against illegal border crossers is common near land and maritime borders. Kidnapping, robbery, extortion, sexual violence, and death are all crimes committed against illegal immigrants by cartels, smugglers, and even corrupt government officials. Individuals are also killed as a result of heat exhaustion, dehydration, and drowning. As the government cracks down on narcotics operations and other illicit activities, criminal groups turn to alternative sources of money, such as human smuggling and sex trafficking. There has already been research done in fuzzy graph theory, demonstrating a set of techniques that can be successfully employed for modelling and dealing with illicit human trafficking. Sunil Mathew et al. [25] used FIGs with incidence blocks to study illicit international migration. However, the proposed research cannot be extended to more complicated structures with more paths and cycles in the routes. As a result, we are interested in developing a more efficient structure that can address these issues. In this article, we set the framework for such applications by computing the FICN for cartesian products of various graph combinations. In computer science, geometry, algebra, number theory, and combinatorial bayesian optimization, among other fields, the cartesian product of fuzzy graphs has been used to mimic real issues. We are therefore interested in looking at a few issues involving the cartesian product of FIGs. It made us possible to discover the FICN of the cartesian product of any two FIGs. We are interested in learning more about the FICN of the FIGs cartesian product because it is better suited to handle ambiguous phenomena in practical situations.

The objective of this paper is to find the FICN bounds for the cartesian product of FIGs. Section 1, provides an introduction and literature survey of incidence graphs, incidence coloring, FIC, and literature field analysis. Preliminary is in Section 2. Section 3 deals with the definition and FICN of graphs, as well as bounds on the cartesian product of some FIGs. The comparative study, applications, advantages and limitations, conclusion and scope of future research are outlined in the last section.

2 Preliminaries

Basic definitions of incidence coloring, FIC, and cartesian product of fuzzy graphs are found in this section.

Definition: 2.1 [17]. Let G = (V, E) be a multigraph of order n and of size m. Let I = {(v, e) : v ∈ V, e ∈ E, v is incident with e} be the set of incidences of G. We say that two incidences (v, e) and (w, f) are neighborly (adjacent) provided one of the following holds:

v = w,

e = f,

the edge {v, w} equals e or f.

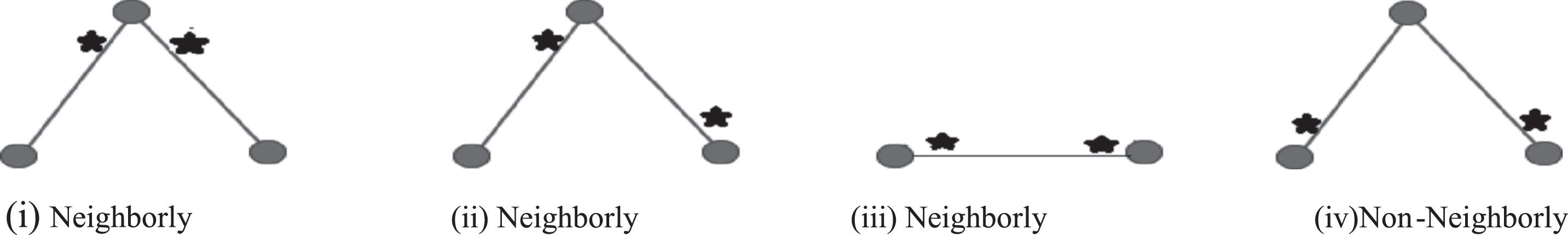

The configurations associated with (i)–(iii) are pictured in Fig. 2.1.

Fig. 2.1

Incidence pairs.

We define an incidence coloring of G to be a coloring of its incidences in which neighborly incidences are assigned different colors. The incidence coloring number of G, denoted by I (G), is the smallest number of colors in an incidence coloring.

Definition 2.2 [11]. Let (V, E) be a graph. Then G = (V, E, I) is called an incidence graph, where I ⊆ V × E. We note that if V ={ u, v } , E = { uv } and I ={ (v, uv) }, then (V, E, I) is an incidence graph even though (u, uv) ∉ I.

Definition 2.3 [11]. Let G = (V, E, I) be an incidence graph. If (u, vw) ∈ I, then (u, vw) is called an incidence pair or simply a pair. If (u, uv) , (v, uv) , (v, vw) , (w, vw) ∈ I, then uv and vw are called adjacent edges.

Definition 2.4 [5]. Let G = (V, E) be a graph and σ be a fuzzy subset of V and μ be a fuzzy subset of E (E ⊆ V × V). Let ψ be a fuzzy subset of V × E. If ψ (v, e) ⩽ σ (v) ∧ μ (e) for all v ∈ V and e ∈ E, then ψ is called a Fuzzy Incidence (FI) of G.

Definition 2.5 [6]. Let G = (V, E) be a graph and (σ, μ) be a fuzzy subgraph of G. If ψ is a Fuzzy Incidence of G, then $\tilde{G} = (σ, μ, ψ)$ is called a Fuzzy Incidence Graph (FIG) of G.

Definition 2.6 [27]. An incidence coloring of Fuzzy Incidence Graph $\tilde{G}$ can be defined as a function F_c : ψ (G) → N such that F_C [ψ (v, e)] ≠ F_C [ψ (u, f)] for any Fuzzy Incidences ψ (v, e) & ψ (u, f) that are adjacent. This implies that an incidence coloring assigns distinct colors to its adjacent Fuzzy Incidences.

Definition 2.7 [27]. Let $\tilde{G} = (σ, μ, ψ)$ be a Fuzzy Incidence Graph. Let C ={ φ_i ∈ ψ (σ × μ) : 1 ⩽ i ⩽ k }. Let k ∈N

∨φ = ψ

$φ_{i}^φ_{j} = 0, 1 \leq i, j \leq k$

for each, u ∈ σ and for each pair of strongly adjacent Fuzzy Incidences ψ toward u, ψ ∈ I (G). φ_i [ψ (v, e)] ∧ φ_j [ψ (u, f)] = 0 ∀i

That C is said to be k- Fuzzy Incidence Coloring (FIC).

Definition 2.8 [27]. The minimum number of colors needed for an incidence coloring of a fuzzy graph is known as Fuzzy Incidence Chromatic Number (FICN) or Fuzzy Incidence Coloring Number of $\tilde{G}$ and denoted by $χ_{ψ} (\tilde{G})$ .

Definition 2.9 [10]. Let G₁ (σ₁, μ₁) and G₂ (σ₂, μ₂) be two fuzzy graphs with underlying vertex sets V₁ and V₂ and edge sets E₁ and E₂ respectively. Then cartesian product of G₁ and G₂ is pair of functions (σ₁ × σ₂, μ₁ × μ₂) with underlying vertex set V = V₁× V₂ = { (u₁, v₁) ; u₁∈V₁ and v₁∈V₂ }, and underlying edge set E = E₁× E₂ = { (u₁, v₁) (u₂, v₂) ; u₁ = u₂, (v₁, v₂) ∈E₂ or (u₁, u₂) ∈E₁, v₁ = v₂ } with $\begin{matrix} (σ_{1} \times σ_{2}) (u_{1}, v_{1}) \\ = σ_{1} (u_{1}) \land σ_{2} (v_{1}), where u_{1} \in V_{1} and v_{1} \in V_{2} \\ (μ_{1} \times μ_{2}) ((u_{1}, v_{1}) (u_{2}, v_{2})) \\ = σ_{1} (u_{1}) \land μ_{2} (v_{1} v_{2}), if u_{1} = u_{2} and v_{1} v_{2} \in E_{2} \\ = μ_{1} (u_{1} u_{2}) \land σ_{2} (v_{1}), if u_{1} u_{2} \in E_{1} and v_{1} = v_{2} \end{matrix}$

3 Fuzzy Incidence Coloring Number on cartesian product graphs

The FICN on the cartesian product of some FIGs such as $\tilde{P_{m}} \times \tilde{P_{n}}, \tilde{P_{m}} \times \tilde{C_{n}}, \tilde{P_{m}} \times \tilde{K_{n},} \tilde{C_{m}} \times \tilde{C_{n}}, \tilde{C_{m}} \times \tilde{K_{n}}, \tilde{K_{m}} \times \tilde{K_{n}}$ are provided in this section.

Definition: 3.1. Let $\tilde{G_{1}} (σ_{1}, μ_{1}, ψ_{1})$ and $\tilde{G_{2}} (σ_{2}, μ_{2}, ψ_{2})$ are two FIGs with V₁ and V₂ as vertex sets, E₁ and E₂ as edge sets, Ψ₁ and Ψ₂ as Fuzzy Incidence pair sets respectively. The cartesian product of $\tilde{G_{1}}$ and $\tilde{G_{2}}$ is a function of (σ₁ × σ₂, μ₁ × μ₂, ψ₁ × ψ₂) with vertex set V = V₁× V₂ = { (v₁, t₁) ; v₁ɛV₁ and t₁ɛV₂ }, edge set E = E₁ × E₂ = {(v₁, t₁) (v₂, t₂) ; v₁ = v₂, (t₁, t₂) ɛE₂or (v₁, v₂) ɛ E₁, t₁ = t₂}, incidence pair set Ψ = Ψ₁ × Ψ₂ = { [(v₁, t₁) , (v₁, t₁) (v₂, t₂)] ; (v₁, t₁) ɛV₁ × V₂ and (v₁, t₁) (v₂, t₂) ɛE₁× E₂ }.

and whose fuzzy subsets σ₁ × σ₂ofV, μ₁ × μ₂ofE and ψ₁ × ψ₂ofΨ must defined as follows

(σ₁ × σ₂) (v₁, t₁) ⩽ σ₁ (v₁) ∧ σ₂ (t₁) , where v₁ɛV₁ and t₁ɛV₂

(μ₁ × μ₂) (v₁, t₁) (v₂, t₂) ⩽ σ₁ (v₁) ∧ μ₂ (t₁, t₂) , where t₁ = t₂ and (v₁, v₂) ɛE₂ ⩽μ₁ (t₁, t₂) ∧ σ₂ (v₁) , where (t₁, t₂) ɛE₁ and v₁ = v₂

$\begin{matrix} (ψ_{1} \times ψ_{2}) [(v_{1}, t_{1}), (v_{1}, t_{1}) (v_{2}, t_{2})] ⩽ [σ_{1} (v_{1}) \land σ_{2} (t_{1})] \\ \land [σ_{1} (v_{1}) \land μ_{2} (t_{1}, t_{2})], where v_{1} ɛ V_{1}, t_{1} ɛ V_{2} and (t_{1}, t_{2}) ɛ E_{2} \end{matrix}$

Then the Fuzzy Incidence Graph $\tilde{(G_{1}} \times \tilde{G_{2}}) (σ_{1} \times σ_{2}, μ_{1} \times μ_{2}, ψ_{1} \times ψ_{2})$ is said to be the cartesian product of $\tilde{G_{1}} (σ_{1}, μ_{1}, ψ_{1})$ and $\tilde{G_{2}} (σ_{2}, μ_{2}, ψ_{2})$ . ■

An example for the Definition 3.1 is illustrated below.

Example 3.1. Let $\tilde{P_{2}}$ be the FIP with 2 vertices whose degree 2 and $\tilde{C_{3}}$ be the Fuzzy Incidence cycle with 3 vertices whose degree 2 are represented in Figs. 3.1 and 3.2.

Fig. 3.1

FIP $\tilde{P_{2}}$ .

Fig. 3.2

Fuzzy Incidence cycle $\tilde{C_{3}}$ .

Let V₁, E₁, FI₁ are the vertex set, edge set and Fuzzy Incidence pair set of $\tilde{P_{2}}$ whose membership values are listed below.

V ₁	t ₁₁	t ₁₂
σ ₁	0.7	0.6

E ₁	t ₁₁ t ₁₂
μ₁	0.6

FI ₁	(t₁₁, t₁₁t₁₂)	(t₁₂, t₁₁t₁₂)
ψ ₁	0.6	0.6

Let V₂, E₂, FI₂ are the vertex set, edge set and Fuzzy Incidence pair set of $\tilde{C_{3}}$ whose membership values are listed below.

V ₂	t ₂₁	t ₂₂	t ₂₃
σ ₂	0.4	0.5	0.8

E ₂	t ₂₁ t ₂₂	t ₂₂ t ₂₃	t ₂₁ t ₂₃
μ₂	0.4	0.5	0.4

FI ₂	(t₂₁, t₂₁t₂₂)	(t₂₂, t₂₁t₂₂)	(t₂₂, t₂₂t₂₃)
ψ ₂	0.4	0.4	0.5
FI ₂	(t₂₃, t₂₂t₂₃)	(t₂₃, t₂₁t₂₃)	(t₂₁, t₂₁t₂₃)
ψ ₂	0.5	0.4	0.4

Now taking the cartesian product of FIP $\tilde{P_{2}} and$ Fuzzy Incidence cycle $\tilde{C_{3}}$ such that $\tilde{P_{2}} \times \tilde{C_{3}}$ with 6 vertices along with its membership values is represented in Fig. 3.3 satisfying the following conditions

(σ₁ × σ₂) (v₁, t₁) ⩽ σ₁ (v₁) ∧ σ₂ (t₁)

(μ₁ × μ₂) [(v₁, t₁) (v₂, t₂)] ⩽ (σ₁ × σ₂) (v₁, t₁) ∧ (σ₁ × σ₂) (v₂, t₂)

(ψ₁ × ψ₂) [(v₁, t₁) , (v₁, t₁) (v₂, t₂)] ⩽ (σ₁ × σ₂) (v₁, t₁) ∧ (μ₁ × μ₂) [(v₁, t₁) (v₂, t₂)]

Here, (σ₁ × σ₂) (t₁₁, t₂₁) ⩽ σ₁ (t₁₁) ∧ σ₂ (t₂₁) ⩽ 0.7 ∧ 0.4 ⩽ 0.4 $(σ_{1} \times σ_{2}) (t_{11}, t_{22}) ⩽ σ_{1} (t_{11}) \land σ_{2} (t_{22}) ⩽ 0.7 \land 0.5 ⩽ 0.5$ $(σ_{1} \times σ_{2}) (t_{11}, t_{23}) ⩽ σ_{1} (t_{11}) \land σ_{2} (t_{23}) ⩽ 0.7 \land 0.8 ⩽ 0.7$ $(σ_{1} \times σ_{2}) (t_{12}, t_{21}) ⩽ σ_{1} (t_{12}) \land σ_{2} (t_{21}) ⩽ 0.6 \land 0.4 ⩽ 0.4$ $(σ_{1} \times σ_{2}) (t_{12}, t_{22}) ⩽ σ_{1} (t_{12}) \land σ_{2} (t_{22}) ⩽ 0.6 \land 0.5 ⩽ 0.5$ $(σ_{1} \times σ_{2}) (t_{12}, t_{23}) ⩽ σ_{1} (t_{12}) \land σ_{2} (t_{23}) ⩽ 0.6 \land 0.8 ⩽ 0.5$ $\begin{matrix} (μ_{1} \times μ_{2}) [(t_{11}, t_{21}) (t_{11}, t_{22})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{21}) \land \\ (σ_{1} \times σ_{2}) (t_{11}, t_{22}) ⩽ 0.4 \land 0.5 ⩽ 0.4 \end{matrix}$ $\begin{matrix} (μ_{1} \times μ_{2}) [(t_{11}, t_{21}) (t_{11}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{21}) \\ \land (σ_{1} \times σ_{2}) (t_{11}, t_{23}) ⩽ 0.4 \land 0.7 ⩽ 0.4 \end{matrix}$ $\begin{matrix} (μ_{1} \times μ_{2}) [(t_{11}, t_{22}) (t_{11}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{22}) \land (σ_{1} \times σ_{2}) (t_{11}, t_{23}) \\ ⩽ 0.5 \land 0.7 ⩽ 0.5 \end{matrix}$ $\begin{matrix} (μ_{1} \times μ_{2}) [(t_{11}, t_{21}) (t_{12}, t_{21})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{21}) \land (σ_{1} \times σ_{2}) (t_{12}, t_{21}) \\ ⩽ 0.4 \land 0.4 ⩽ 0.4 \end{matrix}$ $\begin{matrix} (μ_{1} \times μ_{2}) [(t_{12}, t_{21}) (t_{12}, t_{22})] ⩽ (σ_{1} \times σ_{2}) (t_{12}, t_{21}) \land (σ_{1} \times σ_{2}) (t_{12}, t_{22}) \\ ⩽ 0.4 \land 0.5 ⩽ 0.4 \end{matrix}$ $\begin{matrix} (μ_{1} \times μ_{2}) [(t_{12}, t_{21}) (t_{12}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{12}, t_{21}) \land (σ_{1} \times σ_{2}) (t_{12}, t_{23}) \\ ⩽ 0.4 \land 0.5 ⩽ 0.4 \end{matrix}$ $\begin{matrix} (μ_{1} \times μ_{2}) [(t_{11}, t_{22}) (t_{12}, t_{22})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{22}) \land (σ_{1} \times σ_{2}) (t_{12}, t_{22}) \\ ⩽ 0.5 \land 0.5 ⩽ 0.5 \end{matrix}$ $\begin{matrix} (μ_{1} \times μ_{2}) [(t_{12}, t_{22}) (t_{12}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{12}, t_{22}) \land (σ_{1} \times σ_{2}) (t_{12}, t_{23}) \\ ⩽ 0.5 \land 0.5 ⩽ 0.5 \end{matrix}$ $\begin{matrix} (μ_{1} \times μ_{2}) [(t_{11}, t_{23}) (t_{12}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{23}) \land (σ_{1} \times σ_{2}) (t_{21}, t_{23}) \\ ⩽ 0.7 \land 0.5 ⩽ 0.5 \end{matrix}$ $\begin{matrix} (ψ_{1} \times ψ_{2}) [(t_{11}, t_{21}), (t_{11}, t_{21}) (t_{11}, t_{22})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{21}) \land (μ_{1} \times μ_{2}) [(t_{11}, t_{21}) (t_{11}, t_{22})] \\ ⩽ 0.4 \land 0.4 ⩽ 0.2 \end{matrix}$ $\begin{matrix} (ψ_{1} \times ψ_{2}) [(t_{11}, t_{22}), (t_{11}, t_{21}) (t_{11}, t_{22})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{22}) \land (μ_{1} \times μ_{2}) [(t_{11}, t_{21}) (t_{11}, t_{22})] \\ ⩽ 0.5 \land 0.4 ⩽ 0.4 \end{matrix}$ $\begin{matrix} (ψ_{1} \times ψ_{2}) [(t_{11}, t_{21}), (t_{11}, t_{21}) (t_{11}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{21}) \land (μ_{1} \times μ_{2}) [(t_{11}, t_{21}) (t_{11}, t_{23})] \\ ⩽ 0.4 \land 0.4 ⩽ 0.3 \end{matrix}$ $\begin{matrix} (ψ_{1} \times ψ_{2}) [(t_{11}, t_{23}), (t_{11}, t_{21}) (t_{11}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{23}) \land (μ_{1} \times μ_{2}) [(t_{11}, t_{21}) (t_{11}, t_{23})] \\ ⩽ 0.7 \land 0.4 ⩽ 0.4 \end{matrix}$ $\begin{matrix} (ψ_{1} \times ψ_{2}) [(t_{11}, t_{22}), (t_{11}, t_{22}) (t_{11}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{22}) \land (μ_{1} \times μ_{2}) [(t_{11}, t_{22}) (t_{11}, t_{23})] \\ ⩽ 0.5 \land 0.5 ⩽ 0.5 \end{matrix}$ $\begin{matrix} (ψ_{1} \times ψ_{2}) [(t_{11}, t_{23}), (t_{11}, t_{22}) (t_{11}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{23}) \land (μ_{1} \times μ_{2}) [(t_{11}, t_{22}) (t_{11}, t_{23})] \\ ⩽ 0.7 \land 0.5 ⩽ 0.5 \end{matrix}$ $\begin{matrix} (ψ_{1} \times ψ_{2}) [(t_{11}, t_{21}), (t_{11}, t_{21}) (t_{12}, t_{21})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{21}) \land (μ_{1} \times μ_{2}) [(t_{11}, t_{21}) (t_{12}, t_{21})] \\ ⩽ 0.4 \land 0.4 ⩽ 0.4 \end{matrix}$ $\begin{matrix} (ψ_{1} \times ψ_{2}) [(t_{12}, t_{21}), (t_{11}, t_{21}) (t_{12}, t_{21})] ⩽ (σ_{1} \times σ_{2}) (t_{12}, t_{21}) \land (μ_{1} \times μ_{2}) [(t_{11}, t_{21}) (t_{12}, t_{21})] \\ ⩽ 0.4 \land 0.4 ⩽ 0.3 \end{matrix}$ $\begin{matrix} (ψ_{1} \times ψ_{2}) [(t_{12}, t_{21}), (t_{12}, t_{21}) (t_{12}, t_{22})] ⩽ (σ_{1} \times σ_{2}) (t_{12}, t_{21}) \land (μ_{1} \times μ_{2}) [(t_{12}, t_{21}) (t_{12}, t_{22})] \\ ⩽ 0.4 \land 0.4 ⩽ 0.3 \end{matrix}$ $(ψ_{1} \times ψ_{2}) [(t_{12}, t_{22}), (t_{12}, t_{21}) (t_{12}, t_{22})] ⩽ (σ_{1} \times σ_{2}) (t_{12}, t_{22}) \land (μ_{1} \times μ_{2}) [(t_{12}, t_{21}) (t_{12}, t_{22})]$ $⩽ 0.5 \land 0.4 ⩽ 0.3$ $(ψ_{1} \times ψ_{2}) [(t_{12}, t_{21}), (t_{12}, t_{21}) (t_{12}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{12}, t_{21}) \land (μ_{1} \times μ_{2}) [(t_{12}, t_{21}) (t_{12}, t_{23})]$ $⩽ 0.4 \land 0.4 ⩽ 0.4$ $(ψ_{1} \times ψ_{2}) [(t_{12}, t_{23}), (t_{12}, t_{21}) (t_{12}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{12}, t_{23}) \land (μ_{1} \times μ_{2}) [(t_{12}, t_{21}) (t_{12}, t_{23})]$ $⩽ 0.5 \land 0.4 ⩽ 0.4$ $(ψ_{1} \times ψ_{2}) [(t_{11}, t_{22}), (t_{11}, t_{22}) (t_{12}, t_{22})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{22}) \land (μ_{1} \times μ_{2}) [(t_{11}, t_{22}) (t_{12}, t_{22})]$ $⩽ 0.5 \land 0.5 ⩽ 0.3$ $(ψ_{1} \times ψ_{2}) [(t_{12}, t_{22}), (t_{11}, t_{22}) (t_{12}, t_{22})] ⩽ (σ_{1} \times σ_{2}) (t_{12}, t_{22}) \land (μ_{1} \times μ_{2}) [(t_{11}, t_{22}) (t_{12}, t_{22})]$ $⩽ 0.5 \land 0.5 ⩽ 0.3$ $(ψ_{1} \times ψ_{2}) [(t_{12}, t_{22}), (t_{12}, t_{22}) (t_{12}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{12}, t_{22}) \land (μ_{1} \times μ_{2}) [(t_{12}, t_{22}) (t_{12}, t_{23})]$ $⩽ 0.5 \land 0.5 ⩽ 0.5$ $(ψ_{1} \times ψ_{2}) [(t_{12}, t_{23}), (t_{12}, t_{22}) (t_{12}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{12}, t_{23}) \land (μ_{1} \times μ_{2}) [(t_{12}, t_{22}) (t_{12}, t_{23})]$ $⩽ 0.5 \land 0.5 ⩽ 0.4$ $(ψ_{1} \times ψ_{2}) [(t_{11}, t_{23}), (t_{11}, t_{23}) (t_{12}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{11}, t_{23}) \land (μ_{1} \times μ_{2}) [(t_{11}, t_{23}) (t_{12}, t_{23})]$ $⩽ 0.7 \land 0.5 ⩽ 0.4$ $(ψ_{1} \times ψ_{2}) [(t_{12}, t_{23}), (t_{11}, t_{23}) (t_{12}, t_{23})] ⩽ (σ_{1} \times σ_{2}) (t_{12}, t_{23}) \land (μ_{1} \times μ_{2}) [(t_{11}, t_{23}) (t_{12}, t_{23})]$ $⩽ 0.5 \land 0.5 ⩽ 0.5$

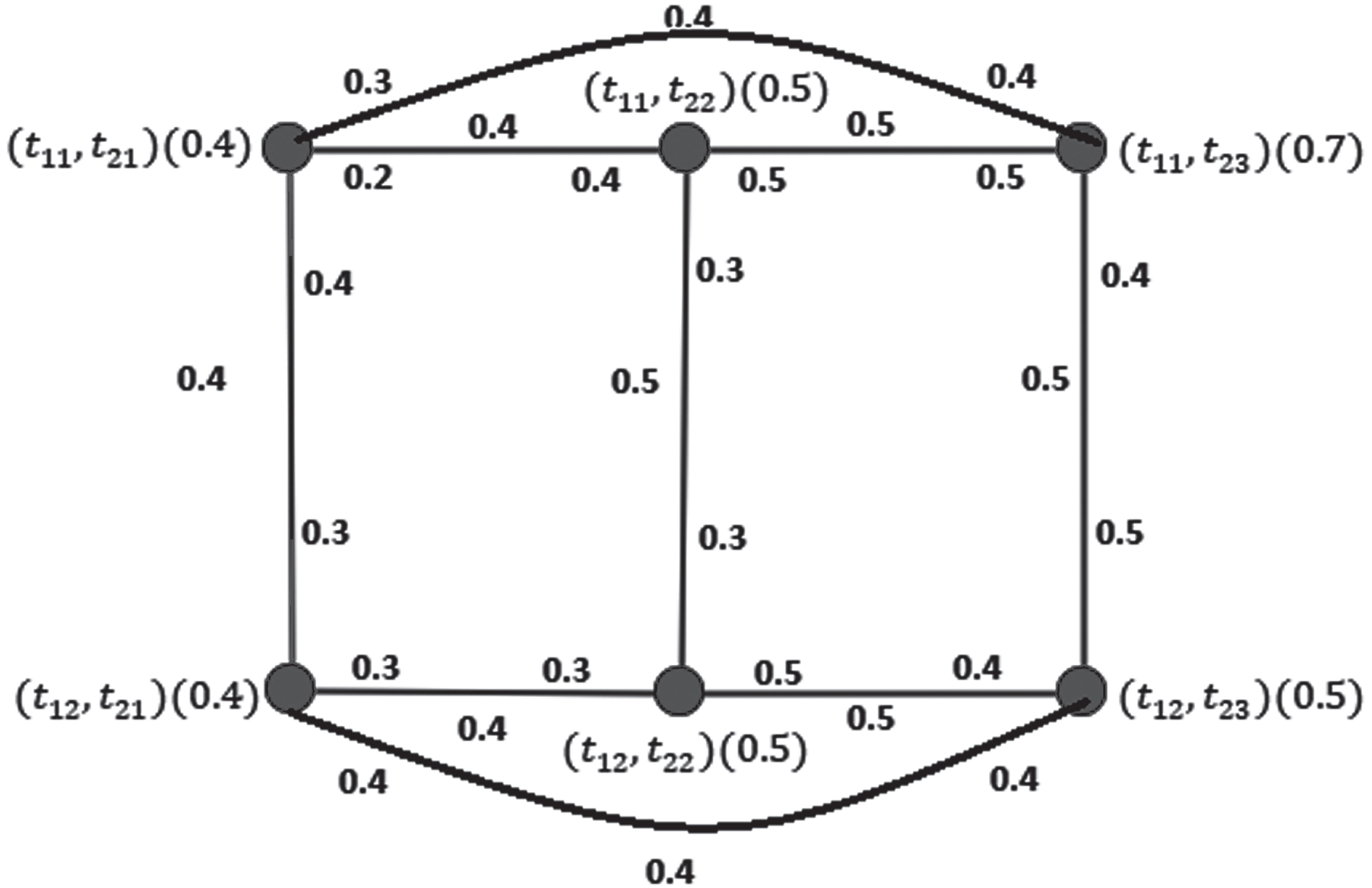

Fig. 3.3

Cartesian product of $\tilde{P_{2}} \times \tilde{C_{3}}$ .

Proposition 3.1. The cartesian product of any two FIGs is also a FIG.

Proof. Let $\tilde{G_{1}} (σ_{1}, μ_{1}, ψ_{1})$ and $\tilde{G_{2}} (σ_{2}, μ_{2}, ψ_{2})$ are two FIGs then to prove the cartesian product of $\tilde{G_{1}} \times \tilde{G_{2}}$ is also a FIG.

Let σ₁, σ₂ be the Fuzzy Incidence subsets of the vertex sets V₁, V₂, μ₁, μ₂ be the Fuzzy Incidence subsets of the edge sets E₁, E₂, and ψ₁, ψ₂ be the Fuzzy Incidence subsets of the Fuzzy Incidence pair sets Ψ₁, Ψ₂.

By Definition 3.1, the cartesian product of FIGs, $\begin{matrix} (σ_{1} \times σ_{2}) (v_{1}, t_{1}) ⩽ σ_{1} (v_{1}) \land σ_{2} (t_{1}), where v_{1} \in V_{1} and t_{1} \in V_{2} \\ (μ_{1} \times μ_{2}) [(v_{1}, t_{1}) (v_{2}, t_{2})] ⩽ σ_{1} (v_{1}) \land μ_{2} (t_{1}, t_{2}) \\ ⩽ σ_{1} (v_{1}) \land {σ_{2} (t_{1}) \land σ_{2} (t_{2})} \\ ⩽ {σ_{1} (v_{1}) \land σ_{2} (t_{1})} \land {σ_{1} (v_{1}) \land σ_{2} (t_{2})} \\ ⩽ (σ_{1} \times σ_{2}) (v_{1}, t_{1}) \land (σ_{1} \times σ_{2}) (v_{2}, t_{2}), where v_{1} = v_{2} \in \\ V_{1}, (t_{1}, t_{2}) \in E_{2} or t_{1} = t_{2} \in V_{2}, (v_{1}, v_{2}) \in E_{1 .} \end{matrix}$ $(ψ_{1} \times ψ_{2}) [(v_{1}, t_{1}), (v_{1}, t_{1}) (v_{2}, t_{2})] ⩽ [σ_{1} (v_{1}) \land σ_{2} (t_{1})] \land [σ_{1} (v_{1}) \land μ_{2} (t_{1}, t_{2})]$ $⩽ [σ_{1} (v_{1}) \land σ_{2} (t_{1})] \land [σ_{1} (v_{1}) \land {σ_{2} (t_{1}) \land σ_{2} (t_{2})}]$ $⩽ (σ_{1} \times σ_{2}) (v_{1}, t_{1}) \land {[σ_{1} (v_{1}) \land σ_{2} (t_{1})] \land [σ_{1} (v_{1}) \land σ_{2} (t_{2})]}$ $⩽ (σ_{1} \times σ_{2}) (v_{1}, t_{1}) \land {(σ_{1} \times σ_{2}) (v_{1}, t_{1}) \land (σ_{1} \times σ_{2}) (v_{1}, t_{2})}$ $⩽ (σ_{1} \times σ_{2}) (v_{1}, t_{1}) \land (μ_{1} \times μ_{2}) [(v_{1}, t_{1}) (v_{2}, t_{2})],$ $where v_{1} ϵ V_{1}, t_{1} \in V_{2} and (t_{1}, t_{2}) \in E_{2} .$

Thus σ = σ₁ × σ₂ is the Fuzzy Incidence subset of the vertex set V = V₁ × V₂, μ = μ₁ × μ₂ is the Fuzzy Incidence subset of the edge set E = E₁ × E₂ and ψ₁ × ψ₂ is the Fuzzy Incidence subset of the Fuzzy Incidence pair set Ψ = Ψ₁ × Ψ₂. Therefore $\tilde{(G_{1}} \times \tilde{G_{2}}) (σ_{1} \times σ_{2}, μ_{1} \times μ_{2}, ψ_{1} \times ψ_{2})$ is a FIG.

Hence the cartesian product of any two FIGs is also a FIG.■

Theorem 3.1. The FICN for the cartesian product of FIPs $\tilde{P_{m}}$ and $\tilde{P_{n}}$ is $χ_{ψ} (\tilde{P_{m}} \times \tilde{P_{n}}) = {\begin{matrix} 4, if m = 2 or n = 2 \\ 6 if m ⩾ 3, n ⩾ m \end{matrix} .$

Proof. Let $\tilde{(P_{m}} \times \tilde{P_{n})} (σ, μ, ψ)$ be a cartesian product of FIPs $\tilde{P_{m}} (σ_{1}, μ_{1}, ψ_{1})$ and $\tilde{P_{n}} (σ_{2}, μ_{2}, ψ_{2})$ . Let σ₁ ={ v₁, v₂, v₃, …, v_m } be a vertex set of degree 2 with m vertices and σ₂ ={ t₁, t₂, t₃, …, t_n } be a vertex set of degree 2 with n vertices. Let μ₁ ={ v₁v₂, v₂v₃, …, v_m-1v_m } be the set of edges incident with σ₁ and μ₂ ={ t₁t₂, t₂t₃, …, t_n-1t_n } be the set of edges incident with σ₂. Let ψ₁ ={ (v₁, v₁v₂) , (v₂, v₁v₂) , …, (v_m, v_m-1v_m) } be the set of Fuzzy Incidence pairs of σ₁ and μ₁ and ψ₂ ={ (t₁, t₁t₂) , (t₂, t₁t₂) , …, (t_n, t_n-1t_n) } be the set of Fuzzy Incidence pairs of σ₂ and μ₂.

By Definition 3.1 and Proposition 3.1, the cartesian product of any two FIGs must satisfies the following

(σ₁ × σ₂) (v₁, t₁) ⩽ σ₁ (v₁) ∧ σ₂ (t₁)

(μ₁ × μ₂) [(v₁, t₁) (v₂, t₂)] ⩽ (σ₁ × σ₂) (v₁, t₁) ∧ (σ₁ × σ₂) (v₂, t₂)

(ψ₁ × ψ₂) [(v₁, t₁) , (v₁, t₁) (v₂, t₂) ⩽ (σ₁ × σ₂) (v₁, t₁) ∧ (μ₁ × μ₂) [(v₁, t₁) (v₂, t₂)]

Let the adjacent FIs of ψ [(v₁, t₁) , (v₁, t₁) (v₁t₁, v₁t₂)] are ψ [(v₁, t₂) , (v₁, t₁) (v₁t₁, v₁t₂)], ψ [(v₁, t₂) , (v₁, t₂) (v₁t₂, v₂t₂)], ψ [(v₁, t₁) , (v₁, t₁) (v₁t₁, v₂t₁)], ψ [(v₂, t₁) , (v₁, t₁) (v₁t₁, v₁t₂)], . . . . By Definition 2.7, color 1 for the FI ψ [(v₁, t₁) , (v₁, t₁) (v₁t₁, v₁t₂) and distinct colors for the adjacent incidences. It is impossible to color adjacent FIs in the same color. Color all of the FIs of the cartesian product of the FIG with minimum colors in the same way. Since the two FIPs $\tilde{P_{m}}$ and $\tilde{P_{n}}$ with m and n vertices have a vertex degree of 2. Any coloring for the cartesian product of two FIPs will result in m × n mesh, whose adjacent FIs to be colored with different colors. The cartesian product of two FIPs falls in two cases.

If m = 2orn = 2 :

Here the products will result as a single row or single column mesh such that by coloring the adjacent FIs it is sufficient to have exactly 4 colors. Thus $χ_{ψ} (\tilde{P_{m}} \times \tilde{P_{n}}) = 4 if m or n = 2$ .

If m ⩾ 3 and n ⩾ m:

Here is the cartesian product graph with m × n rows and columns as a mesh. In this graph, the number of rows or columns is 3 and above such that exactly 6 colors are needed to color all the adjacent incidences of the mesh. Thus $χ_{ψ} (\tilde{P_{m}} \times \tilde{P_{n}}) = 6 if m ⩾ 3 and n ⩾ m$ . ■

Example 3.2. Let us consider two FIPs $\tilde{P_{3}}$ and $\tilde{P_{4}}$ with 3 and 4 vertices respectively represented in Figs. 3.4 and 3.5.

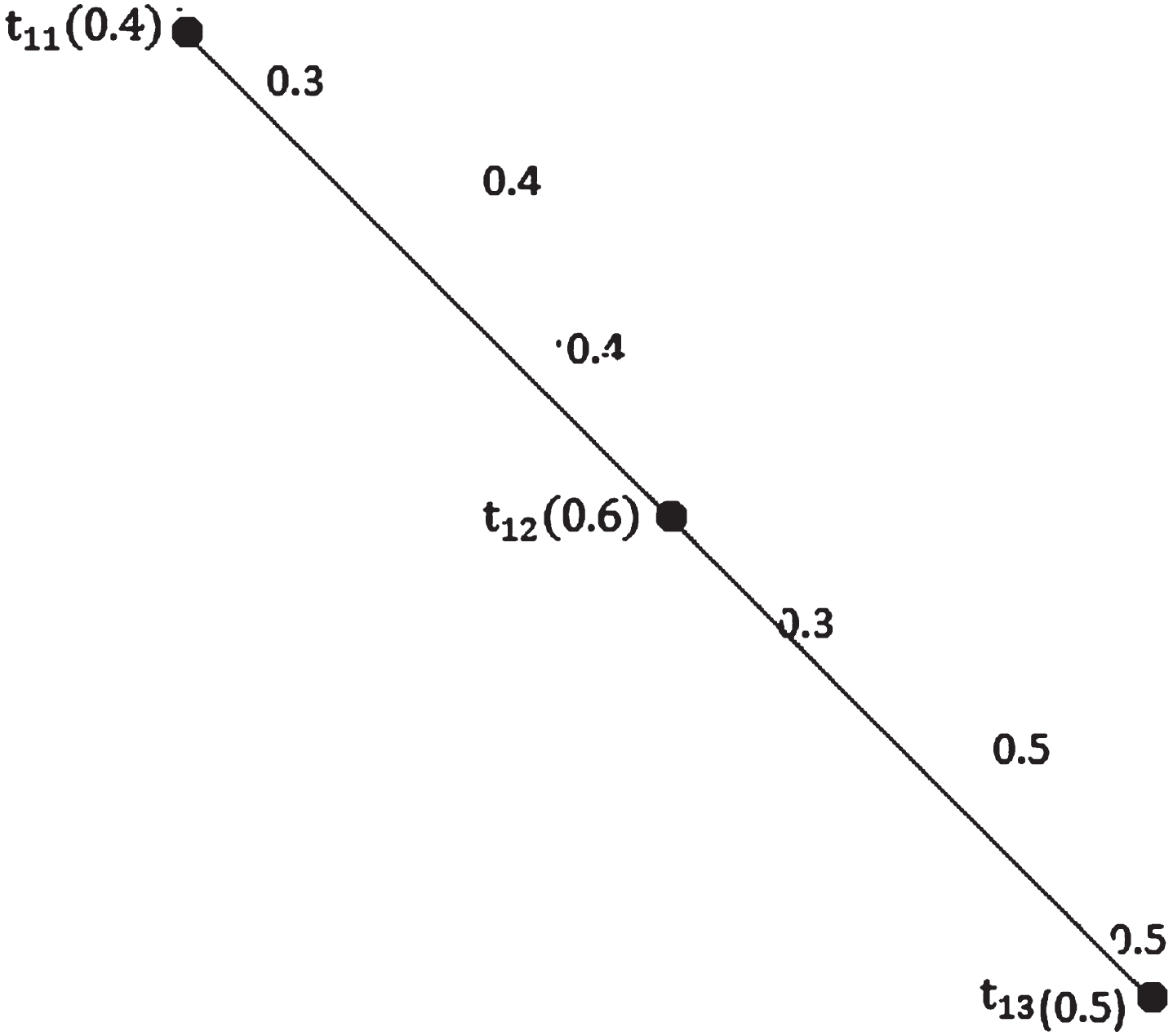

Fig. 3.4

FIP $\tilde{P_{3}}$ .

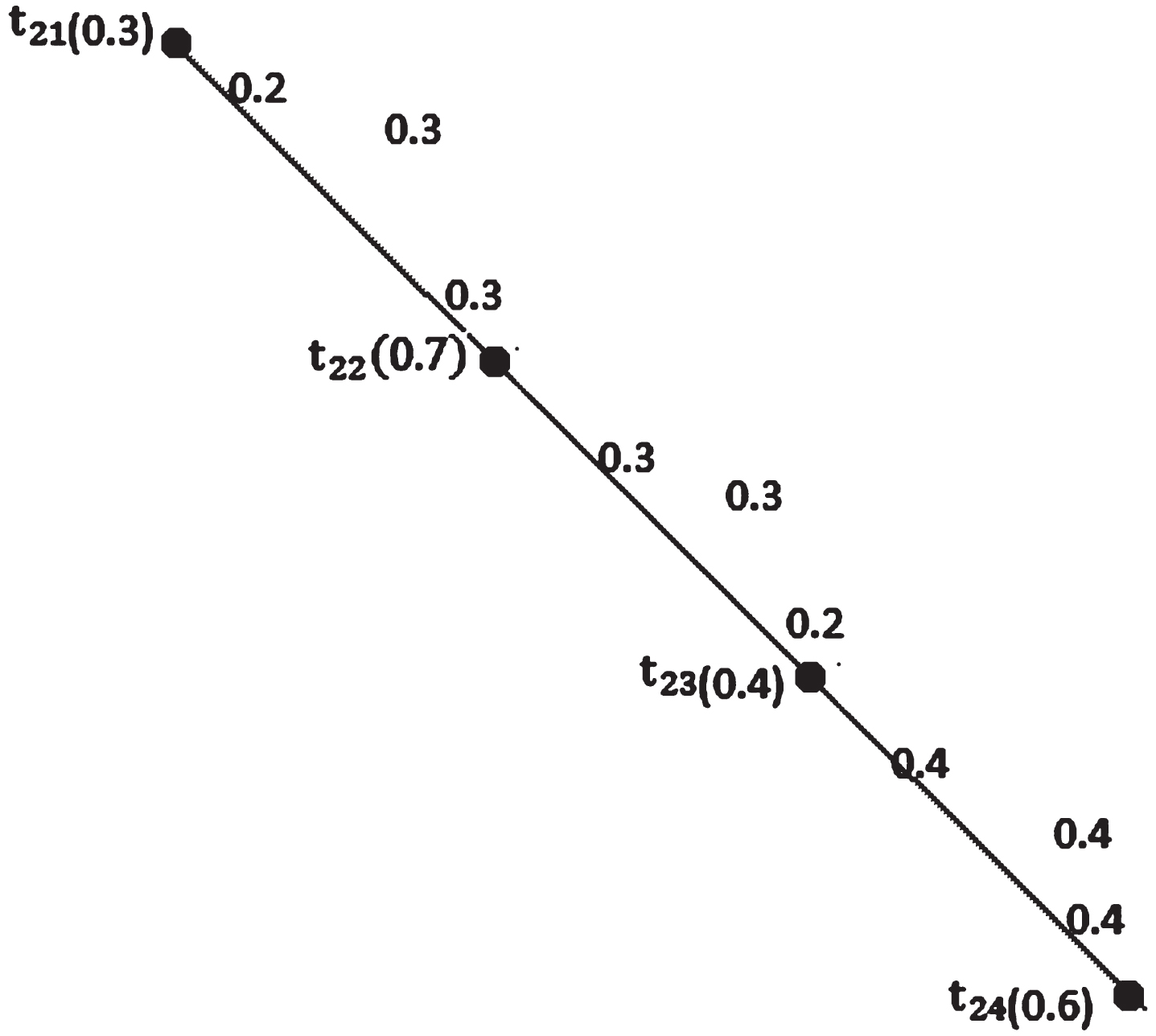

Fig. 3.5

FIP $\tilde{P_{4}}$ .

Applying cartesian product of two FIPs $\tilde{P_{3}} and \tilde{P_{4}}$ such that $\tilde{P_{3}} \times \tilde{P_{4}}$ is represented in Fig. 3.6 satisfying the following conditions

(σ₁ × σ₂) (v₁, t₁) ⩽ σ₁ (v₁) ∧ σ₂ (t₁)

(μ₁ × μ₂) [(v₁, t₁) (v₂, t₂)] ⩽ (σ₁ × σ₂) (v₁, t₁) ∧ (σ₁ × σ₂) (v₂, t₂)

(ψ₁ × ψ₂) [(v₁, t₁) , (v₁, t₁) (v₂, t₂) ⩽ (σ₁ × σ₂) (v₁, t₁) ∧ (μ₁ × μ₂) [(v₁, t₁) (v₂, t₂)]

Fig. 3.6

Cartesian product of FIPs $\tilde{P_{3}} \times \tilde{P_{4}}$ .

The membership values of the vertices, edges for the cartesian product of $\tilde{P_{3}} \times \tilde{P_{4}}$ is represented below

V	(t₁₁, t₂₁)	(t₁₁, t₂₂)	(t₁₁, t₂₃)	(t₁₁, t₂₄)	(t₁₂, t₂₁)	(t₁₂, t₂₂)
σ	0.3	0.4	0.4	0.4	0.3	0.6
V	(t₁₂, t₂₃)	(t₁₂, t₂₄)	(t₁₃, t₂₁)	(t₁₃, t₂₂)	(t₁₃, t₂₃)	(t₁₃, t₂₄)
σ	0.4	0.6	0.3	0.5	0.4	0.5

E	(t₁₁, t₂₁) (t₁₁, t₂₂)	(t₁₁, t₂₁) (t₁₂, t₂₁)	(t₁₁, t₂₂) (t₁₁, t₂₃)	(t₁₁, t₂₂) (t₁₂, t₂₂)
μ	0.3	0.3	0.3	0.4
E	(t₁₁, t₂₃) (t₁₁, t₂₄)	(t₁₁, t₂₃) (t₁₂, t₂₃)	(t₁₁, t₂₄) (t₁₂, t₂₄)	(t₁₂, t₂₁) (t₁₂, t₂₂)
μ	0.4	0.4	0.4	0.3
E	(t₁₂, t₂₁) (t₁₃, t₂₁)	(t₁₂, t₂₂) (t₁₂, t₂₃)	(t₁₂, t₂₂) (t₁₃, t₂₂)	(t₁₂, t₂₃) (t₁₂, t₂₄)
μ	0.2	0.4	0.5	0.4
E	(t₁₂, t₂₃) (t₁₃, t₂₃)	(t₁₂, t₂₄) (t₁₃, t₂₄)	(t₁₃, t₂₁) (t₁₃, t₂₂)	(t₁₃, t₂₂) (t₁₃, t₂₃)
μ	0.2	0.5	0.3	0.4
E	(t₁₃, t₂₃) (t₁₃, t₂₄)
μ	0.4

The membership functions of the FIs are represented as φ₁, φ₂, φ₃, φ₄, φ₅, φ₆ in Table 3.1.

Table 3.1

Membership functions of Fuzzy Incidence pairs of $\tilde{P_{3}} \times \tilde{P_{4}}$

Fuzzy incidences	φ ₁	φ ₂	φ ₃	φ ₄	φ ₅	φ ₆	Max
ψ [(t₁₁, t₂₁) , (t₁₁, t₂₁) (t₁₁, t₂₂)]	0.2	0	0	0	0	0	0.2
ψ [(t₁₁, t₂₁) , (t₁₁, t₂₁) (t₁₂, t₂₁)]	0	0.2	0	0	0	0	0.2
ψ [(t₁₂, t₂₁) , (t₁₁, t₂₁) (t₁₂, t₂₁)]	0	0	0.2	0	0	0	0.2
ψ [(t₁₂, t₂₁) , (t₁₂, t₂₁) (t₁₂, t₂₂)]	0	0	0	0.2	0	0	0.2
ψ [(t₁₂, t₂₁) , (t₁₂, t₂₁) (t₁₃, t₂₁)]	0.2	0	0	0	0	0	0.2
ψ [(t₁₃, t₂₁) , (t₁₂, t₂₁) (t₁₃, t₂₁)]	0	0.1	0	0	0	0	0.1
ψ [(t₁₃, t₂₁) , (t₁₃, t₂₁) (t₁₃, t₂₂)]	0	0	0.2	0	0	0	0.2
ψ [(t₁₁, t₂₂) , (t₁₁, t₂₁) (t₁₁, t₂₂)]	0	0	0.3	0	0	0	0.3
ψ [(t₁₁, t₂₂) , (t₁₁, t₂₁) (t₁₂, t₂₂)]	0	0	0	0.2	0	0	0.2
ψ [(t₁₁, t₂₂) , (t₁₁, t₂₁) (t₁₁, t₂₃)]	0	0.3	0	0	0	0	0.3
ψ [(t₁₂, t₂₂) , (t₁₁, t₂₂) (t₁₂, t₂₂)]	0.4	0	0	0	0	0	0.4
ψ [(t₁₂, t₂₂) , (t₁₂, t₂₁) (t₁₂, t₂₂)]	0	0.3	0	0	0	0	0.3
ψ [(t₁₂, t₂₂) , (t₁₂, t₂₂) (t₁₂, t₂₃)]	0	0	0	0	0.4	0	0.4
ψ [(t₁₂, t₂₂) , (t₁₂, t₂₂) (t₁₃, t₂₂)]	0	0	0.5	0	0	0	0.5
ψ [(t₁₃, t₂₂) , (t₁₂, t₂₂) (t₁₃, t₂₂)]	0	0	0	0.4	0	0	0.4
ψ [(t₁₃, t₂₂) , (t₁₃, t₂₁) (t₁₃, t₂₂)]	0.3	0	0	0	0	0	0.3
ψ [(t₁₃, t₂₂) , (t₁₃, t₂₂) (t₁₃, t₂₃)]	0	0	0	0	0	0.4	0.4
ψ [(t₁₁, t₂₃) , (t₁₁, t₂₂) (t₁₁, t₂₃)]	0.3	0	0	0	0	0	0.3
ψ [(t₁₁, t₂₃) , (t₁₁, t₂₃) (t₁₁, t₂₄)]	0	0	0	0.4	0	0	0.4
ψ [(t₁₁, t₂₃) , (t₁₁, t₂₃) (t₁₂, t₂₃)]	0	0	0	0	0.4	0	0.4
ψ [(t₁₂, t₂₃) , (t₁₁, t₂₃) (t₁₂, t₂₃)]	0	0.4	0	0	0	0	0.4
ψ [(t₁₂, t₂₃) , (t₁₂, t₂₂) (t₁₂, t₂₃)]	0	0	0	0.4	0	0	0.4
ψ [(t₁₂, t₂₃) , (t₁₂, t₂₂) (t₁₂, t₂₄)]	0	0	0.4	0	0	0	0.4
ψ [(t₁₂, t₂₃) , (t₁₂, t₂₃) (t₁₃, t₂₃)]	0	0	0	0	0	0.2	0.2
ψ [(t₁₃, t₂₃) , (t₁₂, t₂₃) (t₁₃, t₂₃)]	0	0	0	0	0.1	0	0.1
ψ [(t₁₃, t₂₃) , (t₁₃, t₂₂) (t₁₃, t₂₃)]	0	0	0.3	0	0	0	0.3
ψ [(t₁₃, t₂₃) , (t₁₃, t₂₃) (t₁₃, t₂₄)]	0.4	0	0	0	0	0	0.4
ψ [(t₁₁, t₂₄) , (t₁₁, t₂₃) (t₁₁, t₂₄)]	0	0.3	0	0	0	0	0.3
ψ [(t₁₁, t₂₄) , (t₁₁, t₂₄) (t₁₂, t₂₄)]	0	0	0.3	0	0	0	0.3
ψ [(t₁₂, t₂₄) , (t₁₁, t₂₄) (t₁₂, t₂₄)]	0	0	0	0.4	0	0	0.4
ψ [(t₁₂, t₂₄) , (t₁₂, t₂₃) (t₁₂, t₂₄)]	0	0	0	0	0.4	0	0.4
ψ [(t₁₂, t₂₄) , (t₁₂, t₂₄) (t₁₃, t₂₄)]	0.5	0	0	0	0	0	0.5
ψ [(t₁₃, t₂₄) , (t₁₂, t₂₄) (t₁₃, t₂₄)]	0	0	0.4	0	0	0	0.4
ψ [(t₁₃, t₂₄) , (t₁₃, t₂₃) (t₁₃, t₂₄)]	0	0	0	0	0	0.4	0.4

Thus $φ_{1} (ψ_{i}) = {\begin{matrix} 0.2, i = 1, 5 \\ 0.4, i = 11, 27 \\ 0.3, i = 16, 18 \\ 0.5, i = 32 \end{matrix};$ $φ_{2} (ψ_{i}) = {\begin{matrix} 0.2, i = 2 \\ 0.1, i = 6 \\ 0.3, i = 10, 12, 28 \\ 0.4, i = 21 \end{matrix}$ $φ_{3} (ψ_{i}) = {\begin{matrix} 0.2, i = 3, 7 \\ 0.3, i = 8, 26, 29 \\ 0.5, i = 16, 18 \\ 0.4, i = 23, 33 \end{matrix};$ $φ_{4} (ψ_{i}) = {\begin{matrix} 0.2, i = 4, 9 \\ 0.4, i = 15, 19, 22, 30 \end{matrix}$ $φ_{5} (ψ_{i}) = {\begin{matrix} 0.1, i = 25 \\ 0.4, i = 13, 20, 31 \end{matrix};$ $φ_{6} (ψ_{i}) = {\begin{matrix} 0.2, i = 24 \\ 0.4, i = 17, 34 \end{matrix}$

As a result, the partitions satisfy the FIC definition’s criteria by [27]. In Fig. 3.7, the FIs in φ₁ are colored blue, φ₂ are colored pink, φ₃ are colored green, φ₄ are colored brown, φ₅ are colored violet, and φ₆ are colored orange.

There fore $χ_{ψ} (\tilde{P_{3}} \times \tilde{P_{4}}) = 6$ .

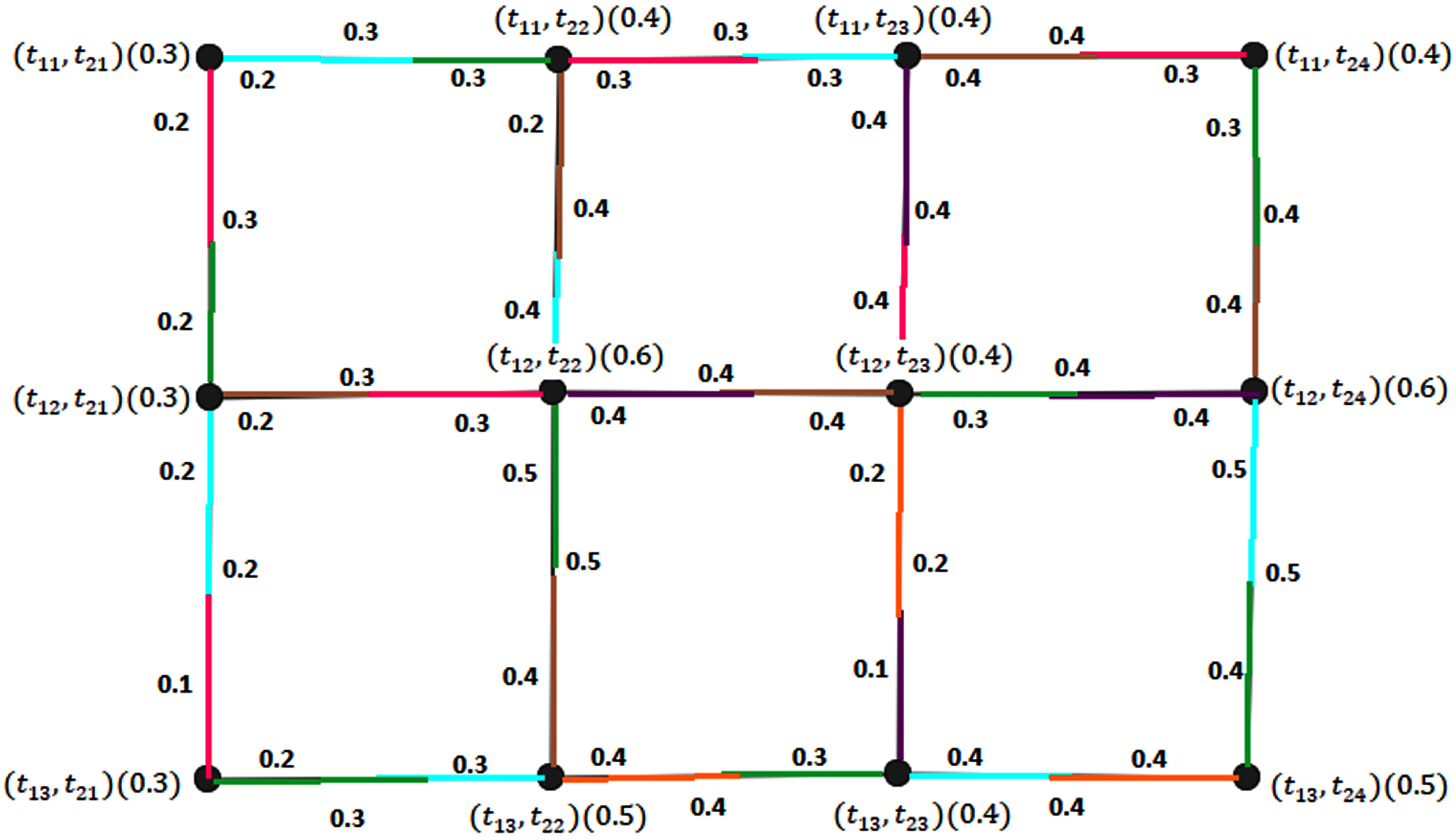

Fig. 3.7

FIC on the cartesian product of FIPs $\tilde{P_{3}} \times \tilde{P_{4}}$ .

Theorem 3.2. The FICN for the cartesian product of the FIP $\tilde{P_{m}}$ with m ⩾ 2 vertices and the Fuzzy Incidence cycle with n ⩾ 3 vertices is $χ_{ψ} (\tilde{P_{m}} \times \tilde{C_{n}})$ ⩽8.

Proof. Let $\tilde{P_{m}} (σ_{1}, μ_{1}, ψ_{1})$ be the FIP with m vertices such that m ⩾ 2, $\tilde{C_{n}} (σ_{2}, μ_{2}, ψ_{2})$ be the Fuzzy Incidence cycle with n vertices such that n ⩾ 3, and $(\tilde{P_{m}} \times \tilde{C_{n}}) (σ, μ, ψ)$ be the cartesian product of FIP and cycle with mn vertices.

Assume that σ₁ ={ v₁, v₂, v₃, …, v_m } be the vertex set of degree $Δ_{m}^{'} = 2$ of FIP and σ₂ ={ t₁, t₂, t₃, …, t_n } be a vertex set of degree $Δ_{n}^{'} = 2$ of Fuzzy Incidence cycle. μ₁ and μ₂ are the edge sets of $\tilde{P_{m}} and \tilde{C_{n}}$ incident with σ₁ and σ₂, ψ₁ be the set of FIs of σ₁ and μ₁, ψ₂ be the set of FIs of σ₂ and μ₂.

By Proposition 3.1, the cartesian product of any two FIGs must satisfy the following conditions

(σ₁ × σ₂) (v₁, t₁) ⩽ σ₁ (v₁) ∧ σ₂ (t₁)

(μ₁ × μ₂) [(v₁, t₁) (v₂, t₂)] ⩽ (σ₁ × σ₂) (v₁, t₁) ∧ (σ₁ × σ₂) (v₂, t₂)

(ψ₁ × ψ₂) [(v₁, t₁) , (v₁, t₁) (v₂, t₂) ⩽ (σ₁ × σ₂) (v₁, t₁) ∧ (μ₁ × μ₂) [(v₁, t₁) (v₂, t₂)]

Thus σ = σ₁ × σ₂ is the vertex set of the cartesian product of FIP and Fuzzy Incidence cycle with mn vertices and maximum degree Δ′ = 4 . μ = μ₁ × μ₂ be the edge set incident with σ and ψ = ψ₁ × ψ₂ be the FI set of σ and μ.

Color all of the adjacent FIs of the cartesian product of the FIG with minimum colors by Definition 2.7.

By Theorem 3.1, the cartesian product for any two FIPs with Δ′ = 4 needs exactly 6 colors. Since the cartesian product between any two FIGs will be constructed as a mesh initially then the edges may be incident with vertices if the graph is a Fuzzy Incidence cycle.

Thus the FICN of the cartesian product between FIP and Fuzzy Incidence cycle has its upper bound 8, i.e. $χ_{ψ} (\tilde{P_{m}} \times \tilde{C_{n}}) ⩽ 8$ .

For every $m ⩾ 2, n ⩾ 3 χ_{ψ} (\tilde{C_{m}} \times \tilde{P_{n}}) ⩽ 8$ . ■

Theorem 3.3. If $\tilde{C_{m}} and \tilde{C_{n}}$ are the Fuzzy Incidence cycles with ^′m′ and ^′n′ vertices, then, the lower bound of FICN is $χ_{ψ} (\tilde{C_{m}} \times \tilde{C_{n}}) ⩽ 8, where m ⩾ 3 and n ⩾ m$ .

Proof: Let $\tilde{C_{m}} (σ_{1}, μ_{1}, ψ_{1})$ and $\tilde{C_{n}} (σ_{2}, μ_{2}, ψ_{2})$ be the Fuzzy Incidence cycles with vertices m ⩾ 3 and n ⩾ m.

Applying the cartesian product on $\tilde{C_{m}}$ and $\tilde{C_{n}}$ we get $\tilde{C_{m}} \times \tilde{C_{n}}$ as a FIG on mn vertices satisfies as per Definition 3.1 and Proposition 3.1.

Suppose in $\tilde{C_{m}} \times \tilde{C_{n}}$ there exist m independently fuzzy cycles with n vertices such that $\tilde{C_{1}}$ , $\tilde{C_{2}}, \dots ., \tilde{C_{m}}$ . Consider the cycle $\tilde{C_{1}}$ for any m vertices, by Definition 2.7 assigning distinct colors alternatively to its adjacent incidences. In such a way use the combinations of the colors applied in $\tilde{C_{1}}$ for the remaining cycles existing in the cartesian product $\tilde{C_{m}} \times \tilde{C_{n}}$ without repeating the same color in its adjacent incidences.

The FICN required to color the cartesian product of $\tilde{C_{m}} \times \tilde{C_{n}}$ with m ⩾ 3 and n ⩾ m needs a minimum of eight colors.

Hence $χ_{ψ} (\tilde{C_{m}} \times \tilde{C_{n}}) ⩽ 8$ . ■

Example 3.3. Let us consider two Fuzzy Incidence cycles $\tilde{C_{4}}$ and $\tilde{C_{3}}$ with 4 and 3 vertices whose degree is 2 represented in Figs. 3.8 and 3.9.

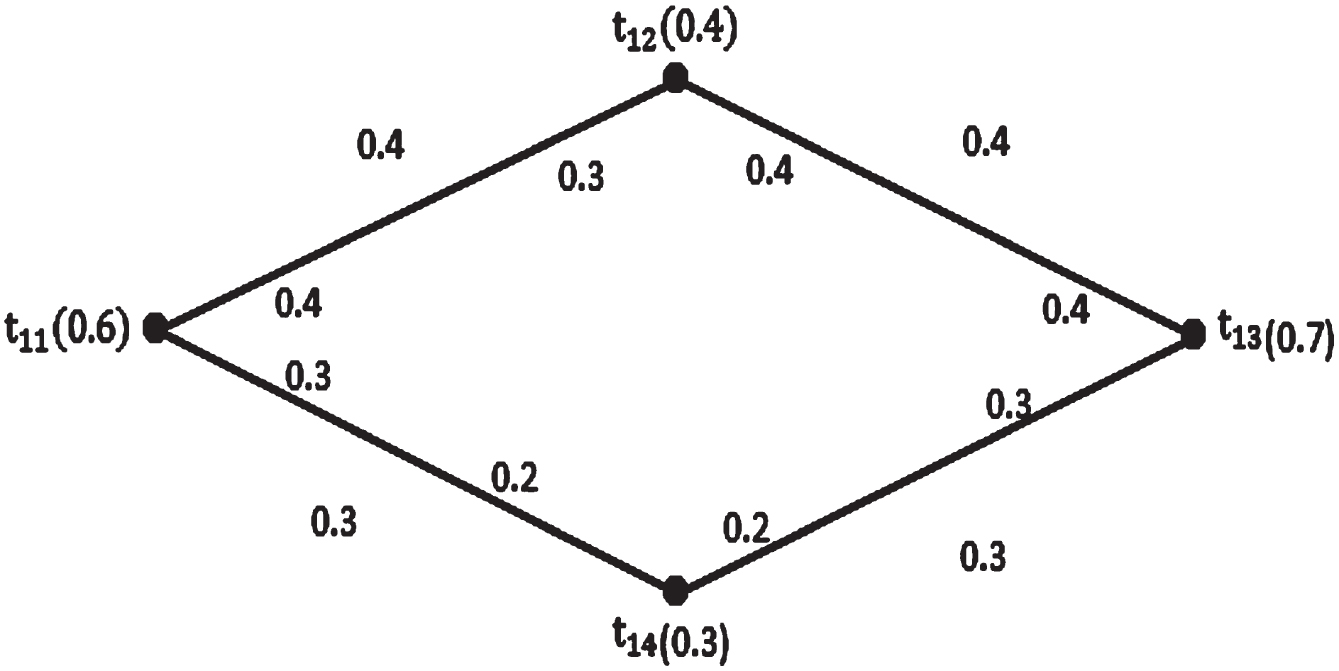

Fig. 3.8

Fuzzy incidence cycle $\tilde{C_{4}}$ .

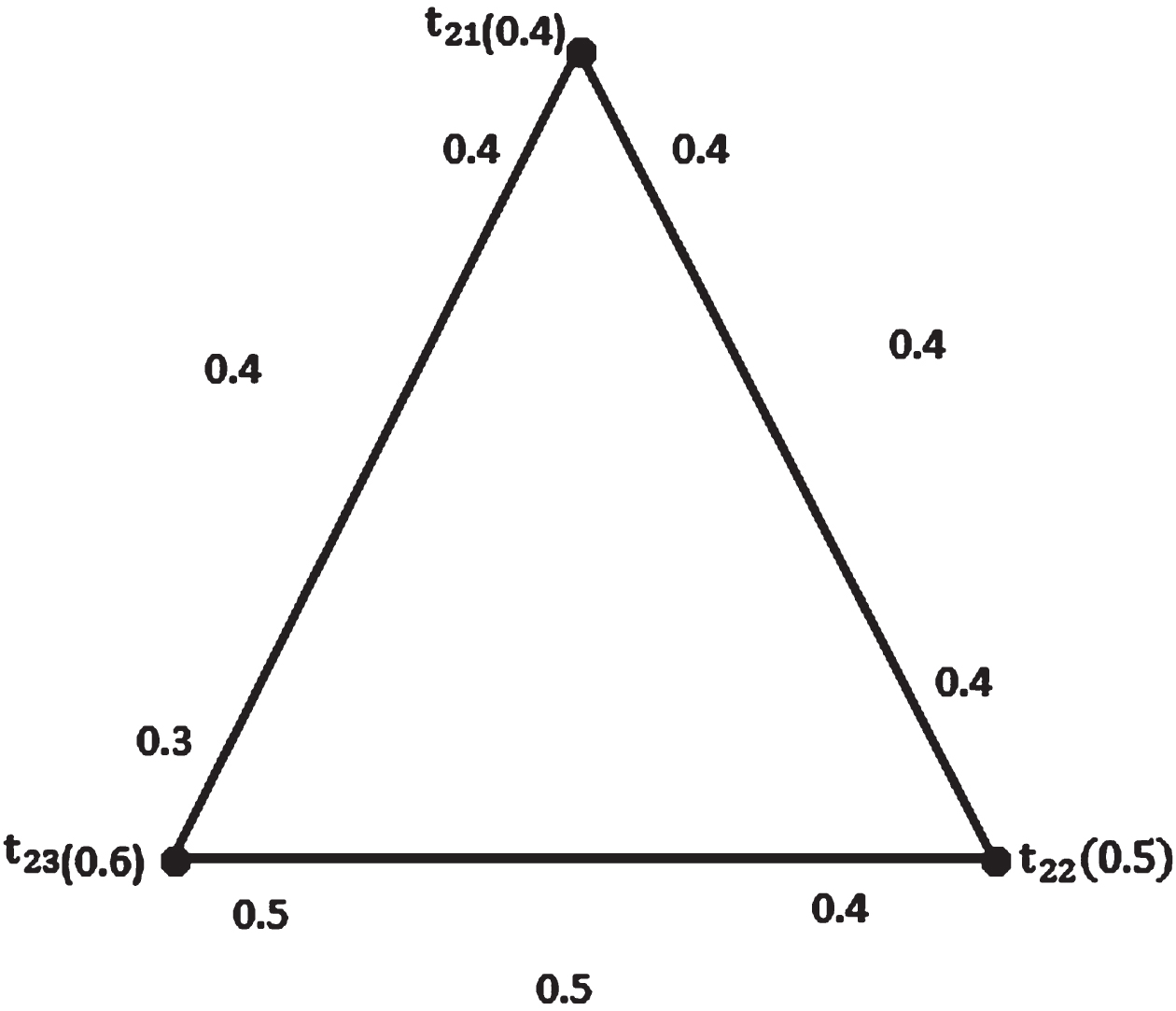

Fig. 3.9

Fuzzy incidence cycle $\tilde{C_{3}}$ .

Applying the cartesian product of Fuzzy Incidence cycles $\tilde{C_{4}} and \tilde{C_{3}}$ such that $\tilde{C_{4}} \times \tilde{C_{3}}$ is represented in Fig. 3.10 satisfying the following conditions

(σ₁ × σ₂) (v₁, t₁) ⩽ σ₁ (v₁) ∧ σ₂ (t₁)

(μ₁ × μ₂) [(v₁, t₁) (v₂, t₂)] ⩽ (σ₁ × σ₂) (v₁, t₁) ∧ (σ₁ × σ₂) (v₂, t₂)

(ψ₁ × ψ₂) [(v₁, t₁) , (v₁, t₁) (v₂, t₂) ⩽ (σ₁ × σ₂) (v₁, t₁) ∧ (μ₁ × μ₂) [(v₁, t₁) (v₂, t₂)]

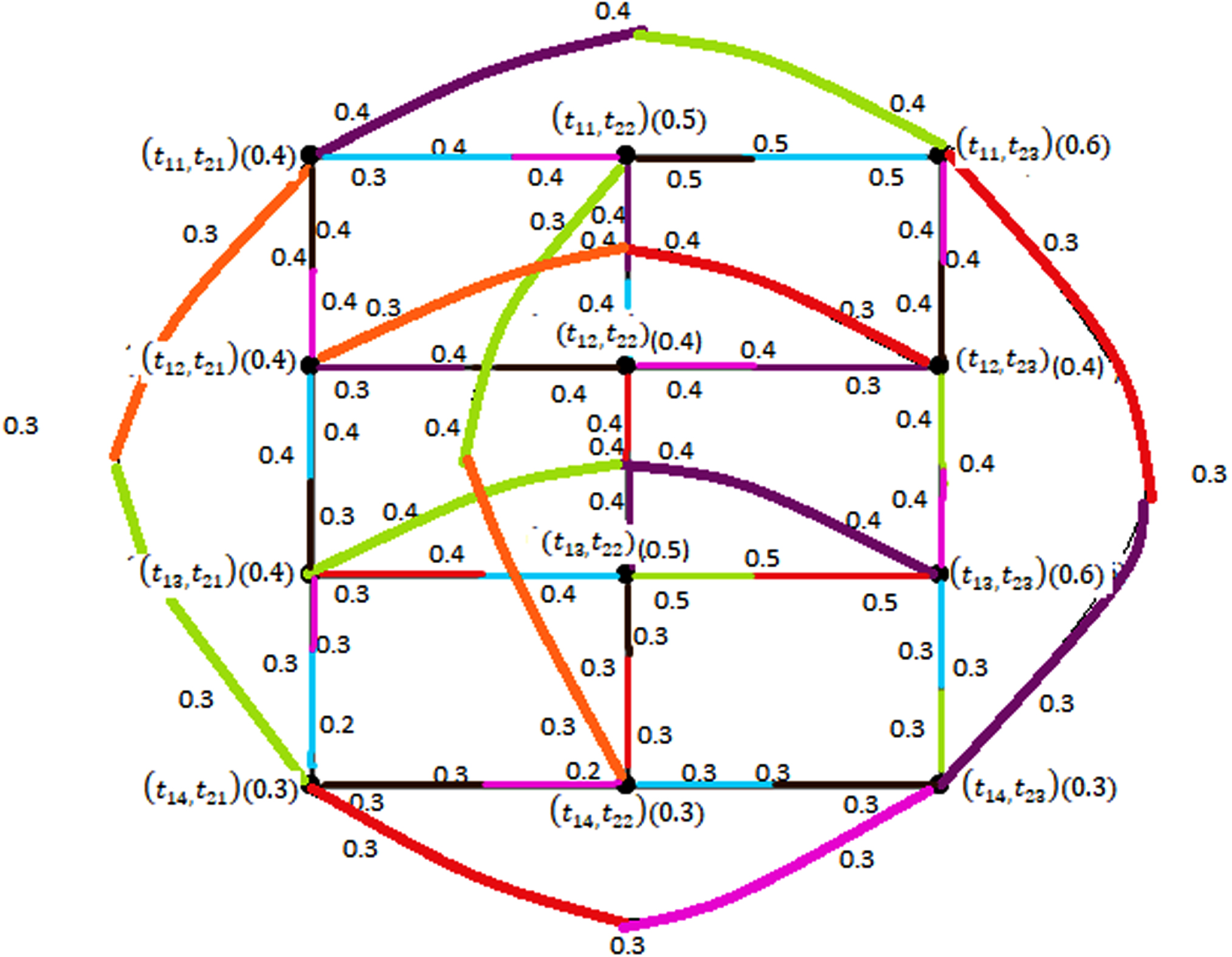

Fig. 3.10

Cartesian product of $\tilde{C_{4}} \times \tilde{C_{3}}$ .

The membership values of the vertex set, edge set for the cartesian product of $\tilde{C_{4}} \times \tilde{C_{3}}$ with degree 4 is represented below.

Table 3.2 represents the membership functions of the Fuzzy Incidences as φ₁, φ₂, φ₃, φ₄, φ₅, φ₆ and φ₇.

Table 3.2

Membership functions of the Fuzzy Incidences pairs of $\tilde{C_{4}} \times \tilde{C_{3}}$

Fuzzy incidences	φ₁	φ₂	φ₃	φ₄	φ₅	φ₆	φ₇	Max
ψ [(t₁₁, t₂₁) , (t₁₁, t₂₁) (t₁₁, t₂₂)]	0.3	0	0	0	0	0	0	0.3
ψ [(t₁₁, t₂₁) , (t₁₁, t₂₁) (t₁₁, t₂₃)]	0	0	0.4	0	0	0	0	0.4
ψ [(t₁₁, t₂₁) , (t₁₁, t₂₁) (t₁₂, t₂₁)]	0	0	0	0	0	0.4	0	0.4
ψ [(t₁₁, t₂₁) , (t₁₁, t₂₁) (t₁₄, t₂₁)]	0	0	0	0	0	0	0.3	0.3
ψ [(t₁₁, t₂₂) , (t₁₁, t₂₁) (t₁₁, t₂₂)]	0	0.4	0	0	0	0	0	0.4
ψ [(t₁₁, t₂₂) , (t₁₁, t₂₂) (t₁₁, t₂₃)]	0	0	0	0	0	0.5	0	0.5
ψ [(t₁₁, t₂₂) , (t₁₁, t₂₂) (t₁₂, t₂₂)]	0	0	0.4	0	0	0	0	0.4
ψ [(t₁₁, t₂₂) , (t₁₁, t₂₂) (t₁₄, t₂₂)]	0	0	0	0.3	0	0	0	0.3
ψ [(t₁₁, t₂₃) , (t₁₁, t₂₂) (t₁₁, t₂₃)]	0.5	0	0	0	0	0	0	0.5
ψ [(t₁₁, t₂₃) , (t₁₁, t₂₃) (t₁₂, t₂₃)]	0	0.4	0	0	0	0	0	0.4
ψ [(t₁₁, t₂₃) , (t₁₁, t₂₁) (t₁₁, t₂₃)]	0	0	0	0.4	0	0	0	0.4
ψ [(t₁₁, t₂₃) , (t₁₁, t₂₃) (t₁₄, t₂₃)]	0	0	0	0	0.3	0	0	0.3
ψ [(t₁₂, t₂₁) , (t₁₁, t₂₁) (t₁₂, t₂₁)]	0	0.4	0	0	0	0	0	0.4
ψ [(t₁₂, t₂₁) , (t₁₂, t₂₁) (t₁₂, t₂₂)]	0	0	0.3	0	0	0	0	0.3
ψ [(t₁₂, t₂₁) , (t₁₂, t₂₁) (t₁₂, t₂₃)]	0	0	0	0	0	0	0.3	0.3
ψ [(t₁₂, t₂₁) , (t₁₂, t₂₁) (t₁₃, t₂₁)]	0.4	0	0	0	0	0	0	0.4
ψ [(t₁₂, t₂₂) , (t₁₂, t₂₁) (t₁₂, t₂₂)]	0	0	0	0	0	0.4	0	0.4
ψ [(t₁₂, t₂₂) , (t₁₁, t₂₂) (t₁₂, t₂₂)]	0.4	0	0	0	0	0	0	0.4
ψ [(t₁₂, t₂₂) , (t₁₂, t₂₂) (t₁₂, t₂₃)]	0	0.4	0	0	0	0	0	0.4
ψ [(t₁₂, t₂₂) , (t₁₂, t₂₂) (t₁₃, t₂₂)]	0	0	0	0	0.4	0	0	0.4
ψ [(t₁₂, t₂₃) , (t₁₂, t₂₂) (t₁₂, t₂₃)]	0	0	0.3	0	0	0	0	0.3
ψ [(t₁₂, t₂₃) , (t₁₁, t₂₃) (t₁₂, t₂₃)]	0	0	0	0	0	0.4	0	0.4
ψ [(t₁₂, t₂₃) , (t₁₂, t₂₁) (t₁₂, t₂₃)]	0	0	0	0	0.3	0	0	0.3
ψ [(t₁₂, t₂₃) , (t₁₂, t₂₃) (t₁₃, t₂₃)]	0	0	0	0.4	0	0	0	0.4
ψ [(t₁₃, t₂₁) , (t₁₂, t₂₁) (t₁₃, t₂₁)]	0	0	0	0	0	0.3	0	0.3
ψ [(t₁₃, t₂₁) , (t₁₃, t₂₁) (t₁₃, t₂₂)]	0	0	0	0	0.3	0	0	0.3
ψ [(t₁₃, t₂₁) , (t₁₃, t₂₁) (t₁₃, t₂₃)]	0	0	0	0.4	0	0	0	0.4
ψ [(t₁₃, t₂₁) , (t₁₃, t₂₁) (t₁₄, t₂₁)]	0	0.3	0	0	0	0	0	0.3
ψ [(t₁₃, t₂₂) , (t₁₃, t₂₁) (t₁₃, t₂₂)]	0.4	0	0	0	0	0	0	0.4
ψ [(t₁₃, t₂₂) , (t₁₃, t₂₂) (t₁₃, t₂₃)]	0	0	0	0.5	0	0	0	0.5
ψ [(t₁₃, t₂₂) , (t₁₂, t₂₂) (t₁₃, t₂₂)]	0	0	0.4	0	0	0	0	0.4
ψ [(t₁₃, t₂₂) , (t₁₃, t₂₂) (t₁₄, t₂₂)]	0	0	0	0	0	0.3	0	0.3
ψ [(t₁₃, t₂₃) , (t₁₃, t₂₂) (t₁₃, t₂₃)]	0	0	0	0	0.5	0	0	0.5
ψ [(t₁₃, t₂₃) , (t₁₃, t₂₁) (t₁₃, t₂₃)]	0	0	0.4	0	0	0	0	0.4
ψ [(t₁₃, t₂₃) , (t₁₂, t₂₃) (t₁₃, t₂₃)]	0	0.4	0	0	0	0	0	0.4
ψ [(t₁₃, t₂₃) , (t₁₃, t₂₃) (t₁₄, t₂₃)]	0.3	0	0	0	0	0	0	0.3
ψ [(t₁₄, t₂₁) , (t₁₃, t₂₁) (t₁₄, t₂₁)]	0.2	0	0	0	0	0	0	0.2
ψ [(t₁₄, t₂₁) , (t₁₁, t₂₁) (t₁₄, t₂₁)]	0	0	0	0.3	0	0	0	0.3
ψ [(t₁₄, t₂₁) , (t₁₄, t₂₁) (t₁₄, t₂₂)]	0	0	0	0	0	0.3	0	0.3
ψ [(t₁₄, t₂₁) , (t₁₄, t₂₁) (t₁₄, t₂₃)]	0	0	0	0	0.3	0	0	0.3
ψ [(t₁₄, t₂₂) , (t₁₄, t₂₁) (t₁₄, t₂₂)]	0	0.2	0	0	0	0	0	0.2
ψ [(t₁₄, t₂₂) , (t₁₃, t₂₂) (t₁₄, t₂₂)]	0	0	0	0	0.3	0	0	0.3
ψ [(t₁₄, t₂₂) , (t₁₁, t₂₂) (t₁₄, t₂₂)]	0	0	0	0	0	0	0.3	0.3
ψ [(t₁₄, t₂₂) , (t₁₄, t₂₂) (t₁₄, t₂₃)]	0.3	0	0	0	0	0	0	0.3
ψ [(t₁₄, t₂₃) , (t₁₄, t₂₂) (t₁₄, t₂₃)]	0	0	0	0	0	0.3	0	0.3
ψ [(t₁₄, t₂₃) , (t₁₄, t₂₁) (t₁₄, t₂₃)]	0	0.3	0	0	0	0	0	0.3
ψ [(t₁₄, t₂₃) , (t₁₃, t₂₃) (t₁₄, t₂₃)]	0	0	0	0.3	0	0	0	0.3
ψ [(t₁₄, t₂₃) , (t₁₁, t₂₃) (t₁₄, t₂₃)]	0	0	0.3	0	0	0	0	0.3

V	(t₁₁, t₂₁)	(t₁₁, t₂₂)	(t₁₁, t₂₃)	(t₁₂, t₂₁)	(t₁₂, t₂₂)	(t₁₂, t₂₃)
σ	0.4	0.5	0.6	0.4	0.4	0.4
V	(t₁₃, t₂₁)	(t₁₃, t₂₂)	(t₁₃, t₂₃)	(t₁₄, t₂₁)	(t₁₄, t₂₂)	(t₁₄, t₂₃)
σ	0.4	0.5	0.6	0.3	0.3	0.3

E	(t₁₁, t₂₁) (t₁₁, t₂₂)	(t₁₁, t₂₁) (t₁₂, t₂₁)	(t₁₁, t₂₁) (t₁₁, t₂₃)	(t₁₁, t₂₁) (t₁₄, t₂₁)
μ	0.4	0.4	0.4	0.3
E	(t₁₁, t₂₂) (t₁₁, t₂₃)	(t₁₁, t₂₂) (t₁₂, t₂₂)	(t₁₁, t₂₂) (t₁₄, t₂₂)	(t₁₁, t₂₃) (t₁₂, t₂₃)
μ	0.5	0.4	0.3	0.4
E	(t₁₁, t₂₃) (t₁₄, t₂₃)	(t₁₂, t₂₁) (t₁₂, t₂₂)	(t₁₂, t₂₁) (t₁₃, t₂₁)	(t₁₂, t₂₁) (t₁₂, t₂₃)
μ	0.3	0.4	0.4	0.4
E	(t₁₂, t₂₂) (t₁₂, t₂₃)	(t₁₂, t₂₂) (t₁₃, t₂₂)	(t₁₂, t₂₃) (t₁₃, t₂₃)	(t₁₃, t₂₁) (t₁₄, t₂₁)
μ	0.4	0.4	0.4	0.3
E	(t₁₃, t₂₁) (t₁₃, t₂₂)	(t₁₃, t₂₁) (t₁₃, t₂₃)	(t₁₃, t₂₂) (t₁₃, t₂₃)	(t₁₃, t₂₂) (t₁₄, t₂₂)
μ	0.4	0.4	0.5	0.3
E	(t₁₃, t₂₃) (t₁₄, t₂₃)	(t₁₄, t₂₁) (t₁₄, t₂₂)	(t₁₄, t₂₁) (t₁₄, t₂₃)	(t₁₄, t₂₂) (t₁₄, t₂₃)
μ	0.3	0.3	0.3	0.3

Thus, $φ_{1} (ψ_{i}) = {\begin{matrix} 0.3, i = 1, 36, 44 \\ 0.4, i = 16, 18, 29 \\ 0.5, i = 9 \\ 0.2, i = 37 \end{matrix};$ $φ_{2} (ψ_{i}) = {\begin{matrix} 0.4, i = 5, 10, 13, 19, 35 \\ 0.3, i = 28, 46 \\ 0.2, i = 41 \end{matrix}$ $φ_{3} (ψ_{i}) = {\begin{matrix} 0.4, i = 2, 7, 31, 34 \\ 0.3, i = 14, 21, 48 \end{matrix};$ $φ_{4} (ψ_{i}) = {\begin{matrix} 0.3, i = 8, 38, 47 \\ 0.4, i = 11, 24, 27 \\ 0.5, i = 30 \end{matrix}$ $φ_{5} (ψ_{i}) = {\begin{matrix} 0.3, i = 12, 22, 25, 40, 42 \\ 0.4, i = 17 \\ 0.5, i = 33 \end{matrix};$ $φ_{6} (ψ_{i}) = {\begin{matrix} 0.4, i = 3, 17, 22 \\ 0.5, i = 6 \\ 0.3, i = 25, 32, 39, 45 \end{matrix}$ $φ_{7} (ψ_{i}) = {0.3, i = 4, 15, 43$

According to the definition of FIC by Yamuna et al. [27], the partitions set of cartesian product $\tilde{C_{4}} \times \tilde{C_{3}}$ fulfills. In Fig. 3.11, the FIs in φ₁ are colored blue, φ₂ are colored pink, φ₃ are colored violet, and φ₄ are colored green. φ₅ is colored red, φ₆ is colored brown, and φ₇ is colored orange as provided.

Fig. 3.11

FIC on cartesian product of $\tilde{C_{4}} \times \tilde{C_{3}}$ .

By Theorem 3.3, $χ_{ψ} (\tilde{C_{m}} \times \tilde{C_{n}}) ⩽ 8$ .

Hence $χ_{ψ} (\tilde{C_{4}} \times \tilde{C_{3}}) = 7 ⩽ 8$ .

Theorem 3.4. If $\tilde{P_{m}} \times \tilde{K_{n}}$ is a cartesian product of FIP and Fuzzy Incidence complete graph, then the FICN is $m + n ⩽ χ_{ψ} (\tilde{P_{m}} \times \tilde{K_{n}}) ⩽ m + n + 2$ .

Proof. Let $\tilde{P_{m}} (σ_{1}, μ_{1}, ψ_{1})$ be a FIP with m ⩾ 2 vertices having degree $Δ_{m}^{'} = 2$ and $\tilde{K_{n}} (σ_{2}, μ_{2}, ψ_{2})$ be a Fuzzy Incidence complete graph with n ⩾ 3 vertices having degree $Δ_{n}^{'} = n - 1$ .

Now by the Definition 3.1 and Proposition 3.1, the cartesian product on FIP $\tilde{P_{m}}$ and Fuzzy Incidence complete graph $\tilde{K_{n}}$ we obtain $\tilde{P_{m}} \times \tilde{K_{n}}$ as a FIG with mn vertices having a degree Δ′ = n.

By Yamuna et al. [27], w.k.t the FICN for a Fuzzy Incidence complete graph is Δ′ + 1. In the cartesian product $\tilde{P_{m}} \times \tilde{K_{n}}, σ = σ_{1} \times σ_{2}$ is the vertex set of degree Δ′, μ = μ₁ × μ₂ is the set of edges incidence with σ and ψ = ψ₁ × ψ₂ is the set of FIs in which the adjacent FIs to be colored by distinct colors.

By Definition 2.7, color the first FI of ψ by color 1. No two FIs can be colored with the same color. Using distinct colors color all the remaining adjacent FIs of $\tilde{P_{m}} \times \tilde{K_{n}}$ . In such a way color all the adjacent FIs using minimum colors.

3pt

We conclude that the FICN of a cartesian product of a FIP with m ⩾ 2 vertices and a Fuzzy Incidence complete graph with n ⩾ 3 vertices ranges between $m + n ⩽ χ_{ψ} (\tilde{P_{m}} \times \tilde{K_{n}}) ⩽ m + n + 2$ .

Theorem 3.5. The FICN for the cartesian product of Fuzzy Incidence cycle and Fuzzy Incidence complete graph is $χ_{ψ} (\tilde{C_{m}} \times \tilde{K_{n}}) ⩾ m + n - 1$ .

Proof. Let $\tilde{C_{m}} (σ_{1}, μ_{1}, ψ_{1})$ be a Fuzzy Incidence cycle consisting of m number of vertices and each vertex in $\tilde{C_{m}}$ is adjacent to m - 1 vertices. We know that Fuzzy Incidence cycle denotes a closed path with non-repeated vertices having a maximum degree $Δ_{m}^{'} = 2$ .

Let $\tilde{K_{n}} (σ_{2}, μ_{2}, ψ_{2})$ be a Fuzzy Incidence complete graph consisting of n vertices and each vertex of $\tilde{K_{n}}$ is adjacent to n - 1 vertices. Since in Fuzzy Incidence complete graph every vertex has an n - 1 degree such that its maximum vertex degree is $Δ_{n}^{'} = n - 1$ .

Now by Definition 3.1, the cartesian product of $\tilde{(C_{m}} \times \tilde{K_{n}}) (σ, μ, ψ)$ is a Fuzzy Incidence Graph with mn vertices having a maximum degree Δ′ = n + 1.

Apply the coloring for the set of each Fuzzy Incidence pair of $\tilde{C_{m}} \times \tilde{K_{n}}$ using minimum colors such that none of the adjacent incidences are colored by the same color.

By Definition 2.7, color the first Fuzzy Incidence of ψ in $\tilde{C_{m}} \times \tilde{K_{n}}$ by color 1 and the next incidence by color 2, similarly color all the remaining adjacent Fuzzy Incidences of ψ in $\tilde{C_{m}} \times \tilde{K_{n}}$ by using minimum distinct colors.

Hence, we conclude that the FICN for the cartesian product of $\tilde{C_{m}} \times \tilde{K_{n}}$ with mn vertices having a maximum degree Δ′ = n + 1 is $χ_{ψ} (\tilde{C_{m}} \times \tilde{K_{n}}) ⩾ m + n - 1$ . ■

Theorem 3.6. The FICN for a cartesian product of two Fuzzy Incidence complete graphs is $χ_{ψ} (\tilde{K_{m}} \times \tilde{K_{n}}) ⩽ m + n + 2$ .

Proof. As every Fuzzy Incidence pair of the cartesian product of two Fuzzy Incidence complete graphs $\tilde{, K_{m}} \times \tilde{K_{n}}$ with mn vertices will result in a Fuzzy Incidence complete graph.

By Yamuna et al. [27], the FICN of a Fuzzy Incidence complete graph with n vertices and maximum degree Δ′ = n - 1 is Δ′ + 1.

Here are the two Fuzzy Incidence complete graphs with m and n vertices having maximum degree $Δ_{m}^{'} = m - 1$ and $Δ_{n}^{'} = n - 1$ such that the cartesian product graph $\tilde{K_{m}} \times \tilde{K_{n}}$ with mn vertices will exist with maximum degree Δ′ = m + n + 2.

Now coloring all the adjacent FIs of the cartesian product graph $\tilde{K_{m}} \times \tilde{K_{n}}$ using minimum distinct colors will result in an FICN $χ_{ψ} (\tilde{K_{m}} \times \tilde{K_{n}}) ⩽ m + n + 2$ . ■

Example 3.4. Let us consider two Fuzzy Incidence complete graphs with 4 vertices whose degree is 4 - 1 namely $\tilde{K_{4}} and \tilde{K_{4}}$ as represented in Figs. 3.12 and 3.13.

Fig. 3.12

Fuzzy Incidence complete graph $\tilde{K_{4}}$ .

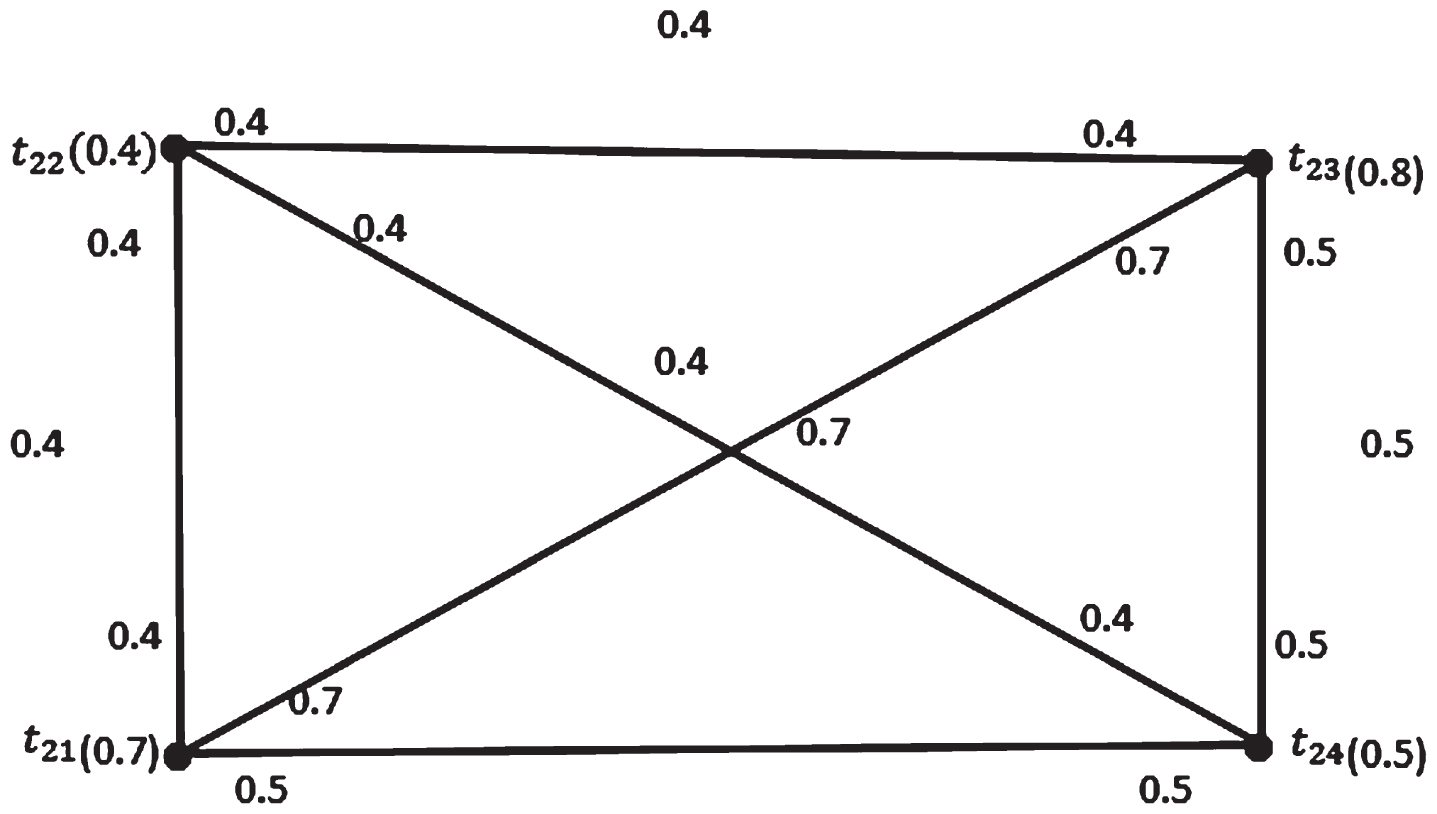

Fig. 3.13

Fuzzy Incidence complete graph $\tilde{K_{4}}$ .

Now taking the cartesian product of $\tilde{K_{4}} and \tilde{K_{4}}$ we obtain the membership values of the vertex set V, edge set E and the Fuzzy Incidence pair sets FI satisfying the following conditions

(σ₁ × σ₂) (v₁, t₁) ⩽ σ₁ (v₁) ∧ σ₂ (t₁)

(μ₁ × μ₂) [(v₁, t₁) (v₂, t₂)] ⩽ (σ₁ × σ₂) (v₁, t₁) ∧ (σ₁ × σ₂) (v₂, t₂)

(ψ₁ × ψ₂) [(v₁, t₁) , (v₁, t₁) (v₂, t₂) ⩽ (σ₁ × σ₂) (v₁, t₁) ∧ (μ₁ × μ₂) [(v₁, t₁) (v₂, t₂)]

V	(t₁₁, t₂₁)	(t₁₁, t₂₂)	(t₁₁, t₂₃)	(t₁₁, t₂₄)
σ	0.6	0.4	0.6	0.5
V	(t₁₂, t₂₁)	(t₁₂, t₂₂)	(t₁₂, t₂₃)	(t₁₂, t₂₄)
σ	0.5	0.4	0.5	0.5
V	(t₁₃, t₂₁)	(t₁₃, t₂₂)	(t₁₃, t₂₃)	(t₁₃, t₂₄)
σ	0.6	0.4	0.6	0.5
V	(t₁₄, t₂₁)	(t₁₄, t₂₂)	(t₁₄, t₂₃)	(t₁₄, t₂₄)
σ	0.5	0.4	0.5	0.5

E	(t₁₁, t₂₁) (t₁₁, t₂₂)	(t₁₁, t₂₁) (t₁₁, t₂₃)	(t₁₁, t₂₁) (t₁₁, t₂₄)	(t₁₁, t₂₁) (t₁₂, t₂₁)
μ	0.4	0.6	0.5	0.5
E	(t₁₁, t₂₁) (t₁₃, t₂₁)	(t₁₁, t₂₁) (t₁₄, t₂₁)	(t₁₁, t₂₂) (t₁₁, t₂₃)	(t₁₁, t₂₂) (t₁₁, t₂₄)
μ	0.6	0.5	0.4	0.4
E	(t₁₁, t₂₂) (t₁₂, t₂₂)	(t₁₁, t₂₂) (t₁₃, t₂₂)	(t₁₁, t₂₂) (t₁₄, t₂₂)	(t₁₁, t₂₃) (t₁₁, t₂₄)
μ	0.4	0.4	0.4	0.5
E	(t₁₁, t₂₃) (t₁₂, t₂₃)	(t₁₁, t₂₃) (t₁₃, t₂₃)	(t₁₁, t₂₃) (t₁₄, t₂₃)	(t₁₁, t₂₄) (t₁₂, t₂₄)
μ	0.5	0.6	0.5	0.5
E	(t₁₁, t₂₄) (t₁₃, t₂₄)	(t₁₁, t₂₄) (t₁₄, t₂₄)	(t₁₂, t₂₁) (t₁₂, t₂₂)	(t₁₂, t₂₁) (t₁₂, t₂₃)
μ	0.5	0.5	0.4	0.5
E	(t₁₂, t₂₁) (t₁₂, t₂₃)	(t₁₂, t₂₁) (t₁₃, t₂₁)	(t₁₂, t₂₁) (t₁₄, t₂₁)	(t₁₂, t₂₂) (t₁₂, t₂₃)
μ	0.5	0.5	0.5	0.4
E	(t₁₂, t₂₂) (t₁₂, t₂₄)	(t₁₂, t₂₂) (t₁₃, t₂₂)	(t₁₂, t₂₂) (t₁₄, t₂₂)	(t₁₂, t₂₃) (t₁₂, t₂₄)
μ	0.4	0.4	0.4	0.5
E	(t₁₂, t₂₃) (t₁₃, t₂₃)	(t₁₂, t₂₃) (t₁₄, t₂₃)	(t₁₂, t₂₄) (t₁₃, t₂₄)	(t₁₂, t₂₄) (t₁₄, t₂₄)
μ	0.5	0.5	0.5	0.5
E	(t₁₃, t₂₁) (t₁₃, t₂₂)	(t₁₃, t₂₁) (t₁₄, t₂₁)	(t₁₃, t₂₁) (t₁₃, t₂₃)	(t₁₃, t₂₁) (t₁₃, t₂₄)
μ	0.4	0.5	0.6	0.5
E	(t₁₃, t₂₂) (t₁₃, t₂₃)	(t₁₃, t₂₂) (t₁₃, t₂₄)	(t₁₃, t₂₂) (t₁₄, t₂₂)	(t₁₃, t₂₃) (t₁₃, t₂₄)
μ	0.4	0.4s	0.4	0.5
E	(t₁₃, t₂₃) (t₁₄, t₂₃)	(t₁₃, t₂₄) (t₁₄, t₂₄)	(t₁₄, t₂₁) (t₁₄, t₂₂)	(t₁₄, t₂₁) (t₁₄, t₂₃)
μ	0.5	0.5	0.4	0.5
E	(t₁₄, t₂₁) (t₁₄, t₂₄)	(t₁₄, t₂₂) (t₁₄, t₂₃)	(t₁₄, t₂₂) (t₁₄, t₂₄)	(t₁₄, t₂₃) (t₁₄, t₂₄)
μ	0.5	0.4	0.4	0.5

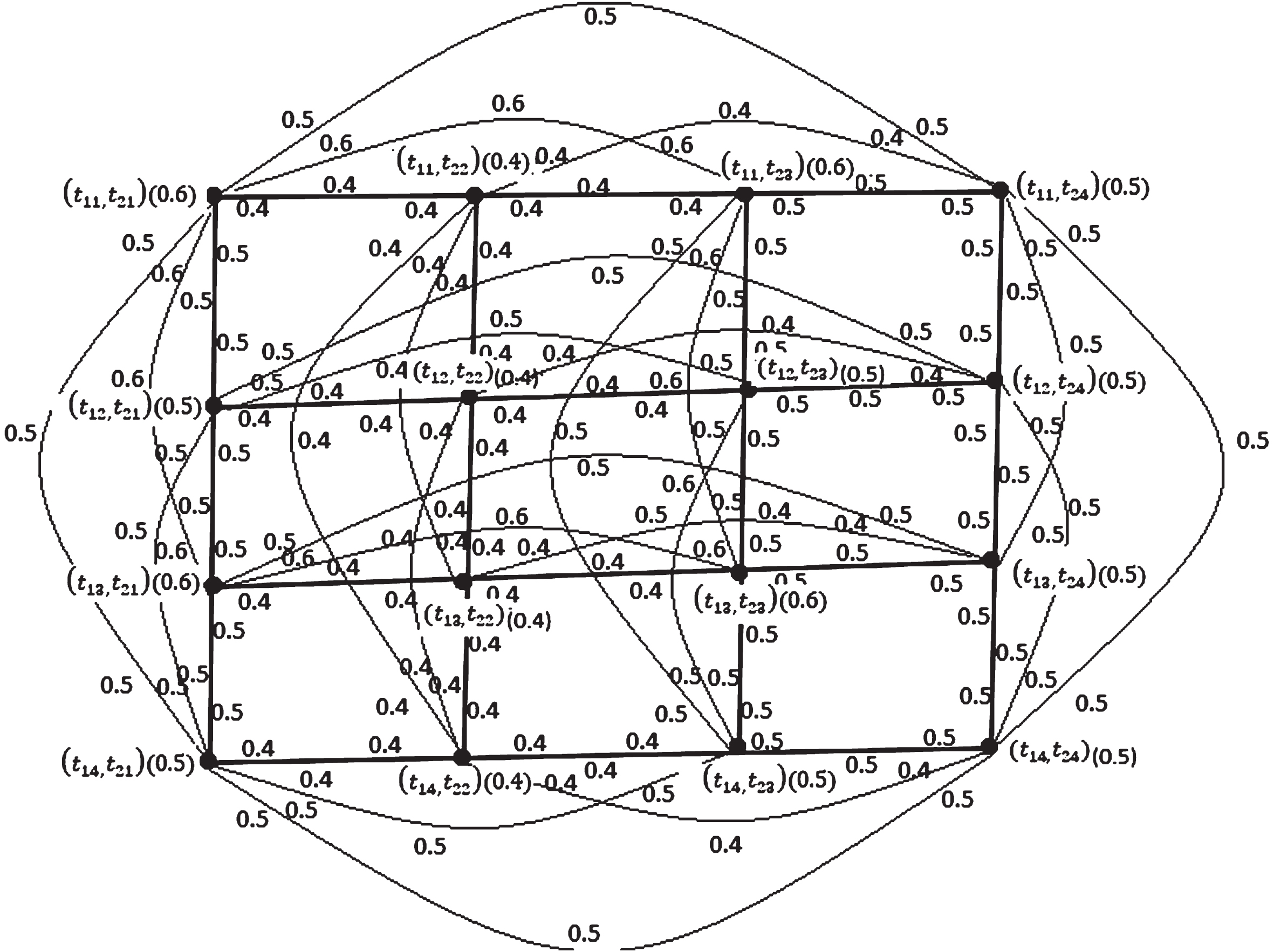

The cartesian product graph $\tilde{K_{4}} \times \tilde{K_{4}}$ is represented in Fig. 3.14 with membership values of vertex sets and edge sets.

Fig. 3.14

Cartesian product of $\tilde{K_{4}} \times \tilde{K_{4}}$ .

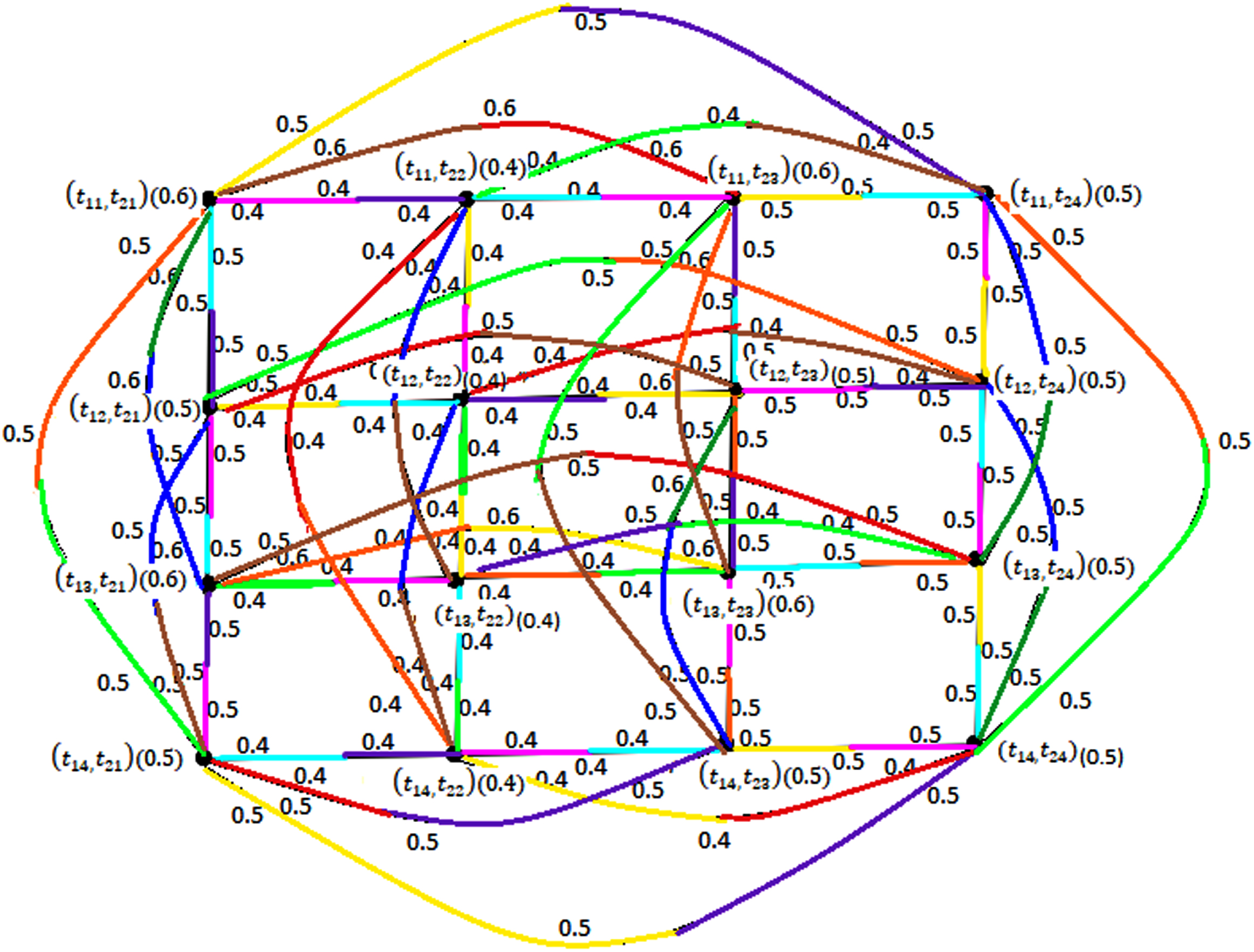

Table 3.3 represents the membership functions of the FIs as φ₁, φ₂, φ₃, φ₄, φ₅, φ₆, φ₇, φ₈, φ₉ and φ₁₀.

Table 3.3

Membership functions of FIs on $\tilde{K_{4}} \times \tilde{K_{4}}$

Fuzzy Incidences	φ ₁	φ ₂	φ ₃	φ ₄	φ ₅	φ ₆	φ ₇	φ ₈	φ ₉	φ ₁₀	Max
ψ [(t₁₁, t₂₁) , (t₁₁, t₂₁) (t₁₁, t₂₂)]	0.4	0	0	0	0	0	0	0	0	0	0.4
ψ [(t₁₁, t₂₁) , (t₁₁, t₂₁) (t₁₁, t₂₃)]	0	0.6	0	0	0	0	0	0	0	0	0.6
ψ [(t₁₁, t₂₁) , (t₁₁, t₂₁) (t₁₁, t₂₄)]	0	0	0.5	0	0	0	0	0	0	0	0.5
ψ [(t₁₁, t₂₁) , (t₁₁, t₂₁) (t₁₂, t₂₁)]	0	0	0	0.5	0	0	0	0	0	0	0.5
ψ [(t₁₁, t₂₁) , (t₁₁, t₂₁) (t₁₃, t₂₁)]	0	0	0	0	0.6	0	0	0	0	0	0.6
ψ [(t₁₁, t₂₁) , (t₁₁, t₂₁) (t₁₄, t₂₁)]	0	0	0	0	0	0.5	0	0	0	0	0.5
ψ [(t₁₁, t₂₂) , (t₁₁, t₂₁) (t₁₁, t₂₂)]	0	0	0	0	0	0	0.4	0	0	0	0.4
ψ [(t₁₁, t₂₂) , (t₁₁, t₂₂) (t₁₁, t₂₃)]	0	0	0	0.4	0	0	0	0	0	0	0.4
ψ [(t₁₁, t₂₂) , (t₁₁, t₂₂) (t₁₁, t₂₄)]	0	0	0	0	0	0	0	0.4	0	0	0.4
ψ [(t₁₁, t₂₂) , (t₁₁, t₂₂) (t₁₂, t₂₂)]	0	0	0.4	0	0	0	0	0	0	0	0.4
ψ [(t₁₁, t₂₂) , (t₁₁, t₂₂) (t₁₃, t₂₂)]	0	0	0	0	0	0	0	0.4	0	0	0.4
ψ [(t₁₁, t₂₂) , (t₁₁, t₂₂) (t₁₄, t₂₂)]	0	0	0	0	0	0	0	0	0	0.4	0.4
ψ [(t₁₁, t₂₃) , (t₁₁, t₂₁) (t₁₁, t₂₃)]	0	0	0	0	0	0	0	0	0	0.6	0.6
ψ [(t₁₁, t₂₃) , (t₁₁, t₂₂) (t₁₁, t₂₃)].	0.4	0	0	0	0	0	0	0	0	0	0.4
ψ [(t₁₁, t₂₃) , (t₁₁, t₂₃) (t₁₁, t₂₄)]	0	0.5	0	0	0	0	0	0	0	0	0.5
ψ [(t₁₁, t₂₃) , (t₁₁, t₂₃) (t₁₂, t₂₃)]	0	0	0	0	0	0	0.5	0	0	0	0.5
ψ [(t₁₁, t₂₃) , (t₁₁, t₂₃) (t₁₃, t₂₃)]	0	0	0	0	0	0.6	0	0	0	0	0.6
ψ [(t₁₁, t₂₃) , (t₁₁, t₂₃) (t₁₄, t₂₃)]	0	0	0	0	0	0	0	0.5	0	0	0.5
ψ [(t₁₁, t₂₄) , (t₁₁, t₂₁) (t₁₁, t₂₄)]	0	0	0	0	0	0	0.5	0	0	0	0.5
ψ [(t₁₁, t₂₄) , (t₁₁, t₂₂) (t₁₁, t₂₄)]	0	0.5	0	0	0	0	0	0	0	0	0.5
ψ [(t₁₁, t₂₄) , (t₁₁, t₂₃) (t₁₁, t₂₄)]	0	0	0	0.5	0	0	0	0	0	0	0.5
ψ [(t₁₁, t₂₄) , (t₁₁, t₂₄) (t₁₂, t₂₄)]	0.5	0	0	0	0	0	0	0	0	0	0.5
ψ [(t₁₁, t₂₄) , (t₁₁, t₂₄) (t₁₃, t₂₄)]	0	0	0	0	0	0	0	0.5	0	0	0.5
ψ [(t₁₁, t₂₄) , (t₁₁, t₂₄) (t₁₄, t₂₄)]	0	0	0	0	0	0.5	0	0	0	0	0.5
ψ [(t₁₂, t₂₁) , (t₁₁, t₂₁) (t₁₂, t₂₁)]	0	0	0	0	0	0	0.5	0	0	0	0.5
ψ [(t₁₂, t₂₁) , (t₁₂, t₂₁) (t₁₂, t₂₂)]	0	0	0.4	0	0	0	0	0	0	0	0.4
ψ [(t₁₂, t₂₁) , (t₁₂, t₂₁) (t₁₂, t₂₃)]	0	0	0	0	0	0	0	0	0	0.5	0.5
ψ [(t₁₂, t₂₁) , (t₁₂, t₂₁) (t₁₂, t₂₄)]	0	0	0	0	0	0	0	0.5	0	0	0.5
ψ [(t₁₂, t₂₁) , (t₁₂, t₂₁) (t₁₃, t₂₁)]	0.5	0	0	0	0	0	0	0	0	0	0.5
ψ [(t₁₂, t₂₁) , (t₁₂, t₂₁) (t₁₄, t₂₁)]	0	0	0	0	0	0	0	0	0.5	0	0.5
ψ [(t₁₂, t₂₂) , (t₁₂, t₂₁) (t₁₂, t₂₂)]	0	0	0	0.4	0	0	0	0	0	0	0.4
ψ [(t₁₂, t₂₂) , (t₁₁, t₂₂) (t₁₂, t₂₂)]	0.4	0	0	0	0	0	0	0	0	0	0.4
ψ [(t₁₂, t₂₂) , (t₁₂, t₂₂) (t₁₂, t₂₃)]	0	0	0	0	0	0	0.4	0	0	0	0.4
ψ [(t₁₂, t₂₂) , (t₁₂, t₂₂) (t₁₂, t₂₄)]	0	0	0	0	0	0	0	0	0	0.4	0.4
ψ [(t₁₂, t₂₂) , (t₁₂, t₂₂) (t₁₃, t₂₂)]	0	0	0	0	0	0	0	0.4	0	0	0.4
ψ [(t₁₂, t₂₂) , (t₁₂, t₂₂) (t₁₄, t₂₂)]	0	0	0	0	0	0	0	0	0.4	0	0.4
ψ [(t₁₂, t₂₃) , (t₁₁, t₂₃) (t₁₂, t₂₃)]	0	0	0	0.5	0	0	0	0	0	0	0.5
ψ [(t₁₂, t₂₃) , (t₁₁, t₂₁) (t₁₂, t₂₃)]	0	0.5	0	0	0	0	0	0	0	0	0.5
ψ [(t₁₂, t₂₃) , (t₁₂, t₂₂) (t₁₂, t₂₃)]	0	0	0.4	0	0	0	0	0	0	0	0.4
ψ [(t₁₂, t₂₃) , (t₁₂, t₂₃) (t₁₂, t₂₄)]	0.5	0	0	0	0	0	0	0	0	0	0.5
ψ [(t₁₂, t₂₃) , (t₁₂, t₂₃) (t₁₃, t₂₃)]	0	0	0	0	0	0.5	0	0	0	0	0.5
ψ [(t₁₂, t₂₃) , (t₁₂, t₂₃) (t₁₄, t₂₃)]	0	0	0	0	0.5	0	0	0	0	0	0.5
ψ [(t₁₂, t₂₄) , (t₁₁, t₂₄) (t₁₂, t₂₄)]	0	0	0.5	0	0	0	0	0	0	0	0.5
ψ [(t₁₂, t₂₄) , (t₁₂, t₂₁) (t₁₂, t₂₄)]	0	0	0	0	0	0.5	0	0	0	0	0.5
ψ [(t₁₂, t₂₄) , (t₁₂, t₂₂) (t₁₂, t₂₄)]	0	0.4	0	0	0	0	0	0	0	0	0.4
ψ [(t₁₂, t₂₄) , (t₁₂, t₂₃) (t₁₂, t₂₄)]	0	0	0	0	0	0	0.5	0	0	0	0.5
ψ [(t₁₂, t₂₄) , (t₁₂, t₂₄) (t₁₃, t₂₄)]	0	0	0	0.5	0	0	0	0	0	0	0.5
ψ [(t₁₂, t₂₄) , (t₁₂, t₂₄) (t₁₄, t₂₃)]	0	0	0	0	0	0	0	0	0.5	0	0.5
ψ [(t₁₃, t₂₁) , (t₁₁, t₂₁) (t₁₃, t₂₁)]	0	0	0	0	0	0	0	0	0.6	0	0.6
ψ [(t₁₃, t₂₁) , (t₁₂, t₂₁) (t₁₃, t₂₁)]	0	0	0	0.5	0	0	0	0	0	0	0.5
ψ [(t₁₃, t₂₁) , (t₁₃, t₂₁) (t₁₃, t₂₂)]	0	0	0	0	0	0	0	0.4	0	0	0.4
ψ [(t₁₃, t₂₁) , (t₁₃, t₂₁) (t₁₃, t₂₃)]	0	0	0	0	0	0.6	0	0	0	0	0.6
ψ [(t₁₃, t₂₁) , (t₁₃, t₂₁) (t₁₃, t₂₄)]	0	0.5	0	0	0	0	0	0	0	0	0.5
ψ [(t₁₃, t₂₁) , (t₁₃, t₂₁) (t₁₄, t₂₁)]	0	0	0	0	0	0	0.5	0	0	0	0.5
ψ [(t₁₃, t₂₂) , (t₁₁, t₂₂) (t₁₃, t₂₂)]	0	0.4	0	0	0	0	0	0	0	0	0.4
ψ [(t₁₃, t₂₂) , (t₁₂, t₂₂) (t₁₃, t₂₂)]	0	0	0.4	0	0	0	0	0	0	0	0.4
ψ [(t₁₃, t₂₂) , (t₁₃, t₂₁) (t₁₃, t₂₂)]	0.4	0	0	0	0	0	0	0	0	0	0.4
ψ [(t₁₃, t₂₂) , (t₁₃, t₂₂) (t₁₃, t₂₃)]	0	0	0	0	0	0.4	0	0	0	0	0.4
ψ [(t₁₃, t₂₂) , (t₁₃, t₂₂) (t₁₃, t₂₄)]	0	0	0	0	0	0	0.4	0	0	0	0.4
ψ [(t₁₃, t₂₂) , (t₁₃, t₂₂) (t₁₄, t₂₂)]	0	0	0	0.4	0	0	0	0	0	0	0.4
ψ [(t₁₃, t₂₃) , (t₁₁, t₂₃) (t₁₃, t₂₃)]	0	0.6	0	0	0	0	0	0	0	0	0.6
ψ [(t₁₃, t₂₃) , (t₁₂, t₂₃) (t₁₃, t₂₃)]	0	0	0	0	0	0	0.5	0	0	0	0.5
ψ [(t₁₃, t₂₃) , (t₁₃, t₂₂) (t₁₃, t₂₃)]	0	0	0	0	0	0	0	0.4	0	0	0.4
ψ [(t₁₃, t₂₃) , (t₁₃, t₂₁) (t₁₃, t₂₃)]	0	0	0.6	0	0	0	0	0	0	0	0.6
ψ [(t₁₃, t₂₃) , (t₁₃, t₂₃) (t₁₃, t₂₄)]	0	0	0	0.5	0	0	0	0	0	0	0.5
ψ [(t₁₃, t₂₃) , (t₁₃, t₂₃) (t₁₄, t₂₃)]	0.5	0	0	0	0	0	0	0	0	0	0.5
ψ [(t₁₃, t₂₄) , (t₁₁, t₂₄) (t₁₃, t₂₄)]	0	0	0	0	0.5	0	0	0	0	0	0.5
ψ [(t₁₃, t₂₄) , (t₁₂, t₂₄) (t₁₃, t₂₄)]	0.5	0	0	0	0	0	0	0	0	0	0.5
ψ [(t₁₃, t₂₄) , (t₁₃, t₂₁) (t₁₃, t₂₄)]	0	0	0	0	0	0	0	0	0	0.5	0.5
ψ [(t₁₃, t₂₄) , (t₁₃, t₂₂) (t₁₃, t₂₄)]	0	0	0	0	0	0	0	0.4	0	0	0.4
ψ [(t₁₃, t₂₄) , (t₁₃, t₂₃) (t₁₃, t₂₄)]	0	0	0	0	0	0.5	0	0	0	0	0.5
ψ [(t₁₃, t₂₄) , (t₁₃, t₂₄) (t₁₄, t₂₄)]	0	0	0.5	0	0	0	0	0	0	0	0.5
ψ [(t₁₄, t₂₁) , (t₁₁, t₂₁) (t₁₄, t₂₁)]	0	0	0	0	0	0	0	0.5	0	0	0.5
ψ [(t₁₄, t₂₁) , (t₁₂, t₂₁) (t₁₄, t₂₁)]	0	0.5	0	0	0	0	0	0	0	0	0.5
ψ [(t₁₄, t₂₁) , (t₁₃, t₂₁) (t₁₄, t₂₁)]	0.5	0	0	0	0	0	0	0	0	0	0.5
ψ [(t₁₄, t₂₁) , (t₁₄, t₂₁) (t₁₄, t₂₂)]	0	0	0	0.4	0	0	0	0	0	0	0.4
ψ [(t₁₄, t₂₁) , (t₁₄, t₂₁) (t₁₄, t₂₃)]	0	0	0	0	0	0	0	0	0	0.5	0.5
ψ [(t₁₄, t₂₁) , (t₁₄, t₂₁) (t₁₄, t₂₄)]	0	0	0.5	0	0	0	0	0	0	0	0.5
ψ [(t₁₄, t₂₂) , (t₁₁, t₂₂) (t₁₄, t₂₂)]	0	0	0	0	0	0.4	0	0	0	0	0.4
ψ [(t₁₄, t₂₂) , (t₁₂, t₂₂) (t₁₄, t₂₂)]	0	0.4	0	0	0	0	0	0	0	0	0.4
ψ [(t₁₄, t₂₂) , (t₁₃, t₂₂) (t₁₄, t₂₂)]	0	0	0	0	0	0	0	0.4	0	0	0.4
ψ [(t₁₄, t₂₂) , (t₁₄, t₂₁) (t₁₄, t₂₂)]	0	0	0	0	0	0	0.4	0	0	0	0.4
ψ [(t₁₄, t₂₂) , (t₁₄, t₂₂) (t₁₄, t₂₃)]	0.4	0	0	0	0	0	0	0	0	0	0.4
ψ [(t₁₄, t₂₂) , (t₁₄, t₂₂) (t₁₄, t₂₄)]	0	0	0.4	0	0	0	0	0	0	0	0.4
ψ [(t₁₄, t₂₃) , (t₁₄, t₂₁) (t₁₄, t₂₃)]	0	0	0	0	0	0	0.5	0	0	0	0.5
ψ [(t₁₄, t₂₃) , (t₁₄, t₂₂) (t₁₄, t₂₃)]	0	0	0	0.4	0	0	0	0	0	0	0.4
ψ [(t₁₄, t₂₃) , (t₁₁, t₂₃) (t₁₄, t₂₃)]	0	0.5	0	0	0	0	0	0	0	0	0.5
ψ [(t₁₄, t₂₃) , (t₁₂, t₂₃) (t₁₄, t₂₃)]	0	0	0	0	0	0	0	0	0.5	0	0.5
ψ [(t₁₄, t₂₃) , (t₁₃, t₂₃) (t₁₄, t₂₃)]	0	0	0	0	0	0.5	0	0	0	0	0.5
ψ [(t₁₄, t₂₃) , (t₁₄, t₂₃) (t₁₄, t₂₃)]	0	0	0.5	0	0	0	0	0	0	0	0.5
ψ [(t₁₄, t₂₄) , (t₁₁, t₂₄) (t₁₄, t₂₄)]	0	0	0	0	0	0	0	0.5	0	0	0.5
ψ [(t₁₄, t₂₄) , (t₁₂, t₂₄) (t₁₄, t₂₄)]	0	0	0	0	0.5	0	0	0	0	0	0.5
ψ [(t₁₄, t₂₄) , (t₁₃, t₂₄) (t₁₄, t₂₄)]	0	0	0	0.5	0	0	0	0	0	0	0.5
ψ [(t₁₄, t₂₄) , (t₁₄, t₂₁) (t₁₄, t₂₄)]	0	0	0	0	0	0	0.5	0	0	0	0.5
ψ [(t₁₄, t₂₄) , (t₁₄, t₂₂) (t₁₄, t₂₄)]	0	0	0	0	0	0	0	0	0	0.4	0.4
ψ [(t₁₄, t₂₄) , (t₁₄, t₂₃) (t₁₄, t₂₄)]	0.5	0	0	0	0	0	0	0	0	0	0.5

Thus $φ_{1} (ψ_{i}) = {\begin{matrix} 0.4, i = 1, 14, 32, 57, 83 \\ 0.5, i = 22, 29, 40, 66, 68, 75, 96 \end{matrix};$ $φ_{2} (ψ_{i}) = {\begin{matrix} 0.6, i = 2, 61 \\ 0.5, i = 15, 20, 38, 53, 74, 87 \\ 0.4, i = 45, 55, 80 \end{matrix}$ $φ_{3} (ψ_{i}) = {\begin{matrix} 0.5, i = 3, 43, 72, 78, 90 \\ 0.4, i = 10, 26, 39, 56, 84 \\ 0.6, i = 64 \end{matrix};$ $φ_{4} (ψ_{i}) = {\begin{matrix} 0.5, i = 4, 21, 37, 47, 50, 65, 93 \\ 0.4, i = 8, 31, 60, 76, 86 \end{matrix}$ $φ_{5} (ψ_{i}) = {\begin{matrix} 0.6, i = 5 \\ 0.5, i = 41, 67, 92 \end{matrix};$ $φ_{6} (ψ_{i}) = {\begin{matrix} 0.5, i = 6, 24, 41, 44, 71, 89 \\ 0.4, i = 10, 26, 39, 56, 84 \\ 0.6, i = 64 \end{matrix}$ $φ_{7} (ψ_{i}) = {\begin{matrix} 0.4, i = 7, 33, 59, 82 \\ 0.5, i = 41, 67, 92 \end{matrix};$ $φ_{8} (ψ_{i}) = {\begin{matrix} 0.4, i = 9, 11, 35, 51, 63, 70, 81 \\ 0.5, i = 18, 23, 28, 73, 91 \end{matrix}$ $φ_{9} (ψ_{i}) = {\begin{matrix} 0.5, i = 30, 48, 88 \\ 0.4, i = 36 \\ 0.6, i = 49 \end{matrix}$ $φ_{10} (ψ_{i}) = {\begin{matrix} 0.4, i = 12, 34, 95 \\ 0.5, i = 27, 69, 77 \\ 0.6, i = 13 \end{matrix}$

The above set of partitions of cartesian product $\tilde{K_{4}} \times \tilde{K_{4}}$ satisfies the definition of FIC by [27]. In Fig. 3.15, the FIs in φ₁ colored pink, φ₂ colored brown, φ₃ colored yellow, φ₄ colored blue, φ₅ colored dark green, φ₆ colored orange, φ₇ colored violet, φ₈ colored light green, φ₉ colored navy blue and φ₁₀ colored red.

Fig. 3.15

FICN on cartesian product of $\tilde{K_{4}} \times \tilde{K_{4}}$ .

Therefore, by Theorem 3.6 the FICN of the cartesian product $χ_{ψ} (\tilde{K_{m}} \times \tilde{K_{n}}) ⩽ m + n + 2$ .

i.e $χ_{ψ} (\tilde{K_{4}} \times \tilde{K_{4}}) ⩽ 4 + 4 + 2$

Thus, the minimum colors required to color the graph $\tilde{K_{4}} \times \tilde{K_{4}}$ is 10.

4 Comparative study

Rosyida et al. [20] constructed the formula for the FCN for the cartesian product between two fuzzy graphs provided with algorithm. Using the cartesian product of a fuzzy path and a fuzzy cycle, Jethruth Emelda Mary et al. [7] determined the boundaries for the FCN of a fuzzy graph. Because of this, the FCN for the cartesian product of fuzzy path with vertices and fuzzy cycle with vertices will either be three or two. Three if m is even, n is odd,two if m is odd, n is even, two if m and n are even, three if m and n are odd. Therefore, when the model is taken into account in FIGs, these results are not efficient. In order to achieve FICN we have implemented the new notion, which is the extension of incidence coloring with ambiguity scenarios. The cartesian product between the FIP with m ⩾ 2 vertices and Fuzzy Incidence cycle with n ⩾ 2 vertices is ⩽8. Even though there are more colors than there are in FC, it takes less time. This idea is highly useful in situations where preserving lives is necessary. Because of this, the findings for the cartesian product between any two FIGs in the present article are significant for two-way communication in critical situations.

5 Applications

The FIC is crucial in sorting out risk variables that arise in many real-time applications, including traffic systems, immigration, network communications, defence, and cyber security. Approximately twice as many lives are saved by it as by the FC. It does so quickly and efficiently. Our defence systems wish to safeguard at the border in a in a twofold way, saving lives of people and the security systems of our country to prevent severe losses. This is true when safety measures are to be implemented to protect the public from other countries. The vertex and edge are the camps at the boundary line and the path between them, respectively. A FIG is created by connecting each camp to the other via the path. If all the camps are considered, it will be laborious and time-consuming. The cartesian product between any two neighbouring FIGs may produce a number of paths depending on the vertices and the graphs properties, allowing us to avoid the complexity. Along with the boundary lines that the soldiers in those two squads drew, this causes the paths already there in that network to condense. To protect our country and its security systems, it will be simple to stop any unauthorised access made by other nations in this situation with minimal time by the FIC on the cartesian product of two FIGs.

6 Advantages and limitations

In comparison to FC, the time required is relatively little, making it possible to safeguard security systems and save lives without incurring any damage.

For these processes, more labour and technology are needed when the graph is complex. With less time spent, this technique can save lives.

7 Conclusion

The FICN for the cartesian product between FIGs has been investigated in this study.

The goal of this research is

To figure out the FICN bounds for the cartesian product of two FIGs.

To provide FIC to the cartesian product with two FIPs, two Fuzzy Incidence cycles, two Fuzzy Incidence complete graphs, FIP and Fuzzy Incidence cycle, FIP and Fuzzy Incidence complete graph, Fuzzy Incidence cycle and Fuzzy Incidence complete graph.

The achievements and significance of this study offered bounds for several cartesian products of FIGs with FIC.

8 Future work

Although we have dealt with one of the operations, such as cartesian product on some FIGs, there are few scopes for further research which could be undertaken by researchers. More discoveries on FIC with bounds for different types of products such as tensor product, normal product, modular product, homomorphic product, box dot product, and star product on FIGs can be introduced. FIC can be applied to medical image diagnosis, wireless communication networks and also for allocating jobs on a website. Applications such as illicit migration, human trafficking can also be addressed. The algorithm and programme created by Yamuna et al. [27] for FIC on cycles with any vertices will be expanded in subsequent studies such that the cartesian product of any number of vertices of any two FIGs in order to meet the application problem indicated in this article.

References

Alexander Chane Shiau , Tzong-Huei Shiau , Yue-Li Wang, , Incidence coloring of Cartesian product graphs, Information Processing Letters 115(10), (2015), 765–768 doi: 10.1016/j.ipl.2015.05.002

Anjaly Kishore and Sunitha

M.S

, Chromatic number of fuzzy graphs, Annals of Fuzzy Mathematics and Informatics 7(4), (2014), 543–551.

Arindam Dey , Anitha Pal , Vertex coloring of a fuzzy graph using alpa cut, International Journal of Management, IT and Engineering 2(8), (2012), 340–352.

Cheng-Huang

Yue-Li Wang

Sheng-Shiung , The incidence coloring numbers of meshes, Mathematics with Applications 48(10), (2004), 1643–1649. doi. 10.1016/j.camwa.2004.02.006

Dinesh

,Ph. D. Thesis, A Study on Graph Structures, Incidence Algebras and Their Fuzzy Analogues, Kannur University, Kerala, India, (2012).

Dinesh

, Fuzzy incidence graph –an introduction, Advances in Fuzzy Sets and Systems 21 (2016), 33–48. doi: 10.17654/FS021010033

Jethruth Emelda Mary

Ameenal Bibi

, Fuzzy Chromatic Number of Fuzzy Graph formed from the cartesian product of fuzzy path and fuzzy cycle, Journal of Emerging Technologies and Innovative Research 6(4), (2019), 694–709.

Liu Xikui

Li Yan , The incidence chromatic number of some graph, International Journal of Mathematics and Mathematical Sciences 2005 (2005), 803–813. doi: 10.1155/IJMMS.2005.803

Madhumangal Pal

Sovan Samanta

Ganesh Ghorai

Modern Trends in Fuzzy Graph Theory. , Springer Nature Singapore Pte Ltd (2020) doi: 10.1007/978-981-15-8803-7

10.

Mordeson

J.N.

Chang-Shyh Peng

Operations on fuzzy graphs, Information Sciences 79 (1994), 159–170. doi: 10.1016/0020-0255(94)90116-3

11.

Mordeson

J.N.

, Fuzzy incidence graphs, Advances in Fuzzy Sets and Systems 21 (2016), 121–133. doi: 10.1007/978-3-319-76454-2_3

12.

Munoz

, Ortuno

, Ramirez

and Yanez

, Coloring fuzzy graphs, Omega 33(3), (2005), 211–221. doi: 10.1016/j.omega.2004.04.006

13.

Petr Gregor , Borut Lužar , Roman Soták, ,On incidence coloring conjecture in Cartesian products of graphs Discrete Applied Mathematics 213 (2016), 93–100. doi: 10.1016/j.dam.2016.04.030

14.

Poulik

, Ghorai

Certain indices of graphs under bipolar fuzzy environment with applications, Soft Computing (2019), 1–13. doi: 10.1007/s00500-019-04265-z

15.

Poulik

, Ghorai

Detour g-interior nodes and detour g-boundary nodes in bipolar fuzzy graph with applications, Hacettepe Journal of Mathematics& Statistics (2019), 1–14. doi: 10.15672/HJMS.2019.666

16.

Poulik

, Ghorai

Note on bipolar fuzzy graphs with applications, Knowledge-Based Systems (2019), 1–5. doi: 10.1016/j.knosys.2019.105315

17.

Brualdi Richard

Quinn Massey Jennifer

, Incidence and strong edge colorings of graphs, Discrete Mathematics 122 (1993), 51–58. doi: 10.1016/0012-365X(93)90286-3

18.

Rosyida

Widodo

Indrati

Ch. R.

Indriati

, On fuzzy chromatic number of cartesian product of some fuzzy graphs and its application, Advances and Applications in Discrete Mathematics 20(2) (2019), 237–252.

19.

Rosyida

Widodo

Indrati

Ch. R.

Indriati

, Algorithms to determine fuzzy chromatic number of cartesian product and join of fuzzy graphs, Journal of Physics: Conference Series 1489 (2020), 012005, 1–10.

20.

Rosyida

Widodo

Indrati

Ch. R.

Indriati

, On construction of fuzzy chromatic number of cartesian product of path and other fuzzy graphs, Journal of Intelligent&Fuzzy Systems 39(1) (2020), 1073–1080. doi: 10.3233/JIFS-191982

21.

Rupkumar Mahapatra

Sovan Samanta

Madhumangal Pal , Applications of Edge Colouring of Fuzzy Graphs, Informatica 31(2) (2020), 313–330. https://doi.org/10.15388/20-INFOR403

22.

Sandi Klavar , Coloring graph products –A survey, Discrete Mathematics 155 (1996), 135–145.

23.

Shovan Dogra , Different types of products of fuzzy graphs, Progress in Nonlinear Dynamics and Chaos 3 (2015), 41–56.

24.

Sunil Mathew

Mordeson

J.N

, Connectivity concepts in fuzzy incidence graphs, Information Sciences 382–383 (2017), 326–333. doi: 10.1016/j.ins.2016.12.020

25.

Sunil Mathew

Mordeson

J.N

, Fuzzy Incidence Blocks and their Applications in Illegal Migration Problems, New Mathematics and Natural Computation 13(3) (2017), 245–260. doi: 10.1142/S1793005717400099

26.

Talal AL-Hawary , Complete fuzzy graphs, International Journal of Mathematical Combinatorics 4 (2011), 26–34.

27.

Yamuna

and Arun Prakash

, A fuzzy incidence coloring to monitor traffic flow with minimal waiting time, Expert Systems with Applications 186 (2021), 115664. doi: 10.1016/j.eswa.2021.115664
