Implementation of a quantum machine learning model for the categorization and analysis of COVID-19 cases

1 Introduction

The severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) or 2019 novel coronavirus (2019-nCoV) is increasingly growing from its beginnings in Wuhan, Hubei Province, China, to the entire world [1]. Coronaviruses are encased positive vision RNA viruses with spike-like structures on their surfaces that have a crown-like structure underneath the optical microscopy, which is why the term Covid-19. Itsorts in size is around 60 nm to 140 nm size. HKU1, NL63, 229E, and OC43 are four corona infections that have already been found in humans and inflict moderate respiratory symptoms. People of every age are at risk. The virus is spread via massive particles produced by metastatic disease while coughing or sneezing, and they could also be spread by asymptomatic persons while a symptom arises [2]. According to studies, the mucous membrane has larger infection rates than the throat and without any change in virus weight among symptomatic and asymptomatic persons. Individuals could be pathogenic with as much as they have illnesses and even after they have recovered clinically. Certain persons might behave as extreme spreaders, spreading infectious particles up to 12 meters and depositing them on various surfaces. In suitable climatic circumstances, the virus could be detected on surfaces over weeks; however simple sanitizers that include sodium hypochlorite and hydrogen peroxide kill it in under a minute. Infections are transmitted by breathing such particles or by contacting infected objects and then touching the nose, mouth, and eyes. The infection is also found in the waste, and pollution of the groundwater resources, with subsequent transmission by aerosolization/fecooral pathway, is thought to be a possibility. COVID-19 causes a wide range of clinical indications, ranging from mild to severe respiratory distress syndrome and multi-organ dysfunction [3]. Fever, coughing, sore throat, migraine, weariness, nausea, muscle aches, and breathlessness are all commonly diagnosed symptoms. Conjunctivitis has been mentioned as well. As a result, it’s difficult to tell them from various breathing problems. In a small proportion of instances, the infection can quickly progress to pneumonia, respiratory arrest, and death. IL7, IL2, GCSF, IL10, MCP1, IP10, TNF, and MIP1A are all inflamed cytokine linked to that same progression [4]. Treatment and acute respiratory distress syndrome were the most common causes of dyspnea (ARDS). The affected patients required acute medical hospitalization. ARDS, severe lung injury, acute kidney injury and shock were among the consequences seen.

Covid 19 has a detrimental influence on the respiratory, causing destruction to the alveoli. The alveolus’ purpose is to carry oxygen from the lungs to the blood arteries [5]. The oxygen is delivered to the RBCs through those vascular systems, or capillaries (Red blood cells). RBCs are responsible for delivering oxygenation to all of the body’s internal organs. The infection causes damage to the alveolus and capillary walls and linings. Damaged material, such as plasma protein, collects on the alveolus wall, thickening the liner. The delivery of oxygenation to the red blood cells is hampered as the membranes swell [6]. The thicker the membrane becomes, the more challenging it would be to transmit oxygenation to red blood cells, resulting in respiratory problems as the body runs out of oxygenation. In addition, oxygen deprivation to the inner organs causes a deficiency in the system and inhibits immune functions. The system is fighting to enhance oxygen consumption at this point. And the body’s initial reaction is to eliminate the infection and prohibit it from replicating, but if the people have weakened resistance, the body refuses to budge, increasing the situation. When the air sacs were injured, an influx of fluid occurs, which is largely made up of inflammatory cells and proteins, and these fluids developand cause pneumonia. It reduces the amount of oxygen supplied to the lungs and obstructs oxygen diffusion. Because of the rarity of the Covid 19 variant, there is no quick medication to treat pneumonia in Covid patients diagnosed, which are instead treated with medical therapy [7].

The actual polymerase chain reaction (RT-PCR) technique is the typicalprocess for confirming COVID-19 infection, and most areas are experiencing a diagnostic material constraint because of the significant growth in the number of infected patients [8]. Furthermore, RT-PCR analysis seems to require a higher FNR as well as a long processing time. As a result, alternative analysis methods for detecting COVID-19-infected individuals should be considered in order to isolate individuals and reduce the pandemic’s influence on the lifestyle of so many others. Identification of COVID-19 pathologies in an individual that is quick, available, inexpensive, and accurate is critical to reducing the spread of COVID-19 infections. The goodmethod for detecting coronavirus is converse transcriptase quantitative polymerase chain reaction (RT-PCR) assays. CT is a non-invasive diagnostic imaging modality that has been adopted since it is predictable as a viable approach for enhanced interior permeability identification and evaluation [9].

To analyze features within the human body, healthcare professionals using computed tomography, generally known as a CT scan. A CT scan captures an image of a cross-section of the human body using X-rays and technology. It captures photographs of the skeletons, bones, lungs, bloodstream arteries as well as other organs within small “slices” such that medical providers mightdetect the body in extreme detail [10]. X-ray devices that employ permanent tubing to point X-rays at a particular place are known as traditional X-ray devices. X-rays are collected in differing proportions by different organs as they pass through the body. Against the black background of such an image, greater density tissue produces a brighter image than other layers. X-rays generate two-dimensional pictures. Doughnut-shaped tubing circulates the X-ray 360 degrees surrounding the body during a Computed tomography. Diagnostics therapy, image-guided treatment, and the monitoring of medicinal and surgical results all benefit from CT technology [11]. The advancement of CT technologies and applications strives to develop image resolution, reduce execution times, and drastically increase the therapeutic potential of conventional CT. Furthermore, a CT scan diagnostic could be more reliable than a blood sample like CRP (C-Reactive Protein Level). Many of the other cases have previously tested negative with CRP but were detected as important with a CT scan, as well as the ensuing CRP testing were certified positive, proving that CT scans are so much more accurate than blood sample. As a result, it might be hard to see the difference amongst different tissues and organs, either between normal and ill tissues inside the same organs. In this study, the Q-deformed entropy is employed to discriminate between the COVID-19 coronavirus and a regular CT scan [12].

Image analysis is necessary for a wide range of scientific and technological sectors, from diagnostic imaging to computer engineering and autonomous vision. Image analysis, which is used in a variety of applications and is dependent on continuous technological development, necessitates a variety of techniques and machine learning algorithms, as well as ongoing improvements and enhancements to existing techniques [13]. As a result, the scope of the assessments where it is involved is as broad as the potential future advancements. Acquiring useful info by extracting particular features from images stored in massive data sets or acquired in actual time is a difficulty in image processing. Face identification and verification, character segmentation, and parameterization calculations for virtual reality and other innovations are only a few of the difficulties that require feature extraction. The safe encryption and decryption of multimedia information is yet another issue. Such activities necessitate the use of advanced mathematical modeling techniques [14]. Entropy plays a key part in all of the activities. The texture feature is vital throughout many clinical image analyses, and it offers a major benefit in medical image categorization. Entropy has indeed been generalized and used in a wide variety of technical subjects. One of the most important features extraction approaches is entropy-based techniques, which are capable of identifying minor modifications to image pixel intensities and also refining textural features [15]. The Q-Deformed Entropy (QDE) feature extraction approach is presented for extracting texture features off CT images, which is influenced through the distortion principle in q-calculus, which that was extensively studied within numerous physical domains.

CT is an imaging modality which is non-invasive and is being used to identify lung infiltration and assess COVID-19 seriousness. COVID-19 has always been the subject of a great deal of research in the literature. The study’s major goal is to create a conceptual framework to address the current restrictions [16]. As a result, improved classification performance is suggested using a QDE model. Quantum neural networks were used to learn the intricate patterns found in the photos. A 4-qubit quantum circuit was used to create it. Purpose of provide substantial enhancement in the acquisition of intricate patterns, so the number of layers with the best learning parameters are chosen. Quantum machine learning is an application of study that looks at how quantum computing and machine learning theories interact [17]. Quantum computing uses quantum physics characteristics to solve issues that would be impossible to solve with traditional devices. Qubits are used in quantum computers. Qubits are similar to conventional computing bits in that they can be placed in a superposition and exchange interaction with others. The foundation of QML is quantum data and hybrid quantum-classical models. Every collected data that happens in a naturally or artificially quantum system is referred to as quantum data. Quantum data display combination and entangled, resulting in combined probabilistic which might take a significant portion of traditional computing resources to express or save. Information with a quantum mechanical source could be represented and generalized using a quantum framework. Quantum models could not generalize quantum data utilizing quantum computers only because near-term quantum processing is still limited and imprecise [18]. Quantum techniques could also convert data that aren’t 1s or 0s, including such complicated data or negative values. Figure 1 shows a typical model creation flow diagram, which explains the essential control flow of Quantum machine learning approaches [19].

OPEN IN VIEWER

Fig. 1

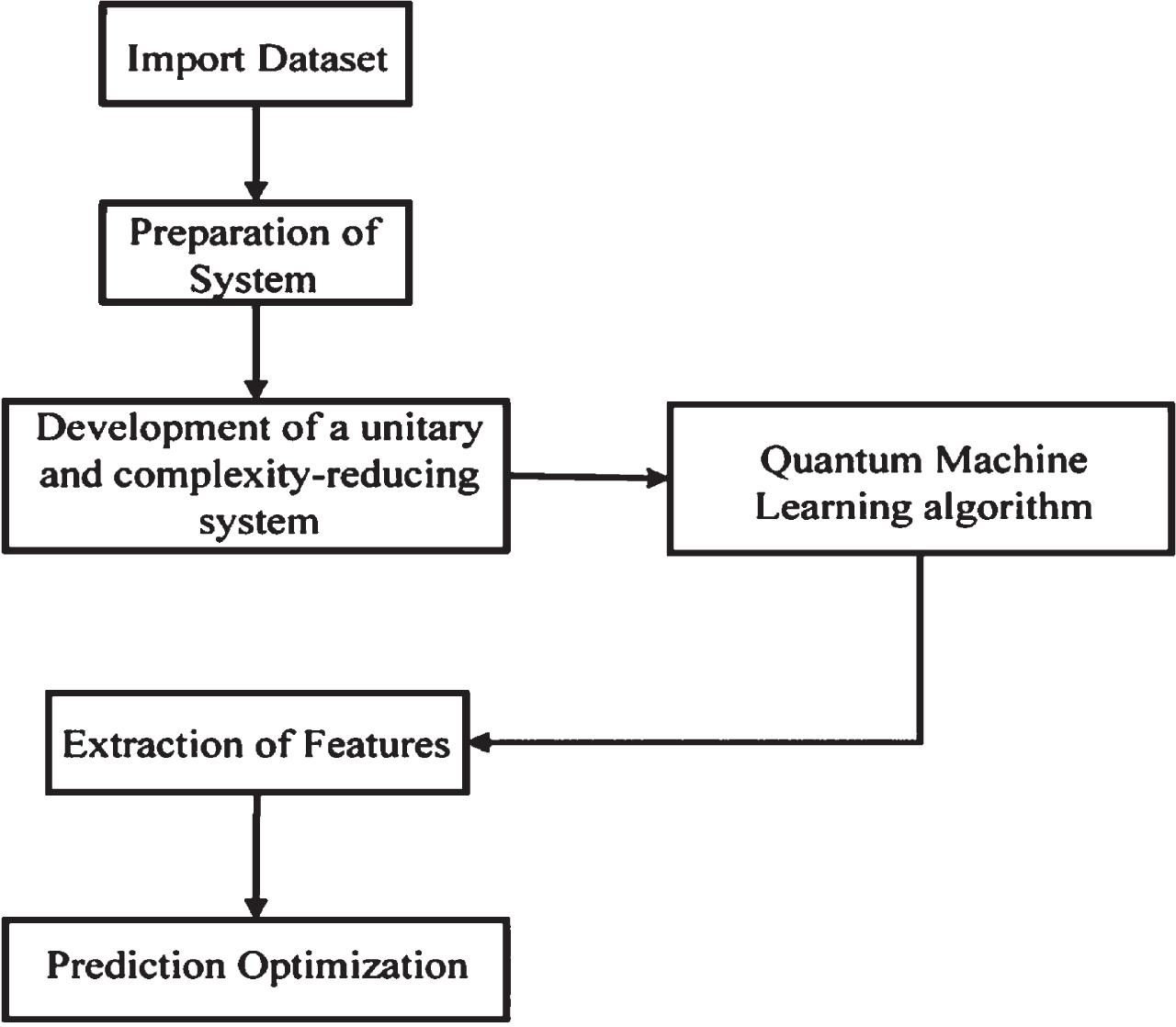

Block diagram of QML.

Quantum computers, in the modern environment, could be used and developed similarly to neural networks. To address an issue, physical control parameters can be changed systematically like electromagnetic field intensity or laser pulse speed. A parametric quantum mathematical model which is efficiently performed on a quantum system is described by a quantum neural network (QNN) [20]. Quanvolutional neural networks are a revolutionary way of extending the possibilities of convolutional neural networks (CNNs) by utilizing certain uniquely important characteristics of quantum processing. The quantum convolutional (or quanvolutional) layer is a different class of transformative phase added to the classic Convolution layer by QNNs. Quanvolutional stages are built up of a set of N quantum filtering that produces characteristics mappings by selectively modifying raw data, somewhat like its classical convolutional layer equivalents. The major distinction is that quanvolutional filtering retrieves characteristics from raw information by employing randomized quantum circuitry to modify temporally local subgroups of input. From the unifying framework, QNN will handle typical deep learning issues to be substantially quicker.

The remaining sections of the paper are arranged as follows: aIn section 2, the related work was presented. The statement of the problem is found in Section 3. The proposed Quantum machine learning for detecting and analyzing covid-19 is described in Section 4. Section 5 put the proposed methodology to the test in terms of performance and efficiency, with figures and charts displaying the findings. The final section summarises the paper’s conclusions.

The recently discovered Coronavirus infection, dubbed COVID-19, is extremely transmissible and dangerous, and there is no medically licensed medication used to prevent or vaccine to treat it. COVID-19 is characterized by a persistent cough, hoarseness, and temperature. Peripheral embolism, Septicemia, multi-organ dysfunction, and severe respiratory distress syndrome could all occur if conditions develop into a catastrophic type of pneumonia. Although medical imaging is really not previously required for the requirements and procedures of COVID-19, computer-aided diagnosis tools can be utilized in the timely identification of COVID-19 anomalies as well as the monitoring of malignant transformation, thereby lowering rates of death. DenseNet, InceptionV3, VGGNet, ResNet, Xception, MobileNet, NASNet, and InceptionResNetV2 are picked from a collection of deep CNN to achieve more accurate characteristics, which would be a key factor in learning. The collected characteristics were again loaded inside a sequence of computer vision classifications to define whether the individuals are coronavirus cases or not. The methodology avoided task-specific data pre-processing methods in order to create a greater generalisation ability for different datasets. The publicly accessible coronavirus collection of lung X-ray and CT images, the suggested theory’s effectiveness was evaluated. The DenseNet121 learning algorithm combined with the Bagging classification model produced some of the best results with the highest classification results. The second-best learning was a mix of a ResNet50 learning algorithm training by LightGBM and a ResNet50 features extraction. This research, however, does have drawbacks. There are only a few training and testing samples available. Expanding the database size with different data resources could help comprehend the proposed method properly. Furthermore, using already trained systems as featuresextracts necessitates rescaling the input images to a specific dimension, which could result in the loss of essential information. A common DL based features extracting framework for COVID-19 classification is evaluated in this study [21].

Area under the receiver operating characteristic curve for the techniques for the entire OSR database varied between 0.73 to 0.80; for the COVID-specific database from 0.83 to 0.87; and for the CBC database from 0.74 to 0.86. The verifications likewise yielded positive findings, with AUC ranging from 0.75 to 0.78 and sensitivity ranging between 0.82 to 0.87. For the faster and expensive identification of COVID-19-positive individuals, ML could be used in genetic screening as a supplement or alternative to rRT-PCR. This is enormously beneficial in poor countries or countries where pathogenic organisms are on the rise The experiment, however, it is time-consuming, necessitates the usage of sophisticated equipment and reagents, necessitates the active participation of specialized and learning features for data gathering, and focuses on the appropriate biological preservation of the RNA sequences used to anneal the primer pairs [22].

It is incredibly useful in areas where rRT-PCR reagents and specialist laboratories are in short supply, such as developing countries. Researchers made a Web-based clinical referencing and assessment option available. However, the generalisability of the models is restricted by the need for more health professionals to verify the actual Decision Tree, as well as the fact that it is impossible to build a higher precise so only physicians could utilize it as a suitable decisions aid to perceive testing done in Coronavirus suspicious instances [23].

Researchers kept track of and plotted model damage and accuracy of the proposed for every training across to figure out whatever factors affect predictive accuracy, and researchers discovered that using the softmax layer and SGD optimization method gives higher accuracy and loss, while modifying the amount of ammunition gives higher prediction accuracy and failure. The suggested federated learning approach, on the other hand, takes longer to train than typical machine learning models [24].

Saliva offers several benefits as a mixed solution for detecting SARS-CoV-2 communicable disease, including the convenience of gathering, low supply and training requirements, and security. To assess the positives and the negatives of saliva-based screening, comprehensive verification in a significant number of deliberately obtained materials with undetermined SARSCoV-2 conditions should indeed be done. Utilizing real-time polymerase chain reaction (rt PCR (RT-PCR) and droplet virtual PCR (ddPCR) readings, researchers established a saliva-based diagnostics workflow for the identification of SARS-CoV-2 nucleotides and evaluated specimens from 137 outpatient clinics evaluated with curbside research capacity and 29 inpatient care hospitalized for COVID-19. However, lacking a standard graph, RT-PCR somehow doesn’t produce statistical results, that are not routinely performed among most diagnostics laboratories [25].

3 Problem statement

COVID-19 identification is a tough task due to the clear lack of information and the complex picture elements. Utilizing computed tomography imaging, COVID-19 cases could’ve been found and studied. Computer Tomography imaging provides the advantages of rapid detection, low cost, and excellent sensitivity when it comes to detecting lung infection. The improved Q-Deformed Entropy (QDE) algorithm for CT image scanning is proposed as a solution to this problem. Quantum Machine Learning (QML) is used to assess techniques for improvement due to rapid advances in quantum mechanics. The classification of corona diagnosed and non-diagnosed images are done using a Quanvolutional Neural Network (QNN).

4 Proposed methodology

Images from CT scans are imported. The intensity of the images is lowered and normalized in the image pre-processing phase, which improves classification efficiency. The required features are extracted during the feature extraction method, which is a crucial part of several medical image studies and offers a substantial benefit in medical image analysis. The individuals that have been diagnosed as well as those that have not been diagnosed are next analyzed utilizing the classification procedure. Figure 2 depicts the analyzing process.

OPEN IN VIEWER

Fig. 2

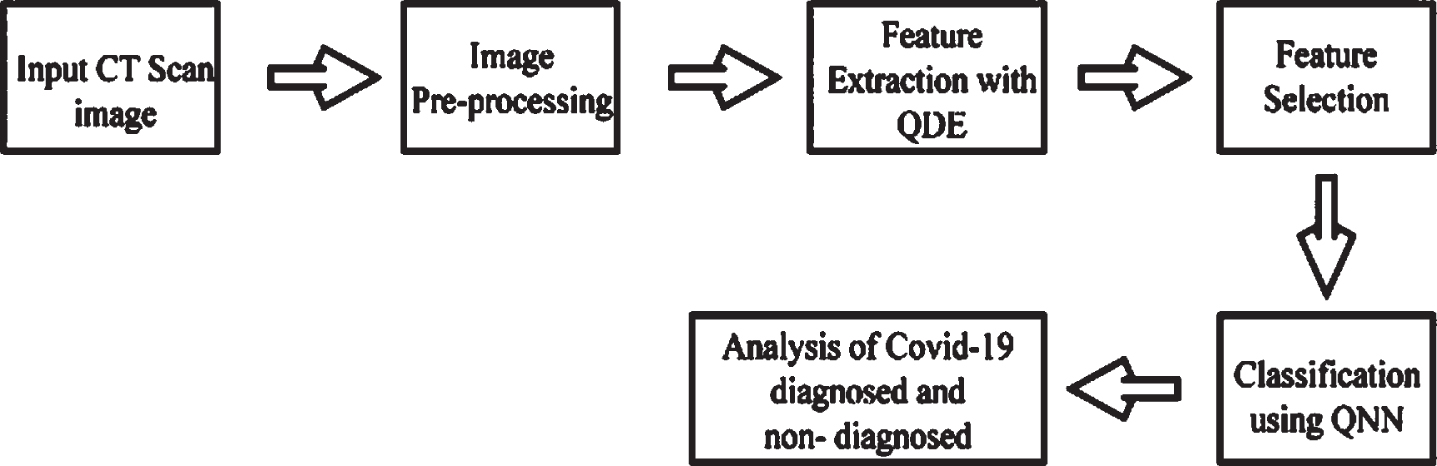

Analysing process of Covid-19 diagnosis and non-diagnosis.

4.4 Classification with Quanvolutional Neural Network (QNN)

QNN works similarly to a traditional convolutional layer in that it takes a subset of the original image, passes it through the kernel, and afterward outputs a portion of the new image. Quanvolutional layers act on raw data by selectively changing the information using a set of random quantum circuitry, similarly to how random convolutional filtering levels modify information. The image data are separated into 4×4 square sections and implanted into the quantum circuitry in the suggested quantum machine learning algorithms. The quantum pictures were created via parameter revolutions with the quantum mechanical quantum bits initialized. The quantum parameter estimation circuits could be used to make the unitary throughout this procedure. Eventually, a conventional set of expectation values is used to calculate the quantum state. Those parameters are transferred into the output’s variation channels (single-pixel). The procedure is continued in different locations; for example, some would run the entire image and generate a multi-channel image. Using classical or quantum layers, quantum convolutional could be implemented.

The penny lanes qubit system was set up to emulate a four-qubit computer. The term q-node refers to a quantum circuitry made up of Ry integrated localized levels, scaled by component and n random circuits levels. Four anticipation parameters are generated in the last computing evaluation. The input images are separated into 2×2 square pixels via a convolution method, but every square is analyzed throughout a quantum circuitry. Lastly, the four expectations variables are transferred onto four output channels in a single pixel. The approach might be useful for near-term quantum mechanics if such quantum modifications generate relevant features for supervised classification. It provides limited quantum circuitry with hardly any debugging. The QNN structure is depicted in Fig. 3, which aids in knowing the Quantum network modelling approach. And the pattern repeats until everything reaches the linear phase, that categorizes the image.

OPEN IN VIEWER

Fig. 3

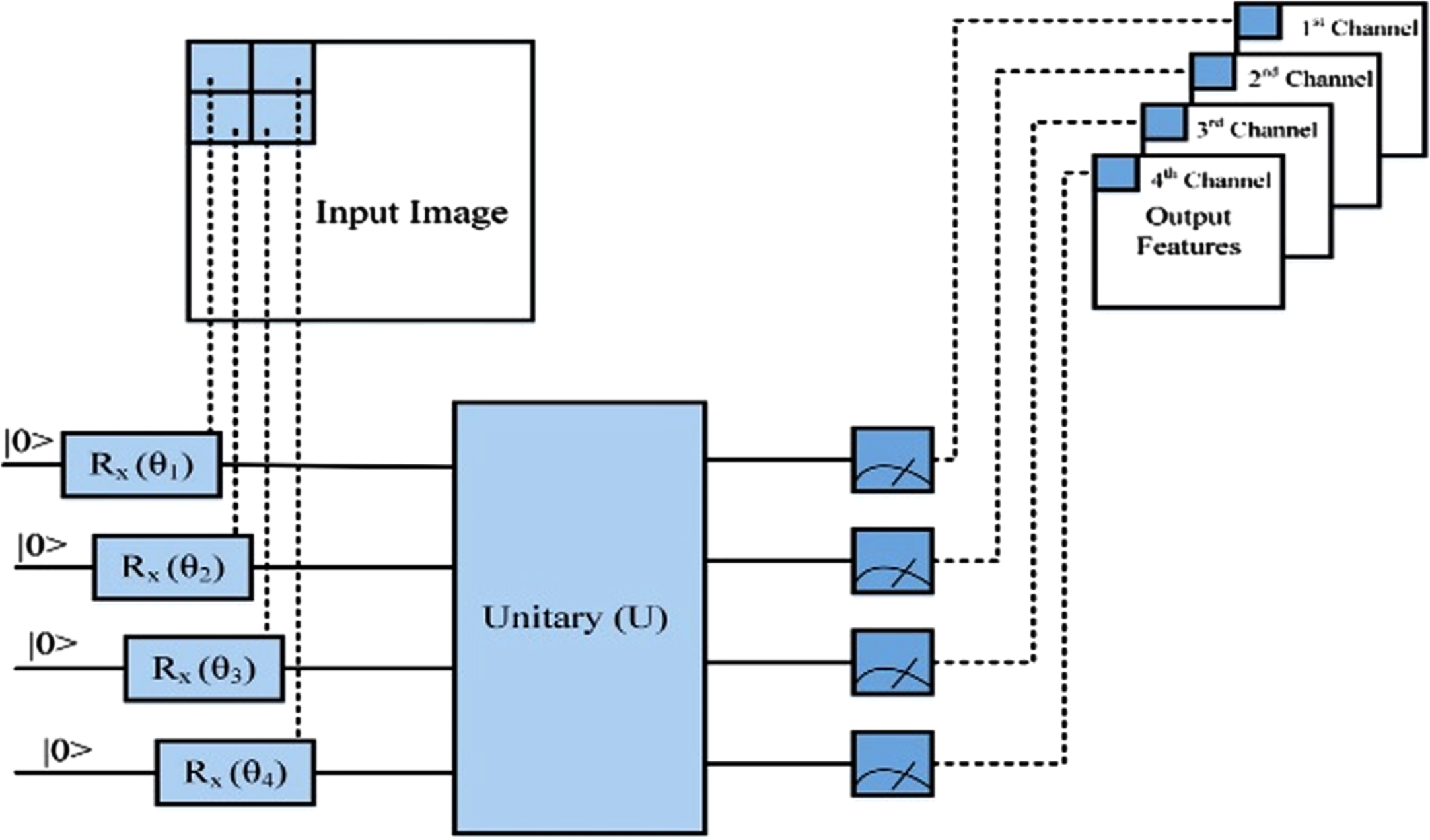

Quanvolutional neural network’s structure.

The research used a novel iteration of a learning approach to undertake an experimental investigation in a position to take account of quantum operating systems to accomplish active learning utilizing quantum information. Figure 4 depicts the proposed QNN building blocks. From the framework model, Quanvolutional neural network (QNN) is hypothesized as would address standard deep learning tasks in a substantially quick and timely manner. The 4-Qubit quantum stages, 03-dense levels having specific activating modules, and drop-out levels are among the layers found in a novel QNN. To substitute the convolutional layer, the quantum layer is placed. The 20×20-dimension quantum samples are generated using the 4-bit quantum. A dense level via ReLU and softmax with distinct activating factors is added after the quantum-produced images are acquired in a process. The quantum pictures are sent to QNN, wherein 60, 500 neurons having ReLU AF and 2 neurons of softmaxutilize 3 dense layering and 2 neurons using softmax for feature mapping. The 0.5 drop-outs are factored into the equation.

OPEN IN VIEWER

Fig. 4

Proposed QNN’s building blocks.

Figure 5 depicts the analyzing and classification process utilizing Quanvolutional Neural Network. First, start the process and import the CT scan images with 780 diagnosed and non-diagnosed of Chinese databases and 9548 images fromthe POF database. Then pre-process the imported image to reduce and normalize the intensity which speeds up the classification process. Later import the quantum image which is extracted to classify the image. Finally, stop the process. These steps help classifies and analyzes the Diagnosed and non-diagnosed images.

OPEN IN VIEWER

Fig. 5

Flowchart of the classification process.

The research uses a WINDOW-10 SSD, COREI7 CPU, an NVIDIA 2070, and GPU 16 GB RAM. To extract the feature, the QDE approach is formulated. The QNN algorithm is used to conduct image categorization. The findings of the classification are evaluated to those of other existing approaches. The proposed technique is tested on two benchmark datasets, one of which is publically available, the Chinese dataset, which have780 COVID-19/non-COVID-19 pictures of 216 patients. The second dataset comes from POF Clinical Pakistan, and it includes 4127 COVID-19-free CT images as well as 5421 COVID-19-affected CT images. 0.4 and 0.5 hold-out validating are used to supply the whole photos to the training and testing. 60% of the data has been utilized for training and 40% for testing in 0.4 cross-validations. Each sample is split into two distinct 0.5 cross-validation sections, including one for training and another for testing. The COVID-19 classification is achieved with 0.4 and 0.5 cross-validations using the QNN method.

Table 2 shows its classification performance of the QNN network on the Chinese data collection utilizing 0.4 cross-validations and Fig. 6 shows its graphical representation.

OPEN IN VIEWER

Fig. 6

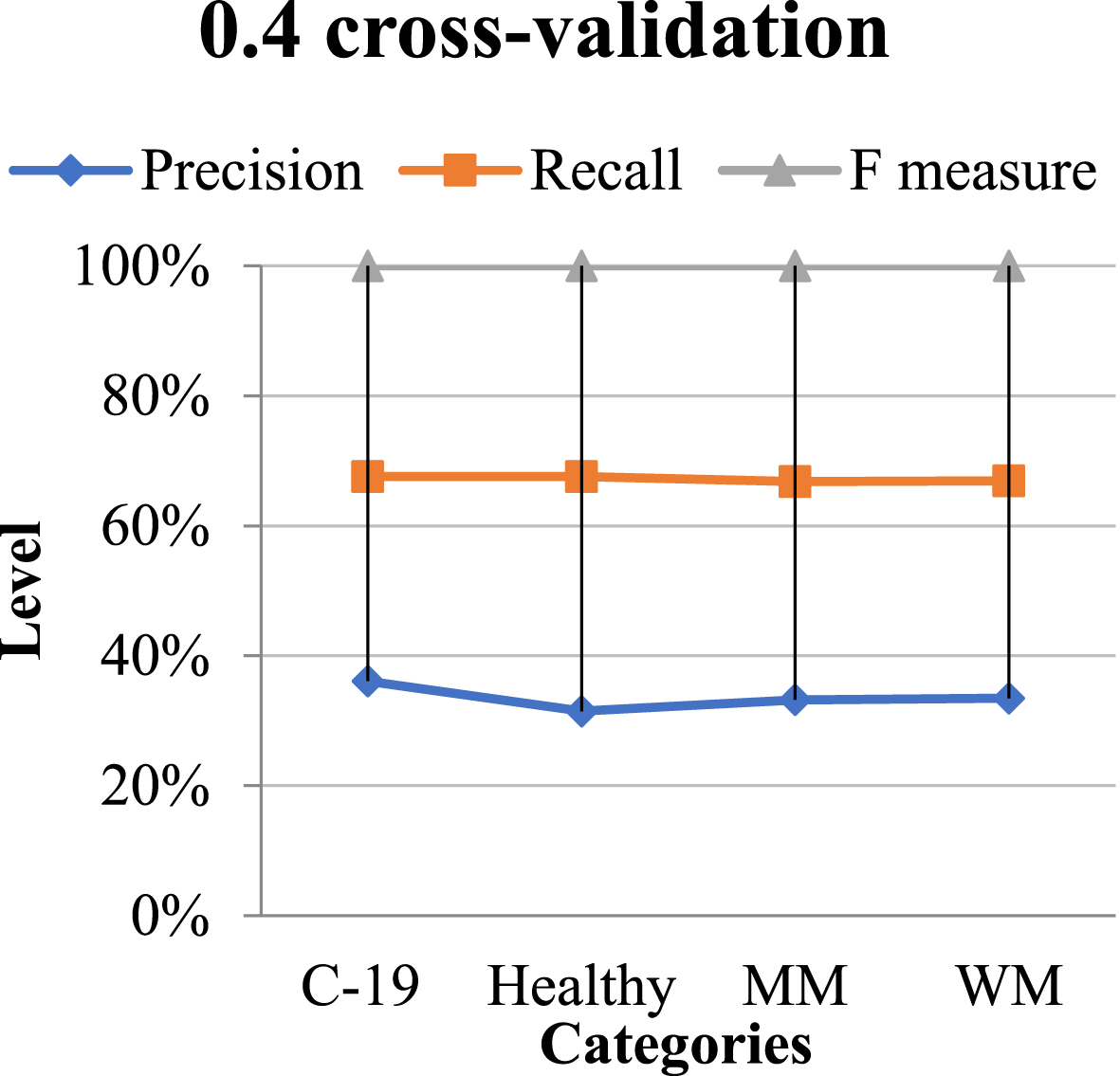

Graphical representation ofthe classification of QNN in 0.4 CV.

Table 3 shows the effectiveness of the QNN system employing 0.5 cross-validationsupon the Chinese database and Fig. 7 depicts its graphical representation.

OPEN IN VIEWER

Fig. 7

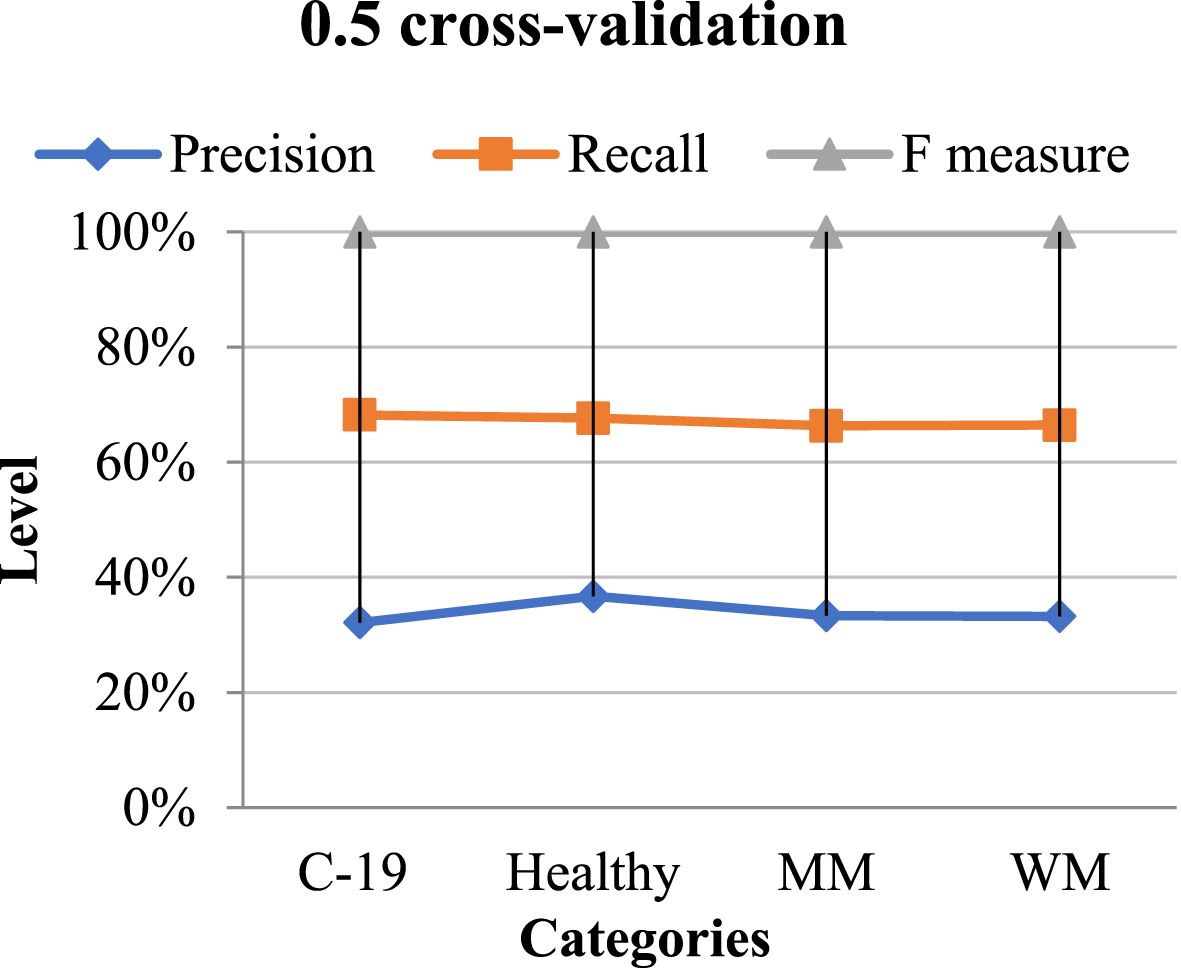

Graphical representation of the classification of QNN in 0.5 CV.

Table 4 shows its classification results on the POF clinical database employing 0.4 cross-validations, with a graphical depiction in Fig. 8.

OPEN IN VIEWER

Fig. 8

Graphical representation of the classification of QNN in 0.4 CV.

The classification result obtained using 0.5 cross-validation is presented in Table 5, along with their schematic diagram is on Fig. 9.

OPEN IN VIEWER

Fig. 9

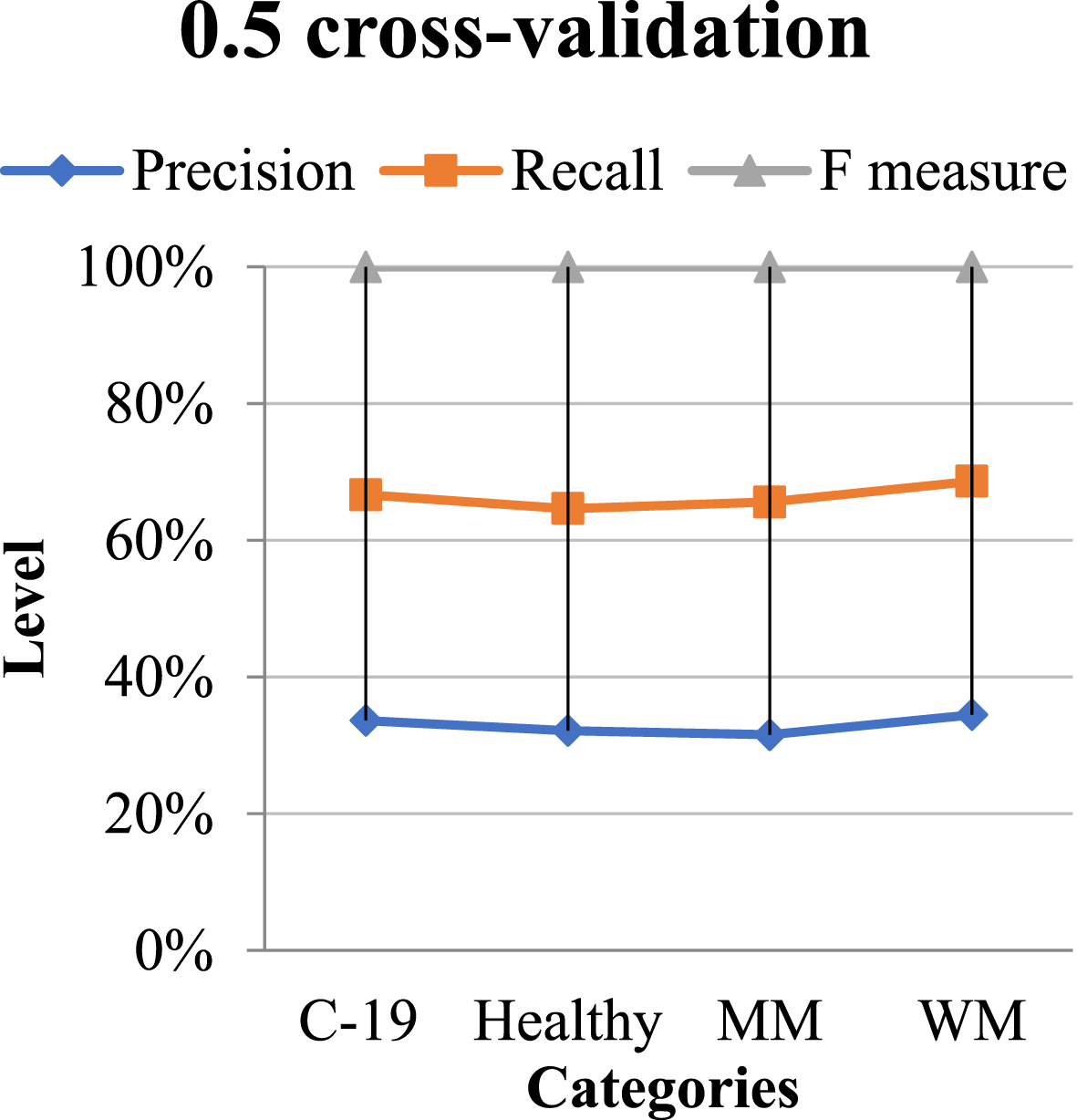

Graphical representation of the classification of QNN in 0.5 CV.

Table 6 compares the proposed QNN model to various current approaches, and Fig. 10 depicts its graphical representation. When comparing the existing model to the QNN, the latter received a 2.79 percent lift from the SVM model, which was trained on the image collection of Coronavirus positive individuals for classification issues. The study presents the whole system’s effectiveness in scaling classification models, with the proposed Quanvolutional Neural Network achieving a greater accuracy of 98.99 percent.

OPEN IN VIEWER

Fig. 10

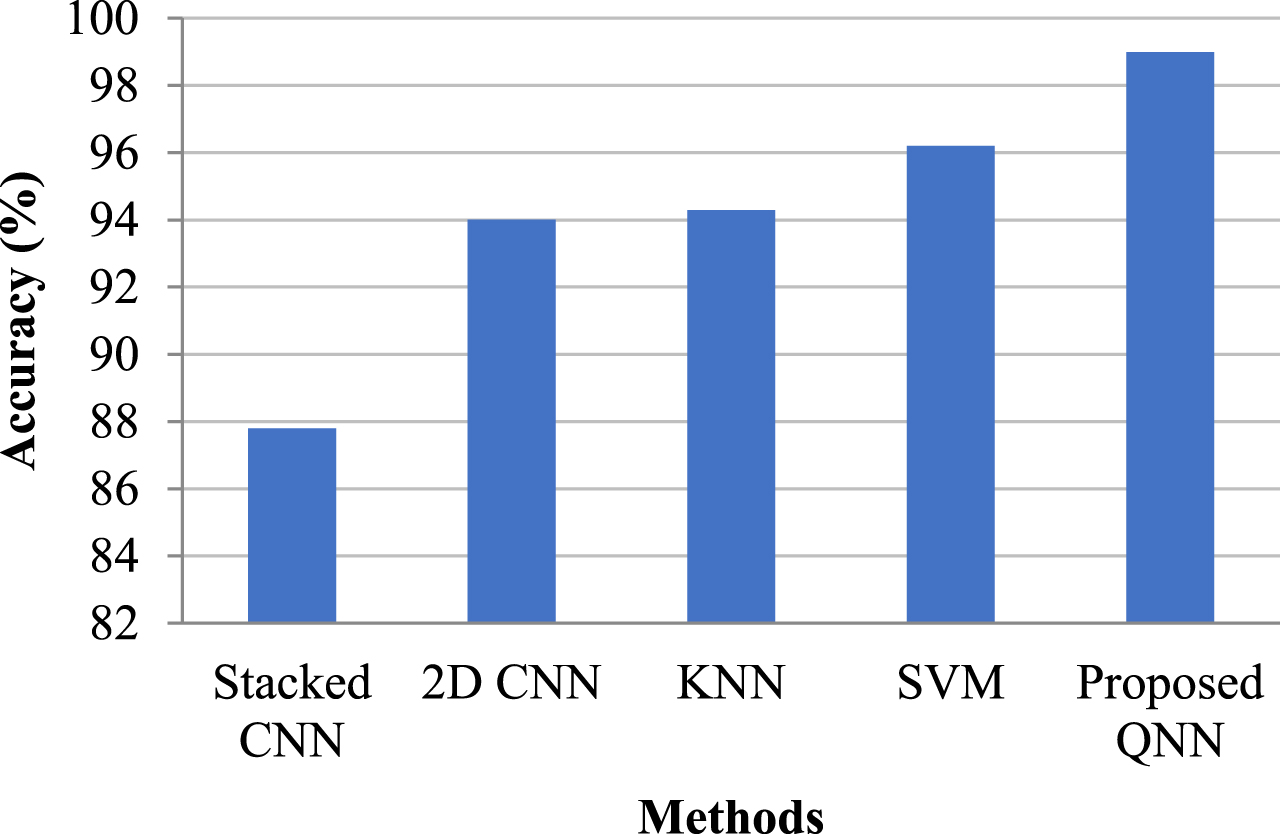

Graphical representation of comparing existing and proposed methods.

Coronavirus is a recently discovered infection that affects both the upper and lower respiratory systems. The size, pace of infection, and amount of fatalities associated with the global COVID-19 epidemic have all been progressively increasing. Utilizing computed tomography scanning, COVID-19 cases could be found and studied. Chest CT imaging combines the benefit of early screening, low cost, and excellent accuracy when it comes to detecting lung infection. COVID-19 recognition is a tough task due to the clear lack of details and the complex picture elements. The improved Q-Deformed Entropy (QDE) algorithm for CT image scanning is proposed as a solution to this challenge. The suggested method uses QDE to create CT images to increase the amount of training data for efficient testing and training. The features that were retrieved are used to categorize the findings. Researchers have been using Quantum Machine Learning (QML) to assess techniques for improvement due to rapid advances in quantum mechanics. Furthermore, a Quanvolutional Neural Network is used to categorize corona diagnosed and non-diagnosed images (QNN). The study compares QNN to other known methods for processing COVID-19 imagery. When compared to other models, the suggested technique yielded better results. Using computed tomography scanning pictures in clinical conditions, a quantum machine learning model is presented to categorize individuals with COVID-19 infections in this work. The significance of this research is it not only validates QML’s capabilities but also provides an opportunity for medical researchers to use quantum hardware to develop diagnostic equipment for pharmaceutical research and disease detection difficulties.
