New results and regression model for the exponentiated odd log-logistic family with applications

Abstract

We obtain new mathematical properties of the exponentiated odd log-logistic family of distributions, and of its special case named the exponentiated odd log-logistic Weibull, and its log transformed. A new location and scale regression model is constructed, and some simulations are carried out to verify the behavior of the maximum likelihood estimators, and of the modified deviance-based residuals. The methodology is applied to the Japanese-Brazilian emigration data.

Keywords

Censored data regression model residual analysis simulation studies stochastic representation

1. Introduction

In the survival data analysis literature, it is convenient to consider more flexible distributions to capture a wide variety of symmetric, asymmetric and bimodal behaviors with non-monotonic failure rate function, including as special cases classic distributions, and produce more robust estimates. At present, proposing new distributions to model survival data with non-monotonic failure rate functions is a very important research line in the area of survival analysis. Thus, we initially present new findings for the exponentiated odd log-logistic (EOLL-G) family which can be employed in several applications to real data. Further, we study two new distributions, called the exponentiated odd log-logistic Weibull (EOLLW) and log exponentiated odd log-logistic Weibull (LEOLLW), and construct a location-scale regression based on the last distribution.

Section 2 provides new structural properties of the EOLL-G family. Sections 3 and 4 define the EOLLW and LEOLLW distributions and obtain some of their properties. Section 5 constructs a LEOLLW regression model in location-scale form, reports the maximum likelihood estimates (MLEs), and provides simulations to investigate the accuracy of the estimates. Section 6 define news deviance residuals to assess departures for the propose regression. A real data set is analyzed In Section 7 to show the utility of the new models. Some conclusions are offered in Section 8.

2. The EOLL-G density

Let $G(x)$ be any baseline cumulative distribution function (cdf) with a parameter vector $\tau$ . Alizadeh et al. (2020) defined the probability density function (pdf) of the EOLL-G family (for $x\in\mathbf{R}$ ) by

$\displaystyle f(x)=f(x;a,b,{\mbox{\boldmath$\tau$}})=\frac{abg(x)G^{ab-1}(x)[1% -G(x)]^{a-1}}{\{G^{a}(x)+[1-G(x)]^{a}\}^{b+1}},$ (1)

where $g(x)=dG(x)/dx$ , and $a>0$ and $b>0$ are extra shape parameters.

Henceforth, $X\sim\text{EOLL-G}(a,b,{\mbox{\boldmath$\tau$}})$ denotes a random variable with pdf Eq. (1). The EOLL-G family becomes the OLL-G family when $b=1$ (Gleaton & Lynch, 2006). If $a=1$ , it is the exponentiated (Exp-G) class (Mudholkar et al., 1996). For $a=b=1$ , Eq. (1) leads to the baseline $G(x)$ .

If $U\sim U(0,1)$ , then

$\displaystyle Q_{G}\left\{\frac{u^{1/(ab)}}{u^{1/(ab)}+(1-u^{{1}/{b}})^{{1}/{a% }}}\right\}\sim\text{EOLL-G}(a,b,{\mbox{\boldmath$\tau$}}),0<u<1,$ (2)

where $Q_{G}(u)=G^{-1}(u)$ is the quantile function (qf) of the baseline G model. In general any distribution in Eq. (1) can be simulated from Eq. (2) by inverting the parent cdf.

Some EOLL-G properties were addressed by Alizadeh et al. (2020). We find new ones below.

2.1 Properties

Some EOLL-G properties follow directly by routine methods in calculus.

(P1)
Equation (1) gives $\lim_{x\to\infty}f(x)=0$ . If $L=\lim_{x\to 0^{+}}g(x)$ , then

$\displaystyle\lim_{x\to 0^{+}}f(x)=\left\{\begin{array}[]{ll}\infty,&\text{if}% \ L>0,ab<1;\\ \textit{abL},&\text{if}\ L\geqslant 0,ab=1;\\ 0,&\text{if}\ L=0,ab\geqslant 1.\end{array}\right.$

In general, depending on the choice of the parent, $\lim_{x\to\infty}f(x)=0$ and $\lim_{x\to 0^{+}}f(x)=ab\lim_{x\to 0^{+}}[g(x)\linebreak G^{ab-1}(x)]$ .
(P2)
For the hazard rate function (hrf) of $X$ , say $h(x)$ , it follows: $\lim_{x\to 0^{+}}h(x)=\lim_{x\to 0^{+}}f(x)$ and

$\displaystyle\lim_{x\to\infty}h(x)=ab\lim_{x\to\infty}\left[\frac{g(x)G^{ab-1}% (x)}{1-F(x)}\right],$

where

$\displaystyle h(x)=\frac{abh_{G}(x)G^{ab-1}(x)[1-G(x)]^{a}}{\{G^{a}(x)+[1-G(x)% ]^{a}\}[\{G^{a}(x)+[1-G(x)]^{a}\}^{b}-G^{ab}(x)]},$

where $h_{G}(x)=g(x)/[1-G(x)]$ is the baseline hrf.
(P3)
A straightforward derivative computation leads to

$\displaystyle f^{\prime}(x)=f(x)\left\{{T^{\prime\prime}(x)}-\frac{(a+1)T^{a}(% x)+(1-ab)}{T(x)[1+T^{a}(x)]}[T^{\prime}(x)]^{2}\right\},$ (3)

where $T(x)=G(x)/[1-G(x)]$ and $T^{\prime}(x)=g(x)/[1-G(x)]^{2}$ . Then, the critical points of the pdf of $X$ are the roots of:

$\displaystyle\frac{T^{\prime\prime}(x)}{[T^{\prime}(x)]^{2}}=\frac{(a+1)T^{a}(% x)+(1-ab)}{T(x)[1+T^{a}(x)]},$

with $T^{\prime\prime}(x)=g^{\prime}(x)/[1-G(x)]^{2}+{2g^{2}(x)/[1-G(x)]^{3}}$ .
(P4)
If there is a function $r(x)$ such that the differential equation $g^{\prime}(x)=-g(x)[h_{G}(x)+r(x)]$ holds, Eq. (3) can be written as

$\displaystyle f^{\prime}(x)=f(x)h_{G}(x)\left[1-\left\{1+\frac{a[T^{a}(x)-b]}{% T^{a}(x)+1}\right\}\frac{1}{G(x)}-\frac{r(x)}{h_{G}(x)}\right],$ (4)

since $h_{G}(x)>0$ . Hence, from Eq. (4) and (P3), the critical points of the pdf of $X$ are the roots of:

$\displaystyle\left[1-\frac{r(x)}{h_{G}(x)}\right]G(x)=1+\frac{a[T^{a}(x)-b]}{T% ^{a}(x)+1}.$ (5)
(P5)
Let $X\sim\text{EOLL-G}(a,b,{\mbox{\boldmath$\tau$}})$ . If $D$ has the Dagum distribution Type I (Dagum, 1975), say $D\sim\text{DAGUM}\linebreak(a,1,b)$ , then

$\displaystyle F(x)=\mathbbm{P}[D\leqslant T(x)]=\mathbbm{P}\left[G^{-1}\left(% \frac{D}{1+D}\right)\leqslant x\right],$

where $T(x)=G(x)/[1-G(x)]$ . Consequently, the stochastic representation for $X$ holds

$\displaystyle X=G^{-1}\left(\frac{D}{1+D}\right).$
(P6)
Let $B=1/D$ . It is well-known that $D\sim\text{DAGUM}(a,1,b)\Longleftrightarrow B\sim\text{BURR}(a,1,b)$ , where $B$ has the Burr Type XII distribution (Burr, 1942). Hence, by (P5),

$\displaystyle F(x)=\mathbbm{P}[B\geqslant S(x)]=\mathbbm{P}\left[G^{-1}\left(% \frac{1}{1+B};{\mbox{\boldmath$\tau$}}\right)\geqslant x\right],$

where $S(x)=1/T(x)$ .

3. The EOLLW distribution

Consider the parent Weibull cdf $G(x)=1-\exp\{-(x/\lambda)^{\alpha}\}$ , where $\lambda>0$ is a scale, and $\alpha>0$ is a shape. The EOLLW pdf is determimed from Eq. (1) (for $x>0$ ) as

$\displaystyle f(x)=\frac{ab\alpha x^{\alpha-1}\exp\left\{-a\left(\frac{x}{% \lambda}\right)^{\alpha}\right\}\left[1-\exp\left\{-\left(\frac{x}{\lambda}% \right)^{\alpha}\right\}\right]^{ab-1}}{\lambda^{\alpha}\left\{\left[1-\exp% \left\{-\left(\frac{x}{\lambda}\right)^{\alpha}\right\}\right]^{a}+\exp\left[-% a\left(\frac{x}{\lambda}\right)^{\alpha}\right]\right\}^{b+1}}.$ (6)

Equation (6) yields $\lim_{x\to\infty}f(x)=0$ . Further, for $\alpha>0$ ,

$\displaystyle\lim_{x\to 0^{+}}f(x)=\left\{\begin{array}[]{ll}\infty,&ab<1/% \alpha,\\ 1/\lambda^{\alpha},&ab=1/\alpha,\\ 0,&ab>1/\alpha.\end{array}\right.$ (7)

The survival function and hrf corresponding to Eq. (6) (for $x>0$ ) are

$\displaystyle S(x)=1-\frac{[1-\kappa_{\alpha\lambda}(x)]^{ab}}{\{[1-\kappa_{% \alpha\lambda}(x)]^{a}+\kappa_{\alpha\lambda}^{a}(x)\}^{b}},$ (8)

and

$\displaystyle h(x)=\frac{ab\alpha\lambda^{-\alpha}x^{\alpha-1}[1-\kappa_{% \alpha\lambda}(x)]^{ab-1}\kappa^{a}_{\alpha\lambda}(x)\{[1-\kappa_{\alpha% \lambda}(x)]^{a}-\kappa^{a}_{\alpha\lambda}(x)\}^{-1}}{\{[1-\kappa_{\alpha% \lambda}(x)]^{a}+\kappa^{a}_{\alpha\lambda}(x)\}^{b}-[1-\kappa_{\alpha\lambda}% (x)]^{ab}},$ (9)

respectively, where $\kappa_{\alpha\lambda}(x)=\exp\left[-\left(\frac{x}{\lambda}\right)^{\alpha}\right]$ .

The EOLLW distribution is very flexible due to different forms of its pdf and hrf; see Fig. 1 and Subsections 3.1, 3.2 and 3.3 (for theoretical results).

Figure 1.

Plots of the EOLLW $(a,b,\lambda,\alpha)$ . (a) probability density function and (b) hazard rate function.

3.1 Modality of the EOLLW density

Since $G(x)=1-\exp\{-(x/\lambda)^{\alpha}\}$ , $T$ defined in (P3) is written as

$\displaystyle T(x)=T(x;\alpha,\lambda)=\exp\left\{\left({\frac{x}{\lambda}}% \right)^{\alpha}\right\}-1.$ (10)

Since $T(x;\alpha,\lambda)=T(x;\alpha,k\lambda)$ , $k>0$ , and since $F(x)=\mathbbm{P}[D\leqslant T(x)]$ , with $D\sim\text{DAGUM}(a,1,b)$ [see Property (P5)], the next result follows.

.

If $X\sim\text{EOLLW}(a,b,{\mbox{\boldmath$\tau$}})$ with ${\mbox{\boldmath$\tau$}}=(\alpha,\lambda)^{T}$ , then $kX\sim\text{EOLLW}(a,b,\widetilde{{\mbox{\boldmath$\tau$}}})$ with $\widetilde{{\mbox{\boldmath$\tau$}}}=(\alpha,k\lambda)^{T}$ .

A critical point of the EOLLW density by property (P4) is a positive root of the nonlinear Eq. (5). A straightforward computation gives $g^{\prime}(x)=-g(x)[h_{G}(x)+r(x)]$ , where $h_{G}(x)=(\alpha/\lambda)(x/\lambda)^{\alpha-1}$ is the hrf of the parent $G$ , and $r(x)=(1-\alpha)/x$ . By inserting $T(x)$ in Eq. (5), a critical point of the EOLLW density is a root of:

$\displaystyle\mathbbm{G}_{0}(\omega)=\mathbbm{H}_{0}(\omega),\quad\omega=\left% (\frac{x}{\lambda}\right)^{\alpha},$ (11)

where

$\displaystyle\mathbbm{G}_{0}(\omega)=\left(1-\frac{1-\alpha}{\alpha\omega}% \right)[1-\exp(-\omega)]\quad\text{and}\quad\mathbbm{H}_{0}(\omega)=1+\frac{\{% [\exp(\omega)-1]^{a}-b\}}{[\exp(\omega)-1]^{a}+1}.$ (12)

The first two derivatives of $\mathbbm{G}_{0}$ with respect to $\omega$ are

$\displaystyle\mathbbm{G}^{\prime}_{0}(\omega)=\frac{\exp(-\omega)[\alpha\omega% ^{2}+(\alpha-1)\omega+\alpha-1]-(\alpha-1)}{\alpha\omega^{2}}$

and

$\displaystyle\mathbbm{G}^{\prime\prime}_{0}(\omega)=-\frac{\exp(-\omega)\{% \alpha\omega^{3}+(1-\alpha)[-\omega^{2}-2\omega+2\exp(\omega)-2]\}}{\alpha% \omega^{3}}.$

For $\omega>0$ , $(1-\alpha)[-\omega^{2}-2\omega+2\exp(\omega)-2]>0$ if $\alpha\leqslant 1$ , and then $\mathbbm{G}^{\prime\prime}_{0}(\omega)<0$ . Moreover, $\mathbbm{G}^{\prime}_{0}(\omega)>0$ for $\omega>0$ , if and only if $[\alpha/(\alpha-1)]\omega^{2}+\omega+1<\exp(\omega)$ (for $\alpha\neq 1$ ), which is true for all $\alpha<1$ . For $\alpha=1$ , $\mathbbm{G}^{\prime}_{0}(\omega)>0$ when $\omega>0$ . Further, for $\alpha>1$ , $\mathbbm{G}^{\prime}_{0}(\omega)=0$ if and only if $[\alpha/(\alpha-1)]\omega^{2}+\omega+1=\exp(\omega)$ . Since $\alpha>1$ , it is natural to expect both functions $[\alpha/(\alpha-1)]\omega^{2}+\omega+1$ and $\exp(\omega)$ to intersect at a single point. Briefly, we have

$\displaystyle\mathbbm{G}_{0}\ \text{is strictly concave and increasing for}\ 0% <\alpha\leqslant 1,\ \text{and is unimodal for}\ \alpha>1.$ (13)

Further,

$\displaystyle\lim_{\omega\to 0^{+}}\mathbbm{G}_{0}(\omega)={\alpha-1\over% \alpha}\quad\text{and}\quad\lim_{\omega\to\infty}\mathbbm{G}_{0}(\omega)=1.$

On the other hand, the first-order derivative de $\mathbbm{H}_{0}$ with respect to $\omega$ holds

$\displaystyle\mathbbm{H}^{\prime}_{0}(\omega)=\frac{a^{2}(1+b)\exp(\omega)[% \exp(\omega)-1]^{a-1}}{\{[\exp(\omega)-1]^{a}+1\}^{2}}>0\quad\text{for all}\ % \omega>0.$ (14)

Setting $z=\exp(\omega)-1$ , the second-order derivative of $\mathbbm{H}_{0}$ with respect to $\omega$ is

$\displaystyle\mathbbm{H}^{\prime\prime}_{0}(\omega)=-\frac{a^{2}(b+1)(z+1)z^{a% -2}[az^{a+1}+(1+a)z^{a}-az+1-a]}{(z^{a}+1)^{3}}<0\quad\text{for all}\ a\in% \mathcal{A},$

where $\mathcal{A}=\{a>0:az^{a+1}+(1+a)z^{a}-az+1-a>0,\forall z>0\}$ . The set $\mathcal{A}$ is non-empty because $1\in\mathcal{A}$ . Further, it can be proven that $\mathcal{A}=(0,1]$ . Thus,

$\displaystyle\mathbbm{H}_{0}\ \text{is strictly concave and increasing for}\ 0% <a\leqslant 1,$ (15)

with

$\displaystyle\lim_{\omega\to 0^{+}}\mathbbm{H}_{0}(\omega)=1-ab\quad\text{and}% \quad\lim_{\omega\to\infty}\mathbbm{H}_{0}(\omega)=1+a.$

.

Equation (11) has at least one root on $(0,\infty)$ when $ab>1/\alpha$ .

Proof..

Since $\lim_{\omega\to 0^{+}}\{\mathbbm{G}_{0}(\omega)-\mathbbm{H}_{0}(\omega)\}=ab-(% 1/\alpha)$ and $\lim_{\omega\to\infty}\{\mathbbm{G}_{0}(\omega)-\mathbbm{H}_{0}(\omega)\}=-a$ , the proof follows by using the intermediate value theorem. ∎

The previous proposition guarantees the existence of a critical point of the EOLLW density if $ab>1/\alpha$ . The following result, under certain restrictions on the parameters, shows that this critical point is unique.

.

If $\alpha=1$ and $a>0$ is an integer, the shape of the EOLLW density is

decreasing or decreasing-increasing-decreasing if $ab<1$ ;

unimodal if $ab\geqslant 1$ .

Proof..

For $\alpha=1$ , Eq. (11) becomes

$\displaystyle p(z)=az^{a+1}+(1+a)z^{a}-abz+(1-ab)=0,\quad z=\exp(\omega)-1,$

where $a$ is an integer. The number of zeros of $p(z)$ determines the number of the critical points of the EOLLW distribution.

Let $ab<1$ . By Descartes’ rule of signs (Griffiths, 1947; Xue, 2012), the polynomial $p(z)$ has two sign changes (the sequence signs is $+,+,-,+$ ), meaning that $p(z)=0$ has two or zero positive roots. First, assume that $p(z)=0$ has two positive roots, say $z_{1}$ and $z_{2}$ . Then, the EOLLW density has two critical points $x_{1}=\lambda\log(1+z_{1})$ and $x_{2}=\lambda\log(1+z_{2})$ . Since $\lim_{x\to 0^{+}}f(x)=\infty$ and $\lim_{x\to\infty}f(x)=0$ when $ab<1$ , see Eq. (7), it follows that the EOLLW pdf is decreasing-increasing-decreasing. Second, if $p(z)=0$ has zero positive roots, then the EOLLW pdf has no critical point. Since $f(x)$ explodes at the origin, the EOLLW density is decreasing.

On the other hand, let $ab>1$ . Again, by Descartes’ rule of signs, the polynomial $p(z)$ has one sign change (the sequence signs is $+,+,-,-$ ). This means that $p(z)=0$ has a unique positive root, and then the EOLLW pdf has one critical point. By Eq. (7), $\lim_{x\to 0^{+}}f(x)=\lim_{x\to\infty}f(x)=0$ when $ab>1$ , and then the unimodality of the EOLLW pdf follows.

The proof for the case $ab=1$ follows by combining the limit in Eq. (7) with steps analogous to the proof for $ab>1$ . Therefore, this is omitted. ∎

It is an arduous task to find (or provide optimal above bounds for the number of) roots of general nonlinear equations. Numerical methods are suitable for this purpose. From the facts that $\mathbbm{G}_{0}$ and $\mathbbm{H}_{0}$ have the shapes in Eqs (13) and (15), respectively, and that $\mathbbm{G}_{0}-\mathbbm{H}_{0}$ is not a periodic function, it is plausible that (depending on the parameters chosen) that Eq. (11) has at most three roots, but we do not have a proof. Using the Rouche’s theorem related to the number of roots in discs centered at zero, perhaps this can be useful to deal with this question. In order to establishing the shape of the EOLLW distribution, we suppose that $\mathbbm{G}_{0}-\mathbbm{H}_{0}$ has at most three zeros, i.e., we have the following scenarios:

(i)

Plots of $\mathbbm{G}_{0}$ and $\mathbbm{H}_{0}$ do not have a point of intersection;

(ii)

Plots of $\mathbbm{G}_{0}$ and $\mathbbm{H}_{0}$ have a single common point;

(iii)

Plots of $\mathbbm{G}_{0}$ and $\mathbbm{H}_{0}$ have two common points; and

(iv)

Plots of $\mathbbm{G}_{0}$ and $\mathbbm{H}_{0}$ have three common points.

.

If $X\sim\text{EOLLW}(a,b,{\mbox{\boldmath$\tau$}})$ and $0<a\leqslant 1$ , the shape of the pdf of $X$ is

decreasing or decreasing-increasing-decreasing when $ab<1/\alpha$ ;

decreasing or uni/bimodal or decreasing-increasing-decreasing when $ab=1/\alpha$ .

Proof..

Equation (7) gives $\lim_{x\to 0^{+}}f(x)=\infty$ and $\lim_{x\to\infty}f(x)=0$ when $ab<1/\alpha$ , which implies that: for scenario (i), the EOLLW pdf has no critical point, and so this one is decreasing; for scenario (ii), the EOLLW pdf has exactly one critical point, but this is a contradiction with the fact that the pdf explodes at the origin and disappears at infinity, and then this case cannot occur; for scenario (iii) the EOLLW pdf has two critical points, and then this one is decreasing-increasing-decreasing; and for scenario (iv) the EOLLW pdf has three critical points which leads to a contradiction by using the same argument as in scenario (ii). This proves the first item.

By Eq. (7), $\lim_{x\to 0^{+}}f(x)=1/\lambda^{\alpha}$ and $\lim_{x\to\infty}f(x)=0$ when $ab=1/\alpha$ . This ensures that, for scenario (i) the EOLLW pdf has no critical point, and so this one is decreasing; for (ii) the EOLLW pdf has exactly one critical point, and then it is unimodal with mode greater than $1/\lambda^{\alpha}$ ; for (iii) the EOLLW pdf has two critical points, and then this one is decreasing-increasing-decreasing; and for (iv) the EOLLW pdf has three critical points, and then this one is bimodal. This proves the second item. ∎

.

If $X\sim\text{EOLLW}(a,b,{\mbox{\boldmath$\tau$}})$ and $0<a\leqslant 1$ , then the shape of the pdf of $X$ is uni-or bimodal when $ab>1/\alpha$ .

Proof..

Equation (7) gives $\lim_{x\to 0^{+}}f(x)=\lim_{x\to\infty}f(x)=0$ when $ab>1/\alpha$ . Consequently, for scenario (i) the EOLLW pdf must be the zero function, which cannot occur; for (ii) the EOLLW pdf has exactly one critical point, and then this one is unimodal; for (iii) the EOLLW pdf has two critical points, but this is a contradiction with the definiton of a pdf, and therefore this case cannot occur; and for (iv) the EOLLW pdf has three critical points, and then this one is bimodal. This proves the theorem. ∎

.

Notice that, by Theorems 1, 2 and 3, the shape of the EOLLW pdf is independent of the choice of $\lambda$ .

.

Notice that the shapes of the EOLLW pdf in Fig. 1a are supported by applying Theorem 3.

3.2 Shapes of the EOLLW hrf

Let $\eta(x)=-{f^{\prime}(x)/f(x)}$ , where $f(x)$ is the EOLLW pdf in Eq. (6). Following Glaser (1980), we characterize the hrf $h(x)$ of $X\sim\text{EOLLW}(a,b,{\mbox{\boldmath$\tau$}})$ through $\eta$ .

For simplicity, let $\alpha=1$ . By Eq. (4), $\eta$ can be written as

$\displaystyle\eta(x)=\frac{1}{\lambda}\left[\frac{\mathbbm{H}_{0}(\omega)}{1-% \exp(-\omega)}-1\right],\quad\omega=\frac{x}{\lambda},$

where $\mathbbm{H}_{0}(\omega)$ is as in Eq. (12). By differentiating $\eta$ with respect to $x$ , and using the Eq. (14) for $\mathbbm{H}_{0}^{\prime}(\omega)$ , we obtain

$\displaystyle\eta^{\prime}(x)=\frac{(t+1)}{\lambda^{2}t^{2}(t^{a}+1)^{2}}{p_{a% ,b}(t)},\quad t=\exp(\omega)-1,$ (16)

where

$\displaystyle p_{a,b}(t)=(1+a)t^{2a}+a^{2}(1+b)t^{a+1}+[a^{2}(1+b)+a(1-b)+2]t^% {a}+(1-ab).$ (17)

So, the number of roots of $p_{a,b}(t)$ determines the number of critical points of $\eta$ .

To state and prove the next result, we define

$\displaystyle\mathcal{B}=\{(a,b)\in(0,\infty)\times(0,\infty):p_{a,b}(t)>0,% \forall t>0\}.$

By choosing $a,b>0$ such that $a^{2}(1+b)+a(1-b)+2\geqslant 0$ and $ab\leqslant 1$ , we guarantee that the set $\mathcal{B}$ is non-empty.

.

Let $X\sim\text{EOLLW}(a,b,{\mbox{\boldmath$\tau$}})$ and $\alpha=1$ .

If $(a,b)\in\mathcal{B}$ , the hrf of $X$ is increasing.

Suppose $a^{2}(1+b)+a(1-b)+2\geqslant 0$ and $ab>1$ , and $a>0$ integer. For example, take $a\geqslant 1$ integer and $b>1/a$ .

(a)

If there exists $0<x^{*}<a/\lambda$ such that $h^{\prime}(x^{*})=0$ , then the hrf of $X$ has bathtub (BT) shape.

(b)

If there does not exist $0<x^{*}<a/\lambda$ such that $h^{\prime}(x^{*})=0$ , then the hrf of $X$ is increasing.

Let $a^{2}+3a-1>0$ and $ab=1$ , and $a>0$ integer. For example, take $0<a<(\sqrt{13}-3)/2$ and $b>1/a$ . Under the condition of Item (a) [respectively, Item (b)], the hrf of $X$ has BT shape [respectively, is increasing].

Proof..

For $(a,b)\in\mathcal{B}$ , then $p_{a,b}(t)>0$ , $\forall t>0$ . Hence, by Eq. (16), $\eta^{\prime}(x)>0$ for all $x>0$ . So, Item 1 holds (Glaser, 1980).

In what follows, we prove the statement in Item 2. Under the conditions imposed in this one: $a^{2}(1+b)+a(1-b)+2\geqslant 0$ and $ab>1$ , for $a>0$ integer; by Descartes’ rule of signs, the polynomial $p_{a,b}(t)$ in Eq. (17) has one sign change (the sequence signs is $+,+,+,-$ ), thus meaning that this polynomial has a single positive root. Then, from Eq. (16), it follows that $\eta^{\prime}(x)$ has a single positive root, say $x^{*}$ . Since $\lim_{x\to 0^{+}}\eta(x)=\infty$ and $\lim_{x\to\infty}\eta(x)=a/\lambda$ , we obtain $\eta^{\prime}(x)<0$ for $x<x^{*}$ $(<a/\lambda)$ , $\eta^{\prime}(x^{*})=0$ , and $\eta^{\prime}(x)>0$ for $x>x^{*}$ . Under the hypothesis (a) [respectively, hypothesis (b)], the hrf of $X$ has BT shape [respectively, is increasing] (Glaser, 1980).

The proof of Item 3 follows by using the same steps as in Item 2, so it is omitted. ∎

3.3 Tail behavior of EOLLW

.

Let $F$ be a continuous univariate distribution on $\mathbf{R}$ , and $\overline{F}(x)=1-F(x)$ .

1.
The distribution $F$ has least light-tail distribution if, for any $t>0$ ,

$\displaystyle\lim_{x\to-\infty}\frac{\exp(tx)}{F(x)}=\infty.$
2.
The distribution $F$ has upper light-tail distribution if, for any $t>0$ ,

$\displaystyle\lim_{x\to\infty}\frac{\exp(-tx)}{\overline{F}(x)}=\infty.$
3.
The distribution $F$ has least heavy-tail distribution if, for any $t>0$ ,

$\displaystyle\lim_{x\to-\infty}\frac{\exp(tx)}{F(x)}=0.$
4.
The distribution $F$ has upper heavy-tail distribution if, for any $t>0$ ,

$\displaystyle\lim_{x\to\infty}\frac{\exp(-tx)}{\overline{F}(x)}=0.$

In this subsection, we prove that, depending on the choice of parameter $\alpha$ , the EOLLW model has a transition from heavy-tailed distributions to light-tailed.

.

The shape parameter $\alpha$ governs the tail behavior of the EOLLW distribution type of the following form:

(a)
If $\alpha<1$ then the EOLLW has upper heavy-tail distribution.
(b)
If $\alpha=1$ then the limit

$\displaystyle\lim_{x\to\infty}\frac{\exp(-tx)}{\overline{F}(x)}\text{depends % on}\ t>0.$ (18)
(c)
If $\alpha>1$ then the EOLLW has upper light-tail distribution.

Proof..

By Property (P5), $F(x)=\mathbbm{P}[D\leqslant T(x)]=:F_{D}[T(x)]$ , where $D\sim\text{DAGUM}(a,1,b)$ (Dagum distribution Type I) and $T$ is as in Eq. (10). Moreover, it is well-known that $F_{D}[d]=(1+d^{-a})^{-b}$ . Then, for any $t>0$ , we have

$\displaystyle\lim_{x\to\infty}\frac{\exp(-tx)}{\overline{F}(x)}=\lim_{x\to% \infty}\frac{\exp(-tx)}{\overline{F}_{D}[T(x)]}=\lim_{x\to\infty}\frac{\exp(-% tx)}{1-[1+T(x)^{-a}]^{-b}}=:L.$ (19)

Since $T(x)=\exp[(x/\lambda)^{\alpha}]-1$ , L’Hôpital’s rule gives

$\displaystyle L=\lim_{x\to\infty}\frac{t\exp(-tx)}{ab[1+T(x)^{-a}]^{-b-1}T(x)^% {-a-1}T^{\prime}(x)}=\frac{\lambda t}{ab\alpha}\lim_{x\to\infty}{[1+T(x)^{-a}]% ^{b+1}\frac{\left\{\exp\left[\left(\frac{x}{\lambda}\right)^{\alpha}\right]-1% \right\}^{a+1}}{\left(\frac{x}{\lambda}\right)^{\alpha-1}\exp\left[\left(\frac% {x}{\lambda}\right)^{\alpha}+tx\right]}}.$ (20)

But,

$\displaystyle\lim_{x\to\infty}T(x)=\infty\quad\text{and}\quad\lim_{x\to\infty}% {\frac{\left\{\exp\left[\left(\frac{x}{\lambda}\right)^{\alpha}\right]-1\right% \}^{a+1}}{(\frac{x}{\lambda})^{\alpha-1}\exp\left[\left(\frac{x}{\lambda}% \right)^{\alpha}+tx\right]}}=\left\{\begin{array}[]{ll}\infty,&\alpha>1;\\ \infty,&\alpha=1,a>\lambda t;\\ 0,&\alpha=1,a<\lambda t;\\ 1,&\alpha=1,a=\lambda t;\\ 0,&\alpha<1.\end{array}\right.$ (21)

By combining Eqs (21) and (20) with Eq. (19), we obtain that (for any $t>0$ )

$\displaystyle\lim_{x\to\infty}\frac{\exp(-tx)}{\overline{F}(x)}=\left\{\begin{% array}[]{ll}\infty,&\alpha>1;\\ 0,&\alpha<1;\end{array}\right.$

and that, for $\alpha=1$ , the limit in Eq. (18) is a function of $t>0$ . This completes the proof. ∎
3.4 Maximum likelihood estimation

Let $X_{i}$ be a random variable following Eq. (6) with the vector of parameters ${\mbox{\boldmath$\theta$}}=(a,b,\lambda,\alpha)^{T}$ . A very simple random censoring mechanism that is often realistic is one in which each individual $i$ is assumed to have a lifetime $X_{i}$ and a censoring time $C_{i}$ , where $X_{i}$ and $C_{i}$ are independent random variables. Suppose that the data consist of $n$ independent observations $x_{i}=\text{min}(X_{i},C_{i})$ for $i=1,\ldots,n$ . The distribution of $C_{i}$ does not depend on any of the unknown parameters of $X_{i}$ . Parametric inference for such data are usually based on likelihood methods and their asymptotic theory. The censored log-likelihood $l({\mbox{\boldmath$\theta$}})$ for the model parameters is

$\displaystyle l({\mbox{\boldmath$\theta$}})=r\log\left(\frac{ab\alpha}{\lambda% ^{\alpha}}\right)+(\alpha-1)\sum_{i\in F}\log(x_{i})+a\sum_{i\in F}\log[\kappa% _{\alpha\lambda}(x_{i})]+(ab-1)\sum_{i\in F}\log[\kappa_{\alpha\lambda}(x_{i})% ]{}-(b+1)\sum_{i\in F}\log\{[1-\kappa_{\alpha\lambda}(x_{i})]^{a}+\kappa_{% \alpha\lambda}^{a}(x)\}+\sum_{i\in C}\log\left\{1-\frac{[1-\kappa_{\alpha% \lambda}(x_{i})]^{a}}{\{[1-\kappa_{\alpha\lambda}(x_{i})]^{a}+\kappa_{\alpha% \lambda}^{a}(x_{i})\}^{b}}\right\},$ (22)

where $\kappa_{\alpha\lambda}(x_{i})=1-\exp[-({x_{i}}/{\lambda})^{\alpha}]$ , $r$ is the number of failures and $F$ and $C$ denote the uncensored and censored sets of observations, respectively.

The maximum likelihood estimate (MLE) $\widehat{{\mbox{\boldmath$\theta$}}}$ of $\theta$ can be obtained by maximizing the log-likelihood function Eq. (22) using the procedure NLMixed in SAS and R software.

Under conditions that are fulfilled for parameters in the interior of the parameter space but not on the boundary, the asymptotic distribution of $\sqrt{n}(\widehat{\mbox{\boldmath$\theta$}}-{\mbox{\boldmath$\theta$}})$ is $N_{4}(0,I({\mbox{\boldmath$\theta$}})^{-1})$ , where $I({\mbox{\boldmath$\theta$}})$ is the unit expected information matrix. This approximated distribution holds when $I({\mbox{\boldmath$\theta$}})$ is replaced by $J(\widehat{\mbox{\boldmath$\theta$}})$ , i.e., the observed information matrix evaluated at $\widehat{\mbox{\boldmath$\theta$}}$ . The multivariate normal $N_{4}(0,J(\widehat{\mbox{\boldmath$\theta$}})^{-1})$ distribution for $\sqrt{n}(\widehat{\mbox{\boldmath$\theta$}}-{\mbox{\boldmath$\theta$}})$ can be used to construct approximate confidence intervals for the individual parameters and for the hazard and survival functions.

4. The LEOLLW distribution

If $X\sim\text{EOLLW}(\alpha,\lambda,a,b)$ , $Y=\log(X)$ has the LEOLLW density written in terms of $\mu=\log(\lambda)$ and $\sigma=1/\alpha$ (for $y\in\mathbf{R}$ )

$\displaystyle f(y)=\frac{ab\exp\left\{\left(\frac{y-\mu}{\sigma}\right)-a\exp% \left(\frac{y-\mu}{\sigma}\right)\right\}\left[1-\exp\left\{-\exp\left(\frac{y% -\mu}{\sigma}\right)\right\}\right]^{ab-1}}{\sigma\left\{\left[1-\exp\left\{-% \exp\left(\frac{y-\mu}{\sigma}\right)\right\}\right]^{a}+\exp\left[-a\exp\left% (\frac{y-\mu}{\sigma}\right)\right]\right\}^{b+1}},$ (23)

where $a>0$ , $b>0$ , $\sigma>0$ and $\mu\in\mathbf{R}$ .

Henceforth, let $Y\sim\text{LEOLLW}(\mu,\sigma,a,b)$ be a random variable with pdf Eq. (23). Plots of the pdf of $Y$ displayed in Fig. 2 reveal great flexibility of the new density. Theoretical properties of the LEOLLW pdf such as modality and tail behavior are described in Subsections 4.2 and 4.3, respectively.

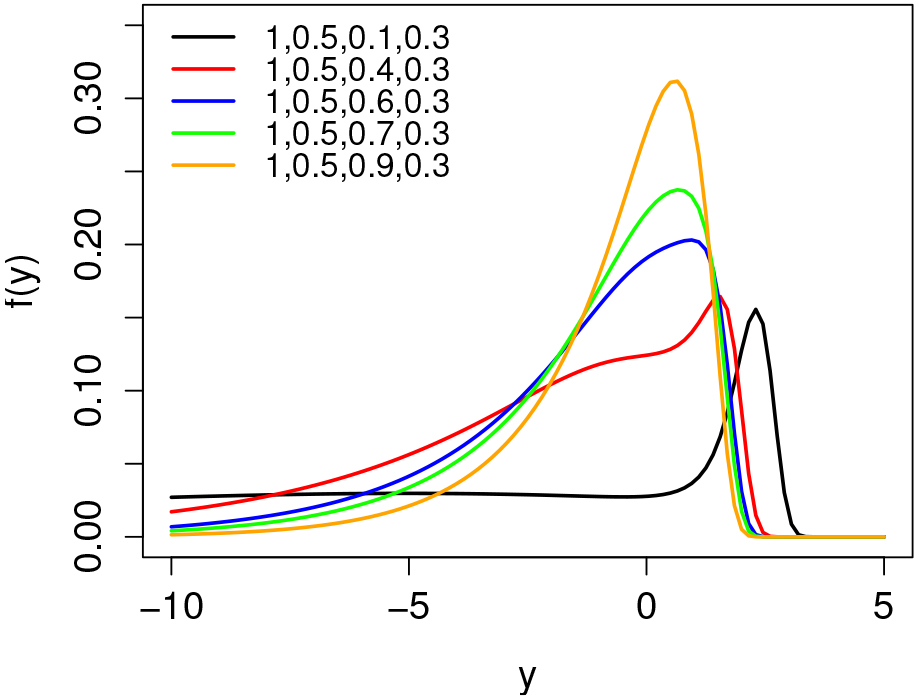

Figure 2.

Plots of the LEOLLW $(\mu,\sigma,a,b)$ probability density function.

The survival function of $Y$ is

$\displaystyle S(y)=1-\frac{\left[1-\exp\left\{-\exp\left(\frac{y-\mu}{\sigma}% \right)\right\}\right]^{ab}}{\left\{\left[1-\exp\left\{-\exp\left(\frac{y-\mu}% {\sigma}\right)\right\}\right]^{a}+\exp\left[-a\exp\left(\frac{y-\mu}{\sigma}% \right)\right]\right\}^{b}}.$ (24)

The pdf of $Z=(Y-\mu)/\sigma$ has the form

$\displaystyle\pi(z)=\frac{ab\exp\left\{z-a\exp\left(z\right)\right\}\left[1-% \exp\left\{-\exp\left(z\right)\right\}\right]^{ab-1}}{\left\{\left[1-\exp\left% \{-\exp\left(z\right)\right\}\right]^{a}+\exp\left[-a\exp\left(z\right)\right]% \right\}^{b+1}},\quad z\in\mathbf{R}.$ (25)

Some properties of $Y$ are reported below:

(PL1)

Equation (23) gives $\lim_{y\to\infty}f(y)=0$ . Moreover, since $f(y)=\pi((y-\mu)/\sigma)/\sigma$ and $\pi((y-\mu)/\sigma)=\exp[(y-\mu)/\sigma]f(\exp[(y-\mu)/\sigma])$ , where $f(x)$ is the pdf Eq. (6) with $\alpha=\lambda=1$ . By Eq. (7) and the L’Hôpital’s rule, we obtain

$\displaystyle\lim_{y\to-\infty}f(y)=\frac{1}{\sigma}\lim_{y\to-\infty}\exp% \left(\frac{y-\mu}{\sigma}\right)f\left(\exp\left(\frac{y-\mu}{\sigma}\right)% \right)=0.$

(PL2)

By Property (P5), the stochastic representation for $Y$ holds

$\displaystyle Y=\mu+\sigma\log[\log(1+D)],\quad D\sim\text{DAGUM}(a,1,b).$

(PL3)

Let $\mu=0$ and $\sigma=1$ . A simple calculation gives

$\displaystyle\pi^{\prime}(z)=\pi(z)\left\{1+\widetilde{\omega}\left[1-\frac{% \mathbbm{H}_{0}(\widetilde{\omega})}{1-\exp(-\widetilde{\omega})}\right]\right% \},\quad\widetilde{\omega}=\exp(z),$

where $\mathbbm{H}_{0}$ is as in Eq. (12). Then, the critical points of the pdf of $Y$ are the roots of:

$\displaystyle\left(\frac{1}{\widetilde{\omega}}+1\right)[1-\exp(-\widetilde{% \omega})]=\mathbbm{H}_{0}(\widetilde{\omega}).$

(PL4)

Note that the function $\pi$ can be expressed as

$\displaystyle\pi(z)=\frac{b[1-F_{G}(-z)]^{ab-1}f_{G}(-z-\log(a))}{\{[1-F_{G}(-% z)]^{a}+F^{a}_{G}(-z)\}^{b+1}},\quad z\in\mathbf{R},$ (26)

where $F_{G}(x)=\exp[-\exp(-x)]$ is the standard Gumbel distribution and $f_{G}(x)=\exp\{-[x+\exp(-x)]\}$ , $x\in\mathbf{R}$ , is the associated pdf. The extreme-value standard distribution (Gumbel law) is a special case of Eq. (25) when $a=b=1$ .

4.1 Another representation for the LEOLLW distribution

First, we define the pdf $g(u)$ as follows

$\displaystyle g(u)=\frac{b[1-F_{G}(-S(u))]^{ab-1}}{\{[1-F_{G}(-S(u))]^{a}+F^{a% }_{G}(-S(u))\}^{b+1}},\quad 0<u<1,$ (27)

where $S(u)=-F_{G}^{-1}(1-u)-\log(a)$ and $F_{G}^{-1}$ denotes the inverse of the standard Gumbel cdf. For $a=b=1$ , $g(u)$ reduces to the continuous uniform distribution in the interval (0, 1). The cdf corresponding to $g(u)$ is

$\displaystyle G(u)=\frac{[1-F_{G}(-S(u))]^{ab}}{\{[1-F_{G}(-S(u))]^{a}+F^{a}_{% G}(-S(u))\}^{b}}.$

Second, let $A:\mathbf{R}\to(0,1)$ be an one-to-one and monotone transformation. So, we define the following cdf

$\displaystyle F(z)=\int_{0}^{A(z)}g(u)\text{d}u=G(A(z)).$

Setting $A(z)=1-F_{G}(-z-\log(a))$ , where $F_{G}$ is the standard Gumbel distribution, we have $F(z)=G(1-F_{G}(-z-\log(a)))$ , and

$\displaystyle F^{\prime}(z)=\pi(z),\quad z\in\mathbf{R},$

where $\pi(z)$ is as in Eq. (26).

The previous arguments show the following result since $F_{G}^{-1}(p)=-\log[-\log(p)]$ (for $0<p<1$ ).

.

The random variable $Z\sim\text{LEOLLW}(0,1,a,b)$ has the stochastic representation:

$\displaystyle Z=-F_{G}^{-1}(1-U)-\log(a)=\log[-\log(1-U)]-\log(a),$

where $U$ is distributed according to Eq. (27).

As a consequence of the proposition above, we obtain

•

The random variable $Y\sim\text{LEOLLW}(\mu,\sigma,a,b)$ admits the stochastic representation

$\displaystyle Y=\mu-\sigma[F_{G}^{-1}(1-U)+\log(a)]=\mu-\sigma\log(a)+\sigma% \log[-\log(1-U)].$

•

The random variable $X\sim\text{EOLLW}(\alpha,\lambda,a,b)$ can be expressed as

$\displaystyle X=\lambda\exp\left\{-\frac{1}{\alpha}[F_{G}^{-1}(1-U)+\log(a)]% \right\}=\lambda a^{-1/\alpha}[-\log(1-U)]^{1/\alpha}.$

4.2 Modality of the LEOLLW density

Since $\pi(z)=\sigma f(y;\mu,\sigma,a,b)$ , $y=\sigma z+\mu$ , the shape of the LEOLLW pdf $f(y)$ is uniquely determined by the shape of the pdf $\pi(z)$ . Then, for simplicity, we consider the analysis of modality of $\pi(z)$ , i.e., when $\mu=0$ and $\sigma=1$ .

By property (PL3), a critical point of the LEOLLW density satisfies the following equation:

$\displaystyle\mathbbm{I}_{0}(\widetilde{\omega})=\mathbbm{H}_{0}(\widetilde{% \omega}),\quad\widetilde{\omega}=\exp(z),$

where

$\displaystyle\mathbbm{I}_{0}(\widetilde{\omega})=\left(\frac{1}{\widetilde{% \omega}}+1\right)[1-\exp(-\widetilde{\omega})]$

and $\mathbbm{H}_{0}$ is as in Eq. (12). The function $\mathbbm{H}_{0}$ was addressed in Section 3.1. The function $\mathbbm{I}_{0}$ is unimodal with mode $\widetilde{\omega}\approx 1.79328$ . Moreover, $\lim_{\widetilde{\omega}\to 0}\mathbbm{I}_{0}(\widetilde{\omega})=\lim_{% \widetilde{\omega}\to\infty}\mathbbm{I}_{0}(\widetilde{\omega})=1$ .

The following result shows that, regardless of the choice of the parameters, a critical point of the LEOLLW pdf always exists.

.

Equation $\mathbbm{I}_{0}(\widetilde{\omega})=\mathbbm{H}_{0}(\widetilde{\omega})$ has at least one root on $(0,\infty)$ .

Proof..

Since $\lim_{\widetilde{\omega}\to 0^{+}}\{\mathbbm{I}_{0}(\widetilde{\omega})-% \mathbbm{H}_{0}(\widetilde{\omega})\}=a$ and $\lim_{\widetilde{\omega}\to\infty}\{\mathbbm{I}_{0}(\widetilde{\omega})-% \mathbbm{H}_{0}(\widetilde{\omega})\}=-a$ , the proof follows by using the intermediate value theorem. ∎

Since $\mathbbm{I}_{0}$ is unimodal and $\mathbbm{H}_{0}$ is strictly concave and increasing for $0<a\leqslant 1$ , see Eq. (15), and $\mathbbm{G}_{0}-\mathbbm{H}_{0}$ is not a periodic function, it is natural to expect that Equation $\mathbbm{I}_{0}(\widetilde{\omega})=\mathbbm{H}_{0}(\widetilde{\omega})$ has at most three positive roots (but we do not have a proof). In what remains in this section, we suppose that $\mathbbm{I}_{0}-\mathbbm{H}_{0}$ has at most three zeros. Then, we have the following possible scenarios:

•
If $\mathbbm{I}_{0}$ and $\mathbbm{H}_{0}$ do not have a point of intersection then the LEOLLW pdf has no critical points. Property (PL1) implies that the pdf is the zero function, which is absurd, so this scenario cannot occur.
•
If $\mathbbm{I}_{0}$ and $\mathbbm{H}_{0}$ have a single point of intersection, then the LEOLLW pdf has a unique critical point. By Property (PL1), it follows that the EOLLW pdf is unimodal.
•
If $\mathbbm{I}_{0}$ and $\mathbbm{H}_{0}$ do have two points of intersection, then the LEOLLW pdf has two critical points. But, this is an absurd by Property (PL1), so this scenario cannot occur either.
•
Further, if $\mathbbm{I}_{0}$ and $\mathbbm{H}_{0}$ have three points of intersection, then the EOLLW pdf has three critical points, say $z_{0},z_{1},z_{2}$ . Suppose that $z_{0}<z_{1}<z_{2}$ . Again, Property (PL1) gives that $z_{0}$ and $z_{2}$ are maximum points and $z_{1}$ is a minimum point of the EOLLW pdf, thus ensuring the bimodality.

Hence, we have established the following result:

.

If $Z\sim\text{LEOLLW}(0,1,a,b)$ with $0<a\leqslant 1$ , then the pdf Eq. (25) of $Z$ is uni- or bimodal.

It is well-known that the standard Gumbel distribution (LEOLLW with $a=b=1$ ) is unimodal, which is compatible with Theorem 5.
4.3 Tail behavior of LEOLLW

In this subsection, by following Definition 1, we prove that the LEOLLW model has upper light-tail distribution, but the lower tail does not have a well-defined behavior when it is compared with the tail of an exponential distribution. That is, the lower tail of LEOLLW is neither least light-tail nor least heavy-tail.

.

The LEOLLW has upper light-tail distribution and the limit

$\displaystyle\lim_{y\to-\infty}\frac{\exp(ty)}{1-S(y)}\text{depends on}\ t>0.$ (28)

Here, $S(y)$ is the survival function of $Y$ defined in Eq. (24).

Proof..

By Definition 1, to prove that the LEOLLW model has upper light-tail distribution, it must be verified that (for any $t>0$ )

$\displaystyle\lim_{y\to\infty}\frac{\exp(-ty)}{S(y)}=\infty.$ (29)

Indeed, by Property (P5), $F(y)=\mathbbm{P}[D\leqslant T(\exp(y))]=:F_{D}[T(\exp(y))]$ , where $D\sim\text{DAGUM}(a,1,b)$ (Dagum distribution Type I), $T(x)=\exp\{(x/\lambda)^{\alpha}\}-1$ with $\mu=\log(\lambda)$ and $\sigma=1/\alpha$ , and $F_{D}[d]=(1+d^{-a})^{-b}$ . Then, for any $t>0$ , we have

$\displaystyle\lim_{y\to\infty}\frac{\exp(-ty)}{S(y)}=\lim_{y\to\infty}\frac{% \exp(-ty)}{\overline{F}_{D}[T(\exp(y))]}=\lim_{y\to\infty}\frac{\exp(-ty)}{1-[% 1+T(\exp(y))^{-a}]^{-b}}=:L_{1}.$ (30)

L’Hôpital’s rule gives

$\displaystyle L_{1}=\lim_{y\to\infty}\frac{t\exp(-ty)}{ab[1+T(\exp(y))^{-a}]^{% -b-1}T(\exp(y))^{-a-1}T^{\prime}(\exp(y))\exp(y)}=\frac{\lambda t}{ab\alpha}% \lim_{y\to\infty}{[1+T(\exp(y))^{-a}]^{b+1}\frac{\left\{\exp\left[\left(\frac{% \exp(y)}{\lambda}\right)^{\alpha}\right]-1\right\}^{a+1}}{\left(\frac{\exp(y)}% {\lambda}\right)^{\alpha-1}\exp\left[\left(\frac{\exp(y)}{\lambda}\right)^{% \alpha}+(t+1)y\right]}}.$ (31)

But, by considering the change of variables $z=\exp(y)/\lambda$ ,

$\displaystyle\lim_{y\to\infty}\frac{\left\{\exp\left[\left(\frac{\exp(y)}{% \lambda}\right)^{\alpha}\right]-1\right\}^{a+1}}{\left(\frac{\exp(y)}{\lambda}% \right)^{\alpha-1}\exp\left[\left(\frac{\exp(y)}{\lambda}\right)^{\alpha}+(t+1% )y\right]}=\frac{1}{\lambda^{t+1}}\lim_{z\to\infty}\frac{[\exp(z^{\alpha})-1]^% {a+1}}{z^{\alpha+t}\exp(z^{\alpha})}=\infty.$ (32)

Since $\lim_{y\to\infty}T(\exp(y))=\infty$ , by combining Eqs (32) and (31) with Eq. (30), the limit in Eq. (29) follows. This proves the upper light-tailedness of LEOLLW distribution.

On the other hand, similarly to the steps done previously, by L’Hôpital’s rule,

$\displaystyle\lim_{y\to-\infty}\frac{\exp(ty)}{1-S(y)}=\lim_{y\to-\infty}\frac% {\exp(ty)}{[1+T(\exp(y))^{-a}]^{-b}}=\frac{\lambda t}{ab\alpha}\lim_{x\to% \infty}\frac{\left\{\left\{\exp\left[\left(\frac{\exp(-x)}{\lambda}\right)^{% \alpha}\right]-1\right\}^{a}+1\right\}^{b+1}\left\{\exp\left[\left(\frac{\exp(% -x)}{\lambda}\right)^{\alpha}\right]-1\right\}^{1-ab}}{\left(\frac{\exp(-x)}{% \lambda}\right)^{\alpha-1}\exp\left[\left(\frac{\exp(-x)}{\lambda}\right)^{% \alpha}+(t-1)x\right]}=:\frac{\lambda t}{ab\alpha}L_{2},$

where the changing variables $x=-y$ has been considered. Moreover, by taking the change of variables $w=\exp(-x)/\lambda$ , we have

$\displaystyle L_{2}=\frac{1}{\lambda^{1-t}}\lim_{w\to 0}\frac{\left\{\left[% \exp(w^{\alpha})-1\right]^{a}+1\right\}^{b+1}}{\exp(w^{\alpha})}\frac{[\exp(w^% {\alpha})-1]^{1-ab}}{w^{\alpha-t}}=\left\{\begin{array}[]{ll}\infty,&\alpha-t>% 0,1-ab\leqslant 0;\\ 0,&\alpha-t<0,1-ab\geqslant 0;\\ \frac{1}{\lambda^{1-t}},&\alpha-t=0,1-ab=0;\\ \infty,&\alpha-t=0,1-ab<0;\\ 0,&\alpha-t=0,1-ab>0;\\ \infty,&\alpha-t<0,1-ab<0;\\ 0,&\alpha-t>0,1-ab>0.\end{array}\right.$

Therefore, we conclude that the limit in Eq. (28) depends on the choice of $t>0$ . ∎

5. The LEOLLW regression with censored data

The LEOLLW regression model is defined by

$\displaystyle y_{i}=\mu_{i}+\sigma_{i}z_{i},\quad i=1,\ldots,n.$ (33)

Here, the random error $z_{i}$ has density Eq. (25), and the location $\mu_{i}$ and dispersion $\sigma_{i}$ are related to the explanatory variable vector ${\bf v}_{i}^{\top}=(v_{i1},\ldots,v_{ip})$ (for $i=1,\ldots,n$ ) by

$\displaystyle\mu_{i}={{\bf v}_{i}^{\top}}{\mbox{\boldmath$\beta$}}_{1}\quad% \text{and}\quad\sigma_{i}=\exp({{\bf v}_{i}^{\top}}{\mbox{\boldmath$\beta$}}_{% 2}),$ (34)

where ${\mbox{\boldmath$\beta$}}_{1}=(\beta_{10},\ldots,\beta_{1p})^{\top}$ and ${\mbox{\boldmath$\beta$}}_{2}=(\beta_{20},\ldots,\beta_{2p})^{\top}$ are $p\times 1$ vectors of unkown parameters.

Setting ${\mbox{\boldmath$\mu$}}=(\mu_{1},\ldots,\mu_{n})^{\top}$ , $\bm{\sigma}=(\sigma_{1},\ldots,\sigma_{n})^{\top}$ , and ${\bf V}=({\bf v}_{1},\ldots,{\bf v}_{n})^{\top}$ for a known matrix, we can write ${\mbox{\boldmath$\mu$}}={\bf V}{\mbox{\boldmath$\beta$}}_{1}$ and $\bm{\eta}=\exp(\bm{\sigma})={\bf V}{\mbox{\boldmath$\beta$}}_{2}$ , where $a$ and $b$ denote shape parameters for the regression.

Equation (33) gives the log-odd log-logistic Weibull (LOLLW) regression for $a=1$ , log-exponentiated Weibull (LEW) regression for $b=1$ , and log-Weibull (LW) regression for $a=b=1$ .

The survival function of $Y_{i}|{\bf v}$ follows from Eqs (33) and (34)

$\displaystyle S(y_{i}|{\bf v})=1-\frac{\left[1-\exp\left\{-\exp\left(\frac{y_{% i}-\mu_{i}}{\sigma_{i}}\right)\right\}\right]^{ab}}{\left\{\left[1-\exp\left\{% -\exp\left(\frac{y_{i}-\mu_{i}}{\sigma_{i}}\right)\right\}\right]^{a}+\exp% \left[-a\exp\left(\frac{y_{i}-\mu_{i}}{\sigma_{i}}\right)\right]\right\}^{b}}.$ (35)

5.1 Estimation

Consider $n$ observations $(y_{1},{\bf v}_{1}),\ldots,(y_{n},{\bf v}_{n})$ , where $y_{i}=\min\{\log(X_{i}),\log(C_{i})\}$ . The logarithm of the likelihood function for ${\mbox{\boldmath$\theta$}}=(a,b,{\mbox{\boldmath$\beta$}}_{1}^{\top},{\mbox{% \boldmath$\beta$}}_{2}^{\top})^{\top}$ (assuming right censoring) has the form

$\displaystyle l({\mbox{\boldmath$\theta$}})=r\log\left(\frac{ab}{\sigma_{i}}% \right)\sum_{i\in F}z_{i}-a\sum_{i\in F}\exp(z_{i})+(ab-1)\sum_{i\in F}\log% \left\{1-\exp[-\exp(z_{i})]\right\}{}-(b+1)\sum_{i\in F}\log\left\{[1-\exp\{-% \exp(z_{i})\}]^{a}+\exp[-a\exp(z_{i})]\right\}{}+\sum_{i\in C}\log\left\{1-% \frac{\left[1-\exp\left\{-\exp\left(z_{i}\right)\right\}\right]^{ab}}{\left\{% \left[1-\exp\left\{-\exp\left(z_{i}\right)\right\}\right]^{a}+\exp\left[-a\exp% \left(z_{i}\right)\right]\right\}^{b}}\right\},$ (36)

where $r$ is the number of uncensored observations (failures) and $z_{i}=(y_{i}-\mu_{i})/\sigma_{i}$ . Here, $F$ and $C$ are the sets for the uncensored individuals and individuals with right censoring, respectively.

Equation (36) can be maximized using SAS (Proc NLMixed) or R (optim, gamlss) (R Development Core Team, 2022), among others, with initial values for ${\mbox{\boldmath$\beta$}}_{1}$ and ${\mbox{\boldmath$\beta$}}_{2}$ equal to those from the fit of the LW regression ( $a=b=1$ ).

5.2 Simulations study

We perform some simulations in order to evaluate the accuracy of the MLEs. We obtain 1,000 random samples from the LEOLLW $(\mu,\sigma,a,b)$ model using optim package in R for sample sizes $n=100,250$ and 500 and censoring percentages approximately equal to 0%, 15% and 45%. For each configuration, the log-lifetimes $\text{log}(x_{1}),\ldots,\text{log}(x_{n})$ are generated from Eq. (33) with two covariates, i.e., ${{\bf v}_{i}^{\top}}{\mbox{\boldmath$\beta$}}=\beta_{01}+\beta_{11}v_{1}+\beta% _{12}v_{2}$ , where $v_{1}\sim\text{uniform}(0,1)$ and $v_{2}\sim\text{Binomial}(1,0.5)$ . The censoring times $c_{1},\ldots,c_{n}$ are generated from a uniform distribution $(0,\tau)$ , where $\tau$ controls the censoring percentage. The true parameter values are: $\beta_{10}=3,\beta_{11}=2.5,\beta_{12}=1.9,\sigma=0.3,a=0.5$ and $b=0.9$ . The simulation process is given below:

(i)
Generate $v_{i1}\sim\text{uniform}(0,1)$ and $v_{i2}\sim\text{Binomial}(1,0.5)$ ;
(ii)
Generate $z_{i}\sim\text{LEOLLW}(0,1,a,b)$ Eq. (25);
(iii)
Calculate $y_{i}^{}=\beta_{0}+\beta_{1}v_{i1}+\beta_{2}v_{i2}+\sigma z_{i}$ ;
(iv)
Generate $c_{i}\sim\text{uniform}(0,\tau)$ ;
(v)
Calculate the survival times $y_{i}=\text{min}(y_{i}^{},c_{i})$ ;
(vi)
If $y_{i}^{*}<c_{i}$ , then $\delta_{i}=1$ ; otherwise, $\delta_{i}=0$ , for $i=1,\ldots,n$ .

Table 1 reports the average estimates (AEs), biases, mean square errors (MSEs) and the empirical coverage probabilities (CPs) for the 95% confidence interval of the MLEs. These results show that the AEs converge to the true parameters and the biases and MSEs decrease when $n$ increases, thus indicating consistent estimators. The CPs tend to the confidence level.

Update table:

Table 1
Simulatins results from the fitted LEOLLW regression

$n=100$ $n=250$ $n=500$

% $\theta$ AE Bias MSE CP AE Bias MSE CP AE Bias MSE CP

0% $\beta_{10}$ 2.96 $-$ 3.79 5.99 0.95 2.98 $-$ 2.24 2.92 0.95 2.99 $-$ 1.18 1.68 0.95

$\beta_{11}$ 2.50 $-$ 0.42 2.26 0.92 2.50 $-$ 0.31 0.82 0.93 2.50 $-$ 0.10 0.33 0.97

$\beta_{12}$ 1.90 0.25 0.70 0.92 1.90 $-$ 0.03 0.27 0.93 1.90 0.25 0.13 0.94

$\sigma$ 0.29 $-$ 1.02 0.87 0.91 0.29 $-$ 0.60 0.42 0.93 0.30 $-$ 0.33 0.22 0.95

$a$ 0.46 $-$ 4.02 2.02 0.84 0.47 $-$ 2.81 0.65 0.89 0.49 $-$ 1.28 0.37 0.91

$b$ 1.01 10.57 19.68 0.96 0.96 6.46 10.06 0.95 0.93 3.25 5.67 0.95

10% $\beta_{10}$ 2.94 $-$ 6.13 6.17 0.98 2.97 $-$ 3.40 3.09 0.96 2.99 $-$ 1.32 1.84 0.96

$\beta_{11}$ 2.49 $-$ 0.66 2.58 0.93 2.50 $-$ 0.23 0.99 0.92 2.50 $-$ 0.05 0.39 0.96

$\beta_{12}$ 1.90 0.17 0.74 0.94 1.90 0.14 0.30 0.93 1.90 0.26 0.15 0.94

$\sigma$ 0.30 0.21 0.88 0.95 0.30 $-$ 0.26 0.41 0.95 0.30 $-$ 0.36 0.25 0.95

$a$ 0.47 $-$ 3.13 2.28 0.84 0.47 $-$ 3.03 0.69 0.88 0.49 $-$ 1.44 0.39 0.91

$b$ 1.05 14.97 21.15 0.97 0.99 8.70 10.60 0.97 0.94 3.69 6.21 0.96

30% $\beta_{10}$ 2.91 $-$ 9.22 7.85 0.98 2.95 $-$ 5.02 3.38 0.97 2.98 $-$ 1.98 2.28 0.96

$\beta_{11}$ 2.49 $-$ 1.16 3.79 0.93 2.50 $-$ 0.40 1.33 0.93 2.50 $-$ 0.14 0.57 0.94

$\beta_{12}$ 1.90 $-$ 0.44 1.13 0.93 1.90 $-$ 0.04 0.40 0.93 1.90 0.20 0.20 0.94

$\sigma$ 0.32 1.66 1.19 0.98 0.30 0.21 0.43 0.98 0.30 $-$ 0.33 0.29 0.96

$a$ 0.47 $-$ 2.82 3.51 0.82 0.47 $-$ 3.36 0.97 0.86 0.48 $-$ 1.87 0.49 0.90

$b$ 1.13 22.74 27.71 0.98 1.02 11.85 11.98 0.98 0.95 5.19 7.64 0.96

The Bias and MSE values correspond to Bias $\cdot$ 100 and MSE $\cdot$ 100, respectively.

6. Residual analysis

		$n=100$	$n=250$	$n=500$
%	$\theta$	AE	Bias	MSE	CP	AE	Bias	MSE	CP	AE	Bias	MSE	CP
0%	$\beta_{10}$	2.96	$-$ 3.79	5.99	0.95	2.98	$-$ 2.24	2.92	0.95	2.99	$-$ 1.18	1.68	0.95
	$\beta_{11}$	2.50	$-$ 0.42	2.26	0.92	2.50	$-$ 0.31	0.82	0.93	2.50	$-$ 0.10	0.33	0.97
	$\beta_{12}$	1.90	0.25	0.70	0.92	1.90	$-$ 0.03	0.27	0.93	1.90	0.25	0.13	0.94
	$\sigma$	0.29	$-$ 1.02	0.87	0.91	0.29	$-$ 0.60	0.42	0.93	0.30	$-$ 0.33	0.22	0.95
	$a$	0.46	$-$ 4.02	2.02	0.84	0.47	$-$ 2.81	0.65	0.89	0.49	$-$ 1.28	0.37	0.91
	$b$	1.01	10.57	19.68	0.96	0.96	6.46	10.06	0.95	0.93	3.25	5.67	0.95
10%	$\beta_{10}$	2.94	$-$ 6.13	6.17	0.98	2.97	$-$ 3.40	3.09	0.96	2.99	$-$ 1.32	1.84	0.96
	$\beta_{11}$	2.49	$-$ 0.66	2.58	0.93	2.50	$-$ 0.23	0.99	0.92	2.50	$-$ 0.05	0.39	0.96
	$\beta_{12}$	1.90	0.17	0.74	0.94	1.90	0.14	0.30	0.93	1.90	0.26	0.15	0.94
	$\sigma$	0.30	0.21	0.88	0.95	0.30	$-$ 0.26	0.41	0.95	0.30	$-$ 0.36	0.25	0.95
	$a$	0.47	$-$ 3.13	2.28	0.84	0.47	$-$ 3.03	0.69	0.88	0.49	$-$ 1.44	0.39	0.91
	$b$	1.05	14.97	21.15	0.97	0.99	8.70	10.60	0.97	0.94	3.69	6.21	0.96
30%	$\beta_{10}$	2.91	$-$ 9.22	7.85	0.98	2.95	$-$ 5.02	3.38	0.97	2.98	$-$ 1.98	2.28	0.96
	$\beta_{11}$	2.49	$-$ 1.16	3.79	0.93	2.50	$-$ 0.40	1.33	0.93	2.50	$-$ 0.14	0.57	0.94
	$\beta_{12}$	1.90	$-$ 0.44	1.13	0.93	1.90	$-$ 0.04	0.40	0.93	1.90	0.20	0.20	0.94
	$\sigma$	0.32	1.66	1.19	0.98	0.30	0.21	0.43	0.98	0.30	$-$ 0.33	0.29	0.96
	$a$	0.47	$-$ 2.82	3.51	0.82	0.47	$-$ 3.36	0.97	0.86	0.48	$-$ 1.87	0.49	0.90
	$b$	1.13	22.74	27.71	0.98	1.02	11.85	11.98	0.98	0.95	5.19	7.64	0.96

Residuals are important when determining the adequacy of a regression model and detection of outliers. They play a crucial role in validating the regression by examining the residual plots; see, for example, Cox and Snell (1968), Cook and Weisberg (1982), Collet (2003), Ortega et al. (2008), Silva et al. (2011) and recently Hashimo et al. (2021).

Martingale residuals

We adopt the martingale residuals $r_{M_{i}}=\delta_{i}+\log[S(y_{i};\widehat{{\mbox{\boldmath$\theta$}}})]$ (Fleming & Harrington, 1991), where $\delta_{i}$ is the censoring indicator, i.e., $\delta_{i}=0(\delta_{i}=1)$ is a censored (uncensored) observation and $S(y_{i};\widehat{{\mbox{\boldmath$\theta$}}})$ is the estimated survival function Eq. (35). By setting $\hat{z}_{i}=(y_{i}-{\bf x}^{T}_{i}\widehat{{\mbox{\boldmath$\beta$}}})/% \widehat{\sigma}$ , these residuals (under right censoring) become

$\displaystyle r_{M_{i}}=\left\{\begin{array}[]{ll}1+\log\left\{1-\frac{\left[1% -\exp\left\{-\exp\left(\hat{z}_{i}\right)\right\}\right]^{\hat{a}\hat{b}}}{% \left\{\left[1-\exp\left\{-\exp\left(\hat{z}_{i}\right)\right\}\right]^{\hat{a% }}+\exp\left[-\hat{a}\exp\left(\hat{z}_{i}\right)\right]\right\}^{\hat{b}}}% \right\}&\text{if}\,\delta_{i}=1,\\ \log\left\{1-\frac{\left[1-\exp\left\{-\exp\left(\hat{z}_{i}\right)\right\}% \right]^{\hat{a}\hat{b}}}{\left\{\left[1-\exp\left\{-\exp\left(\hat{z}_{i}% \right)\right\}\right]^{\hat{a}}+\exp\left[-\hat{a}\exp\left(\hat{z}_{i}\right% )\right]\right\}^{\hat{b}}}\right\}&\text{if}\,\delta_{i}=0.\end{array}\right.$ (37)

Modified deviance residuals

The deviance component residuals (Therneau et al., 1990; Collett, 2003) can be expressed as

$\displaystyle r_{D_{i}}=\mbox{sgn}({r}_{M_{i}})\{-2[{r}_{M_{i}}+\delta_{i}\log% (\delta_{i}-{r}_{M_{i}})]\}^{1/2}.$

where $r_{M_{i}}$ is given by Eq. (37).

6.1 Simulations

One thousand samples are generated based on each scenario of $n,\beta_{10},\beta_{11},\beta_{12},\sigma,a,b$ and censoring rates from the previous simulation study. After fitting the regression Eq. (33), we obtain the residuals $r_{M_{i}}$ ’s and $r_{D_{i}}$ ’s. Figures 3 and 4 provide the normal probability plots for $n=500$ . They show that the empirical distribution of the $r_{M_{i}}$ ’s is asymmetric around zero and presents accentuated kurtosis. The residuals $r_{D_{i}}$ ’s have an empirical distribution in good agreement with the standard normal distribution for all censoring percentages. Similar behaviors were obtained with smaller samples, we omitted the plots for simplicity.

Figure 3.

Normal probability plots for $r_{M_{i}}$ ’s for $n=500$ and censoring rates: (a) 0%, (b) 10% and (c) 30%.

7. Applications

We provide two applications to real data with right censored to demonstrate the usefulness of the EOLLW and LEOLLW distributions.

7.1 Application 1: AIDS data

Aids is a pathology that mobilizes the sufferers because of the implications for their interpersonal relationships and reproduction. Therapeutic advances have enabled seropositive women to bear children safely. In this respect, the pediatric immunology outpatient service and social service of the Hospital das Clínicas have a special program for care of newborns of seropositive mothers, to provide orientation and support for antiretroviral therapy to allow these women and their babies to live as normally as possible. We analyze a data set on the time to serum reversal of 143 children exposed to HIV by vertical transmission, born at Hospital das Clínicas (associated with the Ribeirão Preto School of Medicine, in Brazil) from 1995 to 2001, where the mothers were not treated (Silva, 2004). Vertical HIV transmission can occur during gestation in around 35% of cases, during labor and birth itself in some 65% of cases, or during breast feeding, varying from 7% to 22% of cases. Serum reversal or serological reversal can occur in children of HIV-contaminated mothers. It is the process by which HIV antibodies disappear from the blood in an individual who tested positive for HIV infection. As the months pass, the maternal antibodies are eliminated and the child ceases to be HIV positive. The exposed newborns were monitored until definition of their serological condition, after administration of Zidovudin (AZT) in the first 24 hours and for the following 6 weeks.

Table 2 displays the MLEs (and the corresponding standard errors in parentheses) of the model parameters and the values for some models of the following statistics: AIC (Akaike Information Criterion), BIC (Bayesian Information Criterion) and CAIC (Consistent Akaike Information Criterion). The computations were done using the subroutine NLMixed in SAS. These results indicate that the EOLLW model has the lowest AIC, BIC and CAIC values among those values of the fitted models, and therefore it could be chosen as the best model.

Table 2
MLEs of the model parameters for the the AIDS data, the corresponding SE (given in parentheses) and the measures AIC, BIC and CAIC

Model	a	b	$\lambda$	$\alpha$	AIC	CAIC	BIC
EOLLW	7.00 (6.64)	0.36 (0.09)	1081.63 (574.36)	0.65 (0.58)	1623.9	1624.2	1635.8
OLLW	1.18 (0.33)	1	548.06 (30.12)	2.03 (0.51)	1632.1	1632.3	1641.0
ExpW	1	0.69 (0.21)	606.94 (58.75)	2.95 (0.58)	1631.0	1631.2	1639.9
Weibull	1	1	537.50 (21.40)	2.36 (0.17)	1630.5	1630.6	1636.5

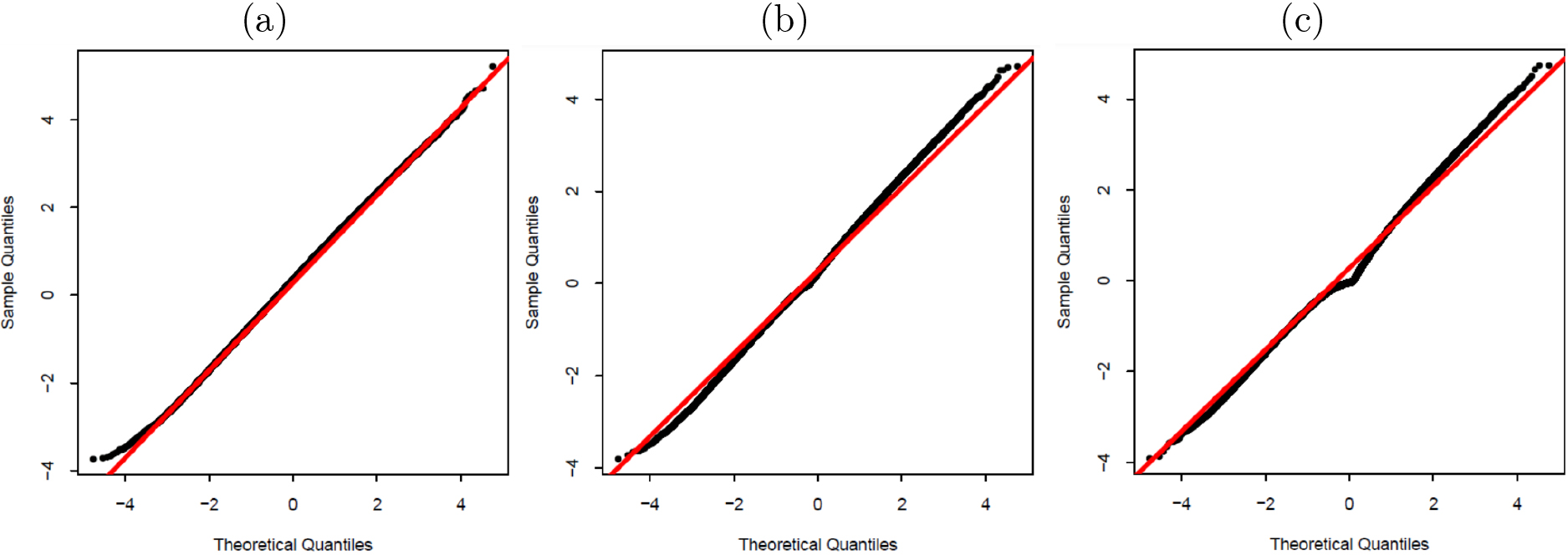

Figure 4.

Normal probability plots for $r_{D_{i}}$ ’s for $n=500$ and censoring rates: (a) 0%, (b) 10% and (c) 30%.

A comparison of the proposed EOLLW model with some of its sub-models via likelihood ration (LR) statistics indicated $p$ -values $<0.01$ for both sub-models, indicating that the addition of the extra parameters was significant.

The empirical survival function and the estimated survival functions displayed in Fig. 5 support the previous findings.

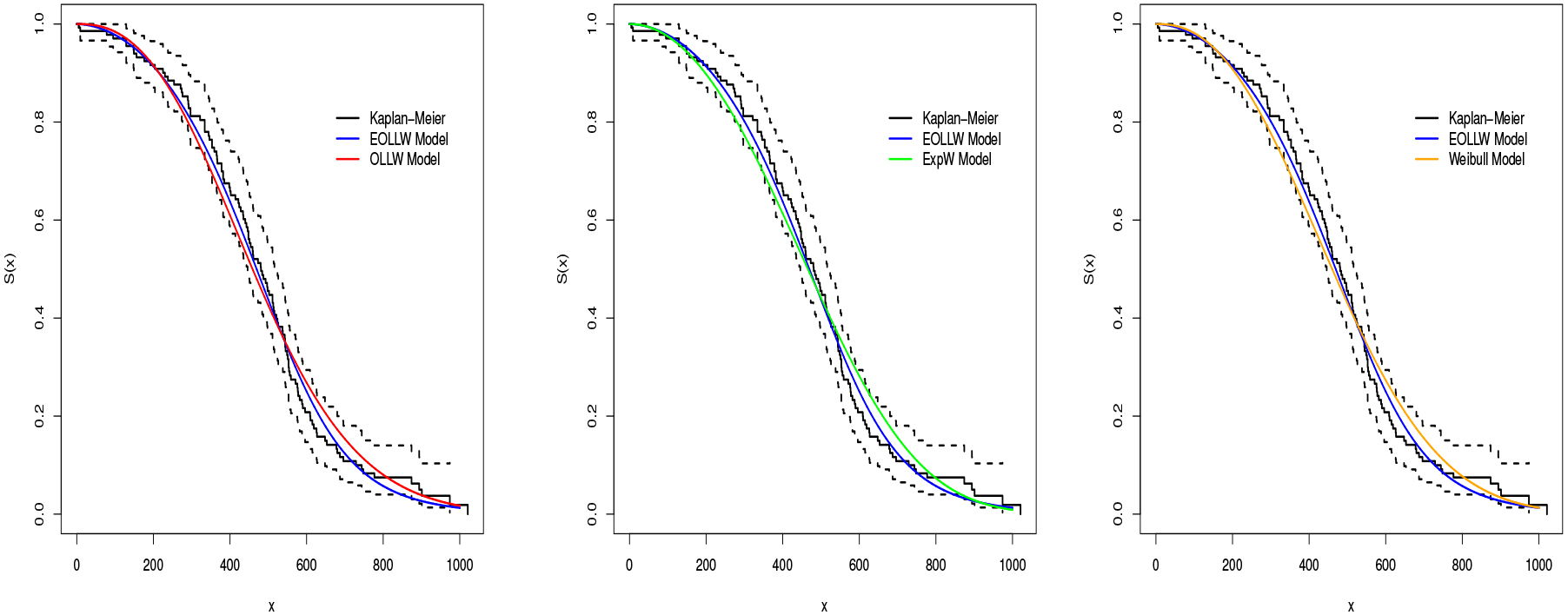

Figure 5.

Kaplan-Meier curves and estimated EOLLW survival functions for AIDS data: (a) EOLLW vs OLLW. (b) EOLLW vs ExpW. (c) EOLLW vs Weibull.

In Fig. 6 we present the graph of the hrf estimated by the EOLLW model. We can observe that the hrf has a unimodal form.

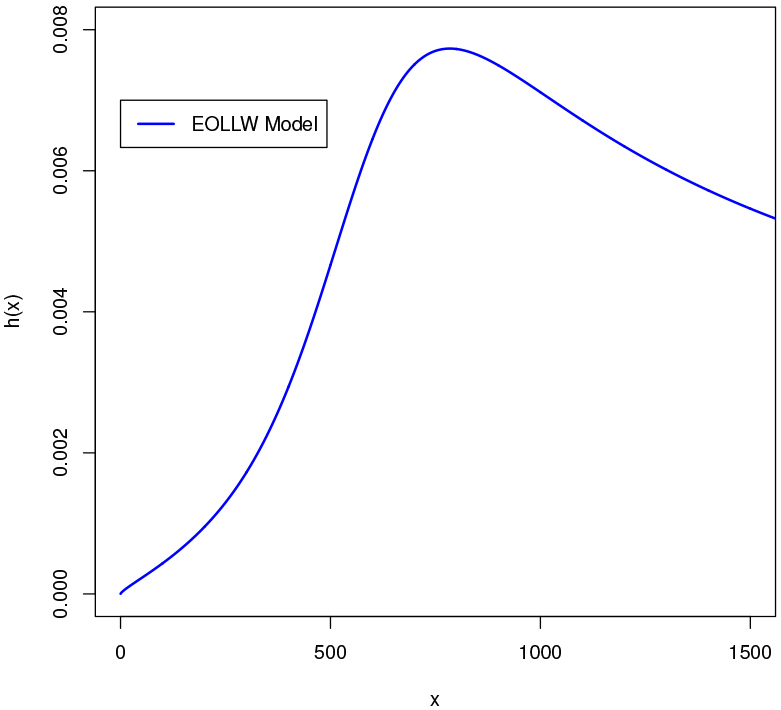

Figure 6.

Estimated hrf for the AIDS data.

7.2 Application 2: Japanese-Brazilian emigration data

We compare the fits of the LW, LEW, LOLLW and LEOLLW models by calculating the MLEs, their standard errors (SEs) and the values of the Akaike Information Criterion (AIC), Consistent Akaike, Information Criterion (CAIC), and Bayesian Information Criterion (BIC) using the gamlss package in R software (R Core Team, 2022).

Based on technological development and economic growth in the mid-1980s, Japan began to attract many immigrants from Brazil with Japanese ancestry. This phenomenon intensified after June 1990, and at the end of the 1990s these Brazilians formed the third largest community of foreigners living in Japan, with approximately 312,979 people in 2010, behind only Koreans and Chinese (Kawamura, 1999). However, afterward various global crises severely affected Japan, with negative repercussions on the insertion of immigrants in the labor market, leading to the need for professional retraining as a condition for remaining in Japan, unlike the initial situation where high qualification was not required. In response to a request from the Japanese government to the Brazilian government in 2008, Federal University of Mato Grosso (UFMT), by means of the Brazilian Open University program (UAB), together with Tokai University, locted in the city of Hiratsu, Japan, began offering a teacher training course in the distance learning modality. The course, which lasts 4 years, began in 2009, with the aim of qualifying 300 Brazilian teachers working in Japan to work in Brazilian and Japanese schools. Thus, this study seeks to identify the factors that influence the time spent in Japan of the students of the teacher training course offered by UFMT/Tokai, because it is known that the length of stay can be affected by covariables, which are extremely important to the model used in this analysis. The data were obtained by an electronic survey (Babbie, 1999) with the objective to get the characteristics, actions and/or opinions of the group of students using the internet as a learning tool. The survey was conducted in the first school semester of 2010 by means of a reserved site with access only by students, for which 246 completed questionnaires were received. Of these, only 150 were used for analysis because of responses by students of other nationalities. We consider the time (in years) spent in Japan as a response variable counted from the arrival date until July 2012, with censoring of students who returned to Brazil at least once. The variables under study are:

•
$y_{i}$ : time spent in Japan (in years);
•
$\delta_{i}$ : the censoring indicator (0 $=$ censored, 1 $=$ failure);
•
$v_{i1}:$ sex (0 $=$ female, 1 $=$ male);
•
$v_{i2}:$ age (in years);
•
$v_{i3}:$ reason for migration, (0 $=$ accompany family, 1 $=$ better living conditions, 2 $=$ study, 3 $=$ new experiences/undeclared), defined by three dummy variables.

We fit the regression

$\displaystyle y_{i}=\mu_{i}+\sigma_{i}z_{i},i=1,\ldots,n,$

where the response variable follows the LEOLLW distribution in Eq. (23), and the systematic components are (for $i=1,\ldots,150$ )

$\displaystyle\mu_{i}=\beta_{10}+\beta_{11}v_{i1}+\beta_{12}v_{i2}+\beta_{13}v_% {i3}+\beta_{14}v_{i4}+\beta_{15}v_{i5}$

and

$\displaystyle\sigma_{i}=\exp(\beta_{20}+\beta_{21}v_{i1}+\beta_{22}v_{i2}+% \beta_{23}v_{i3}+\beta_{24}v_{i4}+\beta_{25}v_{i5}).$

The initial values for ${\mbox{\boldmath$\beta$}}_{1}^{\top}$ and ${\mbox{\boldmath$\beta$}}_{2}^{\top}$ were obtained from the fitted LW regression.

The values of AIC, BIC and CAIC are given respectively by: LEOLLW: 172.22, 214.37, 168.26; LOLLW: 293.00, 332.14, 297.06, LExpW: 186.95, 226.08, 191.00 and LW: 216.32, 252.45, 228.39. These values indicate that the LEOLLW regression model can be chosen as the best model. A comparison of the proposed LEOLLW regression model with some of its sub-models via likelihood ration statistics indicated $p$ -values $<0.001$ for both sub-models, indicating that the LEOLLW regression gives a better fit to these data than the other three sub-models.

Table 3 gives the MLEs (and their SEs in parentheses) of the parameters, which reveal that the covariates sex, age, and reasons for migration (study and better living conditions) are significant for the mean parameter $\mu$ at the 5%. The three reasons for migration (study, better living conditions and new experiences) contribute to the dispersion of data.

Table 3
Results from the LEOLLW regression fitted to Japanese-Brazilian emigration data

MLEs SEs $p$ -values

$\beta_{10}$ 3.74 0.11 $<$ 0.01

$\beta_{11}$ $-$ 0.11 0.05 0.02

$\beta_{12}$ $-$ 0.00 0.00 $<$ 0.01

$\beta_{13}$ $-$ 0.13 0.05 0.01

$\beta_{14}$ $-$ 0.18 0.06 $<$ 0.01

$\beta_{15}$ $-$ 0.09 0.06 0.16

$\beta_{20}$ 2.61 0.29 $<$ 0.01

$\beta_{21}$ $-$ 0.05 0.11 0.69

$\beta_{22}$ $-$ 0.07 0.00 $<$ 0.01

$\beta_{23}$ $-$ 0.40 0.10 $<$ 0.01

$\beta_{24}$ $-$ 0.43 0.14 $<$ 0.01

$\beta_{25}$ $-$ 0.33 0.16 0.04

$\text{log}(a)$ 3.09 0.07

$\text{log}(b)$ $-$ 2.97 0.08

From the fitted LEOLLW regression to Japan’s data, Fig. 7a gives the plot of the modified deviance residuals Eq. (7) versus the observation index, whereas Fig. 7b gives the normal probability plot with generated envelope (Atkinson, 1987). Both figures support the LEOLLW regression for modelling these data.

Figure 7.
(a) Modified deviance residuals versus observation index. (b) Normal probability plot with envelope for the modified deviance residuals.

Interpretations for $\mu_{i}$ :

•
There is a significant difference between men and women in relation to the length of stay in Japan.
•
The length of stay in Japan tends to decrease when the age increases.
•
A significant difference exists between those who accompanied their family and those seeking better living conditions in relation to the length of stay in Japan.
•
A significant difference exists between those who accompanied their family and those who came for study in relation to the length of stay.

Interpretations for $\sigma_{i}$ :

•
The variability of the length of stay in Japan tends to decline significantly when the age increases.
•
There is a significant difference between those who accompanied their family and those seeking better living conditions in relation to the variability of the length of stay in Japan.
•
A significant difference exists between those who accompanied their family and those who came for study in relation to the variability of the length of stay in Japan.
•
A significant difference exists between those who accompanied their family and those seeking new experiences in relation to the variability of the length of stay.

8. Conclusions

	MLEs	SEs	$p$ -values
$\beta_{10}$	3.74	0.11	$<$ 0.01
$\beta_{11}$	$-$ 0.11	0.05	0.02
$\beta_{12}$	$-$ 0.00	0.00	$<$ 0.01
$\beta_{13}$	$-$ 0.13	0.05	0.01
$\beta_{14}$	$-$ 0.18	0.06	$<$ 0.01
$\beta_{15}$	$-$ 0.09	0.06	0.16
$\beta_{20}$	2.61	0.29	$<$ 0.01
$\beta_{21}$	$-$ 0.05	0.11	0.69
$\beta_{22}$	$-$ 0.07	0.00	$<$ 0.01
$\beta_{23}$	$-$ 0.40	0.10	$<$ 0.01
$\beta_{24}$	$-$ 0.43	0.14	$<$ 0.01
$\beta_{25}$	$-$ 0.33	0.16	0.04
$\text{log}(a)$	3.09	0.07
$\text{log}(b)$	$-$ 2.97	0.08

We obtained new mathematical properties of the exponentiated odd log-logistic (EOLL-G) family of distributions. Two new distributions, called the exponentiated odd log-logistic Weibull (EOLLW) and log exponentiated odd log-logistic Weibull (LEOLLW), were proposed and their structural properties were studied. We defined a new location-scale regression model based on the LEOLLW distribution for censored data, and calculated the maximum likelihood estimates. Some simulations showed that the empirical distribution of the residuals can be close to the standard normal distribution. We showed that the proposed regression model fitted well to a Japanese-Brazilian emigration data set.

Footnotes

Conflict of interest

On behalf of all authors, the corresponding author states that there is no conflict of interest.

References

Atkinson

A.C.

(1987). Plots, transformations and regression: an introduction to graphical methods of diagnostics regression analysis. 2nd ed. Oxford: Clarendon Press, 282p.

Alizadeh

Tahmasebi

, & Haghbin

(2020). The exponentiated odd log-logistic family of distributions: Properties and applications. Journal of Statistical Modelling: Theory and Applications, 1, 29-52.

Babbie

(1991). Métodos de pesquisas de Survey/Earl Babbie. Coleção Aprender, traduçõo de: Survey research methods. Belo Horizonte, Brazil: Editora UFMG. 519p.

Burr

I.W.

(1942). Cumulative frequency functions. Annals of Mathematical Statistics, 13, 215-232.

Collett

(2003). Modelling survival data in medical research. London: Chapman & Hall. 389p.

Cook

R.D.

, & Weisberg

(1982). Residuals and influence in regression. New York: Chapman & Hall. 230p.

Cox

D.R.

, & Snell

E.J.

(1968). A general definition of residuals. Journal of the Royal Statistical Society: Series B, 30, 248-275.

Dagum

(1975). A model of income distribution and the conditions of existence of moments of finite order. Bulletin of the International Statistical Institute, 46, 199-205.

Fleming

T.T.

, & Harrington

D.P.

(1991). Counting Process and Survival Analysis. Wiley, New York.

10.

Glaser

R.E.

(1980). Bathtub and related failure rate characterizations. Journal of the American Statistical Association, 75, 667-672.

11.

Gleaton

J.U.

, & Lynch

J.D.

(2006). Properties of generalized log-logistic families of lifetime distributions. Journal of Probability and Statistical Science, 4, 51-64.

12.

Griffiths

(1947). Introduction to the Theory of Equations. J. Wiley, New York.

13.

Hashimoto

E.M.

Ortega

E.M.M.

Cordeiro

G.M.

Cancho

V.G.

, & Silva

(2021). The re-parameterized inverse Gaussian regression to model length of stay of COVID-19 patients in the public health care system of Piracicaba, Brazil. Journal of Applied Statistics. doi: 10.1080/02664763.2022.2036707.

14.

Kawamura

L.K.

(1999). Para onde vão os brasileiros? Imigrantes brasileiros no Japão. Campinas, Brazil: Editora da Unicamp, 236p.

15.

Mudholkar

G.S.

Srivastava

D.K.

, & Kollia

(1996) A generalization of the Weibull distribution with application to the analysis of survival data. Journal of the American Statistical Association, 91, 1575-1583.

16.

Ortega

E.M.M.

Paula

G.A.

, & Bolfarine

(2008). Deviance residuals in generalized log-gamma regression models with censored observations. Journal of Statistical Computation and Simulation, 78, 47-764.

17.

R Development Core Team. (2022). R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing, Vienna, Austria.

18.

Silva

A.N.F.

(2004). Estudo evolutivo das crianças expostas ao HIV e notificadas pelo núcleo de vigilância epidemiológica do HCFMRP-USP. M.Sc. Thesis. University of São Paulo, Brazil.

19.

Silva

G.O.

Ortega

E.M.M.

, & Paula

G.A.

(2011). Residuals for log-Burr XII regression models in survival analysis. Journal of Applied Statistics, 38, 1435-1445.

20.

Therneau

T.M.

Grambsch

P.M.

, & Fleming

T.R.

(1990). Martingale-based residuals for survival models. Biometrika, 77, 147-160.

21.

Xue

(2012). Loop Tiling for Parallelism. The Springer International Series in Engineering and Computer Science. Springer: US. 256p.

New results and regression model for the exponentiated odd log-logistic family with applications

Abstract

Keywords

1. Introduction

2. The EOLL-G density

.

.

Proof..

.

Proof..

.

Proof..

.

Proof..

.

.

.

Proof..

.

.

Proof..

.

.

Proof..

.

.

Proof..

Martingale residuals

Modified deviance residuals

7.1 Application 1: AIDS data

Table 2 MLEs of the model parameters for the the AIDS data, the corresponding SE (given in parentheses) and the measures AIC, BIC and CAIC

Footnotes

Conflict of interest

References

Table 2
MLEs of the model parameters for the the AIDS data, the corresponding SE (given in parentheses) and the measures AIC, BIC and CAIC
