On two new modified tawn copulas

Abstract

At its core, copula theory focuses on constructing a copula function, which characterizes the structure of dependence between random variables. In particular, the creation of extreme value copulas is crucial because they allow accurate modeling of extreme dependence that traditional copulas can ignore. In this article, we propose theoretical developments on this subject by proposing two new extreme value copulas. They aim to extend the functionalities of the so-called Tawn copula. This is of interest because the Tawn copula is known to be a powerful tool in modeling joint distributions, particularly in capturing asymmetric and upper tail dependences, making it valuable for analyzing extreme events and tail risk. The proposed copulas are designed to go beyond these attractive features. On the mathematical side, they are derived from new Pickands dependence functions; one modifies the Pickands dependence function of the Tawn copula by using a polynomial-exponential function, and the other does the same but by introducing a power function. The proofs are based on diverse differentiation, arrangement, and inequality techniques. Overall, the created copulas are attractive because (i) they possess modulable levels of asymmetry, (ii) they depend on several tuning parameters, making them very flexible in terms of upper tail dependence in particular, and (iii) they benefit from interesting correlation ranges of values. Several figures and value tables support the theoretical findings.

Keywords

Extreme value copulas asymmetry tail dependence correlation measures

1. Introduction

The concept of copulas in probability originated in the pioneering work of Sklar in the 1950s. Indeed, Sklar proposed a way to separate the joint distribution of random variables into marginal distributions and a function called a copula (see Sklar, 1959; Sklar, 1973). In a nutshell, copulas provide a flexible way to capture various types of dependence structures, which makes them widely used in finance, risk analysis, and other fields. They can be classified into three large families: the Archimedean, elliptical, and extreme value (EV) families. See Nelsen (2006), Joe (2015) and Durante and Sempi (2016). A brief overview of these families is provided below to set the framework of this article.

First of all, the Archimedean family is based on the theory of the so-called Archimedean generator functions. Such a generator function determines the shape and strength of the dependence structure in each Archimedean copula. The most commonly used Archimedean copulas include the Clayton, Gumbel, and Frank copulas. The Clayton copula is suitable for modeling positive dependence, while the Gumbel copula captures both positive and negative dependence. The Frank copula allows for both positive and negative dependence, with a different shape compared to the Gumbel copula. On this topic, the basis can be found in Nelsen (2006) and Durante and Sempi (2016). Recent developments are given in Susam (2020), Kularatne et al. (2021) and Chesneau (2023), among others. With a completely different construction scheme, the elliptical family is derived from elliptically symmetric distributions. They are mainly characterized by a correlation matrix that determines the strength and direction of the dependence between the random variables. The Gaussian copula is the most well-known and widely used elliptical copula. It assumes a multivariate normal distribution and allows for modeling both positive and negative dependence. We may refer to Nelsen (2006) and Durante and Sempi (2016). For some contemporary works, see Frahm et al. (2003), Touboul (2011) and Huang and Wang (2018).

On the other hand, the EV family is specially designed to model the dependence structure of extreme events, with a focus on the tails of the distribution. It is based on the EV theory. The notion of Pickands dependence function (PickDF) plays a central role in the EV family (see Pickands, 1981). The Gumbel copula is an important EV copula that is derived from the Gumbel distribution. It is known for its ability to model positive tail dependence and has been widely used in hydrology, particularly for analyzing the joint behavior of extreme floods and droughts. It has also found applications in finance, such as modeling extreme joint losses in risk management. We may refer the reader to Joe (2015), and the pioneer references Tawn (1988), Adam and Tawn (2011) and Adam and Tawn (2012). The Tawn copula is based on an asymmetric transformation of the Gumbel copula. This transformation makes it able to capture asymmetric and upper tail dependences while keeping the attractive properties of the Gumbel copula. For more information on the Tawn copula, see Tawn (1988), Adam and Tawn (2011) and Adam and Tawn (2012). Clearly, creating new EV copulas promotes innovation and advancements in statistical modeling. As our understanding of extreme dependence evolves, new copulas can be developed to better capture the complexities of extreme events. These advancements contribute to the elaboration of more accurate and reliable models, enhancing our ability to make informed decisions in complex scenarios. Important references on the EV family include Pickands (1981), Deheuvels (1991), Genest et al. (2011), Zhang et al. (2008), Stephenson (2003), Adam and Tawn (2011), Adam and Tawn (2012) and Susam (2022).

In this article, we provide a contribution to the EV family. More precisely, we create two new and different EV copulas that modify or extend the functionalities of the Tawn copula, and the Gumbel copula as well. To be more precise, some mathematical details of the Gumbel and Tawn copulas are necessary. In a direct manner, the Gumbel copula can be expressed as

$\displaystyle C(u,v)=\exp\left(-\left\{[-\log(u)]^{a}+[-\log(v)]^{a}\right\}^{% 1/a}\right),(u,v)\in\Upsilon,$

where $\Upsilon=[0,1]^{2}$ and $a\geqslant 1$ . With the EV copula methodology in mind, it is expressed as

$\displaystyle C(u,v)=\exp\left\{[\log(u)+\log(v)]A\left(\frac{\log(v)}{\log(u)% +\log(v)}\right)\right\},(u,v)\in\Upsilon,$ (1)

where

$\displaystyle A(w)=\left[w^{a}+(1-w)^{a}\right]^{1/a},w\in[0,1],$ (2)

with $a\geqslant 1$ . The function in Eq. (2) is a special PickDF, a notion to be defined later; any other PickDF gives another EV copula based on the copula form in Eq. (1). It is worth noting that the Gumbel copula is symmetric since $C(u,v)=C(u,v)$ for any $(u,v)\in\Upsilon$ , which is a consequence of the fact that $A(w)=A(1-w)$ for any $w\in[0,1]$ . With a modification of the Gumbel PickDF, the Tawn copula is defined as in Eq. (1) by considering the following PickDF:

$\displaystyle A(w)=1-c+(c-b)w+\left[b^{a}w^{a}+c^{a}(1-w)^{a}\right]^{1/a},w% \in[0,1],$ (3)

with $a\geqslant 1$ , $b\in[0,1]$ and $c\in[0,1]$ . Clearly, the Gumbel copula is covered by taking $b=c=1$ . The Tawn copula is designed to be an asymmetric extension of the Gumbel copula since it may exist $w_{*}\in[0,1]$ satisfying $A(w_{*})\neq A(1-w_{*})$ . It is particularly useful when dealing with random variables that exhibit different behavior in the upper tail. It allows for modeling the dependence structure more accurately in such cases. We may again refer to Tawn (1988) for further detail. Based on this, several modified Tawn PickDFs involving a change point in their domain were established in Adam and Tawn (2011), and applied in a real-data analysis scenario in Adam and Tawn (2012).

In this article, we develop two new PickDFs from which we derive two original EV copulas based on Eq. (1). They have mainly theoretical motivations, which can be described as follows:

•

The first proposed PickDF modifies the functional structure of Eq. (3) by fixing the power parameter as $a=2$ and replacing $(1-w)^{a}$ by a one-parameter polynomial-exponential term. Hence, like in Eq. (3), three tuning parameters are involved, but with completely different roles. To the best of our knowledge, the proposed PickDF is the first one in the literature that modulates an exponential function. In this setting, the main theoretical result determines the admissible conditions for the parameters that make this function a valid PickDF. Then we study the associated EV copula, demonstrating that it is ideal to capture an asymmetric weak or moderate dependence structure with varying upper tail dependence. The mathematical details of this claim are given.

•

The second proposed PickDF extends the PickDF in Eq. (3) by introducing a two-parameter power function term of the form $dw^{a/2}(1-w)^{a/2}$ , where $d$ denotes a tuning (or activation) constant. Hence, four complementary tuning parameters are involved, which is rare for a PickDF. In this setting, the main theoretical result determines the admissible conditions for the parameters that make this function a valid PickDF. The corresponding EV copula is then examined, and it is shown to be suitable for capturing a range of asymmetric dependence structures, from weak to strong (the Spearman $\rho$ fluctuates from $0$ to approximately the maximum limit of $1$ ), with varied upper tail dependence. Graphics and value tables serve as visual illustrations of these features.

Beyond the theoretical contributions of the article, we thus create original multiparameter PickDFs and copulas to offer alternative options to the practitioner. For simplicity reasons, their complexity can be reduced by setting some of the parameters to chosen constants (in order to not overparameterize the corresponding copula models). But in any case, the given mathematical guarantees remain at the heart of the appropriate choices. Overall, our results lay the theoretical groundwork for new modeling of extreme dependence and original mathematical insights for a better understanding of certain extreme value phenomena.

The rest of this article is planned as follows: Section 2 is devoted to the first EV copula, along with its main properties. Section 3 is the analogue to Section 2 but with the other EV copula. A conclusion is formulated in Section 4.

2. First modified tawn copula

Before describing the first proposed asymmetric EV copula, a retrospective on the notion of Pickands dependence function is necessary.

2.1 Pickands dependence function

As sketched in the introductory section, the PickDFs play a crucial role in characterizing the tail dependence structure of the EV copulas. Introduced by James Pickands in 1981, these functions provide a powerful tool for quantifying the extremal dependence between the considered random variables. By analyzing the PickDF, researchers and practitioners can better understand the extremal behaviors and risks associated with multivariate data.

From a mathematical viewpoint, a PickDF is an univariate function that satisfies the precise conditions described in the definition below (see Pickands, 1981).

.

A PickDF $A(w)$ is an univariate function defined on $[0,1]$ that satisfies the following conditions:

•
$A(0)=A(1)=1$ ,
•
$A(w)\geqslant\max(w,1-w)$ for any $w\in[0,1]$ ,
•
$A(w)$ is convex.

In other words, a PickDF is a function that has a more or less skewed U or V shape that relies the points $(0,1)$ and $(1,1)$ into the reversed triangle of the unit square $\Upsilon$ (so it is always lower than $1$ ). In fact, the precise shape and properties of a PickDF are closely related to the tail behavior of the associate copula given in Eq. (1). Different forms of the function can arise, indicating various types of tail dependence patterns. In fact, the PickDFs have been widely used in fields such as finance, insurance, environmental studies, and reliability analysis. They allow for the modeling and estimation of extreme events and tail risks, which are critical for accurate risk assessment and decision-making. Understanding the tail dependence structure through the PickDF helps in developing appropriate copula models to capture and manage extreme dependences effectively. See Joe (2015), Tawn (1988), Adam 133 and Tawn (2011) and Adam and Tawn (2012).

Examples of PickDF include the Gumbel PickDF given in Eq. (2), the Tawn PickDF indicated in Eq. (3), the Marshall-Olkin PickDF defined by

$\displaystyle A(w)=\max[1-b(1-w),1-cw],w\in[0,1],$

with $b\in[0,1]$ and $c\in[0,1]$ (see Marshall & Olkin, 1967), the Galambos PickDF defined by

$\displaystyle A(w)=1-[w^{-a}+(1-w)^{-a}]^{-1/a},w\in[0,1],$

with $a>0$ (see Galambos (1975)), the Joe PickDF specified by

$\displaystyle A(w)=1-[b^{-a}w^{-a}+c^{-a}(1-w)^{-a}]^{-1/a},w\in[0,1],$

with $a>0$ , $b\in[0,1]$ and $c\in[0,1]$ (see Joe, 2015), and the BB5 PickDF defined by

$\displaystyle A(w)=\{w^{a}+(1-w)^{a}-[w^{-ab}+(1-w)^{-ab}]^{-1/b}\}^{1/a},w\in% [0,1],$

with $a\geqslant 1$ and $b>0$ (see Joe, 2015).

By developing new PickDFs, we expand the repertoire of available tools for modeling extreme dependence structures. Different functions offer distinct characteristics and tail behaviors, allowing for a more accurate representation of complex dependence structures. In this article, we continue on this path.
2.2 New PickDF

The following proposition describes a new PickDF derived from the Tawn PickDF with an original functional definition involving the polynomial-exponential function.

.

Let $(a,b,c)\in\mathbb{R}^{3}$ . Let us consider the following univariate function:

$\displaystyle A(w)=1-c+(c-b)w+[b^{2}w^{2}+c^{2}(1-w)\exp(-aw)]^{1/2},w\in[0,1].$ (4)

Then $A(w)$ is a PickDF for $a\in[0,1]$ , $b\in[0,1]$ and $c\in[0,1]$ satisfying $2b\geqslant c$ .

Proof. The proof is based on the conditions described in Definition 1. Let us prove them in turns.

•

We have

$\displaystyle A(0)=1-c+(c-b)\times 0+[b^{2}\times 0^{2}+c^{2}(1-0)\exp(-a% \times 0)]^{1/2}=1-c+(0+c^{2})^{1/2}=1$

and

$\displaystyle A(1)=1-c+(c-b)\times 1+[b^{2}\times 1^{2}+c^{2}(1-1)\exp(-a% \times 1)]^{1/2}=1-c+c-b+(b^{2}+0)^{1/2}=1-b+b=1.$

The condition of the first item in Definition 1 is demonstrated.

•

Let us now show that $A(w)\geqslant\max(w,1-w)$ for any $w\in[0,1]$ . For any $w\in[0,1]$ , since $c\in[0,1]$ , we have

$\displaystyle A(w)=1-c+(c-b)w+[b^{2}w^{2}+c^{2}(1-w)\exp(-aw)]^{1/2}\geqslant 1% -c+(c-b)w+(b^{2}w^{2})^{1/2}=1-c(1-w)\geqslant 1-(1-w)=w.$

On the other hand, for any $w\in[0,1]$ , by using the exponential inequality: $\exp(x)\geqslant 1+x$ for any $x\in\mathbb{R}$ and $a\in[0,1]$ , we have

$\displaystyle(1-w)\exp(-aw)\geqslant(1-w)(1-w)^{a}=(1-w)^{a+1}\geqslant(1-w)^{% 2}.$

Therefore, since $b\in[0,1]$ , we have

$\displaystyle A(w)=1-c+(c-b)w+[b^{2}w^{2}+c^{2}(1-w)\exp(-aw)]^{1/2}\geqslant 1% -c+(c-b)w+[c^{2}(1-w)\exp(-aw)]^{1/2}\geqslant 1-c+(c-b)w+[c^{2}(1-w)^{2}]^{1/% 2}=1-c+(c-b)w+c(1-w)=1-bw\geqslant 1-w.$

The condition of the second item in Definition 1 is proved.

•

After tedious differentiations and diverse arrangements, we obtain

$\displaystyle A^{\prime\prime}(w)=\frac{a^{2}c^{2}(1-w)\exp(-aw)+2ac^{2}\exp(-% aw)+2b^{2}}{2[b^{2}w^{2}+c^{2}(1-w)\exp(-aw)]^{1/2}}$ $\displaystyle\quad-\frac{[2b^{2}w-c^{2}\exp(-aw)-ac^{2}(1-w)\exp(-aw)]^{2}}{4[% b^{2}w^{2}+c^{2}(1-w)\exp(-aw)]^{3/2}}$ $\displaystyle\quad=\exp\left(-\frac{aw}{2}\right)\frac{c^{4}a(1-w)[2+a(1-w)]+2% b^{2}c^{2}\exp(aw)aw[2+aw(1-w)]+P(w;a,b,c)}{4[b^{2}w^{2}\exp(aw)+c^{2}(1-w)]^{% 3/2}},$

where

$\displaystyle P(w;a,b,c)=4b^{2}c^{2}\exp(aw)-c^{4}.$

Since $w\in[0,1]$ , $a\in[0,1]$ , $b\in[0,1]$ and $c\in[0,1]$ , it is clear that $\exp(-aw/2)\geqslant 0$ , $c^{4}a(1-w)[2+a(1-w)]\geqslant 0$ , $2b^{2}c^{2}\exp(aw)aw[2+aw(1-w)]\geqslant 0$ and $4[b^{2}w^{2}\exp(aw)+c^{2}(1-w)]^{3/2}\geqslant 0$ . Furthermore, since $\exp(aw)\geqslant 1$ because $aw\geqslant 0$ and $2b\geqslant c$ , we have

$\displaystyle P(w;a,b,c)\geqslant 4b^{2}c^{2}-c^{4}\geqslant c^{4}-c^{4}=0.$

As a result, we have $A^{\prime\prime}(w)\geqslant 0$ , implying that $A(w)$ is convex, proving the last condition in Definition 1.

We conclude that $A(w)$ is a valid PickDF, ending the proof of Proposition 1. $\square$

In the rest of this section, it is supposed that the conditions in Proposition 1 hold.

For the purposes of this article, the PickDF in Eq. (4) is called the modified Tawn (MT) PickDF. To the best of our knowledge, the MT PickDF is one of the rare PickDFs involving a (one-parameter) polynomial-exponential function, perhaps the first one. This can be inspirative for the future creation of new PickDFs. In order to understand its shape possibilities, Fig. 1 displays the MT PickDF for the following configurations:

Conf1:

$a=1$ , $b=0.5$ and $c=1$ ,

Conf2:

$a=1$ , $b=1$ and $c=1$ ,

Conf3:

$a=1$ , $b=0.5$ and $c=0.25$ ,

Conf4:

$a=0.5$ , $b=0.5$ and $c=1$ ,

Conf5:

$a=1$ , $b=1$ and $c=0.5$ ,

Conf6:

$a=0.5$ , $b=1$ and $c=1$ .

These configurations were selected after several tests in order to offer a visual sketch of a maximum of different shapes. There is, however, a bit of arbitrariness in their choices. In it, the inverted triangle shapes are those of the special Marshall-Olkin PickDF $A(w)=\max(1-w,w)$ for $w\in[0,1]$ , taken as the minimum benchmark. We also mention that all the figures and numerical computations in the article are made with the free software R (see R, 2016).

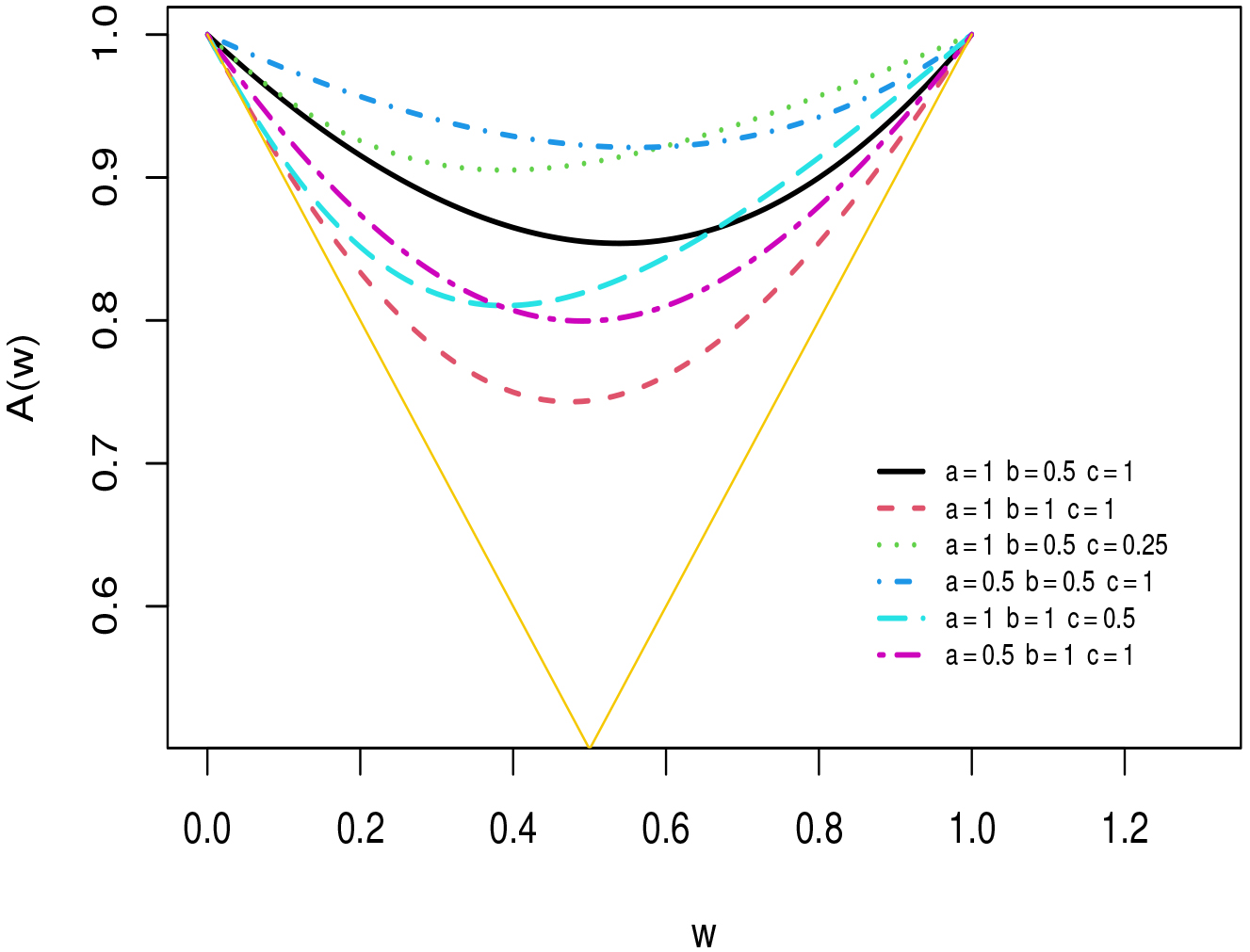

Figure 1.

Plots of the MT PickDF for selected values of the parameters $a$ , $b$ and $c$ .

This figure reveals the flexibility of the MT PickDF. In particular, various levels of asymmetry are reached, depending on the values of the parameters.

Some PickDFs of special interest derived from the MT PickDF are described below.

•

By taking $b=c=1$ , we get

$\displaystyle A(w)=[w^{2}+(1-w)\exp(-aw)]^{1/2},w\in[0,1],$ (5)

which can be viewed as an asymmetric modification of the Gumbel PickDF. In addition, by taking $a=0$ , we get $A(w)=(w^{2}+1-w)^{1/2}$ or $A(w)=[1-w(1-w)]^{1/2}$ . These expressions suggest that possible extensions of the Gumbel PickDF may be of the forms: $A(w)=[w^{a}+(1-w)^{b}]^{1/c}$ or $A(w)=[1-dw^{a}(1-w)^{b}]^{1/c}$ , under some conditions on the parameters with various kinds of interdependence. We will, however, leave this line of research for future work.

•

By taking $b=c$ , we get

$\displaystyle A(w)=1+b\left\{[w^{2}+(1-w)\exp(-aw)]^{1/2}-1\right\},w\in[0,1],$

which reduces the parameter complexity of the MT PickDF while maintaining an acceptable level of flexible asymmetric properties.

The two simple special cases above are interesting because it is well known that a linear convex combination of PickDFs is also a PickDF (see Tawn, 1988). Therefore, their functional abilities can be combined. For instance, the following function:

$\displaystyle A(w)=c[w^{a}+(1-w)^{a}]^{1/a}+(1-c)[w^{2}+(1-w)\exp(-aw)]^{1/2},% w\in[0,1],$

with $a\in[0,1]$ , $b\in[0,1]$ and $c\in[0,1]$ , is a PickDF because it is constructed as the two-component linear convex combination of the Gumbel PickDF and the PickDF described in Eq. (5). We thus combine their respective functionalities, but at the price of moderate complexity.

.

As a matter of fact, convex functions play a crucial role in mathematics, providing valuable tools for optimization and analysis. Their geometric properties ensure efficient solutions and enable the study of a wide range of mathematical problems with clear and powerful mathematical techniques. Since the MT PickDF is a convex function, it can be used in other branches of mathematics.

2.3 Associated copula

For the purposes of this study, we call the copula associated with the MT PickDF the MT copula. Based on Eqs (1) and (4), it is expressed as

$\displaystyle C(u,v)=\exp\left\{(\log(u)+\log(v))A\left(\frac{\log(v)}{\log(u)% +\log(v)}\right)\right\}=u^{1-c}v^{1-b}\times\exp\Bigg{(}-\left\{b^{2}\left[% \log(v)\right]^{2}+c^{2}\log(u)[\log(u)+\log(v)]\exp\left[-a\left(\frac{\log(v% )}{\log(u)+\log(v)}\right)\right]\right\}^{1/2}\Bigg{)},(u,v)\in\Upsilon.$

The novelty of the MT PickDF is transposed; the MT copula is a new EV in the literature. Like the Tawn copula, but with different asymmetric capacities, it is designed to be used for modeling upper tail dependence, making it particularly valuable for capturing extreme events in the upper tail of a bivariate distribution. It offers flexibility in modeling asymmetric tail dependences. In theory, this allows for more accurate risk assessment and decision-making in fields such as finance, insurance, and environmental studies. We emphasize these aspects below.

In order to provide a visual proof of its versatility in terms of asymmetric shapes, Fig. 2 displays some contour-intensity plots of the MT copula for Conf1 and Conf2.

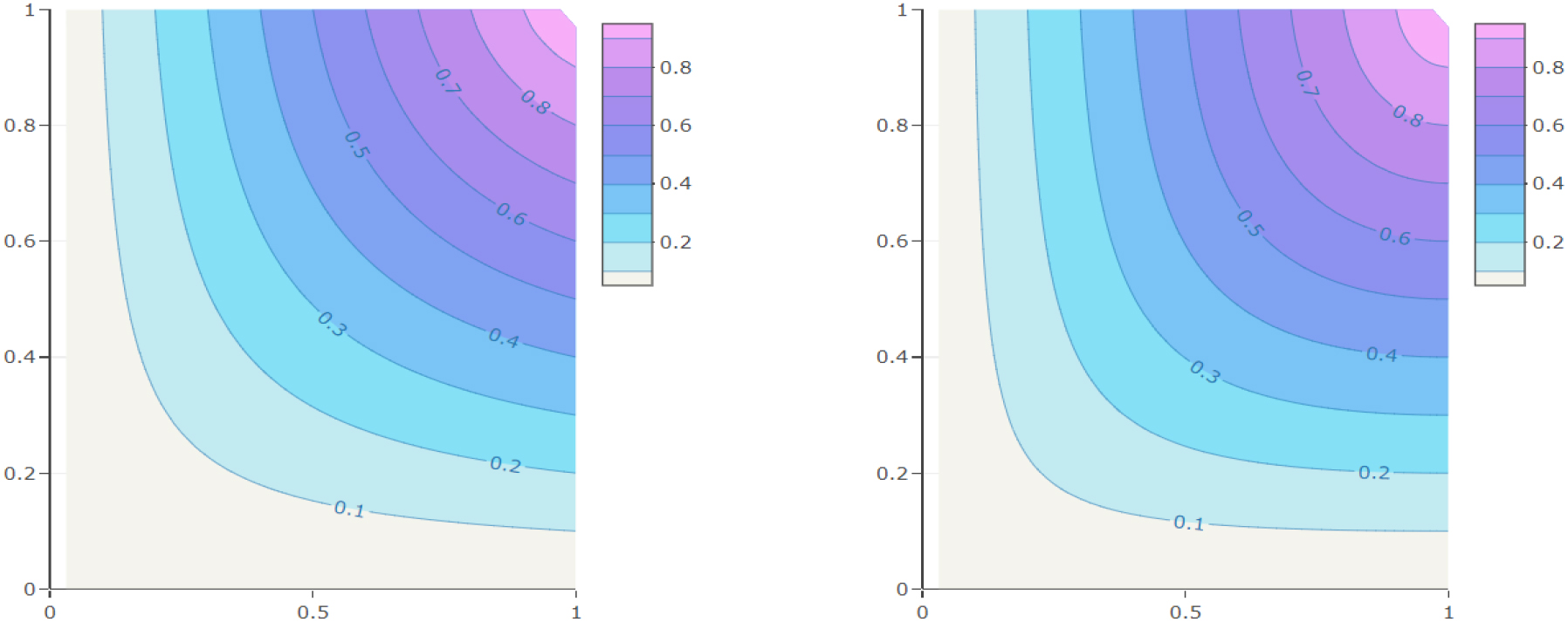

Figure 2.

Contour-intensity plots of the MT copula for Conf1 (left) and Conf2 (right).

We thus observe the mathematical validity of the MT copula, and also, its nuanced asymmetric contours when the involved parameters vary.

Some of the basic properties of the MT copula are now examined. First, it is absolutely continuous; the copula density exists and can be expressed as $D(u,v)=\partial^{2}C(u,v)/(\partial u\partial v)$ . There exists $w$ such that

$\displaystyle A(w)=1-c+(c-b)w+[b^{2}w^{2}+c^{2}(1-w)\exp(-aw)]^{1/2}\neq 1-c+(% c-b)(1-w)+\{b^{2}(1-w)^{2}+c^{2}w\exp[-a(1-w)]\}^{1/2}=A(1-w),$

implying the non-diagonal symmetry of the MT copula. The MT copula is not associative since, for example, for $a=0.5$ , $b=1$ and $c=1$ , we have

$\displaystyle C(0.2,C(0.5,0.8))=0.1394613\neq 0.1374767=C(C(0.2,0.5),0.8).$

Because of this non-associativity, the MT copula is not Archimedean. As for any EV copula, the MT copula satisfies the following list of properties (see Joe, 2015): $C(u,v)=[C(u^{\alpha},v^{\alpha})]^{1/\alpha}$ for any $(u,v)\in\Upsilon$ and $\alpha\in\mathbb{R}/\{0\}$ , satisfies the following inequalities: $uv\leqslant C(u,v)\leqslant\min(u,v)$ , is positively quadrant dependent, and has no lower tail dependence except for the special parameter case where $A(1/2)=1/2$ , i.e., $1-c-b+\left[b^{2}+2c^{2}\exp\left(-a/2\right)\right]^{1/2}=0$ , for which the lower tail dependence coefficient is equal to $1$ . Furthermore, its upper tail dependence coefficient is given as

$\displaystyle\lambda_{U}=\lim_{u\rightarrow 1}\frac{1-2u+C(u,u)}{1-u}=2\left[1% -A\left(\frac{1}{2}\right)\right]=b+c-\left[b^{2}+2c^{2}\exp\left(-\frac{a}{2}% \right)\right]^{1/2}.$

In addition, based on the EV copula theory (see Joe, 2015), some correlation measures have simplified expressions. For instance, the Blomqvist $\beta$ is given as

$\displaystyle\beta=4C\left(\frac{1}{2},\frac{1}{2}\right)-1=2^{\lambda_{U}}-1=% 2^{b+c-[b^{2}+2c^{2}\exp(-a/2)]^{1/2}}-1$

and the Spearman $\rho$ is defined as

$\displaystyle\rho=12\int_{\Upsilon}[C(u,v)-uv]dudv=12\int_{0}^{1}\frac{1}{[1+A% (w)]^{2}}dw-3=12\int_{0}^{1}\frac{1}{\left\{2-c+(c-b)w+[b^{2}w^{2}+c^{2}(1-w)% \exp(-aw)]^{1/2}\right\}^{2}}dw-3.$

The integrated term is too complex to get a simple expression of $\rho$ in function of $a$ , $b$ and $c$ . We thus use numerical work to get an idea of its range of values, among others.

Table 1 presents some numerical values of $\beta$ and $\rho$ for fixed values of $b$ and $c$ , and varying values of $a$ .

Table 1

Some values for $\beta$ and $\rho$ for fixed values of $b$ and $c$ and varying values for $a$

Values of $\beta$ $\mid$ $a\rightarrow$	0.0	0.10	0.20	0.3	0.4	0.5	0.6	0.7	0.8	0.9	1.0
$b=1$ and $c=1$	0.2	0.23	0.25	0.27	0.3	0.32	0.34	0.36	0.39	0.41	0.43
$b=0.5$ and $c=1$	0	0.02	0.05	0.07	0.09	0.11	0.14	0.16	0.18	0.2	0.22
$b=1$ and $c=0.5$	0.21	0.22	0.23	0.23	0.24	0.25	0.26	0.26	0.27	0.28	0.28
$b=0.5$ and $c=0.5$	0.1	0.11	0.12	0.13	0.14	0.15	0.16	0.17	0.18	0.19	0.19
Values of $\rho$ $\mid$ $a\rightarrow$	0.0	0.1	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9	1.0
$b=1$ and $c=1$	0.29	0.32	0.35	0.38	0.41	0.44	0.47	0.5	0.53	0.56	0.59
$b=0.5$ and $c=1$	0	0.03	0.07	0.1	0.13	0.16	0.2	0.23	0.26	0.29	0.32
$b=1$ and $c=0.5$	0.3	0.32	0.33	0.34	0.35	0.36	0.37	0.38	0.39	0.4	0.41
$b=0.5$ and $c=0.5$	0.14	0.15	0.17	0.18	0.19	0.21	0.22	0.23	0.25	0.26	0.27

Based on this table, for the considered values of $a$ , $b$ and $c$ at least, we observe that the range of values for $\beta$ is $[0,0.43]$ and that of $\rho$ is $[0,0.59]$ . These ranges remain acceptable for an EV copula and attest to the correlation versatility of the MT copula. This versatility, combined with its original definition and flexibility in shapes, makes the MT copula of potential interest for various application purposes. This applied aspect, however, needs further development that we leave for future work.

.

A similar study can be made for another well-known dependence measure: the Kendall $\tau$ , defined in our context as

$\displaystyle\tau=4\int_{\Upsilon}C(u,v)dC(u,v)-1=\int_{0}^{1}\frac{w(1-w)}{A(% w)}dA^{\prime}(w).$

See Ghoudi et al. (1988) and Joe (2015). Despite the integral being non-developable due to the complexity of the expression of $A(w)$ , a numerical solution is still possible. We, however, omit this aspect here, with the results having the same interpretation as those obtained for the Spearman $\rho$ .

Some secondary results are given below. Based on the MT copula, another natural copula is obtained as $C^{{\dagger}}(u,v)=C(v,u)$ , that is

$\displaystyle C^{{\dagger}}(u,v)=u^{1-b}v^{1-c}\times\exp\Bigg{(}-\left\{b^{2}% \left[\log(u)\right]^{2}+c^{2}\log(v)[\log(u)+\log(v)]\exp\left[-a\left(\frac{% \log(u)}{\log(u)+\log(v)}\right)\right]\right\}^{1/2}\Bigg{)},(u,v)\in\Upsilon.$

It can be viewed as the exchanged version of the MT copula. Other techniques can be used to create new copulas based on $C(u,v)$ , such as the radial, mixture or flipping techniques (see Nelsen, 2006).

On the other hand, we can use the MT copula as a generator of bivariate distributions. Thus, based on two cumulative distribution functions (CDFs) $F(x)$ and $G(y)$ , we can define the MT family of bivariate distributions by the following general CDF:

$\displaystyle H(x,y)=C(F(x),G(y))=[F(x)]^{1-c}[G(y)]^{1-b}\times\exp\Bigg{(}-% \bigg{\{}b^{2}\left\{\log[G(y)]\right\}^{2}+c^{2}\log[F(x)]\{\log[F(x)]+\log[G% (y)]\}\times\exp\left[-a\left(\frac{\log[G(y)]}{\log[F(x)]+\log[G(y)]}\right)% \right]\bigg{\}}^{1/2}\Bigg{)},(x,y)\in\mathbb{R}^{2}.$

For selected choices of lifetime CDFs, see Taketomi et al. (2022). With the above general CDF, we can create bivariate distributions of great interest due to their ability to capture tail dependences and model extreme events accurately. They enable a more comprehensive understanding of the joint behavior of quantitative variables, facilitating risk assessment and decision-making in fields such as finance, insurance, and environmental sciences.

The rest of this article is devoted to the second new EV copula, which proposes an alternative modification of the Tawn copula.

3. Second modified tawn copula

At the basis of the second proposition of EV copula, there is a new PickDF presented in the next subsection.

3.1 New PickDF

We introduce an original extension of the Tawn PickDF in the result below.

.

Let $(a,b,c,d)\in\mathbb{R}^{4}$ . Let us consider the following univariate function:

$\displaystyle A(w)=1-c+(c-b)w+[b^{a}w^{a}+dw^{a/2}(1-w)^{a/2}+c^{a}(1-w)^{a}]^% {1/a},w\in[0,1].$ (6)

Then $A(w)$ is a PickDF for either

(i)

$d=0$ and $a\geqslant 1$ , $b\in[0,1]$ and $c\in[0,1]$ (corresponding to the classical case), or

(ii)

$d>0$ , $a\geqslant 2$ , $b\in(0,1]$ and $c\in(0,1]$ such that

$\displaystyle 4(a-1)b^{a}c^{a}\geqslant d^{2}.$

Proof. The proof is based on the conditions described in Definition 1. Let each of them be demonstrated.

•

We have

$\displaystyle A(0)=1-c+(c-b)\times 0+[b^{a}\times 0^{a}+d\times 0^{a/2}\times(% 1-0)^{a/2}+c^{a}(1-0)^{a}]^{1/a}=1-c+(0+c^{a})^{1/a}=1$

and

$\displaystyle A(1)=1-c+(c-b)\times 1+[b^{a}\times 1^{a}+d\times 1^{a/2}\times(% 1-1)^{a/2}+c^{a}(1-1)^{a}]^{1/a}=1-c+c-b+(b^{a}+0)^{1/a}=1-b+b=1.$

The condition of the first item in Definition 1 is proved.

•

Let us now show that $A(w)\geqslant\max(w,1-w)$ for any $w\in[0,1]$ . For any $w\in[0,1]$ , since $c\in[0,1]$ , $d>0$ , $dw^{a/2}(1-w)^{a/2}\geqslant 0$ and $c^{a}(1-w)^{a}\geqslant 0$ , we obtain

$\displaystyle A(w)=1-c+(c-b)w+[b^{a}w^{a}+dw^{a/2}(1-w)^{a/2}+c^{a}(1-w)^{a}]^% {1/a}\geqslant 1-c+(c-b)w+(b^{a}w^{a})^{1/a}=1-c(1-w)\geqslant 1-(1-w)=w.$

On the other hand, for any $w\in[0,1]$ , since $b\in[0,1]$ , $d>0$ , $b^{a}w^{a}\geqslant 0$ and $dw^{a/2}(1-w)^{a/2}\geqslant 0$ , we have

$\displaystyle A(w)=1-c+(c-b)w+[b^{a}w^{a}+dw^{a/2}(1-w)^{a/2}+c^{a}(1-w)^{a}]^% {1/a}\geqslant 1-c+(c-b)w+[c^{a}(1-w)^{a}]^{1/a}=1-c+(c-b)w+c(1-w)=1-bw% \geqslant 1-w.$

The condition of the second item in Definition 1 is proved.

•

After laborious differentiations and many arrangements, we achieve

$\displaystyle A^{\prime\prime}(w)=\frac{1}{a}\bigg{[}-\frac{1}{2}a^{2}dw^{a/2-% 1}(1-w)^{a/2-1}+(a-1)ab^{a}w^{a-2}+(a-1)ac^{a}(1-w)^{a-2}+\frac{1}{2}\left(% \frac{a}{2}-1\right)adw^{a/2}(1-w)^{a/2-2}+\frac{1}{2}\left(\frac{a}{2}-1% \right)adw^{a/2-2}(1-w)^{a/2}\bigg{]}\times[b^{a}w^{a}+dw^{a/2}(1-w)^{a/2}+c^{% a}(1-w)^{a}]^{1/a-1}+\frac{1}{a}\left(\frac{1}{a}-1\right)\big{[}ab^{a}w^{a-1}% -ac^{a}(1-w)^{a-1}-\frac{1}{2}adw^{a/2}(1-w)^{a/2-1}+\frac{1}{2}adw^{a/2-1}(1-% w)^{a/2}\big{]}^{2}[b^{a}w^{a}+dw^{a/2}(1-w)^{a/2}+c^{a}(1-w)^{a}]^{1/a-2}=% \frac{1}{4}[w(1-w)]^{(a-4)/2}[b^{a}w^{a}+dw^{a/2}(1-w)^{a/2}+c^{a}(1-w)^{a}]^{% 1/a-2}\times\big{\{}Q(a,d)[c^{a}(1-w)^{a}+b^{a}w^{a}]+R(a,b,c,d)[w(1-w)]^{a/2}% \big{\}},$

where

$\displaystyle Q(a,d)=(a-2)d$

and

$\displaystyle R(a,b,c,d)=4(a-1)b^{a}c^{a}-d^{2}.$

Since $w\in[0,1]$ , $b\in[0,1]$ and $c\in[0,1]$ , it is clear that $[w(1-w)]^{(a-4)/2}\geqslant 0$ , $c^{a}(1-w)^{a}\geqslant 0$ , $b^{a}w^{a}\geqslant 0$ and $[w(1-w)]^{a/2}\geqslant 0$ . Thus, if $Q(a,d)\geqslant 0$ and $R(a,b,c,d)\geqslant 0$ , then we have $A^{\prime\prime}(w)\geqslant 0$ . Let us study these two inequalities in light of the parameter conditions (i) and (ii):

Under (i)

Since $d=0$ , we have $Q(a,d)=0$ and $R(a,b,c,d)=4(a-1)b^{a}c^{a}$ . Hence, since $a\geqslant 1$ , we have $R(a,b,c,d)\geqslant 0$ .

Under (ii)

Since $d>0$ and $a\geqslant 2$ , we have $Q(a,d)=(a-2)d\geqslant 0$ . Furthermore, since $4(a-1)b^{a}c^{a}\geqslant d^{2}$ , it is clear that $R(a,b,c,d)=4(a-1)b^{a}c^{a}-d^{2}\geqslant 0$ .

As a result, under the conditions (i) or (ii), we have $A^{\prime\prime}(w)\geqslant 0$ , implying that $A(w)$ is convex, proving the last condition in Definition 1.

We conclude that $A(w)$ is a valid PickDF, finishing the proof of Proposition 2. $\square$

In the rest of this section, it is supposed that the conditions in Proposition 2 hold.

For the purposes of this article, the PickDF in Eq. (6) is called the modified Tawn 2 (MT2) PickDF. Under the parameter condition (i), it corresponds to the original Tawn PickDF as described in Eq. (3). So the main originality of the MT2 PickDF remains for the parameter condition (ii). In this case, it follows the spirit of the BB5 PickDF by modifying the functional structure of the Gumbel PickDF while using the Tawn asymmetry scheme, but with a total new power modification, i.e., $dw^{a/2}(1-w)^{a/2}$ .

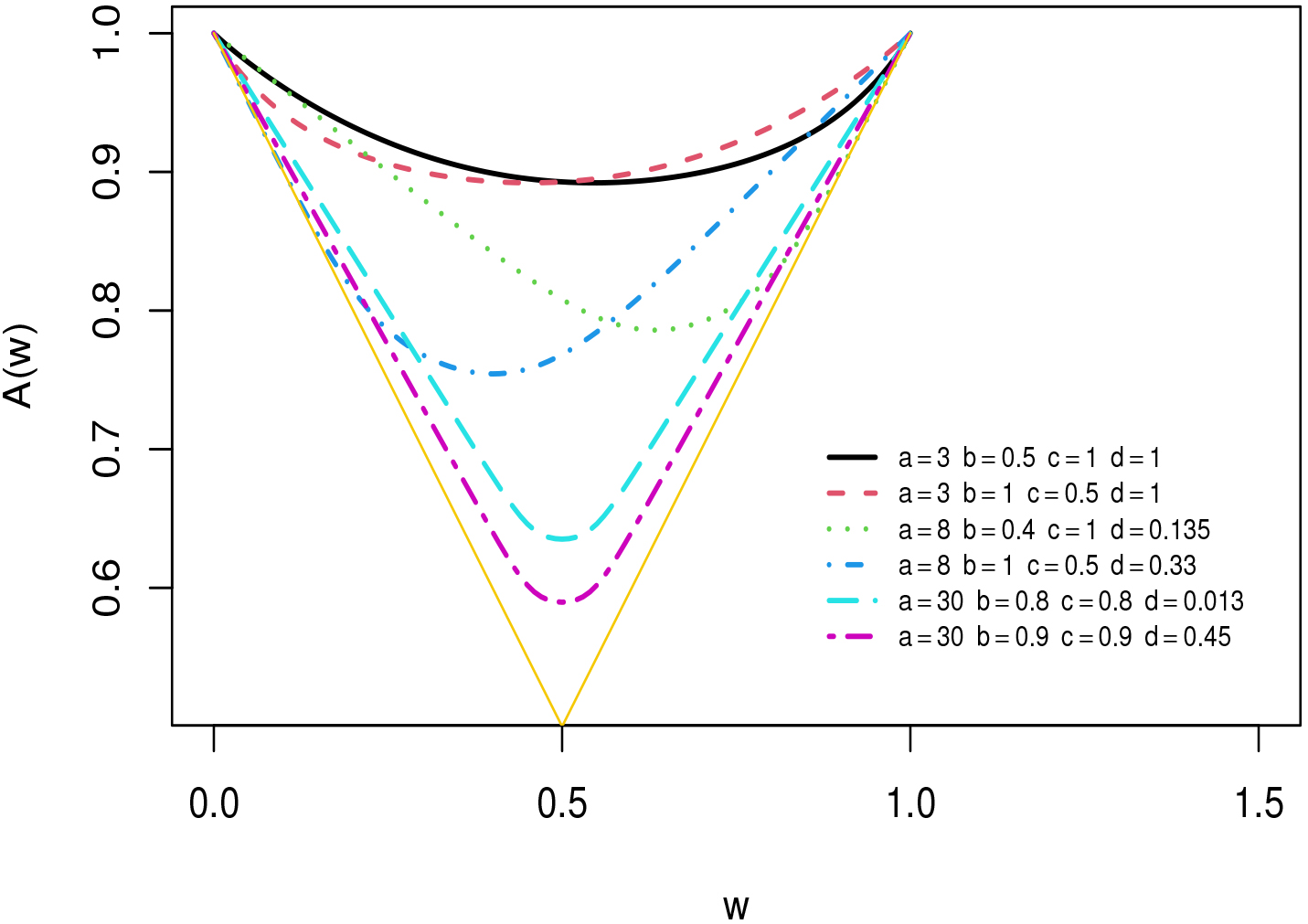

Figure 3.

Plots of the MT2 PickDF for selected values of the parameters $a$ , $b$ , $c$ and $d$ .

In order to understand its shape possibilities under the condition (ii), Fig. 3 displays the MT2 PickDF for the following configurations:

Conf1:

$a=3$ , $b=0.5$ , $c=1$ and $d=1$ ,

Conf2:

$a=3$ , $b=1$ , $c=0.5$ and $d=1$ ,

Conf3:

$a=8$ , $b=0.4$ , $c=1$ and $d=0.135$ ,

Conf4:

$a=8$ , $b=1$ , $c=0.5$ and $d=0.33$ ,

Conf5:

$a=30$ , $b=0.8$ , $c=0.8$ and $d=0.013$ ,

Conf6:

$a=30$ , $b=0.9$ , $c=0.9$ and $d=0.45$ .

Like in Fig. 1, these configurations were selected after several tests in order to offer a visual sketch of a maximum of different shapes. There is, however, a bit of arbitrariness in their choices. Again, the inverted triangle shapes are those of the special Marshall-Olkin PickDF $A(w)=\max(1-w,w)$ for $w\in[0,1]$ , taken as the minimum benchmark.

This figure reveals the flexibility of the MT2 PickDF. In particular, various levels of asymmetry are reached, depending on the values of the parameters. Thanks to the parameter $d$ that modulates the power term $w^{a/2}(1-w)^{a/2}$ , the MT2 PickDF significantly enhances the functionalities of the Tawn PickDF for $a\geqslant 2$ .

Some special PickDFs derived from the MT2 PickDF are described below.

•

By taking $b=c=d=1$ , we get

$\displaystyle A(w)=[w^{a}+w^{a/2}(1-w)^{a/2}+(1-w)^{a}]^{1/a},w\in[0,1],$

which can be viewed as a new modification of the Gumbel PickDF for $a\geqslant 2$ . It keeps the symmetry property in the sense that $A(w)=A(1-w)$ for any $w\in[0,1]$ .

•

By taking $b=c=d$ , we get

$\displaystyle A(w)=1+b\left\{[w^{a}+w^{a/2}(1-w)^{a/2}+(1-w)^{a}]^{1/a}-1% \right\},w\in[0,1],$

which reduces the parameter complexity of the MT2 PickDF while maintaining an acceptable level of flexible asymmetric properties.

•

The same comment holds by taking $d=2(a-1)^{1/2}b^{a/2}c^{a/2}$ (satisfying the main inequality in condition (ii)), that gives

$\displaystyle A(w)=1-c+(c-b)w+[b^{a}w^{a}+2(a-1)^{1/2}b^{a/2}c^{a/2}w^{a/2}(1-% w)^{a/2}+c^{a}(1-w)^{a}]^{1/a},w\in[0,1].$

As already mentioned for the MT PickDF, the three special cases above are interesting because it is well known that a linear convex combination of PickDFs is also a PickDF (see Tawn, 1988). We can thus combine the functionalities of the well-referenced and new PickDFs.

.

The MT2 PickDF, like the MT PickDF, can be used independently in various areas of mathematics because of its convex nature.

3.2 Associated copula

For the purposes of this study, we call the copula associated with the MT2 PickDF the MT2 copula. Based on Eqs (1) and (6), it is expressed as

$\displaystyle C(u,v)=\exp\left\{(\log(u)+\log(v))A\left(\frac{\log(v)}{\log(u)% +\log(v)}\right)\right\}=u^{1-c}v^{1-b}\times\exp\Bigg{(}-\left\{b^{a}\left[-% \log(v)\right]^{a}+d\left[-\log(u)\right]^{a/2}\left[-\log(v)\right]^{a/2}+c^{% a}\left[-\log(u)\right]^{a}\right\}^{1/a}\Bigg{)},(u,v)\in\Upsilon.$

The novelty of the MT2 PickDF is transposed; the MT2 copula is a new EV copula in the literature. Thanks to the addition of the power function, it can be viewed as a direct modification of the Tawn copula. Hence, it is designed to model upper tail dependence, especially when the Tawn copula does not give satisfying results. In theory, it is ideal to capture extreme events in the upper tail of a bivariate distribution. It offers flexibility in modeling asymmetric tail dependences, allowing for more accurate risk assessment and decision-making in various applied fields. We will emphasize these aspects below.

Figure 4 displays the contour-intensity plots of the MT2 copula for Conf1 and Conf6.

We thus illustrate the mathematical validity of the MT2 copula, and also, its nuanced contours when the involved parameters varied.

Among the basic properties of the MT2 copula, it is absolutely continuous, not symmetric for $b\neq c$ but symmetric for $b=c$ , not Archimedean, satisfies $C(u,v)=[C(u^{\alpha},v^{\alpha})]^{1/\alpha}$ for any $(u,v)\in\Upsilon$ and $\alpha\in\mathbb{R}/\{0\}$ , satisfies the following inequalities: $uv\leqslant C(u,v)\leqslant\min(u,v)$ , is positively quadrant dependent, and has no lower tail dependence except for the special parameter case where $A(1/2)=1/2$ , i.e., $1-c-b+\left(b^{a}+d+c^{a}\right)^{1/a}=0$ , for which the lower tail dependence coefficient is equal to $1$ . In addition, its upper tail dependence coefficient is given as

$\displaystyle\lambda_{U}=2\left[1-A\left(\frac{1}{2}\right)\right]=b+c-(b^{a}+% d+c^{a})^{1/a}.$

Concerning the main correlation measures, the Blomqvist $\beta$ is obtained as

$\displaystyle\beta=2^{\lambda_{U}}-1=2^{b+c-(b^{a}+d+c^{a})^{1/a}}-1$

and the Spearman $\rho$ is defined as

$\displaystyle\rho=12\int_{0}^{1}\frac{1}{[1+A(w)]^{2}}dw-3=12\int_{0}^{1}\frac% {1}{\left\{2-c+(c-b)w+[b^{a}w^{a}+dw^{a/2}(1-w)^{a/2}+c^{a}(1-w)^{a}]^{1/a}% \right\}^{2}}dw-3.$

A straightforward equation of $\rho$ in function of $a$ , $b$ , $c$ and $d$ cannot be obtained due to the complexity of the integrated term. As a result, we use numerical work to acquire an appreciation of its range of values.

Table 2 presents some numerical values of $\beta$ and $\rho$ for fixed values of $b$ and $c$ , varying values of $a$ and $d=2(a-1)^{1/2}b^{a/2}c^{a/2}$ .

Table 2
Some values for $\beta$ and $\rho$ for fixed values of $b$ and $c$ and varying values for $a$ , and $d=2(a-1)^{1/2}b^{a/2}c^{a/2}$

Values of $\beta$ $\mid$ $a\rightarrow$	2	3	4	5	6	7	8	9	10	11	12
$b=1$ and $c=1$	0	0.24	0.39	0.48	0.55	0.6	0.65	0.68	0.7	0.73	0.74
$b=0.5$ and $c=1$	0	0.16	0.25	0.3	0.34	0.36	0.38	0.39	0.4	0.4	0.412
$b=0.2$ and $c=0.5$	0	0.07	0.1	0.12	0.13	0.14	0.14	0.14	0.15	0.15	0.15
$b=0.8$ and $c=0.9$	0	0.2	0.32	0.4	0.45	0.49	0.52	0.55	0.57	0.59	0.6
Values of $\rho$ $\mid$ $a\rightarrow$	2	3	4	5	6	7	8	9	10	11	12
$b=1$ and $c=1$	0	0.37	0.57	0.68	0.76	0.81	0.84	0.87	0.89	0.91	0.92
$b=0.5$ and $c=1$	0	0.25	0.37	0.44	0.48	0.51	0.52	0.54	0.55	0.56	0.56
$b=0.2$ and $c=0.5$	0	0.1	0.15	0.18	0.19	0.2	0.21	0.21	0.21	0.22	0.22
$b=0.8$ and $c=0.9$	0	0.31	0.47	0.56	0.62	0.66	0.69	0.71	0.72	0.74	0.75

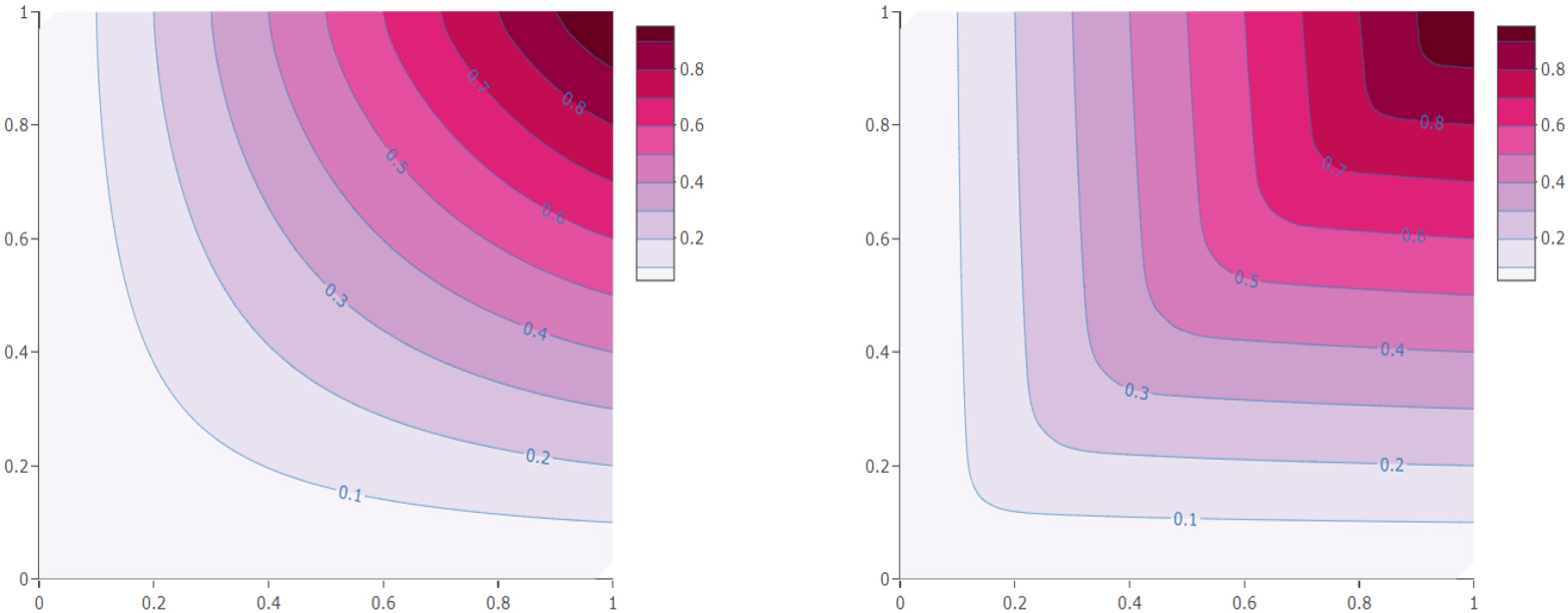

Figure 4.

Contour-intensity plots of the MT2 copula for Conf1 (left) and Conf6 (right).

Thus, based on this table and the considered values for $a$ , $b$ , $c$ and $d$ , the range of values for $\beta$ is $[0,0.74]$ and that of $\rho$ is $[0,0.92]$ . This last interval is close to the maximal one, i.e., $[0,1]$ . Thus, these ranges are satisfying from a numerical viewpoint. To conclude this, the MT2 copula presents interesting features, including versatile shapes, dependence, and correlation properties. It is mainly designed to model versatile weak, moderate, or strong asymmetric positive dependence with no lower tail.

Some secondary results are given below. Based on the MT2 copula, another natural asymmetric copula is obtained as $C^{{\dagger}}(u,v)=C(v,u)$ for $(u,v)\in\Upsilon$ , that is

$\displaystyle C^{{\dagger}}(u,v)=u^{1-b}v^{1-c}\times\exp\Bigg{(}-\left\{b^{a}% \left[-\log(u)\right]^{a}+d\left[-\log(u)\right]^{a/2}\left[-\log(v)\right]^{a% /2}+c^{a}\left[-\log(v)\right]^{a}\right\}^{1/a}\Bigg{)},(u,v)\in\Upsilon.$

As for the MT copula, we can also create other copulas based on the MT2 copula via the radial, mixture or flipping techniques as described in Nelsen (2006).

On the other hand, as for the MT copula, we can use the MT2 copula as a generator of bivariate distributions. Thus, based on two CDFs $F(x)$ and $G(y)$ , we can define the MT2 family of bivariate distributions by the following general CDF:

$\displaystyle H(x,y)=C(F(x),G(y))=[F(x)]^{1-c}[G(y)]^{1-b}\times$ $\displaystyle\quad\exp\Bigg{(}-\bigg{\{}b^{a}\left\{-\log[G(y)]\right\}^{a}+d% \left\{-\log[F(x)]\right\}^{a/2}\left\{-\log[G(y)]\right\}^{a/2}+c^{a}\left\{-% \log[F(x)]\right\}^{a}\bigg{\}}^{1/a}\Bigg{)},$ $\displaystyle\quad(x,y)\in\mathbb{R}^{2}.$

The obtained distributions are of interest when those generated by the Tawn copula fail to efficiently analyze data in an EV setting.

4. Conclusion

The EV copulas are crucial in modeling and analyzing extreme events by capturing the tail dependence structure and quantifying the joint behavior of rare events accurately. In this article, following the spirit of Adam and Tawn (2011), we developed the theory of two new EV copulas based on new PickDFs that modify or extend the famous Tawn PickDF. We demonstrated their attractivity, with an emphasis on their modulable levels of asymmetry, flexibility in terms of upper tail dependence in particular, and wide correlation ranges of values. All the theory was given in detail, along with computer material to support it. These developments help to consider dependence models that are more accurate, improving our capacity to make wise choices in complex situations.

A possible limitation of the MT and MT2 copulas is the number of parameters involved, which can lead to an overparameterization phenomenon in some applications. However, depending on the nature of the data, this limitation can be circumvented by setting some of the parameters to fixed constants relative to the valid domains found in the article.

The perspectives of this work are (i) the application of the MT and MT2 copulas to the analysis of real-world data, (ii) the use of our mathematical techniques for more contributions in the field of EV copulas, and (iii) the extensions of the MT and MT2 copulas in a $n$ -variate setting with $n\geqslant 3$ .

Footnotes

Acknowledgments

The author would like to thank the reviewer for his thorough comments on the article.

References

Adam

M. B.

, & Tawn

J. A.

(2011). Modification of Pickands’ dependence function for ordered bivariate extreme distribution. Communications in Statistics – Theory and Methods, 40(9), 1687-1700.

Adam

M. B.

& Tawn

J. A.

(2012). Bivariate extreme analysis of Olympic swimming data. Journal of Statistical Theory and Practice, 6(3), 510-523.

Chesneau

(2023). Extensions of two bivariate strict Archimedean copulas. Computational Journal of Mathematical and Statistical Sciences, 2(3), 159-180.

Crowder

(1989). A multivariate distribution with Weibull connections. Journal of the Royal Statistical Society, Series B, 51(1), 93-107.

Deheuvels

(1991). On the limiting behavior of the Pickands estimator for bivariate extreme-value distributions. Statistics & Probability Letters, 12, 429-439.

Durante

& Sempi

(2016). Principles of Copula Theory. CRS Press: Boca Raton, FL, USA.

Frahm

Junker

& Szimayer

(2003). Elliptical copulas: Applicability and limitations. Statistics & Probability Letters, 63, 275-286.

Galambos

(1975). Order statistics of samples from multivariate distributions. Journal of the American Statistical Association, 70(351, part 1), 674-680.

Genest

Kojadinovic

Nešlehová

& Yan

(2011). A goodness-of-fit test for bivariate extreme-value copulas. Bernoulli, 17, 253-275.

10.

Ghoudi

Khoudraji

& Rivest

L.-P.

(1988). Propriétés statistiques des copules de valeurs extrêmes bidimensionnelles. Canadian Journal of Statistics, 26, 187-197.

11.

Gumbel

E. J.

(1960). Bivariate exponential distributions. Journal of the American Statistical Association, 55, 698-707.

12.

Gumbel

E. J.

(1961). Bivariate logistic distributions. Journal of the American Statistical Association, 56, 335-349.

13.

Huang

& Wang

(2018). Probabilistic spatial prediction of categorical data using elliptical copulas. Stochastic Environmental Research and Risk Assessment, 32, 1631-1644.

14.

Joe

(2015). Dependence Modeling with Copulas; CRS Press: Boca Raton, FL, USA.

15.

Kularatne

& Pitt

(2021), On the use of Archimedean copulas for insurance modelling. Annals of Actuarial Science, 15(1), 57-81.

16.

Marshall

A. W.

& Olkin

(1967). A multivariate exponential distribution. Journal of the American Statistical Association, 62(317), 30-44.

17.

Nelsen

R. B.

(2006). An Introduction to Copulas. 2nd ed.; Springer Science+Business Media, Inc.: Berlin, Germany.

18.

Pickands

(1981). Multivariate extreme value distributions. Proceedings of the 43rd session of the International Statistical Institute, Vol. 2 (Buenos Aires, 1981), 49, 859-878, and 894-902.

19.

R Core Team (2016). R: A Language and Environment for Statistical Computing. Vienna, Austria. Available at: https://www.R-project.org/.

20.

Sklar

(1959). Fonctions de répartition à n dimensions et leurs marges. Publications de l’Institut Statistique de l’Université de Paris, 8, 229-231.

21.

Sklar

(1973). Random variables, joint distribution functions, and copulas. Kybernetika, 9, 449-460.

22.

Stephenson

(2003). Simulating multivariate extreme value distributions of logistic type. Extremes, 6, 49-59.

23.

Susam

S. O.

(2020). Parameter estimation of some Archimedean copulas based on minimum Cramér-von-Mises distance. Journal of the Iranian Statistical Society, 19, 163-183.

24.

Susam

S. O.

(2022). A graphical tool for extreme value copula selection based on the Pickands dependence function. Istatistik Journal of The Turkish Statistical Association, 14(2), 38-50. ï¼Ÿï¼Ÿï¼Ÿ

25.

Taketomi

Yamamoto

Chesneau

& Emura

(2022). Parametric distributions for survival and reliability analyses, a review and historical sketch. Mathematics, 10, 3907.

26.

Tawn

(1988). Bivariate extreme value theory: models and estimation. Biometrika, 75(3), 397-415.

27.

Touboul

(2011). Goodness-of-fit tests for elliptical and independent copulas through projection pursuit. Algorithms, 4, 87-114.

28.

Zhang

Wells

& Peng

(2008). Nonparametric estimation of the dependence function for a multivariate extreme value distribution. Journal of Multivariate Analysis, 99, 577-588.

On two new modified tawn copulas

Abstract

Keywords

1. Introduction

2.1 Pickands dependence function

.

.

.

.

3.1 New PickDF

.

.

Table 2 Some values for β and ρ for fixed values of b and c and varying values for a , and d = 2 ⁢ ( a - 1 ) 1 / 2 ⁢ b a / 2 ⁢ c a / 2

Footnotes

Acknowledgments

References

Table 2
Some values for $\beta$ and $\rho$ for fixed values of $b$ and $c$ and varying values for $a$ , and $d=2(a-1)^{1/2}b^{a/2}c^{a/2}$
