Mesenchymal stem cell surgery,rescue and regeneration in retinitis pigmentosa: clinical and rehabilitative prognostic aspects

Abstract

Purpose:

To assess whether treatment with the Limoli Retinal Restoration Technique (LRRT) can be performed in patients with retinitis pigmentosa (RP), grafting the autologous cells in a deep scleral pocket above the choroid of each eye to exert their beneficial effect on the residual retinal cells.

Methods:

The patients were subjected to a complete ophthalmological examination, including best corrected visual acuity (BCVA), close-up visus measurements, spectral domain-optical coherence tomography (SD-OCT), microperimetry (MY), and electroretinography (ERG). Furthermore, the complete ophthalmological examination was carried out at baseline (T0) and at 6 months (T180) after surgery. The Shapiro–Wilk test was used to assess the normality of distribution of the investigated parameters. A mixed linear regression model was used to analyse the difference in all the studied parameters at T0 and T180, and to compare the mean change between the two groups. All statistical analyses were performed with STATA 14.0 (Collage Station, Texas, USA).

Results:

LRRT treatment was performed in 34 eyes of 25 RP patients recruited for the study. The eyes were classified in two groups on the basis of foveal thickness (FT) assessed by SD-OCT: 14 eyes in Group A (FT≤190μm) and the remaining 20 ones in Group B (FT > 190μm). Although it had not reached the statistical significance, Group B showed a better improvement in BCVA, residual close-up visus and sensitivity than Group A.

Conclusions:

Previous studies have described the role of LRRT in slowing down retinal degenerative diseases. Consequently, this surgical procedure could improve the clinical and rehabilitative prognostic parameters in RP patients. On the other hand, further clinical research and studies with longer follow-up will be needed to evaluate its efficacy.

Keywords

Autograft cell surgery embryonic stem cells (ESC)foveal thickness growth factor (GF)induced pluripotent stem cells (iPSCs)Limoli retinal restoration technique (LRRT)mesenchymal cell (MSC)retinitis pigmentosa (RP)

1 Introduction

Retinitis pigmentosa (RP) is one of the most common retinal diseases and causes visual impairment and irreversible blindness, affecting 1.5 million people worldwide, with a prevalence estimated at 1 : 4.000 (Pagon 1988; Hartong et al., 2006; Hamel 2006). The etiology of RP is genetic, caused by different types of gene mutation that explain the damage and resulting death of rod photoreceptors. Primary rod photoreceptor degeneration is later followed by secondary loss in cone photoreceptors. This sequence of events underlies the prevalent symptoms of RP: night blindness, tunnel vision, and, later on, progressive loss in central vision. The central retina, which mainly contains cones, is relatively unaffected until the late stage of the disease, even though alterations in foveal anatomy can arise in earlier stages. Degeneration affects cone photoreceptors in the macular area and consequently visual acuity can decrease to the point of developing complete blindness. Full-blown RP is defined by three main clinical signs: osteoclast pigmentation, rarefaction of retinal vessels, and pallor of the optic nerve head. Electroretinographic anomalies are identified even at an early stage of RP. As the pathology progresses, the amplitude of electroretinogram (ERG) recordings decreases and its latency time increases, affecting the scotopic components (rods) before the photopic ones (cones). Finally, ERG recording under scotopic and photopic conditions disappears. This manifestation is a well-established diagnostic feature of RP (McCulloch et al., 2015). Primary loss in rod photoreceptors is followed by cone photoreceptor degeneration and can be assessed by optical coherence tomography (OCT). The latter records a progressive reduction of the stromal thickness, which occurs initially at the periphery and then affects the whole retinal stroma, eventually leading to its atrophy (Fisher et al., 2008; Hood et al., 2009; Aizawa et al., 2009; Tamaki and Matsuo, 2011). A further study has shown that there is a positive linear correlation between the decrease in visual field sensitivity and the thinning of the outer segments (Liu et al., 2016). Therefore, in RP, retinal thinning secondary to cell loss is linked with impairment of visual acuity (Sandberg et al., 2005; Witkin et al., 2006).

The cause of RP is not soley explained by genetics, as there are other biological mechanisms involving, among others, cone photoreceptors, which are genetically unaffected. These mechanisms include: neurotrophism, apoptosis, vascular change, oxidation, inflammation or immunology (Campochiaro and Mir, 2018; Yi et al., 2018; Beutelspacher et al., 2011; Punzo et al., 2011; Langmann 2007, Pescosolido et al., 2014, Nebbioso et al., 2013). New therapeutic approaches to RP include restoring defective genes and stem cell transplantation to replace or repair defective or dead cells (Otani et al., 2004; Liang et al., 2001; Guadagni et al., 2015; Herse 2005; He et al., 2014; Tucker et al., 2014).

Gene therapy holds great potential, but it is currently at an experimental stage and has obtained only limited therapeutic results in vivo. Consequently, scientific interest is particularly directed at restoratory therapy based on stem cells. The latter aims to recover cell density as well as to preserve the remaining retinal cells by improving intra/extracellular conditions (Jones et al., 2017).

Stem cells are undifferentiated cells that have the ability to self-renew and differentiate into mature cells. This target can be reached by delivering embryonic stem cells (ESC), induced pluripotent stem cells (iPSC), or mesenchymal stem cells (MSC) into the eye in specific ways (Idelson et al., 2009; Klassen 2015; Takahashi and Yamanaka 2013; Ding et al., 2017). ESC, iPSC, and MSCs are characterized by self-renewal and multipotency, i.e., the ability to differentiate into the different cells of the three germ layers. The multipotency of MSC has been demonstrated in appropriate culture conditions with lineage-specific growth factors (GFs) that carry out the differentiation of MSCs into precise cell types (adipocytes, chondrocytes, and osteoblasts) (Romanov et al., 2005; Lindroos et al., 2010). Hence, MSCs play a fundamental role in organogenesis, remodeling and tissue repair (Baddour et al., 2012). Experimental studies have also described that MSCs may differentiate into retinal progenitor cells, photoreceptors, and retinal neural-like cells (Huo et al., 2010; Zarbin 2016). In addition, stem cells, particularly MSCs, can exert neuroprotective and pro-regenerative effects by secreting multiple paracrine factors (Moraes et al., 2012; Kyurkchiev et al., 2014; Johnson et al., 2014; Mead et al., 2014; Çerman et al., 2016). The adipose tissue is one of the most interesting collection sites of MSCs. Like bone marrow, the adipose tissue contains a large population of stem cells, usually called adipose-derived stem cells (ADSCs), within its stromal compartment. These cells are multipotent and can differentiate into various cell types: osteocytes, adipocytes, vascular endothelial cells, cardiomyocytes, pancreatic β-cells, and hepatocytes (Pittinger et al., 1999; Siniscalco et al., 2010; Rezeanejad et al., 2014; Emre et al., 2015; Hofer and Tuan, 2016).

ADSCs produce basic fibroblast growth factor (bFGF), vascular endothelial growth factor (VEGF), macrophage colony-stimulating factor (M-CSF), granulocyte-macrophage colony-stimulating factor (GM-CSF), placental growth factor (PlGF), transforming growth factor-β (TGFβ), hepatocyte growth factor (HGF), insulin-like growth factor-1 (IGF-1), interleukin (IL), angiogenin, ciliary neurotrophic factor (CNTF), and brain-derived neurotrophic factor (BDNF) (Lindroos et al., 2010; Mizuno, 2009; Luo et al., 2013). Another mesenchymal cell type that can be used for regenerative purposes is represented by adult adypocites. These can secrete specific hormones, called adipokines, which play a role in energy homeostasis. Fat cells produce epidermal growth factor (EGF), bFGF, IGF-1, IL, TGFβ, pigment-epithelium-derived factor (PEDF), and adiponectin (Wang et al., 2008; Tilg and Moschen et al., 2006; Nakagami et al., 2006; Schaffler and Buchler, 2007).

Finally, platelets are another cell type of mesenchymal origin. Platelets are well known for their haemostatic action, but they can also release substances that promote tissue repair, angiogenesis, and modulation of inflammation (Jurk and Kehrel, 2005). Furthermore, they induce cell migration and adhesion at angiogenesis sites, as well as the differentiation of endothelial progenitors into mature endothelial cells (Mishra et al., 2011). Platelets produce platelet-derived growth factor (PDGF), IGF-1, TGFβ, VEGF, bFGF, EGF, platelet-derived angiogenesis factor (PDAF), and thrombospondin (TSP) (Anitua et al., 2004; Qureshi et al., 2009; Antoniades and Williams, 1983).

Since the GFs secreted by MSCs in the retinal environment can be exploited to provide a therapeutic action, we consider the possibility of treating the retina affected by RP with a surgical technique called Limoli Retinal Restoration Technique (LRRT), described in previous works (Fig. 1) (Gentile et al., 2012; Limoli et al. 2014; Oner et al., 2019; Limoli et al. 2016; Limoli et al., 2017).

Fig. 1

The suprachoroidal autograft obtained by Limoli Retinal Restoration Technique (LRRT) allows placing fat stromal cells, adipose tissue-derived stem cells (ADSCs) and platelets (PLTs) obtained from PLT-rich plasma (PRP) close to the choroid. The production of growth factors (GF), characteristic of these cells, is poured directly into the choroidal flow, helping to maintain retinal cell trophism. The GFs, through the choroidal flow, have a direct action on the choroid, on the Müller cells, on the retinal pigment epithelium (RPE) cells with improvement of physiology of the outer segments (OS), on the rods and on the cones.

The aim of our research was to reduce or prevent the death of photoreceptors and consequently improve the clinical and rehabilitative prognostic aspects by means of LRRT surgery and to evaluate the improvement of visual function in RP patients. We postulated that the greater the residual number of retinal cells is, the greater the interaction between GFs and the membrane receptors of chorioretinal cells and therefore cellular activity and the improvement of visual performance (VP).

2 Methods

The study protocol was approved by the Institutional Review Board of the Low Vision Academy (No: 2016/A101, date: 1 October 2016) and, in accordance with the Helsinki Declaration, written consent was obtained from all the patients.

This retrospective clinical study included 34 eyes of 25 RP patients, 11 women and 14 men, with an average age of 45.9±18.36 years (Table 1).

Table 1
Demographic data of retinitis pigmentosa (RP) patients with foveal thickness ≤190μm (Group A) or >190μm (Group B)

Patients Group A≤190 μm Group B > 190 μm Total

Number patients/eyes 11/14 14/20 25/34

Age in years (±SD) 42.1 (13.30) 49.6 (20.82) 45.9 (18.36)

Range 19–55 24–86 19–86

F/M 5 (45%)/6 (55%) 6 (43%)/8 (11 (57%) 11 (44%)/14 (56%)

Eye right/left 5/9 12/8 17/17

Patients	Group A≤190 μm	Group B > 190 μm	Total
Number patients/eyes	11/14	14/20	25/34
Age in years (±SD)	42.1 (13.30)	49.6 (20.82)	45.9 (18.36)
Range	19–55	24–86	19–86
F/M	5 (45%)/6 (55%)	6 (43%)/8 (11 (57%)	11 (44%)/14 (56%)
Eye right/left	5/9	12/8	17/17

F: female; M: male.

Patients who met the following criteria were eligible for the study:

RP diagnosis by spectral domain-OCT (SD-OCT), fundus autofluorescence imaging, and ERG analysis.

Measurable visual acuity.

Close-up visus between 7-64 pts, not evaluating very low (>64 pts) or non-incremental (6 pts) visus.

Evaluation of a potential improvement with LRRT.

Normal intraocular pressure.

Any surgery performed for any ophthalmologic disease no earlier than 3 months before to ensure patient stability.

Treatment and minimal risk of any potential harm from the procedure.

18 years of age or older.

Medically stable condition.

Subjects who met any of the following criteria were excluded from participating in the study:

Myopic spherical equivalent > 6 diopters.

Cataract, chorioretinal disorders, such as macular pucker with altered foveal area.

Inability of adequate ophthalmologic examination or evaluation to document the pathology.

Inability or unavailability to undergo follow-up eye exams with the principal investigator or their ophthalmologist as outlined in the protocol.

Inability to provide informed consent.

Insufficient compliance in individuals affected by medical conditions, such as multiple sclerosis, epilepsy, Parkinson’s disease, diabetes, hypertension, vasculitis, renal and hepatic diseases, dysthyroidism, malignant neoplasias, and other systemic chronic diseases.

For each patient, the diagnosis was established by SD-OCT with Cirrus 5000 (Carl Zeiss Meditec AG, Jena, Germany), microperimetry (MY) with Maia 100809 (CenterVue S.p.A., Padua, Italy), and ocular electrophysiology with the Retimax electromedical system (C.S.O. Srl, Scandicci, Italy). In particular, the average retinal thickness along the horizontal scan (6 mm.) crossing the fovea and the foveal thickness (FT) was measured in micronmeters (μm). Electrical cell activity was recorded in micronVolts by ERG analysis according to the standards set in 2009 by the International Society for Clinical Electrophysiology of Vision (ISCEV) (McCulloch et al., 2015; Nebbioso et al. 2014; Verboschi et al, 2013).

Best corrected visual acuity (BCVA) for far and near distance was evaluated (T0) in all patients. BCVA was measured by early treatment diabetic retinopathy study (EDTRS) charts at 4 meters and expressed in logarithm of the minimum angle of resolution (logMAR) as well as visual acuity for near vision (close-up) in points (Pts) indicating the necessary enlargement factor (X).

All the eyes enrolled in this study were sub-divided into two groups on the basis of central retinal thickness or FT recorded by SD-OCT in: group A (14 eyes)≤190μm and group B (20 eyes) >190μm.

Therefore, an autograft of mesenchimal cells of fat cells and PRP was performed using LRRT (Limoli et al., 2014; Oner et al., 2019; Limoli et al., 2016; Limoli et al., 2017) (Fig. 1). It consists in a graft of the before mentioned mesenchymal cell types, which are adypose cells, adipose derived stem cells (ADSCs) contained in the stromal vascular fraction (SVF) of adipose tissue and plateletes (PLT) recovered in the platelet-rich plasma (PRP) (Gentile et al., 2012). Each eye received a graft of orbital fat between the choroid and sclera in a scleral pocket created with deep sclerectomy to expose the surface of the choroidal space (Limoli et al., 2014; Oner et al., 2019; Limoli et al., 2016; Limoli et al, 2017). In particular, we estimated the VP, i.e., BCVA, close-up visus in print size, sensitivity in dB measured by MY, and visus obtained after rehabilitation through magnifying visual devices in both groups at baseline (T0) and at 6 months (T180).

2.1 Statistical methods

Data were presented as mean±standard deviation (SD) and minimum and maximum (min–max) values were also reported. Student’s t-test was used to statistically compare mean age between the two study groups. The Shapiro–Wilk test was used to assess the normality of distribution of the investigated parameters. Mixed regression models with robust errors were applied to analyse the difference between the two groups at T0 and T180. In addition, the effect of the interaction between the group and time was evaluated. A p value <0.05 was considered statistically significant. All statistical analyses were performed by STATA 14.0 (Collage Station, Texas, USA).

3 Results

A total of 34 eyes of 25 patients (11 females and 14 males) affected by RP, mean age 45.9 years±SD 18.36 (range 19–86 years), were enrolled in the study; the demographic data of the patients are shown in Table 1.

The functional and anatomical visual parameters and the average values recorded at T0 and T180 after LRRT surgery are shown in Table 2.

Table 2
Descriptive characteristics of analysed parameters in the two groups with foveal thickness ≤190μm (Group A) (n = 14) and >190μm (Group B) (n = 20), at baseline (T0) and after 6 months (T180). Mixed model results

Parameters Time Mixed model results

Group T0 T180 % Time effect Group effect

mean±SD mean±SD p value p value

min–max min–max

BCVA

(logMAR) A 0.89±0.63 0.85±0.65 +4.16

0.10–2.70 0.10–2.70

B 0.45±0.32 0.37±0.25 +16.31

0.00–1.30 0.00–0.25 0.176 0.015

Close up Visus (Pts) A 21.6±16.44 22.1±17.12 –2.32 0.110 0.094

7–64 6–64

B 16.3±11.32 12.6±9.18 +22.46

7–58 6–48

Sensibility

(dB MAIA) A 3.92±5.53 4.48±6.57 +14.47 0.001 0.588

0–16 0–18.2

B 4.26±5.80 5.59±6.97 +31.18

0–19.4 0–21.8

Close up Visus with

X System (Pts) A 8.2±2.4 8.4±3.2 –1.74 0.999 0.093

6–14 6–18

B 7.2±1.9 7.1±1.7 +1.40

6–12 6–12

Magnification

(X) A 3.2±3.4 3.3±3.4 –5.06 0.626 0.290

0.5–10 0.5–10

B 2.3±2.8 2.4±3.3 +4.94

0–10 0–10

FT (μm) A 152±32 153±32 +0.1 0.643 <0.001

49–181 49–183

B 257±77 256±78 –0,3

191–462 187–471

RV (μm³) A 7.6±1.4 7.9±1.3 +3.8 0.719 0.152

4.6–9.7 4.6–9.9

B 8.8±1.4 8.7±1.4 –1.4

6.5–11.1 6.5–11.3

RT (μm) A 216±31 221±27 +2.2 0.971 0.156

31–165 165±281

B 246±38 243±38 –1.4

179–308 181–314

Parameters		Time		Mixed model results
BCVA
(logMAR)	A	0.89±0.63	0.85±0.65	+4.16
		0.10–2.70	0.10–2.70
	B	0.45±0.32	0.37±0.25	+16.31
		0.00–1.30	0.00–0.25		0.176	0.015
Close up Visus (Pts)	A	21.6±16.44	22.1±17.12	–2.32	0.110	0.094
		7–64	6–64
	B	16.3±11.32	12.6±9.18	+22.46
		7–58	6–48
Sensibility
(dB MAIA)	A	3.92±5.53	4.48±6.57	+14.47	0.001	0.588
		0–16	0–18.2
	B	4.26±5.80	5.59±6.97	+31.18
		0–19.4	0–21.8
Close up Visus with
X System (Pts)	A	8.2±2.4	8.4±3.2	–1.74	0.999	0.093
		6–14	6–18
	B	7.2±1.9	7.1±1.7	+1.40
		6–12	6–12
Magnification
(X)	A	3.2±3.4	3.3±3.4	–5.06	0.626	0.290
		0.5–10	0.5–10
	B	2.3±2.8	2.4±3.3	+4.94
		0–10	0–10
FT (μm)	A	152±32	153±32	+0.1	0.643	<0.001
		49–181	49–183
	B	257±77	256±78	–0,3
		191–462	187–471
RV (μm³)	A	7.6±1.4	7.9±1.3	+3.8	0.719	0.152
		4.6–9.7	4.6–9.9
	B	8.8±1.4	8.7±1.4	–1.4
		6.5–11.1	6.5–11.3
RT (μm)	A	216±31	221±27	+2.2	0.971	0.156
		31–165	165±281
	B	246±38	243±38	–1.4
		179–308	181–314

BCVA: Best Corrected Visual Acuity; LogMAR: logarithm of the minimum angle of resolution; Pts: points; dB MAIA: decibel recorded with MAIA microperimetry; FT: foveal thickness; RV: retinal volume; RT: average retinal thickness. Statistical Significance p = 0.05.

On the basis of FT, 14 out of 34 eyes were classified in group A, FT≤190μm, and the remaining 20 eyes were classified in group B, FT > 190μm. All 25 patients completed the 6-month follow-up period.

No adverse event associated with the surgery either intra-operatively or post-operatively was observed throughout the period. Mean values of the intraocular pressure recorded before and after surgery did not change significantly.

The group B showed significantly higher mean values than group A in FT, Retinal Volume and average Retinal Thickness (Table 2).

Mean BCVA before treatment was 0.89±0.63 logMAR (Snellen: 0.23) in group A and 0.45±0.32 logMAR (Snellen 0.45) in group B. Specifically, BCVA in group A varied from 0.89 to 0.85 logMAR (+4.16% –p = 0.9701), whereas in group B it was from 0.45 to 0.37 logMAR (+16.31% –p = 0.9083) (Fig. 2). Percentage variation was lower in group A than in group B. There was no statistically significant difference in visual acuity from baseline within the same group and between the two groups.

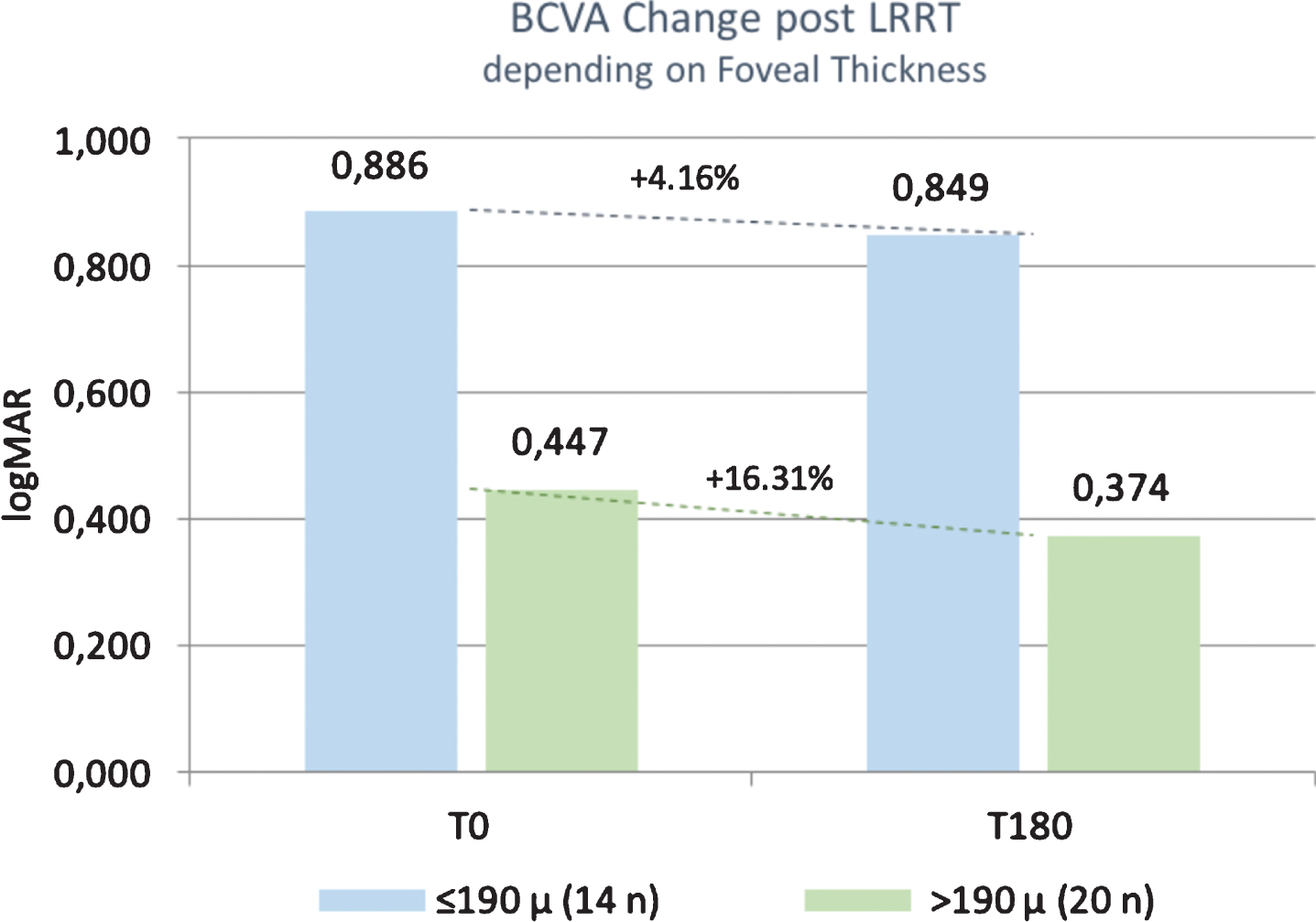

Fig. 2

The best corrected visual acuity (BCVA) was stable after suprachoroidal autograft with Limoli Retinal Restoration Technique (LRRT), or increased (+16.31%) in patients with foveal thickness (FT) >190μm.

At baseline, mean close-up visus was 21.6±16.44 pts in group A and 16.3 pts±11.32 in group B. At 6 months follow-up, it decreased to 22.1±17.12 pts in group A (p = 0.9224), whereas it increased to 12.6±9.18 pts in group B (p = 0.3579), showing that there was a trend tending to significance in the latter group. Percentage variation was negative in group A (–2.32 %); conversely, it greatly increased in group B (+22.46%) (Fig. 3).

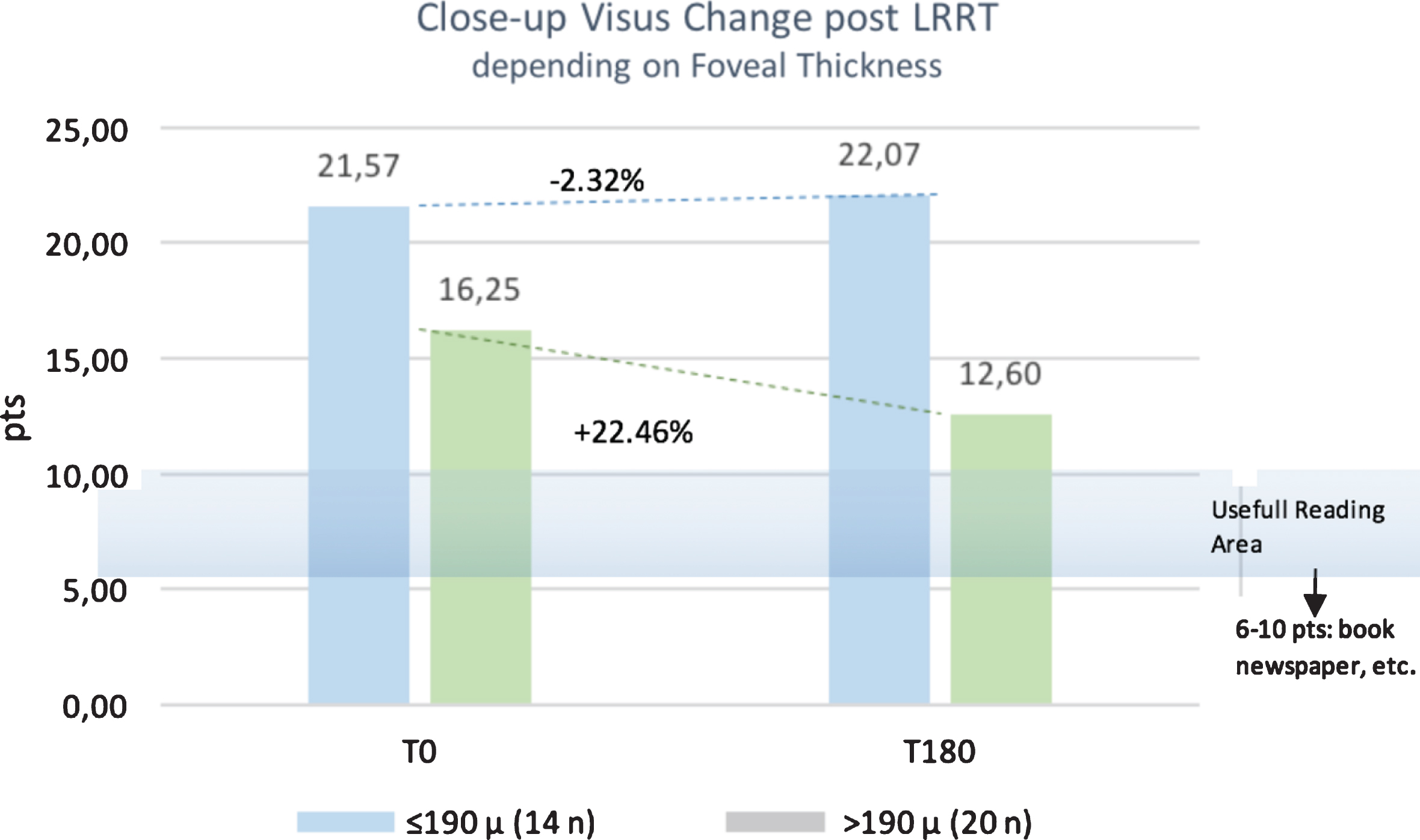

Fig. 3

Residual Close-Up Visus change post Limoli Retinal Restoration Technique (LRRT) depending on foveal thickness. Six months after surgery (T180) the close-up visus was stable if the foveal thickness (FT) ≤190μm or increased by +22.46% in the group where the FT was >190μm.

Average threshold sensitivity at baseline in MY was 3.92±5.53 dB in group A and 4.26±5.80 dB in group B. In the six-month follow-up, it increased in both groups 4.48±6.57 dB (p = 0.85170) vs. 5.59±6.97 dB (p = 0,85113), respectively. Percentage improvement in retinal sensitivity was lower in group A (+14.47%) than in group B (+31.18). Despite the improvement in retinal sensitivity, the data were not significant within the same group and between them (Figs. 4 –6).

Fig. 4

After stem cell surgery, Limoli Retinal Restoration Technique (LRRT), at 6 months (T180) there was a more relevant change for sensitivity in the group with foveal thickness >190μm (Group B), recorded with microperimetry.

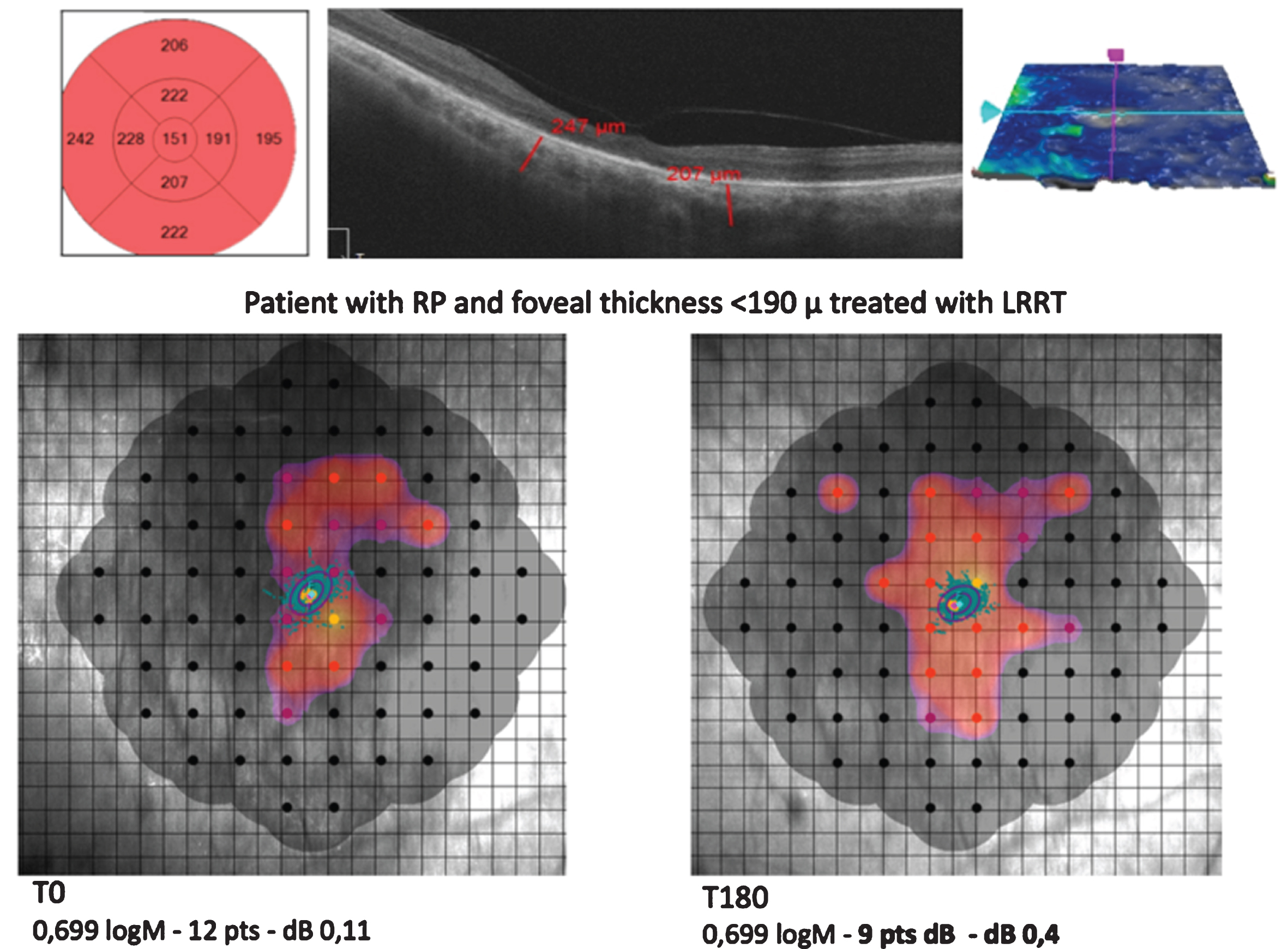

Fig. 5

A thin foveal thickness (FT) <190μm (Group A), as computed in our study, means that the retinal cell population is small, foveal structures are often dystrophic and the photoreceptor/retinal pigment epithelium/Bruch’s membrane/choriocapillaris complex is no longer recognizable. Retinitis pigmentosa (RP). Limoli Retinal Restoration Technique (LRRT).

Fig. 6

A considerable foveal thickness (FT) >190μm (Group B), as computed in our study, means that the retinal cell population is still large, foveal structures are still intact and the photoreceptor/retinal pigment epithelium/Bruch’s membrane/choriocapillaris complex is recognizable. Mesenchymal cell administration showed the ability to exert a positive influence over functional parameters six months after Limoli Retinal Restoration Technique (LRRT). Retinitis pigmentosa (RP). Photopic electroretinogram (cERG).

The average threshold of close-up visus with magnifying system at baseline was 8.2±2.4 pts with 3.2 X in group A and 7.2±1.9 pts with 2.3X in group B. In the sixth-month follow-up, it changed in both groups to 8.4±3.2 pts with 3.3X (p = 0.9193) vs. 7.1±1.7 pts with 2.4X (p = 0.9167), respectively.

Percentage of change was lower in group A (–1.74% %) than in group B (+1.40%) (Fig. 7).

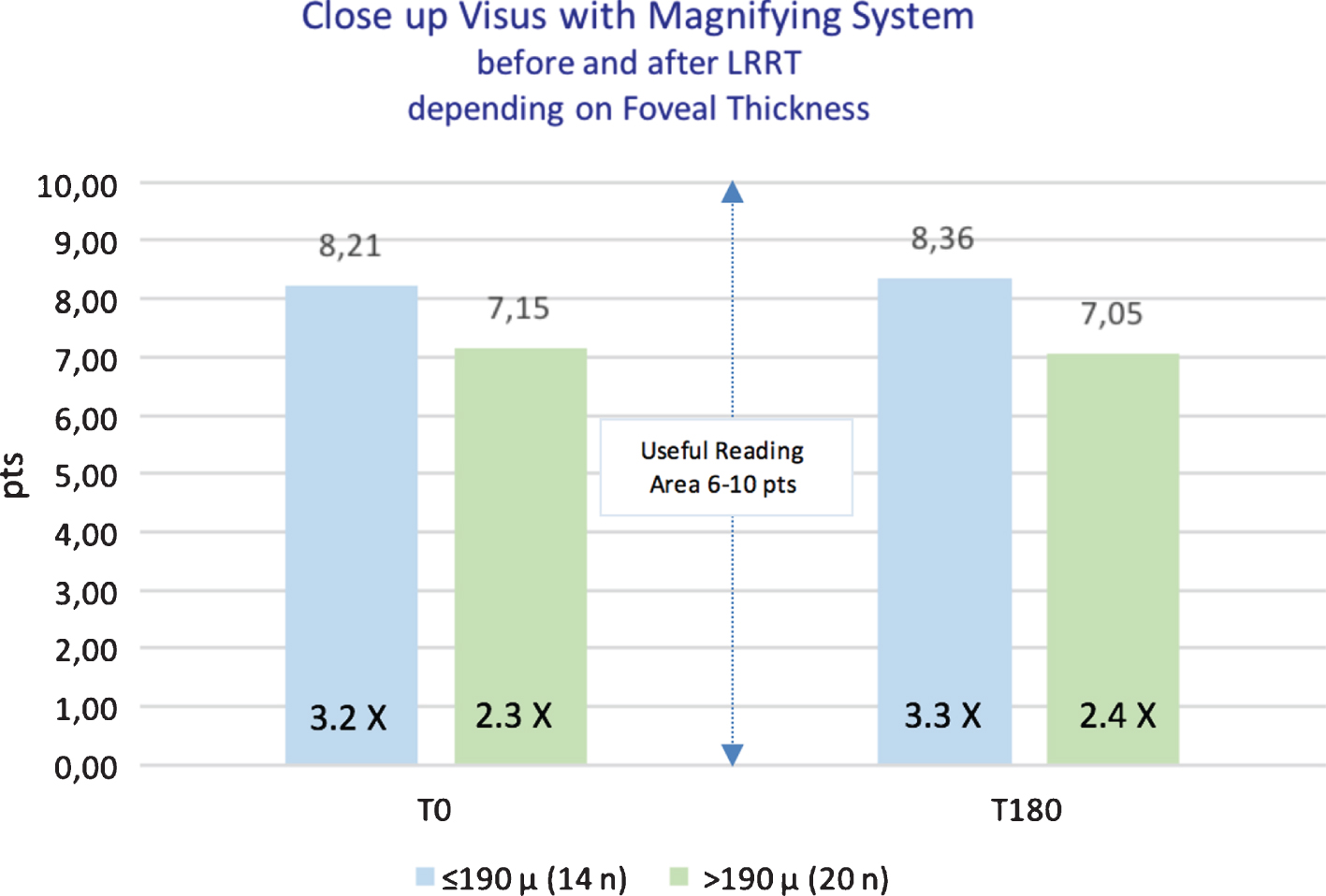

Fig. 7

The average threshold of close-up visus with magnifying system did not show a statistically significant change after cell surgery.

In all models, the interaction TimexGroup had no significant effect (Table 3).

Table 3

Variation between the two times at baseline (T0) and after 6 months (T180) estimated by mixed model in the two groups with foveal thickness ≤190μm (Group A) and >190μm (Group B)

Variation (T180–T0)	A ≤ 190 μm	B>190 μm	Interaction effect
Mean ± SD	n = 14	n = 20	p value
BCVA (logMAR)	0.037±0.144	–0.073±0.288	0.715
Close up Visus (Pts)	–0.5±17.1	–3.15±9,2	0.089
Sensibility (dB MAIA)	0.57±1.18	1.02±1.76	0.163
Close up Visus with X System (Pts)	–0.14±2.60	0.1±1.30	0.738
Magnification (X)	–0,16±0.47	–0.11±2,02	0.920
FT (μm)	0±7.18	–1±5.19	0.624
RV (μm³)	0.3±0.76	–0.1±0.72	0.113
RT (μm)	5±5.19	–3±19.71	0.145

Surveying the subjective experience of all patients, at 6 months post LRRT surgery, it was reported that VP increased in 25 eyes out of 34 (73.53%), remained unvaried in 6 eyes (17.65%), and worsened in 3 eyes (8.82%) (Table 4).

Table 4

Compliance analysis after 6 months (T180) in the two groups with foveal thickness≤190μm (Group A) and > 190μm (Group B)

Compliance	A		B		Total eyes
	n = 14		n = 20
Improved	7	50.00%	18	90.00%	25	73.53%
Unchanged	5	35.71%	1	5.00%	6	17.65%
Worsened	2	14.29%	1	5.00%	3	8.82%

However, examining patient compliance analysis feedback according to FT, the perception of improvement would be greater for patients with FT > 190μm (18 eyes out of 20–90.00%), rather than for patients with FT≤190μm (7 eyes out of 14 –50.00%) (Fig. 8). Considering only the improved group (25 eyes), 18 eyes (72%) belonged to group B and 7 (28%) to group A (Fig. 8).

Fig. 8

Compliance analysis of retinitis pigmentosa (RP) patients at 6 months (T180) post Limoli Retinal Restoration Technique (LRRT) depending on foveal thickness: compliance was good in 73.53% of all cases (both Groups A and B). Patients reported to see better 6 months after surgery, but the percentage reached 90% in those with FT > 190μm. If we considered only the improved group (25 eyes), 18 eyes (72%) belonged to Group B and 7 eyes (28%) to Group A.

4 Discussion

The LRRT therapy is based on the stabilising effect exerted by cytokines and GFs paracrinally released by the grafted cells. GF-receptor binding on the target cell is the initial step that triggers an intracellular signaling transduction cascade, activating specific second messangers. The latter can activate distinct biochemical pathways generally by a series of phosphorylation events, with the ultimate aim of regulating enzyme activity or gene expression. In particular, the activated transcription factors enter the nucleus and bind directly or indirectly to DNA to regulate the cell transition from G0 to G1 necessary to enter the cellular growth cycle and gene expression, promoting an increased synthesis of proteins, including enzymes and cytokines. These final products play a key role in cell survival, including mitosis, migration, and cellular differentiation (Limoli et al., 2014; Oner et al., 2019; Limoli et al., 2016; Limoli et al., 2017; Limoli, 2014 b; Finklestein and Plmaritoglou, 2001; Garcia et al., 2016).

Mesenchymal cell graft into the sovrachoroidal space promotes a continuous paracrine incretion of GFs that can interfere positively with the evolution of RP in several ways. The therapeutic mechanisms are summarized as follows:

Hemorheological activity that contributes to restoring effective retinal perfusion. (Campochiaro, 2018; Yi et al., 2018; Beutelspacher et al., 2011; Jurk and Kehrel, 2005; Mammoto et al., 2016; Cervelli et al., 2013; Çerman et al., 2016; Rajashekhar et al., 2014; Ezquer et al., 2016; Shen et al., 2005; Yang et al., 2018).

Anti-oxidative activity to prevent oxygen-induced photoreceptor cell death in the posterior retina, which remains thicker than the peripheral retina (Punzo et al., 2011; Yang et al., 2009; Aït-Ali et al., 2015; Byrne et al., 2015; Zeiss and Johnson, 2004;

Anti-inflammatory activity as the activation of microglia occurs simultaneously or just before the peak of apoptotic photoreceptor death in RP, assuming that microglia may be involved in the pathogenesis of RP (Gupta et al., 2003; Zeng et al., 2005; Peng et al., 2014).

Anti-apoptotic activity regulated by cytokines that can either inhibit or induce apoptosis (Cui et al., 2016; Athanasiou et al., 2013).

Cytoprotective activity of the GFs that contributes to neuroprotection by regulating photoreceptor metabolic activity, extensively impaired in RP (Shen et al., 2015; Cui et al., 2016; Gasperi and Castellano, 2010; Chung et al., 2016; Kim et al., 2003; Ueki and Reh, 2013; Hauk et al., 2006).

It is important to note that the boundaries among these mechanisms are not clearly distinguishable.

In recent years, the synergy between cellular therapies and electrical stimulation has begun to be considered as a possible treatment for degenerative pathologies. This synergy addresses four main aspects: native cell survival, transplanted cell survival, transplanted cell integration, and functional synapse formation/axon regeneration (Manthey et al., 2017).

While the methods of Electrical Stimulation (ES) administration are different, their influence on the preservation of retinal structure and function is similar and based on studies in animal models. In the rat model of retinitis pigmentosa (RP), it has been shown that ES preserved outer nuclear layer (ONL) thickness and delayed inner retinal degeneration (Manthey et al., 2017; Hanif et al., 2016).

Similarly, ES-treated rat retinas exhibited decreased apoptosis when isolated ex vivo and weekly sessions of one-hour ES therapy evoked preservation of ONL thickness (Pardue et al., 2005; Ciavatta et al, 2013). Light-induced retinal degeneration models have also been proven to preserve retinal structure after ES stimulation, reducing photoreceptor cell death, and preserve outer segment length (Schmid et al., 2012; Morimoto et al., 2007).

RP patients subjected to ES experienced preservation of visual field area and ERG b-wave amplitude (Schmid et al., 2009; Morimoto et al., 2007; Schatz et al., 2012).

Retinal ES technique may be considered a pretreatment to modulate retinal cell function because recent advances have shown that it can prime the host environment for cell transplantation.

Consequently, it can be assumed that ES treatment may create a more balanced and less hostile environment, modifying the secretion of the neurotrophic factors (Sabel 2018).

ES conditions up-regulation of neurotrophic factors in Müller cells, normally involved in this protection mechanism (Morimoto et al., 2007; Schatz et al., 2012). Increased in-vivo expression of fibroblast growth factor beta (FGF-2), insulin growth factor–1 (IGF-1), and brain derived neurotrophic factor (BDNF) have been observed after ES (Schmid et al., 2009; Morimoto et al., 2007; Schatz et al., 2012; Schatz et al., 2011; Zhou et al., 2012). Furthermore, ES down-regulates pro-inflammatory cytokines like tumor necrosis factor (TNF)-alpha, interleukin-1 beta (IL-1β) and the pro-apoptotic gene Bax (Morimoto et al., 2007; Ciavatta et al., 2009). The release of neurotrophic factors from the post-synaptic membrane made possible by neuromodulation, together with the enrichment of the same factors in the extracellular environment operated by autologous grafts, determines the formation of synapses at pre-synaptic level, facilitating and strengthening neurotransmission. The synaptogenesis process could be ignited both by the mesenchymal cell grafts and the pulsed neuromodulation that cause the rhythmic formation of action potentials (Ciavatta et al., 2009; Miyake et al., 2007). ES can be performed before or after Cell Surgery and its direct effect have been evaluated up to now only in CNS-derived tissue injuries, such as brain and spinal cord traumas, but not yet in the retina. For example, this type of combination therapy was performed in a spinal cord injury model in rats and showed to enhance locomotor function and to increase survival (31.3±4.6% compared to 26.7±2.5% in unstimulated transplants), differentiation, and integration of the transplanted cells as well as axonal regeneration, as assessed by the enhancement of somatosensory-evoked potentials (Miyake et al., 2007; Liu et al., 2012).

In addition, Matsumoto et al. (2013) have reported that performing ES in vitro prior to BM-MSCs transplantation can increase levels of neural markers at day 7 [nestin and paired box protein 6 (Pax6)] and day 14 [neurofilament heavy (NF-H) and microtubule-associated protein 2 (MAP2)] in culture. The enhancement of Cell Surgery by ES has also been observed during muscle reinnervation after sciatic injury using transplanted neurons and myocardial regeneration following ischemic heart failure (Matsumoto et al., 2013). The latter can be explained by the stimulation and production of exosomes that contain cardioprotective molecules (Liu et al., 2012; Matsumoto et al., 2013; Grumbles et al. 2013; Huang et al., 2011). In particular, exosomes are useful tools for cell–cell communication in the normal and diseased retina (Campbell et al., 2016; Locke et al., 2014; Atienzar-Aroca et al., 2016) and exert different biological actions depending on their host cell. In fact, it is possible that exosomes may play a critical role in the ES-induced changes in chorioretinal blood flow observed after treatment (Atienzar-Aroca et al., 2016; Wang et al., 2009).

Kurimoto et al. (Kurimoto et al., 2010) studied the chorioretinal blood flow in 10 healthy subjects before and after this type of combination therapy using laser speckle flowgraphy and showed that it promotes and increases chorioretinal blood flow in the area around the macula and midway between the optic disc and macula, but not around the optic disc itself.

However, the poorer the cellular condition in patients with RP is, the more modest the response by the residual cells and the lower the cellular conservation than that achievable with ES if performed early. The implantation of mesenchymal cells in the suprachoroidal space makes the necessary GFs available in more effective quantities to the retinal environment directly and indirectly (RPE and Müller Cells). It can be said that cellular surgery and microelectric stimulation have complementary and synergistic functions.

Therefore, the dual application of stem cell therapy and a controllable electrical current may provide a novel mechanism to realize the full advantages of Cell Surgery for retinal repair.

Considered together, the combination of ES and LRRT therapy to treat retinal degenerative diseases may have two primary benefits: (1) increased trophic support by the remaining endogenous retinal cells resulting in improved habitability of the host environment and (2) an enhancement of the differentiation, integration, and synapse formation of the autografted MSCs and remaining endogenous neurons.

5 Conclusion

LRRT cell therapy has been demonstrated to have a notable impact on certain functional parameters after the interaction with residual cells. The direct contact of the autograft with the choroid enhances the incretion of the bioactive factors produced by mesenchimal cells into the choroidal flow and therefore promotes a widespread dissemination through the retinal tissue, finally exuding in vitreous body.

Remarkably, BCVA, residual close-up visus and sensibility improved, following LRRT, in the group in which FT is already greater compared to the group with lower FT.

No modifications in reading ability obtained with magnifying systems prescribed before surgery have been observed.

Three quarters of patients reported to see better 6 months after LRRT, but the percent reached 90% in those with FT > 190μm.

The results of our study demonstrate the therapeutic potential of MSCs surgery by LRRT, which would directly and indirectly increase choroidal perfusion as well as contribute to a greater trophism of photoreceptors through GF–receptor interactions and Müller cell and RPE-mediated stimulation. It is considered that the interaction between retinal cells and GFs can lead to an improvement in the outlook for RP, to prevent and/or delay its progression.

In our study, the group with a FT > 190μm is associated with a better prognosis. On the other hand, the lack of cells has proven to hinder the desired interactions between GFs and membrane receptors.

FT in RP gives an objective indication of the number of cells in the fovea and although the foveal area appears normal, retinal thickness and macular volume may be reduced. Hence, FT indicates indirectly the trophic condition of residual photoreceptors in RP and can be used as a prognostic criterion in predicting the therapeutic response of LRRT cell autograft.

The rehabilitator and surgeon should be aware of cellularity of retina in RP patients treated with cell therapy.

A major limitation of our study was the lack of molecular characterisation of the sample which was considered. Genetic diagnosis is sure to become more relevant in coming years and it will be possible to determine the impact of MCS administration on RP different genetic groups.

Therefore, we can conclude that, despite the heterogeneity of the enrolled subjects and the lack of molecular diagnostics, autologous mesenchymal cell graft into the suprachoroidal space can sustain retinal neuroenhancement especially in patients with an adequate FT. Consequently, LRRT surgery could improve the clinical and rehabilitative prognostic aspects in RP patients associating, particularly, the treatment with ES to foster a beneficial synergic activity. On the other hand, further clinical research and studies with a longer follow-up will be needed to evaluate its efficacy.
