Computing in the statistical office

2.1 Types of computing

Computing includes a very broad class of activities, but for this paper we divide it into three rough subgroups: Transformation, Analysis, and Reporting.

With Transformation we mean any operation that either selects data, or leaves the information content intact. The goal of data transformation is often normalizing data into a standard format that can be analyzed. This includes activities such as filtering records based on properties, joining different tables, renaming or restructuring columns, type conversion, renaming the levels of a categorical variable, and so on. It also includes sampling as a form of selection and fuzzy joining as a form of joining. We also consider parsing files, such as JSON, HTML, or XML into a rectangular format part of transformation. Similarly, text extraction (from free text) or deriving a Bag-of-Words representation of a corpus are all considered transformation, since these consist of selecting information from the original data. Translating scanned documents into textual representation using Optical Character Recognition (OCR) also falls under this definition since in the ideal case this operation does not lead to information loss and is merely a change of representation.

The skills involved in Transformation activities include basic data manipulation and management, knowledge of data transmission standards, parsing and text processing, fuzzy matching techniques. It also implies up-to-date knowledge of a wide variety of technical tools, ranging from OCR to XML parsers.

Analysis is here again defined as a very broad class of activities. It includes obvious activities such as estimation, aggregation and modeling, but also statistical disclosure control, seasonal adjustment, benchmarking, and data validation (in the extent to which that can be automated). Deriving new variables from existing ones is also counted as a form of analysis in our current discussion. Finally, we also count optimization and implementing new algorithms and methodology as part of Analysis.

0pt 0pt

OPEN IN VIEWER

Skills related to the Analysis category as defined in this text, include statistical modeling and aggregation, numerical methods, working with rule-based systems, optimization, and programming for computational efficiency.

The third and last category we use in this work is Reporting. This includes the design and implementation of data visualisations, designing tables, creating interactive graphics, automated reporting, and developing dashboards. This category again implies a wide range of technical skills, including (perception of) color scales, data visualisation principles, event-driven (GUI) programming, technical (web) standards for dashboard development, interactive graphics programming, and more.

Summarizing, the above distinction into Transformation, Analysis, and Reporting splits computing activities very roughly into preparatory actions, data analysis and cross-cutting work, and output-creating activities.

The Generic Statistical Business Process Model (GSBPM) will be used to map in which part of the organisation computing plays a role, what role it plays, and which type of computing takes place. We assume that the reader has some familiarity with the GSBPM, but briefly, this model separates all activities performed by a statistical office into eight phases, such as ‘Specify needs’ (phase 1), ‘Collect’ (phase 4), and ‘Analyze’ (phase 6). Each phase is again subdivided into a varying number of sub-processes. In total, the GSBPM identifies 44 separate sub-processes performed by statistical offices. Examples include ‘Identify concepts’ (sub-process 1.4) and ‘Validate output’ (sub-process 6.2).

In what follows, we study the importance of computing for each sub-process in the GSBPM. We allow ourselves a few small liberties in interpreting the GSBPM, releasing some of the constraints that it (implicitly) imposes. First, the GSBPM is developed with an output-driven statistical office in mind. Roughly, the statistical office specifies statistical needs and outputs in collaboration with external stakeholders and based on that designs its data collection and statistical production process. However, in the era of data ubiquity, data driven approaches have become commonplace since they might allow statistical organizations to produce statistics that are new, of higher frequency, published faster, or more relevant [15]. So we take this approach into account when judging the importance of computing in GSBPM sub-processes. Second, the GSBPM focuses on processing survey and administrative data, with explicit activities for designing samples (activity 2.4) and computing weights (activity 5.6). Where necessary, we interpret GSBPM activities in a broader context. Finally, GSBPM primarily describes production processes. Cross-cutting activities, including long-term research are not included explicitly. We will however find a spot for them, in activity 2.5.

2.3 Computing in the GSBPM

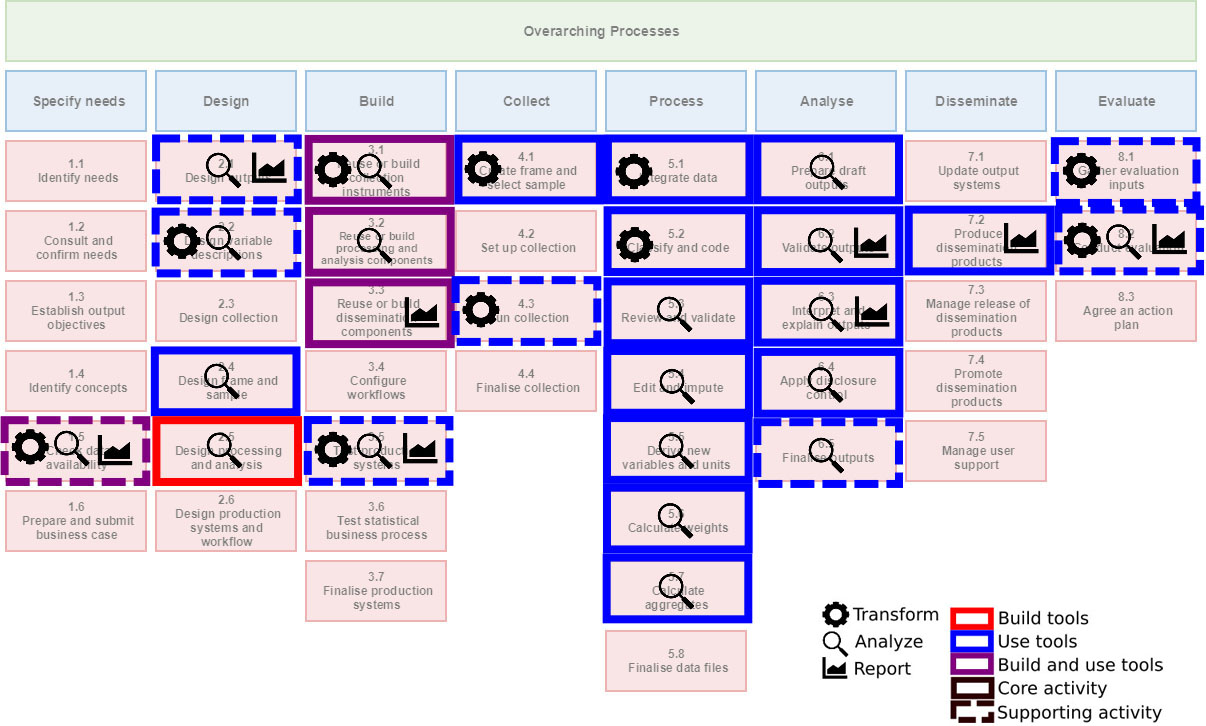

Figure 1 shows for which sub-processes in the statistical office computing plays an important role. A distinction is made between computing being the core activity (solid squares), supporting activity (dashed squares) or no computing involved (no square). We also indicate whether the computational activity concerns building computational tools (red), or using them (blue). A violet square indicates that both building and using takes place at the GSBPM activity. Finally, the labels inside the square indicate whether the computing involves mainly Transformation (cogwheel), Analysis (magnifying glass), or Reporting (graph), or a combination thereof. The results are also summarized in Table 1.

In what follows we focus on summarizing this analyses, and highlight a few cases where the classification was less obvious. A complete overview of the rationale behind the labeling found in Fig. 1 can be found in Appendix A.

We find that in 26 out of 44 business processes (60%) computation is either a core or a supporting activity. Unsurprisingly, computing is a core activity mainly in the ‘Build’, ‘Process’, and ‘Analyse’ phases of the GSBPM. One exception is activity 2.5: ‘Design processing and analyses’.

This sub-proces designs the statistical processing methodology to be appied during the ‘process’ and ‘analyse’ phases […].[12]

We interpreted this as to include methodological research and development of generic tools that make new methodology available, for example as an R package or Python module. In that reasoning, both the design (research) and implementing the methodology (building) are core activities in 2.5. The two other places outside of ‘Build’, ‘Process’ and ‘Analyze’ where computing is a core activity are sub-process 4.1, where sampling frames are created and sample selection takes place, and 7.2 where output in the form of graphs, tables, and maps are prepared.

In eight cases (almost 20%), computing is a supporting activity. An important case is sub-process 1.5: ‘Check data availability’. One sub-activity is checking whether traditional data sources can be (re)used to produce desired output. Such checks typically include data exploration and building prototype systems. However this activity also includes “research into potential administrative or other non-statistical sources of data” [12]. For new data sources this might imply a lot of computational work including data exploration, developing and testing new methodologies, and building prototype production systems. Recent examples include work on using new sources such as Mobile Network Operator (MNO) data [16, 17], or Automated Identification System (AIS) data [18]. Indeed, any data-driven approach to official statistics – recent ESS projects on Big Data being prime examples [19, 20], implies an important role for computing with data. Still, we judge that computing has a supporting role here since the subprocess yields a go/no-go decision that is informed by computation amongst other considerations.

Other places where computing has a mostly supporting role include most of the ‘Design’ (2) and ‘Evaluate‘ (8) phases.

The types of computation indicated as ‘Transform’ play a role in nine GSBPM sub-processes, including four core computational sub-processes in the ‘Build’, ‘Collect’ and ‘Process’ phases. Sub-process 4.1 (create frame and select sample), directly falls under the definition of Section 2.1. In sub-process 3.1 (reuse or build collecting instruments), data transformation plays a role for example in developing and testing web scrapers or software for harvesting sensor data. In this case we again interpreted the GSBPM in a context beyond survey and administrative data.

We see that the ‘Analyses’ type of computation, (see Section 2.1) plays a role in no less than nineteen GSBPM sub-processes. Thirteen of those are processes where computation is a core activity and nine of those again are in the ‘Process’ or ‘Analyze’ phase. Analyzing data and building tools for data analyses are clearly and unsurprisingly important skills in the statistical office. Indeed, ‘Analyses’ is a relevant type of computing in every phase except in the ‘Dissemination’ phase. In the ‘Specify needs’, ‘Process’, ‘Analyse’ and ‘Evaluate’ phases, the emphasis is on the modeling and aggregation side of ‘Analysis’, while in the ‘Design’ and ‘Build’ phases, the implementation of new algorithms and configuration of production systems plays a more prominent role.

The most important roles for ‘Reporting’ are in 7.2 where output visualisations are created, and in the Analyse phase where they are used to analyze and interpret the output. In the Specify needs, Design, and Evaluate phases, ‘Reporting’ plays a supporting role.

In summary, we find that computing plays a significant role in more than half of of all GSBPM processes. In 40% of all processes it is a core activity. Transformation as a type of computation plays a role in one out of four GSBPM sub-processes; Analyses in four out of ten, and reporting in almost twenty percent of all GSBPM sub-processes.

3.1 The research software engineer

The term research software engineer (RSE) is one of the professional roles emerging in academia and data-intensive industries [21, 22]. According to the OECD, “an RSE is responsible for software engineering based on an understanding of the research goals” while a data analyst is responsible for conducting analysis on the data based on an understanding of software [22]. NSIs usually define formal roles for data analysts, IT developers, and methodologists. Without a formal place for RSEs, the tasks that typically fit an RSE must then be divided over those three roles.

Although the role of RSE was originally defined in the context of academic research [13], this role is certainly relevant for a data-intensive field like Official Statistics. After all, statistical offices abide by scientific principles [23] and measuring the state of society should in this sense be interpreted as a long-term research project.

Moreover, as data-driven approaches to producing Official Statistics become more important [24], the process of developing new production systems will mimic development processes that are typical for research software, rather than traditional IT software development processes. The latter is driven by specifications derived from output quality requriements defined by users, while the former is driven by exploration and the question of what can be achieved with a given data source. This means that both understanding the research goals and understanding research as an endevour are important skills for anyone building a modern statistics production system. Neither of these capacities are associated with IT development. On the other hand, the capacities that are associated with IT development, such as solid software engineering skills are not associated with data analysts and methodologists. Thus, the role of RSE is defined to fill that gap.

Indeed, organisations such as the OECD [22] and the Society of Research Software Engineers [25] urge academia and data intensive organisations to formally define a role for RSEs. Explicitly, “There is a need for digitally skilled researchers as well as a new cadre of professional support staff, most notably data stewards and RSEs.” and “There is a need for incentive mechanisms both for researchers and research support professionals to encourage and reward acquisition and application of digital skills. There are a number of published reports that emphasise the lack of incentives and career paths for digitally skilled personnel” [22]. Although the last remark refers to reports that study academic careers [26, 27], we consider it unlikely that the situation is different for Statistical Offices, simply because the role of RSE has yet to be recognized.

At this point it is good to distinguish between an RSE and a data scientist. Although the skill set of a data scientist sits somewhere between those of a data analyst, a methodologist, and an IT developer, the focus of data science is still more on analyzing data using existing software then on delivering new software. As an illustration, a data scientist could train a machine learning model that can be used in a specific production process, while an RSE could write a generic methodological software library that can be used across different production processes.

Although the literature on RSE does mention the lack of career paths, no explicit mention appears to be made on how such a career path might look like. For this we propose a simple junior-medior-senior model to indicate at which levels an RSE might operate in the statistical office.

Following common practice in IT and data science we describe three persona’s: a junior, medior, and senior RSE. This proposal should be understood as a first attempt to start the discussion on the role of RSEs in the official statistics community, and not as the final word on it. We give informal descriptions of both technical and soft skills.

A Junior RSE is capable of programming in several programming languages, including at least SQL, a scripting language like R or Python, and has at least some experience with a compiled language like C/C++ or Java. Junior RSEs have a firm grasp of basic programming constructs including functions, scope control structures, object orientation and perhaps functional programming. They also know about the importance of (unit) testing frameworks, documentation, and version control and are capable of using those when asked. Junior RSEs are assigned development tasks such as programming small-scale data processing systems or parts of larger systems but they do not necessarily design them. A Junior RSE has basic knowledge of data representation, encoding, and numerical issues and knows when problems in these areas may arise. They are proficient with basic digital skills such as working with different file formats, file systems, and operating systems. As somebody who works in official statistics, they have experience with data modeling and analyses and they have at least once learned the math behind it. In projects, a Junior provides input for making (design) decisions but typically does not make them.

A Medior RSE has all the skills of a Junior RSE but is also capable of analyzing user needs and translating that into a technical design for small to medium-sized production systems. This includes setting up formal data base schemas, and defining independent steps with their in- and output in a production process. Mediors have intimate knowledge of at least one or several of the computational topics related to Official Statistics such as advanced survey methods, seasonal adjustment, or SDC. They have sufficient knowledge of numerical methods and optimization to implement a professional and generic library in their area of expertise. There is at least one programming language in which they are so fluent that they can read and write it as if it was their natural language. Mediors can also distinguish between cases where hardware is the bottleneck versus when algorithms need to be redesigned, and can advise on such matters. They have a firm grasp of numerical methods and have at least once learned the math behind it. Juniors will typically ask mediors for advice when facing design or programming problems. Mediors also coach juniors and teach courses in their area of expertise. Mediors can be asked to participate in research for example to create better libraries or better methods in their area of expertise. Some of them (co)author articles and speak at conferences and user meetings. They are, in any case, well informed about the latest progress in their field. In projects, mediors contribute actively to decision making, often providing decisive input.

The Senior RSE has all the skills of a medior RSE, but is capable of designing complex production systems and libraries on both logical and technical level. A Senior is a recognized research-level expert in at least one computational topic of Fig. 2. This recognition is demonstrated by active contributions to the field, inside and outside the statistical office. For example by writing scientific publications and conference contributions. The work of a Senior may include designing or overseeing the design of complex production systems, and defining new research questions. A senior RSE is an experienced coach and leader of (research) projects. In this role, seniors have a network inside the statistical office and beyond. They are are capable of advising senior or strategic management regarding policies related to technical software and long-term research planning.

Needless to say, none of these personas can be represented in a single person. Figure 2 already demonstrates that computing in the statistical office requires teams rather than individuals. However, we hope that the above discussion will help starting a discussion on the role of Research Software Engineers in Official Statistics.

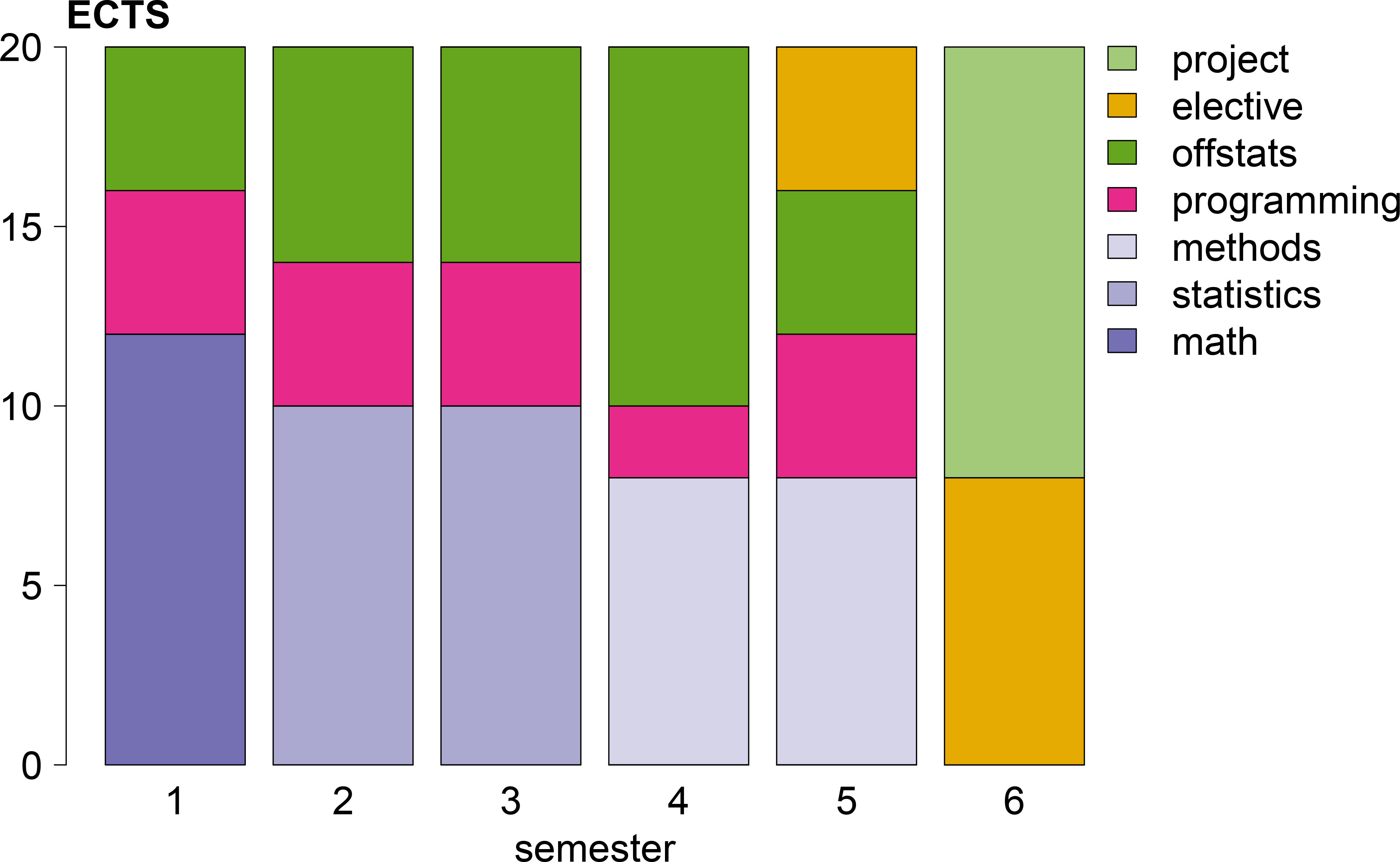

The first semester mostly prepares for topics that follow. It teaches basic mathematical and programming skills, and introduces the students to public administration and the role of official statistics. The calculus course focuses on investigating functions and optimization, since many methodological problems in official statistics can be written as (constrained) optimization problems. Similarly, one of the most important results of the linear algebra course is an understanding of eigenvalues and eigenvectors as this underpins many statistical models, including PCA. In order to make students thoroughly digitally capable, they will be programming throughout almost the whole curriculum. Semester 1 starts with a basic course in programming an algorithmic thinking.

Semester 1

Calculus (6 ECTS): Set theory, calculus on the real line, investigating functions, multivariate calculus, the Lagrange method.

Semester 2 introduces more basic math and programming skills and the first main phenomenon measured in official statistics: economy. Needless to say that this topic is extremely broad and subtopics can not be treated in any depth. However, there is room for electives later on in the curriculum that allow interested students to gain more in-depth knowledge of particular topics. The current economics course focuses on the main macro-economic concepts and discusses how phenomena are measured in practice in official statistics. The Probability and statistics course builds an understanding of probability and survey sampling and prepares for later work on advanced (survey) methods and statistical analyses. The course on linear programming builds on the technical topics from the first semester and will allow students later on to formulate problems concerning for example data cleaning and disclosure control. The course on programming with data brings the probability and statistics course into practice, and starts teaching good programming practices such as reproducibility and version control.

Semester 2

Probability and statistics I (6 ECTS): Probability, discrete and continuous distributions, measures of location and variation, Bayes’ rule, sampling distributions, estimation of mean and variance, CLT, ANOVA, linear models.

Semester 3 builds upon the mathematical and programming skills developed in Semesters 1 and 2 by treating advanced modeling and inference. It also introduces the second major phenomenon measured in official statistics: demography. The subtopics are based on the book by Preston [33] and should also include the main demographic surveys (census, household survey, … ). The programming course focuses on data representation, data management and metadata.

Semester 3

Models in computational statistics (6 ECTS): GLM, regularization, Tree models, Random Forest, SVM, unsupervised learning, model selection, lab with practical assignments.

The fourth semester is to a large extend devoted to methods that are specific to official statistics. It builds upon the basic mathematical, programming and optimization techniques that were developed in the previous semesters. Topics include advanced survey sampling methodology and advanced methods for analyzing surveys as well as time series analyses. The time series course should be followed by the course on index numbers, another one of the most important outputs of official statistics. We also introduce big data infrastructure mainly in a short practical project. Finally, there is a course in ethics and philosophy of science since any academic should be able reflect on the value of their field, it’s place in society, and the ethical responsibilities of a scientist.

Semester 4

Methods for official statistics I (4 ECTS): Advanced survey methods, weighting and estimation, calibration, SAE, handling non-response.

The fifth semester moves on with more methodology specific to Official Statistics, including SDC, Data Editing, and Questionnaire design. There is a large programming project where a student needs to demonstrate computational knowledge gained across the previous semesters. Furthermore, there is 4 ECTS room for elective courses, allowing the student to prepare for the final assignment in semester six.

Semester 5

Methods for official statistics III (4 ECTS): Principles of data editing, Fellegi-Holt error localization, methods for imputation.

The last semester consists of 8 ECTS of elective courses in a specialisation chosen by the student. This may be in one of the domains (economy, demography) or in a technical or methodological area. There is also a larger 12 ECTS research project ending with a thesis.

Semester 6

Elective courses (8 ECTS): Preparing for thesis research.
