QALD-10 – The 10th challenge on question answering over linked data

1.1. The rise of Wikidata in KGQA

Among the general-domain KGs (knowledge graph) like Freebase [3], DBpedia [19], and Wikidata [44], the latter has become a focus of interest in the community. While Freebase was discontinued, DBpedia is still active and updated on a monthly basis. It contains information that is automatically extracted from Wikipedia infoboxes, causing an overlap. However, Wikidata is community-driven and continuously updated through user input. Moreover, the qualifier model1

Several works have contributed to the extension of the multilingual coverage of KGQA benchmarks. The authors of [48] were the first who manually translated LC-QuAD 2.0 [12] (an English KGQA benchmarking dataset on DBpedia) to Chinese. However, languages besides English and Chinese are not covered and the work does not provide a deeper analysis of the issues with the SPARQL query generation process faced when working with Wikidata. The RuBQ benchmark series [17,26] which was initially based on questions from Russian quizzes (totaling 2,910 questions) has also been translated to English via machine translation. The SPARQL queries over Wikidata were generated automatically and manually validated by the authors. The CWQ [8] benchmark provides questions in Hebrew, Kannada, Chinese, and English, with the non-English questions translated by machine translation with manual adjustments. The QALD-9-plus benchmark [22] introduced improvements and an extension of the multilingual translations in its previous version – QALD-9 [39] – by involving crowd-workers with native-level language skills for high-quality translations from English to their native languages as well as validation. In addition, the authors manually transformed gold standard queries from DBpedia to Wikidata.

In this paper, we present the latest version of the QALD benchmark series – QALD-10 – a novel Wikidata-based benchmarking dataset. It was piloted as a test set for the 10th QALD challenge within the 7th Workshop on Natural Language Interfaces for the Web of Data (NLIWoD) [47]. This challenge uses QALD-9-plus as training set and the QALD-10 benchmark dataset as test set. QALD-10 is publicly available in our GitHub repository.2

The QALD-10 challenge test set (with 394 question pairs), in contrast, was created from scratch. In the first step, we collected 500 natural language questions in English from speakers with at least a C1-level language proficiency in accordance with the Common European Framework of Reference for Languages (CEFR) [7]. We collected equal amounts of questions from each participant to ensure that the questions are unbiased and express real-world information needs. Questions vary with respect to their complexity type, including questions with counts (e.g., How many children does Eddie Murphy have?), superlatives (e.g., Which museum in New York has the most visitors?), comparatives (e.g., Is Lake Baikal bigger than the Great Bear Lake?), and temporal aggregators (e.g., How many companies were founded in the same year as Google?).

2.2. Multilingual translations

To tackle the first challenge, the translations from English to Chinese, German, and Russian were created by crowd-workers in two steps: (1) each English question was translated into the target language by two native speakers, (2) the translations from the previous step were validated by another native speaker. To reduce ambiguity, the named entities in the questions were manually annotated with their Wikidata URIs (Uniform Resource Identifier) before translation. The crowd-workers were asked to follow the Wikidata label of a particular entity in their native language during the translation process. Note that 12 of the Wikidata items did not have Chinese versions so the respective questions could not be labeled accordingly. For instance, the entity “The Vanishing Half” (Wikidata ID: wd:Q98476957 ) in the question In which year was the author of “The Vanishing Half” born? did not have a Chinese entry.

2.3. From natural language question to SPARQL query

To tackle the second challenge, the final set of questions was manually transformed into complex SPARQL queries over Wikidata by a group of computer scientists with complementary skills and knowledge. The incompleteness of Wikidata regarding some of the multilingual labels and the lack of an ontology caused challenges in the SPARQL query generation process. These are listed and discussed in detail in Section 5. The gold standard answers to the questions were retrieved by querying over our own Wikidata endpoint which is also available online.

2.4. Stable SPARQL endpoint

Due to the constant updates of KGs like Wikidata, outdated SPARQL queries or changed answers can commonly cause problems for KGQA benchmarks. KG updates usually concern (1) structural changes, e.g., renaming of properties, or (2) alignment with changes in the real world, e.g., when a state has appointed a new president. According to our preliminary analysis on the LC-QuAD 2 benchmark [12], a large number of queries are no longer answerable on the current version of Wikidata. The original dump used to create the benchmark is no longer available online.7

Note, since the QALD-10 challenge training set was created before we set up this endpoint, some answers and queries had to be changed from the original release of QALD-9-plus. That is, the QALD-9-plus original data and the one used as QALD-10 challenge training data are different. Different versions are recorded as releases in the GitHub repository.10

The F-measure is one of the most commonly used metrics to evaluate KGQA systems, according to an up-to-date leaderboard [24]. It is calculated based on Precision and Recall and, thus, indicates a system’s capacity to retrieve the right answer in terms of quality and quantity [21]. However, the KGQA evaluation has certain special cases due to empty answers (see also GERBIL QA [42]). Therefore, a modification was made to the standard F-measure to better indicate a system’s performance on KGQA benchmarks. More specifically, when the golden answer is empty, Precision, Recall, and F-measure of this question pair receive a value of 1 only if an empty answer is returned by the system. Otherwise, it is counted as a mismatch and the metrics are set to 0. Reversely, if the system gives an empty answer to a question for which the golden answer is not empty, this will also be counted as a mismatch. Our analyses consider both micro- and macro-averaging strategies. These two averaging strategies are automatically inferred by the GERBIL system.

During the challenge, only the Macro F1 QALD measure was used to rank the systems. This resulted from community requests12

The GERBIL system was originally created as a benchmarking system for named entity recognition and linking; it also follows the FAIR principles. It has been widely used for evaluation and shared tasks for its fast processing speed and availability. Later, it was extended to support the evaluation of the KGQA systems. While adopting the GERBIL framework, the evaluation can simply be done by uploading the answers produced by a system via web interface or RESTful API.13

To promote the reproducibility of the KGQA systems and open information access, we uploaded the test result of all systems to a curated leaderboard [24].15

After six registrations, five teams were able to join the final evaluation. Allowing file-based submissions rather than requiring web service-based submissions led to a higher number of submissions and fewer complaints by the participants compared to previous years. Thus, unfortunately, the goal of FAIR and replicable experiments is still unreached for KGQA. Among the participating systems, three systems papers were accepted to the workshop hosting the challenge.

QAnswer [10] is a rule-based system using a combinatorial approach to generate SPARQL queries from natural language questions, leveraging the semantics encoded in the underlying knowledge graph. It can answer questions on both DBpedia and Wikidata supporting English, French, German, Italian, Russian, Spanish, Portuguese, Arabic, and Chinese. This system, which does not require training, is run as a baseline system for our challenge due to its capacity to tackle multilingual data.

SPARQL-QA [ 30 ] is a QA system that exploits Neural Machine Translation (NMT) and Named Entity Recognition (NER) modules to create SPARQL queries from natural language questions. The MNT module translates the question into a SPARQL query template in which the KG resources are replaced by placeholders, while the NER module identifies and classifies the entities present in the question. The outputs of two modules are merged to produce a new equivalent of the original SPARQL query to be executed over Wikidata, by replacing the placeholders in the template with the corresponding named entities. An uniform input format, namely QQT (Question, Query Template and Tagging), is introduced to ensure training two modules together and reduce the impact of out-of-vocabulary (OOV) words.

Shivashankar et al. [ 31 ] presented a graph-to-graph transformation-based QA system using an Abstract Meaning Representation (AMR) graph to generate SPARQL queries, leveraging its ability to represent the semantics of a natural language. For a given question, its AMR graph is generated using a pre-trained multilingual AMR parser and simplified by removing unnecessary nodes and information. All possible executable SPARQL graphs are extracted from its simplified AMR graph. The system supports English and German questions.

Baramiia et al. [ 2 ] developed a QA system that first learns to predict representations of entities and properties which are close to correct queries and far from the others. It then finds the top-k nearest to the correct query via Scalable Nearest Neighbors method with the dot product similarity measure. It natively supports English but can be extended to the multilingual case using Transformers trained in other languages.

Suraj Singh and Dmitrii Gavrilev16

All systems were evaluated on the test set of QALD-10 challenge before the challenge. Participants had to upload a file their QA system generates, upload it to the GERBIL system. which would output an URL based on submission. Participants submit the GERBIL URL with their final results. Table 2 shows the systems and their performances with links to GERBIL QA. In 2022, SPARQL-QA [30] won the QALD-10 challenge.

When answering complex questions, KGQA systems are required to generate corresponding complex formal (SPARQL) queries, e.g., with multiple hops or constraint filters, that can represent and allow to answer them correctly. One way to represent the complexity of queries can be represented by the frequencies of modifiers (e.g., LIMIT or COUNT) that occurred in the queries. Table 4 shows the frequencies of each modifier represented in the QALD-10 test set and the different subsets of the QALD-9-plus benchmark, respectively. For QALD-9-plus, the Wikidata-based datasets use less modifiers than their DBpedia counterparts for the same set of questions. However, the results suggest that the proposed benchmark is way more complex than QALD-9-plus in terms of various important modifiers. A more detailed analysis of the complexity is done in the following text. In terms of significant modifiers such as COUNT, FILTER, ASK, GROUP BY, OFFSET, and YEAR, our benchmark has a significantly higher number than others. As to the modifiers such as LIMIT, ORDER BY, UNION, HAVING and NOW, this benchmark is close to the frequencies in the other datasets.

To measure structural query complexity, we calculate the Mean and Standard Deviation (SD) values for the distributions of three query features respectively: number of triple patterns, number of join operators, as well as joint vertex degree (see the definitions in [29]). These features are often considered as a measure of structural query complexity when designing new SPARQL benchmarks [27–29]. The corresponding results are presented in Table 5. Again, the Wikidata-based datasets of QALD-9-plus have a lower distribution mean than their DBpedia counterparts and, thus, a lower complexity in general. Compared to the QALD-9-plus test sets, the QALD-10 test has a higher variation for the number of triple patterns and the number of join operators, as well as the second largest SD for joint vertex degree. This can be interpreted as getting the correct answers for the QALD-10 benchmark might be more difficult due to a wider range of possible SPARQL queries as compared to QALD-9-Plus

4.3. Query diversity score

From the previous results, it is still difficult to establish the final complexity of the complete benchmark. To this end, we calculate the diversity score (DS) of the complete benchmark B, formally defined as follows [29]. (1) DS = 1 k ∑ i = 1 k σ i ( B ) μ i ( B ) where, μ and σ are the Mean and Standard Deviation of a given distribution with respect to the i -th feature, respectively. The k is the total number of query features analyzed in B. In this work, the query features chosen are the number of triple patterns, the number of joins, and the joint vertex degree. Table 6 shows the diversity scores (the higher the score the more complex the queries) of different QALD benchmarks. We observe that the QALD-10 test set has the highest diversity score ( DS = 1.275 ) compared to the other benchmarks, hence it is a good starting point for template-based KGQA benchmark generation approaches aiming at diverse, complex, large-scale characteristics.

5.1. Ambiguity of the natural language question

The question What is the biggest city in the world? could be asking for the most populous city or the geographically largest city. This is an example for an ambiguous natural language question. We tried to circumvent this type of questions by specifically, asking crowd-workers to phrase their questions precisely. After data collection, we chose the most reasonable interpretation based on real world experience, where necessary. Thus, in the example above, the question was changed to What is the most populous city in the world?. Some questions, however, remain vague and consequently correspond to multiple SPARQL queries. For instance, the question: How many spouses do head of states have on average? translates to:

where we used a head of state-property. However, using a head of state-class would also be feasible, leading to the SPARQL query below. There is no good way to make the question clearer except if one specifies the actual Wikidata elements, which is not realistic for real-world questions.

5.2. Incompleteness of Wikidata

Due to the incompleteness of Wikidata, some of the entity labels do not translate to all languages of interest (see Section 2.2). To avoid unanswerable questions, we supplemented the online Wikidata by manually adding a translation approved by a linguist. However, this update is not shown in our stable endpoint which has a fixed Wikidata dump. Consequently, the labels are still missing but the questions-query-answer tuples are inserted into QALD-10 benchmark dataset.

Another issue that can arise from Wikidata’s incompleteness is that data necessary to answer specific SPARQL queries can be missing. In this case, the answer can not be retrieved by a correct SPARQL query since there are no suitable triples available directly. In our benchmark, questions of this category were deleted.

5.3. Ambiguity of SPARQL queries in Wikidata due to ranking of properties

Ambiguities of SPARQL queries in Wikidata are connected to the ranking mechanism of Wikidata. This mechanism allows to annotate statements with preference information.18

This makes “wdt” the go-to choice to find the most recent value of well-maintained properties, like head of state, which (most of the time) has the preferred rank reserved for the active head of state. The ranking mechanism also introduces semantic errors if the ranks get modified after creating the query. The ranking mechanism as a speciality of Wikidata challenges KGQA systems even more.

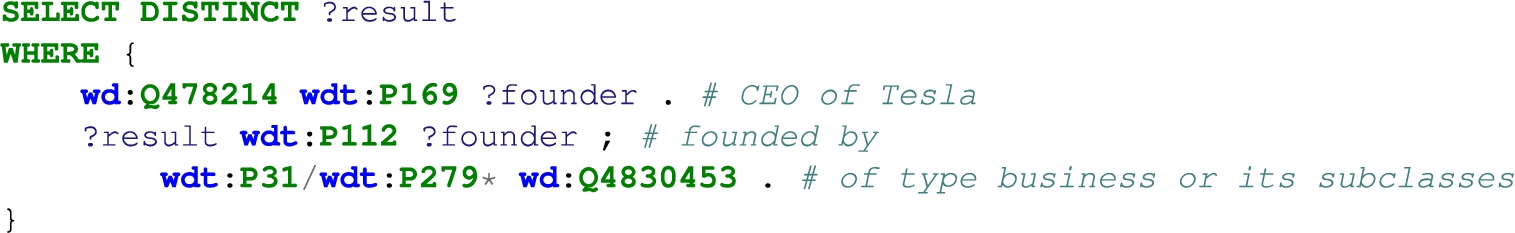

When a question gets complex, it is problematic to guarantee the correctness and completeness of its query e.g., Which businesses are founded by the person in charge of Tesla?. Here, our intuitive solution would be:

Despite the exact term “business” being signified, in QALD-10 benchmark dataset, we use a property path in the last BGP 21

The limit on returned answers is a significant problem in creating this dataset. A substantial amount of questions have a limited result set due to Wikidata’s factual base. For instance, the question: List the novels that won the Modern Library 100 Best Novels ( wd:Q671613 )? has one answer although one would expect 100 results with common sense. As a result, we discarded such questions from QALD-10 test set to maintain a righteous benchmark.

5.5. Special characters

A number of questions are based on special characters. For instance questions, Find all Turkish verbs ending with “uş” in their lemma. and When did the district of Höxter come into existence? have special characters or ask for special Wikidata properties (see example below). We tried to keep those kinds of questions with their corresponding queries as much as possible to foster multilingual KGQA research.

5.6. Computational limitations in SPARQL

SPARQL has limited capabilities to deal with numbers. For instance, there is a lack of native normalization for numeric values in Wikidata. For instance, a comparison or SPARQL result modifier like below does not take units into account:

Therefore, 100 centimeters could be bigger than 10 meters. The following query takes units into account but requires a more complicated structure:

Hence, simple comparison queries may require a high level of expertise of the Wikidata schema, which makes the KGQA task on these questions more challenging. Also, there are rounding errors in calculations. For instance, corresponding to question: How many years did Steve Jobs take the role of Apple CEO?, the SPARQL would be:

The answer based on common sense is “14”, however, the query execution produces the following: ?st = “01-09-1997”, ?et = “23-08-2011”, resulting in only 13 full years. Thus, KGQA systems without common-sense reasoning capabilities fail in parts of the QALD-10 test set.

5.7. Endpoint version changes

Finally, version changes in the endpoint and endpoint technology, especially when switching between the graph stores HDT [13] and Fuseki,22
