Characterization of a retromolar foramen in a Chinese population: A radiographic study

1. Introduction

Retromolar canal (RMC), an anatomical variation in the posterior mandible, arises from the mandibular canal (MC) behind the second or third molar and travels anterosuperiorly to a retromolar foramen (RMF), which is located on the surface of the mandibular retromolar area, within or around the retromolar triangle (RMT) [1]. RMCs contain a myelinated nerve branching from the inferior alveolar nerve, small arteries, and venules [2, 3, 4].

RMCs and RMFs have generally been ignored in anatomical textbooks and have rarely been reviewed or studied in the anatomical and dental literature until the last decades [5, 6, 7]. With the development of radiography in recent years, especially clinic application of CBCT, RMCs, and RMFs were found to be associated with several surgical complications during dental surgical procedures in the RMT region, such as local anesthetic failure, local hemorrhage during procedures and postoperative loss of sensation in the normal distribution of the buccal nerve [8, 9, 10, 11]. The existence of RMCs and RMFs increases the risks of oral operations involving the mandibular molar area and the retromolar region, like dental implant treatment, mandibular sagittal split surgery, impacted third molar extraction, and autologous bone harvesting [12].

Therefore, some studies on RMF incidence and RMC classification in different countries and populations [13, 14, 15, 16, 17, 18] have been reported aiming to facilitate surgical intervention and protect patients from potential complications. However, few studies have been few reported to address the anatomy of RMF in a Chinese population. Thus, we aimed to characterize RMFs in a Chinese population through anatomical study and periapical radiography.

2. Method

123 dry cadaveric mandibles from Chinese adults of unknown sex or age were obtained from Southern Medical University (Guangzhou, China). All specimens were morphologically representative adult mandibles without atrophy or partial damage. To observe the presence of RMF (bilateral or unilateral), and its relationships with the last tooth.

RMFs were determined using a non-beveled stainless steel orthodontic wire with a diameter of 0.5 mm [5], which was required to enter a possible RMF without a resistant force. A foramen with a diameter of less than 0.5 mm was not regarded as an RMF. After an RMF was identified, gutta-percha was introduced into it, and a steel wire was introduced into the mandibular canal for radiography to show the RMC course. The diameter of each RMF and its distances to the distal edge of the last tooth (or the alveolar fossa), to the lingual cortex, and the buccal cortex was measured using a vernier caliper.

All measurements were performed independently by two dentists and repeated three times. To ensure the accuracy of the data, we calculated the average of each measurement. Unpaired two-sample t -tests were used to determine whether there were between-group differences concerning for RMF diameter and the distances from RMF to the lingual cortex, the buccal cortex, and the last tooth. We also sought to determine the association between the presence of RMCs or RMFs and the presence of the third molar using Pearson’s chi-square test. All statistical analyses in this paper were performed using SAS 9.4 (SAS Institute, Inc., Cary, NC, USA).

3. Results

In this study, RMFs were identified in 39 out of the 123 mandibles (31.71%). Of the 39 mandibles, RMF was found on the left side in 13 (33.33%), on the right side in 15 (38.46%), and on the bilateral side in 11 (28.21%) (Table 1). Interestingly, we observed double left RMFs in 2 mandibles, double right RMFs in 2 mandibles, and double bilateral RMFs in 1 mandible (Fig. 1).

Periapical radiography revealed two origins of RMCs in 56 RMFs. 29 RMCs (51.79%) originated from the mandibular canal and 27 (48.21%) from the alveolar fossa of the second or third molar. Accordingly, we classified RMCs into two types: the MC type originated from the mandibular canal and the AF type originated from the alveolar fossa (Fig. 2).

OPEN IN VIEWER

OPEN IN VIEWER

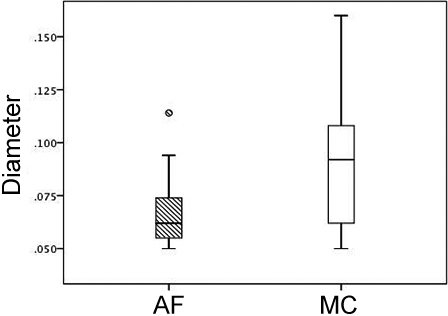

The average diameters of MC and AF types were 0.89 ± 0.31 mm and 0.67 ± 0.16, respectively (Table 2). A Comparison of the average diameters for the two types by a t -test showed P = 0.0010, indicating a significant difference between the two types in diameter (Fig. 3). Therefore, RMFs connected to the mandibular canal had a larger diameter than RMFs connected to the alveolar fossa. However, no significant between-group differences were observed in the distances to the buccal cortex, the lingual cortex, or the last tooth (Figs 4–6). Pearson’s chi-square test demonstrated no association between the presence of RMCs or RMFs and the presence of the third molar ( P = 0.6724).

OPEN IN VIEWER

OPEN IN VIEWER

OPEN IN VIEWER

OPEN IN VIEWER

It can definitively be stated that in cases which involving local anesthetic failure, local hemorrhage during procedures, and/or postoperative loss of sensation in the normal distribution of the buccal nerve, dentists are advised to consider an RMC as a possible cause [19]. Considering these syndromes mainly occur in an impacted third molar extraction, we wonder whether there may be any association between the presence of RMCs or RMFs and presence of the third molar. Pearson’s chi-square test demonstrated no such an association. Dentists usually make a definite diagnosis of an impacted third molar by panoramic radiography, by which it cannot identify the existence of RMF as it is by CBCT [20]. Since the existence of RMF cannot be judged by the existence of a third molar, we suggest that to identify an RMF, a CBCT should be conducted before an impacted third molar extraction to reduce associated syndromes.

Previously published studies have indicated that the incidence of RMFs ranges from 1.7% to 75.4% in different populations [13, 14, 15, 16, 17, 18]. This difference is likely attributable to several factors, such as ethnic differences, genetic or environmental characteristics, and various sample sizes of the studies concerned. In our study, the incidence of RMFs we found was 31.71% in Chinese mandibles, similar to the data reported by Rossi in a Brazilian investigation [21]. However, we found it interesting that even in a single ethnic group, various incidences of RMFs were reported in neighboring populations and countries. For example, the incidence reported by Japanese investigations can be as low as 3.2% and as high as 75.4% [8, 13]. All these variations might imply that the incidence of RMFs can be an issue that is more complex than we imagined. Its influencing factors may be worthy of further research. The absence of uniform study design or inclusion criteria across studies might have been a significant one.

We tried to improve our study design and inclusion criteria in our study. First, we used a minimum diameter of 0.5 mm following the approach employed by Ossenberg rather than the 1.0 mm threshold utilized by Bilecenoglu [6, 8] because in several reports [22], canals with a diameter of less than 1.0 mm had been found by CBCT to be connected to mandibular canals. Such canals would have been excluded if an inclusion criterion of 1.0 mm had been applied. We found several RMCs with a diameter of less than 1.0 mm in this study. Secondly, we introduced gutta-percha rather than a steel wire into RMFs to visualize the passway and origin of each RMC because of the flexibility and radiodensity of gutta-percha. This approach resulted in clear and distinct periapical radiographic images [23]. Additionally, we believed as steel wire is not soft enough, it can destroy the skeletal structure and incorrect visualization of the mandible.

In Sisman’s classification [24], RMCs were classified by their pathway and direction, but we classified RMCs by their origin, mandibular canal, or alveolar fossa. Generally, RMCs are believed to originate from the mandibular canal. Unexpectedly, we found 27 RMCs (48.21%) originating from the alveolar fossa rather than the mandibular canal. We found that the two types of RMFs are in a constant area since there are no significant differences in the distances to the buccal cortex, the lingual cortex, or the last tooth. However, we found that RMCs connected to the mandibular canal had a significantly larger average diameter than those connected to the alveolar fossa. Did they have the same contents now that the two distinct types of RMCs had different diameters? It has been postulated that the contents of RMFs and RMCs consist of small arteries and venules and a thinly myelinated nerve branching from the inferior alveolar nerve [2, 25]. However, the postulation cannot explain why there exists a type of RMC originating from the alveolar fossa rather than from the mandibular canal, and why the two distinct types of RMCs have different diameters. The findings in the present study on the RMFs reminded us of what we have observed in the clinic regarding the contents of RMCs. In clinical practice, we sometimes found in an impacted third molar operation that a wispy retromolar blood vessel from the RMF was too thin compared with the descriptions and photos in the reports published on similar surgery [6, 22, 26]. This indicates that the contents of RMCs may be varied. Our findings in the present study led us to believe that RMCs of AF type might contain only tiny blood vessels without a nerve originating from the inferior alveolar nerve. In contrast, RMCs of MC type might contain a neurovascular bundle originating from the mandibular canal. If the contents of RMCs can be clarified, it is of great significance to dental surgery.

However, the above speculation, though somewhat reasonable, is the major limitation of the present study. Clarifying the contents of the two types of RMCs needs further micro-anatomic in vivo study in new mandibles. We only had dry mandibles available for this study. Apart from what we characterized here about RMCs in a limited number of Chinese mandibles, there must be much to be investigated about this anatomic variation. Why do RMCs arise? Have we known all of its possible clinical significance? What are their possible mechanisms? Why do they vary in origin? How do they vary across ethnic groups? All these problems are so attractive that further research using various means and data available is worthy and necessary.

5. Conclusions

In this study, RMCs can be classified into two types by their origins, MC ones originating from the mandibular canal and AF ones originating from the alveolar fossa. The incidence of RMFs in Chinese may be about one-third. It is clinically significant to localize RMCs accurately before dentoalveolar surgery, which is a potential factor in the onset of surgery accidents. The clinician must consider modifying the dental treatment plan to prevent complications during the treatment procedure.
