A new approach to develop computer-aided diagnosis scheme of breast mass classification using deep learning technology

1 Introduction

Breast cancer is the most prevalent cancer occurred in women, which accounts for 29% of all cancer cases and 13% of all cancer related deaths in women in USA [1]. In order to reduce breast cancer mortality rates, mammography screening is currently recommended and implemented as the only clinically acceptable imaging modality for the population-based breast cancer screening. However, breast lesions are very heterogeneous and the suspicious breast lesions are often overlapped with dense fibro-glandular tissue on the mammograms. It is quite difficult for radiologists to accurately distinguish between malignant and benign lesions [2], As a result, current mammography screening generates high false positive recall rates, which may potentially harm many cancer-free women routinely participating in the mammography screening [3]. Therefore, improving accuracy of classifying between malignant and benign lesions is an important and also difficult issue in current clinical practice.

For this purpose, in the last two decades, developing and testing computer-aided detection and diagnosis (CAD) schemes of mammograms have attracted wide research interest and efforts [4]. A typical CAD scheme processes each mammogram in three steps [5]. First, CAD searches for and segments the suspicious lesions from the image. Second, CAD computes a number of image features to extract characteristics of the segmented tumors. Third, CAD applies a machine learning based classifier based on a set of optimally selected features to predict the likelihood of the targeted lesion being associated with malignancy (“positive”). For the conventional CAD scheme, it is the critically important to accurately segment the lesion and identify the discriminatory image features, which directly determine the performance of the machine leaning classifier in the third step. However, accurate segmentation of breast masses from the mammograms is a major technical challenge in developing CAD schemes [6]. In addition, selecting effective image features heavily depends on the preference and/or prior experience of the CAD developers, as there are no commonly accepted methods or criteria for the feature selection. As a result, the existing CAD schemes generate high false-positive rates. It is controversial on whether using commercial CAD schemes can help radiologists improve cancer detection accuracy [7] or what the optimal approach is to use CAD cues in the clinical practice [8]. Despite the disappointment of using existing CAD schemes of mammograms in the clinical practice, researchers still believe that it is necessary to continuously explore and develop new CAD approaches [9], such as to cue more subtle lesions without increasing false-positive detections [10].

However, developing a computer-aided diagnosis scheme to classify between malignant and benign lesions is very different from detection of suspicious lesions. It has much higher requirement in lesion segmentation accuracy and identification of effective features [11]. Currently, no computer-aided diagnosis schemes are used in the clinical practice to help radiologists distinguish between malignant and benign lesions. In searching for new CAD concept and approaches, we noticed an emerging machine learning method of deep learning proposed in 2006 by Hinton et al. [12], which has attracted extensive research effort and tested in many engineering application fields requiring image and pattern recognition, detection, parsing, registration, and estimation [13]. Due to the unique characteristics and advantages, deep learning method has also recently been tested and reported in medical image analysis field. The researchers have tested the feasibility of applying the deep learning networks to segment or recognize, isointense stage brain tissues [14], pancreas organ [15], and neuronal membranes [16] from MR images, CT images, and electron microscopy images, respectively. In addition, researchers have also utilized the deep convolution neural networks (CNN) to detect the chest pathology [17] or classify between the mild cognitive impairment (MCI) and Alzheimer’s disease(AD) [18].

Compared to the traditional classifiers, deep learning based classifiers have significantly different network architecture and learning approach. A deep learning network contains more image processing layers (i.e. 5–20 layers [19]) than the conventional image feature based machine learning classifiers. Each layer is a typical neural network such as convolution neural network (CNN) [20]. Instead of using a set of manually or automatically selected image features computed from the images, the deep learning network utilizes image itself as a single input. The effective image features are automatically learned and extracted by the lower layer networks. Accordingly, the higher layer networks use the extracted feature patterns and classify the images into different target categories. Previous studies have shown that using deep learning based classifiers might help reduce the gap between human vision and computer vision in pattern recognition [21] and also enabled to achieve a substantially higher classification performance [22] than the conventional classifiers.

Recently, researchers have also tested the feasibility of applying deep learning methods to CAD of mammograms, which include classification of mammographic density [23], prediction of ort-term breast cancer risk [24] and discrimination of different types of micro-calcifications [25]. In this study, we applied the deep learning method to develop and test a new CAD scheme for classifying between malignant and benign mass based breast lesions. The objective of this study is to investigate and demonstrate the feasibility of whether applying a deep leaning based CAD scheme can yield higher or comparable lesion classification performance without a lesion segmentation as well as image feature computation and selection. The details of this study including the scheme development and scheme testing results are presented in the following sections.

2 Materials and methods

2.2 A deep learning based CAD scheme

In order to classify between malignant and benign lesions, we designed a deep learning based network. As demonstrated in Fig. 1, the network is composed of three pairs of convolution-max-pooling layers, one hidden layer, and one logistic regression layer. In this network, the first 3 pairs of the convolution-max-pooling layers are applied to automatically extract the features. The seventh hidden layer and the eighth logistic regression layer are used as a multiple layer perceptron (MLP) classifier to assign each testing case into malignant or benign case category. In order to effectively learn and extract the image features, we designed a convolution neural network (CNN), which is currently considered as the most effective neural network structure and has been widely used as the basic unit of the deep learning networks [20].

OPEN IN VIEWER

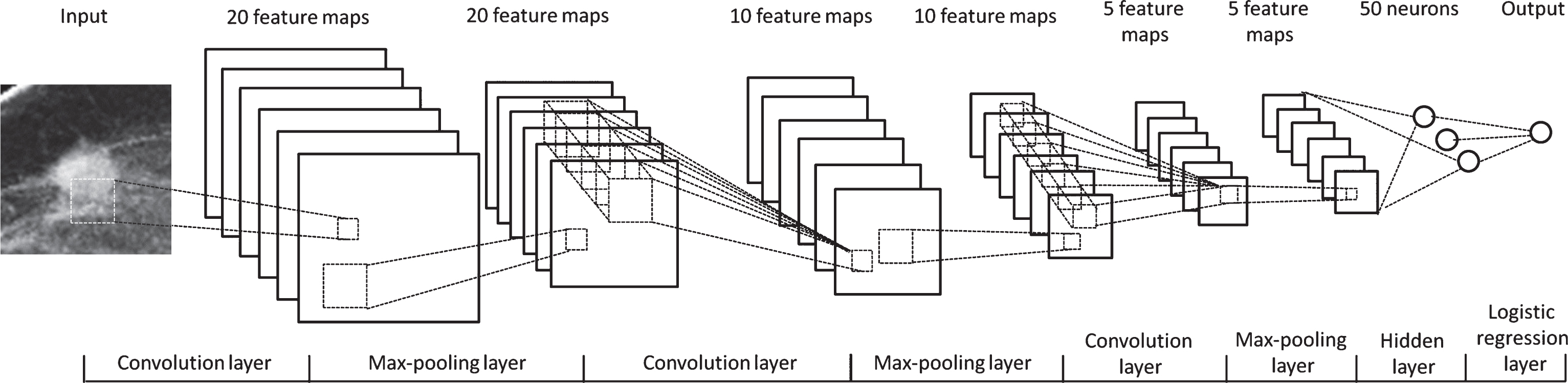

Fig.1

Architecture of the deep learning networks used for the mass classification.

Since a CNN applies different convolution kernels on input image, each kernel can be considered as one “feature”. In the deep learning networks, a number of CNNs are stacked to optimize the features [27]. In general, increasing the number of the CNN layers can increase the discriminatory power and may help improve the optimization effect. However, including more CNN layers requires a large volume training dataset and high computing power, which will significantly increase the training complexity [19, 28]. According to the previous studies, three convolution layers can achieve a satisfied performance in many different applications, and these architectures can also be accomplished under the single workstation environment [14]. Thus, a three convolution layer structure was selected and used to build a deep learning classifier for this new classification task.

From the previous CAD studies reported in the literature, we found that although a large number of image features [29, 30] could be computed, many of them are redundant and only a small set of features was finally selected to build a classifier [31]. The small number of features can typically improve robustness of the classifier with a limited training and testing dataset. Therefore, based on the limited dataset size, we designed a deep learning network that includes 3 layers to sequentially generate 20, 10, and 5 feature maps, respectively.

Using the 3 CNN layers, our deep learning network can automatically learn and define 5 optimal image features from the initial input of the training ROIs. Each layer applies a number of convolution kernels on the input images. The convolution kernel size of the feature map of these three layers are 9×9, 5×5, and 5×5, respectively, which were determined by the previous publication [14] and our own experimental experience. Given that the malignant (benign) breast lesions should be invariant in size (stretching) and rotation, a max-pooling layer is followed by each convolution layer to improve the network robustness. The pooling size is determined to be 2×2, which is most recommended in the previous studies [14]. The results generated by the 3 CNN layers are used as the input feature for the multiple layer perceptron based classifier in the seventh and eighth layers of the deep learningnetwork.

Accordingly, the entire architecture of the deep learning network is as follows: In the first pair of convolution-max-pooling layers, the first convolution layer is connected with the input image. In order to reduce the computing complexity and accelerate the training progress, we down sampled each ROI from 512×512 to 64×64 pixels using a traditional averaging method. Thus, there are a total of 4096 (64×64) inputs in the first convolution layer. In this layer, 20 convolution kernels generate 20 feature maps, which are computed as follows [20, 32]: Output i , j k = tanh ( ∑ l ( W u , v k , l ⊗ Input i , j l + b l ) )(1)

In the above formula, Output i , j k is the pixel value at position (i, j) of the kth output feature map, and Input i , j l is the value on the pixel (i, j) of the lth input image. In the first layer, we have only one input image, thus l = 1. W u , v k , l is the weight value at coordinate (u, v) of the kth convolution kernel, which applies on the lth input image. b ^l is the bias applied on the lth input image, and the convolution operation is defined as [20, 32]: W u , v k , l ⊗ Input i , j l = ∑ u , v W u , v k , l ( u , v ) Input i , j l ( i - u , j - v )(2)

Considering the margin effect of the 9×9 convolution kernel, the size of each output feature map shrinks from 64×64 to 56×56. The 20 output feature maps are taken as the input of the second 2×2 max-pooling layer. In the second max-pooling layer, 20×56×56 inputs are divided into 20×28×28 units, each of which contains a 2×2 neighbor pixel pool. For each pool, the layer detects the maximal pixel value within the 2×2 neighborhood as the output. Thus, the second layer produces 20×28×28 outputs. Similarly, the third convolution layer applies 10 feature maps using a 5×5 filter stack on the 20×28×28 input values to generate 10×24×24 outputs, which are down sampled into 10×12×12 outputs by the fourth 2×2 max-pooling layer. The fifth and sixth layers in the third pair have 5 feature maps also using a 5×5 filter bank in the convolution layer and 2×2 down sampling in the sixth max-pooling layer, which finally produces 5×4×4 output values. These 5×4×4 output values are fully connected with the seventh hidden layer that contains 50 neurons. The seventh and eighth layers consist a MLP classifier, which is mathematically represented as [32, 33]: Output = sigmoid ( W ( 2 ) • tanh ( W ( 1 ) • Input + b ( 1 ) ) + b ( 2 ) )(3)

Where matrices W⁽¹⁾, W⁽²⁾ and vectors b⁽¹⁾, b⁽²⁾ are the weight matrices and bias vectors for the seventh and eighth layer, respectively. In the formula, sigmoid is the logistic sigmoid function: sigmoid (x) = 1/(1 + exp(- x)). Finally, the output value of the network represents a classification score ranging from 0 to 1. The larger score value indicates the high probability of the testing ROI depicting a malignant mass. The detailed parameters used in our deep learning network are summarized and presented in Table 2.

OPEN IN VIEWER

Table 2

Details of the structures of the each layer in the deep learning network

	1st layer	2nd layer	3rd layer	4th layer	5th layer	6th layer	7th layer	8th layer
Layer type	Convolution	Max-	Convolution	Max-	Convolution	Max-	Hidden	Logistic
		pooling		pooling		pooling		regression
Number of feature maps	20	N/A	10	N/A	5	N/A	N/A	N/A
Filter size	9×9	N/A	5×5	N/A	5×5	N/A	N/A	N/A
Input size	64×64	20×56×56	20×28×28	10×24×24	10×12×12	5×8×8	5×4×4	50
Output size	20×56×56	20×28×28	10×24×24	10×12×12	5×8×8	5×4×4	50	2

For an illustration purpose to demonstrate working concept and visual classification or comparison results, our trained/optimized deep learning network was applied to the input ROI demonstrated in Fig. 1. Figure 2 shows all feature output images (ROIs) geenrated from the deep learning network layers 1 to 6, respectively. Figure 2 (a) demonstrates 20 output feature map images of the first convonlution layer (layer 1). These features illustrate the image characteristics in the following aspects: 1) Image edges, especially the breast mass edge; 2) Image textures, such as the rings of the surrounding tissues; and 3) The segmented mass from the background. These three types of features are the most critical characteristics learned and extracted by the CNN network to distinguish between the malignant and benign ROIs.

OPEN IN VIEWER

Fig.2

The feature output map images generated by layers 1–6 of our deep learning classifier (a) –(f) when the network was applied on the input ROI indicated in Fig. 1.

Figure 2(b) shows the results generated by layer 2. Comparing to Fig. 2(a), the output features remove a lot of details during the max-pooling process, which significantly improves the classifier’s robustness, as the classifier will be less sensitive to the subtle changes on the input details. The results in Fig. 2(c) and (d) are more abstract comparing to the features shown in Fig. 2(a) and (b). In Fig. 2(c), the 20 input features are fused into 10 features to reduce the feature redundancy, while the details are further removed by layer 4 (the second max-pooling layer), as demonstrated in Fig. 2(d). In Fig. 2(e) and (f), the 10 features are finally combined into 5 features, with a size of 8×8 and 4×4, respectively. In this layer, the output feature are processed as highly abstracted, independent features, which are no longer similar to the originial input image. These highly abstracted features can then be used as input for the multiple perception classifiers in layers 7 and 8.

Figure 3 shows four figures of cross-validation folds 1–4 ((a) –(d)). Each figure demonstrates and compares two performance curves generated from the training and testing datasets, respectively. In general, the classification errors of both training and testing datasets monotonically reduce as the training epoch number increases initially. However, once the number of epoch reaches a critical point, the classificion errors of the testing dataset starts to increase. For example, as illustrated in Fig. 3 (b), the classification error of the training dataset monotonically decreases during the entire training process, which reaches 5% at epoch 80. However, for the testing dataset, the error decreases at first, which yields the minimum of 22.14% at in epoch 44. Then, as the training process proceeds, the testing error gradually increases to 30.71% at epoch 80. For the other 3 folds, the minimum error was yielded at epoch 21, 61, and 40, with a value of 32.86%, 22.86%, and 20.71%, respectively. On the other hand, at epoch 40, the network achieves an error of 35%, 23.57%, 25%, and 20.71% for fold 1–4, respectively, which indicates the classifier was trained sufficiently in the experiment.

OPEN IN VIEWER

Fig.3

The training curve of fold 1–4 (a) –(d). It shows that the testing errors yields 35%, 23.57%, 25%, and 20.71% at epoch 40 for the training fold 1, 2, 3, and 4, respectively. The vertical line indicates the epoch corresponding to the optimal training error.

Figure 4 (a) and (b) illustrate the performance of the optimally trained networks for fold 1–4 and the entire dataset, respectively. In Fig. 4(a), the computed AUC values are 0.696±0.044, 0.802±0.037, 0.836±0.036, and 0.822±0.035, for the testing dataset in fold 1–4 cross-validation cycles. At the specificity of 0.8 (or a false positive rate of 0.2), the CAD scheme yielded classification sensitivities of 45.8%, 66.9%, 71.8%, and 69.9%, respectively. When combining the classification scores of all 560 testing ROIs in all four partitions, Fig. 4 (b) displays a ROC curve yieleded from the entire testing dataset, which achieves an AUC of 0.790±0.019. At specificity of 0.8, the classification sensitivity yields 63.1%.

OPEN IN VIEWER

Fig.4

Illustration of 4 ROC curves of the 4 testing dataset (partitians) in 4 training folds 1–4(a), and the ROC curve of total testing dataset (b). In these ROC curves AUC values are 0.696±0.044, 0.802±0.037, 0.836±0.036, and 0.822±0.035 for 4 testing partitians in the training fold 1–4 respectively, while the AUC of the entire dataset is 0.790±0.019.

In this study we developed and tested a new deep learning network based CAD scheme to classify between malignant and benign breast lesions (masses) depicting on the digital mammograms. Our experimental results demonstrated that comparing to the existing conventional CAD schemes, this new deep learing based CAD scheme has a number of unique characteristics and/or potential advantages.

First, unlike a conventional hit-or-miss type CAD (detection) schemes that only detect the locations of the suspicious lesions, CAD (diagnosis) schemes for classifying between malignant and benign masses require much accurate lesion segmentation. The mass segmentation accuracy will directly affect or determine the accuracy of the computed mass-related image feature values. However, given the fact of that the morphology of the lesions and overlapping fibro-glandular tissue are highly complicated, previously studies have indicated that there were no “one-fit-all” segmenting methods that enable to successfully segment the diverse lesions depicting on mammograms [6]. In this study, 66.6% of masses as shown in Table 1 (373/560) were characterized by the radiologists as irregular or spiculated masses, which were often difficult to be accurately and/or reliably segmented by the conventional CAD schemes. Thus, one advantage of applying a deep learning network based CAD scheme is to avoid the image feature errors introduced from the error or inconsistency of lesion segmentation.

Second, although developing CAD schemes without lesion segmentation has also been previously developed and tested using a content-based image retrieval (CBIR) based CAD schemes [26, 35], the deep learning approach is different and may also have advantage. Unlike the CBIR based CAD schemes, which typically use a k-nearest neighborhood (KNN) based “lazy” learning concept and can be very computational intensive or inefficient in generating a classification score for each testing ROI [36], the deep learning network is pre-trained and its global optimization function (similar to a conventional artificial neural network) can be directly applied to all testing cases (ROIs). Thus, the deep learning based CAD scheme can be more efficiently used in the future clinical practice.

Third, due to the superior architecture of the deep learning networks, the deep learning based classifier do not need to human intervention to design or define the lesion-related image features that need to be computed by CAD schemes. Since there is a big gap between the human vision and computer vision, it is very difficult to subjectively define the effective image features used and implemented in the CAD schemes. In the past two decades, although a large number of morphological and texture based image features have been computed and used in CAD of mass classification, many of these features are highly correlated, which reduces the robustness of the CAD schemes. Thus, how to optimally selecting a small set of effective image features is always an important but difficult task in CAD development [37]. However, deep learning approach is designed to learn the intrinsic characteristics of the lesion images, which cover both a mass and its surround background tissue structure, without human intervention. In this study, we demonstrated that these parameters used in the network could be automatically optimized during the training process. As a result, the deep learning network automatically learned, computed and identified the relevant image features depicting on the training samples. Although due to the use of different testing datasets, we are unable to directly compare this performance level with many of previously reported CAD performance levels (in particular for those CBIR-based CAD schemes as shown in Table 4), our new deep learning network based CAD scheme also yielded a promising and comparable classification performance, which demonstrated the feasibility of using this new approach to provide a solid foundation for the future development and improvement.

This is our first CAD study that applied the deep learning concept and approach to classify between malignant and benign masses depicting on digital mammograms. The study also has several limitations and/or uninvestigated issues. First, although the deep learning method has demonstrated its substantial superior performance in many different computer vision applications, development of deep learning based CAD scheme is far behind maturity. As a result, performance of our deep learning based CAD scheme may not be statistically higher than the conventional CBIR schemes when we directly compare the AUC value of the ROC curve. It is an open question on how to sufficiently optimize the deep neural network under the specific medical imaging conditions, which is significantly different from the computer vision task. In this study, the dataset is relatively small in developing a deep learning network based CAD scheme. Although the size of our image dataset may be sufficient to develop and preliminarily evaluate the performance of a conventional CAD scheme, the most of well-performed deep learning classifiers are typically trained by very large datasets. Given that establishing a very large cancer image dataset is not an easy task, the alternative approaches need to be explored in the future studies. For example, previous study has shown that a well-trained deep learning network could be repurposed to a new computer vision task, which is substantially different from the original training dataset [43]. Using this concept, we can test the feasibility of combining both a large non-medical image dataset and a relatively small cancer image dataset to build the deep learning network. In this new scheme, non-medical image dataset is used to train the front layers with larger feature dimensions, and the cancer image dataset is used to train the last several layers with smaller feature dimensions, which may be able improve the classifying accuracy and robustness of the CAD scheme.

Second, similar to the conventional CAD schemes [5], the performance of the new deep learning network based CAD scheme also heavily depends on the distribution and/or diversity of the ROIs (or cases) in the specific training and testing datasets. In our 4-fold cross validation, the scheme yielded substantially lower classification performance with AUC = 0.696±0.044 on Fold 1, while the AUC >0.8 were yielded from other three folds. The lower AUC in Fold 1 also affects the overall classification performance of the entire dataset with AUC = 0.790±0.019. The low performance of Fold 1 validation may be attributed by the fact that Fold 1 has a quite different image feature distribution as comparing to other 3 folds. As shown in Table 3, Fold 1 has substantially higher ratios of masses with smooth boundary and low density (Rated with BIRADS 1). Specifically, although Fold 1 only includes 25% of cases in the entire dataset, it includes 43.5% (37/85) of masses rated “smoothed” and 45.5% (10/22) of cases rated BIRADS 1 in mammographic density. For the mass classification task, the mammographic density and mass margin are two most important features extracted by the CAD scheme. When the deep learning network was sufficiently trained by the dataset with smaller prevalence of smoothed masses and lower mammographic density (BIRADS 1) cases, the scheme thus yielded a relatively lower classification performance applying to Fold 1. The results indicate the importance of applying the large and more balanced datasets to develop the highly performed and robust CAD schemes including those using the new deep learning networks.

Third, we only tested a deep learning network that is based on the convolution neuron network and multiple layer perceptron networks. Some other types of deep learning networks, such as restricted Boltzmann machine and/or stacked denoising auto-decoder [44] can also be investigated and tested in the future studies. The network architecture may be further optimized by using more convoluting layers or applying new structures such as joint deep learning methods [26, 45].

In summary, we investigated the feasibility of applying deep learning concept to automatically classify the malignant and benign breast masses using digital mammograms. Comparing to other conventional CAD architectures (including CBIR approach), our study results demonstrated that deep learning method can avoid the potential errors or biases introduced from the lesion segmentation and sub-optimal image feature extraction. Thus, deep learning approach has the potential to be a good alternative in developing CAD schemes. If our results can be verified in future studies, this paradigm change approach may have a significantly high clinical impact to help improve efficacy of mammography screening in the future clinical practice.
