SitLog: A Programming Language for Service Robot Tasks

1. Introduction

In this paper we present a programming language and environment for the specification, representation and interpretation of service robot tasks. Programming service robots is a complex exercise involving several kinds of programs defined in at least three, mostly orthogonal, dimensions: the first consists of the algorithms for programming the robot's basic perception and action behaviours (e.g., vision, speech recognition and interpretation, navigation); the second involves system programming which deals with processes and agents, process communication and coordination, and also with the drivers for the diverse input and output devices; finally, the third dimension addresses the representation and programming of the service robot task structure. This is known in the literature as behaviour engineering. Thanks to recent advances in computing, algorithms and sensor and mechatronic technologies, current robotic systems are often equipped with a wide range of functionalities such as navigation, grasping and object recognition. As a result, robots are now capable of performing complex tasks that involve many of these functionalities working concurrently. In order for a robot to perform tasks autonomously, a way to specify its behaviour is needed, i.e., an action selection mechanism which decides what to do based on what the robot perceives and the model of the task. This is especially true for service robots which operate in highly dynamic and unstructured environments. Several strategies have been proposed for behaviour engineering, ranging from using general programming frameworks and conventional languages to developing domain-specific languages. However, the challenge of how to specify behaviour in a flexible and concise way still remains. In this paper we are concerned with specifying and programming service robots in this latter dimension.

In Section 2 we overview several approaches for representing and programming task structure, with focus on service robot tasks, and place the present approach in such a context.

In Section 3 we present our approach for representing the structure of service robot tasks. Tasks are conceptualized in terms of generic protocols, which we call dialogue models (DMs), which the robot needs to perform in order to achieve its goals. The underlying computational model of the present approach is the functional recursive transition network (F-RTN) [1], an extension of the recursive transition network (RTN) [2]. RTNs have an expressive power equivalent to a push-down automata and the model goes beyond the finite state automata (FSA) or finite state machine (FSM) model (i.e., in the formal sense in which a FSA corresponds to a regular language) commonly used in service robot task programming, but preserves the graph-oriented structure, providing a very good compromise between expressive power and efficient computation. The programming environment is embedded within the robot's architecture and operating system through a simple interface, permitting fast prototyping and development. In addition, the system provides a simple and flexible interface to knowledge bases and deliberative resources, like planners, theorem provers and problem solvers which can be used on demand during task execution.

The specification and interpretation of SitLog's programs are presented and illustrated in Section 4. These follow closely the Prolog notation and the core of the system consists of two interpreter programs working in tandem: the first implements the F-RTN model (i.e., for traversing the recursive graph), and the second interprets expressions of a functional language called L through which the content and control information of DMs and situations is expressed. DMs have a diagrammatic representation which is also presented in this Section. The framework is illustrated with the specification and program of a typical behaviour required in many service robot scenarios, such as the scenarios in the RoboCup@Home Competition.

DMs are represented independently of perception and action modalities, and SitLog's programs need to be related to the actual interpretations and actions performed by the robot during the execution of a task. For this, the SitLog interpreter is embedded in the robot's architecture. In Section 5 we describe the interaction-oriented cognitive architecture (IOCA) [1] that we have developed in conjunction with SitLog for this purpose.

In Section 6 the implementation of the present formalism and programming environment in the robot Golem-II+ is presented. For validation purposes we have developed the full set of tasks of the RoboCup@Home competition (Rulebook 2013) with very promising results. SitLog is independent of task and domain, and can be embedded in different architectures and operating systems, and the paper is concluded in Section 7 with a brief reflection on the generality of the present formalism.

2. Robotic Programming Languages

In this section we review a variety of strategies for specifying and programming the structure of robotic tasks. Among the first domain-specific languages designed for behaviour engineering was the Behaviour Language [3], built on an extension of the subsumption architecture [4]. In the Behaviour Language, behaviours are defined as collections of rules written in a subset of Lisp. From these rules, behaviours are compiled into augmented finite states machines (AFSMs) and these in turn into assembler code. Other prominent early instances of robotic programming languages are Colbert [5] and the Task Description Language (TDL) [6]. Colbert is a sequencer language created for the Sapphira architecture and used for developing intermediate modules connecting motion control and planning. The semantics of a Colbert program is based on FSMs, which are written in a subset of ANSI C. TDL, on its part, defines a syntax as an extension of C++ for task-level control such as task decomposition, synchronization, execution monitoring and exception handling. TDL code is compiled into pure C++ code with calls to a platform-independent task-control management (TCM) library.

Recent instances of domain-specific languages include the Extensible Agent Behaviour Specification Language (XABSL) [7], XRobots [8] and b-script [9]. The semantics of both XABSL and XRobots is based on hierarchical state machines. In XABSL, a given state of the whole system is determined by a subset of state machines. XABSL has been implemented on many platforms, mainly on robots that participate in the RoboCup soccer competitions. XRobots treats states as behaviours which are first class objects in the language and can be passed as parameters to other behaviours. It also integrates template behaviours, allowing generalized behaviours to be customized and instantiated. In contrast, b-script describes hierarchical complex behaviours via specialized generators. b-script's syntax is built on a combination of Python and C++. Programs written in b-script can be executed by an interpreter or compiled into C++ code.

Another common strategy for behaviour engineering is the use of general programming frameworks. GOLOG [10], a logic programming language based on the situation calculus, has been shown to be applicable to robot programming [11]. Some extensions of this language have added additional features such as concurrency [12], continuous change and event-driven behaviours [13], and execution and monitoring systems [14] to make it more suitable for some applications. Frob [15], a functional reactive programming framework embedded in Haskell, was introduced by Peterson et al. for programming robots at various levels of abstractions. For time-critical applications such as space rovers, the reactive model-based programming language (RPML) [16, 17] has been widely adopted. Ziparo et al. [18] presented a new formalism based on Petri Nets, called Petri Net Plans (PNP), for describing robot and multi-robot behaviours. UML statecharts have been applied for the same purpose, especially in soccer robots [19, 20]. An important advantage of the statechart and Petri Net Plans approaches is that agent behaviours can be naturally designed through intuitive graphical tools.

In the case of service robots, applications and tasks are commonly implemented with variants of FSMs. For instance, the behaviour of HERB 2.0 [21] is modelled by the behaviour engine (BE) [22] through three different layers using hybrid state machines. This approach has allowed the service robot HERB2.0 to carry out complex manipulation tasks in human environments. In [23], the TREX framework was used to control the behaviour of a PR2 robot. TREX integrates task planning, discrete and continuous states, and durative and concurrent actions. Under this framework, the robot was able to navigate through an office environment, open doors and plug itself into electrical outlets. Bohren et al. developed a Python library called SMACH [24, 25] based on hierarchical concurrent state machines. SMACH served as the task-level executive of a PR2 robot in a drink fetching and delivery application [24]. For the GRACE robot [26], FSMs were created under TDL to structure the tasks of the AAAI Robot Challenge. In the context of RoboCup@Home, the robots Cosero and Dynamaid [27] build hierarchical state machines to perform the tests of the competition, whereas the robot Caesar [28, 29] used an enhanced version of GOLOG named ReadyLog [30].

In summary, several different strategies and domain-specific languages have been proposed for robot behaviour engineering. Most of these strategies are implemented as extensions of conventional programming languages, mainly in the imperative, specification and functional paradigms. The formalisms used in these strategies are commonly built upon the FSM or extensions of it, thus often translating in a limited expressive power and unwieldy task programming. In contrast, SitLog is a logic programming language especially designed for service robot tasks and constructed on the more expressive formalism of DMs, which exploit the context and history of the task to decide the actions to be executed. In the logical programming paradigm, on its part, ReadyLog is focused on reasoning about actions, while SitLog has the notions of situation and task structure as its main representational objects. Here, we argue that SitLog is particularly suitable for specifying task-level behaviours of service robots in a flexible and concise way, as illustrated in the example in Section 4.4.

3. Task Structure, Situations and Dialogue Models

Service robot tasks can be construed in terms of states, in which the robot is capable of performing some specific set of actions, depending on the input information at the state and possibly on the previous states visited by the robot during the execution of the task. States can be seen from a dual perspective as states in the world and as informational objects in the robot's memory. Here, we say that the robot is situated if the memory state corresponds to the state in the world (i.e., the robot is in the state in which “it thinks” it is); in this case, interpretations and actions are performed in context and contribute to the successful completion of the task. On the other hand, if the external information does not match the memory state, the robot is out of context; whenever this is the case, the robot's interpretations and actions need to be directed to place the robot in context again, before proceeding with the task.

An important question from this perspective is how much information needs to be contained within information states in service robot tasks. Here there is a trade-off between expressive power and computational cost: if states have a small amount of information and the next state is determined to a great extent by the external input, computations are efficient, but complex tasks are cumbersome and difficult to model; on the other extreme, if states contain large amounts of information and the determination of the next state requires inference, expressing the task structure may be simple but at a high computational cost. These two extremes correspond to two opposing traditions in interaction and dialogue modelling: one is the use of FSMs, where states havea minimal amount of information expressed by the constant labels on their arcs; this approach is common in dialogue systems and interactive applications, and also in many service robots, as mentioned above. The other is the artificial intelligence tradition in dialogue modelling involving complex inference and the notion of conversational moves that need to be identified dynamically through searching during the execution of the task (e.g., [31] and derived work). In this later case, a state may contain a full “mental state” including a temporal and spatial situation, the history of the task, domain knowledge, the beliefs, desires and intentions of the agent, and even common sense knowledge.

In the present framework we adopt the view that the state's information content consists of the knowledge of the potential actions performed by another agent (the interlocutor) at such a state, with or without communicative intent, in addition to the knowledge of the potential events which can occur in the world at the particular state too; we refer to this knowledge as the expectations; this information state contains also the knowledge of the intentional actions that the robot needs to perform in case a particular expectation is met. On this basis, we define a situation to be an information state consisting of the representation of the set of expectations and potential actions in the context of the task, in addition to the control information required within the task structure. Expectations, actions and next situations can be concrete, but these can also be dynamic and depend on the context and, in the present formulation, situations can be highly abstract knowledge objects supporting large spatial and temporal abstractions. For instance, the robot may be in a finding situation in which it has the expectation of seeing an object or failing to see an object at each point in the search path. Another expectation in this situation may be reaching (or failing to reach) a search point; in this situation the robot may navigate and change its spatial position and orientation continuously for a large amount of time, and nevertheless remain in the same situation.

From another perspective, expectations are representations of the potential interpretations (i.e., the outputs of perception) that are plausible in a given context within a task structure, and differ from the raw data produced by low-level sensors, that need to be handled by low-level processes in a context independent fashion (i.e., independently of task and domain). A situation is then an abstraction over a collection, possibly large, of perceptions and actions, and tasks can be modelled often through a small set of situations. In addition, while an FSM changes the state when a symbol labelling one of its arcs is consumed (i.e., an event occurs in the world), an agent changes its situation when its set of expectations is changed. Although a change of expectations is often due to an external event, there are many external events that do not change the expectations, and the expectations can also be changed as a result of an inference, which is internal to the agent. Hence, situations are intentional knowledge objects in opposition to FSM states, which are extensional and deal directly with concrete input.

Other kinds of knowledge stored in the robot's databases and/or knowledge bases, like domain specific or general concepts, or even the robot's beliefs, desires and intentions, are not included in the situation in the present framework. These knowledge objects can be retrieved and updated from memory during the interpretation of a situation, but such knowledge is to a large extent context independent and not directly relevant to communication and interaction.

More generally, situations are contextual informational objects and the notion of expectation presupposes that the robot is placed in context in relation to the task. For this, the present notion of situation is restricted to tasks where this condition is met. We refer to tasks that can be construed in this form as practical tasks with their associated practical task and domain-independent hypotheses, extending Allen's corresponding practical dialogues notion and hypotheses [32] as follows: the structure of practical tasks, although complex, is significantly simpler than open human tasks (i.e., practical task hypothesis) and within the genre of practical tasks the structure of the tasks and task management are independent of the task domain and the particular task being performed (i.e., domain-independent hypothesis). We also advance the hypothesis that practical tasks lie somewhere between FSMs, which are too limited in their expressive power, and open search engines which demand an unbounded computational cost. SitLog has been developed to support this notion of situation and task structure. Next, we introduce the language and illustrate the framework with a simple application.

4. Specification of SitLog

4.3. Diagrammatic Notation

The graph of situation types have a diagrammatic representation, where nodes stand for situations and arcs are labelled with pairs of form α:β standing for expectations and actions respectively, and the boundaries of a DM are depicted by dotted lines, as in Figure 1. In addition to standard finite state machine graphs, the next situation may be determined dynamically through a function from the task history (i.e., the discourse context) into the set of situations; in this case, the corresponding output arc forks at the thick dot labelled with the selection function's name (e.g., h), out of which there are directed links to the possible next situations. In this notation, information flow is depicted by continuous thin lines, while control flow by thicker lines. In particular, recursive situations embedding subordinated DMs have an output link to the first situation of the embedded DM, and include a number of thick dots depicting the return entry points when the execution of the embedded DM is concluded; there is also a control link from each final situation of the embedded DM to the corresponding return entry point, and from this to the situation that is executed next to the recursive one in the embedding DM.

For instance, the diagram in Figure 1 illustrates a task with two DMs (i.e, md_main and md_sub), where md_main has the situations is, rs and fs of types speech, recursive and final respectively. The situation is has two output arcs, one that cycles on it if the expectation e1 is met, and the second which is labelled with the expectation f and the action g that goes either to itself or to the recursive situation depending on the value of the function h labelling the junction dot. In this illustration, f, g and h stand for functions that are evaluated dynamically in relation to the task history and become concrete expectations, actions and next situations each time the corresponding arc is transversed. The embedded DM md_sub, in turn, also has three situations, two of which are of type final; there is also a control link from each of these to an entry point of the md_main DM, and from this to the its corresponding next situation; so, if the embedded task finishes in the situation fs1, the recursive situation is resumed at its left entry point and the next situation in the md_main DM is is. In this way, the expectations of a recursive situation are the final situations of its embedded DM. Figure 1 also illustrates the flow of information between DMs and situations through their arguments, where the out_arg of one DM or situation is the in_arg of the next DM or situation executed in the actual task.

OPEN IN VIEWER

Figure 1.

Graphical representation of the dummy application.

We also consider that a situation may have more than one instance; this is the case for situations with the same identifier but with different parameters or parameters values. This expressivity is useful for specifying modular or recursive behaviour (i.e., when one situation codifies the basic case and another the inductive pattern), where an arc labelled with an arbitrary α:β pair may be followed by a number of disjunctive situations. This pattern also has a diagrammatic representation analogous to the thick dot depicting a disjunction of next situation but in this latter case, the disjunction is depicted with a small circle including the symbol _ and the links out of it are labelled with a symbol or a string standing for the condition that is met when such link is transversed. This case is illustrated in Figure 2, where a DM is constituted by a situation a that is followed by two instances of situation b via a disjunction symbol; in this case, the link from the disjunction to the left instance of b is labelled by the string cond1 and the right instance by cond2; in the illustration, whenever cond2 is met the system is engaged in a cyclic behaviour, but when cond1 is met the computation comes to an end.

4.4. An Example Program in SitLog

In this section we illustrate SitLog with a program implementing the find task in which a robot searches for a person, an object or a list of objects through a discrete path until such entity or list of entities is found or the path is exhausted; for this definition we assume that the robot is already in the initial position of the search path. This is a common behaviour required in many service robot tasks, like the Cocktail Party, Clean it Up, Emergency Situation and Restaurant tests of the RoboCup@Home Competition (Rule book 2013). This behaviour is quite complex and can be structured in a hierarchy of DMs as shown in Figure 3. The find DM uses the scan DM to make a number of horizontal observations at each path position and move to the next position until the object is found or the path is exhausted. The scan DM, in turn, uses the tilt DM to make a number of vertical observations at each of the robot's neck scanning positions using the see DM at each tilt orientation. Finally see selects the kind of object sought and see_object, see_face, detect and recognize make the basic observations. Each DM in the hierarchy includes the main logic of the behaviour at the corresponding level, the specification of the perception and action capabilities that are relevant at that level, and the specification of one or more recursive situations embedding the DM codifying the next level behaviour down the hierarchy until the bottom DMs which implement the basic perceptions and actions.

OPEN IN VIEWER

Figure 2.

Diagrammatic representation of recursive DM structures.

We illustrate SitLog with the actual definition of the find DM. We first introduce the program through its diagrammatic representation in Figure 4. The DM has six situations altogether: the initial situation scan is a recursive situation that uses the embedded scan DM. The return entry points of this situation are fs_found and fs_not_found corresponding to whether or not the sought entity was found in any of the observations made at the current position of the robot. In the former case, SitLog's interpreter selects the final situation fs_found and terminates the task with the success status. In the latter, the interpreter selects one instance of the search situation. In case the situation search stating that the task has been exhausted is selected (the left instance), the system moves the fs_error final situation and the execution of the DM is ended. On the other hand, if there are more positions to explore, the system moves to one instance of the scan situation, depending of whether or not is able to reach the next observation position. In the first case, the scan DM is executed again one position down the path, and in the latter the task is ended with the corresponding status error.

The actual SitLog code for this DM is shown in Listing 1. The specification of the six situations is declarative and corresponds quite directly to the diagram. The arguments of the find DM are as follows: (1) the type of entity to be found: a person or an object; (2) the identifier of the sought person or list of objects; in the case where the sought entity is not specified, the MD returns the first object or list of objects found in the exploration process; (3) a list of search positions (i.e, the search path); (4) the list of scan horizontal orientations that the robot needs to inspect at every search position; (5) the list of vertical tilt orientations that the robot needs to inspect at each scanning orientation; (6) a mode of observation in the case where the entity sought is a person: memorize or recognize; (7) the list of objects found that were specified as sought objects, with their parametric information (e.g., position and pose in relation to the current search position); (8) the list of search positions that remained unexplored when that find task was accomplished; so, if the robot is engaged in the search of multiple objects, it can resume that task at its current position after the first successful observation; and (9) the status of the task (e.g., ok, not_found, not_detected, empty_scene, move error, etc.), reporting the successful completion of the task or the status of the last observation made in the search process. The code also shows the arguments' pipe equating the out_arg of a situation with the in_arg of the next actual situation, and these arguments must have exactly the same form. Situations with a single output arc have the corresponding expectation labelled empty; also, if there is no action in an arc its corresponding position is also labelled empty. The specifications of the rest of the DMs in Figure 3 is stated along similar lines.

OPEN IN VIEWER

Figure 3.

Abstract decomposition of find task.

The format of a call to the find DM is as follows:

find(object, [‘lemon tea’,gatorade,pepsi], [pt1,pt2,pt3,pt4], [left,right], [-30,-15], _, Found_Objects, Rest_Positions, Status).

This DM call specifies that the robot should search for three objects through a path constituted by four positions, and in each position must look at the current orientation of the neck (as a default convention) and also at the left and right. In addition, at each neck orientation it must look at the current tilt orientation, and also at −30 and −15 vertical degrees. In the execution of the path the robot searches in these three dimensions until a scene containing at least one of the sought objects is seen, and returns all objects in the scene that are specified as been sought in the variable Found_Objects, the positions yet to be explored in Rest_Positions and the status of the task which is success or the status error of the last observation made in the search process. The sixth argument is unspecified as it is only used to state the mode of observation (i.e., memorize or recognize) in the case where the sought object is a person.

OPEN IN VIEWER

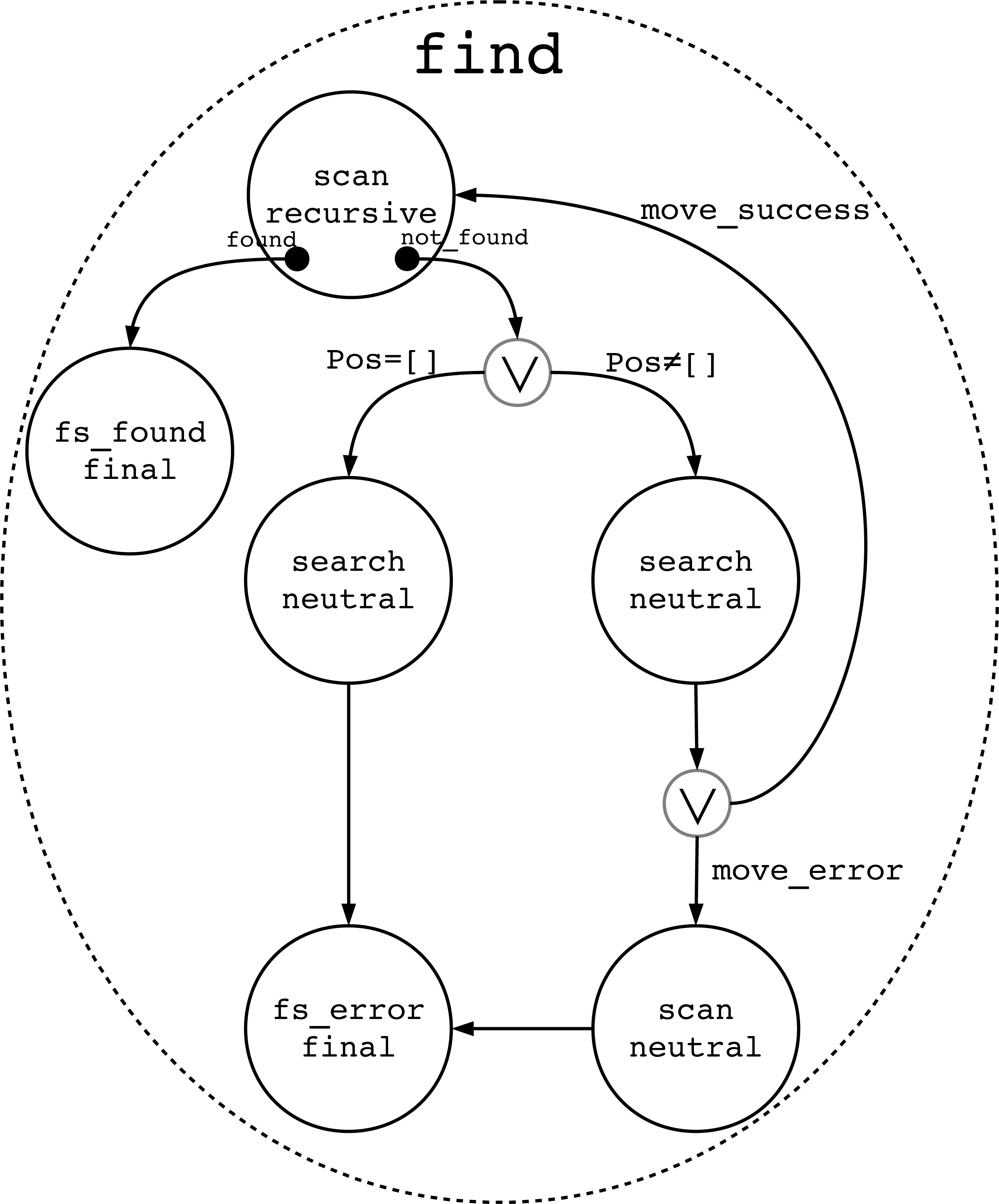

Figure 4.

Diagrammatic representation of find DM.

In addition, a SitLog application, like the tests of the RoboCup Competition, requires that the global specification of all expectation and actions names (e.g., the navigate predicate) are included in all DMs and situations, and also the specification of the global variables and functions. The expressions within the arc attributes belong to the language L and are evaluated by the corresponding interpreter each time an arc is interpreted. Although the present example does not use composite expressions or functions, local programs or local variables, the construction of a full application may require the use of this expressive power. The full code of all DMs in Figure 3, which does make use of these expressive devices, is available at http://golem.iimas.unam.mx/sitlog/sitlog.tar.gz.

5. Dialogue Models and the Cognitive Architecture

Within the present framework we have developed the interaction-oriented cognitive architecture (IOCA), which is centred on SitLog's interpreter as illustrated in Figure 5. IOCA has three main layers corresponding to recognition/rendering at the bottom level, interpretation/action-specification at the middle and expectation/action-selection at the top processing level. These three layers are involved in the main communication cycle. The bottom layer of the architecture consists of the speech and vision recognition modules, for instance, that translate the external information into the corresponding internal codes on the input side, and of the actual realization devices for navigation and manipulation behaviours on the output. The middle layer on the input side corresponds to the interpreter that matches the expectations of the current situation, which are passed top-down from SitLog's interpreter, with the output of the recognition systems, which proceed bottom-up, and produces the representation of the expectation that is met in the situation. Structural processes are defined at this level; for instance, in the case of linguistic interpretation, the output of speech recognition is a text string, and the interpreter includes the parser which produces a syntactic and semantic representation. However, perceptual interpretation depends also on the context set by the expectations, and also on the interaction history, and the output of the interpreter is then a contextualized representation of the intention expressed by the interlocutor or a representation of an expected natural event. On the output side, the action scheme selected by SitLog is fully specified and realized by the corresponding rendering devices.

Listing 1.

SitLog's specification of find behaviour.

diag_mod(find(Kind, Entity, Positions, Orientations, Tilts, Mode, Found_Objects, Remaining_Positions, Status), %First argument : List of situations [ % Scan situation : already in the scan position [id ==> scan(Entity, Positions, Orientations, Tilts, Found_Objects, success), type ==> recursive, out_arg ==> [Entity, Scan_Parameters, Positions, Scan_Status], embedded_dm ==> scan(Kind, Entity, Orientations, Tilts, Mode, Scan_Parameters, Scan_Status), arcs ==> [fs_found:empty => fs_found, fs_not_found: empty => search(Entity, Positions, Orientations, Tilts, Found_Objects)] ], % Error reaching next position [id ==> scan(_, Positions, _, _, _, move_error), type ==> neutral, out_arg ==> [_, _, Positions, move_error], arcs ==> [empty : empty => fs_error]], % Search situation 1: no more search points [id ==> search(_, [], _, _, _), type ==> neutral, arcs ==> [empty : empty => fs_error]], % Search situation 2: move to the next search point and scan [id ==> search(Entity, [Next_Position|Rest_Positions], Orientations, Tilts, Found_Objects), type ==> neutral, arcs ==> [empty : navigate(Next_Position, true, Status_Move) => scan(Entity, Rest_Positions, Orientations, Tilts, Found_Objects, Status_Move)] ], % Final Situation [id ==> fs_found, type ==> final, in_arg ==> [Entity, Found_Objects, Positions, Final_Status], diag_mod ==> find(_, Entity, _, _, _, _, Found_Objects, Positions, Final_Status) ], % Final Situation [id ==> fs_error, type ==> final, in_arg ==> [Entity, Found_Objects, Positions, Final_Status], diag_mod ==> find(_, _, _, _, _, _, _, Positions, Final_Status) ] ], % End situation list % List of Local Variables [] ). % End Find Task DM

In actual implementations there is a particular interpreter for each situation type defined at the level of SitLog. Interpreters involve one or more modalities, and are also relative to a particular perspective or aspect of the world; for instance, there is visual interpreter for face recognition and another for object recognition, regardless of the fact that these involve the visual modality. However, the output of perceptual interpretation is a propositional representation already independent of the particular vision algorithms and associated data structures. On the output side SitLog selects the action schemes, which are propositional and modality independent representations, that need to be specified with the relevant modality specific information and realized by the corresponding rendering devices.

IOCA has also a reactive behavioural cycle that establishes a link between recognition and rendering devices through the autonomous reactive systems, which are involved in the robot's reactive behaviour, as shown by the corresponding path in Figure 5. This cycle is embedded within the main communication cycle as it does not involve interpretations and the construction of fully fledged representations; this cycle involves mostly signal processing mechanisms that take place much faster than the communication cycle. IOCA also involves a coordinator between communication and reactive behaviour which permits that these two cycles proceed concurrently.

OPEN IN VIEWER

Figure 5.

The interaction-oriented cognitive architecture.

6. Practical Tasks and the Golem-II+ Robot

Service robots have the purpose of supporting people to perform common daily life tasks. In practical settings, such tasks have the purpose of achieving one or more goals through the execution of a number of actions, possibly in a previously unspecified order. Simple examples of these tasks are the tests of the RoboCup@Home Competition (Rule book 2013), like the Cocktail Party, Clean it Up, Emergency Situation, Restaurant and General Purpose Service Robot. Although these kinds of tests are defined as bench-marks for demonstration purposes, they illustrate the potential settings in which service robots will be useful in the future: simple scenarios involving a few designated people and objects, actions and events, limited in time and space, where the robot needs to achieve a few specific goals, while collaborating with people. In our terminology, these are instances of practical tasks.

For the construction of this kind of application our methodology distinguishes two main kinds of DMs: those targeted to model the structure of the practical task as a whole, like serving as a waitress in a restaurant, cleaning a room or assisting clients in a supermarket, and those directed to model general capabilities that can be used recurrently within different tasks, like learning a person's face, learning his or her name, finding people in a room, finding, grasping and delivering drinks, etc., which need to be coordinated in order to accomplish the goals of the task successfully. These latter kinds of actions are generic behaviours that need to be defined independently of task and domains, and constitute the library of behaviours that can be used systematically by full applications, like the find behaviour and their associated DMs which constitute a particular library. SitLog and IOCA have been developed with the purpose of supporting the high-level declarative definition of practical tasks in terms of a library of behaviours.

In order to test the present framework, SitLog and IOCA have been implemented in the Golem-II+ robot. Next, we list the main functionalities used by SitLog behaviours through IOCA and their associated devices and algorithms:

7. Conclusions

In this paper we have presented SitLog: a programming language and environment for the specification and interpretation of behaviour engineering for service robot tasks in a simple and flexible way. The formalism has an associated diagrammatic notation that facilitates greatly the design and specification of complex tasks. The core computational mechanism consists of two interpreters working in tandem, one for interpreting the structure of the task and the other for interpreting content and control information. These two interpreters are implemented in Prolog and programs in SitLog follow closely the Prolog notation, supporting the definition of applications in a declarative and compact form.

We have also introduced the notion of situation which is an information state containing the expectations and potential actions of a robotic agent in the context of the task structure. Situations are related in a recursive directed graph giving rise to the notion of DMs, which can also be seen as abstract behavioural models. Alternatively, DMs can be seen as schematic and parametric plans to achieve complex tasks. In addition, we have presented the notion of practical tasks, and the practical task and domain independent hypotheses, and suggest that the tests of the RoboCup@Home Competition and similar demonstration scenarios are instances of practical tasks.

SitLog permits defining a library of general robot behaviours, like finding people or objects in a room, interpreting speech input, navigating to a designated place, coordinating visual object recognition and manipulation, etc., that can be used by different applications on demand, in addition to the main DMs representing the structure of a service task. This modularity is particularly useful for the implementation of general service robots, which need to assemble task structures dynamically, by the composition and interpretation of complex DMs out of the basic DMs stated in advance. This functionality can also be seen as the dynamic construction and execution of parametric plan schemes out of the basic schematic plans.

These notions permitted the definition of the interaction-oriented cognitive architecture (IOCA). SitLog is at the heart of this architecture and relates the flow of perception and intentional actions, articulating the robot's main communication cycle, which subsumes reactive behaviour, on the one hand, and manages symbolic representations and deliberative resources, on the other. SitLog is also task and domain independent and can be easily ported to different robotic architectures and operating systems.

We have also presented the specification and interpretation of complex robotic behaviour, illustrating the expressive power of the formalism. In addition, we have implemented the full set of tests of the RoboCup@Home Competition (Rule book 2013) in the Golem-II+ robot, and we have found no limitations on the expressive power of SitLog for this purpose.

The source code of SitLog's interpreter together with the DM library of generic behaviours presented in this paper are available at http://golem.iimas.unam.mx/sitlog/sitlog.tar.gz. A video of Golem-II+ executing a RoboCup@Home task fully written in SitLog can also be seen at http://youtu.be/99XhhEkyIz4.
