IoT forensics in ambient intelligence environments: Legal issues,research challenges and future directions

1. Introduction

In today’s digital world, Internet of things (IoT) is a new environment evolving physical objects and a network consisting of embedded communication technology and associated sensors. IoT helps to make contact with physical objects and provides control of sensors from distinct locations to the users. This access generates a huge amount of data in terms of timestamps, voice messages, text messages, control signals etc. The rapidly growing involvement of IoT in human surroundings stores data including the login credentials, location, and personal information which attracts cyber-criminals to attack these small devices with limited security to breakthrough and extract useful information which can ultimately be misused. IoT forensics plays a very important role in the aforementioned scenario, as it enables us to identify cyber criminals and fix the damage due to cyber-attacks. Forensic on IoT devices become imperative by revealing its heterogeneous architecture and technology because it consists of different networks and frameworks. Smart electronic gadgets like mobile phones, computers, tablets, sensors, medical devices, television, wearable watches, and smart home applications are good examples of IoT applications.

In contemporary times, each individual is dependent upon, and limited to the utilization of internet connected devices. The global IoT market is expected to reach a value of USD 1,386.06 billion by 2026 from USD 761.4 billion in 2020 which is compound annual growth (CAGR) of 10.53% during the period 2021–2026 [44]. It can be easily inferred that in future, criminal activity on IoT devices may increase proportionally to the growth rate. IoT is a well-known paradigm that is closely handed out by people either directly or indirectly with the ever-growing use of the Internet and technology.

IoT devices are widely integrated with i) wearable technologies like health care bands, smart watches, and smart glasses, ii) home automation like smart lights, smart switches, smart plugs, sensors for temperature, Wi-Fi enabled air conditioners, iii) smart office equipment like Wi-Fi printers, smart routers, and Wi-Fi cameras, iv) smart automated vehicles like smart cars and drones, v) Industrial IoT, vi) Agriculture IoT, and vii) Environmental IoT, e-health, etc. Interconnected devices share a massive amount of data through a wired or wireless network. IoT associated with billions of gadgets can produce a tremendous volume and assortment of information that opens doors for digital criminals or offenders, who can access the user data and use it for their own benefits. To comprehend all such data that is generated from IoT devices, it has become a necessity to forensically examine all devices, so that it can be determined what sort of data these devices have, and if it relies on another device, how it is connected, as well as how it operates. The investigator also needs to know whether these devices hold any information about connected devices. If the investigator can access all the information related to IoT device, then in case of any incident or breach related to IoT, that extracted information can help law enforcement agencies to apprehend the criminal. IoT forensics is an important research area that finds the security breaches of the smart device at various levels, i.e., cloud, network, and physical level. Managing these gadgets can prompt various difficulties from security and forensics points of view.

IoT forensics is a growing area for all researchers in the field of security and IoT. Moreover, it is crucial to understand IoT forensics in-depth to help track down cybercriminals using digital evidence. As IoT devices are increasing exponentially, and so are the threats, therefore the area of cyber security is crucial not only to make people aware of threats, but also for identifying and fixing the cyber criminals. In this study, an attempt has been made to review all the technologies and techniques which are relevant to IoT forensics and its role in cybercrime investigation.

(a) Motivation behind this study IoT forensics is an emerging topic among researchers. The exponential growth has given rise to a plethora of new applications and the security and forensic issues have also increased manifold. Billions of devices which communicate with poor security built-ins are linked, making them an easy target for attackers. Moreover, the IoT system consists of varied and heterogeneous components, making it difficult to use conventional digital forensic investigation techniques [108]. The large volume of data generated by IoT devices also motivates our research. In the past, many researchers have described various forensic investigation models. However, automated data extraction techniques are required for huge data investigations. Vast volumes of data generated by IoT devices are often categorized into a few smartphone applications. For example, most smart home gadgets are compatible with Google Home, Alexa, and wearable healthcare devices, enabling them to communicate data with smartphone applications. Smart homes are gaining popularity every day due to their ability to provide smooth and desirable automation services. User activity recognition plays a vital role in the smart home system, allowing it to precisely deliver the necessary services and possesses numerous fascinating features and advantages [9].

Similarly, a single application Kasa can control HVAC, indoor/outdoor security cameras, smoke detectors, and other smart home equipment [40]. One can understand that IoT devices are the gold mine to collect digital evidence because of wireless communication. Servida and Casey [123] highlighted how digital footprints saved in smartphone apps are utilized to access and manipulate IoT devices including cached picture thumbnails and parts of camera streams, cached events triggered by sensors, and entire event logs stored in the application database. These traces alert the investigators about what happened, when it happened, and whose user account delivered instructions to a smart device. Furthermore, integrating AI with IoT forensics is essential to successfully collect required evidence from the vast volume of data produced by IoT devices. Few studies have addressed artificial intelligence (AI) in forensics. For example, Karie et al. [67] have developed a generic framework for integrating deep learning, (which is a subset of AI) into forensics. They have used deep learning to address problems by simulating human decision-making with neural networks. Solutions include avoiding bias in forensic investigations and disputing the admissibility of evidence in the court. Wooyeon et al. [63] demonstrated five different digital forensic analysis methodologies for four distinct AI speaker models and developed a forensic application that collects and records user command history. This work is also motivated by Baggili and Behzadan [15], who suggested the need to establish AI forensics as a new discipline within the field of AI security and facilitated a conversation about the fundamental issues.

More recently, Atlam et al. [13], Hemdan et al. [62] and Chin et al. [32] enhanced the survey approach by considering the state of the art, graphical representation, and a more significant number of factors. Nevertheless, the above-mentioned papers does not assess all parameters at the same time, as shown in Table 1. As a result, there is a scarcity of study and scrutiny about the forensics of IoT. Therefore, a comprehensive study on evidence extraction and investigation challenges for IoT forensics is eagerly needed to align with the current and developing research in the field of digital forensics. There is a need for more in-depth physical research of IoT devices, such as chip-off procedures typically used in mobile devices, also used for IoT devices. For example, as all smart devices use wireless modules for communication, hence through forensics of the wireless module, we may extract some network-related artifacts. Hence, more research is required on the most prevalent home security systems, smart assistants, smart firewalls, and other IoT devices.

(b) Contributions of this study Although forensics on IoT devices have a significant impact on digital investigation as we know, essential approaches and backgrounds of the area are yet to be comprehensively and systematically reviewed. Accordingly, this research aims to evaluate and analyze digital forensic techniques for IoT devices to explore more digital evidence. Concisely, the current study might help pave a further way for the area to move forward by supporting young researchers and practitioners in applying existing IoT forensics techniques or approaches to devise new ones.

The year-wise comparison, forensics investigation model, evidence acquisition technique, forensic issues, legal challenges, and AI based techniques were included in Table 1. The several key topics that can be explored in the future, along with some recommendations for emerging new trends in the IoT forensic area has been discussed. Figure 1 is created to succinctly describe the structure of this study. The primary focus of this study is summarized in the following points:

OPEN IN VIEWER

Fig. 1.

The structure of the study.

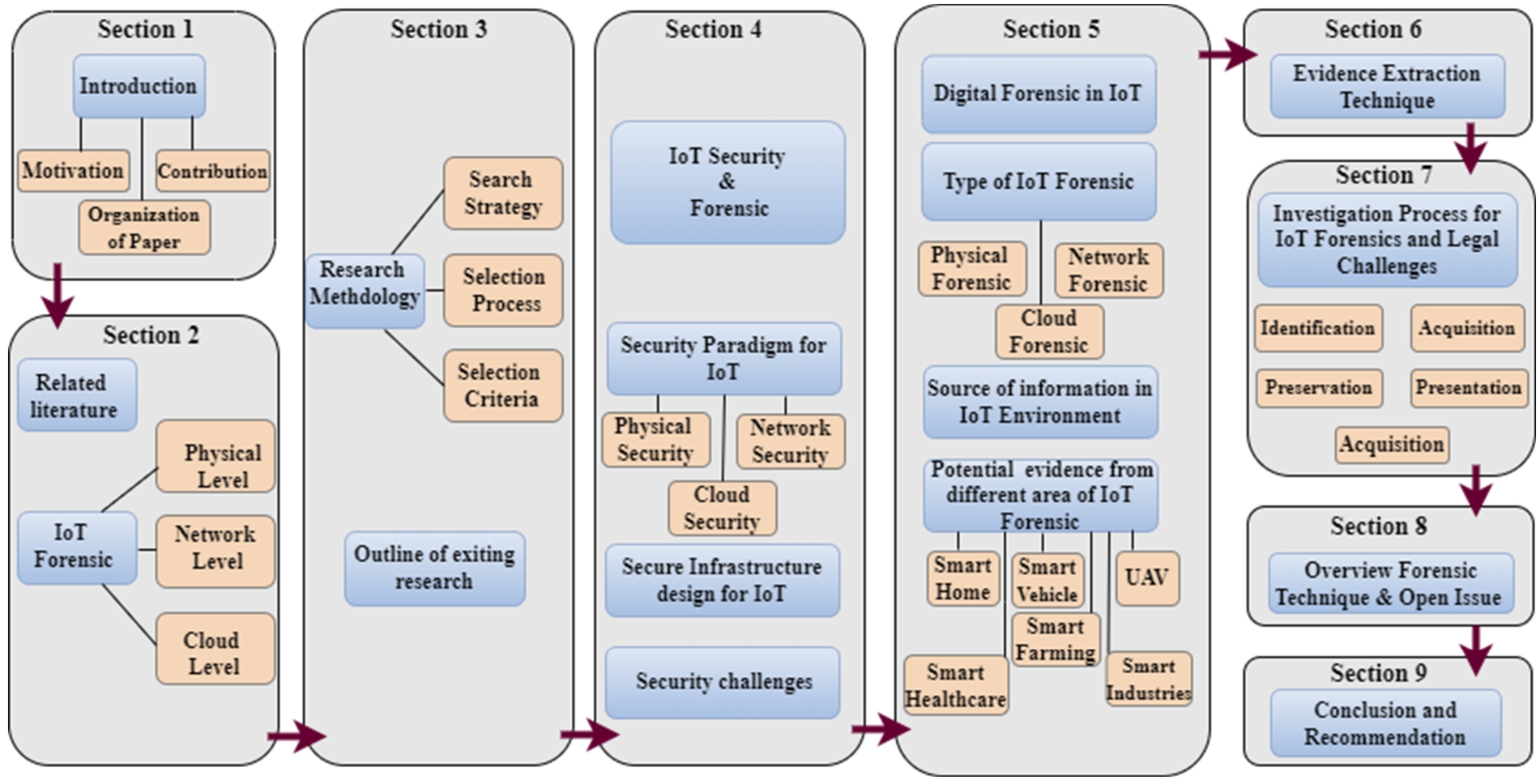

(c) Organization of the paper The paper is organized as follows: Section 1 gives the introduction Section 2 presents the work related to IoT forensics at three-levels. Section 3 draws the research methodology and literature selection procedure. Section 4 defines the IoT security and forensics, security paradigms for IoT with three-layer structure, secure infrastructure design, and security challenges. Section 5 Digital forensics in IoT three-level forensic, along with detailing the sources of information in IoT environment, different areas of IoT forensics and highlights the potential forensic artifacts in IoT devices. Section 6 introduces the evidence extraction techniques. Section 7 presents the Investigation process for IoT forensics and its challenges. Section 8 gives an overview of forensic techniques and solutions for open challenges. Section 9 concludes the paper.

Securing IoT devices has always been a key objective for the researchers. The security and forensics of IoT devices are extremely difficult due to its vulnerable environment. Further, IoT structure has three different levels, i.e., physical level, network level, and cloud level. The detailed description of each level is given below:

Level 1 (Physical level): There have been various traditional studies of digital forensic frameworks in the IoT environment. The authors Oriwoh et al. [103,104] proposed a Forensics Edge Management System (FEMS) investigation model designed for three layers of IoT devices (perception, network, and application layers) and represented how to recognize potential sources of evidence in IoT related cybercrime. In this study, open-source security and forensics technologies are identified and evaluated for the model FEMS and a testbed home network environment is created for the criminal scenario. This experiment compares FEMS evidence with test attack evidence to determine its efficiency. They evaluated and proposed methods to improve performance in a smart home IoT network. Tsai et al. [140] recommended that cyber physical security is another promising research area for future IoT devices because at the physical level by applying the chip-off or JTAG (Joint Test Action Group) technique digital evidence can be extracted from the memory of the IoT device. The digital forensics investigation model analyzes physical evidence and suggests the top-down forensic technique for IoT systems [108,139].

Zawoad and Hasan [150] recommended a model called Forensics-aware IoT model (FAIoT) that is used to physically access the computing device such as hard disk, network router, etc. In this, an investigator collects data from the local memory of the IoT devices. When a crucial piece of evidence needs to be collected from the IoT device, it involves device-level forensics at the physical level. A white paper by the smart card alliance suggested that embedded hardware security for IoT applications is used to protect the “identity” of each device from unauthorized access [39]. Netherlands Forensic Institute (NFI) Memory Toolkit II (MTK II) is an overall forensic solution that empowers examiners to read memory chips and possibly remove client information, for example, instant messages, telephone numbers, images, and program history from a wide assortment of electronic gadgets. MTK II is a mix of hardware and programming. In some circumstances, data that has been “erased” or devices that have been damaged can potentially be recovered using NFI Memory Toolkit. The equipment makes a physical association, creates signals, and supplies capacity to a memory chip. At the same time, the product runs the important order sets of commands to get to the information in the different sorts of memory chips [97]. There is also a need for an autonomous digital forensic solution for the home IoT. A speculative IoT crime situation was completed by a presume who utilized different IoT ware to perpetrate violations.

In the light of these situations, the researcher additionally elucidated the source of digital evidence at a physical level. To supplement understanding, another significant examination point is the internal unstable (volatile) memory of the Smart TV, which contains essential data, for example, passwords, keep going actions on the smart TV [19]. However, almost all IoT devices have a common point like a log-on and log-off timestamp that carries information about the device activation state, which is related to the IoT forensics due to its different architecture and operating system. This information is important evidence for digital investigation [91].

The data synchronization between devices has both advantage and challenges, i.e., the data cannot be located if examined device synced the data with another device is an advantage, however, there is a possibility that the reviewed device has data that may be synced with another device is a challenge [18]. Shin et al. [125] described the existing method for data collection that consists of different types of information extracted and alternative tactics of data acquisition.

Level 2 (Network level): In this level, the investigator uses an abstraction layer to manage the expanding number of logs and data reduction techniques, network bundles, and records [23]. To obtain better and quicker results, forensics experts used the AI technique as described in [52]. The devices entailed with network and cloud information in the form of a log file that includes network traffic information, IP address, time, and incident date that helps to maintain network security and integrity [80] The problem of network crime scene investigation is complicated by massive log data related to firewalls, intrusion detection systems, or web servers, which pose a challenge for investigators [59]. IoT devices keep coming in contact with various networks, which is a problem for network level security For example, any vulnerable network can make connection with the device, so a secure, confidential hub is required that is always in contact with the IoT device which can be resolved through various routing protocols [144]. Due to the immense volume of information throughout the transmission, it is impossible to locate congestion at centralized level.

We can consider a research gap that limits maximum input and availability concerns of machine to machine communication, including replication of network, addressing space issues, and safety compliance issues in IoT device [145]. A searching technique is used by Mascarnes et al. [90] to check certain keywords from a large set of text databases. The digital evidence acquisition model can solve various issues of evidence obtained in the context of IoT, as brought out by Harbawi and Varol [48]. The privacy aware IoT forensics model (FAIoT) discussed by Nieto et al. [98] indicates the log of the router when some external device wants to induce malware inside the network. Due to this, Ma et al. [89] proposed the first scalable architecture for balancing accountability and privacy in large-scale content-based networks (APCN). In particular, an innovative method for identifying content is proposed to effectively distinguish the content issued by different senders and from different flows, enabling the accountability of content based on any of its packets.

Level 3 (Cloud level): According to the National Institute of Standards and Technology (NIST), cloud computing forensic science is defined as the application of scientific principles, technological practices, derived and proven methods to reconstruct past cloud computing events [70].

This is done through identification, collection, preservation, examination, interpretation and reporting of digital evidence. In a digital forensic investigation process, arising innovation in the IoT era has consistently introduced a new challenge. The author [135] depicts that the principles by which evidence is judged in digital forensics examinations may be modified as digital evidence stored in a distributed cloud computing environment. The extraction and protection of crucial information from electronic gadgets and services running in the IoT platform will introduce new challenges. Exclusive information contains proprietary data formats, protocols, and physical interfaces convolute the evidence extraction cycle [93].

To give an overview of cloud forensics, the basic rule for forensics is to investigate the data stored at the cloud level and collect meaningful artefacts over the cloud. However, many traditional and basic procedures of digital forensic investigation don’t work in the cloud environment, so crimes committed on the cloud are very hard to investigate [116,118]. Ruan et al. [117] argue that “the application of digital forensic science in cloud environments is a subset of network forensics because it is a mix of traditional computer forensics and small-scale digital device forensics. Cloud forensics is described in three main aspects: legal, organizational, and technical. Legal aspects are treated with different jurisdictional situations. The Organizational aspects deal between cloud actor and investigator. Technical aspect involves forensic tools, techniques, and mechanisms [8]. It is important for digital forensic practitioners to have an up-to-date knowledge of relevant data artifacts that could be forensically recovered from the cloud product under investigation. The types and locations of the artifacts relating to the installation and uninstallation of CloudMe [136] client application, logging in and out, and file synchronization events from the computer desktop and mobile clients are described by Teing et al. [136] But, another issue at the cloud level is “time” which is difficult to analyze because activity during the investigation can be complicated due to the different file systems since the client and cloud storage server may reside in different time zones [71]. The cloud may store data for a limited period and delete the data after this period expires. The deleted data may be very important from investigation perspective [64]. Table 2 shows the segregation of literature in three categories physical, network, and cloud level, as well as the corresponding forensic techniques are also presented.

OPEN IN VIEWER

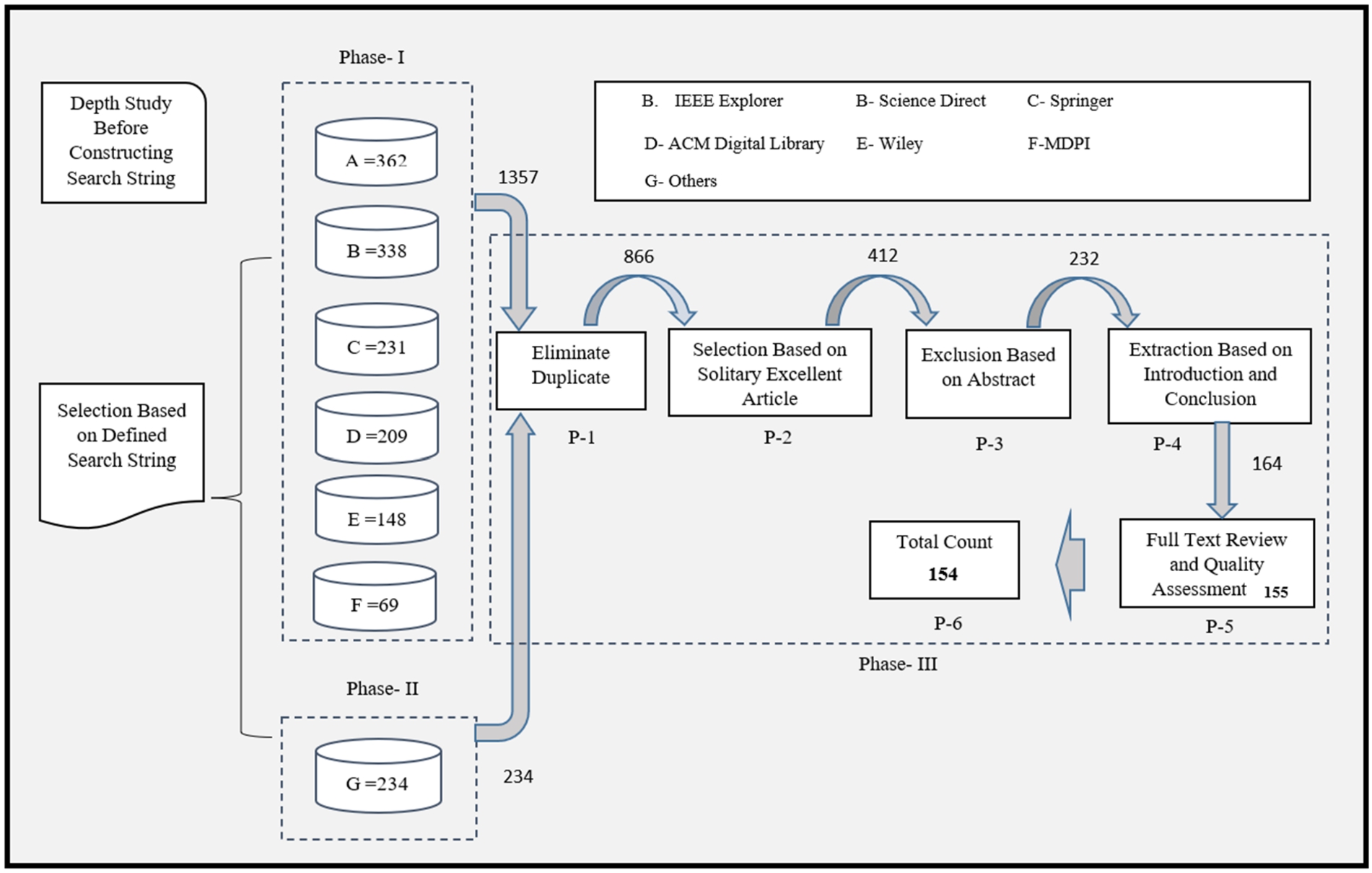

Fig. 2.

Article selection procedure.

This section describes the detailed methodology to better understand the role of digital forensics on the IoT. A novel search strategy has been used to extract relevant literatures from a wide variety of available electronic sources from the year 2006 to 2023. In which, articles are considered based on the inclusion and exclusion parameters of selection criteria. At the end of selection procedure, a detailed article distribution is given for opting a study or article.

3.3. Selection criteria

For article selection, the following exclusion and inclusion criteria has been applied for the selection of research articles.

3.3.1. Exclusion criteria of the study

1. Study submitted in a language other than English has not been considered.

2. Study that did not cover IoT environment standards (device identity, authentication, and verification) or that does not offer adequate information on digital forensics models for the IoT was eliminated from the study.

3. Incomplete work and duplicate work has been eliminated.

3.3.2. Inclusion criteria of the study

1. English language is the criteria for selection of articles for the study.

2. Published articles, papers, reports, book chapters, case studies, conference proceedings, peer-reviewed journals, or reputed workshops from 2006 to 2023 has been considered.

To reduce a clear picture of digital forensics in the IoT environment, this study gives a broad literature review of the exploration of IoT forensics. Overall, 1591 studies have been revealed from the search plan by combining database and snowball as search methodology shown in Supplementary Table 2.

Step I. Evaluating relevant studies by applying search strings in a specific repository.

Step II. Exclusion depends upon title of the article.

Step III. Expulsion through the abstract of the manuscript.

Step IV. Exclusion after deep study of introduction and conclusions of article.

Step V. Removal after complete analysis and quality evaluation of article.

By using the above-mentioned points of inclusion and exclusion of the work described in the related literature following the restriction between the year 2006 to 2023, have resulted in 1591 studies. Approximately 725 of these studies have been identified as duplicates. Further, out of 866 studies, 454 articles have been rejected based on a solidarity of the articles and the title. The remaining 180 findings have been excluded based on the abstract, and 68 research works have been again excluded after reading the introduction and conclusions. All of the aforementioned result in 155 key studies for full review and assessment of quality, 1 study are of slightly lower quality, and thus we are left with a final total of 154 studies. Finally,154 papers distributed between 2006 and 2023 have been extracted through the seven stages for review (see year-wise diagram in Fig. 3).

OPEN IN VIEWER

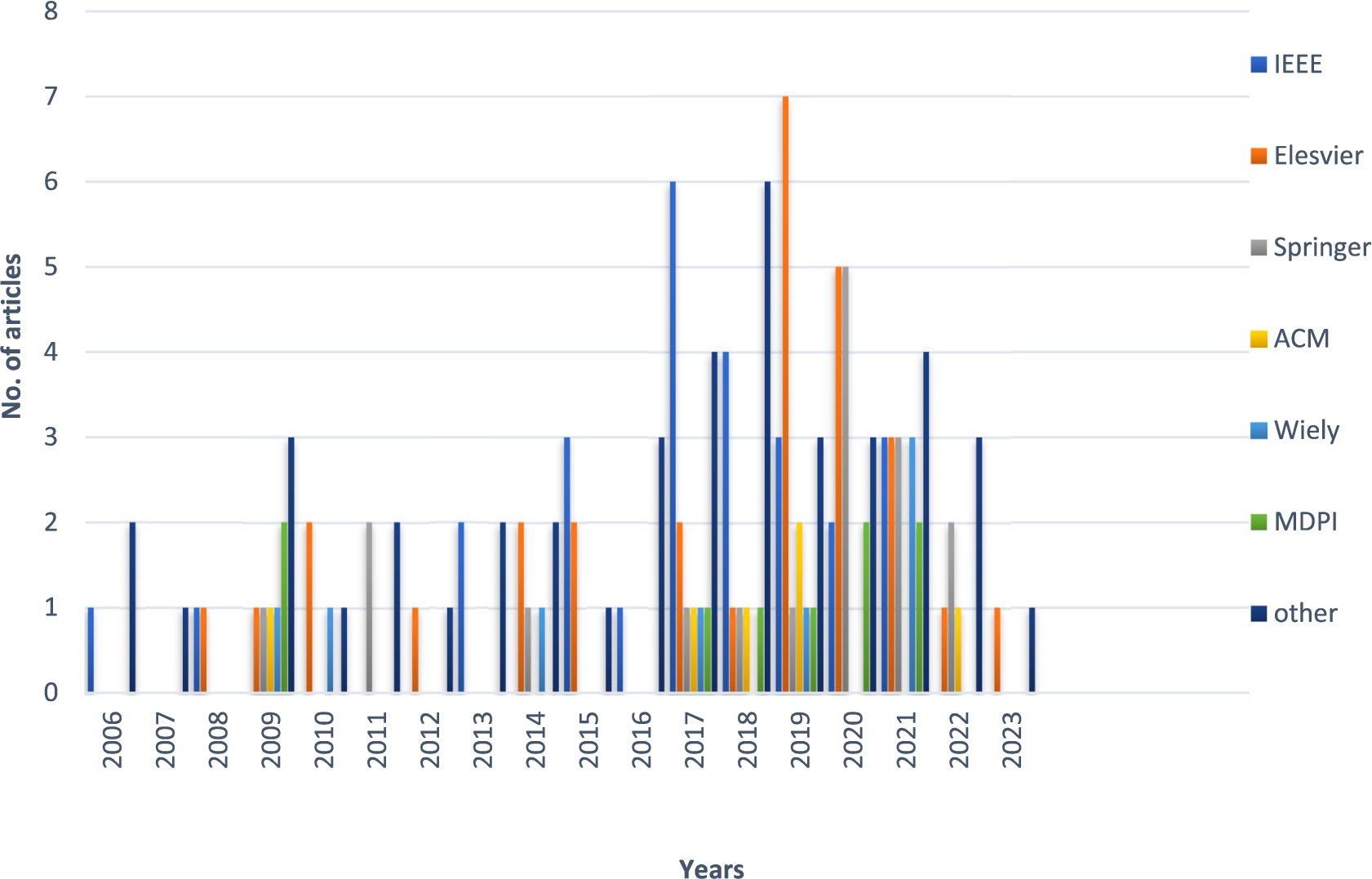

Fig. 3.

Journal-wise and year-wise distribution of final articles.

4. IoT security and forensics in ambient intelligence environments

Developed in the late nineties of the past century, the ambient intelligence (AmI) paradigm presents a vision for digital systems beyond the year 2010. New research perspectives on Ambient Intelligence indicate that the threat lies in the complexity of AmI environments, which may not be easily manageable, making the implementation of this vision potentially infeasible [1]. AmI creates adaptive electronic environments that cater to individuals’ needs by using interconnected devices and sensors. These devices record information like lighting, temperature, and vital signs, allowing the environment to behave intelligently. AmI recognizes individuals, learns from their behavior, and acts in their best interest, enhancing their surroundings [2].

In this context, Ambient Intelligence aims to enhance interactions between humans and their environments, promoting safety and enrichment. It extends beyond Smart Homes to various settings such as hospitals, transportation, factories, etc. The achievement of Ambient Intelligence relies significantly on the technology deployed, which includes sensors and interconnected devices through networks, as well as the intelligence of the software used for decision-making [14].

The application of ambient intelligence in smart environment is crucial because many time app does not ask the user but understands the user context and it can maintain and enhance the quality of life. IoT sensors and smart device collects sensitive data that leads to attract cyber criminals for malicious activity. Hence, IoT forensics is required to catch the criminal in smart ambient intelligence environments and aid in identifying the impropriety [17].

Security and forensics are two essential parts of the ambient environment, both focus on the protection of digital assets. In an ambient environment, while performing the digital investigation process some important information is openly available and can cause security leakage of personal information [95]. Such as health-related data residing in the smartwatch e.g., heart rate, waking information, location, login credentials, etc. Therefore, forensic investigation helps to identify security vulnerabilities and suggests manufacturers to deploy security measures where secure data exists. Here, we can conclude that security and forensics are two essential sides of the same coin. The work they do is very similar but different in a few ways. With digital forensics, cyber security companies have been able to develop technology that prevents hackers from accessing a website, network, or device. By knowing the trends of how cyber criminals steal or exploit data, cyber security software firms are able to protect relevant data and scan networks to ensure that outside parties cannot access it.

Security is about prevention and forensics is about a response after a breach is found. Incident response (IR) represents a set of information security rules and procedures for the detection and elimination of cyberattacks. The purpose of incident response is for an organization to be able to immediately identify and stop attacks, minimizing damage and avoiding such attacks in the future. Digital forensics deals with the aftermath of the incident in an investigation role, whereas security is more focused on the prevention and detection of attacks including design of the secure system. The cybersecurity team is responsible for implementing and maintaining a robust information security system with the goal of protecting an organization from cyberattacks; if efforts fail and a breach occurs then the computer forensics team will be responsible for identifying the vulnerability, determining the source, and to recover the compromised data and to identify person responsible for the breach. IoT forensics and IoT security are closely intertwined as illustrated in Fig. 4 and security would be less impactful if security gaps cannot be considered that were found during the digital investigation. IoT forensics comes into existence because of weak IoT security paradigms. Due to heterogeneity of protocols, heterogenous architecture, limited storage, poor security measures, and lack of common standards. Similarly, IoT forensics exists because of failed or weak IoT security tactics.

OPEN IN VIEWER

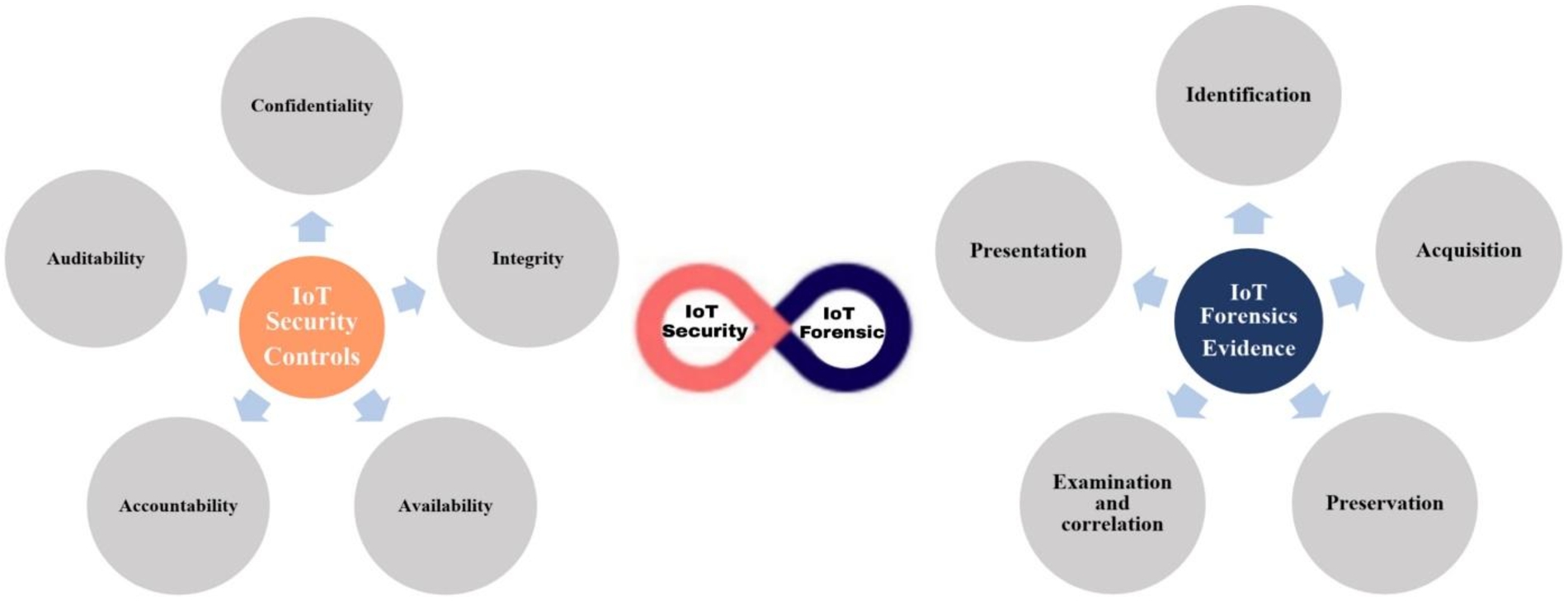

Fig. 4.

IoT security and forensics.

4.1. Security paradigms for IoT

IoT security is the primary concern for today’s digital environment, which differs from traditional security techniques. With the exponential or rapid enhancement in IoT devices, the security challenge has been increased. Hence, three tier security architecture having physical level security, network level security, and cloud level security has been considered and shown in Fig. 5.

OPEN IN VIEWER

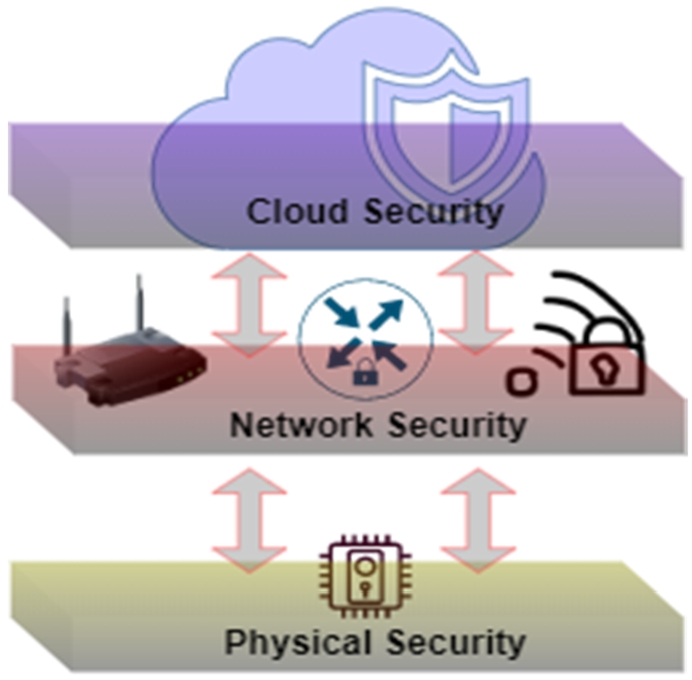

Fig. 5.

Three tier security architecture.

Maintaining security at each of three levels is of the utmost significance. In this section, the issues associated with security at different layers have been discussed in brief:

Physical layer: Includes hardware security of the IoT devices which contains data and essential evidence in the form of video, images, audio, etc. Investigators can extract digital pieces of evidence from a device that inhabits physical level security to track the activities of a target object. Physical layer security can be protected by mitigating side-channel attacks and power failure of the device. Side-channel attacks are used to extract leakage from a hardware chip or a system through computation and analysis of physical circumstances. For example, parameters for information leakage are electricity supply, completion time, and electromagnetic emissions [16]. Countermeasures for side-channel attacks are the elimination of release of private data, unpredictable rendering of helpful information, and deducing noise. Therefore, a secure and protective approach is needed to achieve the physical security of IoT devices.

Network layer: The security of heterogeneous IoT devices require up-to-date security mechanisms because various types of devices can communicate with each other in a complex network. The networking and communication layer of IoT systems can utilize several networks such as Body Area Network (BAN), Personal Area Network (PAN), Home/Hospital Area Networks (HAN), Local Area Networks (LAN), and Wide Area Networks (WAN) [131] All the networks require various methods for incident handling in a forensics environment [55]. Important evidence can be obtained from the network layer e.g. logs, routing tables, connected device information, etc. Some of the network security issues related to information that are data spoofing, identity spoofing, data tempering, and control access.

Cloud layer: Cloud security deals with the IoT system for data storage as all devices communicate with other devices through the Internet and store their information in the cloud. Cloud contains crucial client history logs, access logs, chat logs, temporary data, session data, registry, and persistent cookie. Restricted information and database logs can be extracted from the cloud, such as System logs, application logs, and user permissions [55]. Each IoT device produces a huge amount of data that can’t be stored on physical memory, so we require the cloud as a service. A third party controls this service, so our important data is on the other hand stored within an unknown vendor. Evidence can be identified in a cloud environment by reconstructing source of evidence in an iterative manner.

4.4. Emerging security issues of IoT in ambient intelligence environments

As the number of IoT devices increase in the ambient environment, the challenges related to security also increase, uses of IoT devices has also enhanced the uses of smart technology in all aspects of smart cities, which will lead to more challenges in smart cities [77]. With the rise of automation and autonomous systems, artificial intelligence and data privacy have emerged as major issues in smart cities [132]. Figure 6 shows the security issues of IoT in ambient intelligence environments.

OPEN IN VIEWER

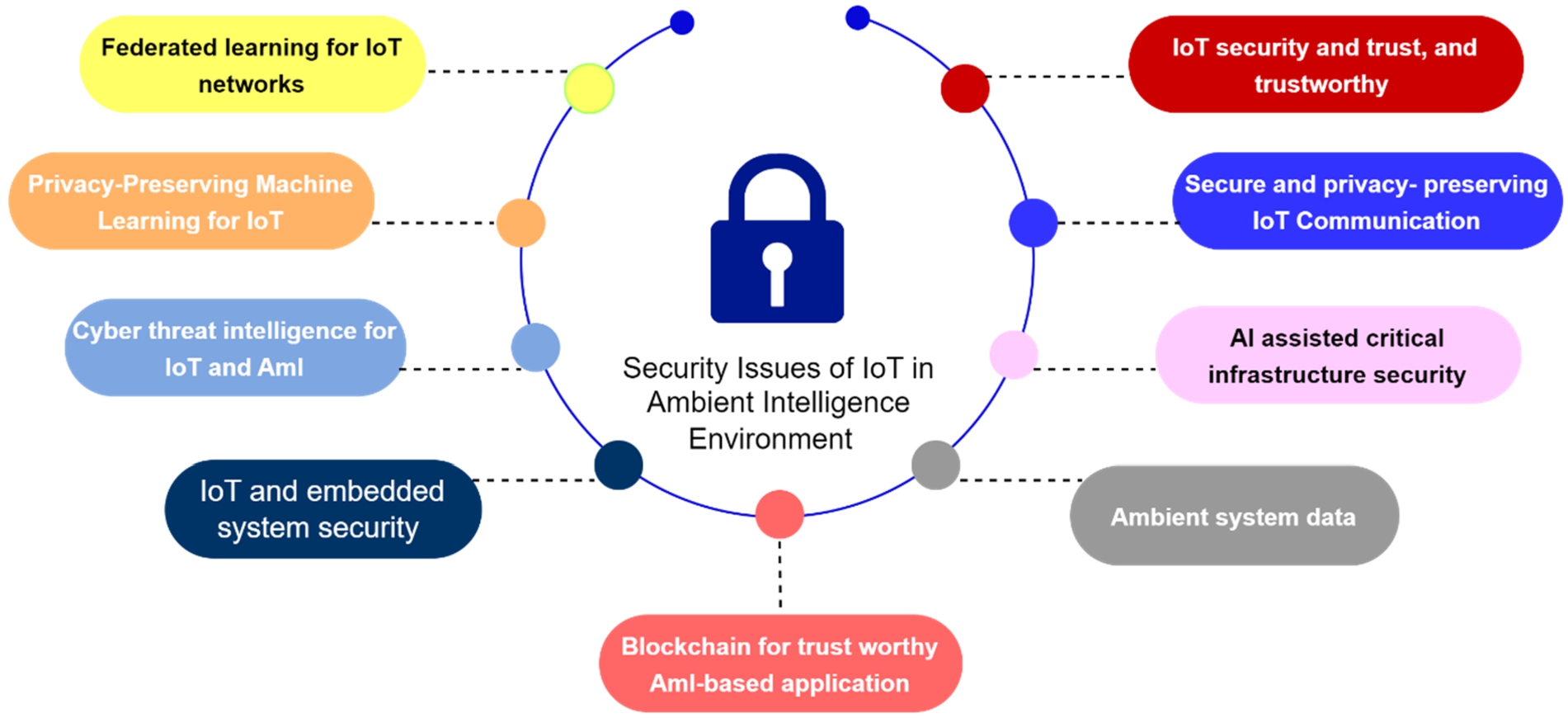

Fig. 6.

Security issues of IoT in ambient intelligence environments.

Federated learning for IoT networks

With the proliferation of IoT devices, huge amounts of private user data will be created. High connectivity, storage costs, and privacy issues will challenge the conventional IoT ecosystem of cloud-based learning and processing. Federated Learning (FL) is a viable alternative strategy. However, some challenges still exist with real FL system implementation on IoT networks [153].

Privacy-Preserving Machine Learning in IoT

IoT devices may provide sensitive information about people’s private activities and locations. To encourage widespread use, IoT-ML must prioritize user privacy. However, system designers often struggle to ensure privacy. There have been numerous studies on privacy-preserving ML in cloud computing, but it is important to determine whether these solutions can be adapted for the IoT context [154].

Cyber threat intelligence for IoT and AmI

IoT systems generate high volumes of data, with a high velocity and variety, commonly referred to as the “3 V’s.” This heterogeneous data comes from various equipment and devices, making it difficult to trace the source of a cyber-attack. As a result, authentication of IoT data can be challenging [30].

IoT and embedded system security

Embedded security protects components and software in IoT devices. IoT device manufacturers face challenges to securing their devices against cyberattacks. This includes: Third-Party Components, Lack of Standardization, Unmanaged and Unpatched Devices, Insecure Network Connectivity [32].

Blockchain for trust worthy AmI-based application

Managing and maintaining trust while transmitting information through IoT is significant. The primary issue with AmI-based applications and blockchain is the working principle and architecture difference. Size of Blockchain, Processing Power, Security, Anonymity of Users and their Privacy, speed of transaction are all problems that need to be addressed [78].

Ambient system data

Ambient system data refers to the information collected by electronic devices and sensors that are embedded in the ambient environment, such as smart homes, workplaces, and public spaces. These devices are designed to monitor and collect data on various aspects of the environment, such as temperature, humidity, light levels, air quality, and movement. The data collected by these devices can be used to provide insights into how people interact with their environment and can be used to optimize and improve the design and functionality of buildings, infrastructure, and other systems [56].

AI assisted critical infrastructure security

It is challenging to modernize the old buildings into new technologies which is cost-effective. Complex autonomous systems are difficult to understand, and sometimes it’s difficult to identify human emotions [119].

Secure and privacy-preserving IoT Communication

Privacy-preserving in IoT communication is a critical issue because privacy can easily be breached using certain attacks like sybil attack, message spoofing, linking attack etc. So, it increases the computational cost while applying security to each device as numbers of IoT device used in ambient environment [49].

IoT security and trust, and trustworthy

Due to a shortage of computational and storage resources to analyse and store IoT data, it adopts a cloud-based architecture. The trustworthiness of cloud service providers (CSPs) has become one of the most significant challenge in cloud-based IoT [83].

Another important issue is various parts of an IoT device are manufactured at different countries, and all these parts have different security standards. For example, the maximum smart IoT device company used a Wi-Fi module (TYWE3L, TYWE3S, TYWE2L, TYWE2S etc.) from a China-based company called Tuya but on product details, they had mentioned manufacturing details of a different country [141]. This type of security standards are dangerous and create a significant cause for an IoT device to be vulnerable. Digital forensics is an important part to finding out the vulnerability in IoT devices. So, it require a more structured or standardized framework that allows digital forensic investigators to evaluate risk assessment for better communication and the capacity to more effectively exchange data [115]. To better understand IoT forensics, the next section highlights the need of digital forensic in IoT.

Digital Forensic Research Workshop (DFRWS) defined Digital forensics as, “The use of scientifically derived and proven methods toward the preservation, collection, validation, identification, analysis, interpretation, documentation, and presentation of digital evidence derived from digital sources to facilitate or further the reconstruction of events found to be criminal or helping to anticipate unauthorized actions shown to be disruptive to planned operations” [13,106]. Digital forensics is the process where legal investigation can be assisted by analyzing digital sources of evidence and preserves the privacy and security of data [122]. An effective digital forensic process entails routine protocols, such as the identification of equipment containing evidence, separate processing of digital data, examination and retention of vital evidence, and systematic documentation of crime-related evidence that is admissible in the court of law in compliance with requirements [8,125]

Digital forensics has become a requisite in IoT environment due to the expansion of attacks on IoT devices which may the fragile security. So, IoT forensics comes into the light to bridge the overarching scope of IoT devices through digital forensics tools and methods. IoT forensics can help to turn down the occurrence of the trace of source, track root causes, and design correlated countermeasures [100]. Different examples of sub-categories in digital forensics are computer forensics, network forensics, mobile forensics, and cloud forensics. The capability to carry out the investigation is related to the availability of digital evidence [100]. Consequently, along with various security and privacy challenges, the exponential development of IoT devices provides numerous advantages. Thus, IoT forensics has become one of the well-known areas for upcoming researchers. The diverse nature of IoT devices and the absence of common standards make IoT environment hard to investigate [7]. In fact, the challenging part of the investigation is the testing phase due to a slight change in evidence can make a different meaning, or it will destroy the originality of the evidence. So, to avoid this challenge dump image of the device memory is required for forensic investigation.

Disk acquisition tools create a bit-by-bit copy of the memory. Therefore, if the size of the obtained media is 2 terabytes (TB), the resulting disc image will also be 2 TB in size. Grier et al. [101] presented a technique for forensics of those images that contain evidence for investigation purposes. The dump image will include even blank, unused, or irrelevant regions. It will also contain the portion devoted to operating systems (e.g., Windows, Android, Mac OSX, IoT Operating systems like Contiki), third-party apps, and Microsoft or Apple programs and their digital artifacts. These regions are often unimportant. Most computer forensic investigations focus on a user’s documents, emails, internet history, and illicit photographs.

Dynamic analysis tools can give investigators a more accurate and consistent picture of current and previously running processes, whereas the traditional approach provides investigators with partial evidence. Numerous important system-related data stored in volatile memory cannot be properly retrieved using static analytical techniques.

To know the facts behind the evidence, we need to analyze the artifacts either in traditional or modern ways. Today’s forensic software can often find hidden data storage locations – Swap files, unallocated disc space, and file “slack” (data padded to the end of files are all examples of ambient system data that may include useful information, such as email history, document fragments, Web surfing histories, and user timelines) [73].

With the help of dynamic and static analysis, the key factors of digital evidence for the investigation purposes can be understood in a better manner.

Table 4 categories the tools with their platform for collecting digital artifacts that contain essential information about criminals.

5.1. Types of IoT forensics

The IoT forensics has also a three level architecture similar to IoT security categories (refer Section 4.1) However, all the tools that have been used till date are divided and into hardware, network, and cloud levels. The tool used for digital forensic, and the evidence extracted from them cannot be divided efficiently into three parts. This section helps to know what kind of data is present and which tool is required to extract meaningful artifacts from three level of IoT forensics. Figure 7 depicts the three levels of IoT forensic.

OPEN IN VIEWER

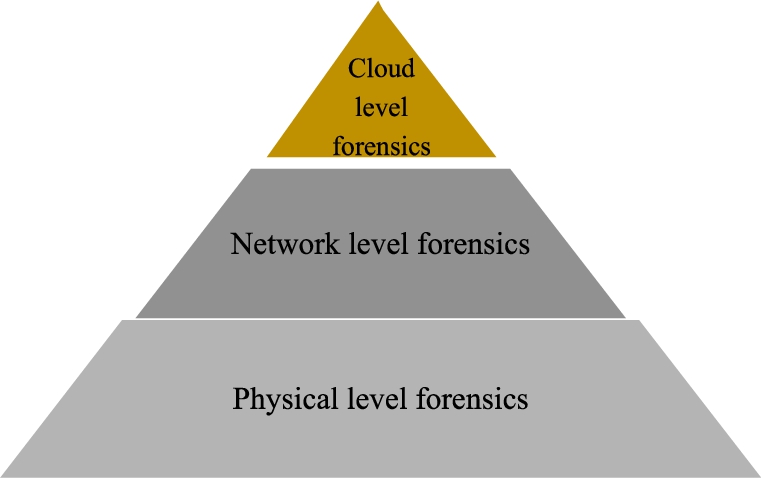

Fig. 7.

Levels of IoT forensics.

5.1.1. Physical level

In most of the cases, device level forensics is the primary source of information because investigators first acquire data from the device. In some cases, cloud level artifacts can be located at the device level, e.g., cloud Id, etc. Therefore, it is the most significant source to collect the information. In this level, the investigator collects artifacts from the local memory of the device by creating dump images from memory, pictures and video from a camera, a connected device like Alexa, smart sensors, automated cars, drones, RFID devices, a specific parameter from smart health care devises etc. Clinton et al. [35] presented their examination on investigating Amazon Echo at device level. The authors Merit summed up their trials to figure out the device through accessible methodologies, for example, eMMC Root, JTAG, and debugging ports. Even though they clarified some potential techniques for empowering admittance to the internal parts, including soldered memory chips, they didn’t show the data inside the device. Thus, this perspective can be used for future investigations. A few IoT devices might be tough to find by the experts due to the tiny size of medical sensors for example the blood pressure measurement sensors by Merit Sensors system Inc. could be only 8.1 × 10.5 mm big and less than 2 grams heavy [92].

5.1.2. Network-level

Unlike other branches of digital forensics, network forensics deals with volatile and dynamic information that may easily be lost after transmission in any network environment. Whereas an attacker may be able to wipe all log files on a compromised server, network-based evidence may be the only evidence accessible for forensic analysis [68]. A network containing several IoT devices, associated devices, and the cloud can be connected via different wired and wireless network protocols. In such network, miscellaneous threats can be detected and retrieved to perform the digital data analysis from network traffic logs in the investigation process. As a result of traffic analysis using the Charles web debugging proxy (XK72), it is confirmed that most traffic associated with forensically meaningful artifacts is transferred over an encrypted connection after creating a session with a valid user ID and password. With this network analysis, the infrastructure of IoT networks such as Personal Area Network (PAN), Local Area Network (LAN), Wide Area Network (WAN), Body Area Network (BAN), Bluetooth, (ZigBee) are most commonly used for home automation. Significant information can be extracted from the external and internal networks as shown in Fig. 8.

OPEN IN VIEWER

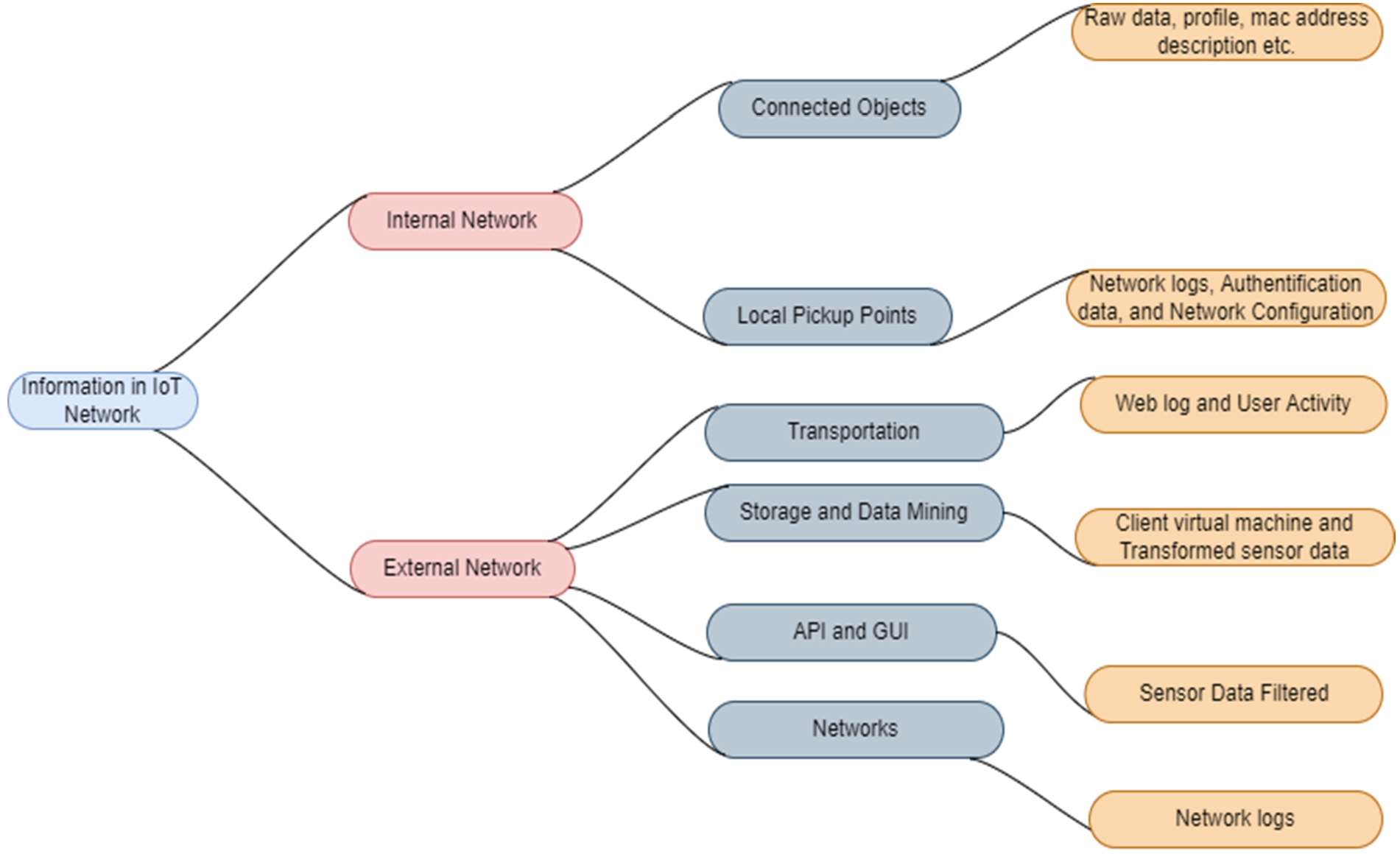

Fig. 8.

Information in IoT network.

OPEN IN VIEWER

Table 5

Type of evidence and its source in various IoT applications at cloud level

Application type	Type of evidence	Source of information	Research
Wearable	Logfile, GPS Location, temp-file, Bluetooth, Notification, connected device information.	Wearable device apps on smartphone and desktop communication data on device cloud service	[60,65,102]
Smart Home/office	Device data, communication medium, connected device, XML, protobuf,mp3, DB, Archive, log voice command, device call list, movement, network details, log data, timestamp.	Smart appliances Smart hub Applications on smartphone and web local network Cloud server, Printer source identification.	[47,72,82,127,131]
Smart vehicle	Filesystem(UDFS), driving-related data(e.g., recent and favorite), call log, contact list, SMS, image and audio, video, engine information, sensors data, lock details, attached device info, Bluetooth information. GPS location, the volatile image of infotainment OS.	Operating system, Navigation system Bluetooth phone module, built-in hard drive, touch screen, remote locks	[41,82]
Cloud based IoT Device	Registry entries, temp file system calls, process file, encrypted data, user information, storage file info, timestamp info, log details, device log in details	Network, Server, Storage, Client and web application	[8,94,118]
Security and surveillance	Audio and video files, image, fingerprint, motion sensors, sound data, login credentials, battery power info, storage file	Smart locks, CCTV, Drones, memory card, connected device	[61,72,75,91]
Smart Healthcare	Device info, sleep and step record, activity info(calorie, heart bit, GPS), temperature info, timestamp, user details	Information system application, Bluetooth	[3,98,146]
Smart Agriculture	Temperature info, moisture info, sensors data, weather data, crops and soil related information.	Sensors, GPS, multiple category of mobile data
Smart Healthcare for Animal	Internal Memory, MAC address, location of the animal, user details, app data	The associated device, Bluetooth card, mobile apps	[69,124,128]

5.1.3. Cloud level

Evidence at the cloud level is another essential part of the IoT Domain. Most internet-connected devices store their data on the cloud because of the low storage medium available at the physical level and has less computational power. Logging details generated by IoT devices are stored in a distributed way in the fog environment. Information correlated to history logs can also collect access logs, chat logs, session data, system logs, location information, user permission, and access information from the cloud. Therefore, at the cloud level, the forensics investigation process is essential. IoT devices have different types of evidence that can be extracted from various sources at the cloud level, as shown in Table 5.

5.2. Source of information in IoT forensics

Different crime scenes have various sources of evidence and contain the information related to crime as the criminal will bring something into the crime scene and leave something there, and both can be used as forensic evidence [26]. In IoT environment, digital evidence can be collected by focusing on the primary sources related to malicious activity that can reside at different levels of forensics [74]. The main source of information that can be extracted from the network and connected device is divided into three levels as shown in Fig. 9.

Data exists predominantly in the various IoT devices such as sensor nodes, medical devices, embedded systems, home appliances, and automated vehicles. Although the information storage power in IoT devices is significantly low because of the compact size, this information is directed to a central computer through the network to process valuable data. Evidence related to the system logs and temporary files is a good source of evidence. This data can be extracted by tracing volatile memory of various network devices such as routers, SDN, switches, etc. [149]. Google Assistant devices like Alexa, echo, and Miko are good sources of information in the IoT environment. Figure 9 shows the connected device in the IoT network. Table 6 describes the various tools and sources of information used in three-level IoT forensics.

OPEN IN VIEWER

Fig. 9.

Source of information in IoT environment.

OPEN IN VIEWER

Table 6

Tools and source of evidence in three-level layer IoT forensics

Levels of forensics	Evidence type	Sources of evidence	Tools used
Device-level	Internal memory, external memory, Hardware, Power info, mobile device, USB	File type, Raw data, Images, Video, Audio	EnCase, NUIX, Bulk Extractor, RegRipper
Network-level	Network antenna, router, communicated device, Bluetooth, Wi-Fi, wired and wireless networks	Network traffic logs, IP address, Routing table information	Wireshark, Pajek64, Charles
Cloud level	Client-centric artifacts: client ID, login credentials etc.	History logs, Temp data, cookies, Chatlogs database log	CIFT, FAIoT, Cellebrite UFED

For better understanding, investigators can detect digital evidence from IoT devices by partitioning into three levels with the help of different forensic tools that can help to retrieve important information. Potential evidence can be collected in various areas of IoT forensics as illustrated in the next paragraph.

5.3. Potential evidence from different areas of IoT forensics

Internet-of-Things have become an essential part of today’s life to ease human life. It is emerging into all sectors of daily routine with smart interaction between humans and things. The communication among smart devices generates a vast amount of decentralized data, including personal and behavioral information. Table 7 highlights the types of potential forensic evidence in different IoT devices, which can help the forensics researchers to collect related artifacts and related information.

OPEN IN VIEWER

Table 7

Types of potential forensic evidence in different IoT devices

Class	Device type	Forensic evidence
		Voice command/Alexa	Wifi	Bluetooth	GPS	Photo/video	Atmosphere	Movement	Health	Biometric
Smart Home	Alexa	✓	✓	✓	✓	✓	✓	X	X	X
	Smart Wireless Switch	✓	✓	✓	X	X	X	X	X	X
	Smart Toy	✓	✓	✓	✓	✓	✓	✓	✓	X
	Smart LED Bulb	✓	✓	✓	X	X	X	X	X	X
	Smart Plug	✓	✓	✓	X	X	X	X	X	X
	Smart Motion Sensor	✓	✓	✓	X	X	✓	✓	X	X
	Smart Camera	✓	✓	✓	✓	✓	✓	X	X	X
	Smart Thermostat	✓	✓	X	X	X	✓	X	X	X
	Smart Door Lock	✓	✓	✓	X	✓	X	✓	X	✓
Vehicle	Smart Car	✓	✓	✓	✓	✓	✓	✓	X	✓
	Smart Bike	X	X	X	✓	X	X	X	✓	X
Health care	Smart Wearable Watch	X	X	✓	✓	✓	✓	✓	✓	X
	Fitness Tracker	✓	X	✓	✓	X	✓	✓	✓	X
Animal	Smart Tracker	X	X	X	✓	X	X	✓	✓	X
Health care	Smart Health Monitoring device	X	X	X	✓	✓	X	✓	✓	X
Unmanned Aerial Vehicles	Drone	X	✓	X	✓	✓	X	X	X	X

Each IoT device operates in a unique environment, so all IoT device produce a unique set of forensic evidence. The various domains of IoT forensics are illustrated in Fig. 10.

5.3.1. IoT forensics for smart home/offices

Over the years, many smart home devices have been utilized to complete various valuable tasks such as monitoring and controlling home appliances, Therefore, IoT devices contain data about users and their surroundings. These devices may be used for digital investigation. The data generated by smart home devices give crucial information about user activities that may be examined by extracting the data from the smart home devices. The data stored in smart home applications pertaining to smart TVs, smart speakers, smart lighting, and smart door sensors, etc., is helpful for crime investigation [19,131]. The activity and behavior of users can be analyzed through forensics of Smart TV as it contains the history logs. The development of such forensic tools, including methods for acquiring root privileges, pre-imaging, testing, post-imaging, and comparing binary data from smart TV forensics to trace user behavior is described by Stoyanova et al. [131], Kim et al. [72] and Boztas et al. [20,72,131]. There are some examples where smart home evidence helps to identify the criminal and shows the importance of IoT forensics. One prominent example involved amazon echo recording to be used as evidence where an Arkansas man was accused of killing his friend in a murder case [82]. In another case, Husband Confesses to Murdering Wife As Smartwatch Data Exposes His Cover-up [57].

5.3.2. IoT forensics for smart vehicle

A smart vehicle that operates and controls its primary function remotely using the Internet and connected frequencies. The Internet of Vehicles (IoV) system allows the exchange of information between vehicle and their surrounding sensors that are linked with the smartphone [149]. Nowadays, smart vehicles have their infotainment system, including a music system, smart plugs, and other digital features that can be controlled through hands-free personal devices. Smart vehicles can be attacked either to damage the infotainment system or steal information. There are several incidents where cars were attacked and caused damage [13] Internet of vehicles system has a trustworthy investigation framework called Trust IoV. This framework can be used to collect and preserve reliable evidence from highly disseminated smart vehicles [54] A case study of vehicle forensics has been proposed by examining data and forensics acquirement of the entertainment system on Volkswagen cars. It also acquires forensics artifacts from potential hardware and software solutions [81]. The associated vehicle can be a decent source of information where cybercriminals can utilize GPS gadgets, connected versatile data like contact numbers, bluetooth, email information, last login subtleties, and sensor information. Electronic control unit (ECM) information incorporates speed records, airbag, and brake light sensor information to characterize the true cause of an event. This type of information provides a good source that can be used as digital evidence in a court of law [41].

OPEN IN VIEWER

Fig. 10.

Fields of IoT forensics.

5.3.3. IoT forensics for health care

The healthcare industry in an ambient intelligence environments includes IoT-based equipment such as temperature humidity sensors, blood pressure sensors, and other monitoring devices and software applications. These gadgets may gather data automatically and continually inform doctors on the vital statistics of crucial patients [22,109]. The new and more intrusive devices will emerge and this area requires urgent attention from digital forensic perspective. The growing number of health information fraud cases are increasing day by day. Generally, the business of Health applications and administrations were estimated over USD 84.08 billion in 2019 and will raise 220.94 billion with 14.8% annual CAGR growth during the forecast period of 2021–2026 [45]. With the COVID-19 pandemic, the health industry is turning towards IoT technologies [142]. As IoT devices in healthcare proliferate, so chances for the occurrence of cyber-attacks increases. Among all IoT-based spaces, the medical services division is likely to be the most powerless against significant security assaults. According to IT security firm SonicWALL, global ransomware attacks have doubled in 2021, with the healthcare industry seeing a 755% surge in intrusion attempts and malware attacks on healthcare IoT devices have increased by 71% [129] Healthcare IoT devices can be easily controlled from a remote location. As a consequence, by putting security on medical equipment may lead to secure patient health information [135].

A fitness tracker tracks the routine activity by calculating distance traveled by the user, calorie intake, body temperature, biometric information, GPS data (with timestamp), heartbeat, and sleep quality [65]. In addition to that, IoT devices like smart bands are the most significant wearable devices that can be used to collect physical variables of a human body, which is valuable for forensics purposes [60]. For example, fitness trackers store important health information, and malicious actors can use this data to illicit financial profit. Also, the data can be sold out to the criminal mind person for other benefits or to the insurance companies or blackmailing the owner of the attacked device [3].

Wearable devices such as Armbands have additionally picked up significance as a source of digital proof in crime scene investigations. IoT health care devices work actively in the foundation of the user’s everyday life activity and produce information with built-in sensors. The information generated by the health care IoT device attracts cyber criminals for illegal activities [4]. It also helps to catch false statements given by the suspect and trace the activity of the person close to the crime incident. The rising number of security and privacy protection cases highlights the need for more innovative and dynamic methodologies than traditional digital forensics approaches [146]. In some instances, it may be easier to acquire the necessary data from the connected devices than from the primary embedded devices. But it is very difficult to extract data from the encrypted mobile operating systems that are installed into new embedded devices like wearables and automobiles. Recovery of data from some of these new technologies may not be possible, or if it is possible, then the data may not be in a readable format. At the same time, privacy concerns should be of exceptional consideration as health-related data collection continues to grow rapidly. Therefore, the study of smartwatches, smart bands, and other smart healthcare devices have become even more important for forensic practices.

IoT forensics for animal health care: A Recent work Shetty et al. [124] proposed that IoT healthcare is a sensor technology that analyzes the unique aspects of animal behavior like body movements, temperature, heart rate, etc. This data is accumulated and reported in the health care center of animals. The sensor technology decreases the maintenance cost of animal healthcare and minimal fitness issues (weight, height, size, temperature, etc.). This revolution will improve the productivity rate and diminish human intervention. Systematic peer-reviewed literature showed that wearable devices could be used to monitor the activities of animals. Accurate status of health and effective sickness projection can be made by using sensor technologies, which are effective to monitor human health and can also be used for animals with minute changes [69]. An automated, IoT-based monitoring system with innovative data measurement techniques can be used to observe the health of dairy. Furthermore, it contains hardware devices, a cloud system, and an end-user application [143]. Internet of animal healthcare (IoATH) improves farm productivity and the overall welfare of animals by educating farmers and veterinarians to increase clinical treatment performance [128]. The IoT in animal health care will make another degree of straightforwardness and thus become a need to investigate translational medication and worldwide research activities, for example, ‘One Health.’

5.3.4. IoT forensics for unmanned aerial vehicle

UAVs have been used for activities like remote surveillance of prohibited areas, drug smuggling, terrorist activity, etc. The digital investigation process can be improved by using a generic drone forensic model after analyzing the basic architectural design of the drone [61]. Drones are part of unmanned systems that include connected mobile or remote controllers, batteries, sensors, base stations, and other connected devices that maintain the drone (Drone motor, propellers, GPS module, Drone flight controller). Usually, researchers work with two primary log sources, i.e., the drone and the mobile device (act as a remote controller for UAV). Still, it adds more information about the user’s activities, such as logging details, connected device information setting waypoints, and changing views in the application. Both sources have the following essential information: the serial number of the UAV, version numbers for critical firmware, launch/ land mode information, manual/waypoint operation, GPS availability report, Geo-location information, home point, and Flight track information.

Drones will never be used everywhere equally to mobile devices, as the design and technology of UAV forensics are at the point where mobile device forensics were ten years ago. The drone market size grows from USD 4.2 Billion in 2021 to USD 33.61 Billion by 2030, at a CAGR of 26% during the forecast period 2022–2030. In drone forensics, investigators can’t retrieve all of the important information from a single forensic tool because a drone has at least five different file systems, many of which aren’t recognized by commercial tools. So, more research needs to be done on drone forensics. To further complicate the situation, each manufacturer will employ a separate collection of components, which will change within their product line, and new vendors will introduce new products monthly. But they will undoubtedly play essential roles in our society. It is necessary for law enforcement agencies, security, and military professionals [75].

5.3.5. IoT forensics for smart industries

With recent advancement in smart industries and the continuous rise in the smart ecosystem, the quintessential requirement for process automation have expanded the spectrum of cyber-threats and attack methods in addition to creating enormous opportunities. Among other things, these revolutions have resulted in a paradigm shift, a transformation of industrial ecosystems and processes, and an improvement in operational efficiency. Operational Technologies (OT) such as Supervisory Control and Data Acquisition (SCADA), Industrial Control Systems (ICS), and Distributed Control Systems (DCS), which were previously stand-alone, have been able to not only converge with ICT-based technologies but also have led to the automation of smart ecosystems that comprise a wide variety of networked devices, applications, and systems. This has been made possible as a result of the aforementioned. This has resulted in the creation of Industrial Internet of Things (IIoT) technology [133]. Currently, the worldwide market size prediction for IIoT is anticipated to reach over USD 950 billion by 2025 [58]. Smart manufacturing and process automation have forgotten the concept of IIoT forensics in their pursuit of industry 4.0. The study primarily emphasizes susceptible cross-cutting IoT technologies that have accelerated the emergence of IIoT, as well as the necessity of digital forensics standards, techniques, and procedures in IIoT.

5.3.6. IoT forensics for smart farming

Smart Agriculture involves the use of IoT devices and sensors to collect data, analyze, and make informed decisions to improve crop yield, reduce costs, and increase efficiency [114]. Precision farming refers to managing farms using modern techincal (IoT based) infrastructure to improve product quality and quantity while minimizing the need of manpower. IoT is a boon for the agriculture sector which provides modern assistance to the farmer and at the same time secures his crop and increases the yield. Through Smart Farming, the farmer can get information about the soil fertility, moisture, and crop quality of his field. If any deficiency is found in the soil or in the crop, then that deficiency can be known through smart farming. The author [114] highlights the need for further research and development of IoT technologies to improve their effectiveness and efficiency in agriculture. The paper also discusses the importance of data security and privacy in Smart Agriculture and the need for appropriate regulations to protect farmers’ data. But this collected information must be secure otherwise, it can be changed or tampered by any cyber criminal and he can even damage your devices or crops. Through IoT forensics in smart farming, we are able to identify all of these vulnerabilities that aid in apprehending offenders. In smart farming, sensor collects some parameters in the greenhouse and send them to the control center, then the control center can conduct some operations according to the analysis required from the collected parameters [46]. But sometimes this transformation of data between sensors and the control center is not secure, which helps an intruder to interact and manipulate. IoT forensics in smart agriculture helps to identify such criminal activity.

6. Evidence acquisition/extraction techniques

Extraction of artifacts from IoT devices needs various tools and techniques. Different digital forensic fields, along with hardware forensics (working with primary memory and secondary memory), network forensics (for retrieving and observing the transmission medium) cloud forensics (for investigating the unknown storage) requires a different methodology. A variety of open-source tools are available for digital forensics relevant data extraction [31]. To get evidence from an IoT system with both known and unknown devices, the collection of evidence needs to be prioritized. This sorting process is often called triage. During the evidence collection phase, a triage must decide if the devices are likely to have evidence, how easy it is to get the data from the devices, and how quickly the evidence changes [120]. The speed at which data disappears from a system is called its “volatility,” and it is a key part of figuring out how likely it is to get the best evidence. Hard disk drive (HDD) is the easiest method of acquiring data, then the encrypted data on HDD. Moreover RAM (Random access memory) is more difficult to manage since it loses data when the device is switched off whereas, SSD stores data on flash memory chips and the main challenge of forensic investigators is SSD’s file recovery of deleted items. The data retrieval is more difficult when the write blocker is connected to the SSD before taking an image, because the memory controller and garbage collector erase unallocated memory cells. Cloud storage is more challenging since data is stored across the nation or possibly the globe. Data collection becomes very difficult if data is encrypted before uploading and is kept on many locations. There is a need for suitable tools to collect significant contents from IoT devices, such as RFID and NFC devices. Different evidence extraction techniques are discussed in Table 8.

Further, different devices have alternate techniques and methodologies to retrieve data and same has illustrated in Table 8. But the process of data acquisition in the IoT environment is still challenging. With the increase of attacks related to IoT, there is a tremendous demand for the successful prosecution of culprits [88]. This gives rise to opportunities for research communities to develop new age digital forensics methodologies, techniques, and tools.

Various researchers have observed and laid out forensic methods that can be tracked distinctly during digital forensics examinations. In a cloud environment, the distribution of computation and storage poses a unique and complex challenge for investigators. As in cloud forensics, extraction of evidence from the distributed environment is far more difficult as computation performs at different locations [11]. For IoT this might be very disruptive as devices are broadly distributed to people such that interference with them is interference in their lives. Instead of this, plenty of well-known standards can be helpful for the investigation, such as the National Institute of Justice (NIJ), National Institute of Standards and Technology (NIST), Integrated Digital Investigation Process (IDIP), Digital Forensics Research Workshop (DFRW). A few researchers and practitioners [116,118] have concurred on the stages discussed in the NIJ cycle, as shown in Fig. 11 The steps involved in the above said process are as follows:

OPEN IN VIEWER

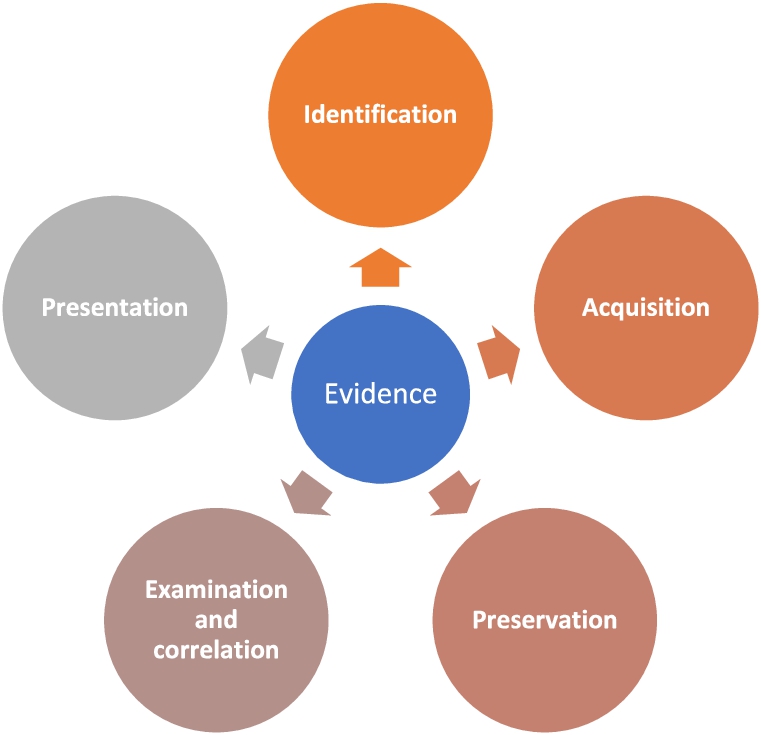

Fig. 11.

Investigation process of forensics artifacts.

7.3. Evidence preservation

Evidence obtained during computer forensics has traditionally been more prevalent but now, as technology increases, several IoT devices are also involved in the investigation process. These devices contain enormous data with less security and high complexity as because of less storage capacity and low computational power IoT devices use the web and mobile applications for cloud storage. It is more challenging to preserve artifacts from the compromised machine and guarantee its integrity. Every law enforcement agency needs a chain of custody, when and where the incident occurred, with information about how essential evidence was collected, protected, examined, and presented. Furthermore, it ensures that data retrieved from the evidence has not been altered throughout the entire process of a forensics investigation [86]. There are three steps to preserve the digital evidence shown in Fig. 12 directed during the transfer of media.

OPEN IN VIEWER

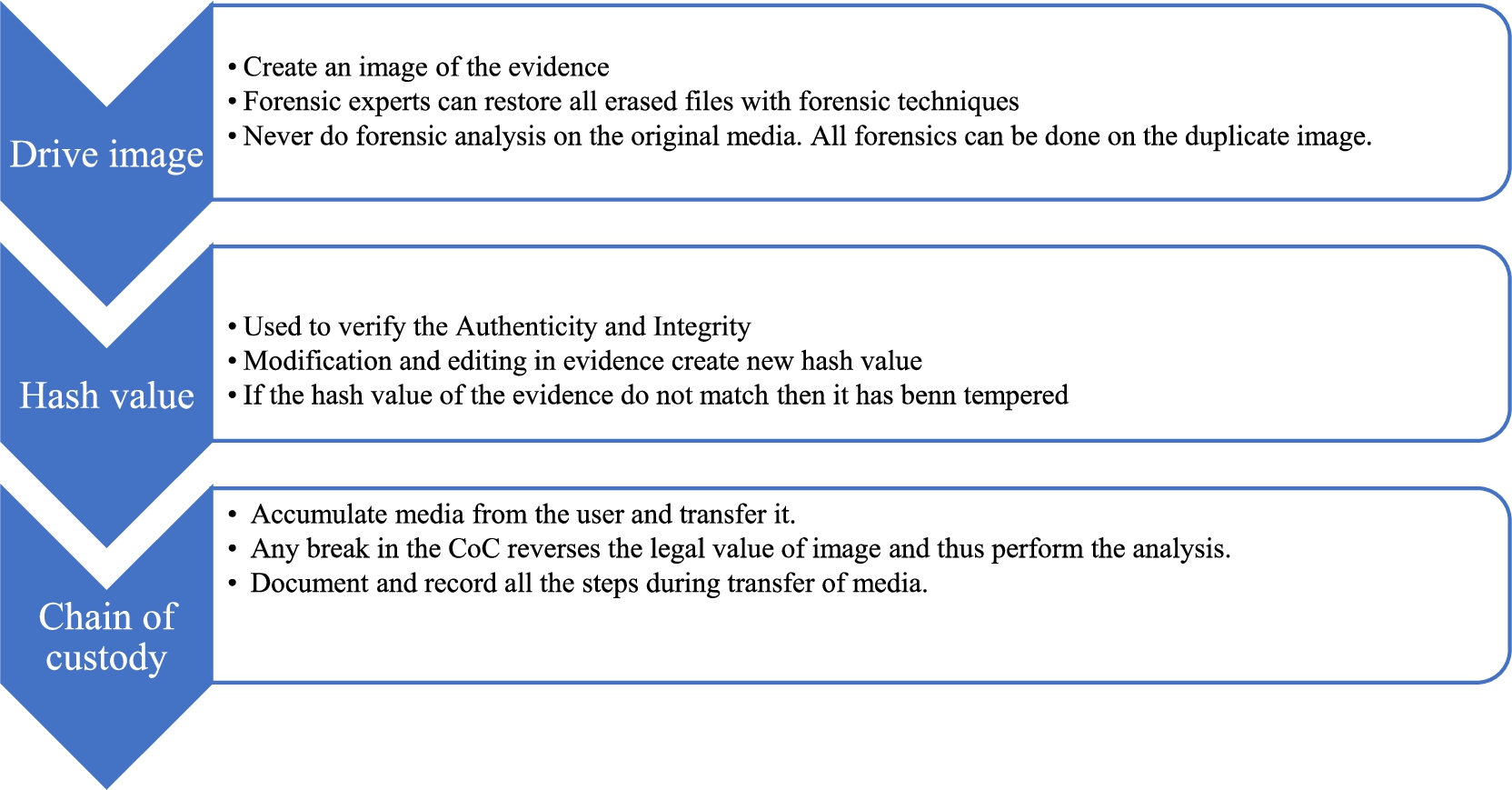

Fig. 12.

Methods for the preservation of digital evidence.

7.4. Evidence examination and correlation

The fast development of IoT gadgets and the exponential increment in information produced by these gadgets make a genuine need to determine and deal with the created data. Accordingly, IoT devices have a large amount of data, so it is essential to develop practical analytical methods to examine the data. It will assist the specialists in extracting significant proof and settling on the necessary choices rapidly and successfully. As we know, most IoT devices work continuously and produce a large volume of data, and it is very challenging to analyze encrypted data.

Usually, digital forensics examination of IoT systems is uncertain about where data came from, who stored it/modified it/or created the data object. To know about all the details of data origin could be clarified, depending upon the data model [105]. Experts reviewed present and future lawful worries that are corresponding to IoT security and legal sciences [87]. One of the central matters alludes to the clashing lawful direction if a transnational crime should arise, with the nonappearance of transparent procedural and authoritative contracts. Although tempered evidence also keeps extensive information even if that information can be separated into various parts and due to which such evidence has to go through many legal procedures. Digital forensics is a necessary part of cybercrime investigation. In some cases, a tiny bit of evidence is distributed among several locations which creates a challenge for the investigator. After studying the evidence examination phase of various researches, now we concluded that an efficient testing technique is needed which classifies data and segregates irrelevant information from the evidence. Figure 13 gives the best illustration for evidence examination and testing.

OPEN IN VIEWER

Fig. 13.

Evidence examination and testing.

7.5. Evidence presentation and reporting

The presentation of facts and their reporting depends upon the authority who investigates the case and the respective jury where the investigator presents the report. IoT-based evidence is a new challenge that requires sound technical understanding and knowledge of the individual Information technology laws of a country. It would be an arduous task to elaborate the minor findings of such a specialized case with complex architecture in a short time [151,152] Different IoT devices have various parameters for sensing the environment like temperature, movements, activities, etc. so it is more challenging to observe the data because every piece of information is stored in a different file format. Sometimes information gathering and progression using other analytic functions may convert the meaning of the data and modify its structure [36,87] To resolve the evidence investigation issues and legal challenges, an efficient technique is required for the digital forensics of IoT devices that classifies the evidence according to the need of the investigators. Our study elaborates the evidence investigation procedure and legal challenges as shown in Fig. 14.

OPEN IN VIEWER

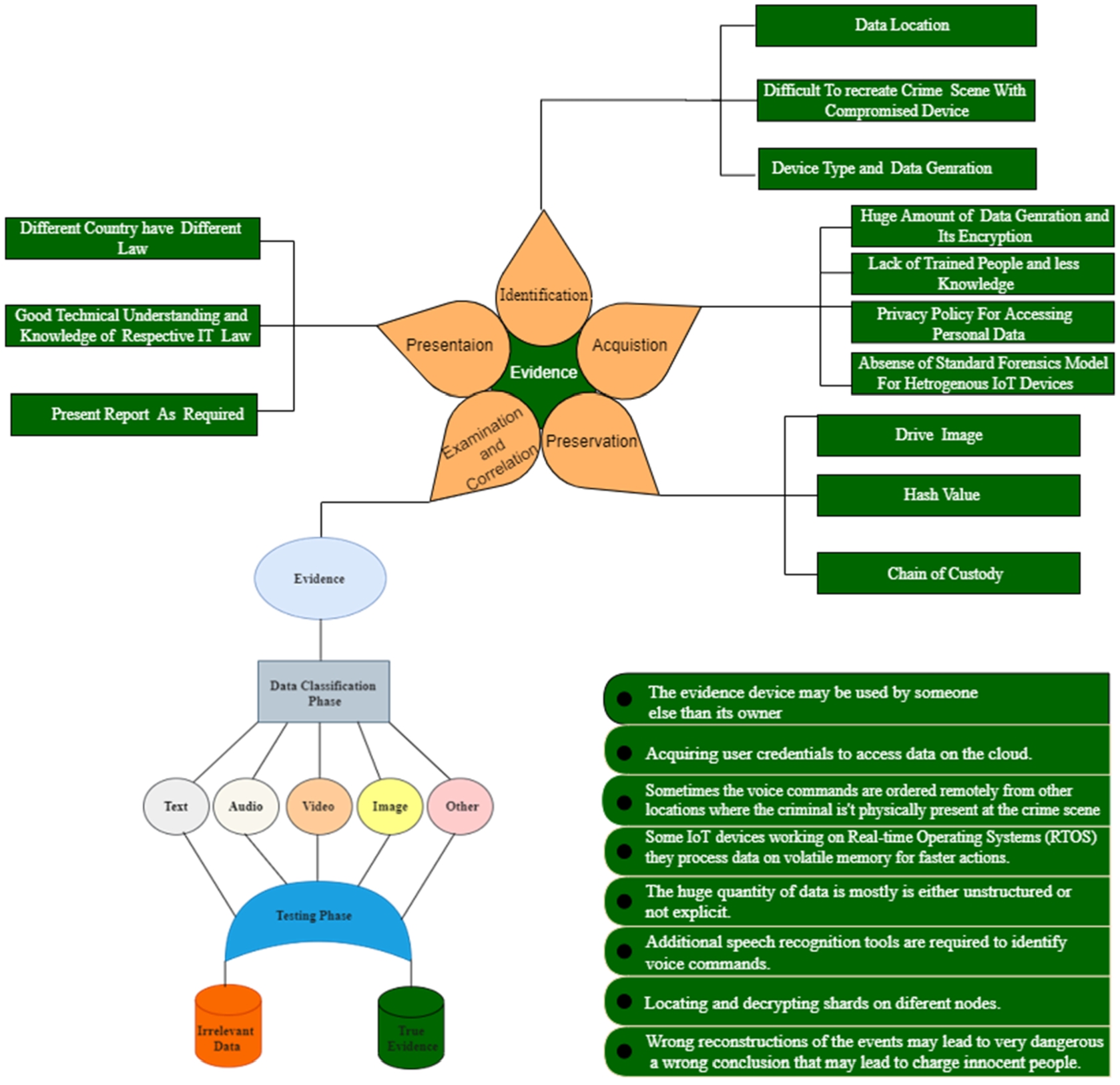

Fig. 14.

Challenges in the investigation process of IoT forensics.

There have been numerous researchers presented different forensics techniques for IoT device like memory acquisition, cloud based data extraction etc. and several issues related to digital forensic of IoT device. In this, a complex hardware architecture with less computation power, storage dependency leads to insecure data, and heterogeneity of IoT devices is to be discussed with some solutions. Table 9 summarizes forensic techniques and open issues in detail.

9. Conclusion and recommendations

The Internet-connected devices are being incorporated nearly in all the areas of human life ranging from medical care, home automation, education, industry, to business and so forth resulting in billions and billions of such devices. The smart devices store their data on the cloud and share the same with one another. The interactive nature of IoT devices enables human beings to communicate with things that use various communication mediums such as Wi-Fi, Bluetooth, near-field communication (NFC), etc. The omnipresence of IoT has become an attractive target for attackers, due to the massive number of smart devices and the continuous flow of data. IoT devices are susceptible to cyberattacks, due to their reliance on the internet for communication. This survey aimed to explore recent studies on IoT forensics and their open challenges. Here we have investigated the state of art literature available on IoT forensics by analyzing their strengths and weaknesses. Security and forensics of IoT devices were discussed by classifying the literature at three levels. The study discusses the relationship between IoT forensics and IoT security, requirements, and challenges by analyzing the source of evidence at different levels. The need of forensics in different areas of IoT applications and the type of devices with potential forensic evidence have been evaluated. We also enumerate several tools and techniques for evidence extraction, investigation process for IoT forensics, and legal challenges.

Furthermore, the study highlights open research issues and solutions related to IoT forensics. The work concludes that forensic solutions need to be integrated into current IoT devices to ensure that they can be investigated in the case of an incident.

In future, there is need for more in-depth research of IoT devices at physical layer, such as chip-off procedures used in mobile devices. More research is required on the most prevalent home security systems, smart assistants and smart firewalls, etc. Selective evidence collection from huge amount of IoT data may improve the speed of investigation. The process of forensics cannot be fully automated. However, a semi-automated approach to the investigation’s analysis phase might be beneficial. In IoT forensics, the application of machine learning techniques, such as the correlation of logs and meta-data analysis, is gaining importance. We will also work on proposing a framework for a multipurpose digital investigation model used to extract artifacts from IoT devices in the future.
