Robust partial face recognition using multi-label attributes

2.1 Face recognition with attributes

Facial attributes, also considered as soft biometric attributes, refer to a set of biological characteristics of the human face, providing a wide variety of identifying information like gender, age, race, hairstyle, accessories, etc. [18, 19, 20, 21]. Over the past years, people attempted to use such soft biometric attributes to improve face recognition performance. An early study combining face attributes for this purpose was reported in 2009, the work [22] proposed to train attribute classifiers at first; then fused these attributes with other features for the face recognition task. However, in the context of deep learning, attribute-assisted face recognition does not gain too much attention. One related work, reported in [23], exploits CNN-based face attributes features for authentication, the facial attributes are used to train a deep CNN architecture. Later, the work [24] reformulated the fusion of features for face recognition and features of facial attributes as a gated two-stream neural network. More recently, the work [25] proposed to utilize face attributes to improve a CNN-based RGB-D face recognition feature learning task.

Unlike soft biometric attributes that every individual owns, there are some other semantic attributes such as scar, mole, freckle that play an important role in face recognition and can be used to improve recognition accuracy by complementing conventional face recognition. Especially, under occlusion and pose variation, these semantic attributes provide alternative features for face comparison. However, only a limited number of studies have been done so far on exploiting semantic attributes for face recognition. The work [26] detects potential moles in the facial region by using a multi-scale template matching algorithm. Similar work of detecting moles by template-based matching for face identification is presented by [27]. The work [28] presented their approach on prominent mole detection by applying a homomorphic filter on the contrast-enhanced image. These aforementioned schemes of mole detection do not consider other types of facial marks. Recently, the work in [29] proposed to use facial marks combined with a deep convolutional neural network by the weighted score sum approach.

Based on the assumption that face attributes could provide independent features from a feature representation learning perspective, we develop a robust PFR using multi-label attributes. In our method, except occlusion attributes, soft biometric attributes, as well as semantic attributes together form our multi-label attributes are used to supervise PFR feature learning in the implicit way, thus they are not required during the testing stage.

2.2 Deep learning based PFR

For deep learning based methods, training data plays a key role in the performance, and in general more training data leads to better performance. In particular, a well-balanced sample distribution positively affects the performance of the algorithm. Due to the randomness of the occlusion position and occlusion content, both reconstructed and augmented methods for PFR have great challenges.

Methods attempting to reconstruct the occluded regions have gained popularity in solving PFR problems [30, 31]. For example, the method in [30] used a novel mapping-autoencoder for occlusion detection and an iterative stacked denoising autoencoder for image reconstruction. Another related method was proposed in [31]. A stacked sparse denoising autoencoder with two channels was proposed to discard noise activations in the encoder network and achieve better image reconstructions. Recently, the work [32] proposed to use LSTM autoencoders with two channels to reconstruct faces in the wild. The drawback of these methods is that the reconstruction can only be achieved for face images of the same kind as the training images and does not generalize well to other kinds of facial images. Our proposed Attr4PFR can do PFR with arbitrary occlusions because we propose a novel data augmentation to solve limited training data and generate occlusion attributes.

Several other methods of training with augmented occluded faces have been proposed for improving the performance of PFR. For example, the work in [33] augments occluded faces with various hairstyles and glasses to enable the CNN model to be robust to various hairstyles and glasses. The method indeed relieves the data deficiency problem and results in improved performance. However, its use is limited to handling sunglasses and hair in recognition. Instead of using synthetic occluded faces directly, the work [34] first identifies the importance of face regions in an occlusion sensitivity experiment and then trains a CNN with identified face regions covered to reduce the model’s reliance on these regions. Specifically, they propose to augment the training set with face images with occlusions located in high effect regions (the central part of the face) more frequently than in low effect regions (the outer parts of the face). This forces the model to learn more discriminative features from the outer parts of the face, resulting in less degradation when the central part is occluded. However, pre-defined occlusions may cause performance degradation when dealing with face images with an occlusion that is not of the same size. More recently, aiming at dealing with arbitrary sizes of partial faces, the work [35] proposed a method combining a fully convolutional network with sparse representation classification. Indeed, fully convolutional networks can be applied to extract spatial feature maps of arbitrary input image size. In particular, a sliding window of the same size as the input feature maps is used to decompose the gallery feature maps into several sub-feature maps.

Unlike existing occluded face augmentation methods [30, 31, 33, 35], we augment occlusion faces with common and random occlusion masks in small cells coupled with occlusion attributes. The distinctiveness of our method lies in two aspects: i) First, our proposed method ensures that clean faces are trained with greater occlusion diversity; at the same time, it enables the identification of occluded areas in the augmentation without necessitating applying occlusion detection. ii) Second, the occluded areas, functioning as occlusion attributes, also assist in training our Attr4PFR to extract discriminative features. In this way, we can address various occlusion positions encountered in real-world scenarios and guidethe learning process, leading to Attr4PFR an occlusion-free method.

OPEN IN VIEWER

3.1 Overview

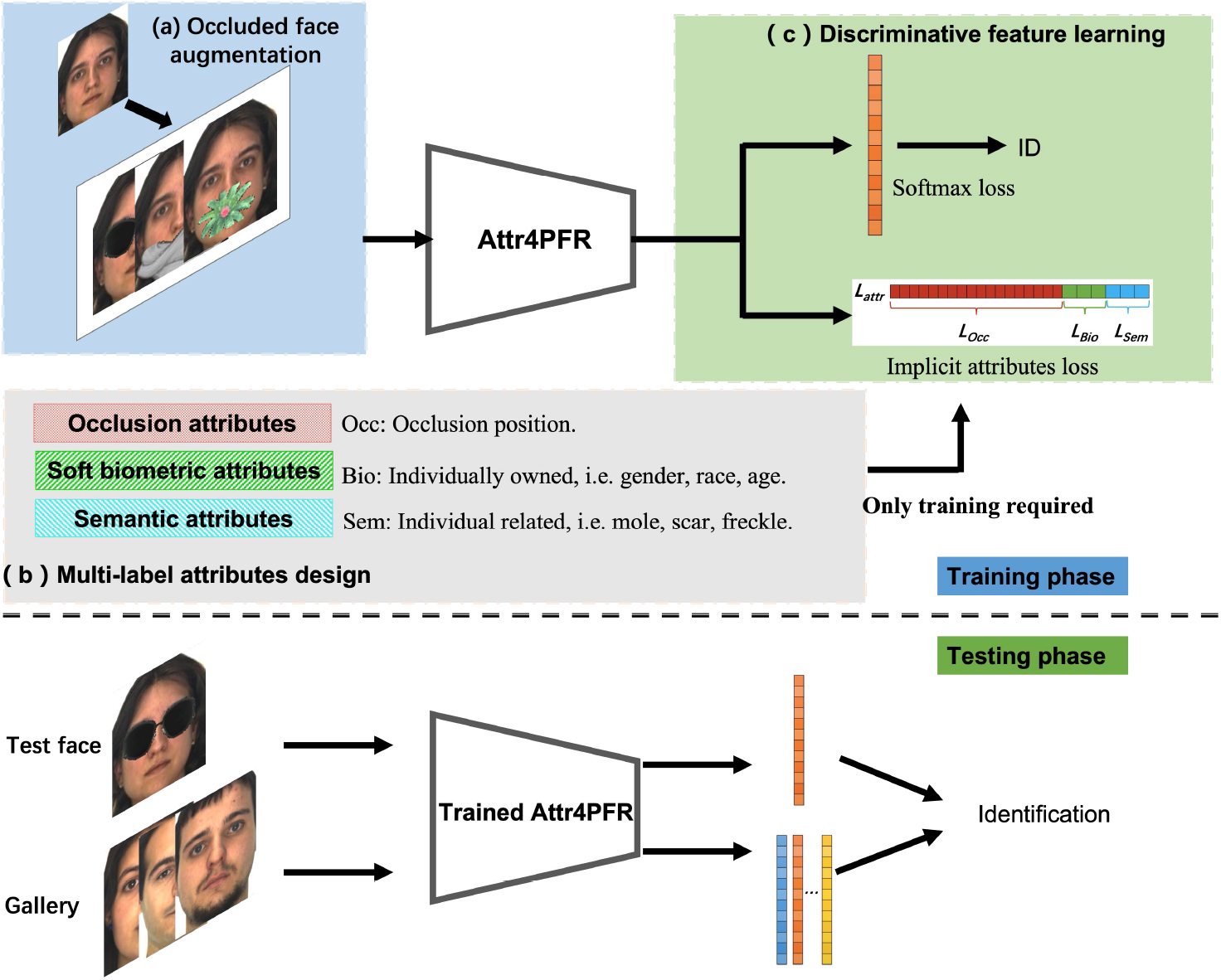

We propose a robust PFR method to deal with aforementioned issues: limited training data, occlusion detection, and discriminative feature learning. Figure 2 shows the framework of Attr4PFR which contains three parts: (a) occluded face augmentation, (b) multi-label attributes design, and (c) discriminative feature learning. At the training phase, occluded face images are fed into the Attr4PFR network. The output features of the Attr4PFR are fed into a fully connected layer and followed by the softmax loss layer. Furthermore, the output features are also followed with the implicit attributes loss layer together with corresponding multi-label attributes vector for further discriminative feature optimization in an implicit way. Figure 3 gives the detailed architecture of Attr4PFR. At recognition time, only the output of the first fully connected layer is used for biometric comparison, and the attribute-aware layer is not needed. In the remainder of this section, we introduce our proposed method in detail.

OPEN IN VIEWER

As mentioned before, most face databases do not present enough occlusion cases and samples for a CNN to be trained well. We propose a novel data augmentation method for generating real-occluded face images in a strategic manner.

OPEN IN VIEWER

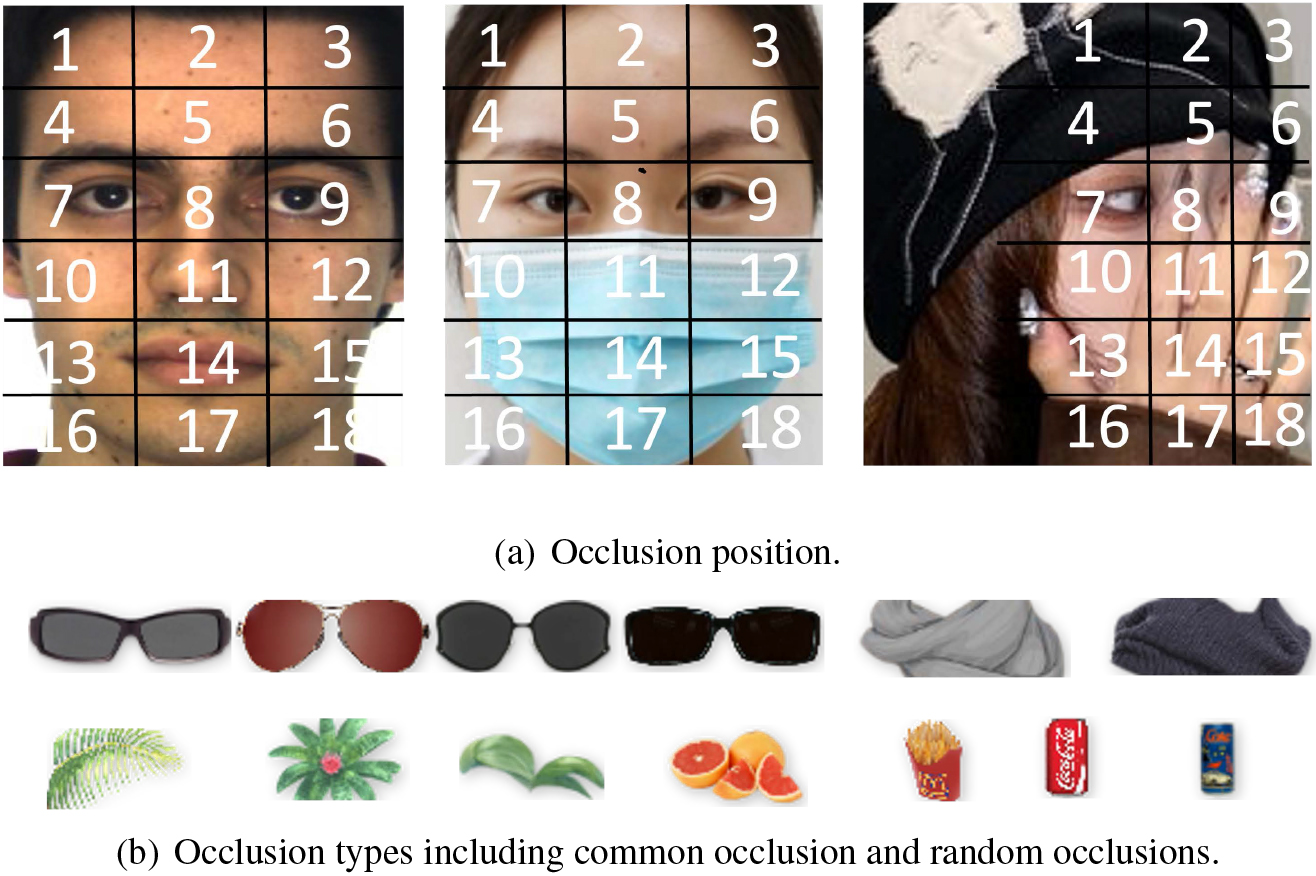

In real-world applications, occlusion may occur in various parts of the face. In order to represent various occlusions more accurately and flexibly, we divide the faces into small cells firstly. As shown in Fig. 4a, faces are evenly divided into 18 cells. So the occlusion attributes can be represented by a binary vector of length 18, with each element representing a cell. An element is set to 1 if a cell is occluded, otherwise it is set to 0.

In our proposed method, face images are randomly covered by a set of pre-designed occlusion masks (see Fig. 4b) before training. All the occlusion positions can be regarded as random occlusions due to factors, such as glasses, scarves, veils, masks or occluded by poses, hands, objects. For these occlusions, we propose occluded face augmentation method as below.

Two types of occlusions are considered: i) common occlusions such as glasses, scarves, veils, masks, the occlusion position are usually fixed; ii) random occlusions caused by other uncontrolled factors, such as hands, objects, the occlusion positions are usually random and not fixed. For these two types of occlusions, we propose to use two types of occlusion masks to simulate real-world occlusions: common occlusion masks (the first 6 occlusion masks in Fig. 4b) and random occlusion masks (the last 7 occlusion masks in Fig. 4b). Then faces are covered with these occlusion masks with fixed or random locations. Our proposed method for occluded face augmentation that is easy to extend to more common and random occlusion masks, but it is a trade-off between method performance and efficiency.

It should be noted that when applying these pre-defined occlusion masks, the occlusion attributes of each augmented face are labeled meanwhile. For common occlusion, we utilize objects such as glass and scarf with sizes of 224 × 36 and 224 × 72, respectively. For random occlusion, it may occur in diverse regions of the face, attributable to theoretically any object of varying sizes. In this paper, we only enumerate a few examples of random occlusions with different sizes for illustration purposes. However, this concept can readily be expanded to incorporate a wide array of occluding objects with different sizes.

The deficiency of using pre-defined masks to obtain occluded faces has two causes: i) it is difficult to cover all kinds of occlusion situations, especially any object that can appear in a face; ii) lack of guidance during learning. In this paper, we propose to deal with this problem in two ways: i) dividing a face into smaller areas (18 small cells) and annotating occlusion situations by occlusion attributes (see 3.3); ii) extracting the un-occluded face regions with occlusion attributes advised (see 3.4). In such a way, the various positions of occlusions in the real world can be covered and guided for learning, which can make up for the shortcomings of the previous artificial masks.

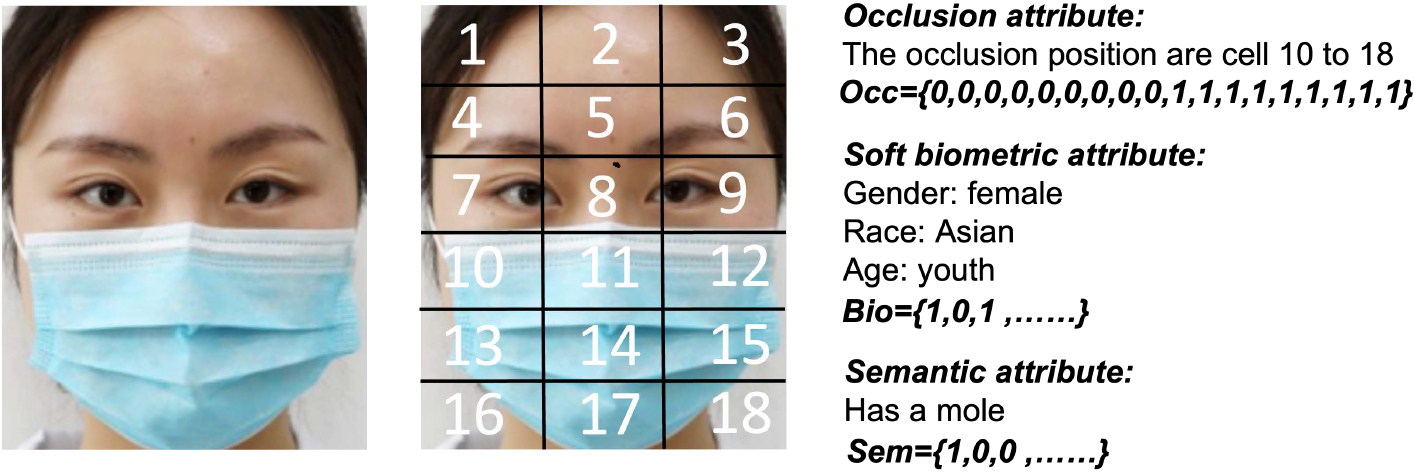

In this paper, we consider occlusion attributes, soft biometric attributes, and semantic attributes as our multi-label attributes. Our method is flexible to extend our multi-label attributes with more rich attributes if any.

Discriminative features are learned from occluded face images by our PFRNet in a supervised manner. As shown in Fig. 2, we use softmax loss and implicit attributes loss to supervise Attr4PFR jointly in an implicit way. Unlike existing multi-task methods, which directly learn the prediction of two tasks, our Attr4PFR focuses on learning the association between discriminative features and attributes. During the training phase, multi-label attributes act as an auxiliary constraint for learning discriminative features. However, during testing, predicting multi-label attributes is not necessary, as we have already learned the mapping matrix of discriminative features from the multi-label attributes.

Using softmax as the loss function, the network pays attention to which identity has the highest probability, but not to the degree of distinction between the identity. While implicit attributes loss is optimized from the attribute level, and tries to perform attribute-related probability based on the extracting features. Particularly, utilizing implicit attributes loss directly mapping discriminative feature from related multi-label attributes. In other words, the loss function combining softmax and implicit attributes loss will determine the maximum probability that the sample belongs to a certain category under similar attribute conditions.

The formulations of softmax and implicit attributes loss functions will be presented separately.

Suppose training set is notated as { x i } i = 1 N with x i ∈ R m × n , and the corresponding identity labels donated as { y i } i = 1 N with y i ∈ 1 , 2 , … , C . The softmax loss function L s is formulated as:

L s = - ∑ i = 1 N log ⁡ ( exp ⁡ ( w y i T ⁢ f ⁢ ( x i ) + b y i ) ∑ j = 1 C exp ⁡ ( w j T ⁢ f ⁢ ( x i ) + b j ) )(1)

where f ⁢ ( ⋅ ) is the learned feature mapping by training Attr4PFR, K is the dimension of deep feature f ⁢ ( x i ) . W = [ w 1 , … , w C ] ∈ R K × C and b = [ b 1 , … , b C ] ∈ R 1 × C are the weights and biases in the last fully connected layer.

Multi-label attributes here are used as an auxiliary supervision signal for discriminative feature learning, which can be combined with softmax loss. As shown in Fig. 2, implicit attributes loss contain three parts, occlusion attributes loss L 𝑂𝑐𝑐 , soft biometric attributes loss L 𝐵𝑖𝑜 and semantic attributes loss L 𝑆𝑒𝑚 . For a face image x i , the multi-label attributes are composed of occlusion attributes (18-dimensional vector), soft biometric attributes (3-dimensional vector) and semantic attributes (3-dimensional vector). It is easy to merge the multi-label attributes to one vector A i ∈ R H 4 = { 𝑂𝑐𝑐 i , 𝐵𝑖𝑜 i , 𝑆𝑒𝑚 i } . Then the implicit attributes loss can be formulated as:

L 𝑎𝑡𝑡𝑟 = 1 2 ∑ ∥ ( ( f i - G ( A i ) ) ∥ 2 2 ,(2)

where G ∈ R K × H 4 is a parameter matrix to be trained of the implicit attributes loss layer, K and H 4 are the dimensions of the deep facial feature and the multi-label attributes vector, respectively. With global linear mapping G ⁢ ( ⋅ ) , features of different attributes remain separated, and features of the same attributes remain clustered. That is, the implicit attributes loss can improve the learned feature mapping by utilizing these attributes.

OPEN IN VIEWER

To show the effectiveness of our occlusion attribute-aware loss, we present a toy example on a small face set. This dataset is selected from the AR face database that will be introduced in Section 4.2, and contains only eight identities of the same gender and ethnicity but with different occlusions. Five of the identities are occluded by glasses, and three by scarf. We use ResNet [38] with 10 layers to train two models, one with softmax only, the other with both softmax loss and the occlusion attribute loss. Then we use t-SNE [39] for the visualization of high-dimensional features of two models, respectively. According to t-SNE, we reduce the output dimension of the penultimate fully connected layer to two dimensions and visualization them in Fig. 6a and b. We can see that the adjacent distance between identities in Fig. 6a is much larger than those in Fig. 6b. This indicates that the two-dimensional features of each identity become more discriminative through the regularization using occlusion attribute loss. We can also observe that features for identities of the same occlusion in Fig. 6b are closer to each other than in Fig. 6a, verifying the occlusion property of the attribute loss. This also revels that the problem of distribution shift caused by adding occlusion can be alleviated when occlusion attribute loss is applied.

Finally, the whole discriminative features learning objective function can be formulated as:

L = L s + λ ⁢ L 𝑎𝑡𝑡𝑟 ,(3)

where λ is a user-defined hyper-parameter to balance the two loss terms.

During the testing phase, the features are extracted from the first fully connected layer of trained Attr4PFR. Then cosine similarity is used to compute the similarity between the query feature and all the gallery features, which can be formulated as follows:

S ⁢ ( i , j ) = ∑ n = 1 K f i × f j ∑ n = 1 K ( f i ) 2 ⁢ ∑ n = 1 K ( f j ) 2 ,(4)

where f i and f j are the features of query and gallery face image, respectively; K is the feature dimension.

4.1 databases and experimental setup

To evaluate the performance of the proposed method, we compare our proposed method with several state-of-the-art methods both on the in-the-lab database (AR [16]) and on the in-the-wild databases (IJB-C database [17]).

The AR face database contains 4,000 face images of 126 different subjects with different facial expressions, illumination conditions and occlusions. Each subject is captured in two sessions and each session has 13 face images for each subject, where 3 of them wearing sunglasses and 3 wearing scarves, 3 of them are taken under various illumination conditions, 4 of them have different expressions. Figure 7a shows some examples from AR database. All the faces are captured in the laboratory environment.

OPEN IN VIEWER

The IJB-C database extends IJB-A, IJB-B, with more emphasis on occlusion, diversity of subject occupation and geographic origin. IJB-C includes real-world unconstrained faces from 3,531 subjects with full poses, illumination and occlusions variations. Many unconstrained faces were fully occluded by any objects in any position. It is the most challenging occlusion face database. Figure 7b shows some examples from IJB-C database.

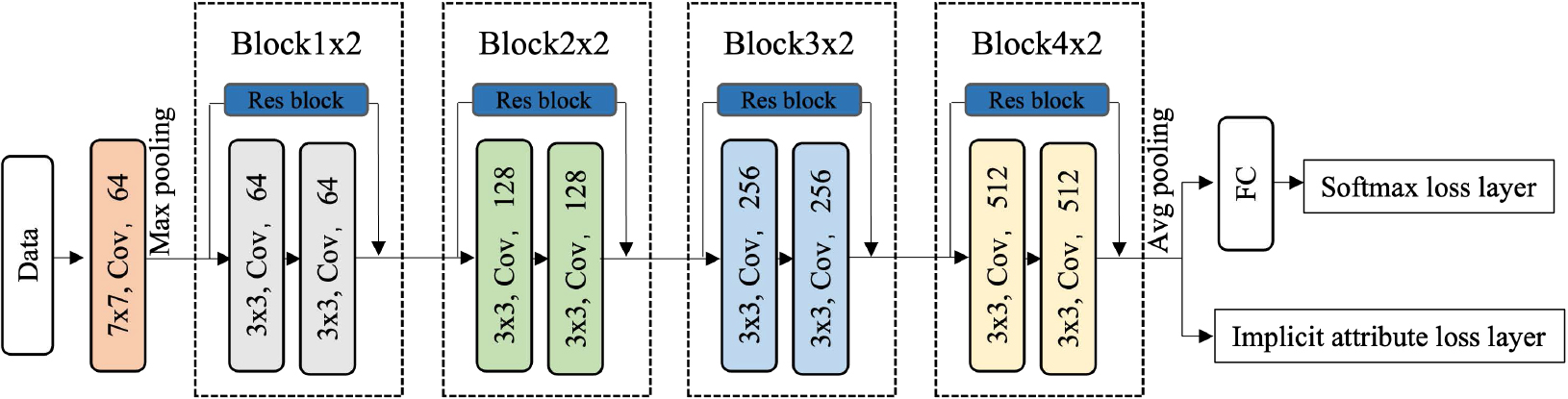

The models we used is based on the ResNet architecture [38] with our modifications of the loss function. Before training and testing, all the face images are detected by using an automated face detector and normalized to improve the recognition performance. Typically, five facial landmarks (the eye and mouth corners and nose tip) are localized by MTCNN [40]. Employing these facial landmarks for face alignment enables us to obtain occlusion attributes when generating occluded faces through our occluded face augmentation method. The MTCNN can be replaced by a more advanced facial landmarking method such as Retinaface [41]. For each training sample, we generate common and random occlusion situations, that are exactly total 13 generated samples with multi-label attributes are used for training. We train the models using stochastic gradient descent with the combination of softmax and multi-label attributes loss function. The batch size is 128. The learning rate begins at 0.1, and is divided by ten after 40K and 60K iterations, respectively.

During testing, the first fully connected layer is taken as the learned feature representation of the input face image. Then the similarity between two features is computed using their cosine distance.

In the first experiment, we evaluate the robustness of our method in dealing with real disguise on AR face database. 80 individuals is randomly selected as the training set, and the rest 46 subjects are divided into the test (30 individuals) and the validation set (16 individuals). For the training set, eight frontal face images (four images of Session 1 and 2) of each subject without occlusion are used to training. While, for the testing set, two kinds of sub-test sets are constructed: i) Six images with sunglasses from both Sessions, and ii) Six images with scarves from both Sessions. We compare our method (denoted by Attr4PFR) with some representative partial and occlusion face recognition approaches iincluding occlusion region-based method (denoted by DDL) in [6] and training based method (denoted by RDLRR) in [10], and other state-of-the-art methods including the method proposed (denoted by NNMR) in [42] and in [43] (denoted by IDI).

Because the AR database does not provide standard protocols for use, the experimental settings are slightly different. In order to make a better comparison, the comparison methods can be classified into 3 categories according to the experimental settings. 1) Face images for training and testing belong to the same individual, without overlapping. We use “S-TR-XOccs” to abbreviate the situation when the training set contains X occluded images per person. 2) Face images for training and testing belong to the same individual and without overlapping. We use “S-TR-Xps” to abbreviate the situation when the training set contains X un-occluded images per person. It is reasonable that the setting “S-TR-Xps” is more difficult than setting ‘S-TR-XOccs’. 3) The subject for training and testing come from different individual without overlapping. We use ‘D-TR-Xps’ to abbreviate the situation when the training set contains X un-occluded images per person. It is obvious that ‘D-TR-Xps’ is the most difficult setting of the three experimental settings, there is no overlapping between training and testing.

Table 1 depicts a detailed comparison of the proposed method (Attr4PFR) with the other four representative algorithms. It is evident that even with more strict experimental settings, our proposed Attr4PFR achieves a recognition rate of 97.78% and 97.22% for sunglass and scarf occlusion, respectively, which is superior to all counterpart methods. In comparison with the DDRC and NNMR method for the scenarios of sunglass and scarf occlusion, the recognition rates for our proposed method of the two scenarios have little difference, which demonstrates that our method is less sensitive to the type of occlusions in the training set. Recently, several mask-based face recognition methods (PDSN [45] and CAMFR [4]) have emerged due to the epidemic of COVID-19. They mainly training on a large-scale database and good at recognizing regular mask faces, but not for all random occlusions. Although, PDSN achieved the recognition of 98.20% and 98.33% for sunglass and scarf and CAMFR achieved the average recognition of 98.4%. Note that our proposed method only trained with part of the AR face database and is an ease to extend framework that can be further improved by adding more masks and effective attributes.

In the second experiment, we evaluate the robustness of our method in dealing with more natural real disguise on IJB-C face database.

We train our modified ResNet [38] with CASIA-WebFace [46]. CASIA-WebFace database is a large scale public database containing 10,575 subjects and 494,414 images. We tested our proposed method on a standard protocol which is the 1: N mixed identification. There are about 1,800 templates for the gallery and about 20,000 templates for the probe. Since many probe sets include only a single image without occlusion. In this experiment, we select images with at least one occluded area as the test set. For better comparison of the importance of common and random occlusion masks, we divided the whole test set into two sub-set: common occlusion test set and random occlusion test set according that faces are occluded by common (occluded by glasses, scarves, or masks) and random( occluded by microphones, hands, poses or other random objects) occlusion.

Table 2 lists the Rank-1 and Rank-5 recognition results of our proposed method and other two state-of-the-art methods under the same protocol. Although our training data from CASIA-WebFace and our trained model is not fine-tuned on any gallery of IJB-C, our model still achieves the recognition accuracy of 92.6% on IJB-C occlusion subset, which proves the effectiveness of the proposed method again. Remarkably, the accuracy achieved on the common and the random set have small difference, which proves the effectiveness of our occlusion augmentation masks.
