Transport of Non-Transferrin Bound Iron to the Brain: Implications for Alzheimer’s Disease

Abstract

A direct correlation between brain iron and Alzheimer’s disease (AD) raises questions regarding the transport of non-transferrin-bound iron (NTBI), a toxic but less researched pool of circulating iron that is likely to increase due to pathological and/or iatrogenic systemic iron overload. Here, we compared the distribution of radiolabeled-NTBI (⁵⁹Fe-NTBI) and transferrin-bound iron (⁵⁹Fe-Tf) in mouse models of iron overload in the absence or presence of inflammation. Following a short pulse, most of the ⁵⁹Fe-NTBI was taken up by the liver, followed by the kidney, pancreas, and heart. Notably, a strong signal of ⁵⁹Fe-NTBI was detected in the brain ventricular system after 2 h, and the brain parenchyma after 24 h. ⁵⁹Fe-Tf accumulated mainly in the femur and spleen, and was transported to the brain at a much slower rate than ⁵⁹Fe-NTBI. In the kidney, ⁵⁹Fe-NTBI was detected in the cortex after 2 h, and outer medulla after 24 hours. Most of the ⁵⁹Fe-NTBI and ⁵⁹Fe-Tf from the kidney was reabsorbed; negligible amount was excreted in the urine. Acute inflammation increased the uptake of ⁵⁹Fe-NTBI by the kidney and brain from 2–24 hours. Chronic inflammation, on the other hand, resulted in sequestration of iron in the liver and kidney, reducing its transport to the brain. These observations provide direct evidence for the transport of NTBI to the brain, and reveal a complex interplay between inflammation and brain iron homeostasis. Further studies are necessary to determine whether transient increase in NTBI due to systemic iron overload is a risk factor for AD.

Keywords

Alzheimer’s disease brain kidney inflammation non-transferrin-bound iron

INTRODUCTION

Iron is an important parameter for proper brain functionality, to the extent that excess iron is linked to neurodegenerative conditions such as Alzheimer’s disease (AD) [1 –3], and iron deficiency is implicated in the pathogenesis of restless-leg syndrome and other brain disorders [4, 5]. The correlation between elevated levels of brain iron and AD [6] has led to the use of iron chelators as potential therapeutic agents [7, 8]. The mechanism underlying this change, however, remains controversial. Since the brain is separated from systemic circulation by the blood-brain (BBB) and blood-cerebrospinal fluid (CSF) barriers [9], it has been hypothesized that dyshomeostasis of iron metabolism within the brain is responsible for the increase in brain iron levels. However, limited reports suggest a small but detectable increase in brain iron by systemic iron overload [10], leaving the matter unsettled. Even minor changes in brain iron are likely to have an adverse effect because unlike serum transferrin (Tf), which is only 30–40% saturated with iron, CSF Tf is 100% saturated and has a limited capacity for buffering excess iron [11]. Moreover, iron is likely to accumulate in the brain over time [12], underscoring the relevance of systemic iron overload to AD pathogenesis.

In the blood, the majority of iron circulates as Tf-bound iron (TBI), and is taken up by systemic organs and the brain through the classic Tf/Tf-receptorpathway. A limited amount of iron is associated with citrate and other compounds, and comprises the pool of non-Tf-bound iron (NTBI). The mechanism by which TBI is transported across the blood-brain and blood-CSF barriers has been well characterized [11]. Similar information for NTBI, however, is lacking. Unlike TBI, NTBI requires reduction to the ferrous (Fe^2 +) form by membrane bound ferrireductases for transport across biological membranes through divalent metal transporters [13]. Although in vitro studies indicate efficient uptake and transport of NTBI by brain micro-vessel endothelial cells[14, 15], it is unclear whether a similar transport mechanism occurs in vivo. Paucity of information on the physiology and pathobiology of NTBI is mainly due to the difficulty in tracking this species experimentally. This question is of particular significance in the pathobiology of AD and other neurodegenerative conditions associated with brain iron dyshomeostasis because unlike TBI that is relatively stable, NTBI has the potential for generating reactive hydroxyl radicals through Fenton chemistry [16]. It is therefore necessary to maintain the concentration of circulating and brain NTBI within safe limits.

It is generally presumed that there is little, if any NTBI in the blood because of the high affinity of Tf for iron. Any NTBI, therefore, is believed to result from a spill-over of Tf saturation. Evidence from several studies, however, suggests otherwise. Such evidence includes: 1) In healthy adults, exogenous iron administered by the oral or parenteral route causes a rapid increase in NTBI despite high Tf iron-binding capacity [17 –20]; 2) Conditions unrelated to systemic iron overload such as alcoholic liver disease, diabetes mellitus, and hematological malignancies increase NTBI despite unsaturated Tf [21, 22]; 3) Mice lacking ceruloplasmin have decreased plasma levels of both TBI and NTBI, suggesting that these forms exist in a chemical equilibrium [21, 23]; 4) The rate of iron conjugation with Tf (minutes) is slower than the rate of NTBI uptake by the liver (<3 seconds) [24]; and 5) concentrations of NTBI rise rapidly after iron loading followed by sudden disappearance within seconds, making it unlikely that Tf-saturation is a pre-requisite for the appearance of NTBI [25]. Thus, NTBI is present in the blood under normal conditions and its pool is likely to increase with iron overload. NTBI also contributes substantially to the total pool of iron in the brain [26 –29] though it is unclear whether it is generated locally or transported from the blood across the blood-brain and blood-CSF barriers.

To answer this question, we compared the distribution of radiolabeled NTBI (⁵⁹Fe-NTBI) and Tf (⁵⁹Fe-Tf) in the brain and systemic organs [30], and the influence of iron overloading in the absence or presence of acute or chronic inflammation on these parameters in a mouse model. We demonstrate that despite adequate sequestration by the liver and kidney, a significant amount of NTBI is transported to the brain parenchyma, and acute and chronic inflammation influences its distribution differentially. These observations have significant implications for AD and other neurodegenerative conditions associated with brain iron imbalance and neuroinflammation.

METHODS

Animal care

Wild-type FVB/NJ mice were obtained from Jackson Laboratories and housed in AAALAC accredited facilities at Case Western Reserve University using standard operating procedures. All animal protocols used in this study were approved by the Institutional Animal Care and Use Committee (IACUC). Routine veterinary care was provided by technicians under the direction of an attending veterinarian.

Radiolabeling and tissue processing

For all experiments, female mice ranging in age from 1.5–2 months on regular laboratory chow were used. In a typical experiment, experimental mice were injected with equal counts of ⁵⁹FeCl₃ (Perkin-Elmer) by the IP route prior to, or 30 min following an injection of 70 μg/22g body weight of FAC (Sigma) dissolved in citrate buffer [30, 31]. To induce acute inflammation, lipopolysaccharide (LPS, 2 mg/kg,E. coli O55:B6) was injected IP followed by FAC and ⁵⁹FeCl₃ as described diagrammatically in the experimental design for each experiment [32]. To induce chronic inflammation, LPS injection was repeated daily for 4 consecutive days [33]. Control animals in each group received the same volume ofvehicle.

At the indicated times (2 h, 24 h, and 4d), mice were euthanized as per the approved protocol. Blood was collected by cardiac puncture, and the remaining blood was flushed out by transcardial perfusion of chilled PBS. Major organs were harvested, and uptake of ⁵⁹Fe in each organ and the remaining carcass was quantified in a γ-counter. Total counts injected and recovered were similar for each set of experiments. Each organ was weighed and fixed in 10% neutral buffered formalin for 24 h. Fixed organs were either embedded in paraffin and processed for immunostaining and Perls’ reaction, or sectioned by a vibratome (Leica VT1000s), dried, and subjected to autoradiography. Control and experimental samples were processed in parallel and exposed to the same X-ray film to allow direct comparison. Scanned autoradiographs were converted to a color gradient image with Adobe Photoshop CC.

SDS-PAGE and western blotting [34], native gel electrophoresis [35], Perls’ staining [36], immunostaining [37], and quantitative RT-PCR were performed essentially as described [38, 39].

RESULTS

Uptake of ⁵⁹Fe-NTBI and ⁵⁹Fe-Tf is organ specific, and ⁵⁹Fe-NTBI is transported faster than ⁵⁹Fe-Tf to the brain and kidney

To evaluate the kinetics of uptake and distribution of TBI and NTBI in various organs, age and sex-matched mice were injected with equal counts of ⁵⁹FeCl₃ to radiolabel ⁵⁹Fe-Tf (-FAC) and ⁵⁹Fe-NTBI (+FAC) [30], and euthanized after 2 and 24 h. The efficacy of radiolabeling was confirmed by fractionating plasma on a native gel followed by autoradiography (Fig. 1A). Uptake of ⁵⁹Fe by various organs was quantified in a γ-counter (Fig. 1B). The kidney, brain, heart, liver, and spleen were fixed, and thick sections were vacuum-dried and subjected to autoradiography (Fig. 1C-E). The total ⁵⁹Fe counts recovered from mice in each group were similar (±5%), allowing a direct comparison between the two groups.

Fig.1

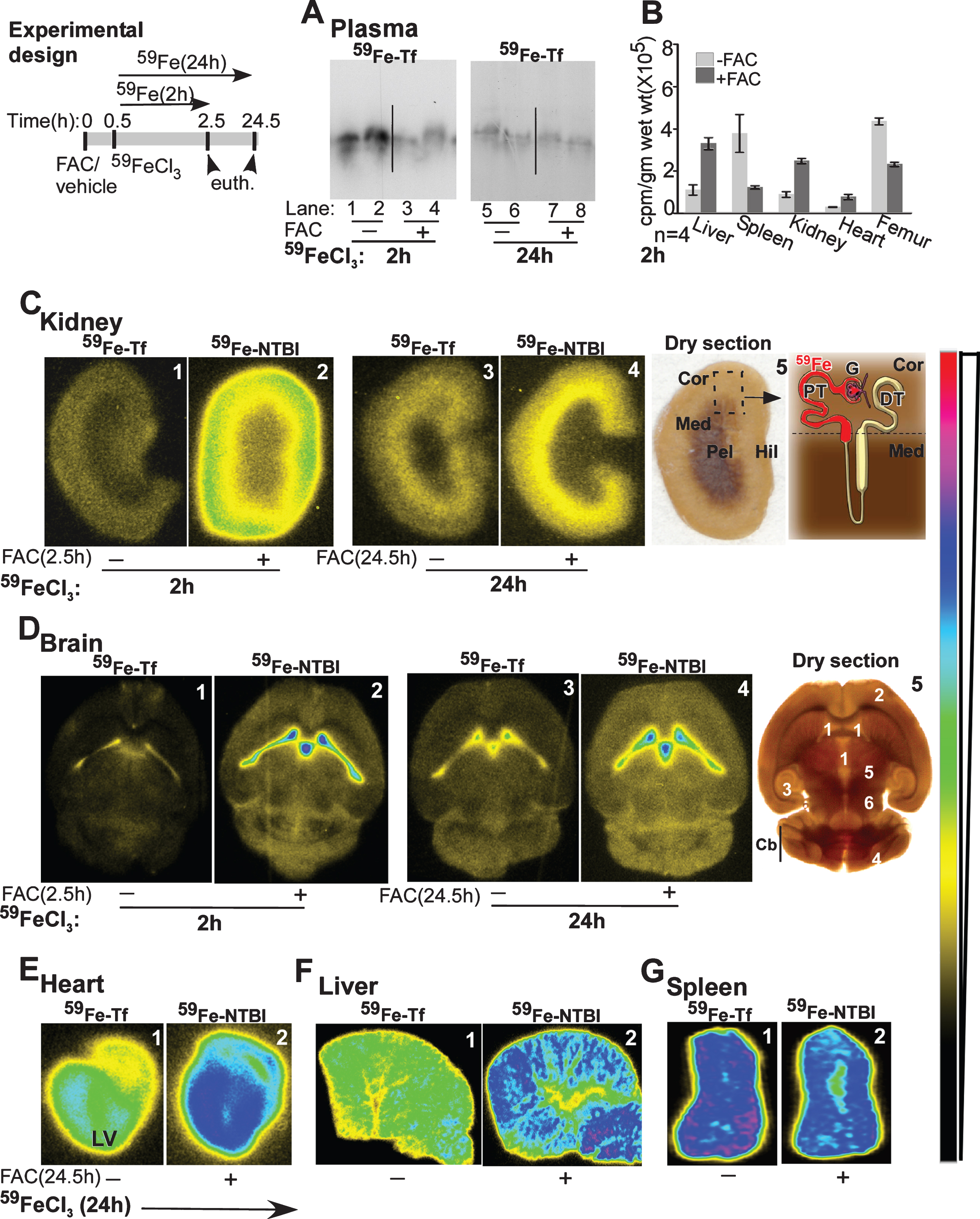

Uptake of ⁵⁹Fe-NTBI and ⁵⁹Fe-Tf is organ specific, and ⁵⁹Fe-NTBI is transported faster than ⁵⁹Fe-Tf to the brain and the kidney. Experimental design: Time-frame of different treatments for the 2 and 24 h chase experiments in A–G. A) Saturation of plasma Tf with unlabeled FAC results in the distribution of 80% of injected ⁵⁹Fe to the NTBI pool after 2 h (lanes 1–4). Plasma ⁵⁹Fe-Tf achieves equilibrium with pools of unlabeled iron in organs by 24 h (lanes 5–8). B) ⁵⁹Fe-Tf is mainly taken up by the spleen and femur, while ⁵⁹Fe-NTBI distributes mainly to the liver, kidney, and heart. C) The signal for ⁵⁹Fe-NTBI in the kidney cortex is 4-fold higher than ⁵⁹Fe-Tf after 2 h (panels 1 & 2). This difference reduces significantly after 24 h (panels 3 & 4). Both ⁵⁹Fe-Tf and ⁵⁹Fe-NTBI show a change in localization from the cortex to the outer medulla after 24 h (panels 3 & 4, panel 5). Panel 5: Dry section used for autoradiography is marked and represented diagrammatically to highlight major sites of iron absorption in the kidney. Cor, cortex; Med, medulla; Pel, pelvis, Hil, hilum; G, glomerulus; PT, proximal tubule; DT, distal tubule. D) The signal from ⁵⁹Fe-NTBI is significantly higher than ⁵⁹Fe-Tf in the ventricles and brain parenchyma after 2 h (panels 1 & 2). A significant amount of ⁵⁹Fe is transported to the brain parenchyma after 24 h, and the signal is higher in ⁵⁹Fe-NTBI relative to ⁵⁹Fe-Tf samples (panels 3 & 4, panel 5). Panel 5: Tissue section used for autoradiography is marked to show major sites of iron accumulation in the brain. 1, ventricles; 2, cortex; 3, hippocampus; 4, cerebellar cortex; 5, thalamus; 6, hypothalamus; Cb, cerebellum. E) Accumulation of ⁵⁹Fe-NTBI in the left ventricular muscle is significantly more than ⁵⁹Fe-Tf (panels 1 & 2). F) The liver accumulates significantly more ⁵⁹Fe-NTBI relative to ⁵⁹Fe-Tf (panels 1 & 2). G) The spleen, on the other hand, accumulates more ⁵⁹Fe-Tf in comparison to ⁵⁹Fe-NTBI (panels 1 & 2).

Following a pulse of 2 h, plasma ⁵⁹Fe-Tf was reduced by ∼80% in +FAC samples relative to – FAC controls, confirming successful radiolabeling of NTBI and TBI, respectively (Fig. 1A, lanes 1 & 2 versus 3 & 4). Levels of ⁵⁹Fe-Tf were similar in both sets of mice after 24 h, indicating equilibration of iron pools in different organs (Fig. 1A, lanes 5–8). Quantitation of ⁵⁹Fe counts in different organs revealed preferential uptake of ⁵⁹Fe-NTBI by the liver, kidney, heart, and ⁵⁹Fe-Tf by the spleen and femur(Fig. 1B) [30].

Examination of kidney sections revealed significantly more ⁵⁹Fe-NTBI relative to ⁵⁹Fe-Tf after 2 and 24 h, and a change in the localization of both forms from the cortex at 2 h to the outer medulla after 24 h (Fig. 1C, panels 1–4). Notably, ⁵⁹Fe-Tf increased, while ⁵⁹Fe-NTBI decreased from 2 to 24 h (Fig. 1C, panel 1 versus 3 & 2 versus 4), indicating that uptake and efflux of ⁵⁹Fe-NTBI in the kidney is faster than ⁵⁹Fe-Tf, and the total amount of ⁵⁹Fe-NTBI passing through is significantly higher than ⁵⁹Fe-Tf. A dry section of the kidney used for fluorography indicates the anatomical regions of ⁵⁹Fe accumulation (Fig. 1C, panel 5).

As in the kidney, significantly more ⁵⁹Fe-NTBI accumulated in the brain after 2 h relative to ⁵⁹Fe-Tf, especially in the lateral ventricles (Fig. 1D, panels1 & 2). Unlike the kidney, both ⁵⁹Fe-Tf and ⁵⁹Fe-NTBI continued to accumulate after 24 h, and a significant amount was detected in the brain parenchyma in addition to the ventricles (Fig. 1D, panels 1 versus 3 & 2 versus 4). A section of the brain used for fluorography indicates major areas that accumulate ⁵⁹Fe (Fig. 1D, panel 5).

Sections of the heart displayed significantly more ⁵⁹Fe-NTBI relative to ⁵⁹Fe-Tf, most of which accumulated in the left ventricular muscle after 24 h (Fig. 1E). The liver revealed a strong signal for ⁵⁹Fe-NTBI, and the spleen for ⁵⁹Fe-Tf as expected from the ⁵⁹Fe counts in Fig. 1B (Fig. 1F, G). Sections of the heart, liver, and spleen (Fig. 1E-G) were exposed to X-ray film for variable times, and cannot be compared with each other or with the kidney and brain sections above.

These observations demonstrate that 1) transport of ⁵⁹Fe-NTBI to the kidney is faster than ⁵⁹Fe-Tf, 2) ⁵⁹Fe from ⁵⁹Fe-NTBI is transported across the blood-brain and blood-CSF barriers to the brain parenchyma faster than ⁵⁹Fe from ⁵⁹Fe-Tf, and 3) a significant amount of ⁵⁹Fe-NTBI accumulates in the heart.

Endothelial and epithelial cells of the brain and kidney accumulate iron and upregulate ferritin during systemic iron overload

To evaluate whether the ⁵⁹Fe signal in kidney cortex and outer medulla represents transient passage or accumulation of iron in these regions, sections of kidney from control (–FAC) and FAC treated mice were stained with Perls’ reagent (Fig. 2A). Surprisingly, prominent Perls’ positive deposits were visible in epithelial cells lining the proximal tubules and Bowman’s capsule of mice treated with FAC (Fig. 2A, panels 2 & 4). Minimal reactivity was detected in control sections (Fig. 2A, panels 1 & 3).

Fig.2

Endothelial and epithelial cells of the brain and kidney upregulate ferritin in iron overloaded mice. A) Perls’ staining of kidney sections shows a blue reaction product of iron in epithelial cells lining the proximal tubules and Bowman’s capsule in FAC treated samples (panels 2 & 4). A weak reaction is also noted in control sections (panels 1 & 3). B) Immunostaining for ferritin followed by enhancement of the reaction with diaminobenzidine shows a much larger area of positivity in the cortex and outer and inner medulla in FAC treated samples relative to controls where the reactivity is limited to the cortex (panels 1 & 2). Glomeruli show a strong reaction for ferritin in cells lining the Bowman’s capsule of FAC treated samples relative to controls (panels 3 & 4). C) Reactivity for ferritin is stronger in brain sections from mice exposed to FAC relative to controls in epithelial cells of the choroid plexus (panels 1 & 2), endothelial cells lining blood capillaries (panels 3 & 4), and neuronal cell bodies in the frontal cortex (panels 5 & 6). Scale bar, 10 μm.

Immunostaining for ferritin revealed a much larger area of reactivity in the cortex of FAC treated samples relative to controls (Fig. 2B, panels 1 & 2). Higher magnification revealed that ferritin was localized to epithelial cells lining the Bowman’s capsule and proximal tubules (Fig. 2B, panels 3 & 4).

Likewise, brain sections from FAC treated mice showed a strong reaction for ferritin in epithelial cells of the choroid plexus and capillary endothelial cells (Fig. 2C, panels 1–4). Neuronal cells in the frontal cortex also reacted strongly for ferritin (Fig. 2C, panels 5 & 6), indicating that despite intact blood-brain and blood-CSF barriers, iron overloading resulted in the transport of iron to the brain parenchyma and uptake by neuronal cells.

Combined with the ⁵⁹Fe results in Fig. 1, these observations suggest that transient iron overload results in the accumulation of iron and consequent upregulation of ferritin in epithelial lining kidney proximal tubules and Bowman’s capsule. Likewise, brain capillary endothelial and choroid plexus epithelial cells upregulate ferritin, indicating a protective and regulatory response to excess iron.

Inflammation influences the uptake of ⁵⁹Fe-NTBI by the brain and kidney

Systemic inflammation is known to sequester iron in macrophages, creating functional iron deficiency and anemia of chronic disease [40]. The effect of neuroinflammation that accompanies AD [41] on brain iron homeostasis, however, is less clear. To evaluate whether inflammation alters the uptake of NTBI by the brain, mice were injected with a single or multiple doses of LPS, an agent widely used to induce acute and chronic systemic and neuroinflammation [42, 43]. This was followed by vehicle or FAC after 2 h, and 30 min later, ⁵⁹FeCl₃ to radiolabel TBI and NTBI respectively (Fig. 3, experimentaldesign).

Fig.3

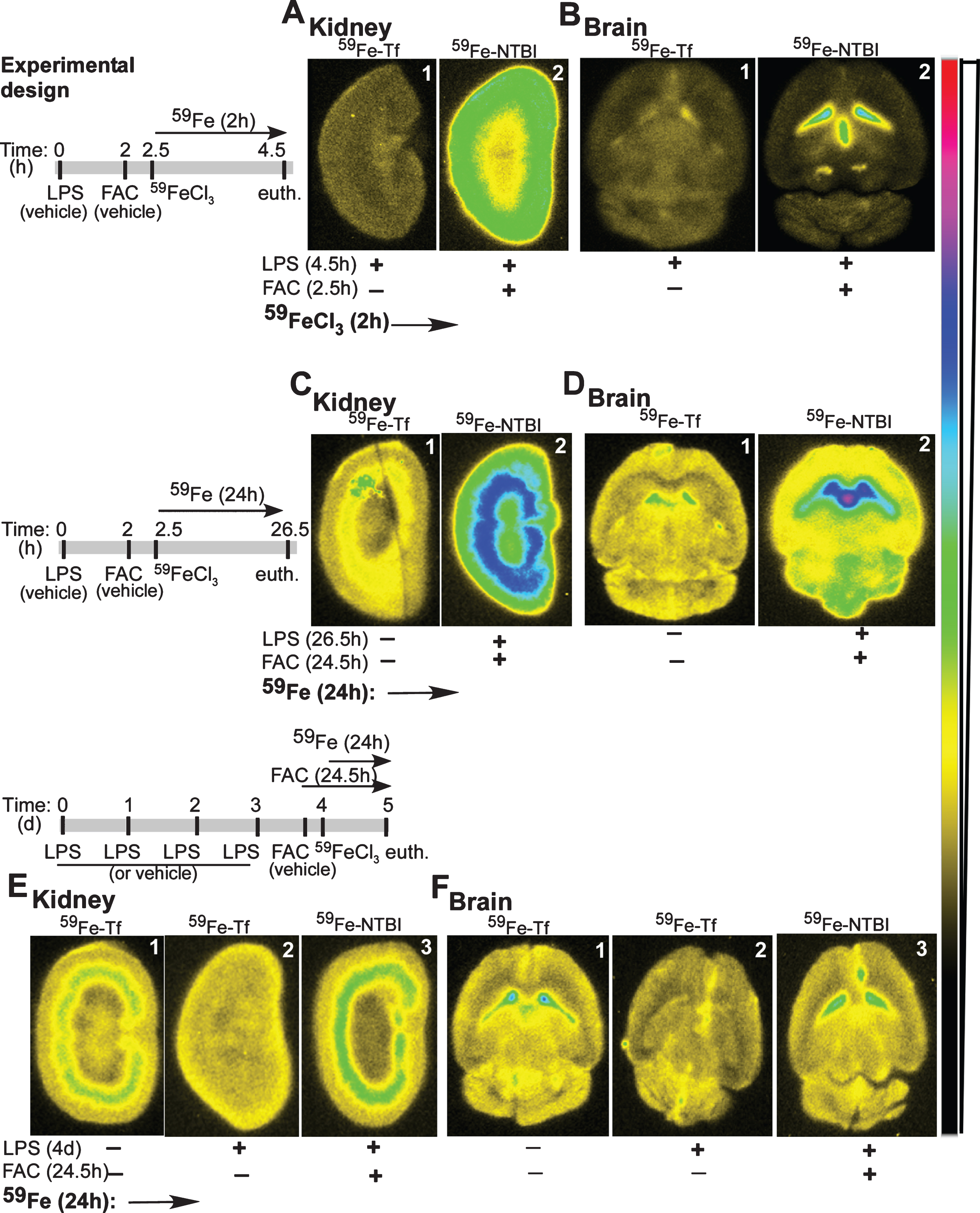

Inflammation alters the distribution of NTBI in the brain and kidney. Experimental design: Time-frame of experimental manipulations in A-F. A) Acute inflammation shows increased transport of ⁵⁹Fe-NTBI to the kidney cortex relative to ⁵⁹Fe-Tf after a chase of 2 h (panels 1 & 2), and when compared with non-inflamed samples in Fig. 1C, panels 1 & 2. B) Likewise, significantly more ⁵⁹Fe-NTBI accumulates in the ventricles in the presence of acute inflammation relative to ⁵⁹Fe-Tf (panels 1 & 2). However, transport of ⁵⁹Fe from ⁵⁹Fe-NTBI to the brain parenchyma is reduced in comparison with ⁵⁹Fe-Tf (panels 1 & 2) and non-inflamed samples in Fig. 1D, panels 1 & 2. C) A longer chase of 24 h in the absence or presence of acute inflammation shows significantly more ⁵⁹Fe-NTBI relative to ⁵⁹Fe-Tf, and their accumulation in the outer and inner medulla (panels 1 & 2). D) Brain sections show increased accumulation of ⁵⁹Fe-NTBI in the ventricles, and significantly more transport of ⁵⁹Fe to the parenchyma relative to ⁵⁹Fe-Tf in non-inflamed samples (panels 1 & 2). E) Chronic inflammation reduces the transport of ⁵⁹Fe-Tf to the kidney, but has minimal effect on the uptake of ⁵⁹Fe-NTBI (panels 1–3). Notably, uptake of ⁵⁹Fe-NTBI remains higher than ⁵⁹Fe-Tf during chronic inflammation (panels 2 & 3). F) The transport of ⁵⁹Fe-Tf and ⁵⁹Fe-NTBI to the ventricles and brain parenchyma is reduced during chronic inflammation, though uptake of ⁵⁹Fe-NTBI is significantly more than ⁵⁹Fe-Tf (panels 1–3).

Following a pulse of 4.5 h, accumulation of ⁵⁹Fe-NTBI in cortical region of the kidney was significantly more than ⁵⁹Fe-Tf (Fig. 3A, panels 1 & 2).The brain showed significantly more ⁵⁹Fe-NTBI in the ventricles relative to ⁵⁹Fe-Tf. However, the transport of ⁵⁹Fe-NTBI to the brain parenchyma was significantly less than ⁵⁹Fe-Tf (Fig. 3B, panels1 & 2).

After a longer chase of 26.5 h, LPS treated samples continued to show significantly more ⁵⁹Fe-NTBI relative to ⁵⁹Fe-Tf in the kidney cortex (Fig. 3C, panels 1 & 2). Brain sections showed a strong signal for ⁵⁹Fe-NTBI in the ventricles, and in contrast to the 4.5 h time-point, significantly more transport to the parenchyma relative to ⁵⁹Fe-Tf (Fig. 3D, panels 1 & 2). Chronic inflammation, on the other hand, caused a distinct decrease in ⁵⁹Fe-Tf in the kidney and brain relative to the control (Fig. 3E, F, panels 1 & 2). Uptake of ⁵⁹Fe-NTBI by the kidney and brain, however, was similar to controls (Fig. 3E, F, panel 1 versus 3).

Chronic inflammation increases Perls’ positive iron in the kidney and liver

Reduced uptake of ⁵⁹Fe-NTBI and ⁵⁹Fe-Tf by the brain and kidney following chronic inflammation indicated sequestration in the liver, thus reducing circulating levels of radiolabeled iron. To confirm this, liver and kidney sections from mice injected with LPS were stained with the Perls’ reagent [33, 44]. Surprisingly, Perls’ positive iron deposits were detected in epithelial cells lining the kidney proximal tubules and Bowman’s capsule (Fig. 4A, panels 1 & 2). Similar reactivity was also detected in hepatocytes and Kupffer cells (Fig. 4A, panels 3 & 4). Western blot analysis of liver homogenates revealed increased levels of ferritin in LPS treated samples, a significant amount of which fractionated in the detergent insoluble fraction (Fig. 4B, lanes 1–6, Fig. 4C), indicating a change in the biophysical characteristics of ferritin.

Fig.4

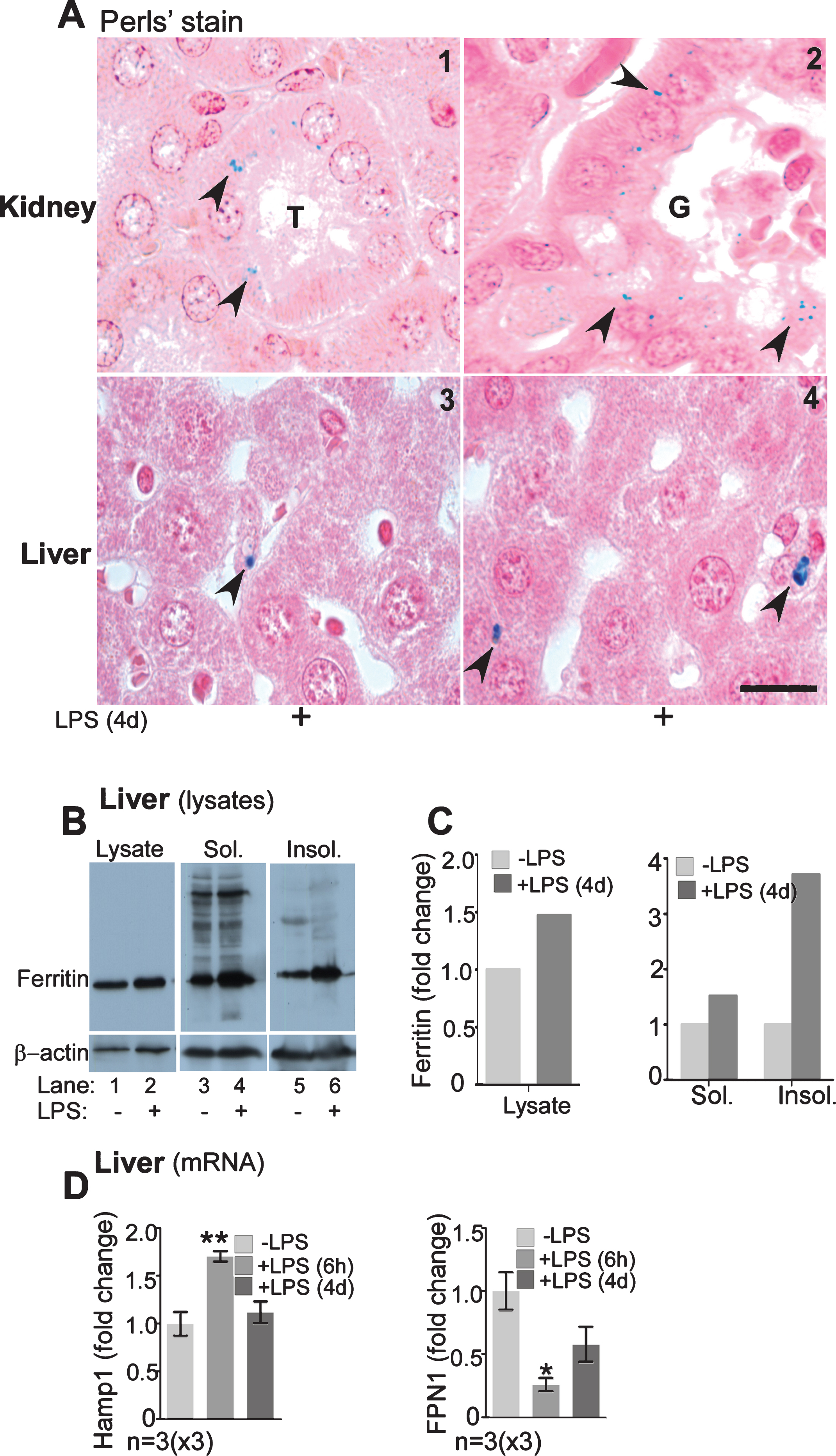

Chronic inflammation increases sequestration of iron in the liver and kidney. A) Perls’ reaction is positive in the epithelial cells lining the kidney proximal tubules and Bowman’s capsule (panels 1 & 2). Perls’ positive granules are also evident in the hepatocytes and Kupffer cells (panels 3 & 4). Scale bar, 10 μm. B) Western blot of liver homogenates shows upregulation of ferritin by LPS (lanes 1 & 2), a significant amount of which partitions in the detergent-insoluble fraction (lanes 3 & 4). C) Quantification shows 1.3-fold increase in ferritin in the total lysate, and 1.2 and 3-fold increase in ferritin in the soluble and insoluble fractions respectively by LPS. D) Quantitative analysis of mRNA levels shows a significant increase in Hamp1 (hepcidin) mRNA after 6 h, and a fall to near control levels after 4 days of LPS (p < 0.01). mRNA levels for Fpn, on the other hand, remain low after 6 h and 4 days of LPS treatment (p < 0.05).

In response to inflammation, the liver releases Hepcidin, a peptide hormone that downregulates the iron export protein ferroportin (Fpn), thereby reducing uptake from the intestine and release from macrophages [45]. To confirm efficient induction of both acute and chronic inflammation by LPS, quantitative RT-PCR was used to determine levels of hepcidin (Hamp1) and Fpn that show upregulation and downregulation, respectively, in response to inflammatory stimuli. As expected, there was significant upregulation of Hamp1 and down-regulation of Fpn 6 h after the first injection of LPS (Fig. 4D). Levels of Hamp1 fell to control levels 24 h after the 4th injection (Fig. 4D), though Fpn remained below control levels under both experimental conditions, partially explaining Perls’ positive iron deposits in the inflamed kidney and liver.

DISCUSSION

Our data demonstrate that a significant amount of NTBI is transported to the brain of iron-overloaded, disease-free mice with intact blood-brain and blood-CSF barriers. The uptake of ⁵⁹Fe-NTBI by the brain parenchyma continued for up to 24 h even though a significant amount was sequestered in the liver and transported to the kidney within 2 h of administration. Increased reactivity of endothelial and epithelial cells of the blood-brain and blood-CSF barriers for ferritin 24 h after iron administration indicated accumulation of access iron in these cells, a phenotype expected to downregulate iron uptake proteins and reduce further uptake of iron [46]. Acute inflammation increased transport of ⁵⁹Fe-NTBI to the brain, perhaps due to disruption of the blood-brain and blood-CSF barriers. Chronic inflammation, on the other hand, resulted in the accumulation of iron in the liver and kidney, thereby reducing circulating levels of NTBI and transport to the brain.

Faster accumulation of NTBI in the ventricles and brain parenchyma relative to TBI despite similar ⁵⁹Fe counts injected and recovered could be explained by the faster kinetics of NTBI, which is cleared from the circulation within seconds relative to the conjugation of iron with Tf, which takes minutes [24]. However, the continued transport and accumulation of ⁵⁹Fe-NTBI after 24 h, despite systemic iron overload, is difficult to explain, and suggests the following possibilities: 1) transport of ⁵⁹Fe-NTBI to the brain is not as stringent as ⁵⁹Fe-Tf, and continues despite adequate brain iron and upregulation of ferritin in endothelial and epithelial cells of the blood-brain and blood-CSF barriers; 2) ⁵⁹Fe-NTBI transported to the brain is taken up by astrocytes and microglia, and accumulates in ferritin; and 3) drainage of brain interstitial fluid and CSF into the venous system is slower than the kinetics of ⁵⁹Fe-NTBI uptake, resulting in transient accumulation in the brain parenchyma. Accumulation of relatively less ⁵⁹Fe-Tf in the brain after 2 and 24 h reflects the uptake and distribution of TBI under normal conditions, and suggests utilization by brain cells and accumulation of excess in ferritin. Alternately, the increase in ⁵⁹Fe-Tf signal with time could reflect slower kinetics of export relative to import. Further studies are necessary to understand the kinetics of NTBI and TBI into, and out of the brain.

The kidneys accumulated mainly ⁵⁹Fe-NTBI as expected [31]. However, unlike the brain, a significant amount of ⁵⁹Fe-NTBI was transported out of the kidney within 24 h, indicating reabsorption by the blood. Minimal ⁵⁹Fe was lost in the urine [47]. The transport of ⁵⁹Fe-Tf to and from the kidney was less dramatic than ⁵⁹Fe-NTBI, reinforcing the conclusion that the kinetics and distribution of ⁵⁹Fe-NTBI differ from those of ⁵⁹Fe-Tf, and are organ-specific. The accumulation of iron and upregulation of ferritin in epithelial cells lining the glomeruli and proximal tubules of iron overloaded mice, anatomical sites susceptible to iron-induced toxicity, is of concern specially in cases of chronic kidney disease where intravenous iron therapy is the norm, and is likely to damage the already compromised kidney [47]. Moreover, significant accumulation of ⁵⁹Fe-NTBI in the heart suggests that in addition to the brain, the kidney and heart are also sensitive to iron-induced toxicity due to systemic iron overload.

Acute inflammation increased the transport of ⁵⁹Fe-NTBI to the brain and the kidney, a surprising observation since the majority of NTBI is expected to accumulate in the liver due to upregulation of divalent metal transporters DMT1 and ZIP14 [48, 49]and downregulation of transferrin receptor and Fpn due to inflammation-induced up regulation of hepcidin [32, 50]. It is likely that altered expression of iron transporters combined with compromised integrity of the brain barriers due to inflammatory cytokines contribute to this phenotype [51, 52]. Chronic inflammation, on the other hand, reduced the transport of ⁵⁹Fe-NTBI and ⁵⁹Fe-Tf to the brain and kidney because the majority of circulating iron accumulated in the liver and kidney glomerular and proximal tubule epithelial cells as Perls’ positive deposits. Thus, chronic inflammation played a protective role by reducing iron deposition in the brain while increasing the susceptibility of kidney tubules to iron-induced damage. Interestingly, knock-out of Zip14 in normal mice or models of hemochromatosis decreased uptake of NTBI by the liver and increased its transport to the kidney [53 –55], suggesting that excess iron that escapes the liver is diverted to the kidney. It is likely that shedding of ferritin-rich proximal tubule epithelial cells in the urine helps in ridding the body of excess iron and is therefore a protective mechanism. The aggregation of ferritin within the chronically inflamed liver, however, was surprising, and suggested a change in its biophysical characteristics as a result of inflammation. This observation has implications for neurodegenerative diseases such as AD in which neuroinflammation plays a dominant role, and could account for the increase in brain iron as noted in brains affected by a prion disease [35, 56].

In conclusion, this study demonstrates that NTBI is transported to the brain in addition to the liver, kidney, and heart. Acute inflammation increases iron uptake by the brain while chronic inflammation is relatively neuroprotective due to sequestration of iron in the liver and kidney. Further studies are necessary to evaluate the concentration of NTBI in the brain under normal and diseased conditions, and the correlation between circulating NTBI and AD.
