Multi-objective discrete water wave optimization algorithm for solving the energy-saving job shop scheduling problem with variable processing speeds

Abstract

For the job shop with variable processing speeds, the aim of energy saving and consumption reduction is implemented from the perspective of production scheduling. By analyzing the characteristics of the workshop, a multi-objective mathematical model is established with the objective of reducing the total energy consumption and shortening the makespan. A multi-objective discrete water wave optimization (MODWWO) algorithm is proposed for solving the problem. Firstly, a two-vector encoding method is adopted to divide the scheduling solution into two parts, which represent speed selection and operation permutation in the scheduling solution, respectively. Secondly, some dispatching rules are used to initialize the population and obtain the initial scheduling solutions. Then, three operators of the basic water wave optimization algorithm are redesigned to make the algorithm adaptive for the multi-objective discrete scheduling problem under study. A new propagation operator is presented with the ability of balancing global exploration and local exploitation based on individual rank and neighborhood structures. A novel refraction operator is designed based on crossover operation, by which each individual can learn from the current best individual to absorb better information. And a breaking operator is modified based on the local search strategy to enhance the exploitation ability. Finally, extensive simulation experiments demonstrate that the proposed MODWWO algorithm is effective for solving the considered energy-saving scheduling problem.

Keywords

Job shop energy-saving scheduling total energy consumption makespan multi-objective discrete water wave optimization

1 Introduction

For a manufacturing system, production scheduling plays a crucial role, and the scheduling scheme directly affects the enterprise’s benefits and competitiveness. There are many literature on production scheduling problems, but most of them only consider the economic indicators related to time, cost or quality, while ignoring the environmental indicators closely related to energy and environment, so that it is difficult to guide enterprises to obtain maximum profits [1].

With the promotion of the concept of green manufacturing, the energy-saving scheduling problem considering environmental factors has aroused the interest of scholars at home and abroad. Mouzon and Yildirim [2] constructed a multi-objective optimization framework and proposed a greedy random multi-objective adaptive search algorithm aiming at minimizing the total energy consumption and the total tardiness time in a single-machine system. Yildirim and Mouzon [3] studied a single machine scheduling problem and proposed a multi-objective genetic algorithm with the goal of minimizing the energy consumption and the makespan. Ding et al. [4] studied the scheduling problem in a flow shop with the objective of minimizing total carbon emissions and the maximum completion time of the jobs. Zheng and Wang [5] considered the green scheduling problem of the resource constrained unrelated parallel machine and proposed a collaborative multi-objective fruit fly optimization algorithm to optimize the makespan and the total carbon emissions. Mansouri and Aktas [6] developed a multi-objective genetic algorithm to solve the two-machine flow-shop scheduling problem by considering the total energy consumption and the makespan. Zhao et al. [7] established an energy-saving scheduling model of the process-assembly-type flow shop and proposed a hybrid differential evolutionary algorithm aiming at minimizing the energy consumption of machines. Liu et al. [8] designed a non-dominant sorting genetic algorithm by taking into account the minimization of the total electricity consumption and the total weighted tardiness time in job shops. May et al. [9] proposed a multi-objective genetic algorithm to minimize the makespan and the energy consumption in job shop. Mokhtari and Hasani [10] studied the energy-efficient flexible job shop problem aiming at minimize the total completion time, the total availability of the system and the total energy cost. An enhanced evolutionary algorithm was proposed to solve the problem. Wu and Sun [11] proposed a non-dominant sorting genetic algorithm for the green scheduling problem of the flexible job shop to optimize the makespan, the energy consumption and the numbers of turning-on/off machines simultaneously. Lei et al. [12] presented a two-stage meta-heuristic algorithm based on the imperial competition algorithm and the variable neighborhood search algorithm for multi-objective flexible job shop problem with energy consumption threshold. Jiang and Deng [13] considered the energy-saving flexible job shop scheduling problem with the energy consumption cost and earliness/tardiness time cost as optimization metrics. A bi-population based discrete cat swarm optimization algorithm was proposed to deal with the problem. Jiang et al. [14] formulated the energy-saving job shop scheduling problem with the goal of minimizing the energy consumption and the total tardiness cost, and proposed a grey wolf optimization algorithm based on a dual-mode search mechanism. It can be seen from the above literature that the research on energy-saving scheduling has achieved preliminary results at present, but due to its late appearance, its maturity is far less than that of the traditional production scheduling problem, especially the energy-saving scheduling problem close to the actual production needs to be further studied.

In the real-life production, some machines can work in different modes with different operating power and variable processing speeds. Normally, the higher the machine’s processing speed is, the greater the operating power of the machine is, the shorter the processing time of the job is, but the higher the energy consumption is consumed. On the contrary, if the machine’s processing speed is low, the operating power of the machine is small. Although the energy consumption is reduced, the processing time of the job increases [15]. Therefore, it is necessary to choose an appropriate processing speed for each machine to achieve the purpose of energy saving and consumption reduction. Jiang et al. [15] proposed an improved whale optimization algorithm for the job shop with multi-speed machines with the objective of minimizing the energy consumption cost and the completion time cost. Salido et al. [16] proposed a genetic algorithm to deal with the energy-efficient job shop scheduling problem with multi-speed machines aiming at minimizing the total energy consumption and the makespan. Zhang and Chiong [17] developed a multi-objective genetic algorithm to minimize the total energy consumption and the total weighted tardiness. Jiang et al. [18] presented a discrete whale optimization algorithm to optimize the total energy consumption cost and the completion time cost of the workshop for the energy-saving job shop scheduling problem. Yin et al. [19] investigated an energy-efficient job shop scheduling problem with flexible spindle speed and proposed a multi-objective genetic algorithm for optimizing productivity, energy efficiency, and noise reduction. It is obvious that the energy-saving job shop scheduling problem with variable processing speeds is closer to the actual production. For such a problem, there are two sub-problems, namely speed selection and operation permutation, need to be considered. By comparing with the conventional JSP, the consideration of speed selection and energy-related metrics greatly increases the complexity of the problem. However, as far as we know, there are relatively few literature on this aspect at present. Therefore, the incorporation of variable processing speeds into the energy-saving JSP is deserved to be studied.

The research on efficient optimization algorithm has strong theoretical significance and practical application value, which is helpful for enterprises to improve the production efficiency and reduce the energy consumption. In recent years, various intelligence optimization algorithms have become the main method for solving energy-saving scheduling problems. Water wave optimization (WWO) algorithm is a novel swarm intelligence optimization algorithm based on the shallow water wave theory, which solves optimization problems by simulating the motion phenomenon of water wave [20]. Compared with other intelligence optimization algorithms, WWO has the advantages of simple framework, easy implementation, and fewer control parameters, etc., which has been successfully applied to a variety of complex optimization problems [21 –27]. However, since the basic WWO algorithm was originally proposed to solve the continuous single-objective optimization problem, it cannot be directly applied to the production scheduling problems [28 –31]. The main contribution of this study is to obtain a multi-objective discrete water wave optimization algorithm (MODWWO) according to the characteristics of the problem under study. The three operators of the basic water wave optimization algorithm are redesigned, namely ranking based propagation, crossover based refraction and local search based breaking, to make the algorithm adaptive for the multi-objective discrete scheduling problem. A large number of simulations demonstrate that the proposed MODWWO is effective for the energy-saving JSP with variable processing speeds.

2 Problem description and modeling

For a job shop, it is equipped with m machines to process n jobs. Each job i contains m operation with a fixed and known processing route. For each machine k, it can work at different processing speeds selected from a finite and discrete speed set v_k = { v_k1, v_k2, ·· · , v_{kd
_k} } , k = 1, 2, ⋯ , m, d_k is the number of optional speeds in the speed set. When job i is processed on machine k, there is a basic processing time q_ik. If the speed v_kl(l = 1, 2, ⋯ , d_k) is selected for machine k to process job i, the actual processing time can be represented by p_ikl = q_ik/ v_kl, and the processing energy consumption coefficient is represented by E_kl. If v_kl′ > v_kl, then E_kl′p_ikl′ > E_klp_ikl is met. That is to say, the higher the machine speed is, the shorter the processing time of the job on it is, but this leads to the increase of the processing energy consumption. This paper only considers two types of energy consumption, named as processing energy consumption (PE) an idle energy consumption (IE). PE is consumed by machines for processing jobs, and IE is consumed by machines when waiting for process during the time intervals between any two adjacent operations. The idle energy consumption coefficient is measured by SE_k. To simplify the problem, the following assumptions are considered for this problem.

All machines and jobs are available at time zero.

Each machine can process only one job at a time.

Each job can only be processed by one machine at a time.

The machining process of the job is not allowed to be interrupted.

All jobs are independent of each other.

Different operations in a job must follow a certain precedence constraint, and each operation cannot be processed until its immediate predecessor is finished.

Breakdown and setup time of machines are not considered.

The machine’s speed is not allowed to be adjusted during the processing process of any operation.

Each machine can not be shut down completely until all jobs assigned to it are finished.

Compared with the traditional JSP, the problem under study not only considers the operation sequencing problem, but also increases the speed selection problem. Under the circumstances, machines can be operated at different speeds for different jobs (like the CNC machines in real-life production used for mechanical processing). When a machine is running at a higher speed, its processing time is decreased but the energy consumption increases. Therefore, there is a conflict between the traditional optimization objective (makespan) and the total energy consumption. In the previous work of Jiang et al. [15] and Salido et al. [16], the two performance metrics are integrated into a mono-objective. Here, the aim is to get the trade-off between the makespan and the total energy consumption. To formulate the mathematical model, some relevant symbols and variables are defined as follows:

F₁, F₂: The objective function;

E_kl: The processing energy consumption coefficient of machine k with speed l;

SE_k: The idle energy consumption coefficient of machine k;

C_k: The final completion time of machine k;

W_k: The workload of machine k, which equals to the sum of the processing time of all operations on machine k;

C_max: The makespan of the workshop;

Q: A big positive constant;

C_ik: The end time of O_ik;

q_ik: The basic processing time of job i on machine k;

p_ikl: The actual processing time of job i on machine k with speed l;

P (O_ik): The immediate predecessor operation of O_ik in job i;

C_{P(O_ik)}: The completion time of P (O_ik);

x_ikl: 0-1 variable, if job i is processed by machine k with speed l, x_ikl = 1; otherwise, x_ikl = 0;

y_ijk: 0-1 variable, if job i is prior to job j on machine k for processing, y_ijk = 1; otherwise, y_ijk = 0.

$min F_{1} = \sum_{i = 1}^{n} \sum_{k = 1}^{m} \sum_{l = 1}^{d_{k}} E_{kl} p_{ikl} x_{ikl} + \sum_{k = 1}^{m} {SE}_{k} (C_{k} - W_{k})$ (1)

$min F_{2} = C_{max}$ (2) $s . t . \sum_{l = 1}^{d_{k}} x_{ikl} = 1, i = 1, 2, \cdot \cdot \cdot, n; k = 1, 2, \cdot \cdot \cdot, m$ (3)

$\begin{matrix} C_{ik} - \sum_{l = 1}^{d_{k}} p_{ikl} x_{ikl} ⩾ C_{P (O_{ik})}, i = 1, 2, \cdot \cdot \cdot, n; \\ k = 1, 2, \cdot \cdot \cdot, m \end{matrix}$ (4)

$\begin{matrix} C_{jk} - C_{ik} + Q (1 - y_{ijk}) ⩾ \sum_{l = 1}^{d_{k}} p_{jkl} x_{jkl}, \\ i, j = 1, 2, \cdot \cdot \cdot, n; k = 1, 2, \cdot \cdot \cdot, m \end{matrix}$ (5) $W_{k} = \sum_{i = 1}^{n} \sum_{l = 1}^{d_{k}} p_{ikl} x_{ikl}, k = 1, 2, \dots, m$ (6) $C_{k} = max {C_{ik}}, i = 1, 2, \cdot \cdot \cdot, n$ (7) $C_{ik} ⩾ 0, i = 1, 2, \cdot \cdot \cdot, n; k = 1, 2, \cdot \cdot \cdot, m$ (8)

$\begin{matrix} x_{ikl} \in {0, 1}, i = 1, 2, \cdot \cdot \cdot, n; k = 1, 2, \cdot \cdot \cdot, \\ m; l = 1, 2, \cdot \cdot \cdot, d_{k} \end{matrix}$ (9) $y_{ijk} \in {0, 1}, i, j = 1, 2, \cdot \cdot \cdot, n; k = 1, 2, \cdot \cdot \cdot, m$ (10)

Equation (1) represents the minimum total energy consumption of the workshop. The first item represents the processing energy consumption, while the second item represents the idle energy consumption. Equation (2) means to minimize the makespan of jobs in the workshop; Constraint (3) indicates that no further adjustment is allowed after the processing speed of any job on each machine is determined; Constraint (4) represents the precedence constraints between operations in a job; Constraint (5) indicates that the machine can only process one job at a time; Constraint (6) represents the workload of the machine, which is equal to the sum of the processing times of all jobs on the machine; Constraint (7) represents the final completion time of the machine; Constraint (8) indicates that the end time of each operation is non-negative; Constraint (9) and (10) represent 0-1 variables.

3 Multi-objective discrete water wave optimization

3.1 Basic water wave optimization

In the water wave optimization algorithm, the search space of the problem corresponds to “seabed”, and each solution of the problem is analogous to a water wave with a wave height and a wave length. The fitness value of the water wave is inversely proportional to its vertical distance to the seabed. For a maximization optimization problem, the smaller the distance to the calm water level, the better the fitness of the wave, the shorter the wave length, and the higher the wave height [20].

The WWO algorithm includes three search operations: propagation, refraction and breaking. The propagation operator determines the generation way of new waves, which has a significant influence on the search ability of the algorithm. In the propagation process, the waves with small fitness values probably move to remote areas to realize the global exploration, while waves with large fitness values tend to move to nearby areas to implement the local exploitation. The refraction operation is performed to stationary waves whose wave heights decrease to zero. These waves will move to new positions by learning the information from the best wave. In addition, the breaking operation is conducted to improve the local search ability around a promising solution. The three operators are combined to implement the balance between global exploration and local exploitation. The promising optimization strategy of the WWO algorithm motivates us to employ it for solving the considered problem.

The steps of the basic WWO algorithm are as follows:

Randomly generate the initial population.

Evaluate the initial scheduling solution and obtain the current best solution x_best.

Determine whether the termination condition is met. If yes, go to Step 10; Otherwise, perform Step 4.

Perform the propagation operation on the water wave x_i, and get a new wave $x_{i}^{'}$ .

If $x_{i}^{'}$ is better than x_i, go to Step 6; Otherwise, go to Step 8.

If $x_{i}^{'}$ is better than x_best, perform the breaking operation and update x_best, then go to Step 7; Otherwise, go to step 7.

Replace $x_{i}^{'}$ by x_i and the wave height h_i is updated to be h_max, go to Step 9.

The wave height h_i of the water wave x_i is decreased by 1. If the wave height h_i is 0, the refraction operation is performed and the wave height h_i is updated to be h_max; Otherwise, go to Step 9.

Determine whether all water waves of the current population have been propagated. If yes, update x_best and go to Step 3. Otherwise, go to Step 4.

Terminate the algorithm and output the optimal solution.

The basic WWO algorithm is originally proposed for dealing with continuous optimization problems with single objective. Therefore, it can not be directly applied to the multi-objective discrete scheduling problem under study. In the following sections, the principle of the basic WWO algorithm is employed, and the three operators are redesigned following the characteristics of the considered problem.

3.2 Encoding and decoding

Like other intelligence optimization algorithms, the first primary task of the water wave optimization algorithm is to design an encoding method for the water wave. As mentioned before, the energy-saving scheduling problem in this paper contains two sub-problems, namely the speed selection and the operation sequencing. Therefore, a two-vector encoding method is adopted as shown in Fig. 1. The first half represents the speed selection scheme for processing each operation, and its element value is the speed level of the machine when processing the corresponding operation; the second half represents the operation sequencing scheme, and its element value is the code of each job. The same element values represent different operations of the same job, and the order of its occurrence represents the processing order of these operations.

Fig. 1

The encoding scheme.

The decoding process traverses the operation sequencing vector from left to right, and determines the processing speed of each machine for the operations on it. The first operation in the operation sequencing vector is first scheduled, and the second operation is then scheduled, and so forth. Each operation is allocated in the best available time on its corresponding machine. The procedure is repeated until a scheduling scheme is obtained.

3.3 Population initialization

Population initialization is always viewed as an important factor for the swarm intelligence algorithm, which significantly affects the performance of the algorithm. Following the encoding scheme, the process of population initialization can be divided into two phases. In the first phase, the speed selection scheme is generated following a random rule, by which a speed is randomly selected from the discrete speed set of each machine for processing the corresponding operations. In the second phase, three dispatching rules are used to generate the operation sequencing, i.e., Most Work Remaining (MWR) [32], Most Operation Remaining (MOR) [32], and Random Rule (RR).

3.4 Ranking based propagation

During the iterative process of the WWO algorithm, each wave should perform the propagation operation to generate a new individual by conducting a perturbation operator. In addition, to cooperate global exploration and local exploitation, the algorithm make good waves conduct small-range search, while poor waves perform large-range search. According to the characteristics of the problem, a discrete propagation operation, namely ranking based propagation, is proposed based on individual rank and neighborhood structure.

In this paper, two types of neighborhood structures, corresponding to speed selection section and process sequencing section respectively, are adopted for the perturbation procedure, which can be described as follows:

Select an operation at random,whose assigned machine has more than one speed level, then select a different speed level to replace the original value.

Select two operations belonging to different jobs, and then the positions of the selected operation are exchanged.

By considering the multi-objective characteristics, the water waves in the current population are divided into several non-dominated layers following the fast non-dominated sorting approach [33], by which the waves located in the first layer have the lowest rank (Rank 1). For other waves in the population, their ranks increase with the increasing of the number of layers, for example, Rank 2, Rank 3, Rank 4, and so on. After assigning the ranks to all waves, the propagation operation is performed to all waves by executing different times of neighborhood operation [29]. The waves with a high rank correspond poorer solutions and move to remote areas to realize the global exploration, while the waves with a low rank correspond better solutions and move to nearby areas to implement the local exploitation, which can be represented by Equation (11): $λ_{i} = ⌊ λ_{min} + \frac{{rank}_{i}}{TR} \times (λ_{max} - λ_{min}) ⌋$ (11)

where λ_i is the executing time of neighborhood operation for wave i, λ_i ∈ [λ_min, λ_max]; rank_i represents the individual rank of wave i; TR is the total number of non-dominated layers.

3.5 Crossover based refraction

In order to simulate the energy dissipation of the water wave during the propagation process, the wave height of the propagated water wave is decreased by 1. To avoid the stagnation of the search process, the refraction operation should be performed to the wave, whose wave height drops to 0. The main method is to absorb better information by learning from the current best wave. Here, a crossover-based refraction operator is presented. An non-dominated solution is randomly selected from the external archive, and then the crossover operation is carried out between the selected wave and the current wave. For the crossover operator, a two-point crossover is used for the speed selection in Fig. 2, and the precedence preserving order-based crossover (POX) is adopted for the operation sequencing in Fig. 3. It should be noted that two offspring individuals will be obtained after the crossover operation, and the non-dominated wave will be selected as the new one after the refraction operation. If two individuals do not dominated each other, either of them is chosen as the new individual.

Fig. 2

Two-point crossover.

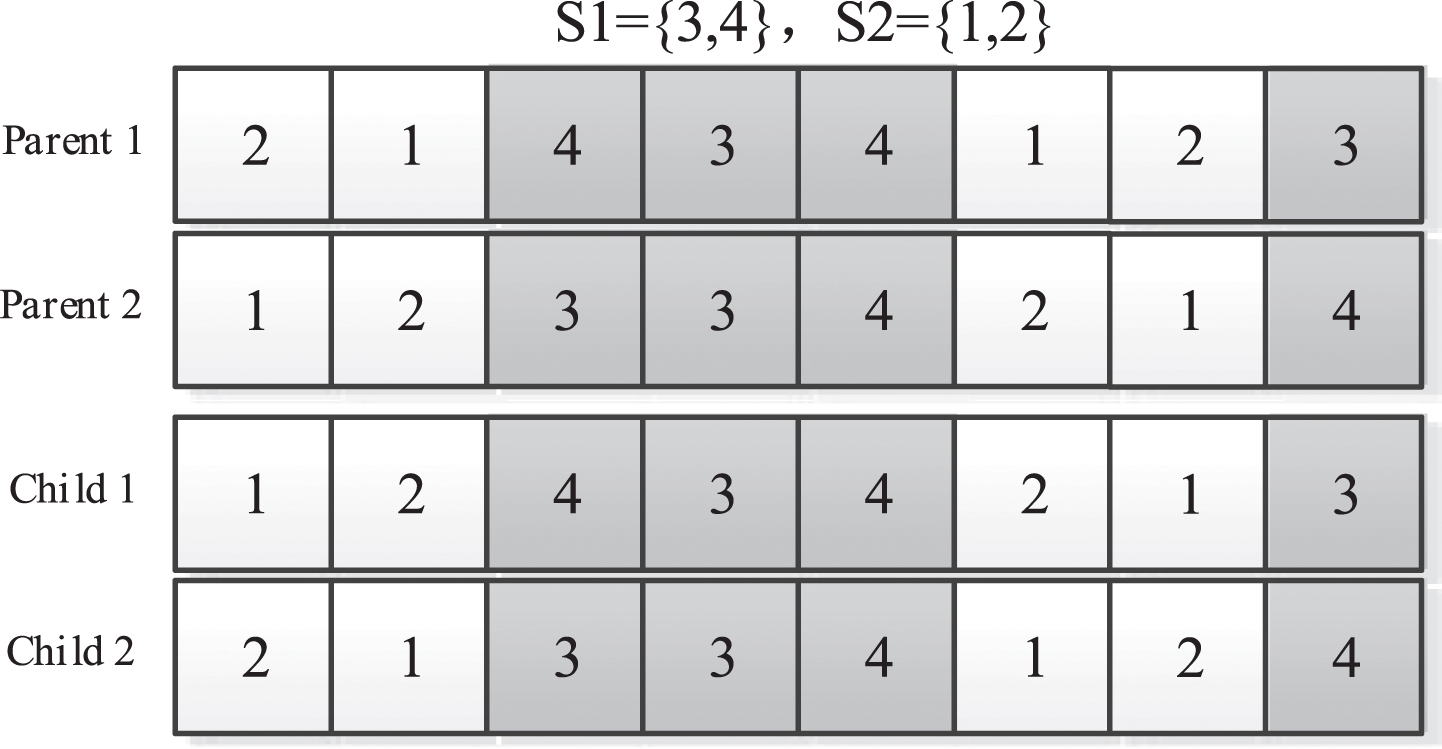

Fig. 3

POX crossover.

3.6 Local search based breaking

In the WWO algorithm, if the wave is better than the current best wave after the propagation operation, the breaking operation will be performed to improve the local search capability of the algorithm around the new best solution. To implement the breaking operator, a local search algorithm is proposed. For the multi-objective optimization problem in this paper, the local search algorithm is performed to the new non-dominated solution after the propagation operation. The steps of the local search algorithm is shown as below.

Determine the initial solution x, set q ← 1 and ϑ ← 1, determine the maximum iteration number q_max.

If ϑ = 1, perform the neighborhood structure N₁, x′ ← N₁ (x); if ϑ = 0, perform the neighborhood structure N₂, x′ ← N₂ (x).

If x′ dominates x, x ← x′; otherwise, ϑ ← |ϑ - 1|.

Set q ← q + 1, and determine whether q > q_max is satisfied. If yes, go to Step 5; otherwise, go to Step 2.

Terminate the local search.

3.7 Steps of the MODWWO

The detailed steps of the MODWWO algorithm proposed in this paper are listed as follows:

Obtain the initial population according to the population initialization method in Section 3.3.

Evaluate the initial scheduling solutions and fill the non-dominated solutions into the external archive.

Determine whether the termination condition is met. If yes, go to Step 10; Otherwise, perform Step 4.

Perform the ranking based propagation operation on water wave x_i.

If $x_{i}^{'}$ dominates x_i, go to Step 6; Otherwise, go to Step 8.

Compare $x_{i}^{'}$ with the non-dominated solutions in the external archive. If $x_{i}^{'}$ is a new non-dominated solution, perform the local search based breaking operation and update the external file, then go to Step 7; Otherwise, go straight to Step 7.

Replace $x_{i}^{'}$ by x_i, and update the wave height h_i as h_max, go to Step 9.

Decrease the wave height h_i of the water wave x_i by 1. If h_i is 0, the crossover based refraction operation is performed and h_i is updated to be h_max; Otherwise, go to Step 9.

Determine whether all waves in the current population have been propagated. If yes, update the external archive and go to Step 3. Otherwise, go to Step 4.

Terminate the algorithm and output the external archive.

4 Experimental analysis

In order to verify the effectiveness of the MODWWO algorithm in solving the multi-objective energy-saving scheduling job shop problem with variable processing speeds. All algorithms are coded in Fortran language and run on VMware Workstation with 2 G memory under WinXP operating system.

4.1 Experimental design

In this section, simulation experiments are carried out based on 40 benchmark instances (LA01~LA40) of the standard JSP designed by Lawrence [34]. The processing times in the standard JSP are taken as the basic processing times in the considered problem. Compared with the classical job shop scheduling problem, the information related to machine speed and energy consumption are added to the energy-saving scheduling problem in this paper. The machine speed is chosen from v_k = { v_k1, v_k2, v_k3, v_k4, v_k5 } = {1 . 0, 1 . 3, 1 . 5, 1 . 8, 2 . 0}. In addition, the processing energy consumption coefficient is measured by $E_{kl} = ξ_{k} \times v_{kl}^{2}$ , the idle energy consumption coefficient is calculated by SE_k = ξ_k/4, where ξ_k is obtained with a discrete uniform distribution in [2,4, 2,4].

Based on the generated instances, the following three indicators are used to evaluate the computational results of the algorithm.

(1) Ratio metric ζ: the ratio of the number of elements in {X ∈ § _r|X ∈ § ^*} to | § ^*|, which can be expressed by Equation (12). §_r is the non-dominated solution set obtained by the rth algorithm. §^* is the reference set consisted by the non-dominant solutions in the merged set $\cup_{r = 1}^{A} §_{r}$ . It is obvious that the larger the value of ζ is, the better the solutions in §_r are. $ζ = \frac{| §_{r} \cap §^{*} |}{| §^{*} |}$ (12)

(2) Distance metric GD: the distance of the non-dominated solution set §_r to the reference set §^*, which is represented by Equation (13). ${GD}_{r} = \frac{1}{| §^{*} |} \sum_{Y \in S^{*}} min {d_{XY} | X \in §_{r}}$ (13) where $d_{XY} = \sqrt{(F_{1}^{'} (X) - F_{1}^{'} (Y))^{2} + \dots + (F_{D}^{'} (X) - F_{D}^{'} (Y))^{2}}$ , D is the number of the objective functions. $F_{i}^{'}$ is the ith normalized objective, $F_{i}^{'} = \frac{F_{i} - F_{i min}}{F_{i max} - F_{i min}}, i = 1, 2, \dots D$ . F_imax and F_imin are the maximum and minimum values of the ith objective in the reference set §^*. It is clear that the smaller the value of GD is, the better the solutions in §_r are.

(3) Dominance metric C: the dominance relationship between two non-dominated solution sets A and B , which is represented by Equation (14). $C (A, B) = \frac{| {X_{2} \in B} | \exists X_{1} \in A, X_{1} ≺ X_{2} |}{| B |}$ (14)

For the two solution sets A and B respectively obtained by algorithms Ag₁ and Ag₂, C ( A , B ) represents the percentage of the solutions in B dominated by solutions in A . A larger C ( A , B ) or a smaller C ( B , A ) implies that the performance of Ag₁ is better than Ag₂.

4.2 Parameter setting

In this paper, four parameters are considered in the MODWWO algorithm: the population size PS, the maximum wave height h_max, the maximum iteration times of the MODWWO algorithm iter_max and the maximum iteration times of the local search algorithm q_max. Here, the Design of Experiment (DOE) is adopted for parameter setting. For each parameter, four levels are considered in Table 1. Then an orthogonal array of size L₁₆ (4⁴) is established, as shown in Table 2. For the instance LA27, the MODWWO algorithm was run independently for 10 times with each different parameter combination. The metric GD is adopted to verify the computational results. According to the computational data in Table 2, the response values and the significance rank of each parameter are calculated in Table 3, and then the influence curve of each parameter on computational performance was drawn in Fig. 4. Seen from Table 3, the value of the Dalta of h_max is the largest, which indicates that this parameter has the largest influence on the computational performance. It can be seen from Fig. 4 that the greater the PS and iter_max are, the better the algorithm’s performance is. On the contrary, the bigger the h_max is, the worse the algorithm’s performance is. In addition, when q_max is set as 30, the algorithm has the best performance. According to the analysis results, the parameters of the MODWWO algorithm are set as follows: PS = 200, h_max = 5, iter_max = 1500, and q_max = 30.

Table 1
Parameter levels

Factor Level

1 2 3 4

PS 50 100 150 200

h _max 5 10 15 20

q _max 10 20 30 40

iter _max 500 700 1000 1500

Factor	Level
PS	50	100	150	200
h _max	5	10	15	20
q _max	10	20	30	40
iter _max	500	700	1000	1500

Table 2

Orthogonal array and GD values

Combination number	Factor				GD
	PS	h _max	q _max	iter _max
1	1	1	1	1	0.2360
2	1	2	2	2	0.1869
3	1	3	3	3	0.1826
4	1	4	4	4	0.1963
5	2	1	2	3	0.0811
6	2	2	1	4	0.1654
7	2	3	4	1	0.2036
8	2	4	3	2	0.1979
9	3	1	3	4	0.0247
10	3	2	4	3	0.1185
11	3	3	1	2	0.2411
12	3	4	2	1	0.2388
13	4	1	4	2	0.0935
14	4	2	3	1	0.1851
15	4	3	2	4	0.1329
16	4	4	1	3	0.1558

Table 3

Response value and significance rank

Level	PS	h _max	q _max	iter _max
1	0.2005	0.1088	0.1996	0.2159
2	0.1620	0.1640	0.1599	0.1799
3	0.1558	0.1901	0.1476	0.1345
4	0.1418	0.1972	0.1530	0.1298
Delta	0.0587	0.0884	0.0520	0.0861
Rank	4	1	3	2

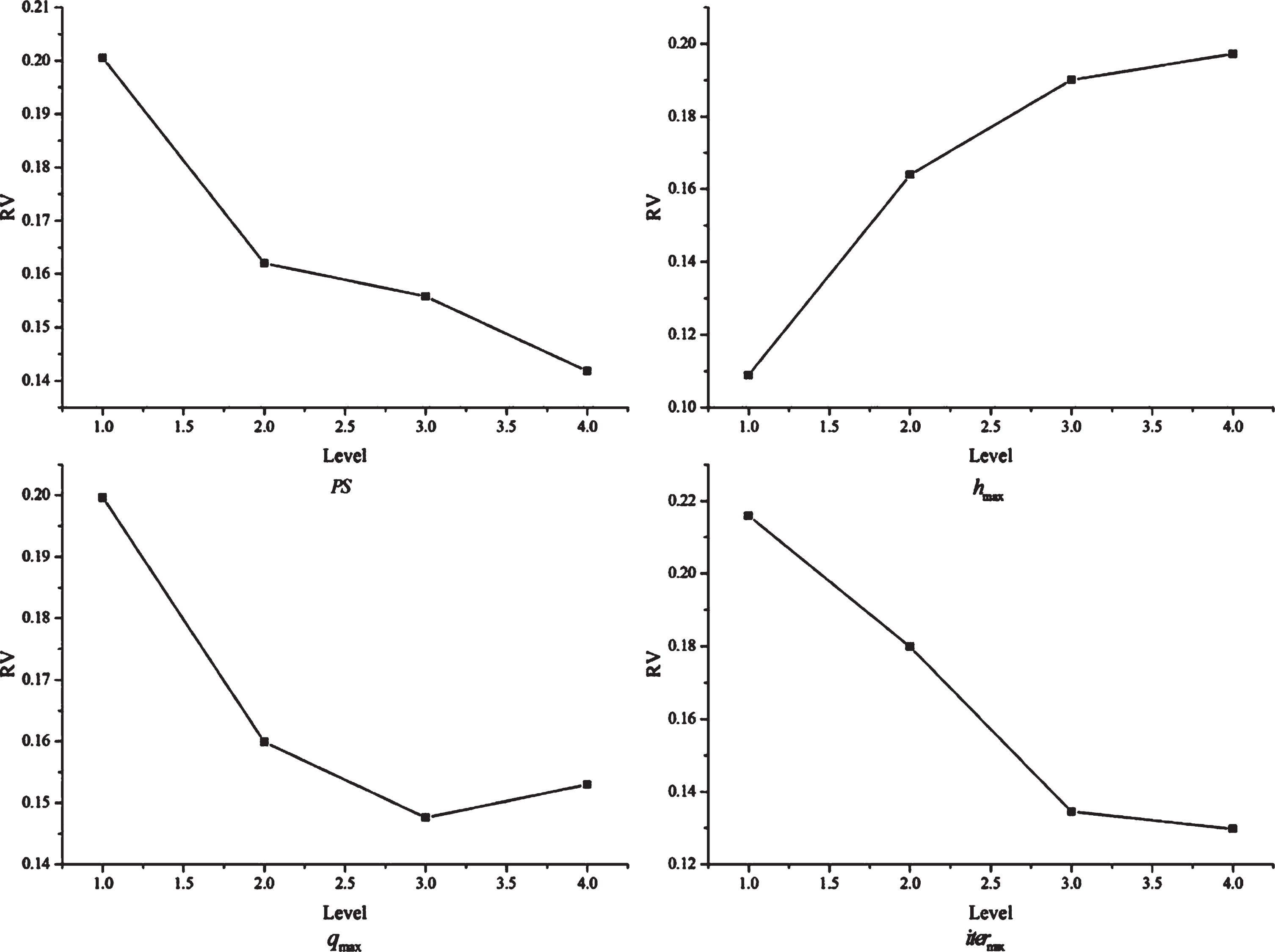

Fig. 4

Factor level trend of parameters.

4.3 Comparative analysis

To verify the effectiveness of our algorithm, we compare it with two algorithms, namely Multi-objective Improved Whale Optimization Algorithm (MOIWOA) and Multi-objective Genetic Algorithm (MOGA), which are modified from the algorithms proposed by Jiang et al. [15] and Salido et al. [16]. For the MOIWOA, the modified mutation rate is represented by ${pm}_{i} = 1 - \frac{TR (t) - R_{i} (t)}{TR (t) - 1}$ , pm_i is the mutation rate of individual i, R_i is the rank of the individual i, TR is the total number of non-dominated layers, t is the current iteration number. It can be seen that the good individual with a low rank has a lower mutation rate, and the poor individual with a high rank has a greater mutation rate. For the MOGA algorithm, the population initialization method in Section 3.3 is first adopted to generate the initial solutions, and the individual rank is also determined by the fast non-dominated sorting algorithm in [33]. Then the crossover and mutation operators proposed in [16] is adopted in the MOGA.

To be fair, the compared algorithm has the same population size and the maximum number of iteration number with those of the MODWWO, and then other parameters are set based on plenty of experiments to obtain the best combination of parameters. The parameters of MOGA and MOIWOA are set as follows: In the MOGA, the population size is 200, the maximum iteration number is 1500, the crossover rate is 0.8, the mutation rate is 0.2; In the MOIWOA, the population size is 200, the maximum iteration number is 1500. The comparison results of GD and ζ are shown in Table 4. The first column is the instance name and others are the performance indicators of the algorithm. Time is the average time (in seconds) for the algorithm in ten runs. It can be observed from Table 4 that: (1) For the value of GD, MODWWO outperforms other algorithms in all instances. (2) For the value of ζ, the MODWWO algorithm performs better than other algorithms. In 16 out of 40 instances, the value of ζ obtained by the MODWWO algorithm equal to 1, which indicates that the whole reference set element S^* is generated by the non-dominated solutions obtained by the MODWWO algorithm. (3) For the Time value, the MOGA algorithm has the shortest running time, the MODWWO algorithm comes second, and the MOIWOA algorithm has the longest running time. In addition, the comparison results of metric C are given in Tables 5. It is clear that the results of metric C obtained by MODWWO are significantly better than those obtained by MOGA and MOIWOA on all test problems. Figure 5 shows the Pareto frontiers obtained by different algorithms in four instances (LA01, LA11, LA24 and LA38). Figures 6 and 7 give the convergence curves of different algorithms in instance LA11 and LA24. It can be seen from Figs. 5–7 that our MODWWO algorithm in this paper is superior to other algorithms.

Table 4
Comparison results of GD and ζ

Instance MODWWO MOGA MOIWOA

GD ζ Time GD ζ Time GD ζ Time

LA01 0.0093 0.9101 28.0 0.1030 0.0000 22.0 0.0745 0.0899 54.7

LA02 0.0107 0.9440 27.6 0.0824 0.0000 21.0 0.0809 0.0560 53.8

LA03 0.0120 0.9174 28.2 0.1076 0.0000 21.2 0.0603 0.0826 54.5

LA04 0.0298 0.8134 29.5 0.1032 0.0000 21.8 0.0668 0.1866 55.0

LA05 0.0199 0.9192 28.6 0.0990 0.0000 21.7 0.0433 0.0808 55.8

LA06 0.0080 0.9136 39.0 0.0998 0.0000 29.5 0.0779 0.0864 75.5

LA07 0.0047 0.9516 38.8 0.1635 0.0161 29.6 0.1210 0.0323 77.5

LA08 0.0254 0.8929 39.4 0.0953 0.0000 29.5 0.0839 0.1071 78.7

LA09 0.0014 0.9767 39.3 0.0858 0.0116 29.4 0.0770 0.0116 76.8

LA10 0.0049 0.9615 38.9 0.1048 0.0000 29.1 0.0751 0.0385 76.6

LA11 0.0081 0.9630 52.9 0.0857 0.0000 38.5 0.0925 0.0370 101.1

LA12 0.0021 0.9419 52.8 0.0846 0.0000 38.6 0.0901 0.0581 103.7

LA13 0.0015 0.9634 52.7 0.0904 0.0000 39.1 0.0761 0.0366 102.7

LA14 0.0052 0.9600 53.5 0.1181 0.0000 38.1 0.1199 0.0400 101.1

LA15 0.0000 1.0000 53.6 0.1652 0.0000 38.8 0.1626 0.0000 108.0

LA16 0.0000 1.0000 50.9 0.4513 0.0000 38.7 0.4259 0.0000 115.0

LA17 0.0053 0.9821 53.3 0.2576 0.0000 38.8 0.2961 0.0179 111.2

LA18 0.0000 1.0000 50.8 0.4214 0.0000 38.7 0.5201 0.0000 113.5

LA19 0.0000 1.0000 51.8 0.5468 0.0000 38.5 0.4254 0.0000 114.7

LA20 0.0221 0.9565 50.3 0.3360 0.0000 38.5 0.3126 0.0435 110.2

LA21 0.0000 1.0000 77.8 0.7398 0.0000 58.5 0.8532 0.0000 171.6

LA22 0.0398 0.9024 76.1 0.5551 0.0000 58.9 0.4645 0.0976 183.3

LA23 0.0013 0.9737 75.2 0.3693 0.0000 58.4 0.2974 0.0263 178.7

LA24 0.0000 1.0000 74.7 0.2718 0.0000 59.1 0.2233 0.0000 170.7

LA25 0.0007 0.9512 76.3 0.4680 0.0000 58.8 0.3873 0.0488 191.3

LA26 0.0055 0.9615 104.4 0.4187 0.0000 83.5 0.4375 0.0385 264.7

LA27 0.0103 0.9615 104.6 0.2877 0.0000 83.1 0.3674 0.0385 253.8

LA28 0.0000 1.0000 107.6 0.3733 0.0000 82.8 0.3918 0.0000 259.5

LA29 0.0075 0.9688 105.3 0.2838 0.0000 83.4 0.2935 0.0313 265.8

LA30 0.0000 1.0000 104.7 0.3049 0.0000 84.1 0.3896 0.0000 255.7

LA31 0.0000 1.0000 176.8 0.2880 0.0000 144.5 0.3744 0.0000 477.1

LA32 0.0000 1.0000 173.7 0.2668 0.0000 144.7 0.4146 0.0000 469.8

LA33 0.0000 1.0000 174.9 0.3715 0.0000 144.6 0.4946 0.0000 470.2

LA34 0.0000 1.0000 175.2 0.3176 0.0000 143.8 0.5331 0.0000 478.3

LA35 0.0000 1.0000 175.3 0.7746 0.0000 143.7 0.7773 0.0000 475.2

LA36 0.0000 1.0000 122.0 2.0036 0.0000 96.1 1.5622 0.0000 316.5

LA37 0.0000 1.0000 118.8 5.8023 0.0000 95.9 6.2593 0.0000 310.4

LA38 0.0000 1.0000 122.9 1.4636 0.0000 95.4 1.6995 0.0000 322.2

LA39 0.0351 0.9545 121.8 0.4481 0.0000 95.8 0.5449 0.0455 313.5

LA40 0.1753 0.6512 118.8 0.4912 0.0000 97.6 0.3394 0.3488 320.9

Instance	MODWWO	MOGA	MOIWOA
LA01	0.0093	0.9101	28.0	0.1030	0.0000	22.0	0.0745	0.0899	54.7
LA02	0.0107	0.9440	27.6	0.0824	0.0000	21.0	0.0809	0.0560	53.8
LA03	0.0120	0.9174	28.2	0.1076	0.0000	21.2	0.0603	0.0826	54.5
LA04	0.0298	0.8134	29.5	0.1032	0.0000	21.8	0.0668	0.1866	55.0
LA05	0.0199	0.9192	28.6	0.0990	0.0000	21.7	0.0433	0.0808	55.8
LA06	0.0080	0.9136	39.0	0.0998	0.0000	29.5	0.0779	0.0864	75.5
LA07	0.0047	0.9516	38.8	0.1635	0.0161	29.6	0.1210	0.0323	77.5
LA08	0.0254	0.8929	39.4	0.0953	0.0000	29.5	0.0839	0.1071	78.7
LA09	0.0014	0.9767	39.3	0.0858	0.0116	29.4	0.0770	0.0116	76.8
LA10	0.0049	0.9615	38.9	0.1048	0.0000	29.1	0.0751	0.0385	76.6
LA11	0.0081	0.9630	52.9	0.0857	0.0000	38.5	0.0925	0.0370	101.1
LA12	0.0021	0.9419	52.8	0.0846	0.0000	38.6	0.0901	0.0581	103.7
LA13	0.0015	0.9634	52.7	0.0904	0.0000	39.1	0.0761	0.0366	102.7
LA14	0.0052	0.9600	53.5	0.1181	0.0000	38.1	0.1199	0.0400	101.1
LA15	0.0000	1.0000	53.6	0.1652	0.0000	38.8	0.1626	0.0000	108.0
LA16	0.0000	1.0000	50.9	0.4513	0.0000	38.7	0.4259	0.0000	115.0
LA17	0.0053	0.9821	53.3	0.2576	0.0000	38.8	0.2961	0.0179	111.2
LA18	0.0000	1.0000	50.8	0.4214	0.0000	38.7	0.5201	0.0000	113.5
LA19	0.0000	1.0000	51.8	0.5468	0.0000	38.5	0.4254	0.0000	114.7
LA20	0.0221	0.9565	50.3	0.3360	0.0000	38.5	0.3126	0.0435	110.2
LA21	0.0000	1.0000	77.8	0.7398	0.0000	58.5	0.8532	0.0000	171.6
LA22	0.0398	0.9024	76.1	0.5551	0.0000	58.9	0.4645	0.0976	183.3
LA23	0.0013	0.9737	75.2	0.3693	0.0000	58.4	0.2974	0.0263	178.7
LA24	0.0000	1.0000	74.7	0.2718	0.0000	59.1	0.2233	0.0000	170.7
LA25	0.0007	0.9512	76.3	0.4680	0.0000	58.8	0.3873	0.0488	191.3
LA26	0.0055	0.9615	104.4	0.4187	0.0000	83.5	0.4375	0.0385	264.7
LA27	0.0103	0.9615	104.6	0.2877	0.0000	83.1	0.3674	0.0385	253.8
LA28	0.0000	1.0000	107.6	0.3733	0.0000	82.8	0.3918	0.0000	259.5
LA29	0.0075	0.9688	105.3	0.2838	0.0000	83.4	0.2935	0.0313	265.8
LA30	0.0000	1.0000	104.7	0.3049	0.0000	84.1	0.3896	0.0000	255.7
LA31	0.0000	1.0000	176.8	0.2880	0.0000	144.5	0.3744	0.0000	477.1
LA32	0.0000	1.0000	173.7	0.2668	0.0000	144.7	0.4146	0.0000	469.8
LA33	0.0000	1.0000	174.9	0.3715	0.0000	144.6	0.4946	0.0000	470.2
LA34	0.0000	1.0000	175.2	0.3176	0.0000	143.8	0.5331	0.0000	478.3
LA35	0.0000	1.0000	175.3	0.7746	0.0000	143.7	0.7773	0.0000	475.2
LA36	0.0000	1.0000	122.0	2.0036	0.0000	96.1	1.5622	0.0000	316.5
LA37	0.0000	1.0000	118.8	5.8023	0.0000	95.9	6.2593	0.0000	310.4
LA38	0.0000	1.0000	122.9	1.4636	0.0000	95.4	1.6995	0.0000	322.2
LA39	0.0351	0.9545	121.8	0.4481	0.0000	95.8	0.5449	0.0455	313.5
LA40	0.1753	0.6512	118.8	0.4912	0.0000	97.6	0.3394	0.3488	320.9

Table 5

Comparison results of metric C

Instance	C (MODWWO,MOIWOA)	C (MOIWOA,MODWWO)	C (MODWWO,MOGA)	C (MOGA,MODWWO)
LA01	0.8769	0.0241	1.0000	0.0000
LA02	0.9114	0.0000	1.0000	0.0000
LA03	0.8485	0.0089	0.9565	0.0000
LA04	0.6835	0.0354	0.9804	0.0000
LA05	0.8857	0.0000	1.0000	0.0000
LA06	0.8772	0.0133	1.0000	0.0000
LA07	0.8936	0.0000	0.9583	0.0000
LA08	0.8475	0.0000	0.9600	0.0000
LA09	0.9492	0.0118	0.9762	0.0000
LA10	0.9403	0.0000	1.0000	0.0000
LA11	0.9375	0.0000	1.0000	0.0000
LA12	0.9265	0.0122	1.0000	0.0000
LA13	0.9348	0.0366	1.0000	0.0000
LA14	0.9429	0.0000	1.0000	0.0000
LA15	1.0000	0.0000	1.0000	0.0000
LA16	1.0000	0.0000	1.0000	0.0000
LA17	0.9773	0.0000	1.0000	0.0000
LA18	1.0000	0.0000	1.0000	0.0000
LA19	1.0000	0.0000	1.0000	0.0000
LA20	0.9250	0.0000	1.0000	0.0000
LA21	1.0000	0.0000	1.0000	0.0000
LA22	0.9333	0.0000	1.0000	0.0000
LA23	0.9545	0.0000	1.0000	0.0000
LA24	1.0000	0.0000	1.0000	0.0000
LA25	0.9286	0.0000	1.0000	0.0000
LA26	0.9600	0.0000	1.0000	0.0000
LA27	0.9474	0.0000	1.0000	0.0000
LA28	1.0000	0.0000	1.0000	0.0000
LA29	0.9500	0.0000	1.0000	0.0000
LA30	1.0000	0.0000	1.0000	0.0000
LA31	1.0000	0.0000	1.0000	0.0000
LA32	1.0000	0.0000	1.0000	0.0000
LA33	1.0000	0.0000	1.0000	0.0000
LA34	1.0000	0.0000	1.0000	0.0000
LA35	1.0000	0.0000	1.0000	0.0000
LA36	1.0000	0.0000	1.0000	0.0000
LA37	1.0000	0.0000	1.0000	0.0000
LA38	1.0000	0.0000	1.0000	0.0000
LA39	0.8667	0.0000	1.0000	0.0000
LA40	0.3478	0.0000	1.0000	0.0000

Fig. 5

The distribution of the solutions obtained by the algorithm.

Fig. 6

The convergence curves of different algorithms in instance LA11.

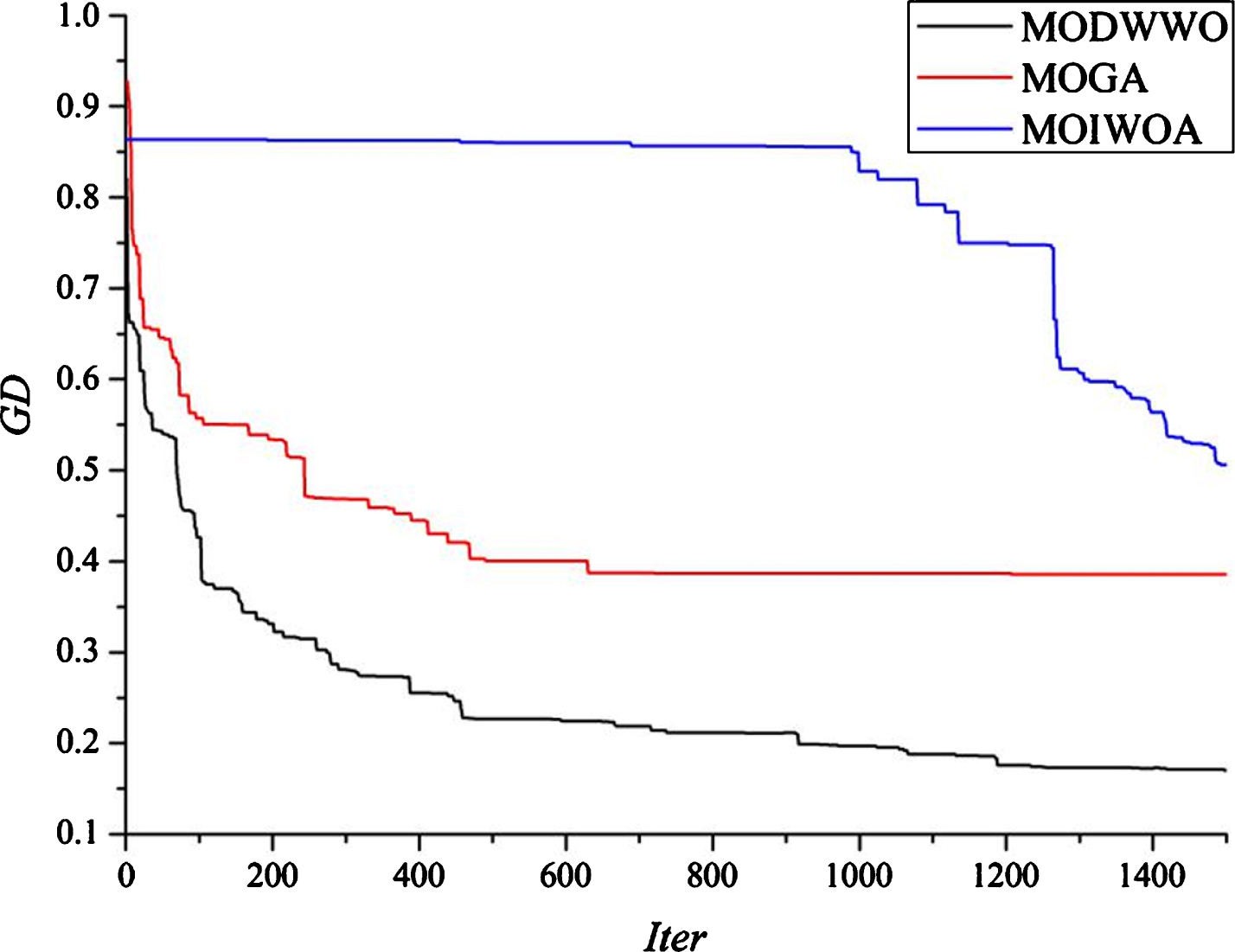

Fig. 7

The convergence curves of different algorithms in instance LA24.

In order to make the comparison results statistically more convincing, the paired-sample t-test is used to obtain the p-value of GD to test the performance of the three algorithms. For a specific paired-sample t-test (Ag₁, Ag₂), if the p-value is less than 0.05, the performance of the algorithm Ag₁ is better than that of the algorithm Ag₂. Tables 6 reports that all the p-values are smaller than 0.05 in terms of the metric GD. This means that the proposed MODWWO performs better than MOGA and MOIWOA, which is consistent with the previous analyses. In summary, the proposed MODWWO algorithm is effective in solving the multi-objective energy-saving job shop scheduling problem with variable processing speeds. Figures 8 and 9 give the Gantt chart obtained by the MODWWO algorithm for the instances LA25 and LA40.

Table 6

Paired-sample t-test for three algorithms

Instance	t-test (MODWWO, MOGA)	t-test (MODWWO, MOIWOA)
LA01	1.2957E-07	3.2085E-05
LA02	7.3099E-08	1.7788E-06
LA03	2.3091E-06	1.2009E-04
LA04	2.4616E-07	1.1478E-06
LA05	2.8160E-10	5.2262E-06
LA06	5.2863E-14	1.2223E-08
LA07	1.9077E-08	2.7544E-07
LA08	9.0217E-09	1.6591E-06
LA09	9.2481E-10	6.8966E-08
LA10	6.1193E-13	1.6377E-08
LA11	2.5106E-09	2.8887E-11
LA12	1.2636E-09	1.9226E-10
LA13	6.9768E-11	3.4175E-08
LA14	3.5846E-13	1.8919E-11
LA15	3.9451E-09	5.2180E-07
LA16	1.9036E-10	1.1087E-06
LA17	3.2164E-09	8.4351E-11
LA18	7.8357E-08	8.9178E-09
LA19	1.0322E-08	3.0101E-06
LA20	1.8532E-09	4.9408E-07
LA21	6.1938E-08	2.7763E-07
LA22	8.9596E-06	2.4085E-05
LA23	6.6857E-06	1.2230E-04
LA24	6.4372E-08	3.8295E-06
LA25	2.3486E-08	4.4935E-09
LA26	7.1577E-08	1.5929E-06
LA27	1.4651E-06	1.8662E-07
LA28	1.0347E-05	4.0147E-07
LA29	1.9311E-07	3.0282E-08
LA30	4.8987E-09	2.3733E-07
LA31	3.9733E-10	3.6411E-08
LA32	7.6228E-09	3.3324E-10
LA33	5.5214E-09	2.4760E-09
LA34	1.0019E-09	3.3705E-09
LA35	4.4779E-07	1.7976E-07
LA36	6.9689E-06	9.9689E-05
LA37	1.5358E-05	5.1183E-07
LA38	1.0103E-07	1.1906E-07
LA39	9.1063E-08	2.4399E-07
LA40	4.2412E-05	9.3353E-04

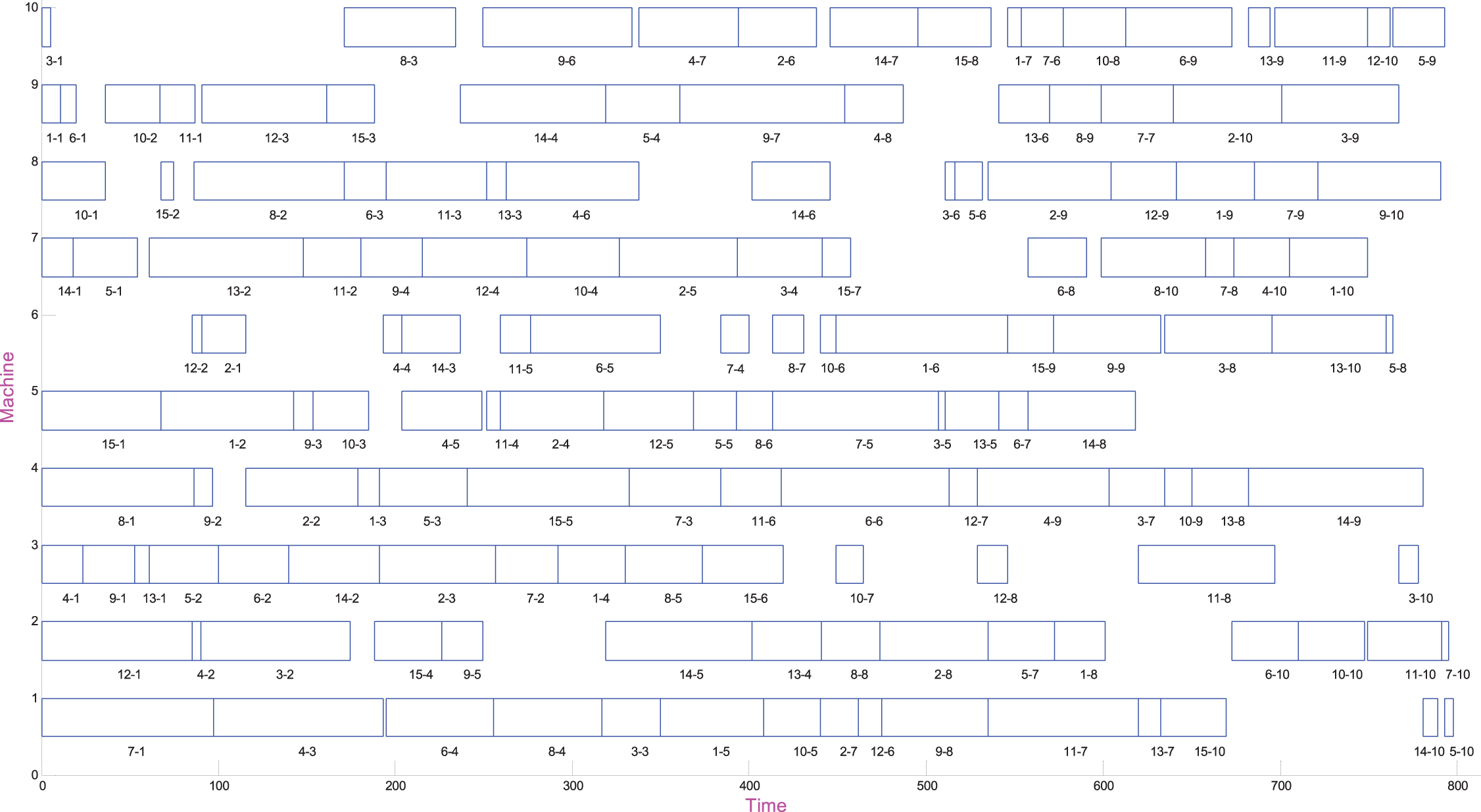

Fig. 8

The Gantt chart obtained by the MODWWO algorithm for instance LA25.

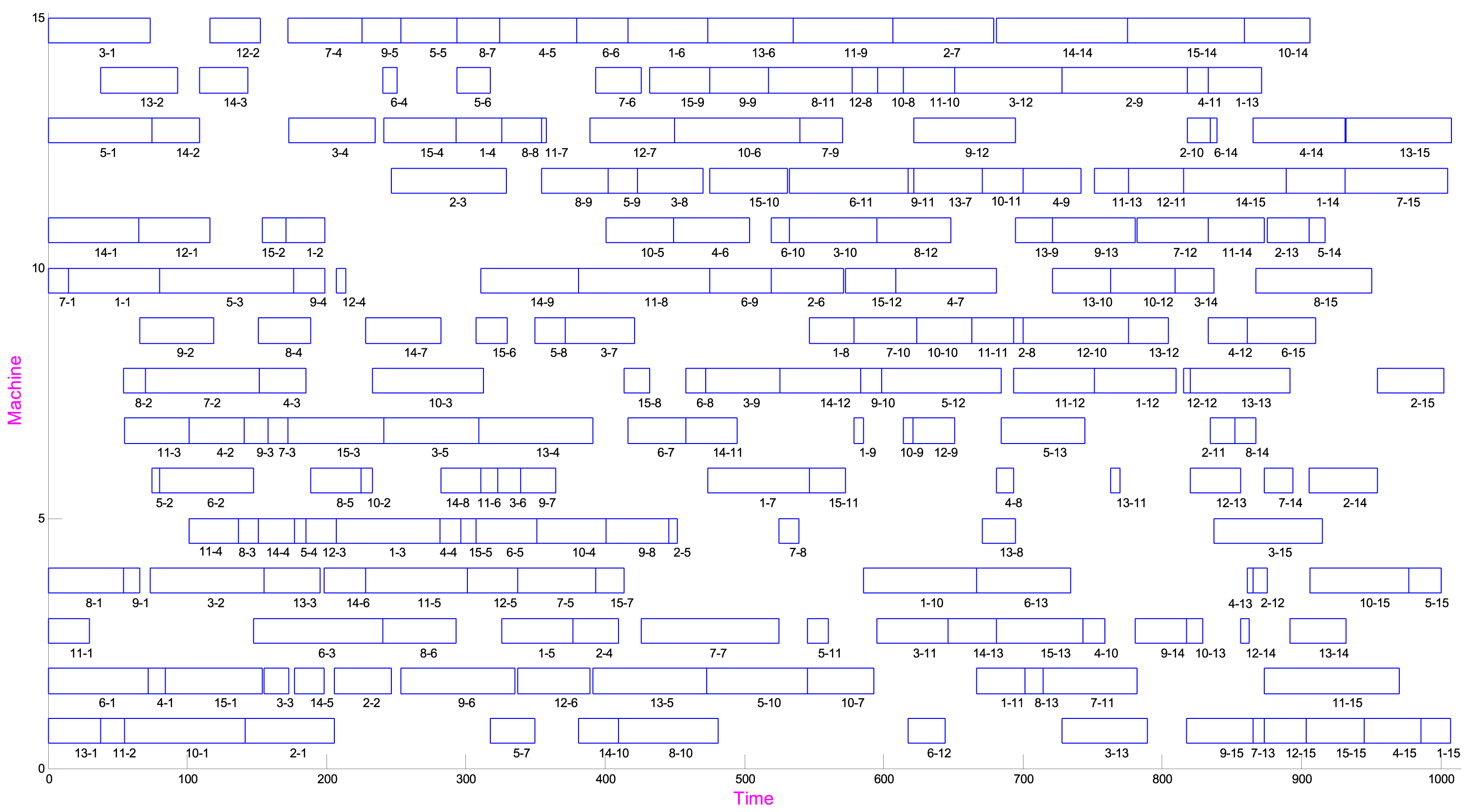

Fig. 9

The Gantt chart obtained by the MODWWO algorithm for instance LA40.

5 Conclusions

In this paper, the multi-objective energy-saving job shop scheduling problem with variable processing speeds is studied. A mathematical model is established with the total energy consumption and the makespan as the optimization metrics, and a multi-objective discrete water wave optimization algorithm is proposed for solving the problem.

The scheduling solution is represented by a two-vector encoding method, and the population initialization is realized based on some dispatching rules. Then, according to the characteristics of the problem, three kinds of search operators in the water wave optimization algorithm, namely propagation, refraction and breaking, are specifically designed. Then 40 benchmark instances of the classical job shop scheduling problem are modified and used in the simulation experiments to test the algorithms’ performance. A large number of experimental data show that our MODWWO algorithm is effective in solving the multi-objective energy-saving job shop scheduling problem with variable processing speeds.

The next work will extend the energy-saving scheduling problem to more complex manufacturing systems and consider more realistic constraints, such as dynamic production environments, job deterioration effect, worker flexibility, time-of-use pricing policies, and renewable energy utilization. In addition, the combination of the WWO algorithm and other intelligence algorithms will be further studied to obtain a more efficient algorithm.

Footnotes

Acknowledgments

This research was supported by the Fundamental Research Funds for the Central Universities, JLU; the National Natural Science Foundation Project of China under Grant 51705260; the Natural Science Foundation Project of Shandong Province ZR2020QG005, ZR2019QF008.

References

and Jiang

, Bi-population based discrete bat algorithm for the low-carbon job shop scheduling problem, IEEE Access 7 (2019), 14513–14522.

Mouzon

and Yildirim

M.B.

, A framework to minimise total energy consumption and total tardiness on a single machine, International Journal of Sustainable Engineering 1(2) (2008), 105–116.

Yildirim

M.B.

and Mouzon

, Single-machine sustainable production planning to minimize total energy consumption and total completion time using a multiple objective genetic algorithm, IEEE Transactions on Engineering Management 59(4) (2012), 585–597.

Ding

J.Y.

, Song

and Wu

, Carbon-efficient scheduling of flow shops by multi-objective optimization, European Journal of Operational Research 248(3) (2016), 758–771.

Zheng

X.L.

and Wang

, A collaborative multiobjective fruit fly optimization algorithm for the resource constrained unrelated parallel machine green scheduling problem, IEEE Transactions on Systems, Man, and Cybernetics: Systems 48(5) (2018), 790–800.

Mansouri

S.A.

and Aktas

, Minimizing energy consumption and makespan in a two-machine flowshop scheduling problem, Journal of the Operational Research Society 67(11) (2016), 1382–1394.

Zhao

Y.W.

, Zhang

L.P.

, Zhang

J.L.

, et al., Modeling and optimization of process-assembly-type flow-shop scheduling problem with energy saving, China Mechanical Engineering 25(16) (2014), 2196–2203.

Liu

, Dong

, Lohse

, et al., An investigation into minimising total energy consumption and total weighted tardiness in job shops, Journal of Cleaner Production 65 (2014), 87–96.

May

, Stahl

, Taisch

, et al., Multi-objective genetic algorithm for energy-efficient job shop scheduling, International Journal of Production Research 53(23) (2015), 7071–7089.

10.

Mokhtari

and Hasani

, An energy-efficient multi-objective optimization for flexible job-shop scheduling problem, Computers & Chemical Engineering 104 (2017), 339–352.

11.

and Sun

, A green scheduling algorithm for flexible job shop with energy-saving measures, Journal of Cleaner Production 172 (2018), 3249–3264.

12.

Lei

, Li

and Wang

, A two-phase meta-heuristic for multiobjective flexible job shop scheduling problem with total energy consumption threshold, IEEE Transactions on Cybernetics 49(3) (2019), 1097–1109.

13.

Jiang

T.H.

and Deng

G.L.

, Optimizing the low-carbon flexible job shop scheduling problem considering energy consumption, IEEE Access 6 (2018), 46346–46355.

14.

Jiang

T H

, Zhang

, Zhu

H.Q.

, et al., Energy-efficient scheduling for a job shop using grey wolf optimization algorithm with double-searching mode, Mathematical Problem in Engineering 2018 (2018), 1–12.

15.

Jiang

T.H.

, Zhang

, Zhu

H.Q.

, et al., Energy-efficient scheduling for a job shop using an improved whale optimization algorithm, Mathematics 6(11) (2018), 220–239.

16.

Salido

M.A.

, Escamilla

, Giret

, et al., A genetic algorithm for energy-efficiency in job-shop scheduling, The International Journal of Advanced Manufacturing Technology 85(5-8) (2016), 1303–1314.

17.

Zhang

and Chiong

, Solving the energy-efficient job shop scheduling problem: A multi-objective genetic algorithm with enhanced local search for minimizing the total weighted tardiness and total energy consumption, Journal of Cleaner Production 112 (2016), 3361–3375.

18.

Jiang

, Zhang

and Sun

Q.M.

, Green job shop scheduling problem with discrete whale optimization algorithm, IEEE Access 7 (2019), 43153–43166.

19.

Yin

, Li

, Gao

, et al., Energy-efficient job shop scheduling problem with variable spindle speed using a novel multi-objective algorithm, Advances in Mechanical Engineering 9(4) (2017), 1–21.

20.

Zheng

Y.J.

, Water wave optimization: a new nature-inspired metaheuristic, Computers & Operations Research 55 (2015), 1–11.

21.

Siva

, Balamurugan

and Lakshminarasimman

, Water wave optimization algorithm for solving economic dispatch problems with generator constraints, International Journal of Intelligent Engineering and Systems 9(4) (2016), 31–40.

22.

Zhang

, Zhou

and Luo

, An improved sine cosine water wave optimization algorithm for global optimization, Journal of Intelligent & Fuzzy Systems 34(4) (2018), 2129–2141.

23.

Singh

, Rattan

, Gill

S.S.

, et al., Hybridization of water wave optimization and sequential quadratic programming for cognitive radio system, Soft Computing 2018, 1–21.

24.

Azadi

H.A.

and Akbari

F.A.

, Optimizing the multi-objective bidding strategy using min-max technique and modified water wave optimization method, Neural Computing and Applications 31 (2019), 5207–5225.

25.

Zheng

, Wang

, Ling

, et al., Integrated civilian-military pre-positioning of emergency supplies: A multiobjective optimization approach, Applied Soft Computing 58 (2017), 732–741.

26.

Ibrahim

A.M.

, Tawhid

M.A.

, Ward

R.K.

, et al., A binary water wave optimization for feature selection, International Journal of Approximate Reasoning 120 (2020), 74–91.

27.

Zheng

, Lu

, Du

, et al., Water wave optimization for combinatorial optimization: Design strategies and applications, Applied Soft Computing 83 (2019), 105611.

28.

Shao

, Pi

and Shao

, A novel discrete water wave optimization algorithm for blocking flow-shop scheduling problem with sequence-dependent setup times, Swarm and Evolutionary Computation 40 (2018), 53–75.

29.

Shao

, Pi

and Shao

, A novel multi-objective discrete water wave optimization for solving multi-objective blocking flow-shop scheduling problem, Knowledge-Based Systems 165 (2019), 110–131.

30.

Zhao

, Zhang

, Liu

, et al., An improved water wave optimization algorithm with the single wave mechanism for the no-wait flow-shop scheduling problem, Engineering Optimization 51(10) (2019), 1727–1742.

31.

Zhao,

, Zhang

, et al., A hybrid discrete water wave optimization algorithm for the no-idle flowshop scheduling problem with total tardiness criterion, Expert Systems with Applications 146 (2020), 113166.

32.

Pezzella

, Morganti

and Ciaschetti

, A genetic algorithm for the flexible job-shop scheduling problem, Computers & Operations Research 35(10) (2008), 3202–3212.

33.

Deb

, Pratap

, Agarwal

, et al., A fast and elitist multiobjective genetic algorithm: NSGA-II, IEEE Transactions on Evolutionary Computation 6(2) (2002), 182–197.

34.

Lawrence

, Resource constrained project scheduling: An experimental investigation of heuristic scheduling techniques, Graduate school of Industrial Administration (GSIA), Carnegie Mellon University, Pittsburgh, PA. 1984.

Multi-objective discrete water wave optimization algorithm for solving the energy-saving job shop scheduling problem with variable processing speeds

Abstract

Keywords

1 Introduction

2 Problem description and modeling

3.1 Basic water wave optimization

3.2 Encoding and decoding

3.4 Ranking based propagation

3.7 Steps of the MODWWO

4 Experimental analysis

4.1 Experimental design

Table 1 Parameter levels Factor Level 1 2 3 4 PS 50 100 150 200 h max 5 10 15 20 q max 10 20 30 40 iter max 500 700 1000 1500

Footnotes

Acknowledgments

References

Table 1
Parameter levels

Factor Level

1 2 3 4

PS 50 100 150 200

h _max 5 10 15 20

q _max 10 20 30 40

iter _max 500 700 1000 1500
