Feature fusion-based collaborative learning for knowledge distillation

Abstract

Deep neural networks have achieved a great success in a variety of applications, such as self-driving cars and intelligent robotics. Meanwhile, knowledge distillation has received increasing attention as an effective model compression technique for training very efficient deep models. The performance of the student network obtained through knowledge distillation heavily depends on whether the transfer of the teacher’s knowledge can effectively guide the student training. However, most existing knowledge distillation schemes require a large teacher network pre-trained on large-scale data sets, which can increase the difficulty of knowledge distillation in different applications. In this article, we propose a feature fusion-based collaborative learning for knowledge distillation. Specifically, during knowledge distillation, it enables networks to learn from each other using the feature/response-based knowledge in different network layers. We concatenate the features learned by the teacher and the student networks to obtain a more representative feature map for knowledge transfer. In addition, we also introduce a network regularization method to further improve the model performance by providing a positive knowledge during training. Experiments and ablation studies on two widely used data sets demonstrate that the proposed method, feature fusion-based collaborative learning, significantly outperforms recent state-of-the-art knowledge distillation methods.

Keywords

Model compression knowledge distillation collaborative learning feature fusion deep learning

Introduction

Recently, since deep neural networks (DNNs) have shown breakthrough results in the visual recognition tasks, the number of deep learning applications in real-world scenarios has exploded.^1–3 These deep learning-based methods have been widely used in self-driving cars, cancer detection, and intelligent robotics. However, the high performance of DNNs mainly comes at the cost of the high computational complexity. Therefore, it is usually very difficult to deploy large-scale DNNs on mobile and embedded devices due to their limited computational power. To overcome those issues, several model compression methods have been developed to improve the model efficiency without significantly sacrificing the model accuracy, such as network pruning,^4,5 low-rank decomposition,^6,7 and knowledge distillation (KD).^8,9 Among different model compression schemes, KD has received a lot of attention because of its great flexibility in teacher–student network architectures. Specifically, KD is first formally introduced by Hinton et al.,⁸ where the teacher network transfers the knowledge in the output layer to the student network. Furthermore, Romero et al.⁹ develop the idea of FitNets, that is, the middle layer of DNNs also contains rich knowledge.

Traditional offline KD usually requires a large pre-trained neural network as the teacher network, and then exacts knowledge from the teacher network and transfers it to the student network during the distillation process.^8–12 However, it takes a lot of time to pre-train a large teacher network, and how to choose a proper teacher network for a given student network is also an intractable problem. In contrast, the online KD scheme does not require the participation of a large teacher network, and thus avoids the problem caused by the large-scale pre-trained teacher network.^13–17 Specifically, Zhang et al.¹³ proposed a distillation method without indicating the teacher network, that is, two peer student networks learn from each other. Guo et al.¹⁴ utilizes the collaborative learning to ensemble the output of all student networks to improve the performance of student networks. However, the above two methods only consider the knowledge of the output layer of the student network, making it possible for further improvement using feature knowledge. For example, Hou et al.¹⁵ fuse the features of the middle layer in two parallel student networks using the fusion module formed by a simple “SUM” operation, while two parallel student networks must share the same network structure. Kim et al.¹⁶ proposed a feature fusion learning method to fuse the features of the student network and devise an ensemble classifier to work together to improve the model performance.

To further improve the performance of the student network with a more effective KD scheme, we propose a feature fusion-based collaborative learning (FFCL) for KD in this article. Specifically, in the process of distillation, two parallel peer (or student) networks improve their performance in a collaborative manner. Since the parameters in the network are randomly initialized and different student networks may have different abilities to learn knowledge, there will be a gap between the performance of two parallel student networks with the same architecture during training. In this case, two networks learn from each other, while the network with a poor performance may affect the network with a good performance, which then affects the final results. Therefore, before the distillation process, we first pre-train the network that will participate in the training process. During the distillation process, the pre-trained network will guide the corresponding network. We refer to this step as the network regularization, which can enable the student network to obtain the correct knowledge from the pre-trained network, reduce the negative impact of the wrong knowledge among the peer networks, and further avoid the issue caused by training a large-scale teacher network. Moreover, to further utilize more feature knowledge from the middle layers during collaborative learning, we fuse the features from peer networks to obtain more representative features, which can then be used to further improve network performance. Consequently, through the collaborative learning between peer networks, network regularization for each network and feature fusion between peer networks, the distilled knowledge could be more informative for training each peer network. The main contributions of this article can be summarized as follows:

A novel collaborative learning framework for KD: not only can it improve the performance of parallel student networks, but also improve the performance of the fusion module in an end-to-end trainable manner.

The network architecture of parallel student networks can be different, and in order to reduce the impact of incorrect knowledge between networks on performance, a regularization process is introduced.

Related work

KD

Due to the excellent performance of DNNs in computer vision, speech recognition, and natural language processing, a variety of KD schemes have been proposed to train small networks with high performances. Existing KD schemes can usually be divided into three types:¹⁸ (1) offline distillation,^8–12 (2) online distillation,^13–17 and (3) self-distillation.^19–23 As a classic KD scheme, offline distillation can effectively improve the performance of the student network. However, it takes a lot of time to pre-train a large-scale teacher network. Therefore, how to choose a proper teacher network is also a difficult problem. Compared with the offline KD, online distillation does not require a pre-trained teacher network. All peer networks in online distillation are trained from scratch by transferring the knowledge from each other, but a poor-performance network may affect the performance of other networks during collaborative learning. Self-distillation indicates that the network improves its performance in a self-learning way, where one network is trained again using its pre-trained network as the regularization during learning. For instance, Yuan et al.¹⁹ proposed a teacher-free knowledge distillation (Tf-KD) method, which is a special self-learning framework. Therefore, an effective distillation method should not only improve the performance of the student network but also save training time and storage space. To overcome the weakness existed in each distillation strategy, we explore a new distillation scheme, where multiple different schemes can work together to further improve the performance of the model.

Collaborative learning

Recently, many KD schemes based on collaborative learning have been proposed.^14,15,24 Specifically, Zhang et al.¹³ proposed a deep mutual learning (DML) strategy, where a group of student networks learn from each other and guide each other throughout the training process, instead of using a pre-defined one-way conversion path between teacher and student networks. Guo et al.¹⁴ proposed knowledge distillation via collaborative learning (KDCL), which ensembles the output of different networks and then use the ensemble results to teach each individual network through collaborative learning. Lan et al.²⁵ constructed a multi-branch structure through the network hierarchy. The authors regard each branch as a student network, and merge these branches to generate a better-performing teacher network. Then, through the joint online learning of the teacher–student network, a single-branch model or a multi-branch fusion model with superior performance can be obtained. Chen et al.²⁶ proposed a two-level scheme for the online KD with a group leader and multiple auxiliary peers. Hou et al.¹⁵ extracted and fused the features of two student networks to obtain more meaningful feature maps, and then input the fused features into the fused module. Although the final classifier can achieve better performance, two student networks must share the same network structure, because the authors adopt a simple “SUM” operation in the process of feature fusion. Kim et al.¹⁶ made a further improvement on this basis of using feature fusion learning (FFL) to improve the performance of the fusion classifier. This scheme is also suitable for two student networks with different network structures. Different from the above methods, our proposed FFCL scheme learns different knowledge among the peer networks in the distillation process of collaborative learning, and uses a network regularization for each peer model to improve the performance.

The proposed method

In this section, we introduce our FFCL framework in detail. We first describe how to perform collaborative learning between peer student networks, and then introduce how to use regularization to improve the network performance during the learning process.

During the collaborative learning, different networks learn from each other using the feature knowledge in the middle layer and the response knowledge in the output layer. We extract features from the middle layers of two networks, and fuse these features to get more meaningful feature maps.¹⁶ We then input the feature maps into the fusion module, and the output from the fused classifier will be used to guide each peer network to improve the performance. In this way, the network can learn the feature knowledge in the middle layer of other networks. At the same time, the networks also learn the response knowledge in the output layer from each other.¹³ All networks are trained from scratch during the distillation process of collaborative learning. Furthermore, to make each peer network to be learned with more positive knowledge from its other networks, a model regularization process is introduced during collaborative learning.¹⁹ Before the training process of the peer student networks, the model regularization is first carried out by pre-training all peer networks that can participate in the training process. During the training process, the knowledge is extracted from the pre-trained network and transferred to the corresponding network. The overview framework of FFCL is illustrated in Figure 1.

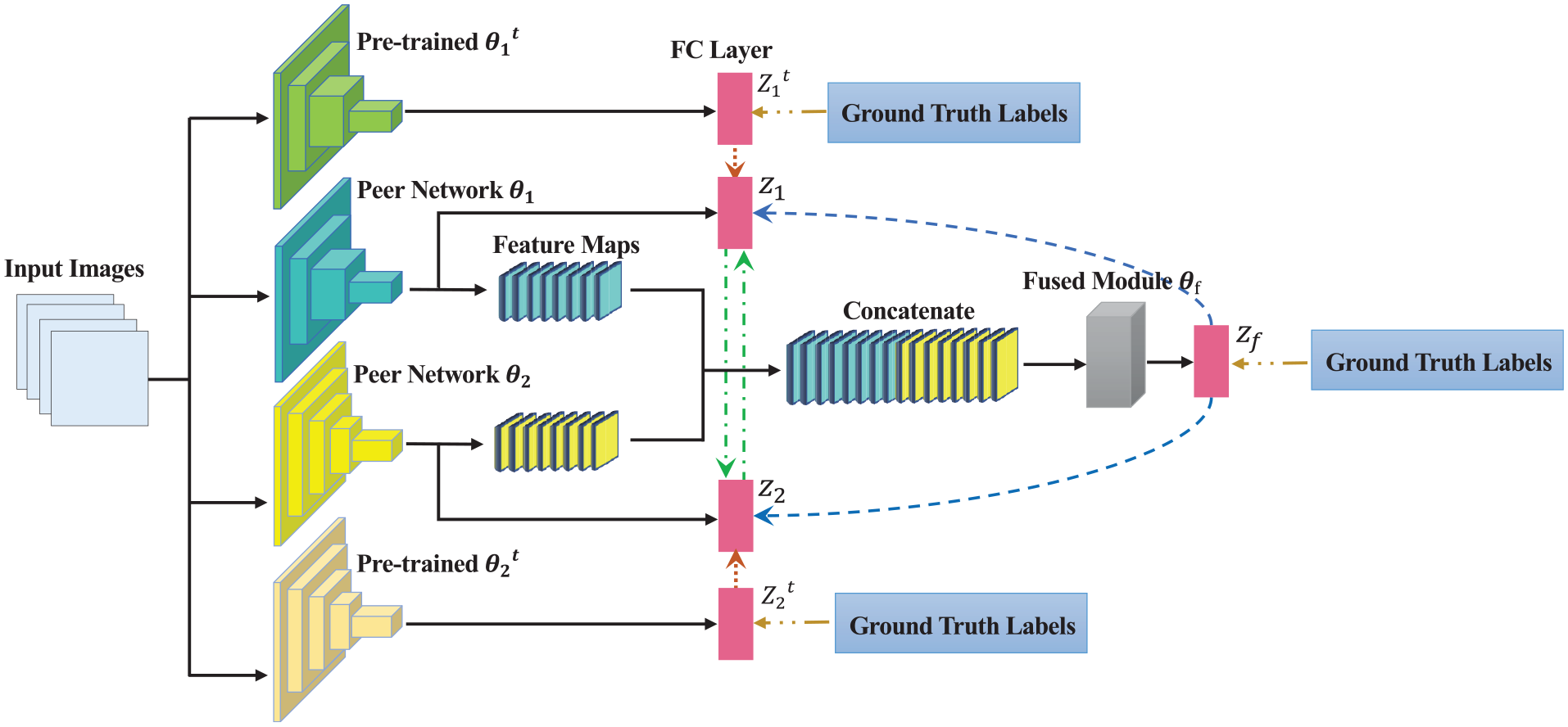

Figure 1.

The framework of feature fusion-based collaborative learning (FFCL) for knowledge distillation. We extract features from the middle layers of two peer networks and input the feature maps into the fusion module after fusing these features. Besides, peer networks learn from each other in parallel with their own pre-trained teacher.

Notations

Given $n$ samples $X = {x_{1}, x_{2}, \dots, x_{n}}$ from $m$ classes, we denote the corresponding label set as $Y = {y_{1}, y_{2}, \dots, y_{n}}$ . Among them, $y_{i} \in {1, 2, \dots, m}$ . For a peer network $θ_{k}$ , the feature in any one middle layer is denoted as $f_{k}$ , and the logit output from network $θ_{k}$ is denoted as $z_{k}$ . The fused module is denoted as $θ_{f}$ , which is a small network. We denote the logit output of the fused module as $z_{f}$ . In addition, we denote the network $θ_{k}$ which has completed the pre-training process as $θ_{k}^{t}$ .

Fused feature-based collaborative distillation

In the process of collaborative learning, the network learns two parts of knowledge from each other, namely, fused feature knowledge from the middle layers of the peer networks and response knowledge of their output layers. First, we introduce the feature knowledge during collaborative distillation. The features extracted from the middle layers of the given peer student network $θ_{k}$ and $θ_{k'}$ are $f_{k}$ and $f_{k'}$ , respectively. We concatenate $f_{k}$ and $f_{k'}$ along the channel dimension to get the fused feature $f$ . And then, the feature $f$ is inputed into the fused module, which has the logit output $z_{f}$ . The distillation loss function of knowledge transfer for the peer student network $θ_{k}$ with the fused feature knowledge from the networks $θ_{k}$ and $θ_{k'}$ is defined as

L_{θ_{k}}^{f} = \sum_{x \in X} \sum_{i = 1}^{m} σ_{i} (z_{f}; T) \log (\frac{σ_{i} (z_{f}; T)}{σ_{i} (z_{k}; T)})

(1)

where $T$ indicates the temperature parameter and $σ$ stands for the softmax function. Here, we use the last feature map of the peer student networks for feature fusion. Similarly, the distillation loss function for the peer student network $θ_{k'}$ with the fused feature knowledge is defined as

L_{θ_{k'}}^{f} = \sum_{x \in X} \sum_{i = 1}^{m} σ_{i} (z_{f}; T) \log (\frac{σ_{i} (z_{f}; T)}{σ_{i} (z_{k'}; T)})

(2)

In the distillation process with fusing features, the fused model is always very small network and its used structure is chosen as in Figure 2. In the proposed FFCL, the used network structure of fused module $θ_{f}$ is composed of a $3^{*} 3$ depthwise convolution and a pointwise convolution layer. For example, for the ResNet18 network, we set the batch size to 128, and then the dimension of the final feature map is [128, 512, 4, 4]. In the case of two peer networks with ResNet18, we concatenate two features along the channel dimension, and the feature dimension output by the fused module is [128, 1024, 4, 4].

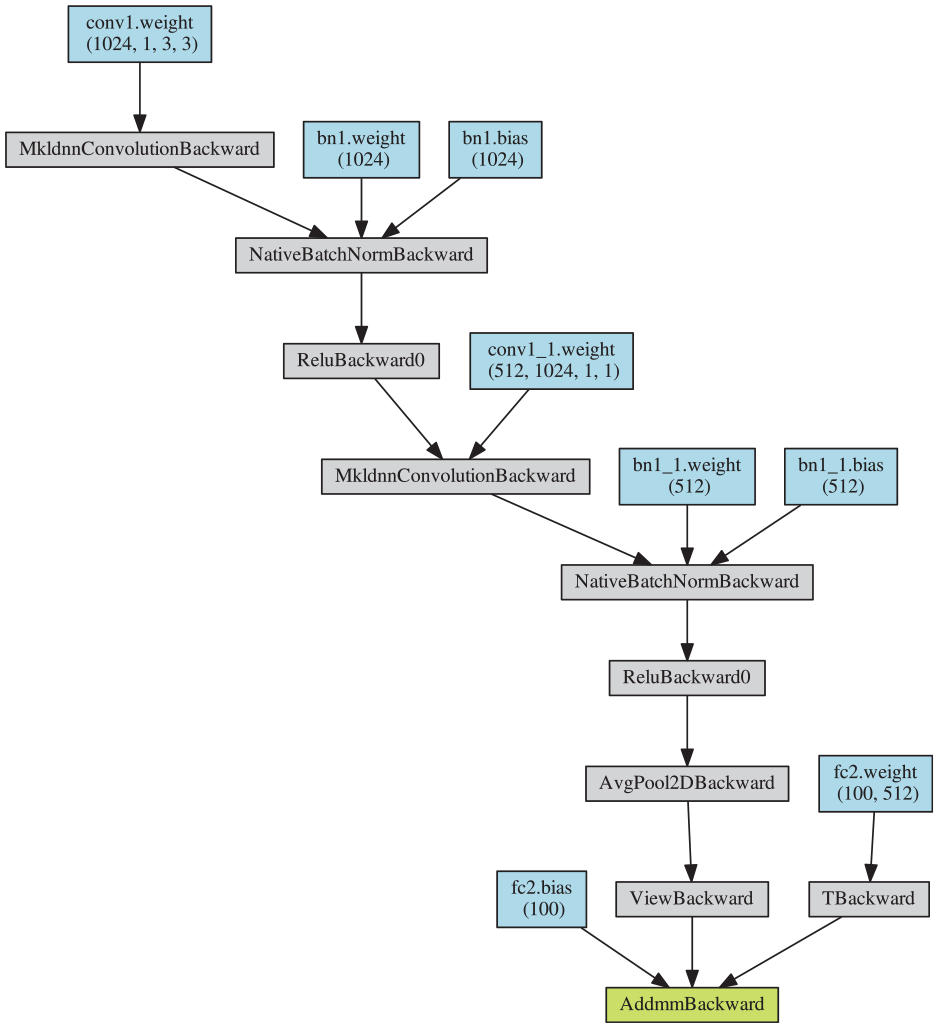

Figure 2.

The structure diagram of the used fusion module $θ_{f}$ , which is composed of a $3 * 3$ depthwise convolution and a pointwise convolution layer.

Next, we introduce the response knowledge during collaborative distillation. That is, one peer student network learns the knowledge from the output layer of the other peer student network during the training process. The distillation loss function of transferring response knowledge from the network $θ_{k'}$ to $θ_{k}$ is defined as

L_{θ_{k}}^{r} = \sum_{x \in X} \sum_{i = 1}^{m} σ_{i} (z_{k'}; 1) \log (\frac{σ_{i} (z_{k'}; 1)}{σ_{i} (z_{k}; 1)})

(3)

where the value 1 means the temperature parameter $T = 1$ , and in fact, peer network $θ_{k}$ is the student and $θ_{k'}$ is the teacher. In a similar way, the distillation loss from the network $θ_{k}$ to $θ_{k'}$ is defined as

L_{θ_{k'}}^{r} = \sum_{x \in X} \sum_{i = 1}^{m} σ_{i} (z_{k}; 1) \log (\frac{σ_{i} (z_{k}; 1)}{σ_{i} (z_{k'}; 1)})

(4)

Therefore, the distillation loss function for the network $θ_{k}$ during collaborative learning is defined as

L_{θ_{k}}^{col} = α T^{2} L_{θ_{k}}^{f} + (1 - α) L_{θ_{k}}^{r}

(5)

where $α \in [0, 1]$ is a hyper-parameter. Simultaneously, the distillation loss function for the network $θ_{k'}$ is defined as

L_{θ_{k'}}^{col} = α T^{2} L_{θ_{k'}}^{f} + (1 - α) L_{θ_{k'}}^{r}

(6)

Through the collaborative learning, the knowledge between the peer student networks is distilled from each other for learning the optimal peer student networks and obtaining the optimal fusion module.

Network regularization-based distillation

During the collaborative distillation, all student peer networks collaboratively train each other from scratch. However, the performance of the peer networks can be degraded by the negative knowledge from each other. In the process of peer model training, to provide the correct knowledge for each network as a guidance, we introduce network regularization. First, for the peer student networks to participate in the training process, we first pre-train them using the one-hot labels. Then, in the training process, the knowledge from the pre-trained network is transferred to learn its current same network. The logit output of the pre-trained network $θ_{k}^{t}$ is referred to as $z_{k}^{t}$ . The distillation loss function as a network regularization for the peer student network $θ_{k}$ is defined as follows

L_{θ_{k}}^{s} = \sum_{x \in X} \sum_{i = 1}^{m} σ_{i} (z_{k}^{t}; T) \log (\frac{σ_{i} (z_{k}^{t}; T)}{σ_{i} (z_{k}; T)})

(7)

Similarly, the distillation loss function as a network regularization for the peer network $θ_{k'}$ is defined as

L_{θ_{k'}}^{s} = \sum_{x \in X} \sum_{i = 1}^{m} σ_{i} (z_{k'}^{t}; T) \log (\frac{σ_{i} (z_{k'}^{t}; T)}{σ_{i} (z_{k'}; T)})

(8)

In the ablation experiment, it is obviously that Case G, which only represents regularization-based distillation, is the most effective method among all the cases (Cases E–G). From this, we affirm the validity of network regularization and ensure the effectiveness of those pre-trained networks.

FFCL loss

In the distillation process, each step has its own favorable effect, and they work together to improve the network performance. In the framework of collaborative learning between two peer networks $θ_{k}$ and $θ_{k'}$ , the overall distillation loss function for simultaneously training the peer student network $θ_{k}$ and the fused module ${\theta _f}$ is formulated as follows

L_{θ_{k}}^{D} = L_{θ_{k}}^{col} + β T^{2} L_{θ_{k}}^{s} + γ_{1} L_{θ_{k}}^{CE} + γ_{2} L_{f}^{CE}

(9)

where $β$ , $γ_{1}$ , and $γ_{2}$ are the hyper-parameters. $L^{CE}$ indicates the cross-entropy function between the network logits and the ground true labels, that is

L_{θ_{k}}^{CE} = - \sum_{x \in X} \sum_{i = 1}^{m} y^{i} \log (σ_{i} (z_{k}; 1))

(10)

L_{f}^{CE} = - \sum_{x \in X} \sum_{i = 1}^{m} y^{i} \log (σ_{i} (z_{f}; 1))

(11)

Similarly, for training network $θ_{k'}$ with the fused module $θ_{f}$ , the overall distillation loss function is defined as

L_{θ_{k'}}^{D} = L_{θ_{k'}}^{col} + β T^{2} L_{θ_{k'}}^{s} + γ_{1} L_{θ_{k'}}^{CE} + γ_{2} L_{f}^{CE}

(12)

where $L_{θ_{k'}}^{CE}$ is defined as

L_{θ_{k'}}^{CE} = - \sum_{x \in X} \sum_{i = 1}^{m} y^{i} \log (σ_{i} (z_{k'}; 1))

(13)

In summary, using the overall distillation loss function above, the collaborative learning of the two peer networks is performed by KD, and the proposed FFCL is shown in Algorithm 1. As a result, the proposed collaborative KD between two peer student networks can further improve the performance, which is verified in the experimental section.

Algorithm 1. The proposed FFCL.
Require: input samples $X$ with labels $Y$ , epoch $τ$ ,hyper-parameters $α_{1}$ , $α_{2}$ $β$ , $γ_{1}$ , and $γ_{2}$ . 1: Initialize: initialize peer student networks $θ_{1}$ and $θ_{2}$ , and the fused module $θ_{f}$ under different conditions. 2: Stage 1: pre-train network $θ_{1}$ and network $θ_{2}$ for use of the process of network regularization. 3: t = 0. 4: Repeat: 5: forl = 1 to 2 do 6: Compute stochastic gradient of cross-entropy loss and update 7: $θ_{l} \leftarrow θ_{l} + η \frac{\partial L_{θ_{l}}^{CE}}{\partial θ_{l}}$ 8: t = t + 1 9: end for 10: Until: $t = τ$ . 11: Stage 2: train peer student networks $θ_{1}$ and $θ_{2}$ collaboratively. 12: t = 0. 13: fork = 1 to 2 do 14: Repeat: 15: Compute stochastic gradient of $L_{θ_{l}}^{D}$ in equation (9) and update $θ_{l}$ and $θ_{f}$ : 16: $θ_{l} \leftarrow θ_{l} + η \frac{\partial L_{θ_{l}}^{CE}}{\partial θ_{l}}$ , and $θ_{f} \leftarrow θ_{f} + η \frac{\partial L_{θ_{l}}^{D}}{\partial θ_{f}}$ . 17: t = t + 1. 18: end for 19: Until: $t = τ$ . 20: Return $θ_{l}$ and $θ_{f}$ .

Algorithm 1. The proposed FFCL.

Require: input samples

X

with labels

Y

, epoch

τ

,hyper-parameters

α_{1}

α_{2}

β

γ_{1}

, and

γ_{2}

.
1: Initialize: initialize peer student networks

θ_{1}

and

θ_{2}

, and the fused module

θ_{f}

under different conditions.
2: Stage 1: pre-train network

θ_{1}

and network

θ_{2}

for use of the process of network regularization.
3: t = 0.
4: Repeat:
5: forl = 1 to 2 do
6: Compute stochastic gradient of cross-entropy loss and update
7:

θ_{l} \leftarrow θ_{l} + η \frac{\partial L_{θ_{l}}^{CE}}{\partial θ_{l}}

8: t = t + 1
9: end for
10: Until:

t = τ

.
11: Stage 2: train peer student networks

θ_{1}

and

θ_{2}

collaboratively.
12: t = 0.
13: fork = 1 to 2 do
14: Repeat:
15: Compute stochastic gradient of

L_{θ_{l}}^{D}

in equation (9) and update

θ_{l}

and

θ_{f}

:
16:

θ_{l} \leftarrow θ_{l} + η \frac{\partial L_{θ_{l}}^{CE}}{\partial θ_{l}}

, and

θ_{f} \leftarrow θ_{f} + η \frac{\partial L_{θ_{l}}^{D}}{\partial θ_{f}}

.
17: t = t + 1.
18: end for
19: Until:

t = τ

.
20: Return

θ_{l}

and $θ_{f}$ .

FFCL extension

The formulation of the proposed FFCL above is based on two peer networks and can be a standard FFCL framework. In fact, it can be extended more than two peer networks. Given $N$ $(N > 2)$ peer networks denoted as the network set $D = {θ_{1}, θ_{2}, \dots, θ_{n}}$ , the feature in middle layer of an arbitrary peer network $θ_{u}$ is denoted as $f_{u}$ and the logit output of the network $θ_{u}$ is represented as $z_{u}$ . The fused module for all the peer networks is still set as $θ_{f}$ and its logit output is indicated as $z_{f}$ . In addition, the pre-trained network of $θ_{u}$ is denoted as $θ_{u}^{t}$ and its logit output is $z_{u}^{t}$ .

Give the features extracted from the middle layers of all the networks (i.e. ${f_{1}, f_{2}, \dots, f_{n}}$ ), their concatenated feature as the fused feature $f$ is computed as the input of the fused module, which has the logit output $z_{f}$ . Then, the distillation loss function for the arbitrary network $θ_{u}$ with the fused feature knowledge is defined as

L_{θ_{u}}^{f} = \sum_{x \in X} \sum_{i = 1}^{m} σ_{i} (z_{f}; T) \log (\frac{σ_{i} (z_{f}; T)}{σ_{i} (z_{u}; T)})

(14)

During the collaborative learning among the multiple peer student networks, each network learns from the other $N - 1$ peer networks via knowledge transfer. That is, each peer student network is trained by distilling the knowledge from the other peer networks. The distillation loss function of knowledge transfer for the network $θ_{u}$ is defined as

L_{θ_{au}}^{r} = \frac{1}{N - 1} \sum_{a = 1, a \neq u}^{N} \sum_{x \in X} \sum_{i = 1}^{m} σ_{i} (z_{a}; 1) \log (\frac{σ_{i} (z_{a}; 1)}{σ_{i} (z_{u}; 1)})

(15)

where $z_{a}$ is the logit output from network $θ_{a}$ .

Finally, the overall distillation loss function of the general FFCL for learning the network $θ_{u}$ is formulated as follows

\begin{matrix} L_{θ_{u}}^{D} = α T^{2} L_{θ_{u}}^{f} + (1 - α) L_{θ_{au}}^{r} \\ + β T^{2} L_{θ_{u}}^{s} + γ_{1} L_{θ_{u}}^{CE} + γ_{2} L_{f}^{CE} \end{matrix}

(16)

where $L_{θ_{u}}^{s}$ is the network regularization function computed as in equation (7), and $L_{θ_{u}}^{CE}$ and $L_{f}^{CE}$ are the cross-entropy functions, respectively, computed as equations (10) and (11).

To intuitively understand the proposed FFCL, we provide the overview diagrams of the standard FFCL between two peer student networks and the general FFCL among three peer student networks, shown in Figures 3 and 4. In the figures, the green arrow represents the process of network regularization, and the yellow arrow represents the process of feature fusion.

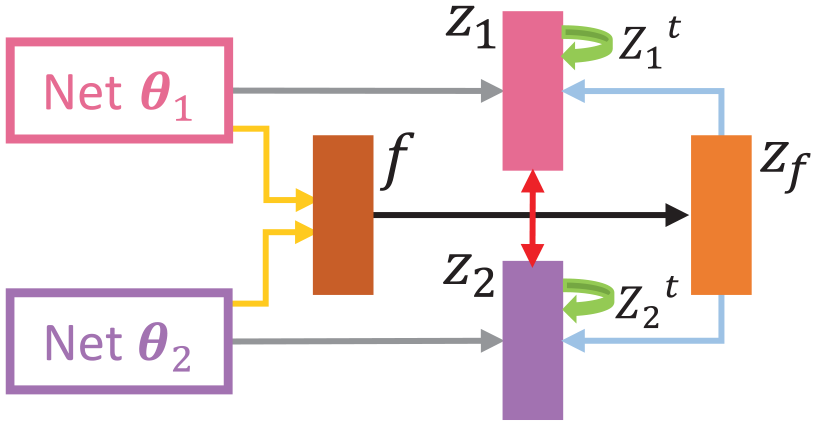

Figure 3.

The standard FFCL based on two peer networks. In the figure, $f$ represents the feature after combining the features of peer networks, and $z_{f}$ represents the features output by fused module $θ_{f}$ .

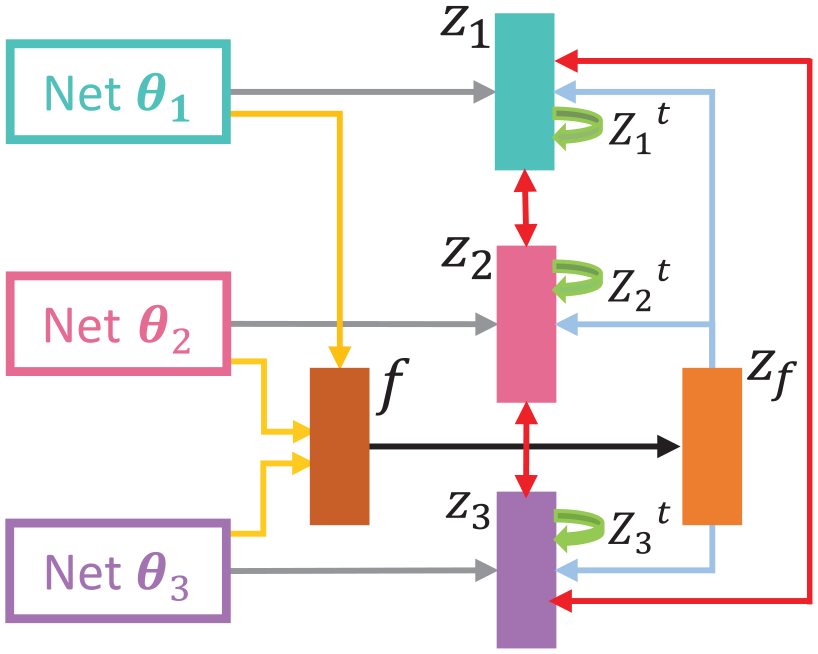

Figure 4.

The general FFCL based on three peer networks. In the figure, $f$ represents the feature after combining the features of peer networks, and $z_{f}$ represents the features output by fused module $θ_{f}$ .

Experiments

We conducted favorable experiments to verify the effectiveness of FFCL on CIFAR-10 and CIFAR-100 data set,²⁷ while comparing our FFCL framework with some classic and recent state-of-the-art methods including KD,⁸ DML,¹³ KDCL,¹⁴ FFL,¹⁶ and Tf-KD.¹⁹ The architecture of each peer network was chosen from ResNet,²⁸ WideResNet (WRN),²⁹ and ShuffleNet.¹⁷

Data sets and settings

CIFAR-10 contains a total of 60,000 samples, including 50,000 training samples and 10,000 testing samples. Those samples are divided into 10 classes. CIFAR-100 is similar to CIFAR-10, but contains 100 classes. And each class has the same numbers of training and testing samples.

In the experiments, we used stochastic gradient descent (SGD) optimizer with momentum 0.9 and weight decay 5e−4. For the hyper-parameters $α_{1}$ , $α_{2}$ , $β$ , ${\gamma _1}$, $γ_{2}$ and $T$ , they were determined by grid-search as follows: $α_{1} = 0.46$ , $α_{2} = 0.15$ , $β = 0.57$ , $γ_{1} = 0.18$ and $γ_{2} = 0.05$ , and $T = 6$ .

All the reported accuracies were averaged over three runs that are randomly initialized. It is noteworthy that the compared Tf-KD method was trained with the network architecture $θ_{1}$ when the collaborative learning was performed under the situations of two peer networks with different architectures. For KD, $N_{2}$ and $N_{1}$ were respectively used as the teacher and student networks during the distillation process when they have different architectures, and the proper teacher network was used for the student network $N_{1}$ when two peer networks $N_{1}$ and $N_{2}$ have the same architectures. For three peer networks $θ_{1}$ , $θ_{2}$ , and ${\theta _3}$, the proposed FFCL was respectively indicated as $FFCL_θ_{1}$ , $FFCL_θ_{2}$ , and $FFCL_θ_{3}$ ; DML, FFL, and KDCL with collaborative learning were indicated in the same way. And both FFCL and FFL using fused models were indicated as $FFCL_θ_{f}$ and $FFL_θ_{f}$ , respectively.

Baselines

To highlight the improvements of the competitors, we provide the baselines of the used networks without KD. On CIFAR-10 and CIFAR-100, we used baseline models including ShuffleNet, ResNet18 and ResNet34. Besides, WRN-28-10 was also used for CIFAR-100. The baselines were trained for 200 epochs with batch size 128. The initial learning rate is 0.1 and then divided at the 60th, 120th, and 160th epochs. We used SGD optimizer with momentum of 0.9, and weight decay was set as 5e−4. The average top-1 accuracy (%) of baselines for different networks is reported in Table 1.

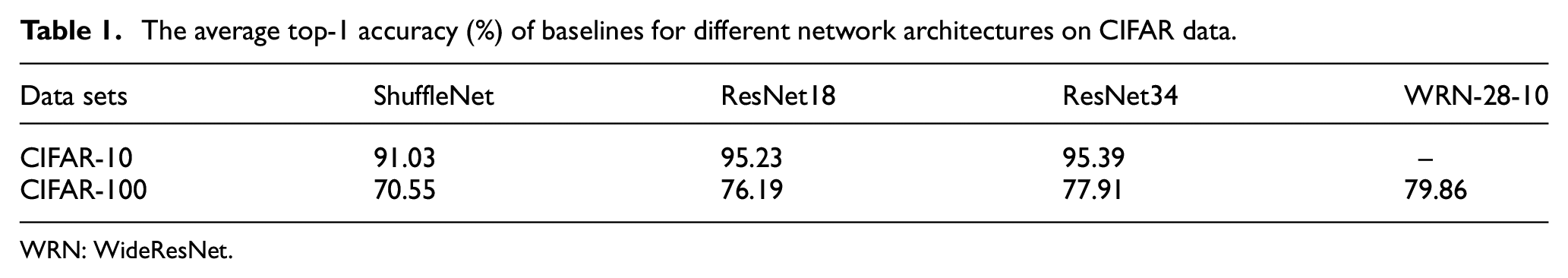

Table 1.

The average top-1 accuracy (%) of baselines for different network architectures on CIFAR data.

Data sets	ShuffleNet	ResNet18	ResNet34	WRN-28-10
CIFAR-10	91.03	95.23	95.39	–
CIFAR-100	70.55	76.19	77.91	79.86

WRN: WideResNet.

Results on CIFAR-10

We first compare our proposed FFCL based on two peer networks on CIFAR-10 data set with DML,¹³ KDCL,¹⁴ FFL,¹⁶ and Tf-KD.¹⁹ We considered five pairs of peer networks, selected from ResNet and ShuffleNet. The top-1 accuracies over three individual runs with the corresponding standard deviations derived by each model with different architecture settings are reported in Table 2.

Table 2.

The top-1 accuracy (%) over three individual runs with the corresponding standard deviations on CIFAR-10 data set.

Network1 (θ₁)	ResNet18	ResNet18	ResNet34	ShuffleNet	ShuffleNet
Network2 (θ₂)	ResNet18	ResNet34	ResNet34	ShuffleNet	ResNet18
Tf-KD	95.26 ± 0.10	95.26 ± 0.10	95.59 ± 0.08	92.29 ± 0.21	92.29 ± 0.21
KD	95.35 ± 0.08	95.32 ± 0.04	95.49 ± 0.16	91.79 ± 0.08	91.79 ± 0.08
DML_θ₁	95.06 ± 0.05	95.10 ± 0.06	95.45 ± 0.04	92.01 ± 0.12	91.68 ± 0.16
DML_θ₂	95.07 ± 0.10	95.43 ± 0.21	95.48 ± 0.19	91.92 ± 0.13	95.17 ± 0.11
FFL_θ₁	94.93 ± 0.11	94.80 ± 0.12	95.15 ± 0.23	90.67 ± 0.07	91.26 ± 0.15
FFL_θ₂	94.86 ± 0.12	95.33 ± 0.20	95.27 ± 0.03	90.96 ± 0.18	95.05 ± 0.11
FFL_θ_f	95.49 ± 0.06	95.70 ± 0.11	95.74 ± 0.11	92.07 ± 0.11	95.05 ± 0.10
KDCL_θ₁	95.15 ± 0.08	95.03 ± 0.10	95.25 ± 0.17	92.06 ± 0.12	91.76 ± 0.13
KDCL_θ₂	95.11 ± 0.07	95.34 ± 0.18	95.19 ± 0.02	92.12 ± 0.06	95.02 ± 0.18
FFCL_θ₁ (ours)	95.43 ± 0.11	95.36 ± 0.18	95.64 ± 0.09	92.80 ± 0.17	92.94 ± 0.10
FFCL_θ₂ (ours)	95.30 ± 0.15	95.75 ± 0.14	95.66 ± 0.08	92.68 ± 0.08	95.48 ± 0.15
FFCL_θ_f (ours)	95.72 ± 0.13	96.01 ± 0.18	96.05 ± 0.04	93.30 ± 0.15	95.50 ± 0.16

KD: knowledge distillation; DML: deep mutual learning; FFL: feature fusion learning; KDCL: knowledge distillation via collaborative learning.

In each column, the highest score is in boldface, and the score with underline is the highest among the competing methods except ours.

Equipped with the feature fusion mechanism during collaborative learning, our FFCL_θ_f achieved the highest top-1 accuracies across the five architecture settings, gaining improvement on the runner up by 0.24%–0.8%. Comparing the two peer networks (i.e. $θ_{1}$ and $θ_{2}$ ) separately, one can also observe that FFCL_θ₁ and FFCL_θ₂ outperformed their counterparts with DML, FFL, and KDCL. Consequently, FFCL performed consistently better than all the other competitors considered on the CIFAR-10 data set. The favorable performance of FFCL can be attributed to the following facts: (1) the fused features contain more comprehensive and informative knowledge, (2) the fused features are more expressive than the features from the middle layer of a single network, and (3) the network regularization process also promotes the improvement of model performance.

Results on CIFAR-100

We further compared FFCL based on two peer networks using CIFAR-100 with KD,⁸ DML,¹³ KDCL,¹⁴ FFL,¹⁶ and Tf-KD.¹⁹ Similarly, we considered six pairs of peer networks that were selected from ResNet, WRN, and ShuffleNet.

Table 3 shows the performance of all the models over the six architecture settings. Similar to what we observed on CIFAR-10, FFCL outperformed all the other state-of-the-art methods with a notable margin, which further demonstrates the effectiveness of FFCL in fusing features. Specifically, with network $θ_{1}$ in the peer networks of ResNet18-ResNet18, our FFCL method gained an improvement on KD, Tf-KD, DML, FFL, and KDCL by 0.54%, 0.73%, 1.4%, 2.22%, and 1.04%, respectively. And with network $θ_{2}$ , FFCL method beat those competitors by 0.41%, 0.6%, 1.48%, 2%, and 0.75%, respectively. Compared with FFL_θ_f that also use a feature fusion mechanism, the performance of FFCL_θ_f won by 1.81%. This set of experimental results demonstrates that the performance of the peer networks can be improved through the network regularization process, and then the peer networks can output features with stronger expression, which can be input into the fused classifier to obtain better performance.

Table 3.

The average top-1 accuracy (%) over three individual runs with the corresponding standard deviations on CIFAR-100 data set.

Network1 (θ₁)	ResNet18	ResNet18	ResNet34	ShuffleNet	ShuffleNet	WRN-28-10
Network2 (θ₂)	ResNet18	ResNet34	ResNet34	ShuffleNet	ResNet18	WRN-28-10
KD	77.11 ± 0.12	77.45 ± 0.11	78.17 ± 0.14	72.11 ± 0.45	72.11 ± 0.45	80.12 ± 0.22
Tf-KD	76.92 ± 0.03	76.92 ± 0.03	77.77 ± 0.28	72.24 ± 0.06	72.24 ± 0.06	80.33 ± 0.24
DML_θ₁	76.25 ± 0.16	76.22 ± 0.23	77.51 ± 0.08	70.54 ± 0.20	70.67 ± 0.36	79.93 ± 0.08
DML_θ₂	76.04 ± 0.24	77.27 ± 0.30	77.62 ± 0.05	70.28 ± 0.19	76.32 ± 0.22	80.25 ± 0.07
FFL_θ₁	75.43 ± 0.29	75.51 ± 0.13	76.54 ± 0.31	69.19 ± 0.20	70.18 ± 0.17	79.23 ± 0.19
FFL_θ₂	75.52 ± 0.33	77.11 ± 0.13	77.00 ± 0.33	69.70 ± 0.33	75.93 ± 0.32	79.08 ± 0.18
FFL_θ_f	77.53 ± 0.14	78.37 ± 0.12	78.83 ± 0.18	69.32 ± 0.18	75.54 ± 0.33	80.87 ± 0.09
KDCL_θ₁	76.61 ± 0.18	76.69 ± 0.17	78.11 ± 0.08	70.40 ± 0.22	70.37 ± 0.29	79.90 ± 0.17
KDCL_θ₂	76.77 ± 0.15	77.93 ± 0.19	77.97 ± 0.18	70.31 ± 0.31	76.99 ± 0.22	80.19 ± 0.02
FFCL_θ₁ (ours)	77.65 ± 0.26	77.34 ± 0.10	77.90 ± 0.04	70.39 ± 0.03	71.18 ± 0.17	79.04 ± 0.11
FFCL_θ₂ (ours)	77.52 ± 0.17	78.05 ± 0.19	78.24 ± 0.18	70.31 ± 0.19	77.50 ± 0.01	79.19 ± 0.17
FFCL_θ_f (ours)	79.34 ± 0.18	79.53 ± 0.07	79.98 ± 0.10	72.36 ± 0.14	77.52 ± 0.10	81.37 ± 0.17

WRN: WideResNet; KD: knowledge distillation; DML: deep mutual learning; FFL: feature fusion learning; KDCL: knowledge distillation via collaborative learning.

In each column, the highest score is in boldface, and the score with underline is the highest among the competing methods except ours.

Further experiments

To further investigate the classification performance of the proposed FFCL, we conducted the comparative experiments on CIFAR-100 among the collaborative learning methods using multiple peer networks (i.e. more than two peer networks) including DML,¹³ KDCL,¹⁴ FFL,¹⁶ and our FFCL. For easy implementation in the experiments, the collaborative learning was carried out on three different peer architectures composed of three peer networks.

The top-1 accuracies over three individual runs with the corresponding standard deviations derived by each peer model with different architecture settings are reported in Table 4. It can be seen that FFCL_θ_i significantly outperforms their counterparts with FFL and DML, and our FFCL_θ_f performs very better than FFL_θ_f. Moreover, through the experimental results in Tables 3 and 4, our FFCL_θ_f with three peer networks obtains the counterpart with two peer networks. Thus, the comparative experiments on the peer architectures of two and three student networks show that our proposed feature fusion-based collaborative distillation is very effective.

Table 4.

The average top-1 accuracy (%) of FFL, DML, and our FFCL using three peer student networks over three individual runs with the corresponding standard deviations on CIFAR-100 data set.

Network1 (θ₁)	ShuffleNet	ResNet18	ShuffleNet
Network2 (θ₂)	ResNet18	ResNet18	ResNet18
Network3 (θ₂)	ResNet18	ResNet18	ResNet34
DML_θ₁	70.64 ± 0.24	76.60 ± 0.17	70.79 ± 0.10
DML_θ₂	76.47 ± 0.12	76.34 ± 0.19	76.31 ± 0.49
DML_θ₃	76.54 ± 0.14	76.56 ± 0.06	78.05 ± 0.33
FFL_θ₁	70.19 ± 0.34	75.91 ± 0.23	70.07 ± 0.20
FFL_θ₂	75.42 ± 0.05	75.82 ± 0.33	75.65 ± 0.18
FFL_θ₃	75.83 ± 0.18	75.33 ± 0.37	76.90 ± 0.25
FFL_θ_f	77.73 ± 0.19	78.41 ± 0.12	78.41 ± 0.23
KDCL_θ₁	70.40 ± 0.04	76.85 ± 0.11	70.44 ± 0.30
KDCL_θ₂	77.02 ± 0.26	77.19 ± 0.13	77.14 ± 0.24
KDCL_θ₃	76.76 ± 0.13	76.89 ± 0.34	78.35 ± 0.08
FFCL_θ₁ (ours)	71.26 ± 0.37	77.37 ± 0.13	71.04 ± 0.21
FFCL_θ₂ (ours)	77.43 ± 0.34	77.21 ± 0.12	77.25 ± 0.18
FFCL_θ₃ (ours)	77.29 ± 0.34	77.44 ± 0.15	77.85 ± 0.16
FFCL_θ_f (ours)	79.21 ± 0.28	79.86 ± 0.13	79.50 ± 0.13

DML: deep mutual learning; FFL: feature fusion learning; KDCL: knowledge distillation via collaborative learning. The highest score are in bold.

Ablation study

Our FFCL framework transfers variety kinds of knowledge while training the peer networks through collaborative learning. We verify the importance of each kind of knowledge with a set of ablation studies in this section. As shown in Table 5, we carried out experiments under seven settings. The two peer networks were set to ResNet18. RK means the response knowledge, namely, the knowledge of the output layer transferred between networks, it corresponds to $L_{θ_{k}}^{r}$ in equation (3) or $L_{θ_{k'}}^{r}$ in equation (4). FK indicates the feature knowledge, that is, the feature knowledge of the middle layers transferred between networks via the fused module, which corresponds to $L_{θ_{k}}^{f}$ in equation (1) or $L_{θ_{k'}}^{f}$ in equation (2). NRK represents the network regularization knowledge corresponding to $L_{θ_{k}}^{s}$ in equation (7) or $L_{θ_{k'}}^{s}$ in equation (8). We excluded one or two of those three components of FFCL in turn, which gives us seven variations indicated by Cases A–G in Table 5. Specifically, these cases are described as follows:

Case A represents our proposed FFCL scheme with the objective function $L_{θ_{k}}^{D}$ in equation (9) for network $θ_{k}$ and $L_{θ_{k'}}^{D}$ in equation (12) for network $θ_{k'}$ .

Case B only retains the feature knowledge and the network regularization knowledge, where the objective function for the peer network $θ_{k}$ is formulated as ${aL}_{θ_{k}}^{f} + {bL}_{θ_{k}}^{s} + {cL}_{θ_{k}}^{CE} + {dL}_{f}^{CE}$ .

Case C keeps the response knowledge and the network regularization knowledge, where the objective function for the peer network $θ_{k}$ is formulated as ${aL}_{θ_{k}}^{r} + {bL}_{θ_{k}}^{s} + {cL}_{θ_{k}}^{CE}$ .

Case D excludes the network regularization knowledge where the objective function for the peer network $θ_{k}$ is formulated as ${aL}_{θ_{k}}^{col} + {bL}_{f}^{CE} + {cL}_{θ_{k}}^{CE}$ .

Case E only includes the response knowledge where the objective function for the peer network $θ_{k}$ is formulated as ${aL}_{θ_{k}}^{col} + {bL}_{θ_{k}}^{CE}$ .

Case F only includes the feature knowledge where the objective function for the peer network $θ_{k}$ is formulated as ${aL}_{θ_{k}}^{f} + {bL}_{θ_{k}}^{CE} + {cL}_{f}^{CE}$ .

Case G only includes the network regularization knowledge where the objective function for the peer network $θ_{k}$ is formulated as ${aL}_{θ_{k}}^{s} + {bL}_{θ_{k}}^{CE}$ .

Table 5.

Ablation study of FFCL in terms of the average top-1 accuracy over three individual runs with the corresponding standard deviations on CIFAR-100. ResNet18-ResNet18 was selected as the peer architecture.

Case	RK	FK	NRK	FFCL_θ₁	FFCL_θ₂	FFCL_θ_f
A	✓	✓	✓	77.65 ± 0.26	77.52 ± 0.17	79.34 ± 0.18
B	✗	✓	✓	75.58 ± 0.22	75.99 ± 0.14	78.38 ± 0.10
C	✓	✗	✓	77.23 ± 0.23	77.14 ± 0.05	–
D	✓	✓	✗	76.91 ± 0.15	76.88 ± 0.02	78.84 ± 0.23
E	✓	✗	✗	76.25 ± 0.16	76.04 ± 0.24	–
F	✗	✓	✗	75.43 ± 0.29	75.52 ± 0.33	77.53 ± 0.14
G	✗	✗	✓	76.64 ± 0.07	–	–

RK: response knowledge; FK: feature knowledge; NRK: network regularization knowledge; FFCL: feature fusion-based collaborative learning. The bold values are indicate that in the ablation experiments, the complete model we proposed can achieve the best performance in the experiments.

It should be noted that $a$ to $g$ above are parameters in the variant cases.

According to the ablation results in Table 5, the removal of any knowledge will cause performance degradation. More importantly, the FFCL_θ_f via the fused feature knowledge transfer performs better than FFCL_θ₁ and FFCL_θ₂ with and without using fused feature. Thus, these ablation results verify the effectiveness of our proposed FFCL method via collaborative learning, network regularization, and feature fusion.

Conclusion

In this article, we have proposed a novel KD framework called FFCL. Through collaborative learning, the proposed FFCL method effectively concatenates the features of peer networks to generate a more expressive feature map for transferring feature knowledge between peer networks. Meanwhile, it also transfers the response knowledge in the output layers between the peer networks during the distillation process. We have also introduced a regularization process, which eliminates the trouble of training for a large teacher network and provides a positive knowledge for the student peer network, leading to a further improved performance. The insights of collaborative KD given by FFCL can potentially facilitate the future works.

Footnotes

Handling Editor: Yanjiao Chen

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The work was, in part, supported by the National Natural Science Foundation of China (grant nos 61976107 and 61502208) and the Postgraduate Research and Practice Innovation Program of Jiangsu Province (grant no. KYCX20_3085).

ORCID iD

Jianping Gou

References

Jung

Lee

Park

, et al. Fair feature distillation for visual recognition. In: Proceedings of the IEEE conference on computer vision and pattern recognition (CVPR), New Orleans, LA, 20–25 June 2021, pp.12115–12124. New York: IEEE.

Aljunid

Huchaiah

MD.

Multi-model deep learning approach for collaborative filtering recommendation system. CAAI Trans Intell Technol 2020; 5(4): 268–275.

Liu

, et al. Improving stylized neural machine translation with iterative dual knowledge transfer. In: Proceedings of the 30th international joint conference on artificial intelligence (IJCAI), Montreal, QC, Canada, 19–27 August 2021, pp.3971–3977.

Han

Pool

Tran

, et al. Learning both weights and connections for efficient neural networks. In: Proceedings of the 28th international conference on neural information processing systems (NIPS), Montreal, QC, Canada, 7–12 December 2015, pp.1135–1143. Cambridge, MA: The MIT Press.

Kadav

Durdanovic

, et al. Pruning filters for efficient ConvNets. In: Proceedings of the international conference on learning representations (ICLR), Toulon, 24–26 April 2017.

Wen

, et al. Coordinating filters for faster deep neural networks. In: Proceedings of the IEEE international conference on computer vision (ICCV), Venice, 22–29 October 2017, pp.658–666. New York: IEEE.

Grachev

Ignatov

Savchenko

, et al. Neural networks compression for language modeling. In: Proceedings of the international conference on pattern recognition and machine intelligence (PReMI), Kolkata, India, 5–8 December 2017, pp.1135–1143. Cham: Springer.

Hinton

Vinyals

Dean

. Distilling the knowledge in a neural network, https://arxiv.org/abs/1503.02531

Romero

Ballas

Kahou

, et al. FitNets: hints for thin deep nets. In: Proceedings of the international conference on learning representations (ICLR), San Diego, CA, 7–9 May 2015.

10.

Chen

Mei

J-P

Zhang

, et al. Cross-layer distillation with semantic calibration. In: Proceedings of the 35th AAAI conference on artificial intelligence: a virtual conference, Vancouver, BC, Canada, 2–9 February 2021, pp.7028–7036. Menlo Park, CA: Association for the Advancement of Artificial Intelligence (AAAI).

11.

Shen

Wang

Yin

, et al. Progressive network grafting for few-shot knowledge distillation. In: Proceedings of the 35th AAAI conference on artificial intelligence: a virtual conference, Vancouver, BC, Canada, 2–9 February 2021, pp.2541–2549. Menlo Park, CA: Association for the Advancement of Artificial Intelligence (AAAI).

12.

Jafari

Rezagholizadeh

Sharma

, et al. Annealing knowledge distillation. In: Proceedings of the European conference on artificial life (ECAL), Klagenfurt, 17–20 May 2021. IEEE.

13.

Zhang

Xiang

Hospedales

, et al. Deep mutual learning. In: Proceedings of the IEEE/CVF conference on computer vision and pattern recognition (CVPR), Salt Lake City, UT, 18–23 June 2018, pp.4320–4328. New York: IEEE.

14.

Guo

Wang

, et al. Online knowledge distillation via collaborative learning. In: Proceedings of the IEEE conference on computer vision and pattern recognition (CVPR), Seattle, WA, 14–19 June 2020, pp.11017–11026. New York: IEEE.

15.

Hou

Liu

Wang

. DualNet: learn complementary features for image recognition. In: Proceedings of the IEEE international conference on computer vision (ICCV), Venice, 22–29 October 2017, pp.502–510. New York: IEEE.

16.

Kim

Hyun

Chung

, et al. Feature fusion for online mutual knowledge distillation. In: Proceedings of the international conference on pattern recognition (ICPR), Milan, 10–15 January 2021, pp.4619–4625. IEEE.

17.

Zhang

Zheng

H-T

, et al. ShuffleNet V2: practical guidelines for efficient CNN architecture design. In: Proceedings of the European conference on computer vision (ECCV), Munich, 8–14 September 2018, pp.122–138. Cham: Springer.

18.

Gou

Maybank

, et al. Knowledge distillation: a survey. Int J Comput Vision 2021; 129(6): 1789–1819.

19.

Yuan

Tay

, et al. Revisiting knowledge distillation via label smoothing regularization. In: Proceedings of the IEEE conference on computer vision and pattern recognition (CVPR), Seattle, WA, 14–19 June 2020, pp.3909–3911. New York: IEEE.

20.

Zhang

Song

Gao

, et al. Be your own teacher: improve the performance of convolutional neural networks via self distillation. In: Proceedings of the IEEE/CVF international conference on computer vision (ICCV), Seoul, South Korea, 27 October–2 November 2019, pp.3712–3721. New York: IEEE.

21.

Phuong

Lampert

. Distillation-based training for multi-exit architectures. In: Proceedings of the IEEE/CVF international conference on computer vision (ICCV), Seoul, South Korea, 27 October–2 November 2019, pp.1355–1364. New York: IEEE.

22.

Yun

Park

Lee

, et al. Regularizing class-wise predictions via self-knowledge distillation. In: Proceedings of the IEEE/CVF conference on computer vision and pattern recognition (CVPR), Seattle, WA, 14–19 June 2020, pp.13873–13882. New York: IEEE.

23.

Boo

Shin

Choi

, et al. Stochastic precision ensemble: self-knowledge distillation for quantized deep neural networks. In: Proceedings of the 35th AAAI conference on artificial intelligence: a virtual conference, Vancouver, BC, Canada, 2–9 February 2021, pp.6794–6802. Menlo Park, CA: Association for the Advancement of Artificial Intelligence (AAAI).

24.

Gong

. Peer collaborative learning for online knowledge distillation. In: Proceedings of the 35th AAAI conference on artificial intelligence: a virtual conference, Vancouver, BC, Canada, 2–9 February 2021, pp.1–9. Menlo Park, CA: Association for the Advancement of Artificial Intelligence (AAAI).

25.

Lan

Zhu

Gong

Knowledge distillation by on-the-fly native ensemble. In: Proceedings of the 32nd international conference on neural information processing systems (NIPS), Montreal, QC, Canada, 3–8 December 2018, pp.7517–7527. Red Hook, NY: Curran Associates, Inc.

26.

Chen

Mei

Wang

, et al. Online knowledge distillation with diverse peers. In: Proceedings of the 35th AAAI conference on artificial intelligence: a virtual conference, Vancouver, BC, Canada, 2–9 February 2021, pp.7028–7036. Menlo Park, CA: Association for the Advancement of Artificial Intelligence (AAAI).

27.

Krizhevsky

Hinton

. Learning multiple layers of features from tiny images. Master’s thesis, Department of Computer Science, University of Toronto, 2009, Citeseer.

28.

Zhang

Ren

, et al. Deep residual learning for image recognition. In: Proceedings of the IEEE conference on computer vision and pattern recognition (CVPR), Las Vegas, NV, 27–30 June 2016, pp.770–778. New York: IEEE.

29.

Zagoruyko

Komodakis

. Wide residual networks. In: Proceedings of the British machine vision conference (BMVC), York, 19–22 September 2016. BMVA Press.
